Digital output module DQ 8x24VDC/0.5A HF (6ES7132-6BF00-0CA0)
Manual, 12/2017, A5E03576680-AE 3
Preface
Purpose of the documentation
This manual supplements the system manual ET 200SP distributed I/O system
(http://support.automation.siemens.com/WW/view/en/58649293).
Functions that generally relate to the system are described in this manual.
The information provided in this manual and in the system/function manuals supports you in
commissioning the system.
Changes compared to previous version
Compared to the previous version, this manual contains the following change:
Number in pack: 10 units (6ES7132-6BF00-2CA0)
Conventions
CPU: When the term "CPU" is used in this manual, it applies to the CPUs of the S7-1500
automation system as well as to the CPUs/interface modules of the distributed I/O system
ET 200SP.
STEP 7: In this documentation, "STEP 7" is used as a synonym for all versions of the
configuration and programming software "STEP 7 (TIA Portal)".
Please also observe notes marked as follows:
Note
A note contains important information on the product described in the documentation, on the
handling of the prod
uct or on the section of the documentation to which particular attention
should be paid.

Preface
Digital output module DQ 8x24VDC/0.5A HF (6ES7132-6BF00-0CA0)
4Manual, 12/2017, A5E03576680-AE
Security information
Siemens provides products and solutions with industrial security functions that support the
secure operation of plants, systems, machines and networks.
In order to protect plants, systems, machines and networks against cyber threats, it is
necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial
security concept. Siemens' products and solutions constitute one element of such a concept.
Customers are responsible for preventing unauthorized access to their plants, systems,
machines and networks. Such systems, machines and components should only be
connected to an enterprise network or the internet if and to the extent such a connection is
necessary and only when appropriate security measures (e.g. firewalls and/or network
segmentation) are in place.
For additional information on industrial security measures that may be implemented, please
visit (https://www.siemens.com/industrialsecurity).
Siemens' products and solutions undergo continuous development to make them more
secure. Siemens strongly recommends that product updates are applied as soon as they are
available and that the latest product versions are used. Use of product versions that are no
longer supported, and failure to apply the latest updates may increase customers' exposure
to cyber threats.
To stay informed about product updates, subscribe to the Siemens Industrial Security RSS
Feed under (https://www.siemens.com/industrialsecurity).

Digital output module DQ 8x24VDC/0.5A HF (6ES7132-6BF00-0CA0)
Manual, 12/2017, A5E03576680-AE 5
Table of contents
Preface ................................................................................................................................................... 3
1 Documentation guide .............................................................................................................................. 6
2 Product overview .................................................................................................................................. 11
2.1 Properties................................................................................................................................11
3 Wiring ................................................................................................................................................... 14
3.1 Wiring and block diagram .......................................................................................................14
4 Parameters/address space ................................................................................................................... 17
4.1 Parameters .............................................................................................................................17
4.2 Explanation of parameters ......................................................................................................19
4.3 Address space ........................................................................................................................20
5 Interrupts/diagnostics alarms................................................................................................................. 27
5.1 Status and error displays ........................................................................................................27
5.2 Interrupts.................................................................................................................................29
5.3 Diagnostics alarms..................................................................................................................30
6 Technical specifications ........................................................................................................................ 31
6.1 Technical specifications ..........................................................................................................31
A Parameter data record .......................................................................................................................... 35
A.1 Parameter assignment and structure of parameter data record.............................................35

Digital output module DQ 8x24VDC/0.5A HF (6ES7132-6BF00-0CA0)
6Manual, 12/2017, A5E03576680-AE
Documentation guide
1
The documentation for the SIMATIC ET 200SP distributed I/O system is arranged into three
areas.
This arrangement enables you to access the specific content you require.

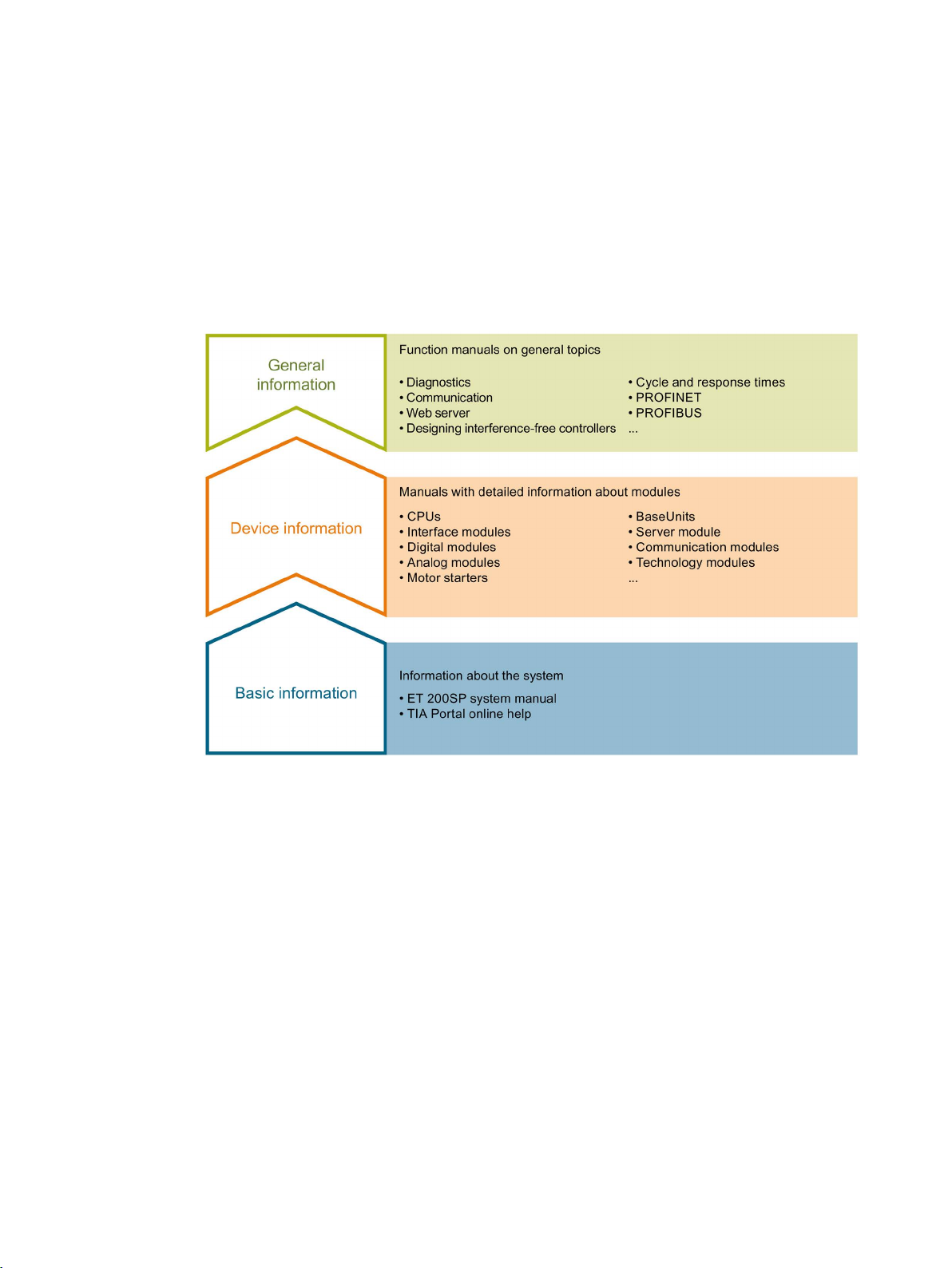

Basic information
The system manual describes in detail the configuration, installation, wiring and
commissioning of the SIMATIC ET 200SP. distributed I/O system. The STEP 7 online help
supports you in the configuration and programming.
Device information
Product manuals contain a compact description of the module-specific information, such as
properties, wiring diagrams, characteristics and technical specifications.

Documentation guide
Digital output module DQ 8x24VDC/0.5A HF (6ES7132-6BF00-0CA0)
Manual, 12/2017, A5E03576680-AE 7
General information
The function manuals contain detailed descriptions on general topics regarding the SIMATIC
ET 200SP distributed I/O system, e.g. diagnostics, communication, Web server, motion
control and OPC UA.
You can download the documentation free of charge from the Internet
(http://w3.siemens.com/mcms/industrial-automation-systems-simatic/en/manual-
overview/tech-doc-et200/Pages/Default.aspx).
Changes and supplements to the manuals are documented in a Product Information.
You can download the product information free of charge from the Internet
(https://support.industry.siemens.com/cs/us/en/view/73021864).
Manual Collection ET 200SP
The Manual Collection contains the complete documentation on the SIMATIC ET 200SP
distributed I/O system gathered together in one file.
You can find the Manual Collection on the Internet
(http://support.automation.siemens.com/WW/view/en/84133942).
"mySupport"
With "mySupport", your personal workspace, you make the most of your Industry Online
Support.
In "mySupport" you can store filters, favorites and tags, request CAx data and put together
your personal library in the Documentation area. Furthermore, your data is automatically
filled into support requests and you always have an overview of your current requests.
You need to register once to use the full functionality of "mySupport".
You can find "mySupport" in the Internet (https://support.industry.siemens.com/My/ww/en).
"mySupport" - Documentation
In the Documentation area of "mySupport", you have the possibility to combine complete
manuals or parts of them to make your own manual.
You can export the manual in PDF format or in an editable format.
You can find "mySupport" - Documentation in the Internet
(http://support.industry.siemens.com/My/ww/en/documentation).

Documentation guide
Digital output module DQ 8x24VDC/0.5A HF (6ES7132-6BF00-0CA0)
8Manual, 12/2017, A5E03576680-AE
"mySupport" - CAx Data
In the CAx Data area of "mySupport", you can have access the latest product data for your
CAx or CAe system.
You configure your own download package with a few clicks.
In doing so you can select:
●Product images, 2D dimension drawings, 3D models, internal circuit diagrams, EPLAN
macro files
●Manuals, characteristics, operating manuals, certificates
●Product master data
You can find "mySupport" - CAx Data in the Internet
(http://support.industry.siemens.com/my/ww/en/CAxOnline).
Application examples
The application examples support you with various tools and examples for solving your
automation tasks. Solutions are shown in interplay with multiple components in the system -
separated from the focus in individual products.
You can find the application examples on the Internet
(https://support.industry.siemens.com/sc/ww/en/sc/2054).
TIA Selection Tool
With the TIA Selection Tool, you can select, configure and order devices for Totally
Integrated Automation (TIA).
This tool is the successor of the SIMATIC Selection Tool and combines the known
configurators for automation technology into one tool.
With the TIA Selection Tool, you can generate a complete order list from your product
selection or product configuration.
You can find the TIA Selection Tool on the Internet
(http://w3.siemens.com/mcms/topics/en/simatic/tia-selection-tool).

Documentation guide
Digital output module DQ 8x24VDC/0.5A HF (6ES7132-6BF00-0CA0)
Manual, 12/2017, A5E03576680-AE 9
SIMATIC Automation Tool
You can use the SIMATIC Automation Tool to run commissioning and maintenance activities
simultaneously on various SIMATIC S7 stations as a bulk operation independently of the TIA
Portal.
The SIMATIC Automation Tool provides a multitude of functions:
●Scanning of a PROFINET/Ethernet network and identification of all connected CPUs
●Address assignment (IP, subnet, gateway) and station name (PROFINET device) to a
CPU
●Transfer of the data and the programming device/PC time converted to UTC time to the
module
●Program download to CPU
●Operating mode switchover RUN/STOP
●Localization of the CPU by means of LED flashing
●Reading out CPU error information
●Reading the CPU diagnostic buffer
●Reset to factory settings
●Updating the firmware of the CPU and connected modules
You can find the SIMATIC Automation Tool on the Internet
(https://support.industry.siemens.com/cs/ww/en/view/98161300).
PRONETA
With SIEMENS PRONETA (PROFINET network analysis), you analyze the plant network
during commissioning. PRONETA features two core functions:
●The topology overview independently scans PROFINET and all connected components.
●The IO check is a fast test of the wiring and the module configuration of a system.
You can find SIEMENS PRONETA on the Internet
(https://support.industry.siemens.com/cs/ww/en/view/67460624).

Documentation guide
Digital output module DQ 8x24VDC/0.5A HF (6ES7132-6BF00-0CA0)
10 Manual, 12/2017, A5E03576680-AE
SINETPLAN
SINETPLAN, the Siemens Network Planner, supports you in planning automation systems
and networks based on PROFINET. The tool facilitates professional and predictive
dimensioning of your PROFINET installation as early as in the planning stage. In addition,
SINETPLAN supports you during network optimization and helps you to exploit network
resources optimally and to plan reserves. This helps to prevent problems in commissioning
or failures during productive operation even in advance of a planned operation. This
increases the availability of the production plant and helps improve operational safety.
The advantages at a glance
●Network optimization thanks to port-specific calculation of the network load
●Increased production availability thanks to online scan and verification of existing systems
●Transparency before commissioning through importing and simulation of existing STEP 7
projects
●Efficiency through securing existing investments in the long term and optimal exploitation
of resources
You can find SINETPLAN on the Internet (https://www.siemens.com/sinetplan).

Digital output module DQ 8x24VDC/0.5A HF (6ES7132-6BF00-0CA0)
Manual, 12/2017, A5E03576680-AE 11
Product overview
2
2.1
Properties
Article number
6ES7132-6BF00-0CA0 (Number in pack: 1 unit)
6ES7132-6BF00-2CA0 (Number in pack: 10 units)

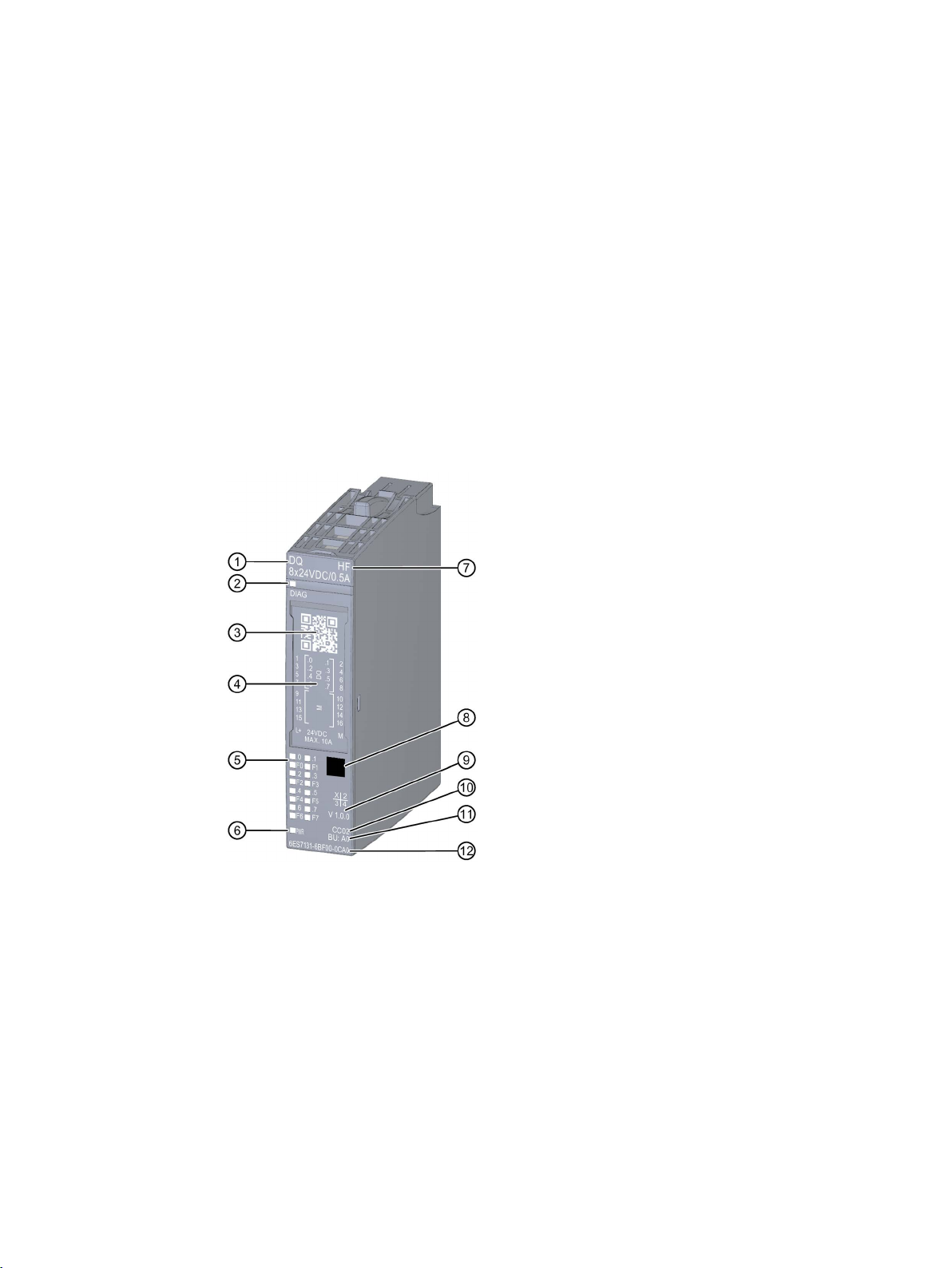

View of the module
①
Module type and name
⑦
Function class
②
LED for diagnostics
⑧
Color coding module type
③
2D matrix code
⑨
Function and firmware version
④
Wiring diagram
⑩
Color code for selecting the color identification labels
⑤
LEDs for channel status
⑪
BU type
⑥
LED for supply voltage
⑫
Article number
Figure 2-1 View of the module DQ 8x24VDC/0,5A HF

Product overview
2.1 Properties
Digital output module DQ 8x24VDC/0.5A HF (6ES7132-6BF00-0CA0)
12 Manual, 12/2017, A5E03576680-AE
Properties
The module has the following technical properties:
●Digital output module with 8 outputs
●Source output (PNP, P-switching)
●Supply voltage L+
●Output current 0.5 A (per channel)
●Configurable diagnostics (per channel)
●Configurable substitute values (per channel)
●Suitable for solenoid valves, DC contactors, and indicator lights
●Safety-related shutdown
The module supports the following functions:
Table 2- 1 Version dependencies of the functions
Function
HW version
FW ver-
sion
STEP 7
GSD file
TIA Portal
V5.x
PROFINET IO
PROFIBUS DP
Firmware update FS01 V1.0.0 or
higher
V14 SP1 or
higher
V5.5 SP3 or
higher
X X
Identification data I&M0 to
I&M3
FS01 V1.0.0 or
higher
V12 or higher V5.5 SP3 or
higher with
HSP 0230
V1.0 or higher
X X
Configuration in RUN FS01 V1.0.0 or
higher
V12 or higher V5.5 SP3 or
higher
X X
PROFIenergy FS01 V1.0.0 or
higher
V14 SP1 or
higher
V5.5 SP3 or
higher
X X
Value status FS01 V1.1.0 or
higher
V14 SP1 or
higher
V5.5 SP3 or
higher with
HSP 0230
V2.0 or higher
X X
Isochronous mode FS01 V1.1.0 or
higher
V14 SP1 or
higher
V5.5 SP3 or
higher
X X
Module-internal shared
input (MSI)
FS01 V1.2.0 or
higher
V14 SP1 V13
or higher
V5.5 SP3 or
higher
X X
Configurable submod-
ule/submodules for shared
device
FS01 V2.0.0 or
higher
V14 SP1 or
higher
V5.5 SP3 or
higher
X X

Product overview
2.1 Properties
Digital output module DQ 8x24VDC/0.5A HF (6ES7132-6BF00-0CA0)
Manual, 12/2017, A5E03576680-AE 13
Accessories
The following accessories are supplied with the module and can also be ordered separately
as spare parts:
●Labeling strips
●Color identification labels
●Reference identification label
●Shield connector
See also
You can find additional information on the accessories in the system manual Distributed I/O
System ET 200SP.
See also
ET 200SP distributed I/O system
(https://support.industry.siemens.com/cs/ww/en/view/58649293)

Digital output module DQ 8x24VDC/0.5A HF (6ES7132-6BF00-0CA0)
14 Manual, 12/2017, A5E03576680-AE
Wiring
3
3.1
Wiring and block diagram
This section includes the block diagram of the DQ 8x24VDC/0.5A HF module with the
terminal assignments for a 1-wire, 2-wire and 3-wire connection.
You can use and combine the different wiring options for all channels.
You can find information on wiring the BaseUnit in the system manual Distributed I/O System
ET 200SP (http://support.automation.siemens.com/WW/view/en/58649293).
Note
•
The load group of the module must begin with a light-colored BaseUnit. Keep this in mind
also during the configuration.
Note
Cross circuit at output
Be aware that voltage from a cross
-circuit at the output can feed L+ to modules.

Wiring
3.1 Wiring and block diagram
Digital output module DQ 8x24VDC/0.5A HF (6ES7132-6BF00-0CA0)
Manual, 12/2017, A5E03576680-AE 15
Wiring: 1 and 2-wire connection of actuators
The following figure shows an example of the terminal assignment of the digital output
module DQ 8×24VDC/0.5A HF on the BaseUnit BU type A0 without AUX terminals (1- and
2-wire connection).
①
1-wire connection 24 V DC Supply voltage L+ (infeed for light-colored BaseUnit
only)
②
2-wire connection
M
Ground
③
Backplane bus interface P1, P2, AUX Internal self-assembling voltage buses
Connection to left (dark-colored BaseUnit)
Connection to left interrupted (light-colored Ba-
seUnit)
④
Output electronics
DQn
Output signal, channel n
⑤
Polarity reversal protection
DIAG
Error or diagnostics LED (green, red)
⑥
Color-coded label with color code CC02 (op-
tional)
.0 to .7 Channel status LED (green)
⑦
Filter connection supply voltage (only when
light-colored BaseUnit is present)
F0 to F7 Channel fault LED (red)

Wiring
3.1 Wiring and block diagram
Digital output module DQ 8x24VDC/0.5A HF (6ES7132-6BF00-0CA0)
16 Manual, 12/2017, A5E03576680-AE
PWR
Power LED (green)
Figure 3-1 Block diagram and terminal assignment for 1- and 2-wire connection of actuators
Wiring: 3-wire connection of actuators
The following figure shows an example of the terminal assignment of the digital output
module DQ 8×24VDC/0.5A HF on the BaseUnit BU type A0 with AUX terminals (3-wire
connection).
①
3-wire connection
1 A to 10 A
AUX terminals
②
Color-coded labels with color codes CC02 and
CC71 (optional)
PE (AUX) Protective conductor connection
③
Filter connection supply voltage (only when
light-colored BaseUnit is present)
24 V DC Supply voltage L+ (infeed for light-colored Ba-
seUnit only)
DQn
Output signal, channel n
M
Ground
P1, P2, AUX Internal self-assembling voltage buses
Connection to left (dark-colored BaseUnit)
Connection to left interrupted (light-colored
BaseUnit)
Figure 3-2 Terminal assignment for 3-wire connection of actuators

Digital output module DQ 8x24VDC/0.5A HF (6ES7132-6BF00-0CA0)
Manual, 12/2017, A5E03576680-AE 17
Parameters/address space
4
4.1
Parameters
Parameters of the DQ 8x24VDC/0.5A HF
Specify the module properties with the various parameters in the course of your STEP 7
configuration. The following table lists the configurable parameters. The effective range of
the configurable parameters depends on the type of configuration. The following
configurations are possible:
●Central operation with an ET 200SP CPU
●Distributed operation on PROFINET IO in an ET 200SP system
●Distributed operation with PROFIBUS DP in an ET 200SP system
When assigning parameters in the user program, use the "WRREC" instruction to transfer
the parameters to the module by means of data records (see chapter Parameter assignment
and structure of the parameter data record (Page 35)).
Table 4- 1 Configurable parameters and their defaults (GSD file)
Parameter
Value range
Default
Configuration
in RUN
Scope with configuration software,
e.g., STEP 7 (TIA Portal)
GSD file
PROFINET IO
GSD file
PROFIBUS DP
Diagnostics
No supply voltage L+
•Disable
•Enable
Disable Yes Channel Channel
Diagnostics
Short-circuit to ground
•Disable
•Enable
Disable Yes Channel
Channel 1
Diagnostics:
Short-circuit to L
•Disable
•Enable
Disable Yes Channel
Diagnostics
Wire break
•Disable
•Enable
Disable Yes Channel Channel
Channel activated •Disable
•Enable
Enable Yes Channel Channel

Parameters/address space
4.1 Parameters
Digital output module DQ 8x24VDC/0.5A HF (6ES7132-6BF00-0CA0)
18 Manual, 12/2017, A5E03576680-AE
Parameter
Value range
Default
Configuration
in RUN
Scope with configuration software,
e.g., STEP 7 (TIA Portal)
GSD file
PROFINET IO
GSD file
PROFIBUS DP
Reaction to CPU STOP •Turn off
•Keep last value
•Output substi-
tute value 1
Turn off Yes Channel Module 1
Potential group •Use potential
group of the left
module (module
plugged into a
dark-colored
BaseUnit)
•Enable new
potential group
(module plugged
into light-colored
BaseUnit)
Use potential
group of the left
module
No Module Module
1
Due to the limited number of parameters of a maximum of 244 bytes per ET 200SP station with a PROFIBUS GSD
configuration, the parameter assignment options are restricted. The parameter length of the I/O module is 7 bytes with
PROFIBUS GSD configuration. If necessary, you can set this parameter, however, with data records 64 to 71 or data
record 128, see Appendix "Parameter data record".
Note
If one of the two parameters "Diagnostics: Short
-circuit to L+" or "Diagnostics: Wire break" is
enabled and one of these diagnostics occurs, the affected channel
is switched off to avoid
triggering an undefined load. Note that a diagnostic interrupt can only be generated when
diagnostics are enabled. *
* as of module revision 05

Parameters/address space
4.2 Explanation of parameters
Digital output module DQ 8x24VDC/0.5A HF (6ES7132-6BF00-0CA0)
Manual, 12/2017, A5E03576680-AE 19
4.2
Explanation of parameters
Diagnostics: No supply voltage L+
Enabling of the diagnostics for no or insufficient supply voltage L+.
Diagnostics: Short-circuit to ground
Enabling of the diagnostics if a short-circuit of the actuator supply to ground occurs.
Diagnostics: Short-circuit to L+
Enabling of the diagnostics if a short-circuit of the actuator supply to L+ occurs.
Diagnostics: Wire break
Enabling of the diagnostics if the line to the actuator is broken.
Channel activated
Determines whether a channel is activated or deactivated.
Reaction to CPU STOP
Determines the behavior of the module in the event of a CPU STOP.
Potential group
A potential group consists of a group of directly adjacent I/O modules within an ET 200SP
station, which are supplied via a common supply voltage.
A potential group begins with a light-colored BaseUnit through which the required voltage is
supplied for all modules of the potential group. The light-colored BaseUnit interrupts the
three self-assembling voltage buses P1, P2 and AUX to the left neighbor.
All additional I/O modules of this potential group are plugged into dark-colored BaseUnits.
You take the potential of the self-assembling voltage buses P1, P2 and AUX from the left
neighbor.
A potential group ends with the dark-colored BaseUnit, which follows a light-colored
BaseUnit or server module in the station configuration.
See also
See system manual ET 200SP distributed I/O system
(http://support.automation.siemens.com/WW/view/en/58649293).
