Siemens SIMATIC RTLS Series User manual

SIMATIC RTLS4030G
SIMATIC RTLS
Localization systems
SIMATIC RTLS4030G
Operating Instructions
06/2020
C79000
-G8976-C515-03
Introduction
1
Device description
2
Installation & Operation
3
Technical specifications
4
Approvals
5

Siemens AG
Digital Industries
Postfach 48 48
90026 NÜRNBERG
GERMANY
C79000-G8976-C515-03
Ⓟ
06/2020 Subject to change
Copyright © Siemens AG 2020.
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by personnel qualified for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.

SIMATIC RTLS4030G
Operating Instructions, 06/2020, C79000-G8976-C515-03 3
Table of contents
1 Introduction............................................................................................................................................. 5
2 Device description................................................................................................................................... 9
2.1 Characteristics ..........................................................................................................................9
2.2 Order data RTLS4030G..........................................................................................................10
2.3 Pin assignment .......................................................................................................................11
2.4 LED status indicator................................................................................................................12
2.5 Dimension drawing .................................................................................................................13
2.6 Troubleshooting ......................................................................................................................13
3 Installation & Operation......................................................................................................................... 15
3.1 Notes on installation................................................................................................................15
3.2 Mounting for ceiling mount......................................................................................................18
3.3 Mounting for corner and pole mount.......................................................................................19
3.4 Ethernet ..................................................................................................................................19
3.5 Operation ................................................................................................................................20
3.6 Cleaning and maintenance .....................................................................................................20
4 Technical specifications ........................................................................................................................ 21
5 Approvals.............................................................................................................................................. 23

Table of contents
SIMATIC RTLS4030G
4Operating Instructions, 06/2020, C79000-G8976-C515-03

SIMATIC RTLS4030G
Operating Instructions, 06/2020, C79000-G8976-C515-03 5
Introduction
1
Purpose of the Operating Instructions
These operating instructions support you when installing and connecting up the SIMATIC
RTLS4030G device.
The configuration and the integration of the devices in a network are not described in these
operating instructions.
Validity of the Operating Instructions
These operating instructions apply to the following device:
●RTLS4030G (CE; article number: 6GT2701-5DB03)
●RTLS4030G (FCC/NOM; article number: 6GT2701-5DB13)
●RTLS4030G (CMIIT; article number: 6GT2701-5DB23)
Further documentation
The system manual "Commissioning SIMATIC RTLS" provides information on other
SIMATIC RTLS products that you can operate together with the devices in this product line
in an Industrial Ethernet network.
You can find the system manual at the following link:
(https://support.industry.siemens.com/cs/us/en/ps/25277)
Trademarks
The following and possibly other names not identified by the registered trademark sign ®are
registered trademarks of Siemens AG:
SIMATIC RTLS

Introduction
SIMATIC RTLS4030G
6Operating Instructions, 06/2020, C79000-G8976-C515-03
Industry Online Support
In addition to the product documentation, the comprehensive online information platform of
Siemens Industry Online Support offers support at the following Internet address:
(https://support.industry.siemens.com/cs/start?lc=en-US)
Apart from news, there you will also find:
●Project information: Manuals, FAQs, downloads, application examples etc.
●Contacts, Technical Forum
●The option submitting a support query: (https://support.industry.siemens.com/My/us/en/)
●Our service offer:
Right across our products and systems, we provide numerous services that support you
in every phase of the life of your machine or system - from planning and implementation
to commissioning, through to maintenance and modernization.
You will find contact information on the Internet at the following address:
(https://www.automation.siemens.com/aspa_app/?ci=yes&lang=en)
SITRAIN - Training for Industry
The training offer includes more than 300 courses on basic topics, extended knowledge and
special knowledge as well as advanced training for individual sectors - available at more
than 130 locations. Courses can also be organized individually and held locally at your
location.
You will find detailed information on the training curriculum and how to contact our customer
consultants at the following Internet address:
(https://new.siemens.com/global/en/products/services/industry/sitrain/personal.html)
Security information
Siemens provides products and solutions with industrial security functions that support the
secure operation of plants, systems, machines and networks.
In order to protect plants, systems, machines and networks against cyber threats, it is
necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial
security concept. Siemens’ products and solutions constitute one element of such a concept.
Customers are responsible for preventing unauthorized access to their plants, systems,
machines and networks. Such systems, machines and components should only be
connected to an enterprise network or the internet if and to the extent such a connection is
necessary and only when appropriate security measures (e.g. firewalls and/or network
segmentation) are in place.
For additional information on industrial security measures that may be implemented, please
visit: (https://new.siemens.com/global/en/company/topic-areas/future-of-
manufacturing/industrial-security.html)
Siemens’ products and solutions undergo continuous development to make them more
secure. Siemens strongly recommends that product updates are applied as soon as they are
available and that the latest product versions are used. Use of product versions that are no
longer supported, and failure to apply the latest updates may increase customers’ exposure
to cyber threats.

Introduction
SIMATIC RTLS4030G
Operating Instructions, 06/2020, C79000-G8976-C515-03 7
To stay informed about product updates, subscribe to the Siemens Industrial Security RSS
Feed under: (https://support.industry.siemens.com/cs/us/en/ps/15247/pm)
Recycling and disposal
The products are low in harmful substances, can be recycled and meet the requirements of
the Directive 2012/19/EU for disposal of waste electrical and electronic equipment (WEEE).
Do not dispose of the products at public disposal sites.
For environmentally compliant recycling and disposal of your electronic waste, please
contact a company certified for the disposal of electronic waste or your Siemens
representative.
Note the different national regulations.

Introduction
SIMATIC RTLS4030G
8Operating Instructions, 06/2020, C79000-G8976-C515-03

SIMATIC RTLS4030G
Operating Instructions, 06/2020, C79000-G8976-C515-03 9
Device description
2
2.1 Characteristics
SIMATIC RTLS4030G
Characteristics
Design
①
Status indicators (LEDs)
②Connector for power supply over mains
connection
③Ethernet port;
Alternative power supply using Power over
Ethernet (PoE)
General The device is the home location for localiza-
tion in the RTLS localization system.
It can be connected to the local IT infrastruc-
ture over Ethernet. This connection sets up
an exchange between the node, the RTLS
localization network and the Locat-
ing Manager server.
Area of application The device is suitable for operation in humid
environments (IP65).

Device description
2.2 Order data RTLS4030G
SIMATIC RTLS4030G
10 Operating Instructions, 06/2020, C79000-G8976-C515-03
2.2 Order data RTLS4030G
Table 2- 1 Order data RTLS4030G
Article number
SIMATIC RTLS4030G
CE
6GT2701-5DB03
FCC/NOM
6GT2701-5DB13
CMIIT
6GT2701-5DB23
Table 2- 2 Accessories order data (not included in scope of delivery)
Article number
Connecting cable for gateway
Bulgin 400 Series Buccaneer® PX0410/03S, 3-pin, 5 m
6GT2791-2AH50
Protective jacket IP65 for RJ45 connector
made of plastic, for cable mounting (IP65) to gateway
6GT2790-0CB00
Holder for gateways for ceiling mounting
6GT2790-0BE20
Holder for gateways for corner and mast mounting
6GT2790-0BE30
Connecting cable for connection to wide-range power supply unit
for gateways, 5 m
6GT2791-2PH50
Wide-range power supply with power cable
EU
6GT2898-0AC00
UK
6GT2898-0AC10
US
6GT2898-0AC20
Wide-range power supply without power cable
6GT2898-0AC81
Power cable for wide-range power supply
EU
6GT2898-0AC01
UK
6GT2898-0AC11
US
6GT2898-0AC21
IE TP Cord RJ45 / RJ45, 4 x 2
1 m
6XV1870-3QH10
3 m
6XV1870-3QH30
6 m
6XV1870-3QH60
10 m
6XV1870-3QN10
20 m
6XV1870-3QN20
25 m
6XV1870-3QN25
50 m
6XV1870-3QN50

Device description
2.3 Pin assignment
SIMATIC RTLS4030G
Operating Instructions, 06/2020, C79000-G8976-C515-03 11
2.3 Pin assignment
Ethernet socket RJ45
The device may only be connected to the Ethernet via the plug-in connectors shown below.
When connecting the Ethernet cable, ensure that the twist-lock connectors are correctly
secured.
Connections
●3-pin plug-in connector Buccaneer® PX0412/03P
●Connectors: SA3350/1
●Sealing cover: PX0480
The pins are occupied as illustrated below:
Pin
Description
1 Mains supply (red)
8 ... 30 V DC
2 Digital output (brown)
Switched input voltage, max. current 200 mA
3 Grounding terminal (black)
GND (0 V)

Device description
2.4 LED status indicator
SIMATIC RTLS4030G
12 Operating Instructions, 06/2020, C79000-G8976-C515-03

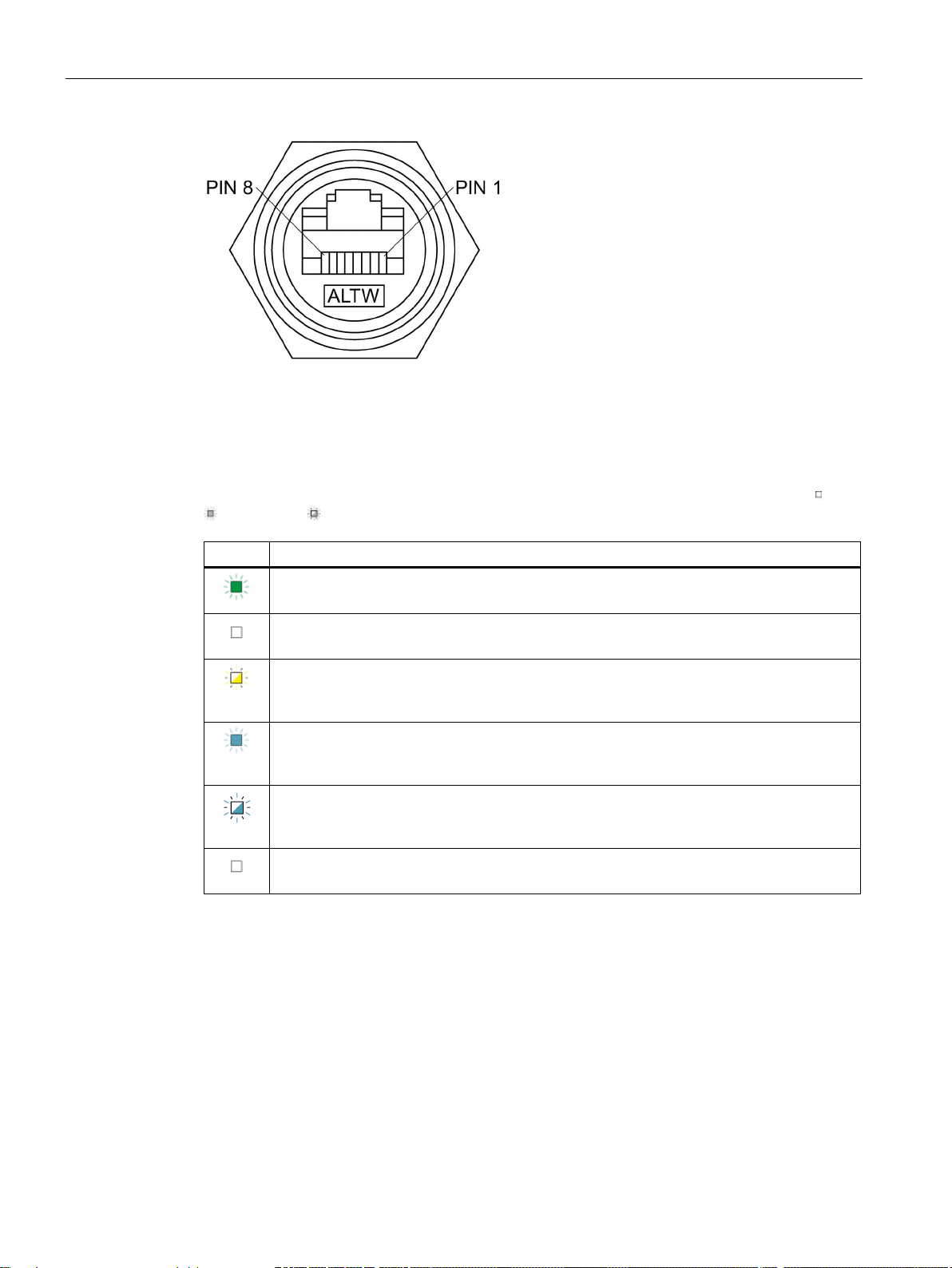

Figure 2-1 RJ45 connector Amphenol LTW PCP-00AMMA-TLM7001
2.4 LED status indicator
The operating states of the gateways are indicated by the LEDs. The states can be off , on
and flashing .
LED
Meaning
POWER LED
Lights up green when power is supplied to the device through the mains cable
RADIO LED
Off when the radio signal of the device to other gateways or transponders is inactive
RADIO LED
Flashes yellow when the radio signal of the device to other gateways or transponders is
active
LAN/SERVER LED
Lights up blue when the device has an Ethernet connection and a connection to the Locat-
ing Manager
LAN/SERVER LED
Flashes blue once per second when the device has an Ethernet connection but no connec-
tion to the Locating Manager server
LAN/SERVER LED
Is off when the device has no Ethernet connection

Device description
2.5 Dimension drawing
SIMATIC RTLS4030G
Operating Instructions, 06/2020, C79000-G8976-C515-03 13
2.5 Dimension drawing
Figure 2-2 Dimension drawing SIMATIC RTLS4030G - All dimensions specified in millimeters
2.6 Troubleshooting
Error detection
Cause of the error
Troubleshooting
Device does not respond, all LEDs are off The device is not connected or the
power supply unit is not switched
on.
Check the supply voltage of the device.
The blue LED (LAN/SERVER) is off.
Device has no Ethernet connection
Check the local network and the firewall.
The blue LED (LAN/SERVER) flashes
once per second.
Device is not connected to the
Locating Manager
Switch on Locating Manager

Device description
2.6 Troubleshooting
SIMATIC RTLS4030G
14 Operating Instructions, 06/2020, C79000-G8976-C515-03

SIMATIC RTLS4030G
Operating Instructions, 06/2020, C79000-G8976-C515-03 15
Installation & Operation
3
3.1 Notes on installation
Note
Before you install the devices, read this section carefully to ensure trouble
-free installation
and commissioning.
The devices can only be used in conjunction with the RTLS localization system.
The device is intended for fixed installation on walls or ceilings. Installation is to be
performed by qualified and trained users according to the operating instructions. In addition,
installation must take place in accordance with the respective instructions for the installation
of electrical systems and utilities. The devices must be installed so that they are accessible
for future maintenance, e.g., for opening the enclosure cover.
Note the specifications in the section "Technical specifications (Page 21)" during installation
and operation. Ensure that all screws are securely and firmly screwed into the wall / ceiling
and can support the weight of the device and its wiring.
Make sure that the ambient temperature does not exceed 50 °C and that the device is not
installed in a location where it is exposed to direct sunlight.
Connection of the cables
Make sure that the Twist-Lock connectors are inserted correctly to prevent moisture from
entering the enclosure.
Make sure that the wiring is correct before you start up the device.
Only use the cables described in the order data, supplied with the device or otherwise
prescribed. Siemens AG is not liable for damage or functional limitations caused by the use
of other cables.
Protect the device from penetrating moisture by closing off connectors that are not in use
with suitable covers. These covers are installed on the device.

Installation & Operation
3.1 Notes on installation
SIMATIC RTLS4030G
16 Operating Instructions, 06/2020, C79000-G8976-C515-03
Supply voltage
When the supply voltage is connected to the power plug, all LEDs flash briefly for a moment.
The POWER LED lights up as soon as voltage is present.
You can supply the device with power via the Ethernet cable. In this case, the power plug
must be tightly sealed to prevent moisture from penetrating. The device is a class 0 device
according to PoE.
NOTICE
No simultaneous supply voltage
Do not supply the device with power through the mains and the PoE connection at the
same time.
Check whether the rated voltage of the power supply corresponds to the values in the
section "Technical specifications (Page 21)".
CAUTION
Safety extra low voltage
The equipment is designed for operation with Safety Extra-Low Voltage (SELV) by a
Limited Power Source (LPS). (This does not apply to 100 V...240 V devices.)
This means that only SELV / LPS complying with IEC 60950-1 / EN 60950-1 / VDE 0805-1
must be connected to the power supply terminals, or the power supply unit for the
equipment power supply must comply with NEC Class 2, as described by the National
Electrical Code (r) (ANSI / NFPA 70).

Installation & Operation
3.1 Notes on installation
SIMATIC RTLS4030G
Operating Instructions, 06/2020, C79000-G8976-C515-03 17
Installation without holder
Do the following to mount the device without holder to the wall:
1. Draw the bore holes on the wall according to the following drilling pattern.
2. Drill the holes with a suitable device.
3. Insert the suitable anchors in the holes. (Anchors are not supplied with the device.)
4. Mount the device to the wall using screws (M4). (Screws are not supplied with the
device.)

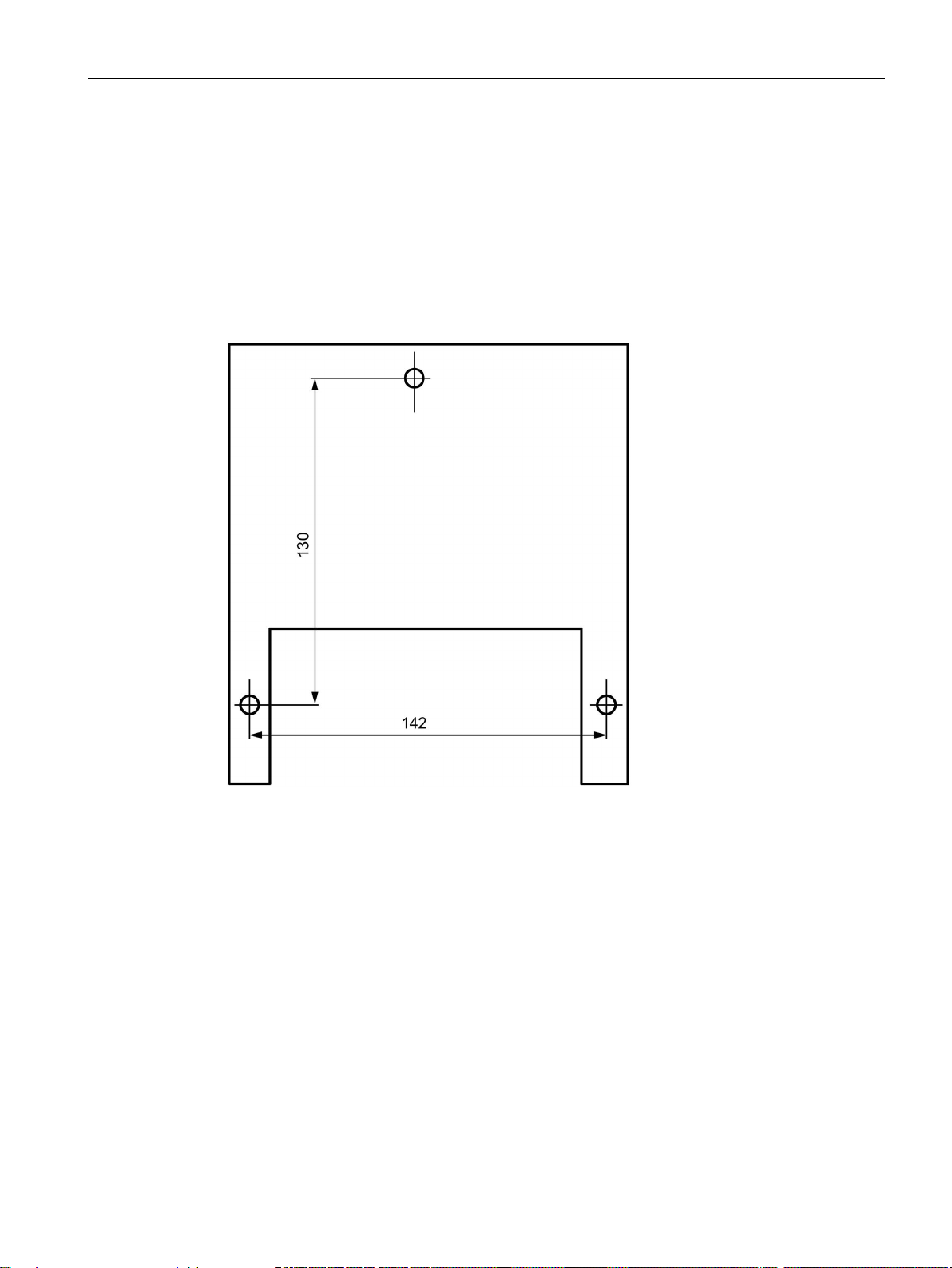

Figure 3-1 Drilling pattern - All dimensions specified in millimeters

Installation & Operation
3.2 Mounting for ceiling mount
SIMATIC RTLS4030G
18 Operating Instructions, 06/2020, C79000-G8976-C515-03
3.2 Mounting for ceiling mount
Follow the steps below to mount the device to the wall/ceiling:
1. Use the mounting plate as template and draw the bore holes on the ceiling.
2. Drill the holes with a suitable device.
3. Insert the suitable anchors in the holes. (Anchors are not supplied with the device.)
4. Mount the mounting plate to the ceiling.
5. Install the device to the mounting plate using the screws (M4). (Screws are not supplied
with the device.)
Figure 3-2 Ceiling support - all dimensions specified in millimeters.

Installation & Operation
3.3 Mounting for corner and pole mount
SIMATIC RTLS4030G
Operating Instructions, 06/2020, C79000-G8976-C515-03 19
3.3 Mounting for corner and pole mount
Follow the steps below to mount the device to a corner/mast:
1. Use the universal support as template and draw the bore holes on the corner / mast.
2. Drill the holes with a suitable device.
3. Insert the suitable anchors in the holes. (Anchors are not supplied with the device.)
4. Install the universal support to the corner / mast.
5. Mount the device to the universal support using the screws (M4). (Screws are not
supplied with the device.)

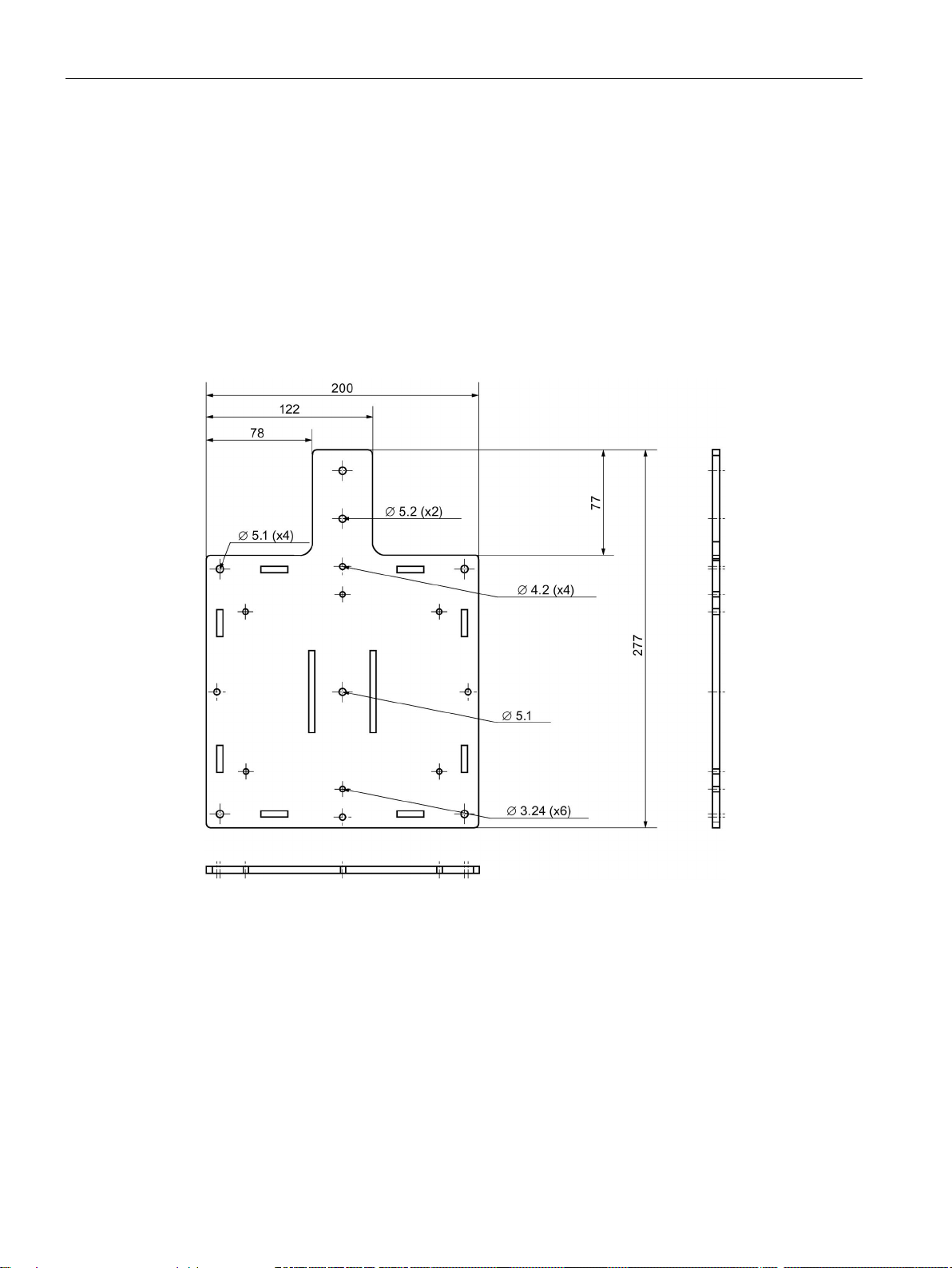

Figure 3-3 Universal support - all dimensions specified in millimeters.
Note
If drilling is not possible, you can also fasten the universal support to the given position using
with cable ties, for example.
3.4 Ethernet
When installing and connecting the Ethernet connection, observe the applicable general
conditions and their legal basis.
The Ethernet connection is connected to the Ethernet socket of the device. The cable must
be connected to the RJ45 plug before connection to the socket.
For the supply voltage of the device over PoE, a corresponding infrastructure such as PoE
injector or PoE switch is required.
By default, DHCP is enabled with the Locating Manager server address 192.168.1.10.

Installation & Operation
3.5 Operation
SIMATIC RTLS4030G
20 Operating Instructions, 06/2020, C79000-G8976-C515-03
3.5 Operation
The device is not suitable for operation in hazardous areas.
Operation of the system to EN 60950-1 is only safe when the housing cover is installed
(cooling, fire protection, interference suppression).
In case of emergencies (e.g. when the enclosure is damaged, when liquids or foreign objects
are entering the device), the device must be disconnected from the power supply and
maintenance must be contacted immediately.
3.6 Cleaning and maintenance
The device may only be opened by suitably trained and qualified users. Only authorized
dealers are permitted to repair the device.
Unauthorized opening of and improper repairs to the device may cause substantial risks to
the user. As soon as the device was opened without permission, warranty and liability of the
Siemens AG are rendered null and void.
Do not clean the enclosure with abrasive, alkaline or aggressive cleaning products or aids.
