Siemens TEK Connect User manual

Tek® Wireless Enhancement
User Manual

Congratulations!
Dear Customer,
Your hearing instrument(s) equipped with e2e wireless®
2.0 technology can be controlled by your new Tek® Connect
remote control.
This remote control offers you more hearing convenience in
many situations. Via wireless technology, it links your hearing
instrument(s) to the expanding world of audio devices. Tek
helps you watch television, listen to music or talk on the phone.
These instructions, together with the guidance from your
Audiologist or Hearing Care Provider, will help you to
understand how your remote control works.
If you have further questions, please contact your Audiologist
or Hearing Care Provider.

Table of Contents
Tek® wireless enhancement . . . . . . . . . . . . . . . . . . . . . . . . 3
Accessories......................................6
Safety Information................................7
Getting Started ..................................9
Basic functions .................................11
Charging the remote control . . . . . . . . . . . . . . . . . . . . . . 16
What is Bluetooth®?..............................17
Using the remote control with a phone . . . . . . . . . . . . . . 18
Using the Tek Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . 25
Using the direct audio input . . . . . . . . . . . . . . . . . . . . . . . 31
Technical Information ............................33
Warranty and Service.............................35

TEK WIRELESS ENHANCEMENT 3

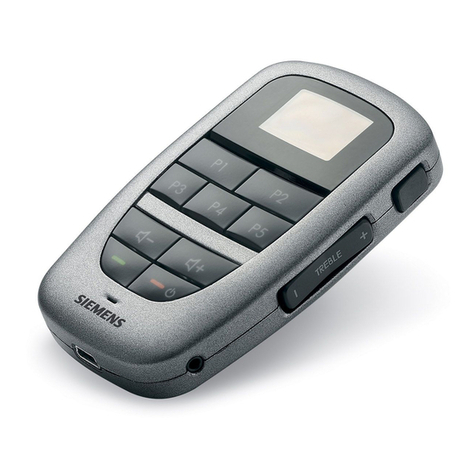

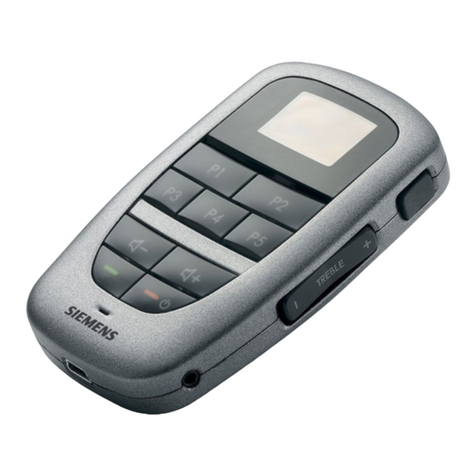

Fig. 1: Tek Connect remote control
Read Out
button
Treble
button
Tek® Wireless Enhancement
Includes the following components and accessories:
• Tek Connect remote control with rechargeable battery,
Tek Transmitter, power plugs and adaptors, cables and
adapter set.
1 Display
2 Programs
3 Volume control
4 Telephone and remote control power on/off
5 Microphone
6 Lock
7 Hearing instrument status and power on/off
8 Treble control
9 Audio input
10 Mini USB port

TEK WIRELESS ENHANCEMENT
4
11 On/Off switch
12 Sound level
13 Contact for power plug
14 2.5 mm stereo jack
15 LED
• 2 Power plugs with country specific adapters
(one for Tek Connect, one for Tek Transmitter)
• Can be used interchangeably with Tek Connect and
Tek Transmitter
Fig. 2: Tek Transmitter
Fig. 3: Power plug, adapters and cables
Read Out
button
Treble
button
TU
P
NI T
UPTUO

TEK WIRELESS ENHANCEMENT 5
Cables:
• 1.8 m audio cable with 3.5 mm stereo plug on one side and
a 2.5 mm stereo plug on the other side
• 0.3 m audio cable with 3.5 mm stereo plug on one side and
a 2.5 mm stereo plug on the other side
Adapter set:
• 3.5 mm stereo jack to 2.5 mm stereo plug
• 3.5 mm stereo jack to 6.3 mm stereo plug
• 3.5 mm stereo jack to cinch (RCA)
• cinch (RCA) to Scart (used primarily for European
TV connectors)
Fig. 4: Adapter set
TU
P
NI T
UPTUO

TEK WIRELESS ENHANCEMENT
6
Fig. 6: Tek Car Charger
Accessories
Sold Separately:
• Tek Landline Adapter
• Tek Car Charger
• Tek Belt Clip (not shown)
ON
OFF
RINGER
Pair
Enter
Fig. 5: Tek Landline Adapter

SAFETY INFORMATION 7
Safety Information
Note: The remote control is sensitive to extreme heat, high
humidity, strong magnetic fields (> 0.1T), X-rays and
mechanical stress. Do not expose the remote control to
extreme temperature or high humidity. Do not leave it
in direct sunlight. Do not immerse it in water.
WARNING
Wireless systems may interfere with measuring devices and
electronic equipment.
• Risk of interference with cardiac pacemakers. Do
not use the remote control if you are fitted with a
cardiac pacemaker.
• Do not use remote control in hospitals or airplanes.
• Have the lock activated in hospitals or airplanes.
• Prior to use in conjunction with an electronic implant
or life supporting system, have the electromagnetic
compatibility verified.
• Strangulation hazard when lanyard gets entangled, e.g.,
in moving mechanical parts of machines. Use only the
delivered breakaway lanyard. It will automatically snap
when it gets entangled.
In some countries restrictions for the usage of wireless
equipment exists. Refer to local authorities for further
information.

SAFETY INFORMATION
8
In case the hearing instrument is controlled by another
person’s remote control unit (RCU), please return RCU
and hearing instrument to your Audiologist or Hearing
Care Provider.
WARNING
• Choking hazard posed by small parts. Keep batteries,
small parts and remote control out of children‘s reach.
• If swallowed consult a physician or hospital immediately.
Note: Do not throw used batteries into household trash. Return
them to your Audiologist or Hearing Care Provider for
environmentally correct disposal.
WARNING
• Risk in explosive environments, e.g., mining areas!
• Don’t use your hearing instrument(s) and remote
control in areas where there is a danger of explosions.
WARNING
Risk of explosion when the rechargeable battery
is handled incorrectly.
• Do not short circuit, pierce, crush or disassemble the
rechargeable battery.
• Do not place in oven or fire.
• Do not immerse in water.
• Charge the rechargeable battery between 0ºC and 60ºC
(32ºF and 140ºF).
• Remove the rechargeable battery when the instrument is
not in use for a prolonged period of time.

GETTING STARTED 9
Getting Started
Before first use
Insert the rechargeable battery into the remote control.
The rechargeable battery is already charged and the
remote control is automatically on.
Display information
1 hearing program
2 program description (only available if programmed
by your Hearing Health Care Provider)
3 battery status of remote control
The remote control will go into a stand-by mode when not in
use. In stand-by mode no information is shown on the display.
Press any key to turn the remote control back into active mode
to see the information on the display.
Fig. 7: Display information

GETTING STARTED
10
Wearing the remote control
• For best results, use the remote control at a maximum
distance of 1 meter or less to the hearing instrument(s).
The remote control can be operated from your pocket,
when changing memory, volume control or treble
preference.
• When receiving an audio stream, for best listening quality,
wear the remote control with the lanyard around your
neck. This will ensure that the remote control and
hearing instrument(s) are optimally positioned.
• You can also set the remote control on the table in front
of you, or on the couch or chair next to you, for example,
when watching TV.
• For best listening quality turn the remote control in the same
direction you are facing.
• When using the telephone with the remote control, hold
the remote control in your hand or place in front of you on
a table and speak directly into the microphone, or wear the
remote control with the lanyard around your neck.
Fig. 8: Wearing, watching TV, listening and talking
with your Tek Connect remote control.
12
5
4
3
12
5
4
3
12
5
4
3
12
5
4
3
12
5
4
3
12
5
4
3

BASIC FUNCTIONS 11
Basic Functions
Locking the remote control
Your remote control has a lock on the left side.
• Slide the control to the bottom to enable the lock.
Pressing the buttons will now have no effect.
• Slide the control to the top to disable the lock.
Changing the program
The remote control allows you to control up to 5 programs
of your hearing instrument(s).
Your Audiologist or Hearing Care Provider will program the
settings in the different programs for your particular
listening needs.
Fig. 9: Lock and unlock
Lock Unlock
Green
section

BASIC FUNCTIONS
12
Press the number of the desired hearing program. The
remote control display will show the number and name of
the program you are in. You will hear the acoustic signal for
the chosen program in your hearing instrument(s). (Fig. 10)
Changing the volume (Fig. 10)
• Press for louder.
• Press for softer.
/
/
/
/ /
Fig. 10: Remote control programs and volume
/
/
/
/ /
/
/
/
/ /
Volume
Programs

BASIC FUNCTIONS 13
Changing the Treble (Fig. 11)
With the rocker switch on the right side of the remote
control you can change the tone of your hearing
instrument(s).
• Press + (up) for more treble.
• Press – (down) for less treble.
Read out the hearing instrument information
This function allows you to view the current battery status,
volume and hearing program of your hearing instrument(s).
• Hold the remote control close to your hearing
instrument(s) (about 10 cm).
• Briefly press the read out button. (Fig. 11)
Fig. 11: Treble, read out, and remote
control on/off buttons
Treble
button
Read out
button
Remote control
on/off

BASIC FUNCTIONS
14
Fig. 12: Display
The display of the remote control shows
you the following information: (Fig.12)
1 current hearing program with description
2 treble setting of hearing instrument(s)
3 volume control setting of hearing instrument(s)
4 battery status of hearing instrument(s) left/right
Turning the hearing instrument(s) on/off
• Press the read out button for at least 5 seconds to
turn your hearing instrument(s) off. (Fig.11)
• Press one of the program buttons on the remote control
to turn the hearing instrument(s) back on.
Turning the remote control on/off
• Press the red symbol for about 5 seconds to turn the
remote control off. (Fig.11)
• Press the red symbol for about 5 seconds to turn the
remote control back on.

BASIC FUNCTIONS 15
/
/
/
/ /
Fig. 13: Symbol Chart
program number
Bluetooth connection active
phone connection
battery status of remote control
volume up/volume down
treble up/treble down
lock activated/deactivated
incoming call
active call
hearing instruments off
transmission error
searching Bluetooth audio stream/
Bluetooth audio stream active/
direct audio stream active
Treble and volume settings of
hearing instruments
battery status of left and right
hearing instrument
Read-out symbols
Symbols
or
full
empty
charging

CHARGING THE REMOTE CONTROL
16
Charging the Remote Control
Charging process
• Connect the remote control with the power plug to a power
outlet. The charging process starts. Charging time is about
5 hours depending on the status of the rechargeable battery
(Fig.13).
Charging is complete when the battery symbol shows a
full battery (Fig.13).
Running time of the rechargeable battery
The running time of the rechargeable battery depends on
the way the remote control is used.
• The most battery-consuming function is the streaming
transmission of audio signals. This function is active when
using the telephone or listening to an external device. The
rechargeable battery will provide about 5 hours of use time
under these circumstances before requiring recharge.
• When no transmission of audio signal is active but a phone
has been paired, the rechargeable battery will last several
days before requiring recharge.
• When no transmission of audio signal is active and no
telephone has been paired, the rechargeable battery lasts
several months before requiring recharge.
• For prolonged operation, the Tek Connect remote control
may be used while plugged in.

WHAT IS BLUETOOTH®?17
What is Bluetooth®?
Bluetooth technology provides a way to wirelessly connect
cell phones, laptops, headsets and other devices.
Over a Bluetooth connection the devices can exchange
information such as data, sound or even control commands.
The range of the Bluetooth connection in the Tek Connect
remote control is about 10 meters. Walls or other objects
between the devices can shorten this distance.
The Bluetooth symbol denotes whether a device is
Bluetooth compatible.

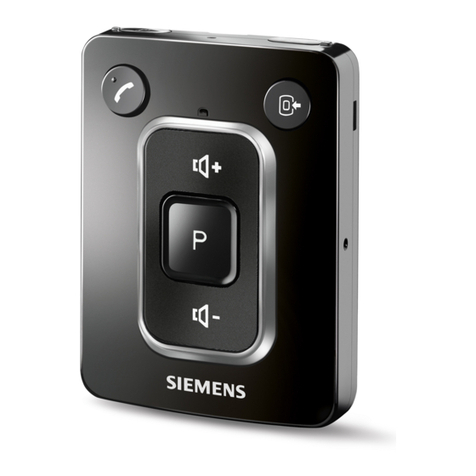

The Tek Connect remote control can be connected via
Bluetooth wireless technology to your cell phone or to
the Tek Transmitter.
Follow the instructions in the following chapters to hear the
sound of your cell phone, your TV or your MP3 player directly
in your hearing instrument(s).
®

USING THE REMOTE CONTROL WITH A PHONE
18
Using the Remote Control
with a Phone
The remote control allows you to use your hearing
instrument(s) as a wireless headset when you are
using a Bluetooth compatible phone or cell phone.
Instead of using the telephone receiver, you should speak
into your remote control and listen through your hearing
instrument(s).
Pairing remote control and phone
Before you can use the remote control with a phone for the
first time, you need to pair your phone and the remote control.
The pairing process is like an “introduction” of phone and
remote control. After the pairing process the phone and
remote control “know” each other. The pairing process does
not need to be repeated.
• Activate the Bluetooth function in your phone.The display
of your phone should show a Bluetooth symbol when the
Bluetooth function is activated (see symbol Fig. 14).
12
5
4
3
12
5
4
3
12
5
4
3
12
5
4
3
12
5
4
3
12
5
4
3
