SITRANS
Temperature sensors
SITRANS TSinsert/TS100/TS200/TS300/TS500
Compact Operating Instructions
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent damage to property. The
notices referring to your personal safety are highlighted in the manual by a safety alert symbol, notices referring only to property damage
have no safety alert symbol. These notices shown below are graded according to the degree of danger.
DANGER
indicates that death or severe personal injury
will
result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury
may
result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will be used. A notice warning of
injury to persons with a safety alert symbol may also include a warning relating to property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by
personnel qualified
for the specific task in accordance with
the relevant documentation, in particular its warning notices and safety instructions. Qualified personnel are those who, based on their
training and experience, are capable of identifying risks and avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products
and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage,
installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any
problems. The permissible ambient conditions must be complied with. The information in the relevant documentation must be observed.
1
Introduction
These instructions contain all information required to commission and use the device. It is your responsibility to read the
instructions carefully prior to installation and commissioning. In order to use the device correctly, first review its principle of
operation.
The instructions are aimed at persons mechanically installing the device, connecting it electronically, configuring the
parameters and commissioning it, as well as service and maintenance engineers.
See also
Technical support (Page 42)

SITRANS TSinsert/TS100/TS200/TS300/TS500
4A5E32897051-01, 09/2013
1.1
History of operating instructions
The following table contains important changes to the previous version of the documentation:
Edition
Remark
01 Edition was never published
02
10/2012
First edition of instructions
03
03/2013
Added warning notes and updated electrical data
04
07/2013
Added warning notes and updated electrical data, added SITRANS TS300
1.2
Checking the consignment
1. Check the packaging and the device for visible damage caused by inappropriate handling during shipping.
2. Report any claims for damages immediately to the shipping company.
3. Retain damaged parts for clarification.
4. Check the scope of delivery by comparing your order to the shipping documents for correctness and completeness.
WARNING
Using a damaged or incomplete device
Danger of explosion in hazardous areas.
●Do not use damaged or incomplete devices.
1.3
Transportation and storage
To guarantee sufficient protection during transport and storage, observe the following:
●Keep the original packaging for subsequent transportation.
●Devices/replacement parts should be returned in their original packaging.
●If the original packaging is no longer available, ensure that all shipments are properly packaged to provide sufficient
protection during transport. Siemens cannot assume liability for any costs associated with transportation damages.
CAUTION
Insufficient protection during storage
The packaging only provides limited protection against moisture and infiltration.
●Provide additional packaging as necessary.
Special conditions for storage and transportation of the device are listed in "Technical data".
1.4
Notes on warranty
The contents of this manual shall not become part of or modify any prior or existing agreement, commitment or legal
relationship. The sales contract contains all obligations on the part of Siemens as well as the complete and solely applicable
warranty conditions. Any statements regarding device versions described in the manual do not create new warranties or
modify the existing warranty.
The content reflects the technical status at the time of publishing. Siemens reserves the right to make technical changes in
the course of further development.
See also
Contacts (http://www.siemens.com/processinstrumentation/contacts)
SITRANS T product information (http://www.siemens.com/sitranst)
Instructions and manuals (http://www.siemens.com/processinstrumentation/documentation)

SITRANS TSinsert/TS100/TS200/TS300/TS500
A5E32897051-01, 09/2013 5
2
Safety information
2.1
Requirements for safe use
This device left the factory in good working condition. In order to maintain this status and to ensure safe operation of the
device, observe these instructions and all the specifications relevant to safety.
Observe the information and symbols on the device. Do not remove any information or symbols from the device. Always
keep the information and symbols in a completely legible state.
Symbol
Description
Pay attention to the operating instructions
2.1.1
Laws and directives
Observe the test certification, provisions and laws applicable in your country during connection, assembly and operation.
These include, for example:
●National Electrical Code (NEC - NFPA 70) (USA)
●Canadian Electrical Code (CEC) (Canada)
Further provisions for hazardous area applications are for example:
●IEC 60079-14 (international)
●EN 60079-14 (EC)
2.1.2
Conformity with European directives
The CE marking on the device symbolizes the conformity with the following European directives:
Electromagnetic compatibility EMC
2004/108/EC
Directive of the European Parliament and of the Council on the approximation of the
laws of the Member States relating to electromagnetic compatibility and repealing
Directive 89/336/EEC.
Atmosphère explosible ATEX
94/9/EC
Directive of the European Parliament and the Council on the approximation of the
laws of the Member States concerning equipment and protective systems intended
for use in potentially explosive atmospheres.
The applicable directives can be found in the EC conformity declaration of the specific device.
See also
Certificates (http://www.siemens.com/processinstrumentation/certificates)
WARNING
Improper device modifications
Danger to personnel, system and environment can result from modifications to the device, particularly in hazardous areas.
●Only carry out modifications that are described in the instructions for the device. Failure to observe this requirement
cancels the manufacturer's warranty and the product approvals.
2.2
Requirements for special applications
Due to the large number of possible applications, each detail of the described device versions for each possible scenario
during commissioning, operation, maintenance or operation in systems cannot be considered in the instructions. If you need
additional information not covered by these instructions, contact your local Siemens office or company representative.

SITRANS TSinsert/TS100/TS200/TS300/TS500
6A5E32897051-01, 09/2013
Note
Operation under special ambient conditions
We highly recommend that you contact your Siemens representative or our application department before you operate the
device under special ambient conditions as can be encountered in nuclear power plants or when the device is used for
research and development purposes.
2.3
Use in hazardous areas
2.3.1
Qualified personnel for hazardous area applications
Qualified personnel for hazardous area applications
Persons who install, connect, commission, operate, and service the device in a hazardous area must have the following
specific qualifications:
●They are authorized, trained or instructed in operating and maintaining devices and systems according to the safety
regulations for electrical circuits, high pressures, aggressive, and hazardous media.
●They are authorized, trained, or instructed in carrying out work on electrical circuits for hazardous systems.
●They are trained or instructed in maintenance and use of appropriate safety equipment according to the pertinent safety
regulations.
WARNING
Unsuitable device for the hazardous area
Danger of explosion.
●Only use equipment that is approved for use in the intended hazardous area and labelled accordingly.
See also
Technical data (Page 22)
WARNING
Loss of safety of device with type of protection "Intrinsic safety Ex i"
If the device has already been operated in non-intrinsically safe circuits or the electrical specifications have not been
observed, the safety of the device is no longer ensured for use in hazardous areas. There is a danger of explosion.
●Connect the device with type of protection "Intrinsic safety" solely to an intrinsically safe circuit.
●Observe the specifications for the electrical data on the certificate and in Chapter "Technical data (Page 22)".

SITRANS TSinsert/TS100/TS200/TS300/TS500
A5E32897051-01, 09/2013 7
3
Description
3.1
Overview

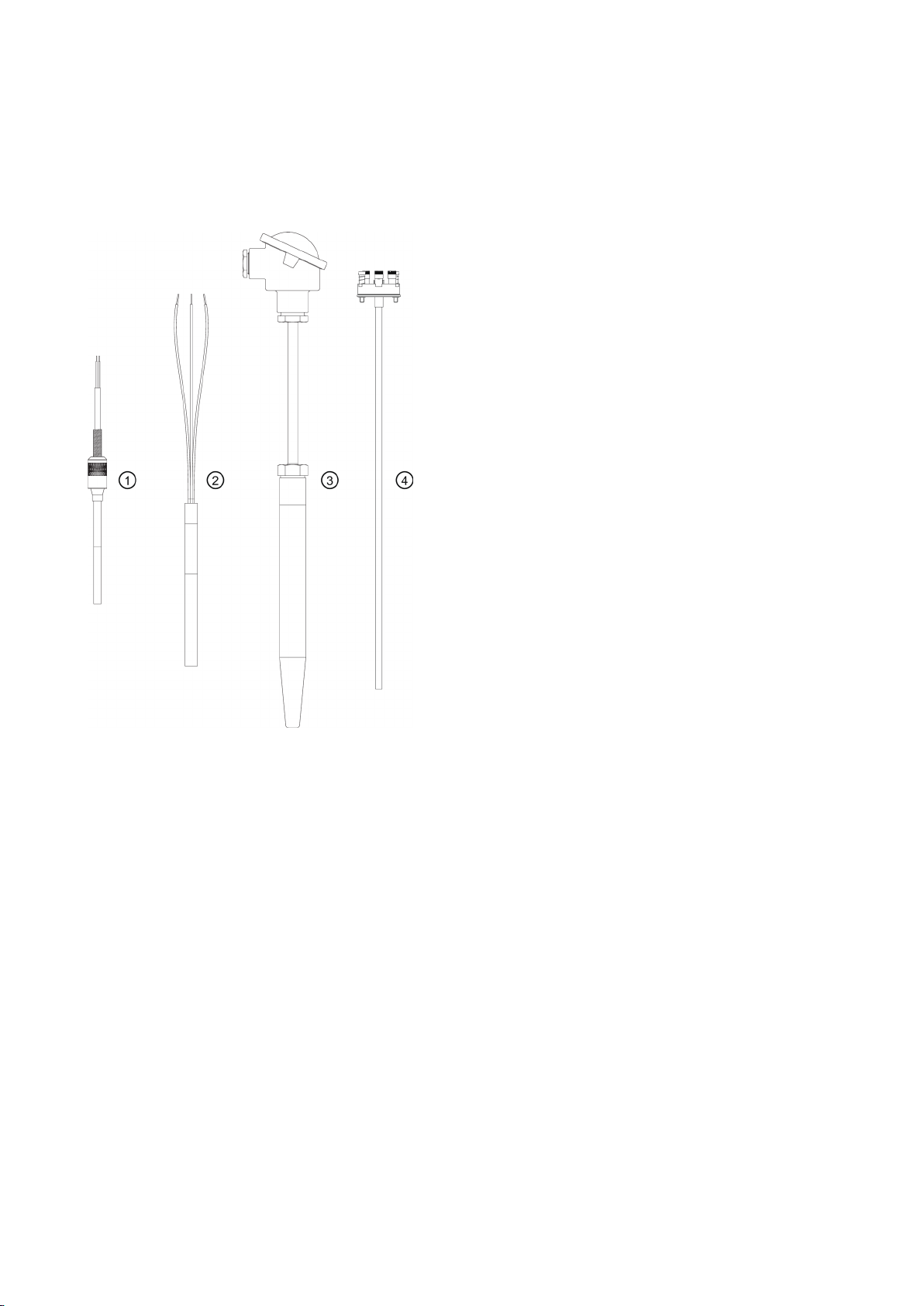

SITRANS TS product family
①
SITRANS TS100 7MC71..
general use, compact design with connecting cable
②
SITRANS TS200 7MC72..
general use, compact design
③
SITRANS TS500 7MC75..
general use, modular design with connection head
④
SITRANS TSinsert measuring insert for use in the SITRANS TS500 series
Elementary sensors
Resistance thermometers or thermocouples can be used for temperature measurement.
3.2
Application
The temperature sensors of the SITRANS TS product family are used for measuring temperatures in industrial plants.
Depending on the specifications, sensors can be combined with different connection heads, extension tubes, and process
connections. This makes the sensors suitable for a variety of process engineering applications, e.g. in the following sectors:
●Petrochemical industry
●Pharmaceuticals industry
●Biotechnology
●Foodstuffs

SITRANS TSinsert/TS100/TS200/TS300/TS500
8A5E32897051-01, 09/2013
3.3
Functional principles
Two different measuring principles are used for measuring temperatures.
●With resistance thermometers, the temperature is measured as a change in resistance. Resistance thermometers
contain Pt100 sensor elements in accordance with IEC 60751.
●With thermocouples, the temperature is the change in voltage (Seebeck effect). The thermocouples are in accordance
with IEC 584/DIN EN 60584.
3.4
Nameplate structure
Positioning of nameplate
Note
SITRANS TS100/TS200 nameplate
Before commissioning, make sure the nameplate is securely fastened to the temperature sensor in a visible location
Device
Positioning of the nameplate
SITRANS TSinsert 7MC701. On the bottom of the connecting plate or at the outer
periphery of the ANSI adapter.
SITRANS TS100 7MC71.. On the sensor cable
SITRANS TS200 7MC72.. On the connector or on the sensor
SITRANS TS500 7MC75.. On the connection head
Example of nameplate
①
Product name
②
Order number (machine-readable product code)
③
Additional information on the type
④
Valid standard for the device
⑤
Serial number
⑥
CE marking
⑦
Place of manufacture
⑧
Consult the operating instructions.
⑨
Type-specific information Explosion
protection/electrical data
⑩
Manufacturer´s specifications
WARNING
Loss of safety of device with type of protection "Intrinsic safety Ex i"
If the device has already been operated in non-intrinsically safe circuits or the electrical specifications have not been
observed, the safety of the device is no longer ensured for use in hazardous areas. There is a danger of explosion.
●Connect the device with type of protection "Intrinsic safety" solely to an intrinsically safe circuit.
●
Observe the specifications for the electrical data on the certificate and in Chapter "Technical data".

SITRANS TSinsert/TS100/TS200/TS300/TS500
A5E32897051-01, 09/2013 9
3.5
Incorrect selection of type of protection
WARNING
Incorrect selection of type of protection
Danger of explosion in areas subject to explosion hazard.
This device is approved for several types of protection.
1. Decide in favor of one type of protection.
2. Connect the device in accordance with the selected type of protection.
3. In order to avoid incorrect use at a later point, make the types of protection that are not used permanently
unrecognizable on the nameplate.
3.6

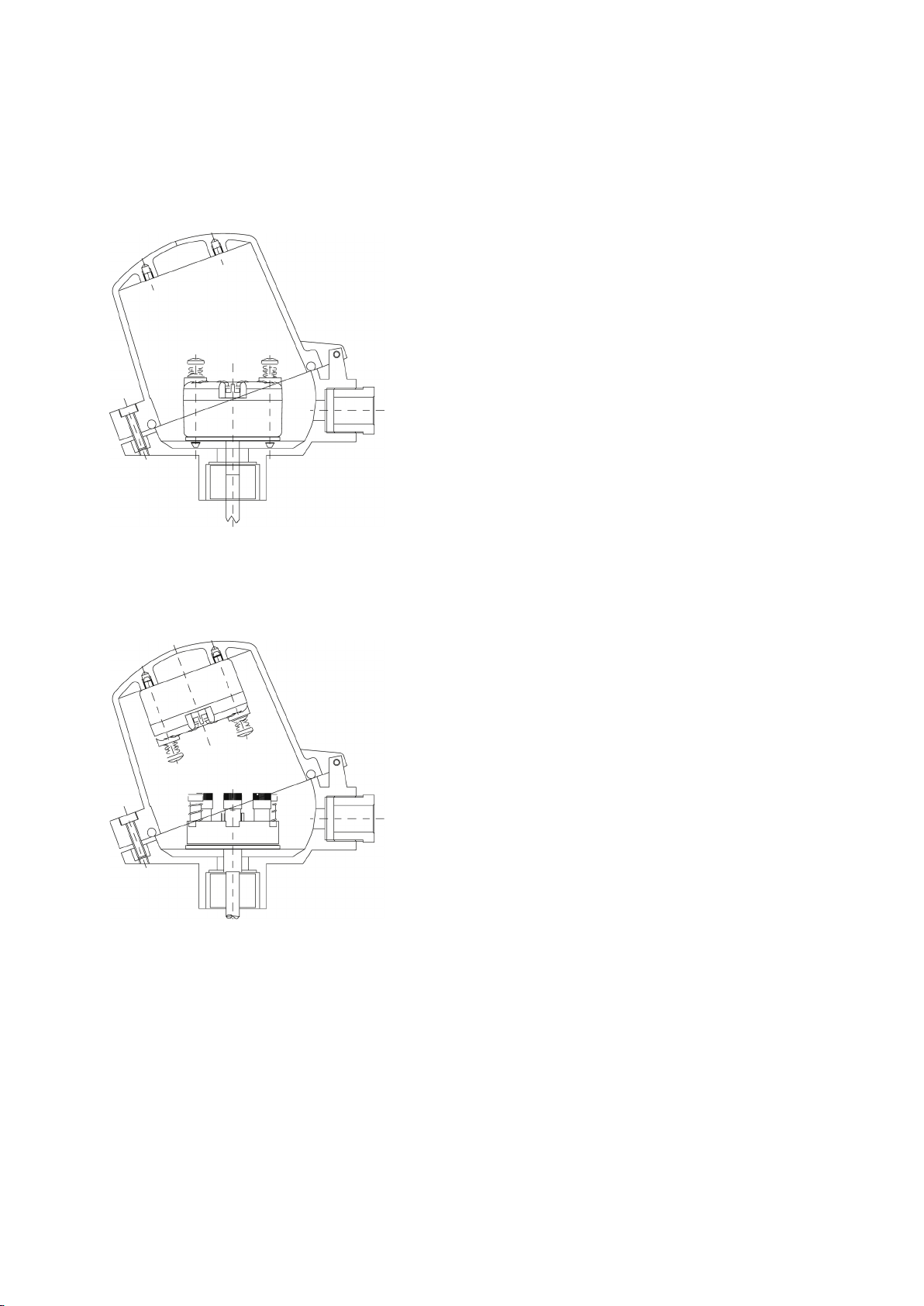

Temperature transmitter for SITRANS TS500
The following head-mounted transmitters can be combined with the temperature sensors SITRANS TS500:
Transmitter
Features
Sensor
TH100 ●Base device
●Output 4 ... 20 mA
●Can be configured using simple software
●
P
o
: 12.5 mW
only 1)
TH200 ●Universal device
●Output 4 ... 20 mA
●Can be configured using simple software
●Po: 37 mW
1) or 2)
TH300 ●Universal
●Output 4 ... 20 mA / HART
●Diagnostic functions
●Po: 37 mW
1) or 2)
TH400 ●Output: PROFIBUS PA or FOUNDATION Fieldbus.
●Sensor redundancy
●Diagnostics
●Po: 12.5 mW
1) or 2)
1) Resistance thermometers
2) Thermocouple
Note
SITRANS TS500 IEC Ex
If the contained SITRANS TH transmitter is not IEC Ex compliant, the TS500 nameplate has ATEX marking only.
3.7
Measuring inserts for SITRANS TS500
Measuring inserts for SITRANS TS500 temperature sensors are available in three variants:
●Variant 1:
DIN mounting disk for accommodating a transmitter or ceramic socket.
●Variant 2:
Fixed connection of the ends of the mineral insulated cable with a DIN ceramic socket.
●Variant 3:
Measuring insert in a spring-loaded adapter (ANSI)

SITRANS TSinsert/TS100/TS200/TS300/TS500
10 A5E32897051-01, 09/2013
3.8
Connection heads for SITRANS TS500
The transmitters can be mounted in connection heads of type B and bigger. The following mounting types are possible:
●Measuring insert mounting
–Standard type with compact design
–Measuring insert (sensor) and transmitter form one unit
Figure 3-1 Measuring insert mounting of transmitter
●Hinged cover mounting
–Standard type for connection heads of type BC0: B head with high hinged cover
–Separate maintenance of the measuring insert and the transmitter is possible.
Figure 3-2 Hinged cover mounting of transmitter

SITRANS TSinsert/TS100/TS200/TS300/TS500
A5E32897051-01, 09/2013 11
4
Install
4.1
Basic safety instructions
CAUTION
Hot surfaces resulting from hot process media
Danger of burns resulting from surface temperatures above 70 °C (155 °F).
●Take appropriate protective measures, for example contact protection.
●Make sure that protective measures do not cause the maximum permissible ambient temperature to be exceeded.
Refer to the information in Chapter "Technical data (Page 22)".
WARNING
Unsuitable connecting parts
Danger of injury or poisoning.
In case of improper mounting hot, toxic and corrosive process media could be released at the connections.
●Ensure that connecting parts (such as flange gaskets and bolts) are suitable for connection and process media.
See also
Technical data (Page 22)
WARNING
Exceeded maximum ambient or process media temperature
Danger of explosion in hazardous areas.
Device damage.
●Make sure that the maximum permissible ambient and process media temperatures of the device are not exceeded.
Refer to the information in Chapter "Technical data (Page 22)".
WARNING
Open cable inlet or incorrect cable gland
Danger of explosion in hazardous areas.
●Close the cable inlets for the electrical connections. Only use cable glands or plugs which are approved for the relevant
type of protection.
WARNING
Incorrect mounting at Zone 0
Danger of explosion in hazardous areas.
●Ensure sufficient tightness at the process connection.
●Observe the standard IEC/EN 60079-14.
CAUTION
External stresses and loads
Damage to device by severe external stresses and loads (e.g. thermal expansion or pipe tension). Process media can be
released.
●Prevent severe external stresses and loads from acting on the device.

SITRANS TSinsert/TS100/TS200/TS300/TS500
12 A5E32897051-01, 09/2013
CAUTION
High vibration area
Especially with the stainless steel housing version, use short extension lengths or external supports when used in a high
vibration area.
4.1.1
Installation and location requirements
CAUTION
Direct sunlight
Device damage.
The device can overheat or materials become brittle due to UV exposure.
●Protect the device from direct sunlight.
●Make sure that the maximum permissible ambient temperature is not exceeded. Refer to the information in Chapter
"Technical data (Page 22)".
4.1.2
Proper mounting
NOTICE
Incorrect mounting
The device can be damaged, destroyed, or its functionality impaired through improper mounting.
●Before installing ensure there is no visible damage to the device.
●Make sure that process connectors are clean, and suitable gaskets and glands are used.
●Mount the device using suitable tools. Refer to the information in Chapter "Technical data (Page 22)", for example
installation torques requirements.
Note
Loss of degree of protection
Damage to device if the enclosure is open or not properly closed. The degree of protection specified on the nameplate is no
longer guaranteed.
CAUTION
Loss of IP protection
Do not unscrew the device housing from the mounted parts with NPT threaded connection
4.2
Install
Process connection
DANGER
Protective tube ruptures
Protective tubes that are not suitable for the process or application in question can rupture and result in serious damage to
property and personal injuries
Make sure that the protective tube is suitable for the respective mounting method and application. If necessary, check the
selection and order data of your protective tube.
The devices are delivered with different connection heads and different process connections depending on the
specifications. The following guidelines apply:

SITRANS TSinsert/TS100/TS200/TS300/TS500
A5E32897051-01, 09/2013 13
●Assemble the process prior to the electrical installation.
●Make sure prior to mounting that the device is appropriate with regard to the process connection, media compatibility,
temperature resistance and measuring range.
●The gaskets used must be suitable for the process connection and resistant to the measured media.
Note
SITRANS TS500 barstock version
For SITRANS TS500 barstock version without flange (type 4), the customer has to complete the mounting of the device
extension to the protective tube, see
Device extension and protective tube torque requirements
table below
CAUTION
Gasket between extension and protective tube
Gasket between device extension and protective tube can only be used once
●Use required torque values between device extension and protective tube, see
Device extension and protective tube
torque requirements
table below.
●Use required torque values between the device head and extension if customer adjustments are necessary (M24
connections only), see
Device device head and extension torque requirements
table below.
Table 4-1 Device extension and protective tube torque requirements
Connection type
Torque value
M14 thread 25 Nm
M18 thread 40 Nm
G½ thread 50 Nm
Table 4-2 Device device head and extension torque requirements
Head type
Torque value
Metal head 28 Nm
Plastic head (BP0) 15 Nm
Plastic head (BM0) 5 Nm
Rule of thumb for installation
Prevent faults caused by heat dissipation by observing the following rules:
●Select the largest possible immersion depth. Estimate the immersion depth using the formulas specified below.
●Select a measuring location with a high flow rate.
●Ensure that there is sufficient thermal insulation of the external components of the thermometer.
●Ensure that external parts have as small surfaces as possible.
●Select the optimum mounting position for the process in question.
Estimation of immersion depth
Medium
Immersion depth (calculation)1)
Water Immersion depth ≥TSL + (5 x ∅protective tube)
Air Immersion depth ≥TSL + (10 bis 15 x ∅protective tube)
1) TSL = Temperature Sensitive Length

SITRANS TSinsert/TS100/TS200/TS300/TS500
14 A5E32897051-01, 09/2013
Mounting positions
Note
Mounting positions for small pipe diameters
With small pipe diameters, mount the sensors upstream at an angle or in an elbow, see ②and ③
in the diagram "Mounting
positions".

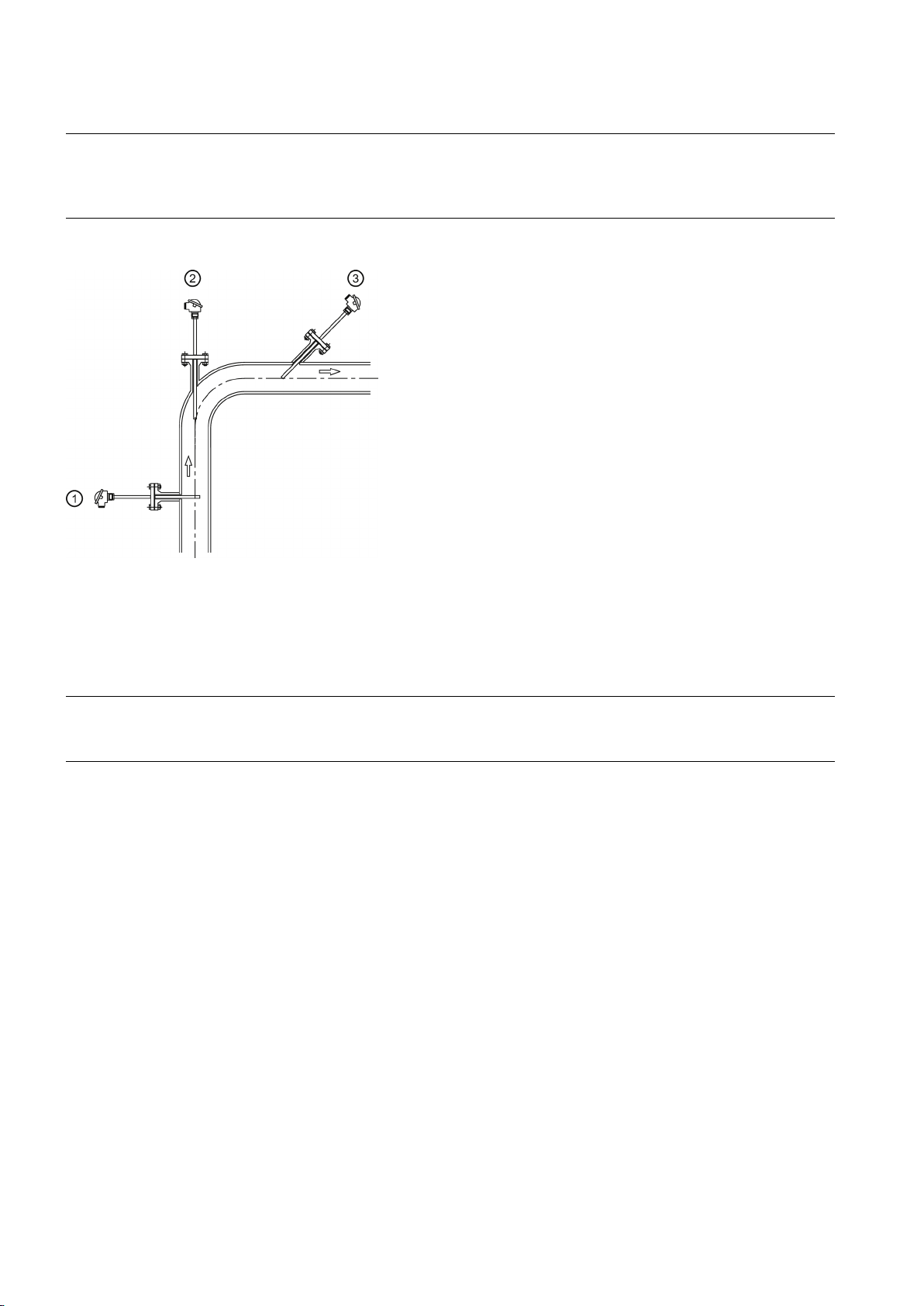

The following diagram shows the possible mounting positions of the sensors:
①
At a right angle to the flow
②
In a bend upstream
③
In a narrow cable at an angle upstream
Figure 4-1 Mounting positions
4.3
Install SITRANS TS300 Clamp-on
Note
Measurement position
Install on circular pipes only, avoid installation next to angled pipes, near slide valves, valves, pumps, etc.
1. Define the measurement position.
2. Apply heat sink compound to the metallic part of the temperature sensor.
3. For standard version: halved pipe collar allows for quick and easy mounting on the pipe using two mounting screws.
For bracket version: mount on pipe using one mounting screw.
–If the pipe is not fully occupied by medium during installation, mount the temperature sensor on the underside of the
pipe.
4. Firmly tighten the mounting screws (4 Nm torque).
5. Mount the vibration protection and hand-tighten.
–You can remove the measuring insert only after you have released the Pt100 recessed grip screw(s).
–Do not twist the housing.
–Use Pt100 recessed grip screw for installation, only.
–Do not apply force to the transmitter housing (e. g. during opening/closing of lid).
–Because the locking plugs are fitted with internal gaskets they are only suited for ambient temperatures to 100 °C
(212 °F).

SITRANS TSinsert/TS100/TS200/TS300/TS500
A5E32897051-01, 09/2013 15
4.4
Uninstall
WARNING
Incorrect disassembly
The following dangers may result through incorrect disassembly:
- Injury through electric shock
- Danger through emerging media when connected to the process
- Danger of explosion in hazardous area
In order to disassemble correctly, observe the following:
●Before starting work, make sure that you have switched off all physical variables such as pressure, temperature,
electricity etc. or that they have a harmless value.
●If the device contains dangerous media, it must be emptied prior to disassembly. Make sure that no environmentally
hazardous media are released.
●Secure the remaining connections so that no damage can result if the process is started unintentionally.
5
Connect
5.1
Basic safety instructions
WARNING
Unsuitable cables and/or cable glands
Danger of explosion in hazardous areas.
●Only use suitable cables and cable glands complying with the requirements specified in Chapter "Technical data
(Page 22)".
●Tighten the cable glands in accordance with the torques specified in Chapter "Technical data (Page 22)".
●When replacing cable glands use only cable glands of the same type.
●After installation check that the cables are seated firmly.
See also
Construction (Page 25)
WARNING
Improper power supply
Danger of explosion in hazardous areas as result of incorrect power supply, e.g. using direct current instead of alternating
current.
●Connect the device in accordance with the specified power supply and signal circuits. The relevant specifications can
be found in the certificates, in Chapter "Electrical data (Page 26)" or on the nameplate.
WARNING
Unsafe extra-low voltage
Danger of explosion in hazardous areas due to voltage flashover.
●Connect the device to an extra-low voltage with safe isolation (SELV).

SITRANS TSinsert/TS100/TS200/TS300/TS500
16 A5E32897051-01, 09/2013
WARNING
Lack of equipotential bonding
Danger of explosion through compensating currents or ignition currents through lack of equipotential bonding.
●Ensure that the device is potentially equalized.
Exception
: It may be permissible to omit connection of the equipotential bonding for devices with type of protection
"Intrinsic safety Ex i".
WARNING
Unprotected cable ends
Danger of explosion through unprotected cable ends in hazardous areas.
●Protect unused cable ends in accordance with IEC/EN 60079-14.
WARNING
Loss of degree of protection
When connecting the SITRANS TS100 or TS200 with type protection "Intrinsically safe", ensure the following:
●Adhere to the requirements for electrical connection seperation
●Use IP54 rated enclosure
WARNING
Lemo plug in hazardous areas
For Lemo plug version (7MC7xxx-xxxx2-xxx) make sure the cable ends are in an environment free from dust, water, or
shock
WARNING
Improper laying of shielded cables
Danger of explosion through compensating currents between hazardous area and the non-hazardous area.
●Only ground shielded cables that run into the hazardous area at one end.
●If grounding is required at both ends, use an equipotential bonding conductor.
WARNING
Connecting device in energized state
Danger of explosion in hazardous areas.
●Connect devices in hazardous areas only in a de-energized state.
Exceptions
:
●Circuits of limited energy may also be connected in the energized state in hazardous areas.
●Exceptions for type of protection "Non-sparking nA" (Zone 2) are regulated in the relevant certificate
Note
Electromagnetic compatibility (EMC)
You can use this device in industrial environments, households and small businesses.
For metal housings there is an increased electromagnetic compatibility compared to high-frequency radiation. This
protection can be increased by grounding the housing, see Chapter "Electrical connection (Page 17)".

SITRANS TSinsert/TS100/TS200/TS300/TS500
A5E32897051-01, 09/2013 17
Note
Improvement of interference immunity
●Lay signal cables separate from cables with voltages > 60 V.
●Use cables with twisted wires.
●Keep device and cables in distance to strong electromagnetic fields.
●Use shielded cables to guarantee the full specification according to HART.
●Refer to HART communication information in Chapter "Technical data (Page 22)".
5.1.1
For SITRANS TSinsert/TS200/TS500
NOTICE
Ambient temperature too high
Damage to cable sheath.
●At an ambient temperature ≥60 °C (140 °F), use heat-resistant cables suitable for an ambient temperature at least 20
°C (68 °F) higher.
5.1.2
For SITRANS TS500
NOTICE
Condensation in the device
Damage to device through formation of condensation if the temperature difference between transportation or storage and
the mounting location exceeds 20 °C (68°F).
●Before taking the device into operation let the device adapt for several hours in the new environment.
5.1.3
For SITRANS TS100/TS200
WARNING
Use of plug connectors in explosive dust atmosphere
Danger of explosion.
Temperature sensors of the SITRANS TS100 and SITRANS TS200 series must not be used together with plug connectors
in atmospheres with combustible dust.
●Do not use plug connectors in areas with combustible dust.
5.2
Electrical connection
Procedure
Note
Connection sequence
Install the temperature transmitter before connecting the temperature sensor electrically.
1. Release the fixing screws on the enclosure cover and remove the enclosure cover.
2. Insert the connecting cable through the cable gland.
3. Connect the wires to the relevant connecting terminals. Observe the terminal assignment.
–Electrical connection of resistance thermometers (Page 18)
–Electrical connection of thermocouples (Page 18)
–Electrical connection of connectors (Page 19)

SITRANS TSinsert/TS100/TS200/TS300/TS500
18 A5E32897051-01, 09/2013
See also
Electrical data (Page 26)

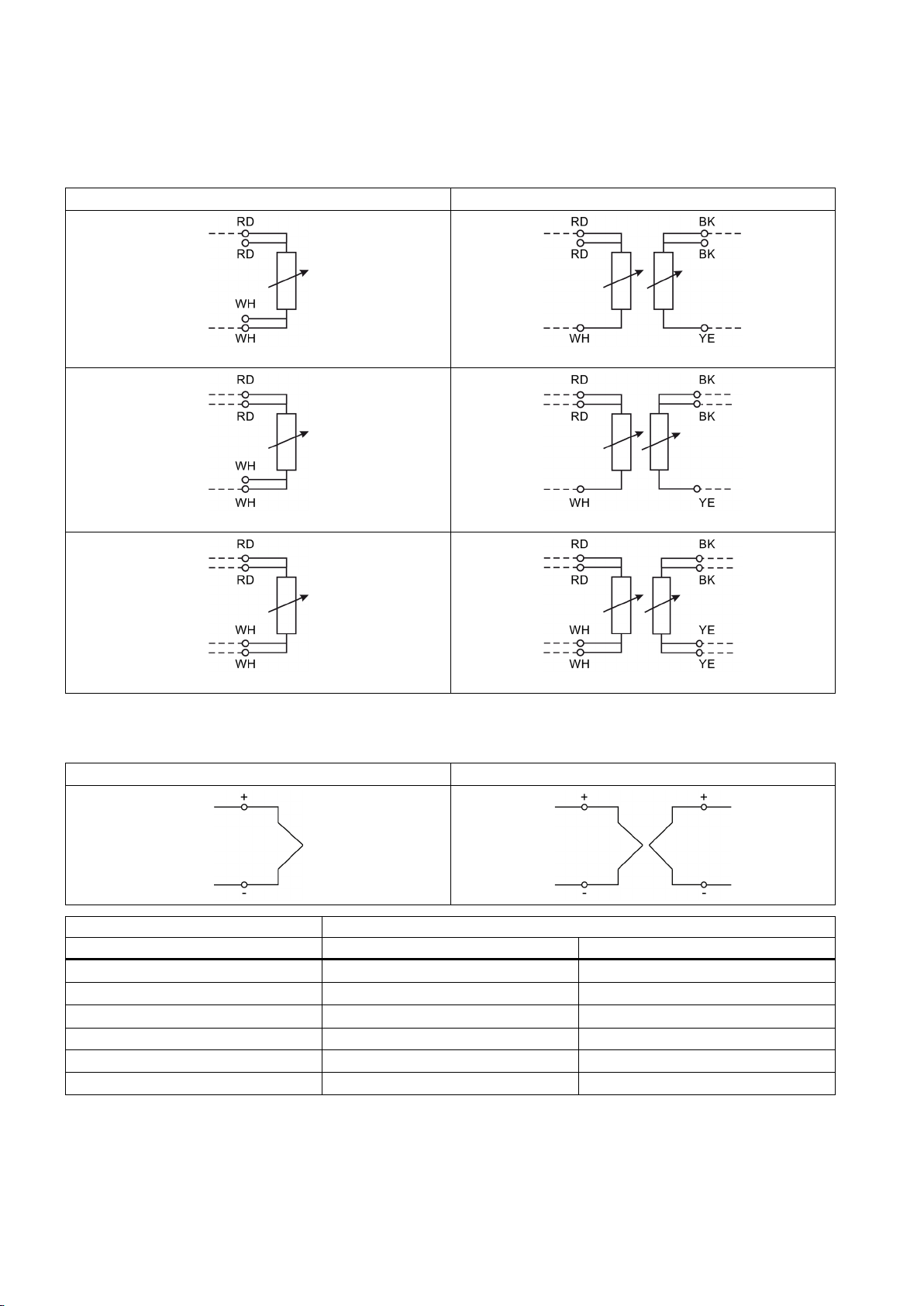

5.3
Electrical connection of resistance thermometers
1 x Pt100 2 x Pt100
2-wire connection 2-wire connection
3-wire connection 3-wire connection
4-wire connection 4-wire connection
Abbreviation of color: RD = red; WH = white; YE = yellow; BK = black
5.4
Electrical connection of thermocouples
1 thermocouple 2 thermocouples
Thermocouples
Cable colors
Type
+
-
J
Black White
K
Green White
N
Pink White
E
Brown White
L
Red Blue
T
Red White

SITRANS TSinsert/TS100/TS200/TS300/TS500
A5E32897051-01, 09/2013 19
5.5
Electrical connection of connectors
M12 x 1 connection with SITRANS TH100 transmitter
Figure 5-1 2-wire connection, 4 ... 20 mA
6
Commission
6.1
Basic safety instructions
WARNING
Improper commissioning in hazardous areas
Device failure or danger of explosion in hazardous areas.
●Do not commission the device until it has been mounted completely and connected in accordance with the information
in Chapter "Technical data (Page 22)".
●Before commissioning take the effect on other devices in the system into account.
WARNING
Hot surfaces
Danger of burns resulting from hot surfaces.
●Take corresponding protective measures, for example by wearing protective gloves.
WARNING
Loss of explosion protection
Danger of explosion in hazardous areas if the device is open or not properly closed.
WARNING
Opening device in energized state
Danger of explosion in areas subject to explosion hazard.
●Only open the device in a de-energized state.
●Check prior to commissioning that the cover, cover locks, and cable inlets are assembled in accordance with the
directives.
Exception
: Devices having the type of protection "Intrinsic safety Ex i" may also be opened in energized state in hazardous
areas.
Note
Loss of degree of protection
Damage to device if the enclosure is open or not properly closed. The degree of protection specified on the nameplate is no
longer guaranteed.

SITRANS TSinsert/TS100/TS200/TS300/TS500
20 A5E32897051-01, 09/2013
6.2
Commissioning
Requirements
Verify that the following commissioning conditions are satisfied:
●You have connected the sensors correctly. For further details, see:
–Electrical connection of resistance thermometers (Page 18)
–Electrical connection of thermocouples (Page 18)
●Verify that the electrical connections are firmly tightened to the suitable torque.
●The following applies in particular with device versions with explosion protection:
–Verify whether the cable glands are appropriate for the process and are correctly tightened.
–The electrical data must match the specified ex-relevant values.
●All seals must be present, placed correctly and undamaged.
Procedure
1. Close the connection head. Fully screw on the cover for device versions with flameproof enclosures.
2. Connect the sensor integrated in the process to the power supply.
7
Service and maintenance
7.1
Service and maintenance
Recalibration
Temperature sensors are essentially maintenance-free. However, we recommend recalibration under the following
conditions:
●Processes with strong vibrations or changes in temperature.
●Food, pharma, biotechnology applications (annually), TS300 only.
●Processes that demand high measuring accuracy and safety.
Note
Recalibration intervals
Define the recalibration intervals for the specific process or plant. With constant operating temperatures and a low load,
the reference values are as follows:
●< 2 years at temperatures up to 400 °C
●< 5 years at temperatures up to 200 °C
Recalibration of SITRANS TS300
Description
Recalibration procedure
Clamp-on version Do not disconnect the pipe sleeve from the pipe - leave the
measuring position unchanged for reproducible measurement.
It is not necessary to disconnect the power supply to perform
calibration.
Loosen recessed grip screw(s) to remove the Pt100 connector or
housing and unscrew the measuring insert from the pipe collar.
Block calibrators Use calibrator sleeves that have been adapted to the shape of the
Pt100 unit only.
