Siemens THE PROBE User manual

Ultrasonic Transmitters
Operating Instructions 03/2013
THE PROBE

© Siemens AG 2013
Safety Guidelines: Warning notices must be observed to ensure personal safety as well as that of
others, and to protect the product and the connected equipment. These warning notices are
accompanied by a clarification of the level of caution to be observed.
Qualified Personnel: This device/system may only be set up and operated in conjunction with this
manual. Qualified personnel are only authorized to install and operate this equipment in accordance with
established safety practices and standards.
Unit Repair and Excluded Liability:
The user is responsible for all changes and repairs made to the device by the user or the user’s
agent.
All new components are to be provided by Siemens Milltronics Process Instruments.
Restrict repair to faulty components only.
Do not reuse faulty components.
Warning: Cardboard shipping package provides limited humidity and moisture protection. This product
can only function properly and safely if it is correctly transported, stored, installed, set up, operated, and
maintained.
This product is intended for use in industrial areas. Operation of this equipment in a residential area
may cause interference to several frequency based communications.
Note: Always use product in accordance with specifications.
Copyright Siemens AG 2013. All Rights
Reserved
Disclaimer of Liability
This document is available in bound version and in
electronic version. We encourage users to purchase
authorized bound manuals, or to view electronic
versions as designed and authored by Siemens
Milltronics Process Instruments. Siemens Milltronics
Process Instruments will not be responsible for the
contents of partial or whole reproductions of either
bound or electronic versions.
While we have verified the contents of this
manual for agreement with the
instrumentation described, variations remain
possible. Thus we cannot guarantee full
agreement. The contents of this manual are
regularly reviewed and corrections are
included in subsequent editions. We welcome
all suggestions for improvement.
Technical data subject to change.
MILLTRONICS®is a registered trademark of Siemens Milltronics Process Instruments.
Contact SMPI Technical Publications European Authorized Representative
at the following address:
Technical Publications Siemens AG
Siemens AG Industry Sector
Siemens Milltronics Process Instruments 76181 Karlsruhe
1954 Technology Drive, P.O. Box 4225 Deutschland
Peterborough, Ontario, Canada, K9J 7B1
Email: [e-mail]
For a selection of Siemens Milltronics level measurement manuals, go to:
www. siemens.com/processautomation. Under Process Instrumentation, select
Level
Measurement
and then go to the manual archive listed under the product family.
For a selection of Siemens Milltronics weighing manuals, go to:
www. siemens.com/processautomation. Under Weighing Technology, select
Continuous
Weighing Systems
and then go to the manual archive listed under the product family.

A5E32243983 The Probe – INSTRUCTION MANUAL Page 1
mmmmm
English
Introduction
The Probe is an ultrasonic level monitor combining sensor and electronics in a single package. It is
designed to measure liquid levels in open or closed vessels. The process part (sensor) is PVDF or
ETFE, allowing The Probe to be used in a wide variety of industries, especially food and chemical.
The sensor houses the ultrasonic transducer and temperature sensing element. The Probe emits a
series of ultrasonic pulses from the transducer. Each pulse is reflected as an echo from the material
and sensed by the transducer. The echo is processed by The Probe using Siemens Milltronic’s
proven ‘Sonic Intelligence’ techniques. Filtering is applied to help discriminate between the true
echo from the material, and false echoes from acoustical and electrical noises and agitator blades in
motion. The time for the pulse to travel to the material and back is temperature compensated and
then converted into distance for display, mA output.
Installation
Environmental
The Probe should be mounted in an area that is within the temperature range specified and that is
suitable to the housing rating and materials of construction. The front lid should be accessible to
allow programming, wiring and display viewing.
It is advisable to keep The Probe away from high voltage or current runs, contactors and SCR control
drives.
Location
Notes:
• This product is intended for use in industrial areas. Operation of this equipment in a
residential area may cause interference to several frequency based
communications.
• The Probe is to be used only in the manner outlined in this instruction manual.

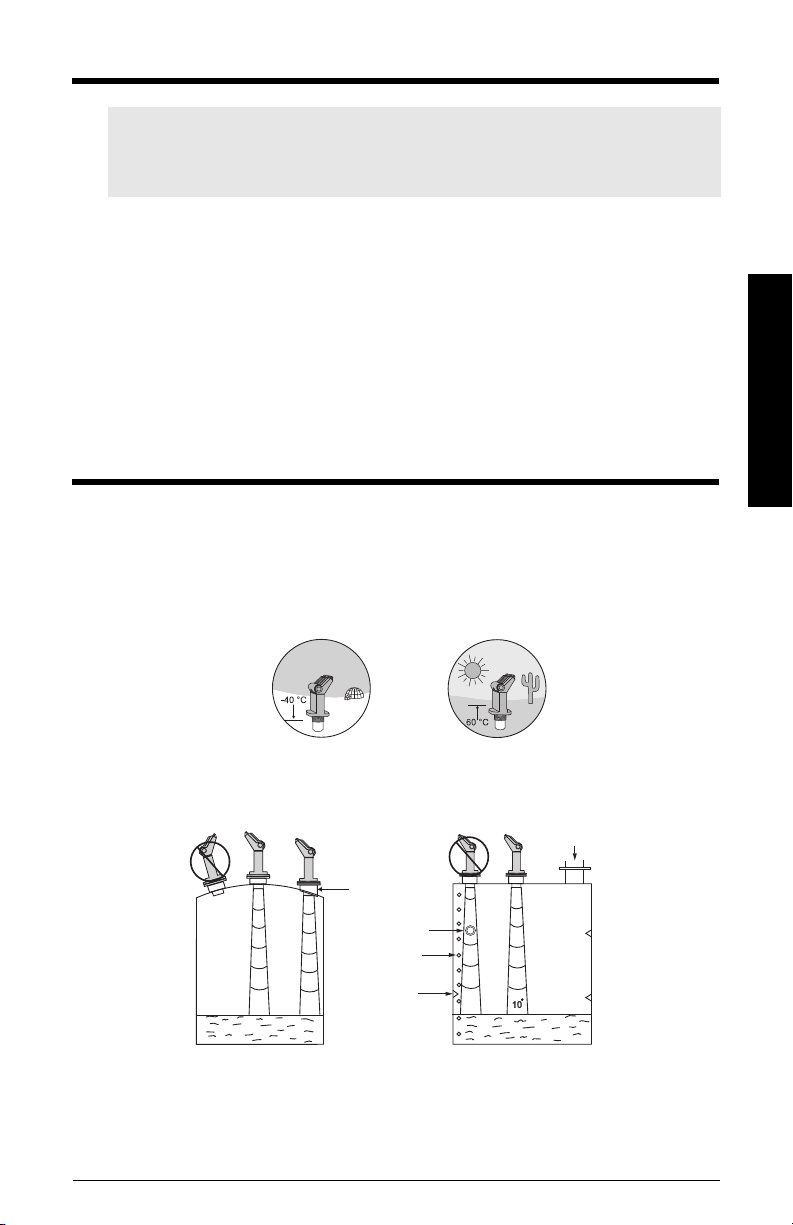

Locate the Probe so that it
will have a clear sound path
perpendicular to the liquid
surface.
The Probe’s sound path
should not intersect the fill
path, rough walls, seams,
rungs, etc.
sanitary ferrule
pipe
rungs
seams
fill

Page 2 The Probe – INSTRUCTION MANUAL A5E32243983
mmmmm
English

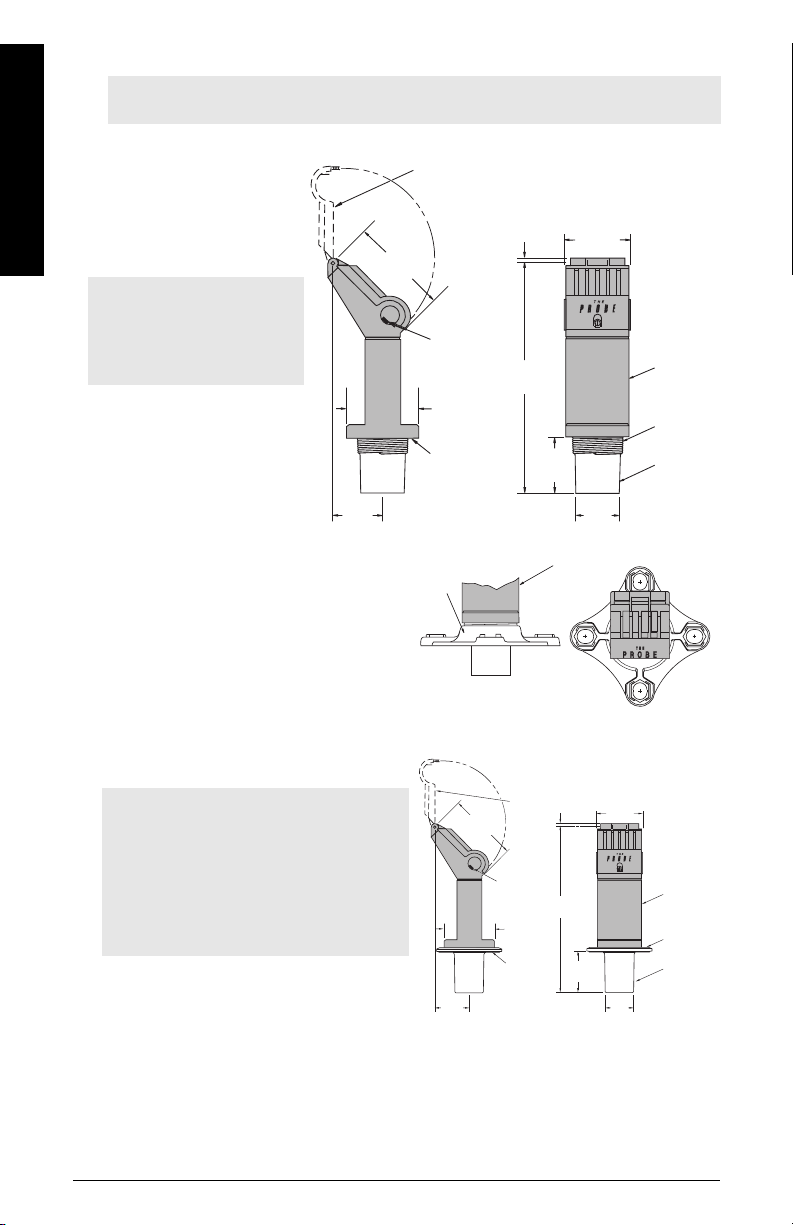

Mounting
Threaded
Flange Adapter (optional)
Sanitary (Non Intrinsically Safe)
Note: Mount the Probe so that the face of the sensor is at least 25 cm above the highest
anticipated level.
hinged lid
117 mm
(4.6”)
cable entry
‘knock out’
87 mm
(3.4”) ø
61 mm
(2.4”)
53mm
(2.1”)
ø max
sensor
mounting
thread
electronics
34 mm
(3.3”)
max.
7 mm
(0.3”)
279 mm
(11”)
74 mm
(2.9”)
thread type
identification
The Probe is available in three
thread types: 2” NPT, 2” BSP or
PF2.
Note: Before inserting The
Probe into its mounting hole,
ensure that the threads are of
the same type to avoid
damaging The Probe threads.
The Probe can be fitted with the optional 75 mm
(3") flange adapter for mating to 3" ANSI, DIN
65PN10 and JIS 10K3B flanges.
The
Probe
optional
flange
adapter
hinged lid
117 mm
(4.6")
cable entry
’knock out’
87 mm
(3.4") ø
61 mm
(2.4")
7 mm
(0.3") 84 mm
(3.3") max.
electronics
mounting
thread
sensor
53 mm
(2.1")
ø max.
279 mm
(11")
76 mm
(2.9")
integral
sealing ring
Notes:• Mount The Probe so that the face of
the sensor is at least 25 cm above
the highest anticipated level.
• The sanitary Probe is suitable for
chemical clean-in-place
applications to 60 °C (140 °F) only.
Ensure your cleaning chemicals are
compatible with PVDF.

A5E32243983 The Probe – INSTRUCTION MANUAL Page 3
mmmmm
English

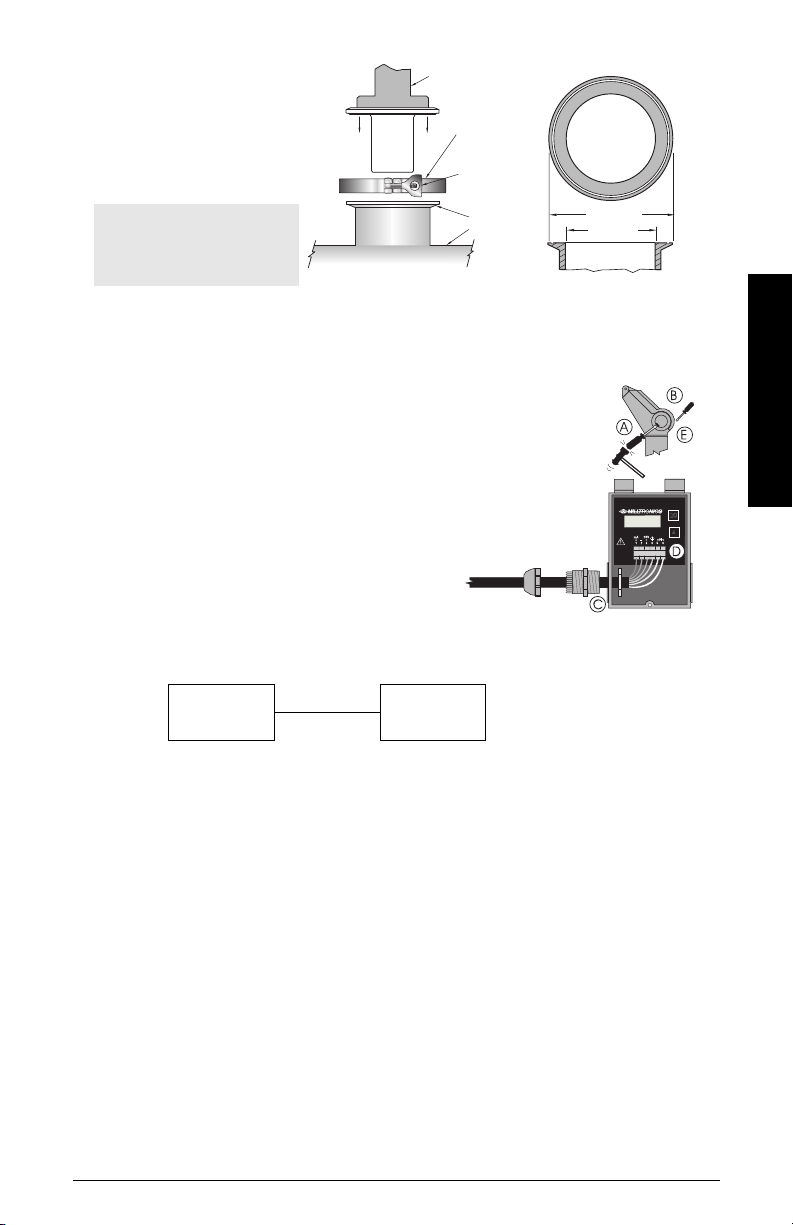

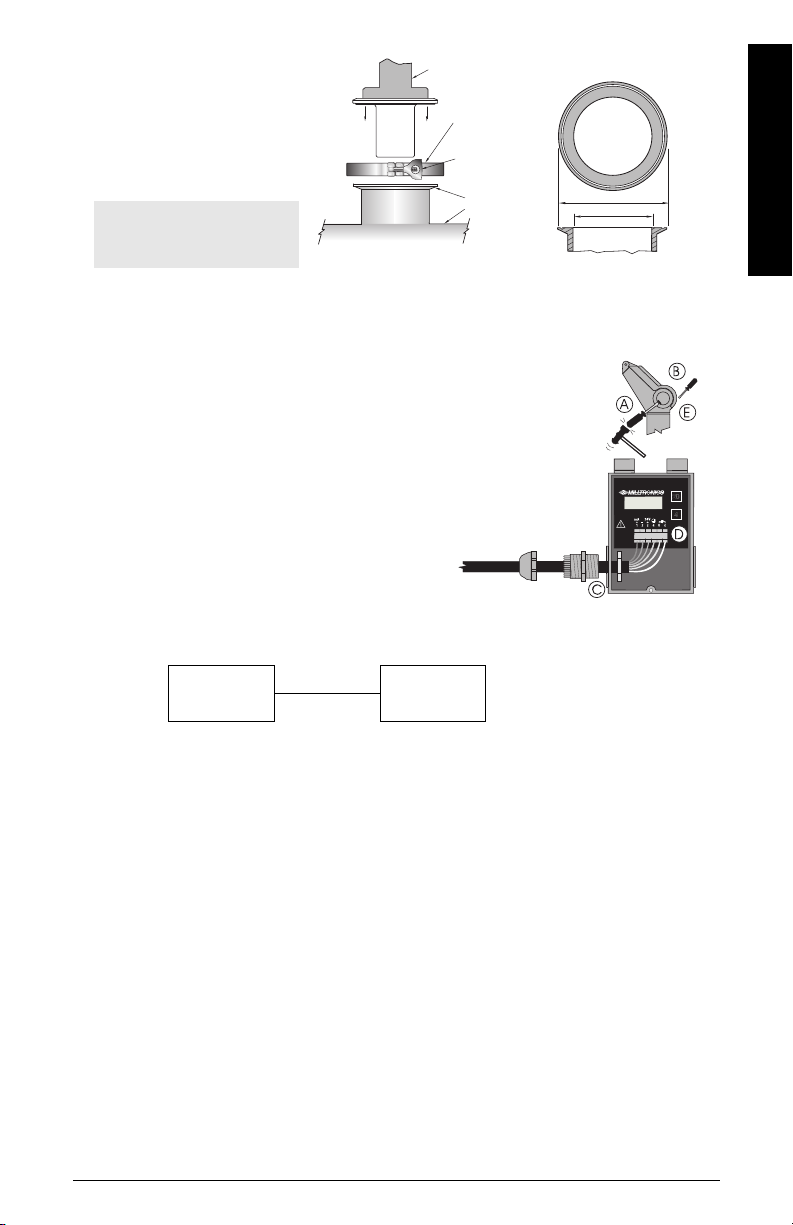

Interconnection
Cable Entry
System Diagram
4” Sanitary Ferrule
119 mm (4.68")
97 mm (3.83")
dimensions
are approximate
The Probe
clamp*
adjusting
wing nut
ferrule
tank
• mount The Probe onto the top of
the tank’s sanitary ferrule
• secure mating by surrounding
the joint with the clamp
• tighten adjusting wing nut
Note: Inside of sanitary
ferrule must be smooth, free of
burrs, seams or ridges. *supplied with the Probe
A.With lid closed, remove cable entry ’knock out’ on either side as required.
B.Open lid by loosening the lid screw.
C. Run cable to The Probe.
D.Connect loop wiring.
E. Close lid. Tighten screw to 1.1 to 1.7 N-m (10 to 15 in-lb) of torque
The Probe loop
instrumentation

Page 4 The Probe – INSTRUCTION MANUAL A5E32243983
mmmmm
English
Intrinsically Safe Model
FM (reference drawing 1-8600016Z-DX-A)
Under the entity evaluation concept, The Probe has the following characteristics :
Definition :
The Entity Concept allows interconnection of intrinsically safe apparatus to associated apparatus
not specifically examined in such combination. The criteria for interconnection is that the voltage
and current which intrinsically safe apparatus can receive and remain intrinsically safe, considering
faults, must be equal or greater than the voltage (Voc or Vt) and current (Isc or It) levels which can
be delivered by the associated apparatus, considering faults and applicable factors. In addition, the
maximum unprotected capacitance (Ci) and Inductance (Li) of the intrinsically safe apparatus,
including interconnecting wiring, must be equal to or less than the capacitance and inductance
which can be safely connected to associated apparatus.
FM / CSA (reference drawing 1-8600016Z-DX-A)
Approved dust tight and water tight conduit seals are required for Class II, Div. 1, Gr. E, F, G, and
outdoor Type 4 / NEMA 4X / IP65 locations.
The maximum voltage of the non-intrinsically safe apparatus must not exceed 250 V rms.
Use only intrinsically safe barriers as listed.
Note: Reference drawing 1-8600016Z-DX-A is available on the product page of our
website at www.siemens.com/theprobe. Go to More Info / Installation drawings and
scroll to Connection Drawings.
Vmax = 30 V DC Imax = 200 mA dc
Ci = 0 Li = 0
Note: Reference drawing 1-8600016Z-DX-A is available on the product page of our
website at www.siemens.com/theprobe. Go to More Info / Installation drawings and
scroll to Connection Drawings.
24 V DC
supply load
4 to 20
mA seeterminal
connection
table
4 to 20 mA
Passive Safe Area Hazardous Area

A5E32243983 The Probe – INSTRUCTION MANUAL Page 5
mmmmm
English

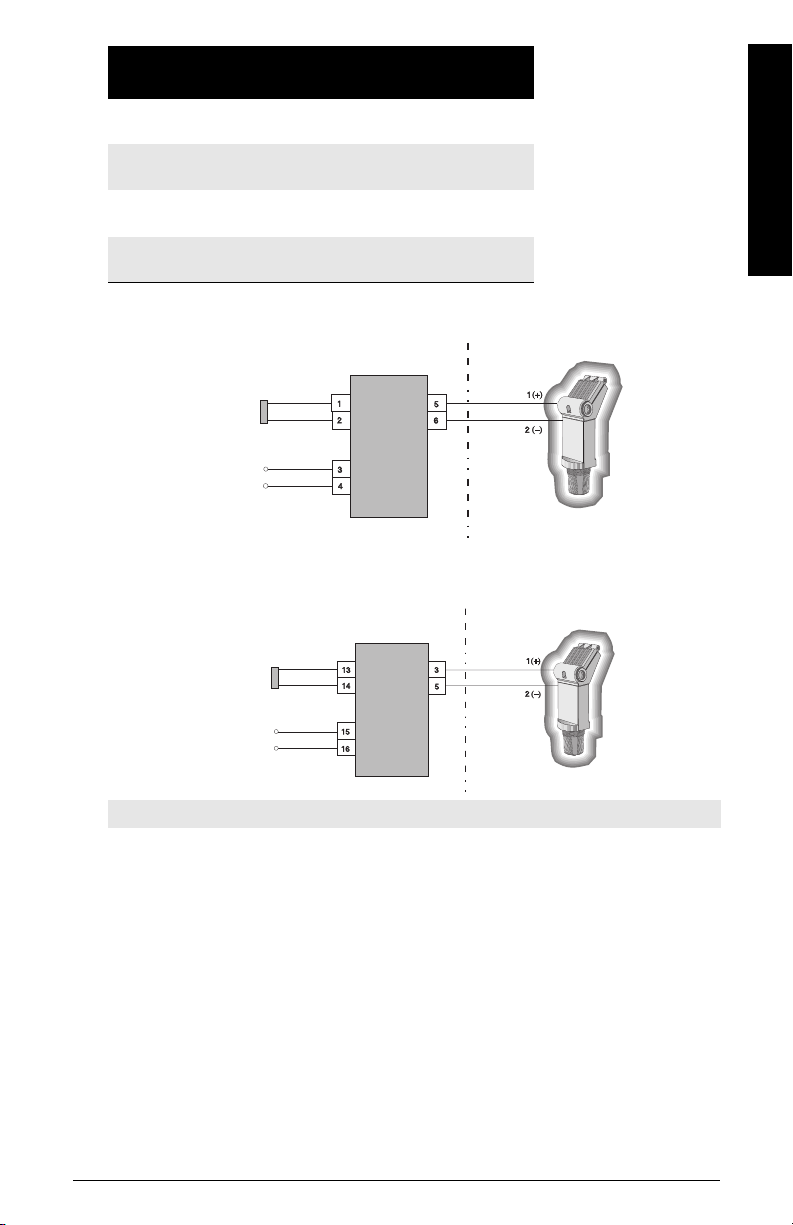

DC Repeater
AC Repeater
Make Part no. Temrinal
Barrier
Connection
The probe
MTL 787s+ 3
4
1
2
MTL 706+ 4
3
1
2
STAHL 9002 / 13-
280-110-00
3
4
1
2
STAHL 9001 / 51-
280-110-14
3
42
Note: Power supply input is reverse polarity protected.
Safe Area Hazardous Area
load
4 to 20 mA
20 to 35 V DC
supply
MTL 3041 / 20 to 35 V DC
4 to 20 mA
seeterminal
connection
table
Safe Area Hazardous Area
4 to 20 mA
seeterminal
connection
table
4 to 20 mA
MTL 2441 / 120V & 240 V
load
N / L2

Page 6 The Probe – INSTRUCTION MANUAL A5E32243983
mmmmm
English
General Guidelines for the Intrinsically Safe Probe covered by EC-Type
Examination Certificate BAS99ATEX1300
1. The apparatus may be used with flammable gases and vapours with Apparatus Group IIC and
with temperature class T4.
2. The equipment is certified for use in an ambient range of –40oC to 60oC.
3. The equipment has not been assessed as a safety related device as referred to by EC Directive
94/9/EC Annex II, clause 1.5.
4. Installation and inspection of this equipment shall be carried out by suitably trained personnel
in accordance with the applicable code of practice (EN 60079-14 and EN60079-17 within
Europe).
5. Repair of this equipment shall be carried out by suitably trained personnel in accordance with
the applicable code of practice (e.g. EN 60079-19 within Europe).
6. Components to be incorporated into or used as replacements in the equipment shall be fitted
by suitably trained personnel in accordance with the manufacturer’s documentation.
7. The certification of this equipment relies upon the following materials used in its construction:
BF Goodrich PVC GEON‚ 85856 (enclosure and lid material)
ETFE (transducer)
PVDF (alternative transducer)
Master Bond Polysulphide EP21LPT or Dow Corning 3-4207 encapsulant (transducer)
Emmerson and Cummings Stycast‚ 2075 encapsulant (electronics)
If the equipment is likely to come into contact with aggressive substances, then it is the
responsibility of the user to take suitable precautions that prevent it from being adversely affected,
thus ensuring that the type of protection is not compromised.
Aggressive substances: e.g. solvents that may affect polymeric materials
Suitable precautions: e.g. regular checks as part of routine inspections or establishing from the materials
data sheet that it is resistant to certain chemicals.
PVC GEON 85856 is a registered trademark of BF Goodrich
Polysulphide EP21LPT is a registered trademark of Master Bond
Dow Corning 3-4207 is a registered trademark of Dow Corning
Stycast 2075 is a registered trademark of Emmerson and Cummings

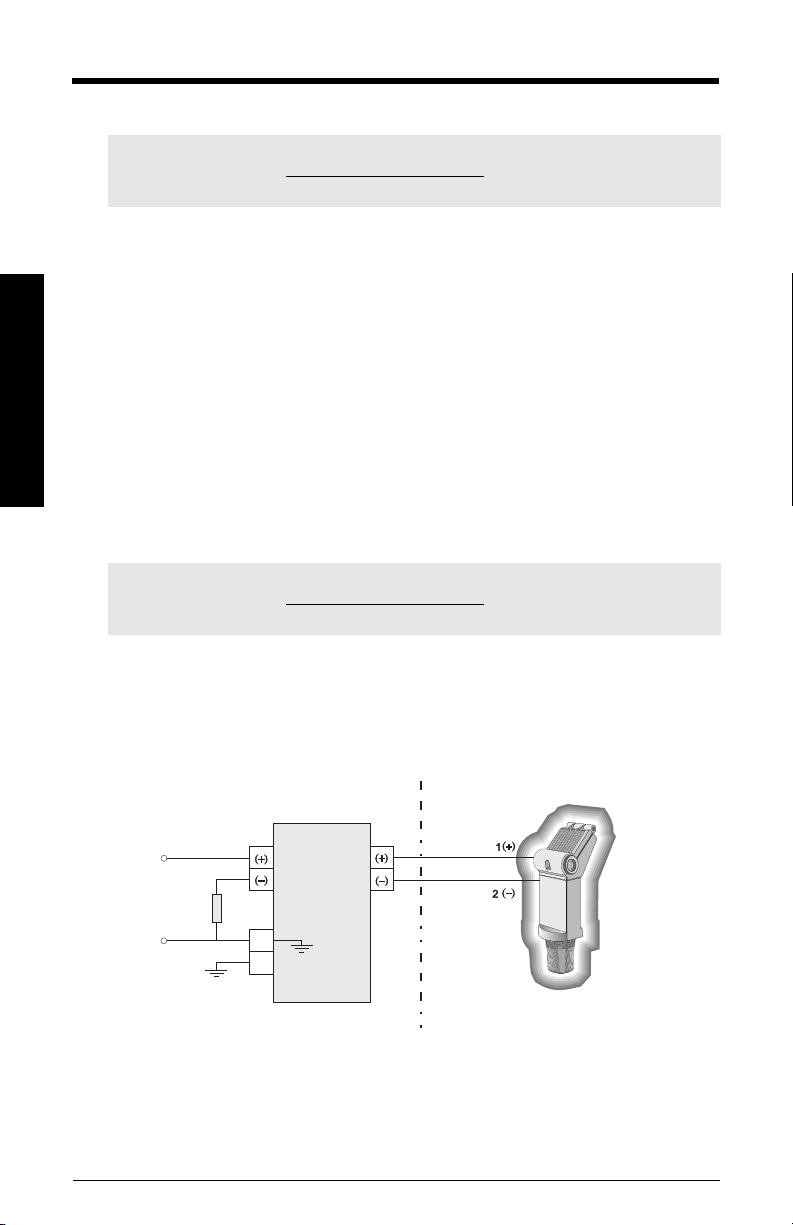

Non Intrinsically Safe
Note: Power supply is reverse polarity protected.
V supply
12 to 30 V DC
R max = V supply – 12 V
20 mA
The Probe loop instrumentation
R max

A5E32243983 The Probe – INSTRUCTION MANUAL Page 7
mmmmm
English

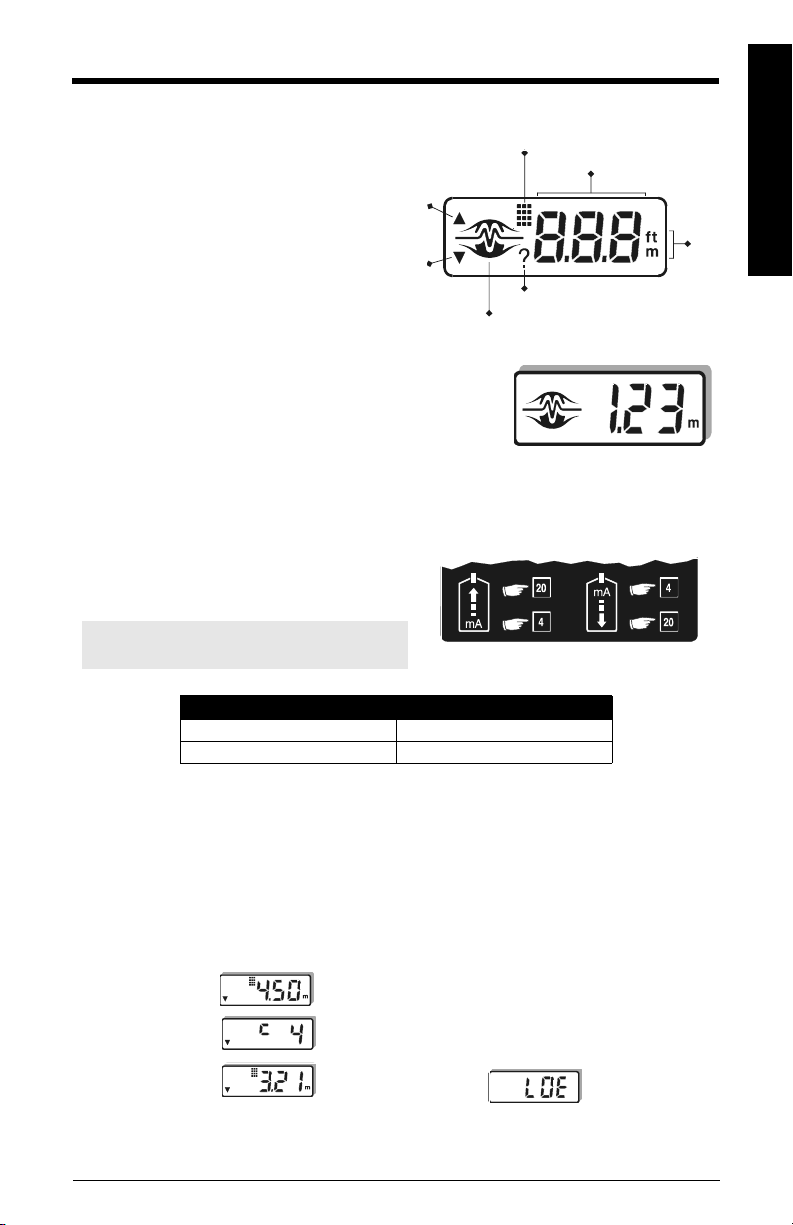

Operation
Start Up
Calibration

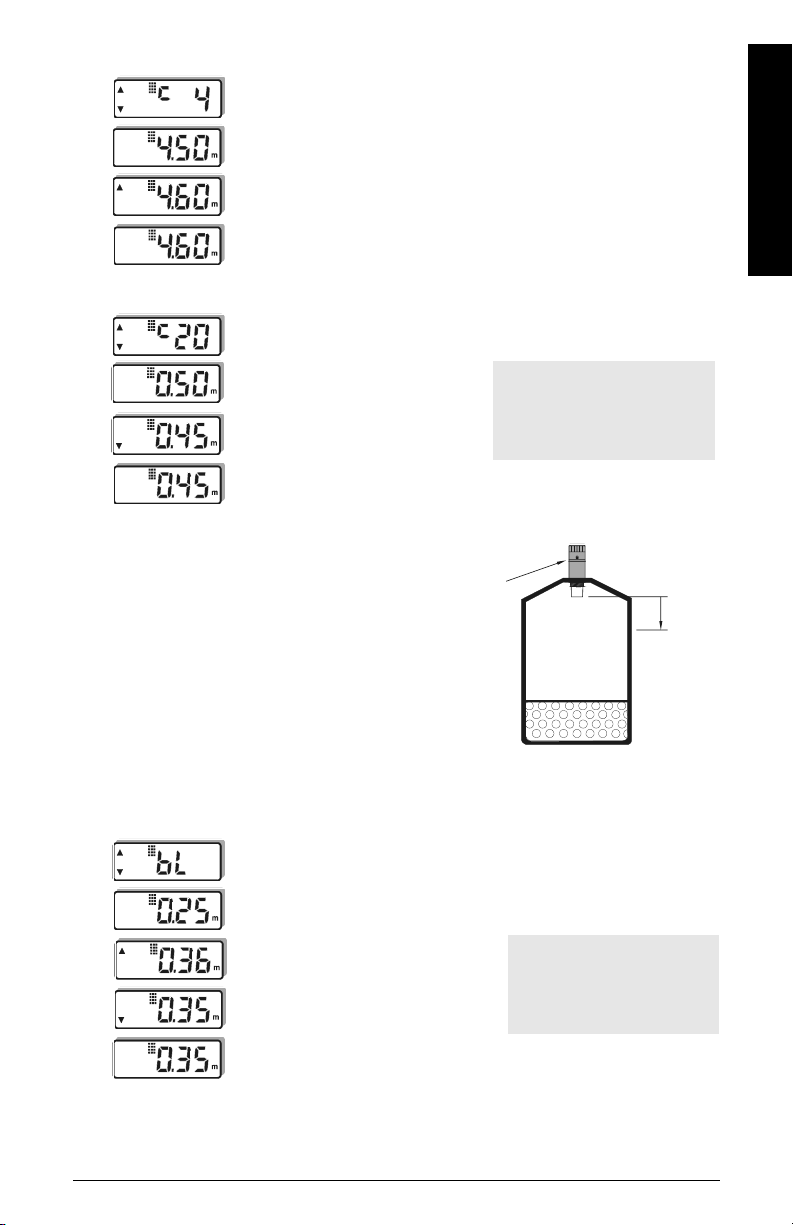

Calibration: Reference Method
• Adjust the material level (or target) to the desired distance from the sensor face.
• Press the “4” or “20” key (as appropriate) to view the stored distance associated with that mA
output value.
• Press the key a second time to set the new distance reference.
• After viewing or calibrating, Probe operation automatically reverts to the Run mode (6 sec). The
calibration value is referenced from the face of The Probe sensor, in the units displayed.
4 mA calibration
proportional span inversely proportional span
high level = 20 mA high level = 4 mA
low level = 4 mA low level = 20 mA
Press “4”
Press “4” again 4 mA calibration
new 4mA calibration
calibration invalid if
retry
• With The Probe correctly installed (or
aimed at a wall 0.25 to 5 m away), apply
power.
• The Probe starts up displaying the
following:
program mode
alphanumeric
units
LOE / fault
operation status
‘4’ key
‘20’ key
• It then defaults to the Run mode, which is the measurement
reading of the distance from the transducer face to the
material level in the units indicated:
• If the default display differs from that shown, refer to
Operation Status on page 8.
The calibration of the mA output may be done such
that its span will be either proportional or inversely
proportional to the material level.
Note: The 4 and 20 mA levels may be calibrated in
any order.

Page 8 The Probe – INSTRUCTION MANUAL A5E32243983
mmmmm
English
20 mA calibration
Operation Status

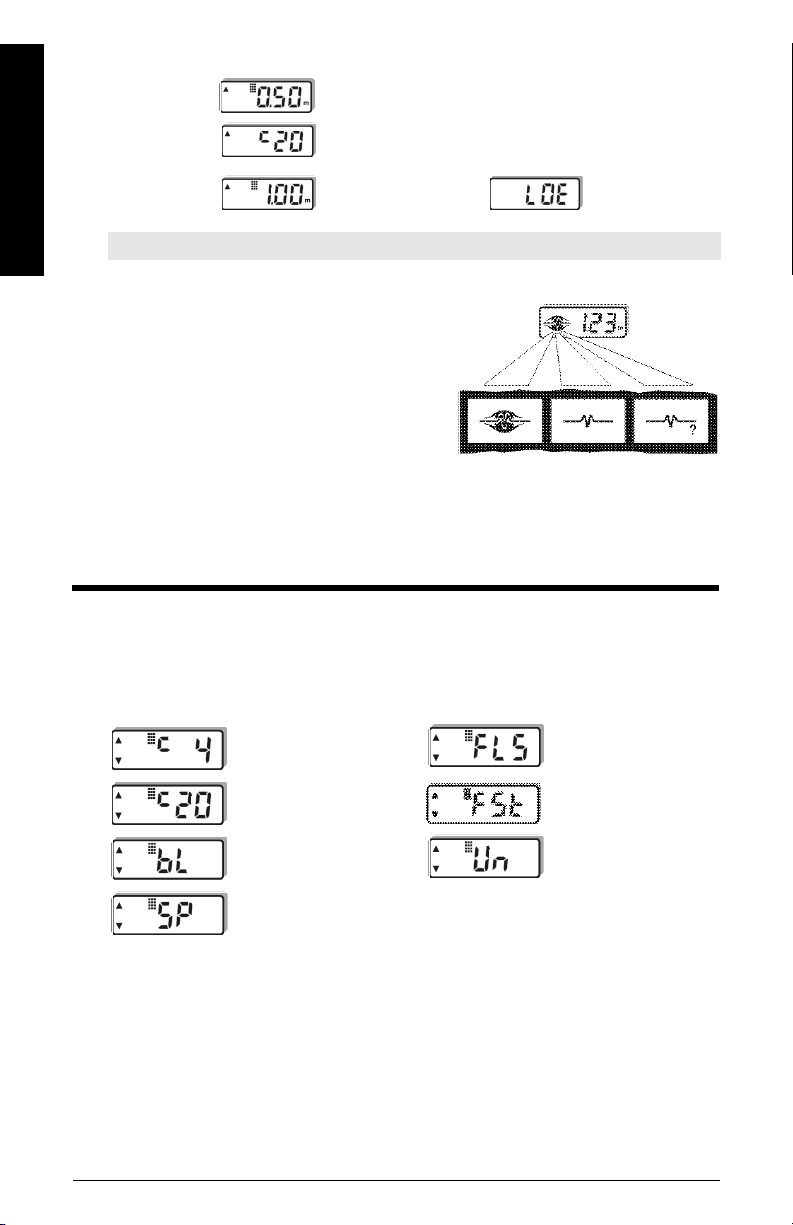

The logo will change from full to partial to indicate operation status. After the `Waiting' period, the `?'
icon will appear for an `LOE / FAULT' indication. When a valid echo is again received, a `Good'
indication will resume. Refer to Troubleshooting on page 12.
Adjustments
There are several operating adjustments that can be made to The Probe.
To access the operating adjustments, simultaneously press the "4" and "20" keys until the desired
adjustment is obtained. A viewing sequence of the stored value is automatically initiated. During this
time the value can be changed by pressing either the "4" or "20" key. After viewing or changing,
operation automatically reverts to the Run mode (6 sec).
Calibration, Scrolling Method
The 4 and 20 mA calibration values can be selected where reference levels, either from the material
in the vessel or from a target, cannot be provided. This method can also be used to trim the output
levels obtained by the Reference Method (see page 7).
To change the stored calibration value, obtain the `c 4' or `c 20' display. The calibration value may be
increased by pressing the "20" key or decreased by pressing the "4" key. When the display has
scrolled to the desired value, stop pressing the key. The display automatically reverts to the Run
mode (6 sec).
Press “20”
Press “20” again 20 mA calibration
new 20 mA calibration
calibration invalid if
retry
Note: Calibration bypasses the measurement response rate.
4 mA calibration, scrolling fail-safe
20 mA calibration, scrolling fail-safe timer
blanking units
speed of response
GOOD WAITING LOE / FAULT
The graphic portion of the display gives the user a visual
indication of The Probe's operating status. Viewing the
graphic can assist the user in properly locating and
installing The Probe to achieve optimum performance.

A5E32243983 The Probe – INSTRUCTION MANUAL Page 9
mmmmm
English
4 mA calibration
20 mA calibration
Blanking
• To change the stored blanking value, obtain the `bL' display.
• Press the "20" key to increase or the "4" key to decrease the blanking value.
• When the display has scrolled to the desired value, stop pressing the key. The display
automatically returns to the Run mode (6 sec).
4 mA calibration initiated
view stored 4 mA calibration value i.e. 4.50 m
press”20” to increase to new calibration value i.e. 4.60 m
new calibration value
20 mA calibration initiated
view stored 20 mA calibration value i.e. 0.50
mNote: For faster scrolling, hold the
key depressed during the
calibration adjustment and release
when desired value is obtained.
press “4” to decrease to new calibration
value i.e. 0.45 m
new calibration value
3 sec blanking
stored blanking value i.e. 0.25 m
press “20” to increase blanking i.e. 0.36 m Note: For faster scrolling, hold
the key depressed during the
blanking adjustment and release
when desired value is obtained.
press “4” to decrease to desired blanking
value i.e. 0.35 m
6 sec new blanking value
The Probe
blanking
Blanking is used to ignore the zone in front of the
transducer where false echoes are at a level that
interfere with the processing of the true echo. It is
measured outward from the sensor face. The minimum
recommended blanking value is 0.25 m (0.82 ft) but can
be increased in order to extend the blanking.

Page 10 The Probe – INSTRUCTION MANUAL A5E32243983
mmmmm
English
Speed of Response
The speed of response adjustment allows the user to collectively set a number of operating
parameters.
* = factory setting
• To change the speed of response, obtain the `SP' display.
• Scroll forward through the options (1-2-3) by pressing the "20" key. Scroll backward through the
options (3-2-1) by pressing the "4" key.
• When the desired option is displayed, stop pressing the key. The display will automatically return
to the Run mode (6 sec).
Fail-Safe
In the event a loss of echo or fault condition exceeds the `Waiting' period (see Speed of Response
above or Fail-safe Timer on page 11), the ` ? ' icon appears and one of the following fail-safe defaults
is immediately effected.
p = proportional span i = inversely proportional span * = factory default
• To change the fail-safe default obtain the `FLS' display.
• Scroll forward through the options (1-2-3) by pressing the "20" key. Scroll backward through the
options (3-2-1) by pressing the "4" key.
measurement response: is the limit to which The Probe will be able to keep up with rates of change.
If The Probe measurement cannot keep up with the rate of level change, set the
adjustment from `1' to `2'. If The Probe still cannot keep up with the rate of level
change, set the adjustment option to `3'. Avoid choosing an option that is too fast for
your application.
agitator discrimination: discriminates between agitator blades in motion, and the material (target) surface.
filter: discriminates between false echoes from acoustical and electrical noise and the
material (target) surface.
fail-safe timer: establishes the `Waiting' period from the time a loss of echo or operating fault
condition starts until the fail-safe default is effected. Adjusting the speed of
response will set the fail-safe timer to the default values in the chart. If a different
response is required, adjust the ‘FSt’ option (see page 11).
SP measurement response agitator discrimination filter fail-safe timer
1* 1 m/min (3.3 ft/min) on on 10 min
25 m/min (16.4 ft/min) on on 3 min
3immediate off off 3 min
40.03 m/min (0.1 ft/min) on on 10 min
3 sec speed of response
current option i.e. 1 m/min
press “20” for option 2 i.e. 5 m/min
6 sec option 2 selected
FLS default mApmAireading
1full 22 4hold
2empty 422 hold
3* hold hold hold hold

A5E32243983 The Probe – INSTRUCTION MANUAL Page 11
mmmmm
English
• When the desired option is displayed, stop pressing the key. The display will automatically return
to the Run mode (6 sec).
Fail-Safe Timer
The fail-safe timer allows the user to vary the ‘waiting’ period from the time a loss of echo or
operating fault condition begins, until the fail-safe default is effected. The ‘waiting’ period is
adjustable from 1 to 15 minutes, in 1 minute increments.
The fail-safe timer value will default to settings determined by the speed of response (see page 10).
If a different value is desired, the fail-safe timer should be adjusted
after the speed of response is
set.
• To change the fail-safe timer, obtain the ‘FSt’ display.
• Increase the ‘waiting’ period by pressing the “20” key, and decrease it by pressing the “4” key,
stopping when the desired value is displayed.
• The display automatically reverts to the Run mode (6 sec).
Units
The units of the measurement reading can be selected as follows:
1 = metres, m (factory setting)
2 = feet, ft
The selected units are also applicable to the `Blanking' adjustment.
• To change the units obtain the `Un' display.
• Scroll forward through the options ( 1 - 2 ) by pressing the "20" key. Scroll backward through the
options ( 2 - 1 ) by pressing the "4" key.
• When the desired option is displayed, stop pressing the key. The display will automatically return
to the Run mode (6 sec).

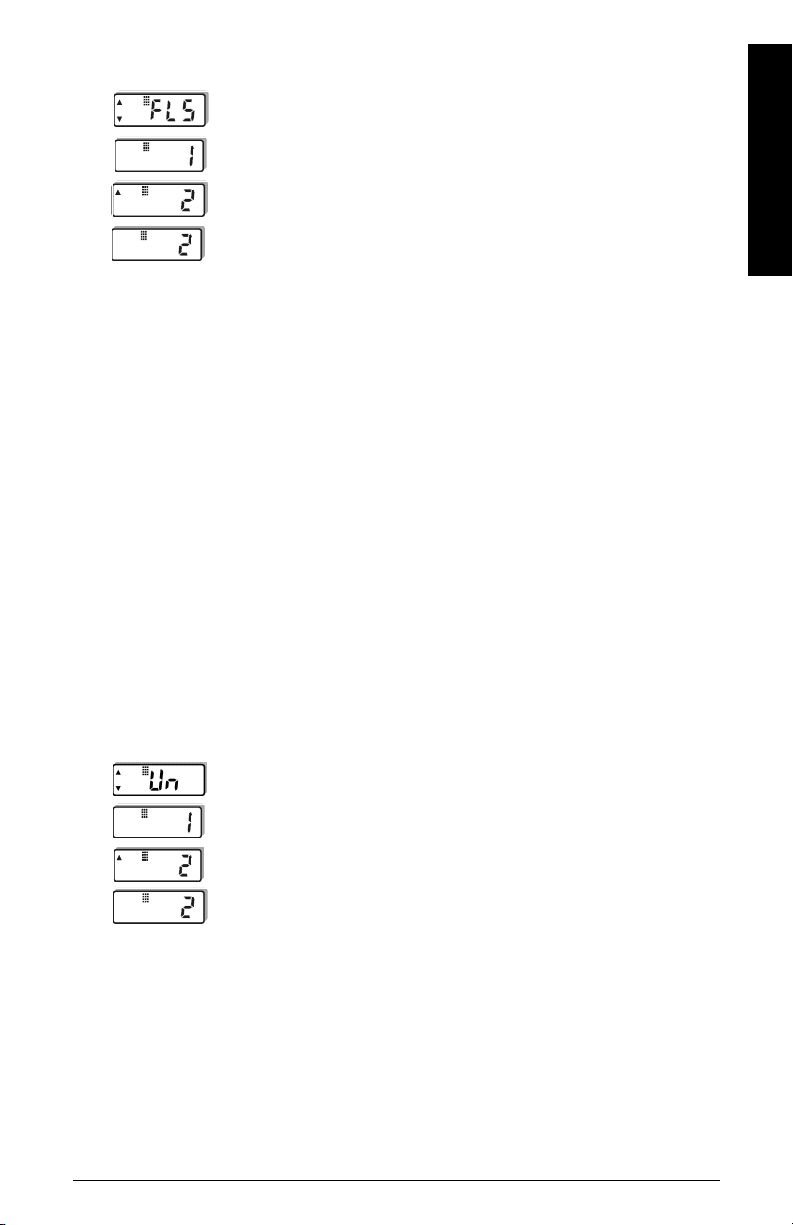

3 sec fail-safe
current option i.e. full
Press “20” for option 2 i.e. empty
6 sec option 2 selected
3 sec units
current option i.e. m
Press “20” for option 2 i.e. ft
6 sec option 2 selected

Page 12 The Probe – INSTRUCTION MANUAL A5E32243983
mmmmm
English
Supplement
Measurement Interval
Troubleshooting
Patents
Instrument Housing Design:
• Canada: 70345
• U.S.A.: 07/858/707
• Germany: M92022723
• U.K.: 2021748
• France: 921873
• Japan: 966217
Electronics / Sensor:
• U.S.A.: 5,267,219
5,339,292
• U.K.: 2,260,059
• patent applications in U.K., Canada, Europe, Africa, Australia
The echo is not reliable and The Probe is waiting for a valid echo before updating the
measurement.
Probable causes are:
• material or object in contact with sensor face
• The Probe is too close to the fill point
• The Probe is not perpendicular to the liquid surface
• change in level too fast
• measurement out of range
• foam on liquid surface
• high level of vibration in the mounting structure
• level inside the blanking zone
The `Waiting' period has expired. Investigate the probable causes listed above.
Refer to Speed of Response on page 10 or Fail-safe Timer on page 11 for duration of
`Waiting' periods.
interval
seconds
mA loop current

A5E32243983 The Probe – INSTRUCTION MANUAL Page 13
mmmmm
English
Specifications
Power:
• 12 to 30 V DC (at Probe), 0.1 A surge
• loop current 4 to 20 mA max
Environmental:
• location: indoor / outdoor
• altitude: 2000 m max.
• ambient continuous: -40 to +60°C (-40 to +140°F)
temperature -20°C (-5°F) if metal mounting
• relative humidity: suitable for outdoor (Type 4 / NEMA 4X / IP65 enclosure)
• installation category:II
• pollution degree: 4
Range:
• 0.25 to 5 m ( 0.8 to 16.4 ft ) (liquids only)
Beam Angle:
• 10° at -3 dB boundary
Memory:
• non-volatile EEPROM, no battery required
Programming:
•2tactilekeys
Temperature Compensation:
• built-in to compensate over the operating range.
Display:
•liquidcrystal
• three 9 mm (0.35") digits for reading of distance between sensor face and material
• multisegment graphic for operation status
mA Output
• range: 4 to 20 mA
• span: proportional or inversely proportional
• accuracy: 0.25% of full scale
• resolution: 3 mm (0.125")
• loading: 600 ohms max loop load at 24 V DC supply
• cable: Belden 8760, shielded, twisted pair, 28 AWG (0.75 mm2) or equivalent
Construction:
• combined sensor and electronics package
• sensor housing: material: PVDF or EFTE
mounting:
threaded: 2" NPT, 2" BSP PF2
optional: flange adapter
• electronics material: PVC
• housing: access: hinged lid
22 mm (0.87") dia. `knock out' for conduit entrance, 2 places
2 screw terminal block for 2.5 mm2
(14 ga) solid wire / 1.5 mm2(16 ga) stranded wire max
Enclosure Rating:
• Type 4 / NEMA 4X / IP65

Page 14 The Probe – INSTRUCTION MANUAL A5E32243983
mmmmm
English
Weight:
• 1.5 kg (3.3 lb)
Approvals:
• CE, C-TICK (EMC performance available on request)
• Intrinsically safe CSA, FM, intrinsically safe for Class I and II, Div. 1,
GR. A, B, C, D, E, F, G hazardous location
ATEX II 1G, BAS99ATEX1300
INMETRO: DNV 12.0071X
Ex ia IIC T4 Ga
IP65
-40 °C Ta+60 °C
DNV #OCP 0017
ABNT NBR IEC 60079-0:2008 e ABNT NBR IEC 60079-11:2009

A5E32243983 The Probe – BETRIEBSANLEITUNG Seite 1
mmmmm
Deutsch
Einleitung
Der Probe ist ein kompaktes Ultraschall-Füllstandmessgerät, das einen Sensor und eine Auswerte-
elektronik umfasst. Er wurde speziell für die Messung von Flüssigkeiten in offenen und geschlosse-
nen Behältern entwickelt. Der Sensorteil besteht aus PVDF oder ETFE für den Einsatz in verschie-
densten Industriebereichen, speziell in den Bereichen Chemie und Nahrungsmittel.
Im Gehäuse ist der Ultraschallsensor und der Temperaturfühler untergebracht. Der Probe sendet
Ultraschallimpulse aus, die vom zu messenden Material reflektiert werden. Die Echos werden vom
Sensor erfasst und mit der bewährten 'Sonic Intelligence' von Siemens Milltronics ausgewertet. Fil-
ter ermöglichen die Unterscheidung von Störechos, die durch akustisches oder elektrisches Rau-
schen und Rührwerke entstehen, vom Nutzecho des Materials. Die Impulslaufzeit zum Material und
zurück ist temperaturkompensiert. Sie wird für die Werte von Anzeige und mA Ausgang in einen
Abstandswert umgewandelt.
Installation
Umgebung
Die Temperaturen am Einbauort dürfen die maximal zulässigen Temperaturwerte nicht überschrei-
ten. Die Umgebung muss für die Gehäuseschutzart und den Werkstoff geeignet sein. Der Probe ist
so zu montieren, dass der elektrische Anschluss, die Kalibrierung und das Ablesen der Messwerte
auf der Anzeige problemlos möglich sind. Vermeiden Sie die Installation in der Nähe von Hochspan-
nungs-, Motorleitungen, Schaltschützen oder Frequenzumrichtern.
Standort
Hinweis:
• Dieses Produkt ist vorgesehen zum Gebrauch in Industrieumgebungen. Bei Verwendung in
Wohngebieten kann es zu Störungen von verschiedenen Funkanwendungen kommen.
•Der Probe darf nur gemäß den Anweisungen in dieser Betriebsanleitung verwendet werden.
Der Schall muss ungehindert und im
rechten Winkel zum Flüssigkeitsspie-
gel gelangen können.
Zu störenden Einbauten (Leitern, Rohren,
Verstrebungen oder Schweißnähten) ist
Abstand zu halten.
Sanitärring
Rohr
Sprossen
Schweißnähte
Befüllung

Seite 2 The Probe – BETRIEBSANLEITUNG A5E32243983
mmmmm
Deutsch
Montage
Gewinde
Flanschadapter (optional)
Sanitärausführung (Nicht Eigensicher)
Hinweis: Beim Einbau des Probe müssen zwischen Sensorunterkante und maximal zu
erwartendem Füllstand mind. 25 cm Abstand gewährleistet sein.
Klappdeckel
117 mm
(4.6”)
Blind-
verschluss
87 mm
(3.4”) ø
61 mm
(2.4”)
53mm
(2.1”)
ø max
Sensor
Montage-
gewinde
Elektronik
34 mm
(3.3”)
max.
7 mm
(0.3”)
279 mm
(11”)
74 mm
(2.9”)
Markierung für
Gewindetyp
Der Probe ist in 3 Gewindeausfüh-
rungen erhältlich: 2" NPT, 2" BSP
oder PF2.
Hinweis: Um eine Beschädi-
gung des Probe-Gewindes zu
vermeiden, ist vor Einschrauben
des Probe das Montagegewinde
zu überprüfen, damit es sich um
denselben Gewindetyp handelt.
Optional ist die Lieferung eines 75 mm (3")
Flanschadapters für 3" ANSI, DIN 65PN10 und
JIS 10K3B Flansche möglich.
The
Probe
Flansch-
adapter
(Option)
Klapp-
deckel
117 mm
(4.6")
Blind-
verschluss
87 mm
(3.4") ø
61 mm
(2.4")
7 mm
(0.3") 84 mm
(3.3") max.
Elektronik
Montage-
gewinde
Sensor
53 mm
(2.1")
ø max.
279 mm
(11")
76 mm
(2.9")
integrierter
Dichtungs-
ring
Hinweis:
• Beim Einbau des Probe müssen
zwischen Sensorunterkante und max.
zu erwartendem Füllstand mind.
25 cm Abstand gewährleistet sein.
• Der Sanitärprobe eignet sich für
chemische Reinigungen nach CIP bis
max. 60°C (140°F). Achten Sie auf die
Kompatibilität der chemischen
Reinigungsmittel mit PVDF.

A5E32243983 The Probe – BETRIEBSANLEITUNG Seite 3
mmmmm
Deutsch
Anschluss
Kabeleinführung
Systemdiagramm
Sanitärer Gegenflansch, 4"
119 mm (4.68")
97 mm (3.83")
ungefähre Maße
Der Probe
Klemmschelle*
Einstell-
mutter
Gegenflansch
Tan k
• Montieren Sie den Probe auf
dem Sanitäranschluss des
Behälters
• Sorgen Sie für festen Sitz durch
Anbringung der Klemmschelle
um die Dichtung
• Ziehen Sie die Einstellmutter an
Hinweis: Die Innenseite des
sanitären Tri-Clamps muss
glatt und frei von Graten,
Fugen oder Furchen sein. *mitgeliefert
A.Bei geschlossenem Deckel den vorgesehenen Blindverschluss entfernen.
B.Schraube lösen und Deckel öffnen.
C. Kabel einführen.
D.Kabel für die Schleife anschließen.
E. Deckel schließen. Max. Drehkraft 1,1 bis 1,7 N-m (10 bis 15 in-lb).
The Probe Stromschleifen-
system

Seite 4 The Probe – BETRIEBSANLEITUNG A5E32243983
mmmmm
Deutsch
Eigensichere Ausführung
FM (Bezugszeichnung 1-8600016Z-DX-A)
Im Rahmen des gesamtheitlichen Bewertungskonzepts weist der Probe folgende Merkmale auf:
Definition:
Das Gesamtheitskonzept (Entity Concept) ermöglicht den Anschluss eigensicherer Geräte an zuge-
hörige Geräte, die nicht speziell in diesem Zusammenhang geprüft wurden. Als Anschlusskriterium
gilt, dass Spannung und Strom, die eigensichere Geräte ohne Verlust ihrer Eigensicherheit aufneh-
men können, größer oder gleich den Spannungs- (Voc oder Vt) und Stromwerten (Ioc oder It) sein
müssen, die vom zugeordneten Gerät geliefert werden können. Dabei müssen Fehler und anwend-
bare Faktoren berücksichtigt werden. Weiterhin muss die maximale ungeschützte Kapazität (Ci) und
Induktivität (Li) des eigensicheren Geräts einschließlich der Verbindungskabel kleiner oder gleich
der Kapazität oder Induktivität sein, welche gefahrlos an das zugeordnete Gerät angeschlossen
werden kann.
FM / CSA (Bezugszeichnung 1-8600016Z-DX-A)
Für Standorte Klasse II, Div. 1, Gr. E, F, G und im Außenbereich Typ 4 / NEMA 4X / IP65 sind zugelas-
sene staub- und wasserdichte Leitungsverschlüsse erforderlich.
Die maximale Spannung eines nicht eigensicheren Betriebsmittels darf 250 V rms nicht überschrei-
ten.
Verwenden Sie ausschließlich eigensichere Zenerbarrieren gemäß nachstehender Liste.
Hinweis: Die Bezugszeichnung Nr. 1-8600016Z-DX-A finden Sie auf der Produktseite
unserer Webseite unter www.siemens.com/theprobe. Siehe More Info /
Installationshinweise und blättern Sie auf Anschlusszeichnungen.
Vmax = 30 V DC Imax = 200 mA dc
Ci = 0 Li = 0
Hinweis: Die Bezugszeichnung Nr. 1-8600016Z-DX-A finden Sie auf der Produktseite
unserer Webseite unter www.siemens.com/theprobe. Siehe More Info /
Installationshinweise und blättern Sie auf Anschlusszeichnungen.
24 V DC
Hilfs-
energie
Bürde4
bis 20
mA siehe
Anschluss-
tabelle
4 bis 20 mA
Passiv Sicherer Bereich Ex-gefährdeter Bereich
