Sigma 500 Service manual

OPERATING AND MOUNTING INSTRUCTIONS
Version: HEINZMANN 1.00
SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 1SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 1 16.09.2021 15:11:3216.09.2021 15:11:32

1 EOX®REMOTE 500 3
1.1 Safety notes 4
1.2 Operation and display elements 5
1.2.1 Battery level display 6
1.2.2 Assist mode display 7
1.2.3 Error messages 7
1.3 Operation 8
1.3.1 Turn on the E-Bike 8
1.3.2 Turn off the E-Bike 8
1.3.3 Switch assist mode 9
1.3.4 Switch light status 10
1.3.5 Remote control 10
1.4 Technical information 11
1.5 Product care 12
1.5.1 Transport and storage 12
1.6 Disposal 12
2 EOX®VIEW 1200 16
2.1 Safety notes 17
2.2 Display elements 18
2.2.1 Battery level 19
2.2.2 Assist Mode 20
2.2.3 Power 20
2.2.4 Heart rate and benefit indicator 21
2.2.5 Light status 21
2.2.6 Komoot turn-by-turn instructions 22
2.2.7 All functions of the
multifunctional area 23
2.3 Operation 25
2.3.1 Controlling the ride menu 25
2.3.2 Settings 25
2.3.3 Trip Reset 25
2.3.4 Connect heart rate sensor 26
2.4 Technical information 28
2.5 Product care 28
2.5.1 Transport and storage 28
2.6 Disposal 28
3 EOX®ASSEMBLY 31
3.1 EOX®Remote 500 32
3.2
EOX®Remote 500 und EOX®View 1200 33
4 EOX®APP 35
5 KOMOOT APP 40
Contents
SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 2SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 2 16.09.2021 15:11:3316.09.2021 15:11:33

SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 3SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 3 16.09.2021 15:11:3316.09.2021 15:11:33

4 I EOX®REMOTE 500 I Safety notes
Read the safety notes and the manual before putting the EOX®REMOTE 500 into operation! Improper use can cause
damage of the component and/or injuries.
Save the safety notes and the manual for your future reference!
−Make sure not to be distracted by the EOX®REMOTE 500 during the ride! Do not be distracted by the LED indicator.
During the ride you should not perform any operation other than changing the assist mode, changing the light,
and changing the values display on the EOX®VIEW.
−Do not use the EOX®REMOTE 500 as a handle to lift up your E-Bike!
This can lead to irreparable damage of the component.
1.1 Safety notes
SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 4SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 4 16.09.2021 15:11:3516.09.2021 15:11:35

EOX®REMOTE 500 I Operation and display elements I 5
−The EOX®REMOTE 500 has seven ergonomically designed buttons.
−The button backlight will be automatically triggered once the environment becomes dark.
−The LED bar consists of 9 RGB LEDs and provides feedback for different E-Bike specific information.
1.2 Operation and display elements
ASSIST MODE UP
ASSIST MODE DOWN
LIGHT MODES
LED BAR
REMOTE CONTROL
REMOTE CONTROL
REMOTE CONTROL
A
POWER
B
C
UP
DOWN
LIGHT
SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 5SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 5 16.09.2021 15:11:3816.09.2021 15:11:38

6 I EOX®REMOTE 500 I Operation and display elements
−The LED bar of the EOX®REMOTE 500 shows the current level of your E-Bike‘s battery.
−Six levels are distinguished.
−Threshold values may vary slightly depending on the system.
= LED flashing

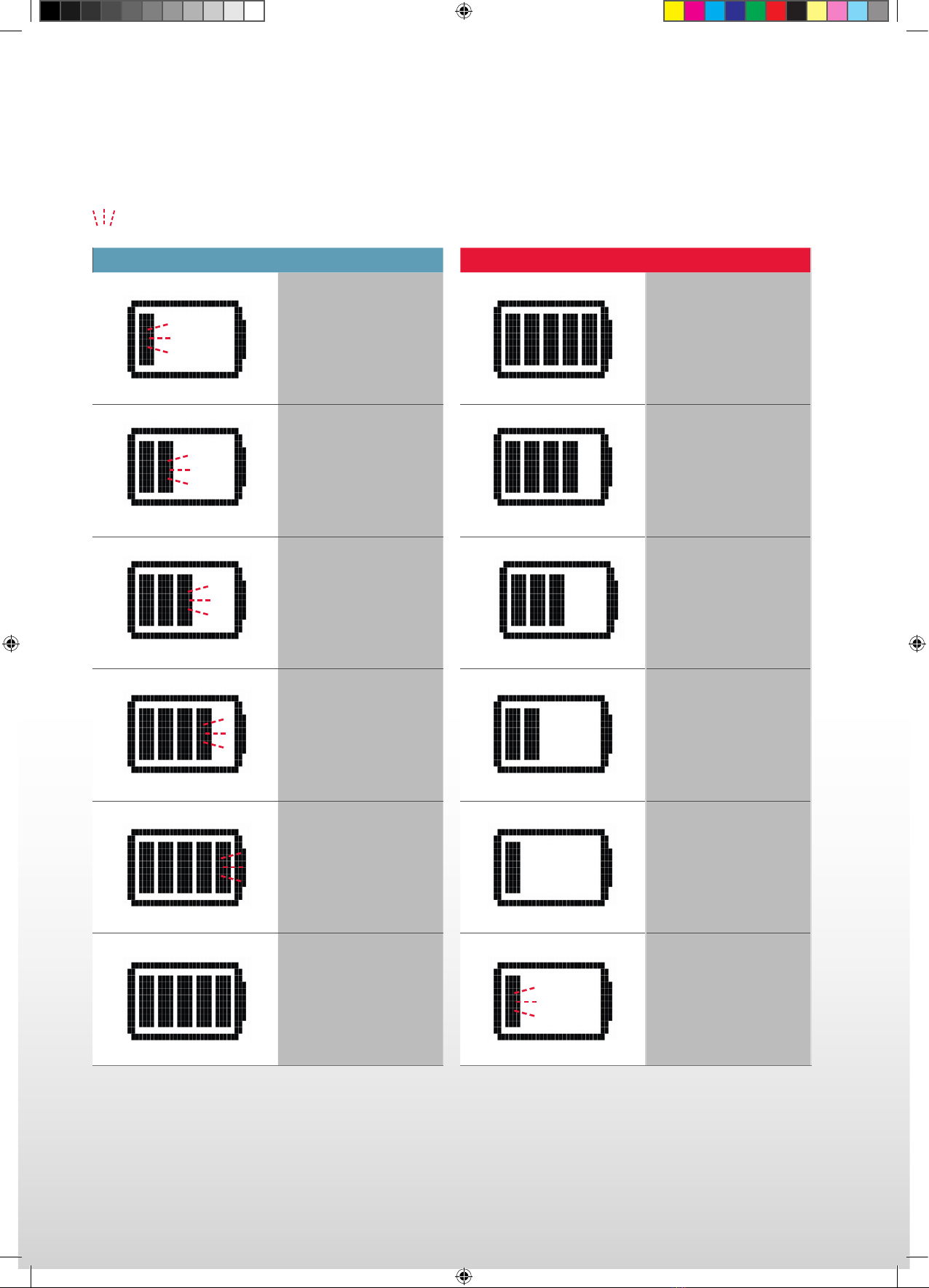

1.2.1 Battery level
Charging Discharging
0 - 19 % 100 - 80 %
20 - 39 % 79 - 60 %
40 - 59 % 59 - 40 %
60 - 79 % 39 - 20 %
80 - 99 % 19 - 10 %
100 % 9 - 0 %
SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 6SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 6 16.09.2021 15:11:4716.09.2021 15:11:47

EOX®REMOTE 500 I Operation and display elements I 7
1.2.2 Assist Mode
1.2.3 Error messages
−The EOX®REMOTE 500 indicates currently selected assist mode using the upper four LEDs of the status bar.
−Six assist modes are differentiated by color.
−The EOX®REMOTE 500 shows error messages of your E-System.
−Four severity levels are distinguished.
−In case of any error message please contact your dealer.
= LED flashing
LED bar
Error Severity Level 1 Level 2 Level 3 Level 4
LED
bar
Assist
Mode O ff 1 (Minimum) Light Blue
2
Blue
3
Green
4
Pink
5 (Maximum)
Red
SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 7SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 7 16.09.2021 15:11:5216.09.2021 15:11:52

8 I EOX®REMOTE 500 I Operation
1.3.1 Turn on the E-System
1.3.2 Turn off the E-System
1.3 Operation
−To turn on your E-System long-press the button
of the EOX®REMOTE 500 (>2s).
−The LED bar of the EOX®REMOTE 500 turns on.
−If an EOX®VIEW 1200 is connected the display
turns on automatically.
−To turn off your E-System long-press the button
of the EOX®REMOTE 500 (>2 s).
−If an EOX®VIEW 1200 is connected the display
turns off automatically.
To turn on your E-System long-press the button
POWER
To turn off your E-System long-press the button
POWER
POWER
SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 8SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 8 16.09.2021 15:11:5516.09.2021 15:11:55

EOX®REMOTE 500 I Operation I 9

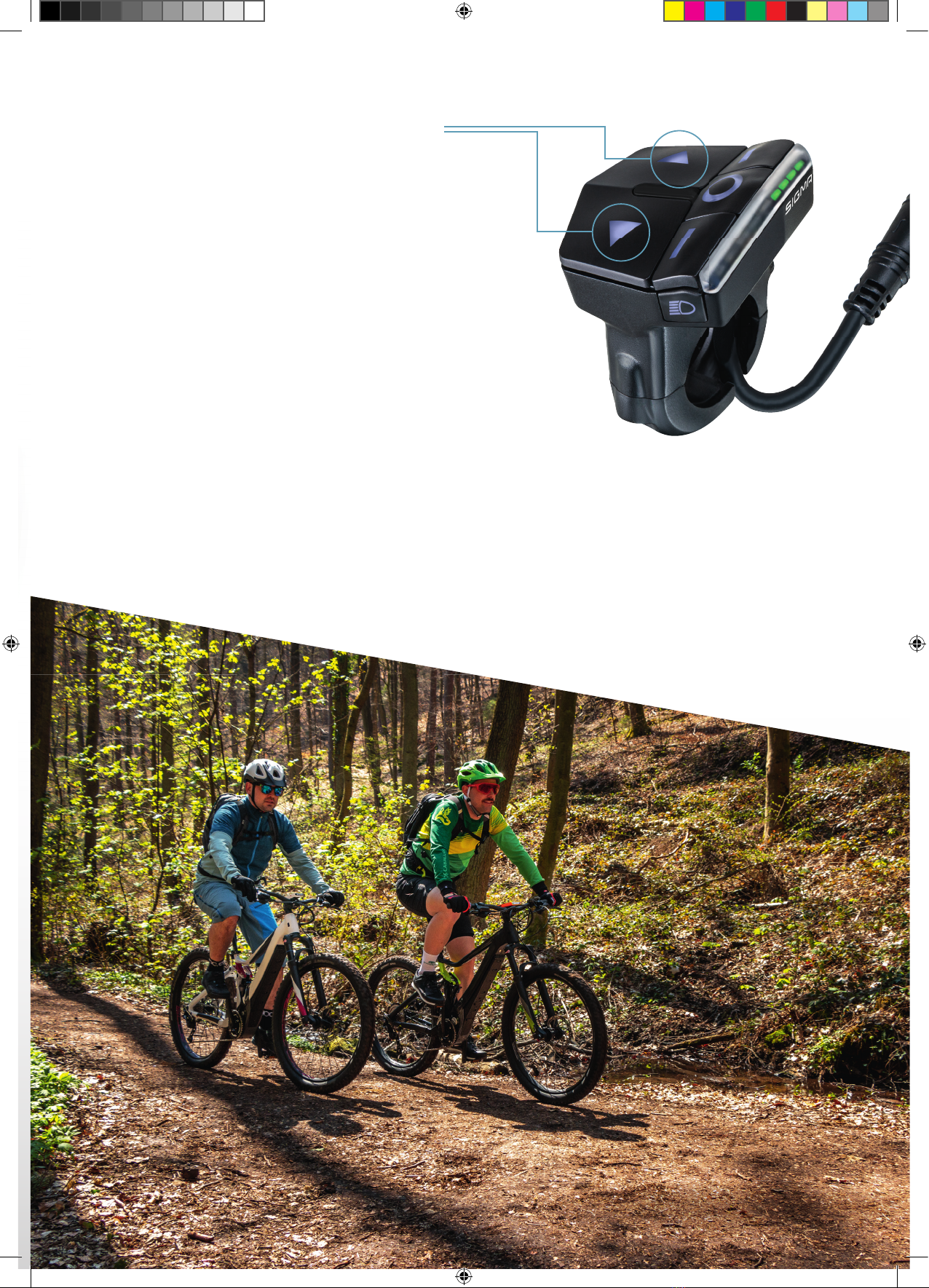

1.3.3 Switch assist mode
−To switch to the next higher assist mode
press the UP button briefly.
−To switch to the next lower assist mode
press the DOWN button briefly.
−The color of the upper four LEDs of the LED bar
changes according to the selected assist mode
(see chapter 1.2.2).
SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 9SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 9 16.09.2021 15:12:0016.09.2021 15:12:00

10 I EOX®REMOTE 500 I Operation

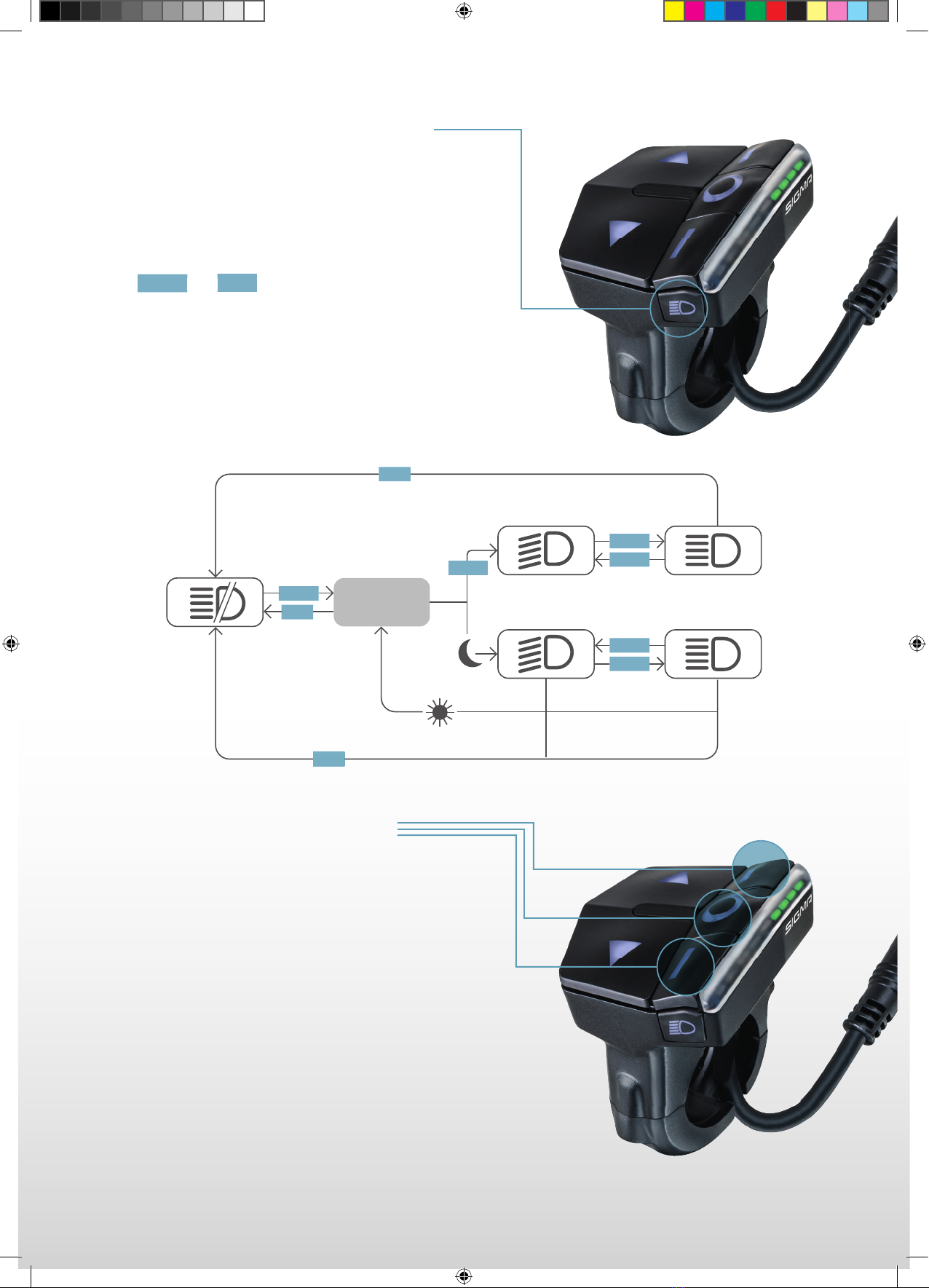

1.3.4 Switch light status
−By the integrated ambient light sensor the
EOX®REMOTE 500 can control the light
of your E-System automatically.
−The light status can always be switched manually
by and pressing the LIGHT button.
−If the light is turned on you can press the LIGHT button
to switch between low beam and high beam mode
(in case your E-Bike light supports these modes).
by and pressing the
SINGLE
by and pressing the
LONG
1.3.5 Remote control
−The functionality of the three remote control buttons (A, B, C)
changes whether an EOX®VIEW 1200 is connected or not.
−With EOX®VIEW 1200 connected, the purpose of the
three buttons is to remotely operate the display (see chapter 2)
−If no EOX®VIEW 1200 is connected, the three remote control
buttons can be used to control the EOX®App (see chapter 4).
A
B
C
AUTO
MODE
LONG
SINGLE
SINGLE
LONG
SINGLE
SINGLE
SINGLE
SINGLE
LONG
SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 10SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 10 16.09.2021 15:12:0316.09.2021 15:12:03

EOX®REMOTE 500 I Technical information I 11
1.4 Technical information
Dimensions
55,73
48,07
12,00
38,75
7,36
23,11
28,47
8,11
39,35
Weight 33.8 g
Handlebar diameter 22.2 mm
Operating temperature -10/25/60 °C (min/typ/max)
Storage temperature -20/25/70 °C (min/typ/max)
Operating frequency Bluetooth: 2402-2480MHz @ 1dBm nominal
Certifications CE, FCC, IC, ROHS, REACH
IP rating IPX6K, IPX7
SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 11SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 11 16.09.2021 15:12:1216.09.2021 15:12:12

12 I EOX®REMOTE 500 I Product care I Disposal
1.5 Product care
−Do not use hot water in case the buttons are iced.
−Remove dirt carefully with water or a soft wipe.
−Do not submerse the product into water.
−Do not clean the product with a high-pressure jet.
−Avoid the contact with oils and greases.

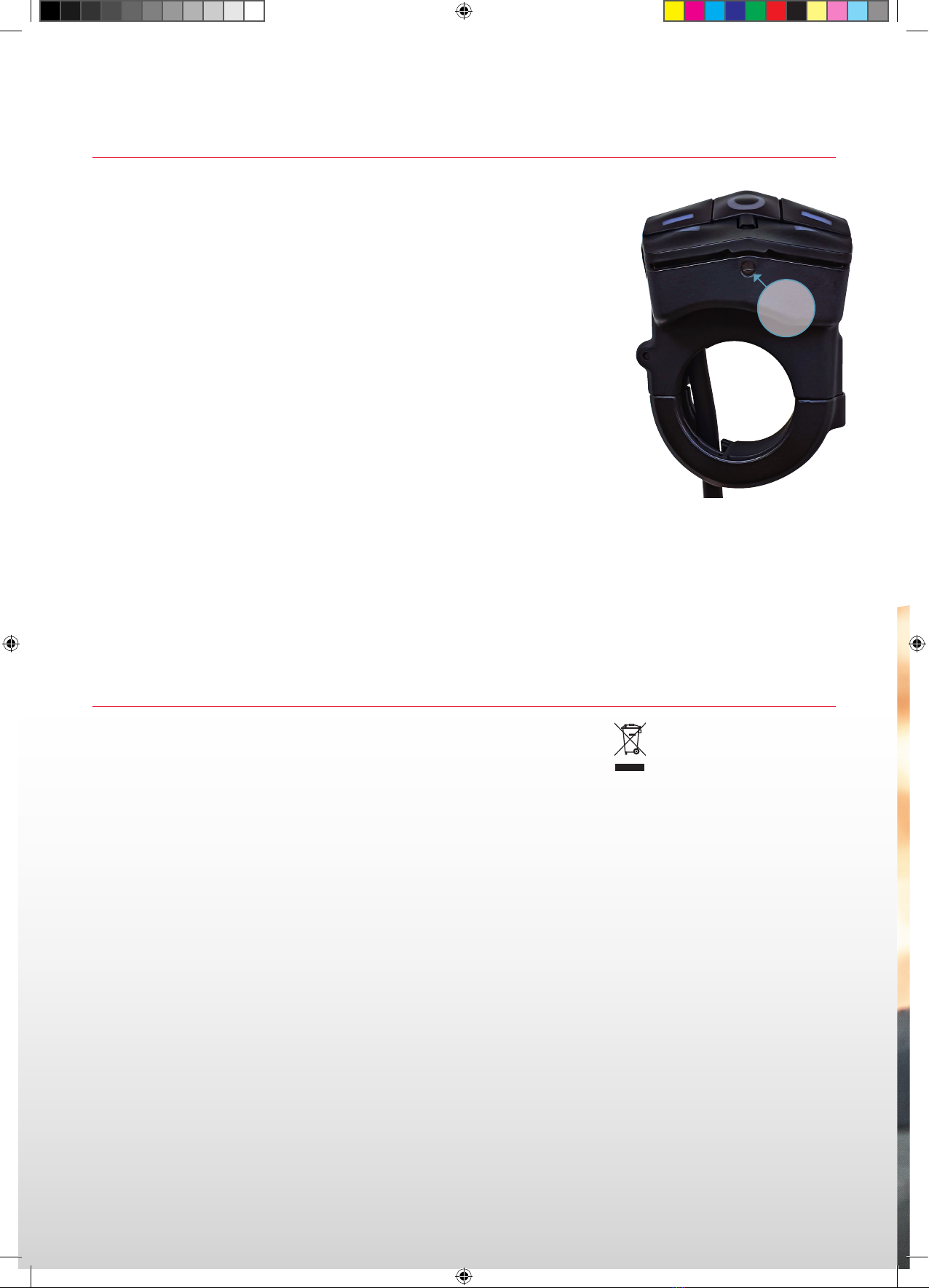

−To celan the product below the big UP and DOWN buttons
• remove the screw (A),
• pull out the buttons carefully from its guidance,
• clean the case and the lower side of the buttons carefully,
• mount the buttons and
• tigthen the screw (A) carefully.
1.5.1 Transport and storage
−Protect the product from direct intensive solar radiation.
−Protect the prodcut from extreme temperatures (see temperature specifications).
−Store the product dry and at room temperature during longer non-use.
1.6 Disposal
The EOX®REMOTE 500 should be disposed of in an environmentally correct manner.
Do not dispose the EOX®REMOTE 500 into house-hold waste.
Only for EC countries
According to the European Guideline 2012/19/EU on waste electrical and electronic equipment as well as
the European Guideline 2006/66/EC on batteries and accumulators, devices and batteries must be collected separately
and disposed of in an environmentally correct manner.
A
SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 12SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 12 16.09.2021 15:12:1316.09.2021 15:12:13

EOX®REMOTE 500 I CE Declaration of Conformity I 13
CE Declaration of Conformity
We, SIGMA-ELEKTRO GmbH, declare that the equipment has been tested in our facility and found compliance
with the requirement limits of applicable standards, in accordance with the RED Directive 2014/53/EU and the ROHS
Directive 2011/65/EU and additional according to Directive (EU) 2015/883 to ament Annex II of the above mention
Directive with 4 additional substances. The test record, data evaluation and Equipment Under Test (EUT) configurations
represented herein are true and accurate under the standards herein specified.
You can find the CE declaration at: ce.sigmasport.com/eoxremote500
SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 13SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 13 16.09.2021 15:12:1416.09.2021 15:12:14

14 I EOX REMOTE 500 I FCC Statement
Federal Communication Commission
Interference Statement
FCC ID: M5LR500B
Caution: If any changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
The grantee is not responsible for any changes or modifications not expressly approved by the party responsible
for compliance. Such modifications could void the user’s authority to operate the equipment.
The RF Exposure Compliance distance is 5 millimeters.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
−Reorient or relocate the receiving antenna.
−Increase the separation between the equipment and receiver.
−Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
−Consult the dealer or an experienced radio/TV technician for help.
SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 14SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 14 16.09.2021 15:12:1416.09.2021 15:12:14

EOX REMOTE 500 I ISED Statement I 15
Industry Canada
Statement
IC: 7580A-R500B
This device complies with Innovation, Science and Economic Development Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
CAN ICES-3(B)/NMB-3(B)
Le présent appareil est conforme aux CNR Innovation, Sciences et Développement économique Canada applicables aux
appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes:
(1) il ne doit pas produire de brouillage et
(2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu,
même si ce brouillage est susceptible de compromettre le fomctionnement du dispositif.
CAN ICES-3(B)/NMB-3(B)
The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance
with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance.
Le dispositif rencontre l’exemption des limites courantes d’évaluation dans la section 2.5 de RSS 102 et la conformité
à l’exposition de RSS-102 rf, utilisateurs peut obtenir l’information canadienne sur l’exposition et la conformité de rf.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment
should be installed and operated with a minimum distance of 5 millimeters between the radiator and your body.
Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu’aucune autre antenne ou émetteur.
Cet équipement devrait être installé et actionné avec une distance minimum de 5 millimètres entre le radiateur et
votre corps.
SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 15SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 15 16.09.2021 15:12:1416.09.2021 15:12:14

SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 16SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 16 16.09.2021 15:12:1516.09.2021 15:12:15

EOX®VIEW 1200 I Safety notes I 17
Read the safety notes and the manual before putting the EOX®VIEW 1200 into operation! Improper use can cause damage
of the component and/or injuries.
Save the safety notes and the manual for your future reference!
−Make sure not to be distracted by the EOX®VIEW 1200 during the ride! Do not be distracted by the display.
During the ride you should not perform any operation other than changing the assist mode, changing the light,
and changing the values displayed.
−Do not use the EOX®VIEW 1200 as a handle to lift your E-Bike! This can lead to irreparable damage of the component.
2.1 Safety notes
SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 17SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 17 16.09.2021 15:12:1716.09.2021 15:12:17

18 I EOX®VIEW 1200 I Display elements
2.2 Display elements
SMARTPHONE CONNECTION
HIGH BEAM
LOW BEAM
GPS (FROM
SMARTPHONE)
UNITS (KMH
/
MPH)
TRIP RECORDING
MULTIFUNCTIONAL
AREA
CLOCK
SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 18SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 18 16.09.2021 15:12:1716.09.2021 15:12:17

EOX®VIEW 1200 I Display elements I 19
2.2.1 Battery level
The multifunctional area of the EOX®VIEW 1200 can show the battery level of your E-Bike.
= Battery icon flashes
Charging Discharging
0 - 19 % 100 - 80 %
20 - 39 % 79 - 60 %
40 - 59 % 59 - 40 %
60 - 79 % 39 - 20 %
80 - 99 % 19 - 10 %
100 % 9 - 0 %
SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 19SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 19 16.09.2021 15:12:1816.09.2021 15:12:18

20 I EOX®VIEW 1200 I Display elements
2.2.2 Assist Mode
2.2.3 Power
The multifunctional area of the EOX®VIEW 1200 can show the currently selected assist mode.
− The multifunctional area of the EOX®VIEW 1200 can show a visual comparison between human and motor power.
− The harder you pedal the more the display deflects to the left.
− The more power is added by the motor the more the display deflects to the right.
Display
Assist
Mode O ff 1 (Minimum) 2 3 4 5 (Maximum)
Pedalling easy with
high motor assistance
Pedalling strong with
high motor assistance
Pedalling string without
motor assistance
SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 20SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 20 16.09.2021 15:12:2116.09.2021 15:12:21
