Page 3
Contents ROX 5.0
www.sigmasport.com
ROX 5.0
Contents
1 Functions and contents ............................................................................................................................................ 7
1.1 Foreword............................................................................................................................................................ 7
1.2 Contents............................................................................................................................................................. 7
1.2.1 Optional accessories.............................................................................................................. 8
1.3 ROX 5.0 functions.......................................................................................................................................... 9
1.3.1 PC interface ............................................................................................................................... 9
2 Attaching the ROX 5.0 and initial use................................................................................................................. 10
2.1 Attaching the bracket................................................................................................................................... 10
2.2 Attaching the transmitters – speed and cadence........................................................................... 10
2.3 Attaching the magnets – speed and cadence................................................................................... 10
2.4 Putting on the chest belt............................................................................................................................. 10
2.5 Setting up a 2nd bike.................................................................................................................................... 10
2.6 Attaching the Sigma ROX 5.0 to the bracket.................................................................................... 10
2.7 Initial use ............................................................................................................................................................ 11
2.8 Synchronizing the transmitters................................................................................................................ 11
2.8.1 Synchronizing the speed....................................................................................................... 11
2.8.2 Synchronizing the cadence.................................................................................................. 11
2.8.3 Synchronizing the chest belt............................................................................................... 11
2.8.4 Resetting the synchronization............................................................................................ 12
3 Operating concept...................................................................................................................................................... 13
3.1 Button functions ............................................................................................................................................. 13
3.1.1 Button functions in bike mode............................................................................................ 14
3.1.2 Button functions in running mode .................................................................................... 14

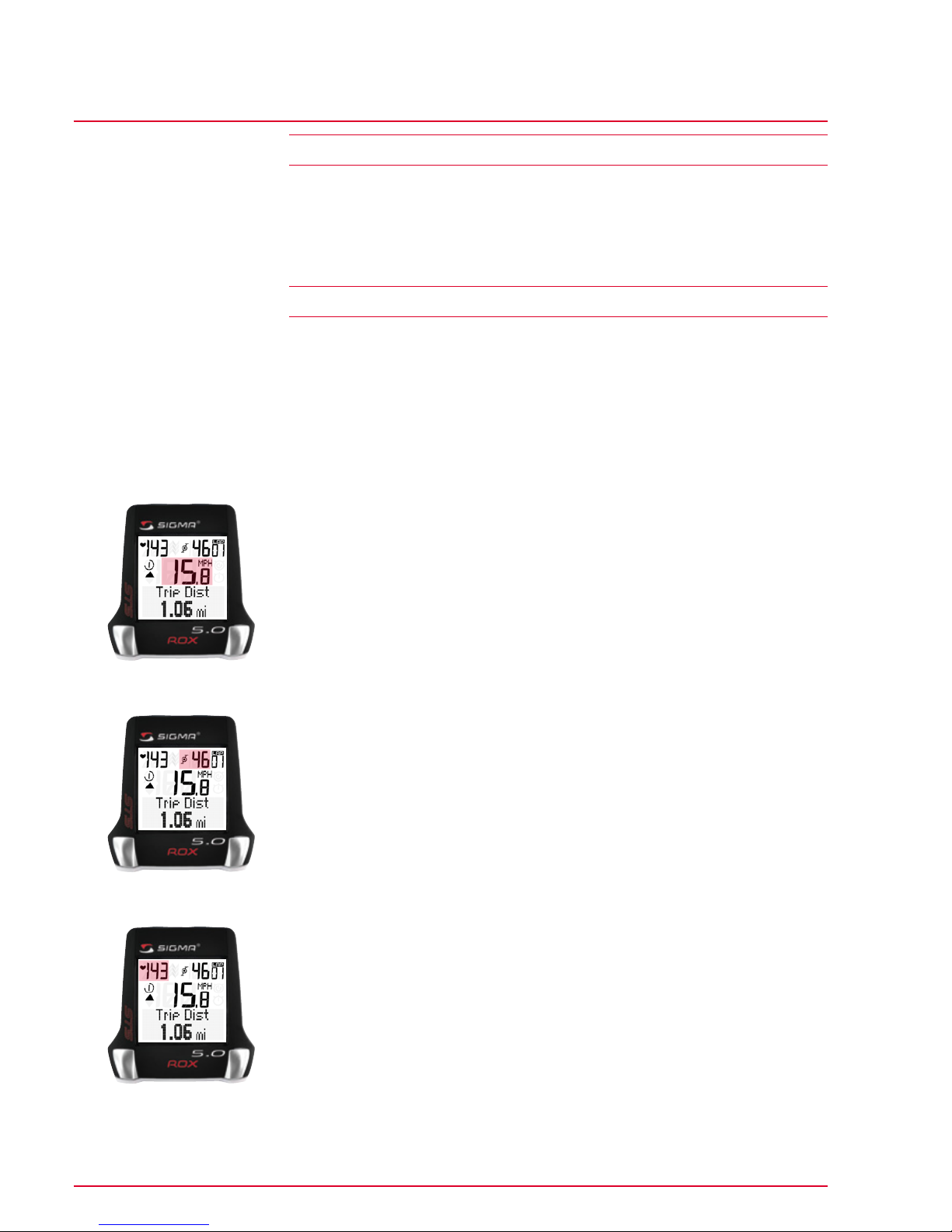

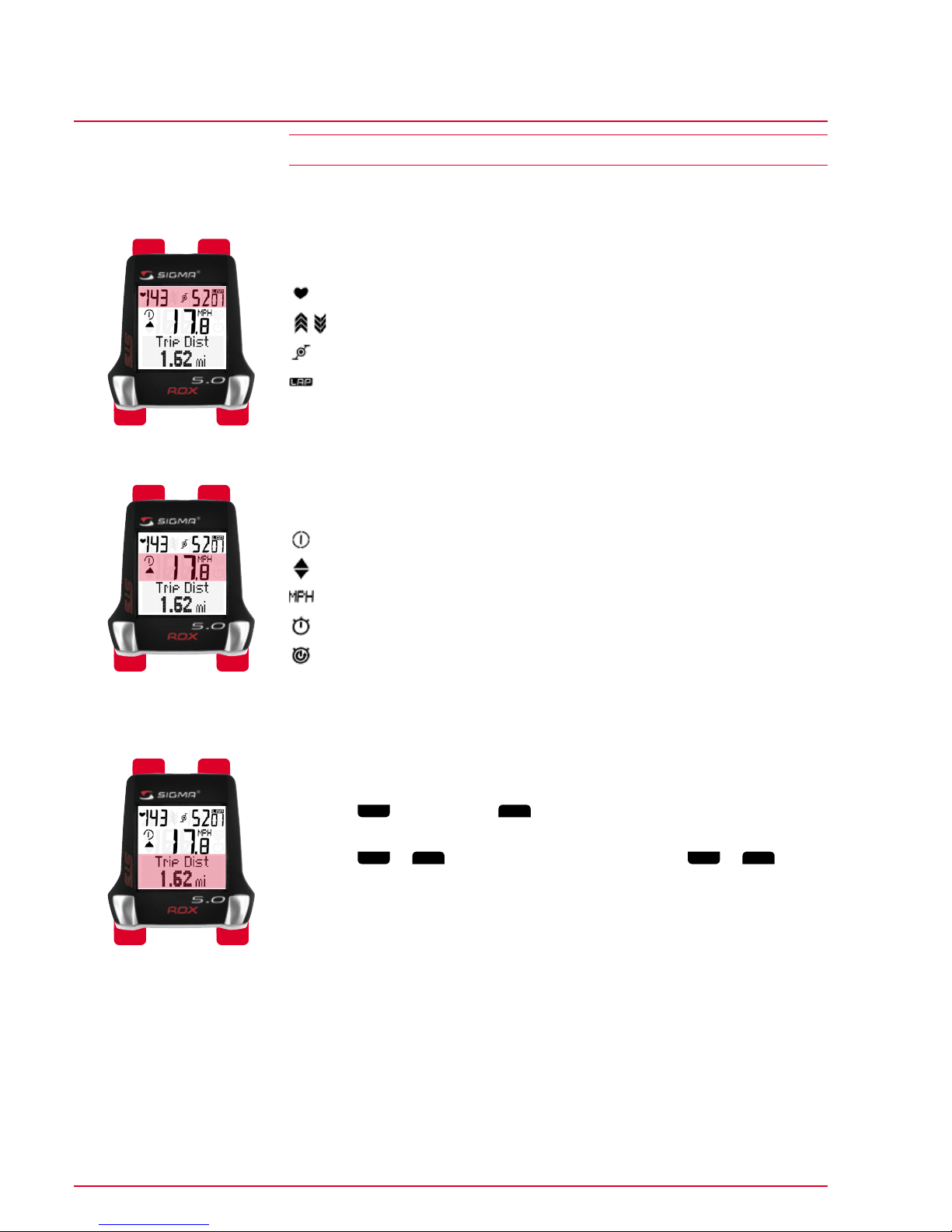

3.2 Display structure ............................................................................................................................................ 15
3.2.1 Top display segment............................................................................................................... 15
3.2.2 Middle display segment......................................................................................................... 15
3.2.3 Bottom display segment....................................................................................................... 15
4 Basic settings ............................................................................................................................................................... 16

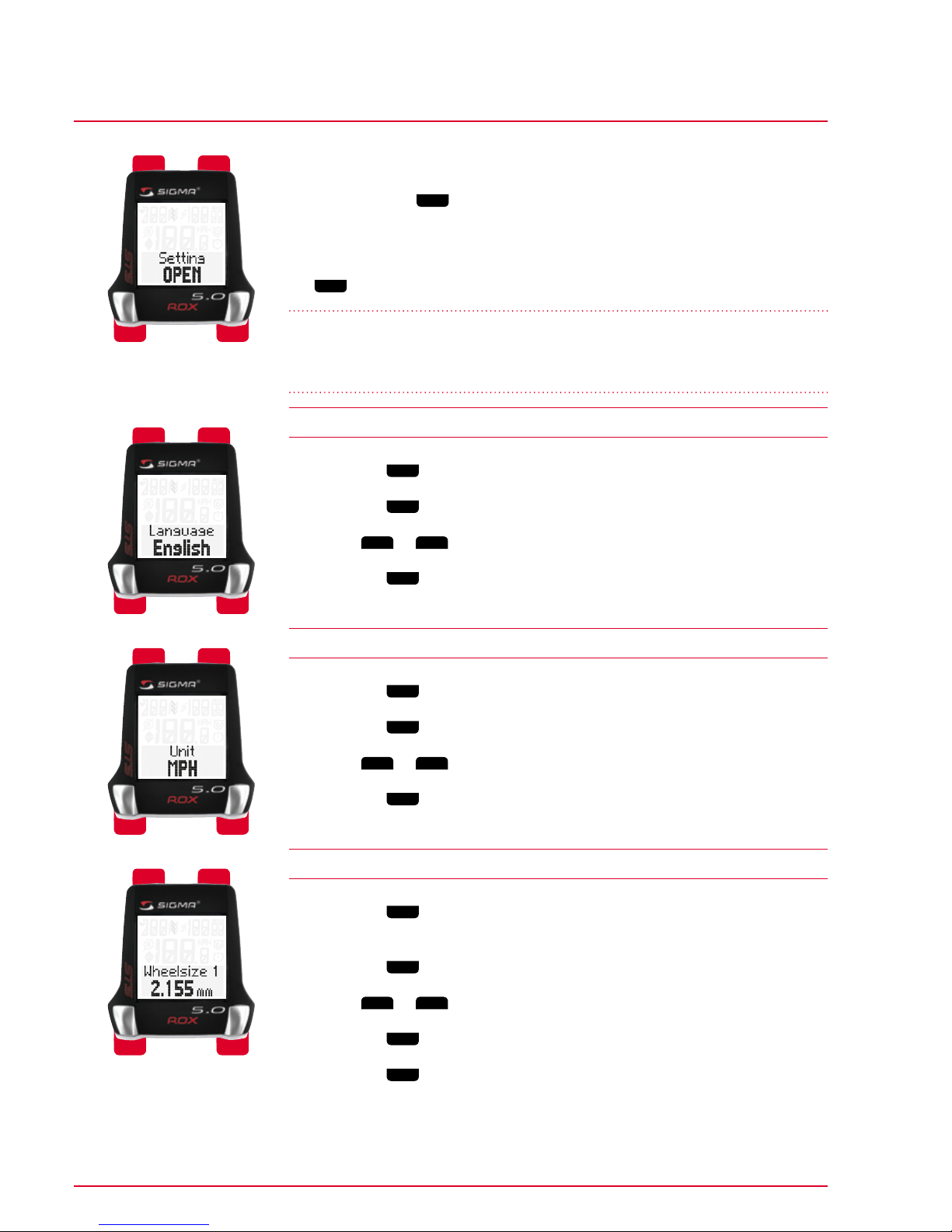

4.1 Setting the language..................................................................................................................................... 16
4.2 Setting the unit................................................................................................................................................ 16
4.3 Setting the wheel size 1 and 2 ................................................................................................................. 16

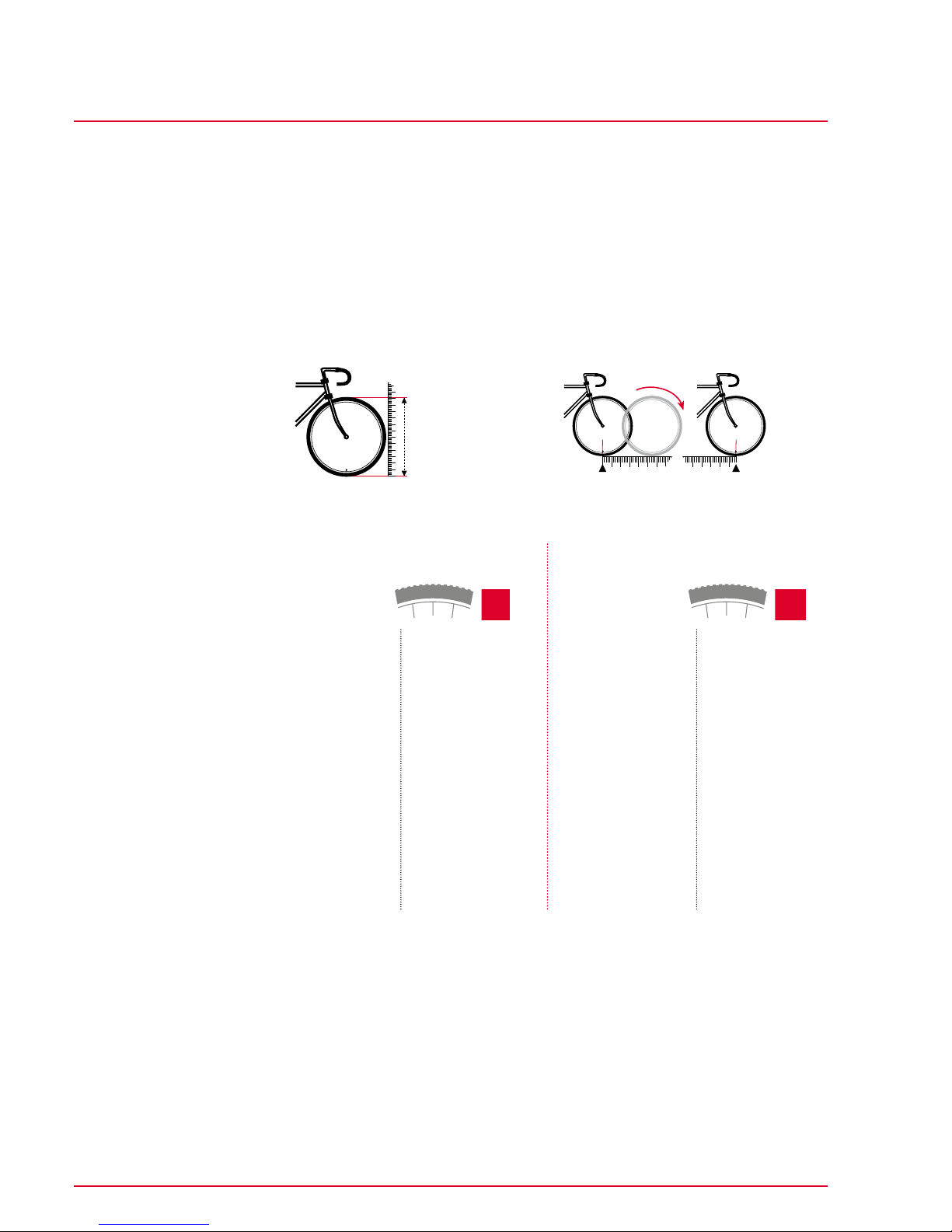

4.3.1 Calculating the wheel size.................................................................................................... 17
4.4 Setting the clock............................................................................................................................................. 18
4.5 Setting the date .............................................................................................................................................. 18
4.6 Setting your age.............................................................................................................................................. 18

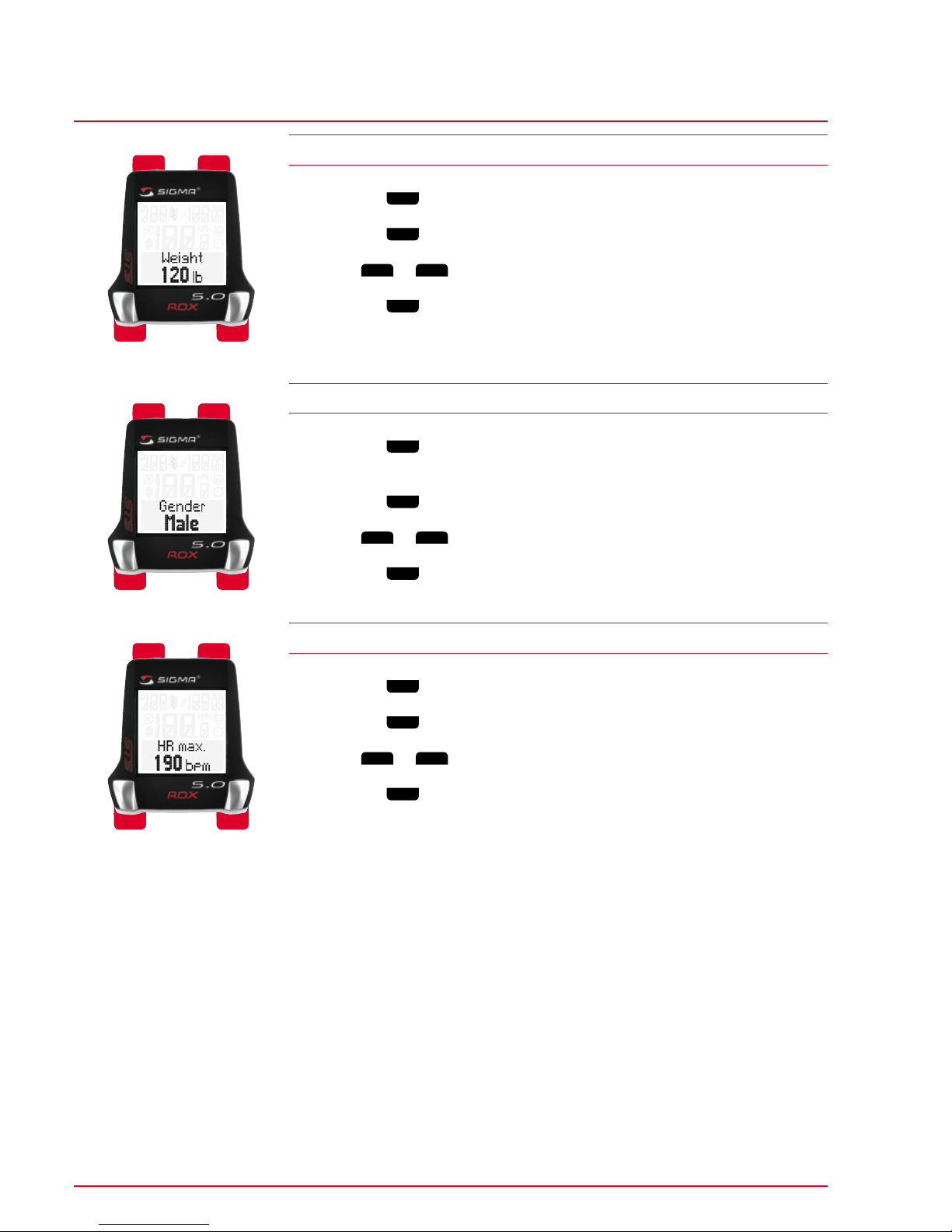

4.7 Setting your weight........................................................................................................................................ 19
4.8 Setting your gender....................................................................................................................................... 19
4.9 Setting the maximum heart rate............................................................................................................. 19

Contents
Page 4
ROX 5.0
www.sigmasport.com
ROX 5.0
4.10 Setting the training zone............................................................................................................................. 20
4.10.1 Displaying the training zone in normal mode............................................................... 20
4.11 Setting the intensity zones 1, 2, 3, and 4............................................................................................ 21
4.11.1 Displaying the intensity zones in normal mode........................................................... 21
4.12 Setting the total distance for bike 1 or bike 2................................................................................... 22
4.13 Setting the total trip time for bike 1 or bike 2................................................................................... 22
4.14 Setting the total running time................................................................................................................... 23
4.15 Setting the total calories for bike 1 or bike 2 .................................................................................... 23
4.16 Setting the total running calories............................................................................................................ 24
4.17 Activating the zone alarm........................................................................................................................... 24
4.18 Setting the contrast...................................................................................................................................... 24
4.19 Exiting the basic settings ............................................................................................................................ 25
5 General ROX 5.0 functions ..................................................................................................................................... 26
5.1 Display backlight ............................................................................................................................................. 26
5.2 Speed comparison......................................................................................................................................... 26
5.3 Lap counter....................................................................................................................................................... 26
5.4 Opening the lap view ..................................................................................................................................... 27
5.5 Stopwatch.......................................................................................................................................................... 27
5.6 Countdown ........................................................................................................................................................ 27
5.7 Resetting trip data......................................................................................................................................... 28
5.8 Total values for bike 1 and bike 2............................................................................................................ 28
5.9 Service interval................................................................................................................................................ 28
5.10 Transport mode.............................................................................................................................................. 28
5.11 PC interface / Downloadable .................................................................................................................... 28
5.12 Wired speed transmission......................................................................................................................... 29
6 Running with the ROX 5.0 ....................................................................................................................................... 30
6.1 Synchronizing the chest belt ..................................................................................................................... 30
6.2 Starting the running time............................................................................................................................ 30
6.3 Resetting the running time ........................................................................................................................ 30
7 Important information, troubleshooting, and FAQ......................................................................................... 31
7.1 Important information .................................................................................................................................. 31
7.1.1 ROX 5.0 water resistance................................................................................................... 31
7.1.2 Water resistance of the transmitter.............................................................................. 31
7.1.3 Chest belt care ......................................................................................................................... 31
7.1.4 Training advice .......................................................................................................................... 31
7.2 Troubleshooting .............................................................................................................................................. 32
7.3 Frequently asked questions (FAQ) .......................................................................................................... 33
8 Technical data............................................................................................................................................................... 34
8.1 Max, min, and default values...................................................................................................................... 34
8.2 Changing the batteries ................................................................................................................................ 36

Page 5
Contents ROX 5.0
www.sigmasport.com
ROX 5.0
8.3 Temperature, batteries ............................................................................................................................... 36
9 Warranty and guarantee ......................................................................................................................................... 37
10 Index.................................................................................................................................................................................. 39

Page 7
Foreword
Functions and contents ROX 5.0
www.sigmasport.com
ROX 5.0
1 Functions and contents
1.1 Foreword
Thank you for choosing a SIGMA SPORT bike computer. Your new ROX 5.0 will
be a reliable companion for years to come. To familiarize yourself with and learn
how to use the many functions of your new bike computer, please read these
operating instructions carefully.
Enjoy the ride with your new ROX 5.0!
The ROX 5.0 is a multi-functional bike computer that provides you with broad
information both during and after your rides:
− Speed, time, distance, heart rate, and intensity zones.
− Download ride date to your PC or Mac for detailed evaluation.
1.2 Contents
ROX 5.0 bike computer Bracket
STS speed transmitter Spoke magnet

Contents
Functions and contents
Page 8
ROX 5.0
www.sigmasport.com
ROX 5.0
Wristband R1 STS Comfortex+ chest strap
STS cadence transmitter
Cadence magnet
or
The cadence magnet can also be used
without the bottom spacer.
Battery compartment key
Attachment materials
(cable ties, O-ring)
ROX 5.0 quick start guide
1.2.1 Optional accessories
Docking station Wired bracket

Page 9
ROX 5.0 functions
Functions and contents ROX 5.0
www.sigmasport.com
ROX 5.0
1.3 ROX 5.0 functions
The ROX 5.0 is a versatile bike computer that can measure distance, speed,
cadence, and heart rate.
All current values – current speed, current heart rate, current cadence, and
current lap – easily viewed on the large display.
The ROX 5.0 has classic bike computer features such as 2 programmable
wheel sizes (automatically detected with the STS speed transmitter), an
automatic start/stop function, and several other functional view options.
1.3.1 PC interface
The ROX 5.0 can be connected to a PC or Mac. The optional docking station
enables you to transmit data between your PC and the ROX 5.0.
You can also set up the ROX 5.0 on the PC and then transmit the settings to
the bike computer.

Attaching the bracket
Attaching the ROX 5.0 and initial use
Page 10
ROX 5.0
www.sigmasport.com
ROX 5.0
2 Attaching the ROX 5.0 and initial use
Note
See the quick start guide for detailed mounting instructions.
2.1 Attaching the bracket
− Attach to the handlebars or stem
− Remove the yellow foil from the bracket (permanent attachment)
− The bracket can be attached using either cable ties (permanent attachment)
or the O-rings.
See attachment figures 1.1 1.2 1.3 1.4
2.2 Attaching the transmitters – speed and cadence
− Both transmitters can be attached using either cable ties (permanent
attachment) or the O-rings.
See attachment figures 2.1 3.1
2.3 Attaching the magnets – speed and cadence
See attachment figures 2.3 3.2
2.4 Putting on the chest belt
− Slightly moisten electrodes with water or cardio gel.
See attachment figures 4.1 4.2 4.3 4.4
2.5 Setting up a 2nd bike
− CAUTION:
To switch the STS speed transmitter to ‘bike 2’, use a ballpoint pen to press
and hold the small button on the back of the transmitter until a red LED
flashes (5 sec). Red LED: bike 2; green LED: bike 1.
See attachment figure 6.1
2.6 Attaching the Sigma ROX 5.0 to the bracket
See attachment figure 6.2

Page 11
Initial use
Attaching the ROX 5.0 and initial use ROX 5.0
www.sigmasport.com
ROX 5.0
2.7 Initial use
To preserve battery life, the ROX 5.0 comes in ‘deep sleep mode’. Simultaneously
press and hold the MODE 1 + SET buttons for five seconds to awaken the
ROX 5.0 from deep sleep mode.
The ROX 5.0 jumps to setting mode (Section 4, pg 16).
2.8 Synchronizing the transmitters
To synchronize the transmitters, the ROX 5.0 must be clicked into the handlebar
or wristband bracket.
The zeros of the speed, cadence, and heart rate values flash while the respective
transmitters are being synchronized.
Once synchronization is complete, the respective values appear on the ROX 5.0’s
display.
2.8.1 Synchronizing the speed
There are two options for synchronizing the speed:
− Start cycling – the receiver usually synchronizes with the transmitter after
five wheel rotations.
− Spin the front wheel until the speed information appears on the display.
2.8.2 Synchronizing the cadence
There are two options for synchronizing the cadence:
− Start cycling – the receiver usually synchronizes with the transmitter after
five pedal rotations.
− Turn the pedals until the current cadence appears on the display.
2.8.3 Synchronizing the chest belt
Moisten the electrodes on the chest belt and put it on.
Move within 100 cm (approx 36 inches) of the ROX 5.0 or get onto your bike.
The ROX 5.0 usually synchronizes with the chest belt in less than 10 seconds.
The current heart rate then appears on the display.

Synchronizing the transmitters
Attaching the ROX 5.0 and initial use
Page 12
ROX 5.0
www.sigmasport.com
ROX 5.0
2.8.4 Resetting the synchronization
If a transmitter does not display any values or the wrong transmitter is
synchronized, the synchronization can be reset.
1 Press and hold the Mode 1 button for three seconds.
‘Sync. RESET’ flashes on the display.
2 The zeros of the speed, cadence, and heart rate values flash again while
the respective transmitters are being synchronized.
Mode 1

Page 13
Button functions
Operating concept ROX 5.0
www.sigmasport.com
ROX 5.0
3 Operating concept
3.1 Button functions
The backlight is switched on/off
by simultaneously pressing both
buttons.
Set + Reset buttons
Reset button
Use this button to scroll backward
in a menu level.
Press and hold the button to zero
all the data for the current trip.
Mode 2 button
Press this button to scroll through
the Mode 2 functions (heart rate
functions etc.) or forward in a
menu level.
Lap button
Press this button to start a new
lap.
Press and hold the button to open
the lap view.
Mode 1 button
Press this button to scroll through
the Mode 1 functions (bike
functions).
Press and hold the button to re-
synchronize the transmitters.
Set button
Press this button to store the
values entered.
Press and hold the button to open
the basic settings.

Button functions
Operating concept
Page 14
ROX 5.0
www.sigmasport.com
ROX 5.0
3.1.1 Button functions in bike mode
Mode 1 functions Mode 2 functions
Trip distance Target zone/% max. heart rate
Ride time Intensity zones
Avg. speed Avg. heart rate
Max. speed Max. heart rate
Avg. cadence Calories
Lap distance Clock
Lap time Stopwatch
Countdown
Temperature
Total distance
Total time
Total calories
3.1.2 Button functions in running mode
Mode 1 functions Mode 2 functions
Running time Training zone/% max. heart rate
Total running time Intensity zones
Avg. heart rate
Max. heart rate
Calories
Clock
Countdown
Temperature
Total calories

Page 15
Display structure
Operating concept ROX 5.0
www.sigmasport.com
ROX 5.0
3.2 Display structure
The ROX 5.0’s display is divided into three main areas:
3.2.1 Top display segment
This displays four current values.
Current heart rate (only if you are wearing the chest belt)
Heart rate above or below the target zone
Current cadence
Current lap number (permanent)
3.2.2 Middle display segment
This displays your current speed plus other icons:
Bike I - bike II icon
Speed compared to average
Unit of measure (km/h or mph)
Stopwatch active
Countdown active
3.2.3 Bottom display segment
This displays your currently selected function.
Press the Mode 1 (see 3.1.1) and Mode 2 (see 3.1.2) buttons to select the individual
functions.
Press the Mode 1 or Mode 2 buttons to scroll forward. Press the Set or Reset
buttons to scroll backward.
Set Mode 1
Mode 2
Reset
Set Mode 1
Mode 2
Reset
Set Mode 1
Mode 2
Reset

Setting the language
Basic settings
Page 16
ROX 5.0
www.sigmasport.com
ROX 5.0
4 Basic settings
Press and hold the Set button for three seconds. ‘Setting OPEN’ flashes on the
display. The preset language then appears.
If you are using the ROX 5.0 for the first time and awakening it from deep sleep
mode, it will automatically jump to setting mode without you pressing and holding
the Set button.
Caution
The ROX 5.0 can also be set during a ride. Not advised and please do so with
caution!
4.1 Setting the language
1 Press the Mode 1 button to switch to the preset language.
2 Press the Set button. The display flashes.
3 Press Mode 2 or Reset to select the desired language.
4 Press the Set button to save your setting.
‘Set OK’ appears on the display.
4.2 Setting the unit of measure
1 Press the Mode 1 button to switch to the preset unit.
2 Press the Set button. The display flashes.
3 Press Mode 2 or Reset to switch between km/h and mph.
4 Press the Set button to save your setting.
‘Set OK’ appears on the display.
4.3 Setting the wheel size 1 and 2
1 Press the Mode 1 button to switch to the preset wheel size
1 or wheel size 2.
2 Press the Set button. The first two digits for entry flash.
3 Press Mode 2 or Reset to increase or decrease the value respectively.
4 Press the Mode 1 button to switch to the next digit.
5 Press the Set button to save your setting.
‘Set OK’ appears on the display.
Set Mode 1
Mode 2
Reset
Set Mode 1
Mode 2
Reset
Set Mode 1
Mode 2
Reset
Set Mode 1
Mode 2
Reset

Page 17
Setting the wheel size 1 and 2
Basic settings ROX 5.0
www.sigmasport.com
ROX 5.0
4.3.1 Calculating the wheel size
There are three ways to determine the wheel size:
− Follow instructions in Figure A or B
− Find in the table (Figure C) based on tire size.
mm x 3.14
km/h:
WS = mm x 3.14
mph:
WS = mm x 3.14
Figure A
1x
= WS (mm)
km/h:
WS = mm
mph:
WS = mm
Figure B
Figure C
27.5 x 2.0
27.5 x 2.1
27.5 x 2.2
27.5 x 2.25
28 x 1.5
28 x 1.75
28 x 1 1/2
28 x 1 3/8 x 1 5/8
29 x 2.0
700 x 18C
700 x 20C
700 x 23C
700 x 25C
700 x 28C
700 x 32C
700 x 35C
700 x 38C
700 x 40C
16 x 1.75 x 2
20 x 1.75 x 2
24 x 1 3/8A
24 x 1.75 x 2
26 x 1
26 x 1.5
26 x 1.6
26 x 1.75 x 2
26 x 1.9
26 x 1.95
26 x 2
26 x 2.1
26 x 2.125
26 x 1 3/8
26 x 1 3/8 x 1 1/2
26 x 3/4
27 x 1 1/4
27 x 1 1/4 Fifty
47-305
47-406
37-540
47-507
23-571
40-559
44-559
47-559
50-559
52-559
54-559
56-559
57-559
37-590
37-584
20-571
32-630
28-630
54-584
56-584
58-584
60-584
40-622
47-622
40-635
37-622
54-622
18-622
20-622
23-622
25-622
28-622
32-622
37-622
38-622
40-622
1272
1590
1948
1907
1973
2026
2051
2070
2089
2105
2114
2128
2133
2105
2086
1954
2199
2174
2154
2170
2186
2194
2224
2268
2265
2205
2290
2102
2114
2133
2146
2159
2174
2205
2217
2224
WS
mph
WS
mph
ETRTO
1
2
1
/
2
x
1
.
7
5
Tire SizeTire Size
ETRTO
1
2
1
/
2
x
1
.
7
5

Setting the clock
Basic settings
Page 18
ROX 5.0
www.sigmasport.com
ROX 5.0
4.4 Setting the clock
1 Press the Mode 1 button to switch to the preset time.
2 Press the Set button. The hours digit flashes.
3 Press Mode 2 or Reset to increase or decrease the value respectively.
4 Press the Mode 1 button to move to the minutes.
5 Press Mode 2 or Reset to increase or decrease the value respectively.
6 Press the Set button to save your setting.
‘Set OK’ appears on the display.
4.5 Setting the date
1 Press the Mode 1 button to switch to the preset date.
2 Press the Set button. The year flashes.
3 Press the Mode 2 or Reset button to increase or decrease the year value
respectively and the Set button to save your entry.
4 Press the Mode 2 or Reset button to increase or decrease the month value
respectively and the Set button to save your entry.
5 Press the Mode 2 or Reset button to increase or decrease the day value
respectively and the Set button to save your entry.
6 Press the Mode 2 or Reset button to set the date format (dd.mm.yy or mm/dd/
yy) and the Set button to save your entry.
‘Set OK’ appears on the display.
4.6 Setting your age
1 Press the Mode 1 button to switch to the preset age.
2 Press the Set button. The display flashes.
3 Press Mode 2 or Reset to increase or decrease the value respectively.
4 Press the Set button to save your setting.
‘Set OK’ appears on the display.
Set Mode 1
Mode 2
Reset
Set Mode 1
Mode 2
Reset
Set Mode 1
Mode 2
Reset

Page 19
Setting your weight
Basic settings ROX 5.0
www.sigmasport.com
ROX 5.0
4.7 Setting your weight
1 Press the Mode 1 button to switch to the preset weight.
2 Press the Set button. The display flashes.
3 Press Mode 2 or Reset to increase or decrease the value respectively.
4 Press the Set button to save your setting.
‘Set OK’ appears on the display.
4.8 Setting your gender
1 Press the Mode 1 button to switch to the preset gender. (The ROX 5.0 is
preset to ‘male’ by default.)
2 Press the Set button. The display flashes.
3 Press Mode 2 or Reset to set your gender.
4 Press the Set button to save your setting.
‘Set OK’ appears on the display.
4.9 Setting the maximum heart rate
1 Press the Mode 1 button to switch to the preset maximum heart rate.
2 Press the Set button. The display flashes.
3 Press Mode 2 or Reset to increase or decrease the value respectively.
4 Press the Set button to save your setting.
‘Set OK’ appears on the display.
Set Mode 1
Mode 2
Reset
Set Mode 1
Mode 2
Reset
Set Mode 1
Mode 2
Reset

Setting the training zone
Basic settings
Page 20
ROX 5.0
www.sigmasport.com
ROX 5.0
4.10 Setting the training zone
The ROX 5.0 has three target zones. The target zones ‘Fitness’ (Fit Zone) and
‘Fatburning’ (Fat Zone) are automatically calculated based on your maximum
heart rate. The ‘Individual’ target zone, can be customized based ons your own
heart rate values.
1 Press the Mode 1 button to switch to the preset training zone.
2 Press the Set button. The display flashes.
3 Press Mode 2 or Reset to increase or decrease the desired training zone limits
respectively.
4 Press the Set button to save your setting.
‘Set OK’ appears on the display.
Note
During a ride, you will be notified if you go above or below the target zone limits.
A zone indicator arrow appears on the display next to the heart rate and an
optional beeping sound is emitted.
4.10.1 Displaying the training zone in normal mode
You can also obtain a graphical image of the area in which you are currently
training:
1 In normal mode, press Mode 2 to switch to the target zone/% max. heart rate
display.
2 A three-part bar in the bottom display segment shows you which area of the
preset target zone you are currently in.
Below the target zone In the target zone Above the target zone
Set Mode 1
Mode 2
Reset
