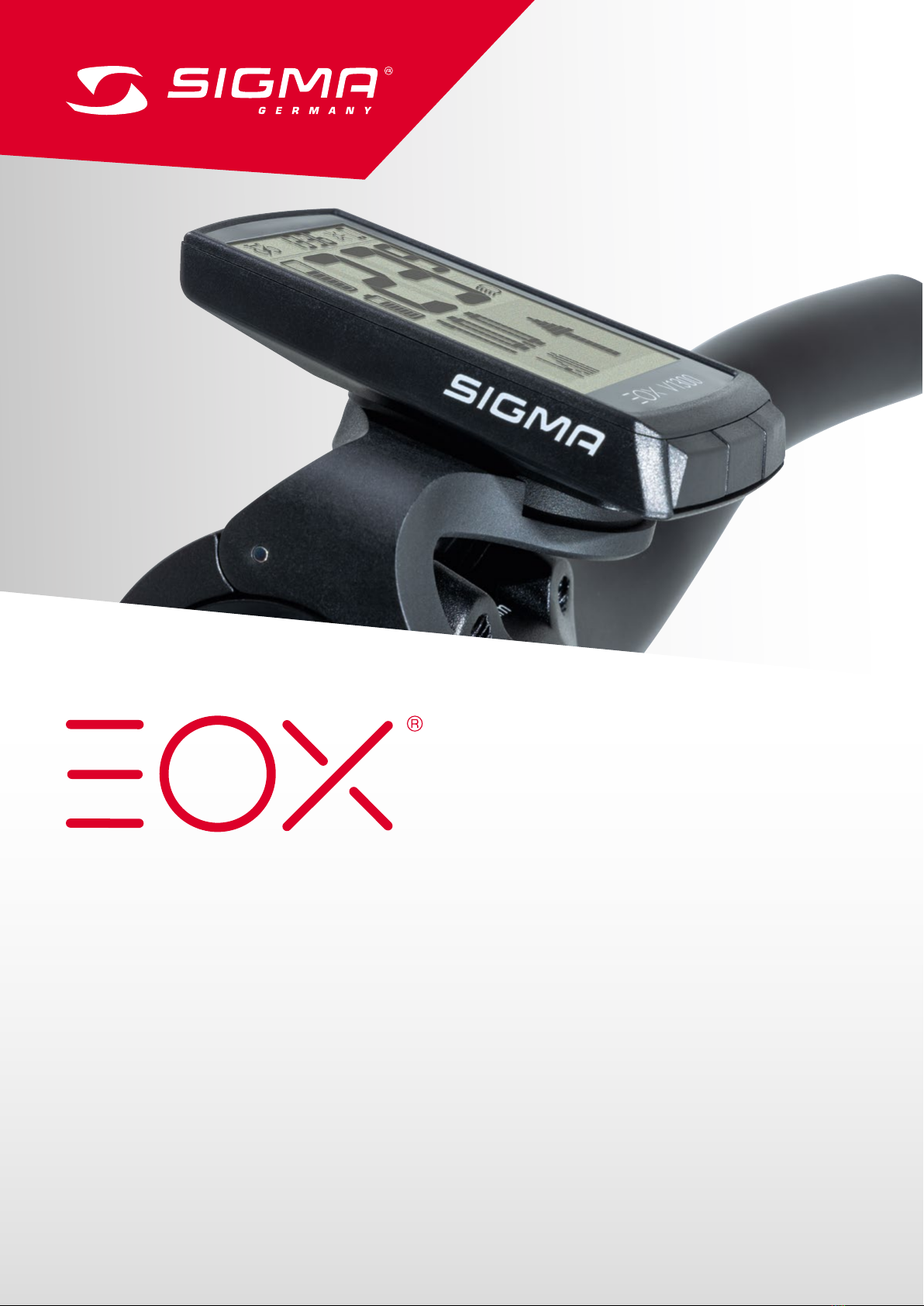

Sigma EOX VIEW 1300 Service manual

OPERATING AND MOUNTING INSTRUCTIONS
Version: 0.1 Draft
VIEW 1300

3. Operation 12
3.1 Initial wake-up 12
3.2 Controlling ride menu 13
3.3 Trip reset 13
3.4 Power off 13
3.5 Settings 13
3.6 Disconnect E-System 13
3.7 Connect E-System 14
3.8 E-System diagnostic information 15
3.9 Connect HR sensor 16
3.10 Disconnect HR sensor 16
3.11 Device totals 17
3.12 Service alert 17
4 EOX®APP 19
5 KOMOOT APP 24
6 EOX®ASSEMBLY 28
6.1 Over Clamp Butler 29
7 Technical information 30
8 Product care 30
8.1 Transport and storage 30
9 Disposal 31
Contents
1 EOX®VIEW 1300 3
1.1 Safety notes 3
1.2 Product concept 3
2. User interface 4
2.1 Segmented display area 5
2.1.1 Battery level 5
2.1.2 Assist mode 5
2.1.3 Light status 6
2.1.4 E-System and
smartphone connection indicator 6
2.1.5 Backlight indicator 7
2.1.6 Speed 7
2.1.7 Clock 8
2.2 Multifunctional display area 9
2.2.1 Estimated range and assist mode 9
2.2.2 Human vs. motor power 9
2.2.3 Heart rate and benefit indicator 9
2.2.4 Gear level and shifting advice 10
2.2.5 Komoot turn-by-turn instructions 10
2.2.6 All functions of multifunctional area 11

CAN
BLE
EOX®REMOTE 500
E-SYSTEM
EOX®APP RIDE APP
EOX®
VIEW
1300
Read the safety notes and the manual before putting the EOX®VIEW 1300 into operation! Improper use can cause damage
of the component and/or injuries.
Save the safety notes and the manual for your future reference!
−Make sure not to be distracted by the EOX®VIEW 1300 during the ride! Do not be distracted by the display.
−Make sure not to loose control of the E-Bike when interacting with EOX®VIEW 1300.
− Do not use the EOX®VIEW 1300 as a handle to lift up your E-Bike! This can lead to irreparable damage of
the component.
EOX®VIEW 1300 is wirelessly connected to the E-System by Bluetooth Smart or ANT+. Communication can be enabled by
EOX®REMOTE 500 or any other BLE/ANT+ component. EOX®VIEW 1300 communicates by BLE with EOX®App.
Wireless SIGMA E-Bike Computer offer the greatest possible flexibility and a wealth of additional features and functions.
They allow cable free hence clean cockpit solutions for E-Bikes using our partner‘s E-Systems.
More details about compatile E-Systems can be found here: [LINK]
1.1 Safety notes
1.2 Product concept

4 I EOX®VIEW 1300 I User interface
2. User interface
E-BIKE CONNECTION
ASSIST MODE
BATTERY LEVEL
SPEED
SMARTPHONE
CONNECTION
BACKLIGHT
INDICATOR
HIGH BEAM
LOW BEAM
MULTIFUNCTIONAL
AREA
CLOCK
AB C
The VIEW 1300 integrates 3 buttons (A / B / C) to control its user interface (see chapter 3).

EOX®VIEW 1300 I Segmented display area I 5
2.1 Segmented display area
2.1.1 Battery level
2.1.2 Assist mode
− Battery level of E-System is shown in segment area
− Logic of battery indicator depends on E-System connected
− Detailled information can be found here: [LINK]
− SIGMA default logic of battery indicator is described below:
− Currently selected Assist Mode is shown permanently in segment area
− Assist mode indicator is filled from bottom to top with Assist Mode increasing
− SIGMA default logic of Assist Mode indicator is described below:
− Changing Assist Mode can further be indicated by a pop-up message (2s)
− This message includes the Assist Mode name and can be en-/disabled in EOX®VIEW 1300 settings or by EOX®App
− SIGMA default logic of Assist Mode pop-up message is described below:
− Names and number of Assist Modes and, thus, behaviour of Assist Mode indicator depend on E-System connected
− Detailled information can be found here: [LINK]
100 - 80% Low 79 - 60% 59 - 40% 39 - 20% 19 - 10% 19 - 10%
(flashing)
Assist Mode 0
of 4 selected
Assist Mode 1
of 4 selected
Assist Mode 2
of 4 selected
Assist Mode 3
of 4 selected
Assist Mode 4
of 4 selected
Assist Mode 0
of 4 selected
Assist Mode 1
of 4 selected
Assist Mode 2
of 4 selected
Assist Mode 3
of 4 selected
Assist Mode 4
of 4 selected

6 I EOX®VIEW 1300 I Segmented display area
2.1.3 Light status
2.1.4 E-System and smartphone connection indicator
− Light status level of E-System is shown in segment area
− Light status can either be off, low beam, or high beam
− Whether high beam function is available or not depends on E-System setup
− Connection status of E-System and Smartphone are shown in segment area
− Two icons indicate whether connection is established or not
− Connection and disconnection of E-System or Smartphone are further indicated by a pop-up message (2s)
Light off Low beam High beam
E-System
not connected
E-System
connected
Smartphone
not connected
Smartphone
connected
E-System
disconnected
E-System
connected
Smartphone
disconnected
Smartphone
connected

EOX®VIEW 1300 I Segmented display area I 7
2.1.5 Backlight indicator
− Backlight mode of EOX®VIEW 1300 is indicated in segment area.
− With integrated ambient light sensor EOX®VIEW 1300 automatically enables backlight mode in dark conditions and
disables backlight mode in bright conditions.
− Once backlight mode is enabled backlight is turned on for 2s with each button press.
− If backlight is off, first button press only turns backlight on and does not trigger any other action.
Backlight mode
disabled
Backlight mode
enabled
Backlight mode
enabled and backlight
OFF
Backlight mode
enabled and backlight
ON
A||B||C A||B||C
3s without button press
Control
EOX®VIEW 1300
2.1.6 Speed
− Current speed of E-System is permanently shown in EOX®VIEW 1300 segment area
− Speed unit (kmh or mph) depends on device settings (see chapter 3.5)
Current Speed

8 I EOX®VIEW 1300 I Segmented display area
2.1.7 Clock
− Clock is permanently shown in EOX®VIEW 1300 segment area.
− Clock can be set manually (see chapter 3.5) and will be set automatically each time EOX®App is connected.
− Clock format (12h or 24h) depends on device settings (see chapter 3.5)
Current Clock

EOX®VIEW 1300 I Multifunctional display area I 9
2.2 Multifunctional display area
2.2.1 Estimated range and assist mode
− Estimated range and name of current assist mode can be shown combinated in EOX®VIEW 1300 multifunctional area.
Estimated range of
40 km with assist mode
“Mode 4”
Estimated range of
28 km with assist mode
“Boost”
2.2.2 Human vs. motor power
2.2.3 Heart rate and benefit indicator
− Multifunctional area of EOX®VIEW 1300 can show a visual comparison between human and motor power.
− The harder you pedal the more the display deflects to the left.
− The more power is added by the motor the more the display deflects to the right.
− The multifunctional area of the EOX®VIEW 1300 can show the current heart rate
if an external heart rate sensor is connected (see chapter 3.9).
− The benefit indicator provides feedback for the training effect of your activity.
Pedalling easy with high
motor assistance
Pedalling strong with
high motor assistance
Pedalling strong without
motor assistance
Stress reduction,
recovery
Improve
basic endurance,
burn fat
Improve
aerobic fitness
Improve
maximal
performance
Improve
speed

10 I EOX®VIEW 1300 I Multifunctional display area
2.2.4 Gear level and shifting advice
− Current rear gear can be shown on EOX®VIEW 1300 multifunctional area.
− Visual representation indicates whether lowest (A), highest (B), or any intermediate gear (C, D, E) is selected.
− If E-System advices to shift (up or down) an indicator is shown right to the visual (D, E).
Lowest gear
selected
Highest gear
(e.g. 11) selected
Gear 5
selected
Gear 5 selected
and advice to
shift down
Gear 5 selected
and advice to
shift up
2.2.5 Komoot turn-by-turn instructions
− EOX®VIEW 1300 can show turn-by-turn instructions from Komoot app on multifunctional area if Komoot app
is connected (see chapter 5).
− Additionally, a pop-up message is shown if distance towards next turning situation falls below 75 m.
− This pop-up message will only be shown if Komoot function is not selected in multifunctional area.
Distance toward
next turning
situation falls
below 75 m
Slightly left
in 1.2 km
Slightly left
in 74 m
Slightly left
now
Any other function
than komoot
Turning instruction
show in pop-up
... until it has been
reached
Function shown
previously
A B C D E

EOX®VIEW 1300 I Multifunctional display area I 11
2.2.6 All functions of multifunctional area
− Availability of functions depends on E-System connected
− Detailled information can be found here: [LINK]
Distance since
last trip reset
Ride time since
the last trip reset
Average speed since
the last trip reset
Maximum speed since
the last trip reset
Environmental
temperature Cadence Human power
Estimated range
and assist mode
(see chapter 2.2.1)
Date
Human vs.
motor power
(see chapter 2.2.2)
Heart rate and
benefit indicator
(if external sensor connected,
see chapter 2.2.3)
Calories
(if external sensor connected)
Komoot turn-by-turn
instructions
(see chapter 2.2.5)
Gear and shifting advice
(see chapter 2.2.4)

12 I EOX®VIEW 1300 I Operation
3 Operation
3.1 Initial wake-up
− Long-press Bbutton (> 5 s) to wake-up EOX®VIEW 1300 from shipping mode.
− You‘ll be guided through initial settings of EOX®VIEW 1300 (A).
− If you purchased EOX®VIEW 1300 being part of E-System, both can already be paired. If so, start with (B).
Long-press
Bbutton (>5 s)
Wake-up
(icon shown depends on
Esystem connected)
Short-press
Bbutton
!
Wait
(15 – 60 s)
Select E-System
(A/Cbutton)
and short-press
Bbutton
EOX®VIEW 1300
and E-Sytem are
paired now
Select
language
Select
unit
Set
clock
Select
date format
and set date
Set
year of birth
Initial setting
done
A
B
− Ensure E-System is turned on and Bluetooth interface is advertising while EOX®VIEW 1300 is scanning for
comaptible E-Systems.
− SHIMANO STePS system can be found by Bluetooth for 30s after power on or pressing a button of STePS system.
− To ensure Bike Computer can find STePS system it is recommended to press button of STePS system
(e.g. button of EOX®Ribbon Butler) while Bike Computer searches for compatible E-Systems.
!

EOX®VIEW 1300 I Operation I 13
3.2 Controlling ride menu
3.3 Trip reset
3.4 Power off
3.6 Disconnect E-System
3.5 Settings
− To change functions shown in multifunctional area of EOX®VIEW 1300 press Aor Cbutton in ride menu.
− To reset trip data of EOX®VIEW 1300 long-press Cbutton (>2 s).
− To power off EOX®VIEW 1300 long-press Abutton (>5 s).
− Long-press Bbutton (>2 s) to enter menu.
− Select item Settings and short-press Bbutton.
− Following settings can be done:
1. Language: English, German, French, Italian, Spanish, Dutch, Polish, Czech
2. Units: metric (°C, kmh), imperial (°F, mph)
3. Clock
4. Date
5. Contrast: 1, 2, 3
6. Year of birth
7. Assist pop-up: on, off
8. Maximum heart rate: auto, manual
Long-press Bbutton (>2 s)
and wait menu to open
Select
Connection
and press
Bbutton
Select
E-Bike
and press
Bbutton
Select
Disconnect
E-Bike?
and press
Bbutton
Select
Yes
and press
Bbutton
EOX®
VIEW 1300
and
E-System
are now
disconnected
− Note: diconnecting the E-System is only necessary if you want to switch EOX®VIEW 1300 to another bike.

14 I EOX®VIEW 1300 I Operation
3.7 Connect E-System
Long-press Bbutton (>2 s)
and wait menu to open
Select
Connection
and press
Bbutton
Select
E-Bike
and press
Bbutton
!
Wait
(15 – 60 s)
Select
E-System and
short-press
Bbutton
EOX®
VIEW 1300
and E-Sytem
are now
connected
− Ensure E-System is turned on and Bluetooth interface is advertising while EOX®VIEW 1300 is scanning for
comaptible E-Systems.
− SHIMANO STePS system can be found by Bluetooth for 30s after power on pressing a button of STePS system.
− To ensure Bike Computer can find STePS system it is recommended to press button of STePS system
(e.g. button of EOX®Ribbon Butler) while Bike Computer searches for compatible E-Systems.
− Once EOX®VIEW 1300 and an E-Bike are connected by menu the connection will be established automatically
the next times within 10s.
− If the automatic connection takes longer:
> Check that both devices are turned on.
> Check that E-Bike Bluetooth interface is advertising.
> Pressing any button of EOX®VIEW 1300 will enable fast searching mode.
!

EOX®VIEW 1300 I Operation I 15
− EOX®VIEW 1300 shows diagnostic information of paired E-System
− Long-press Bbutton (>2 s) to enter menu.
− Select item Connection and short-press Bbutton.
− Select item E-Bike and short-press Bbutton.
− The following diagnostic information can be shown:
3.8 E-System diagnostic information
− Availability of diagnostic informtion depends on E-System connected.
− Detailled information can be found here: [LINK]
Name
of paired E-System
Serial number
of paired E-System
Wireless protocol
version of E-System
(if E-System connected)
Total distance value
the next system service
is due
(if E-System connected)
Date
the next system service
is due
(if E-System connected)
Total distance
(Odometer) of E-System
(if E-System connected)
Total ride time
of E-System
(if E-System connected)

16 I EOX®VIEW 1300 I Operation
3.9 Connect HR sensor
3.10 Disconnect HR sensor
Long-press Bbutton (>2 s)
and wait menu to open
Select
Connection
and press
Bbutton
Select
Heartrate
and press
Bbutton
!
Wait
(15 – 60 s)
Select
HR sensor
and press
Bbutton
EOX®
VIEW 1300
and HR sensor
are now
connected
Long-press Bbutton (>2 s)
and wait menu to open
Select
Connection
and press
Bbutton
Select
Heartrate
and press
Bbutton
Select
Disconnect
Heartrate?
and press
Bbutton
Select
Yes
and press
Bbutton
EOX®
VIEW 1300
and HR sensor
are now
disconnected
− You can also use EOX®App to connect a HR sensor with EOX®VIEW 1300 (see chapter 4)

EOX®VIEW 1300 I Operation I 17
3.11 Device totals
Short-press Bbutton
to change totals
Set ten thousands digit
and short-press Bbutton
Set thousands digit
and short-press Bbutton
Set hundreds digit
and short-press Bbutton
Set tens digit
and short-press Bbutton
Set ones digit
and short-press Bbutton
Total value (i.e. distance)
set to new value
− EOX®VIEW 1300 records its own total distance and ride time independent from E-System.
− Long-press Bbutton (>2 s) to enter menu.
− Select item Totals and short-press Bbutton.
− It is possible to manipulate the device total values:
3.12 Service alert
− EOX®VIEW 1300 shows a pop-up message if service of connected E-System is due.
− The service alert can be defined based on total ride distance and/or date.
− This pop-up message will be shown once (when it happens) and each time EOX®VIEW 1300 is powered on again
until service is done.
Service alert
pop-up message

18 I EOX®APP

4. SIGMA EOX®App
SIGMA EOX®App is available in the Google Play Store and Apple App Store.
Compatibility:
The app can be installed on Android version 5.0 and higher as well as on iOS version 11.0 and higher.
Languages: German, English, French, Italian, Dutch, Polish, Spanish, Czech
4.1 Connect EOX®VIEW 1300 with EOX®App
− Make sure EOX®VIEW 1300 is turned on and your smartphone is around.
− Enable Bluetooth on your smartphone and start EOX®App.
− Follow the App instructions to connect EOX®products.
− Now a data transfer is guaranteed.
Menu “Trip recording”
Tap on to record a trip.
The following values are shown:
− Location on the map
− Distance
− Ride time
− Average speed
− Maximum speed
− Average heart rate (only if heart rate sensor is connected)
− Maximum heart rate (only if heart rate sensor is connected)
− Calories (only if heart rate sensor is connected)
− Average cadence
− Maximum cadence
− Average power
− Maximum power
− Average temperature
− Maximum temperature
− Battery drain
− Assist Modes
− Range
20 I EOX®APP
