SIIG AV-GM07P3-S1 User manual

4x4 HDMI Deep Color & full 3D over single Cat.X
Matrix
To avoid EMI issue, complete STP Cat6 cable is strongly recommended!
P/N: AV-GM07P3-S1

Safety and Notice
The AV-GM07P3-S1 4x4 HDMI Deep Color & full 3D over single Cat.X matrix has been
tested for conformance to safety regulations and requirements, and has been certified
for international use. However, like all electronic equipments, the AV-GM07P3-S1
should be used with care. Please read and follow the safety instructions to protect
yourself from possible injury and to minimize the risk of damage to the unit.
●Follow all instructions and warnings marked on this unit.
●Do not attempt to service this unit yourself, except where explained in this manual.
●Provide proper ventilation and air circulation and do not use near water.
●Keep objects that might damage the device and assure that the placement of this
unit is on a stable surface.
●Use only the power adapters and power cords and connection cables designed for
this unit.
●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
TABLE OF CONTENTS
INTRODUCTION.................................................................................................................1
FEATURES.........................................................................................................................1
PACKAGE CONTENTS......................................................................................................1
SPECIFICATIONS..............................................................................................................2
PANEL DESCRIPTIONS.....................................................................................................3
Transmitting unit ► ................................................................................................3
Receiving unit ►....................................................................................................4
HARDWARE INSTALLATION.............................................................................................4
IR PASS-THROUGH...........................................................................................................6
CONNECTION DIAGRAM ..................................................................................................7
OPERATION APPROACH..................................................................................................8
EDID LEARNING..............................................................................................................22
WARRANTY .....................................................................................................................23
INTRODUCTION.................................................................................................................1
FEATURES.........................................................................................................................1
PACKAGE CONTENTS......................................................................................................1

1
INTRODUCTION
The AV-GM07P3-S1 4x4 HDMI Deep Color & full 3D over single Cat.X matrix provides the most
flexible and cost effective solution in the market to route high definition video sources plus
multi-channel (up to 7.1-channel) digital audio from any of the four HDMI sources to the remote
displays at the same time. Through only one low cost Cat-5/5e/6 LAN cable, not only high quality
video and audio can be transmitted to the display sites, but also users can switch among four HDMI
sources using the push-in button or remote control. Furthermore, the built-in IR extension function
makes users at display site access the DVD player, PS3 or any HDMI supported devices directly!
FEATURES
●Supports HDMI Deep Color & full 3D
●HDCP compliant
●Allows any source to be displayed on multiple displays at the same time
●Allows any HDMI display to view any HDMI source at any time
●Supports 7.1 channel digital audio
●Supports default HDMI EDID and learns the EDID of displays
●The matrix master can switch every output channels to any HDMI inputs by push-in button, IR
remote control, RS-232 control, and Ethernet control
●Allow controlling local HDMI sources such as DVD and TiVo by attached IR extender from remote
receiver to matrix master
●Extends video signal up to 35m (115 feet) over single CAT.X at 1080p and likely longer with better
HDMI source device (such as PS3), better grade HDMI display (such as Sony X-series HDTV), and
better quality solid CAT6 cable
●Easy installation with rack-mounting and wall-mounting designs for master and receiver
respectively
●Fast response time –2~5 seconds for channel switch
PACKAGE CONTENTS
●1x AV-GM07P3-S1 ●4x AV-GM07P3-S1-RX
●5x IR receiver ●1x IR blaster*
●1x DC 12V 5A ●4x DC 5V 2A
●1x Rack-mounting ear set ●1x IR Remote control*
●1x Installation software CD ●1x User Manual

2
SPECIFICATIONS
Model Name
AV-GM07P3-S1
Technical
AV-GM07P3-S1
AV-GM07P3-S1-RX
Role of usage
True 4x4 matrix switcher
Transmitter [TX]
Receiver [RX]
HDMI compliance
HDMI Deep Color & full 3D
HDCP compliance
Yes
Video bandwidth
Single-link 225MHz [6.75Gbps]
Video support
480i / 480p / 720p / 1080i / 1080p60 36-bit color
Audio support
Surround sound (up to 7.1ch) or stereo digital audio
HDMI over CAT5
transmission range
Full HD (1080p): 35m (115ft) [CAT.X]
HD (720p/1080i): 50m (165ft) [CAT.X]
HDMI equalization
N/A
8-level digital rotary control
Input TMDS signal
1.2 Volts [peak-to-peak]
Input DDC signal
5 Volts [peak-to-peak, TTL]
ESD protection
Human body model —±15kV [air-gap discharge] & ±8kV [contact discharge]
PCB stack-up
4-layer board [impedance control —differential 100Ω; single 50Ω]
Input
4x HDMI / 1x RS-232 / 1x Ethernet
5x IR socket for IR receiver
1x RJ-45 /
1x IR socket for IR receiver
Output
4x RJ-45 /
5x IR socket for IR blaster
1x HDMI /
1x IR socket for IR blaster
HDMI Input selection
Push-in button / IR remote control /
RS-232 control / Ethernet control
IR remote control
HDMI source control
Controllable via IR pass-through from IR receiver at RX to IR blaster at TX
IR remote control
Electro-optical characteristics: = 25° / Carrier frequency: 20-60kHz
HDMI connector
Type A [19-pin female]
RJ-45 connector
WE/SS 8P8C
RS-232 connector
DE-9 [9-pin D-sub female]
3.5mm connector
Earphone jack for IR blaster
[All IR Out] IR control on all source devices
[IR1~IR4] IR control on individual source
device
Earphone jack for IR receiver
[System IR] Receives IR commands from
remote control
Earphone jack for IR receiver
[IR] Receives IR commands
from remote control
Mechanical
AV-GM07P3-S1
AV-GM07P3-S1-RX
Enclosure
Metal case
Dimensions
(L x W x H)
Model
440 x 146 x 44mm [17.3" x 5.7" x
1.7"]
91 x 75 x 24mm [3.6" x 2.9" x 9.4"]
Package
521 x 265 x 182mm [20.5" x 10.4" x 7.2"]
Carton
542 x 411 x 300mm [21.3" x 16.2" x 11.8"]
Weight
Model
1322g [46.6oz]
239g [8.4oz]
Package
3250g [7.2 lbs]
Fixedness
1RU rack-mount with ears
Wall hanging holes
Wall-mount with screws
* Additional IR remote controllers and IR blasters can be purchased as optional accessories to
control the HDMI sources located separately.

3
Power supply
12V 5A DC
5V 2A DC
Power consumption
20 Watts [max]
1 Watt [max]
Operation
temperature
0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]
PANEL DESCRIPTIONS

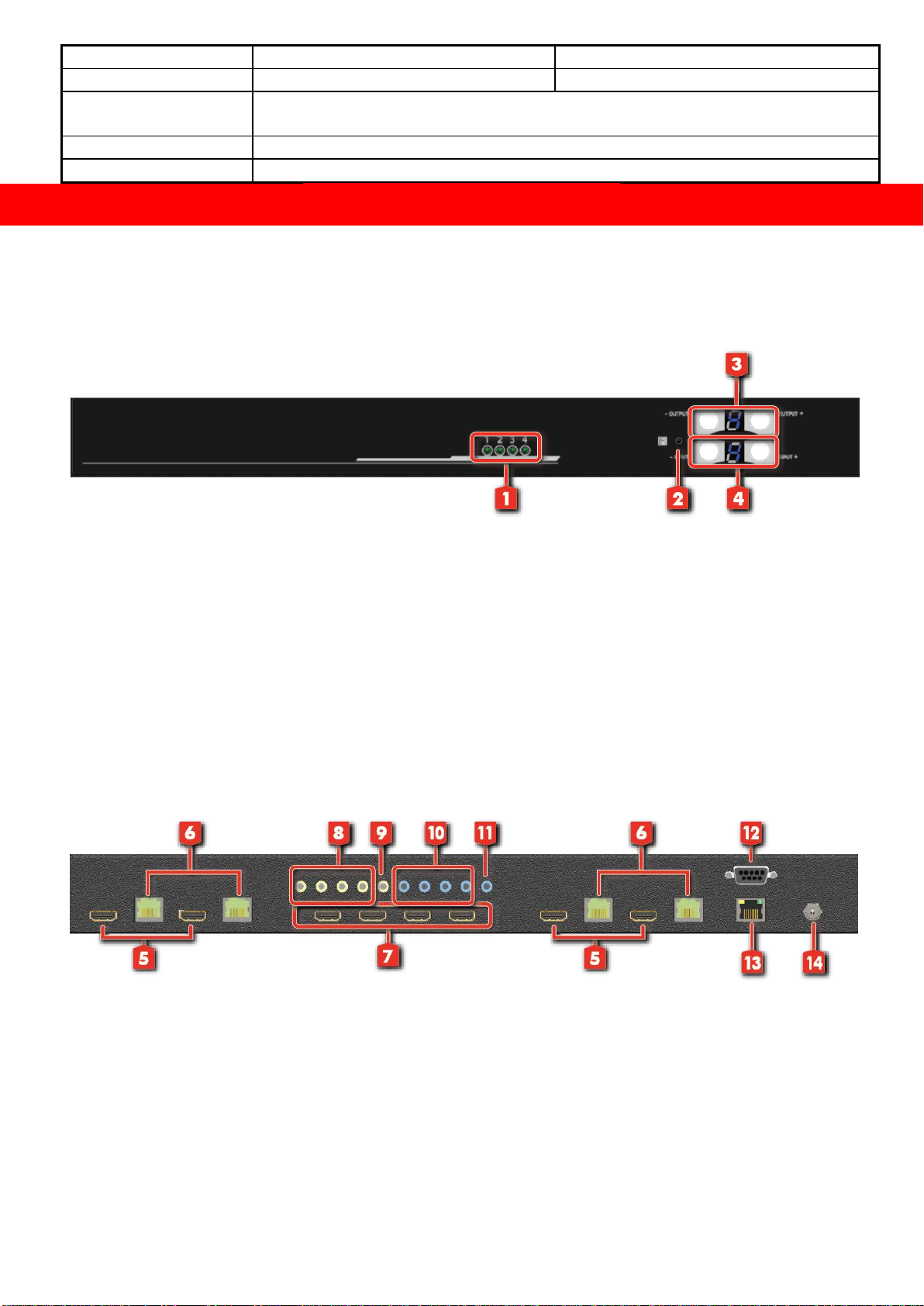

Transmitting unit ►AV-GM07P3-S1
Front Panel
1. Source Status: Input source indicator LED
2. IR SENSOR: IR sensor for receiving the IR commands from IR remote
3. Output Push Button & 7-segment LED: Front panel push buttons used to select the number of
display channel & LED display for output ports
4. Input Push Button & 7-segment LED: Front panel push buttons used to select the number of
input source & LED display for input channels
Rear Panel
5. HDMI Local Loopout Port 1-4: Local loopout HDMI outputs for each output channel
6. Output Port 1-4: RJ-45 outputs for each output channel
7. INPUT 1-4: HDMI inputs
8. IR Receiver 1-4: Infrared 3.5mm socket for plugging in the extension cable of IR receiver
9. System IR Receiver: Ext. IR receiver
10. IR Blaster 1-4: 3.5mm IR blaster socket for individual HDMI source control
11. All IR Output: 3.5mm IR blaster socket for HDMI source control on all 4 inputs

4
12. RS-232: RS-232 control port
13. Ethernet: Ethernet control port
14. +12V DC: 12V DC power jack
Receiving unit ►AV-GM07P3-S1-RX
Front Panel
Rear Panel
1. +5V DC: Connect to 5V DC power supply
2. HDMI Output: Connect to a HDMI display with a HDMI male-male cable
3. Signal Level: Adjust the 8-level equalization control to the received HDMI signals. The HDMI
signal level varies from MAX (strongest) to MIN (weakest) for respective transmission length
from longest possible range to short distance. Adjust the signal level from MIN to MAX until
desired video quality is displayed. Inappropriate signal level setting may cause overpowering
issue that would shorten the product life significantly!
4. HDMI Signal In: Plug in a Cat-5/5e/6 cable that needs to be linked to the receiving unit
5. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster
6. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver
HARDWARE INSTALLATION
1. Connect all sources to HDMI Inputs on the 4x4 HDMI over CAT.X matrix master AV-GM07P3-S1.
2. Connect each CAT.X output port on the AV-GM07P3-S1 to respective CAT.X input on the remote
receiver AV-GM07P3-S1-RX.
3. Connect each HDMI output on receiver to HDMI displays.

5
4. Connect IR blaster to the AV-GM07P3-S1 and direct the IR blaster to point towards the built-in IR
receiver of the HDMI source devices.
5. Connect the +12V 5A DC power supply to the AV-GM07P3-S1 and +5V 2A DC power supply to the
receivers
6. Power on all HDMI sources and displays.
7. Dial the 8-level rotary control switch to adjust the HDMI signal level until the picture and sound
are clear. It is recommended to dial from weakest to strongest to find the optimal visual
experience

6
IR PASS-THROUGH
IR Extenders
IR Blaster
IR Receiver
IR Sockets
AV-GM07P3-S1
All IR Out: The default location for IR blaster to transmit all IR command signals received from any
of the four remote receivers to all of the HDMI sources.
IR BLASTER 1-4: IR blaster connected here can only transmit IR command signals from the remote
receivers that are setting at respective input channel from 1 to 4.
System IR: Receives IR commands from remote control
AV-GM07P3-S1-RX
IR BLASTER: IR control on individual display device
IR RECEIVER: IR receiver connected here can receive all IR command signals from the IR remote
controls of AV-GM07P3-S1 and all other HDMI source devices.
Definition of IR Earphone Jack
IR Blaster
IR Receiver
Incorrect placement of IR Blaster and Receiver may result in the failure of the IR
extenders. Please check carefully before plugging in the IR extender to the
respective IR sockets. Warranty will not cover the damage.
CAUTION!

7
CONNECTION DIAGRAM
You can buy any IR extension cables in the market that are compatible to the definition of
the IR sockets for the matrix if necessary for replacement use. However, IR cables longer
than 2m (6-ft) may not work.

8
OPERATION APPROACH
Method A: Push-in Button
1. IN/OUT MAP
1) Use the “+”or “-“ output push button to select the number of display
2) Use the “+”or “-“ input push button to select the number of input source
“+”: change selected input/output port in ascending order
“-” : change selected input/output port in descending order
After you select the desired input/output port, the LED will blink twice and the setting will be
effective
2. Save Mapping Mode
1) Keep pushing “output+ (save)”button until the output LED shows “d.” to enter the Save
Mapping Mode.
2) Use the “+”or “-“ input push button to select the mapping configuration (1~8) which you want to
save current input/output mapping
3) After you select the desired mapping configuration number, the LED will blink twice and the
mapping setting will be saved
4) If you push the “output- (preset)”button before the mapping setting is saved, the LED will show
“一”“一”to quit the Save Mapping Mode
3. Preset Mapping Mode
1) Keep pushing “output- (preset)”button until the output LED shows “P.” to enter the Preset
Mapping Mode.
2) Use the “+”or “-“ input push button to select the saved mapping configuration (1~8) which you
want to recall
3) After you select the desired mapping configuration number, the LED will blink twice and the
mapping setting will be effective
default
learn
preset
save

9
4) If you push the “output+ (save)”button before the mapping setting is effective, the LED will
show “一”“一”to quit the Preset Mapping Mode
4. Default EDID Mode
1) Push “input+ (default)”button to select the input channel which you want to learn default EDID
and then keep pushing “input+ (default)”button when you select your desired input channel
2) Push the “+”or “-” output push button and then the LED will show “E”“d” one time to enter Learn
Default EDID Mode
3) Use “+”or “-” output push button to select the default EDID mode(1~8)
4) Release “input+ (default)”button after selecting the desired default EDID mode, and then the
LED will blink twice and the setting will be effective
5) It will quit the Learn Default EDID Mode if you push the “input- (learn)”button before the
setting is effective
6) The LED will show “0”“0” if the setting is success
The LED will show “F”“F” if the setting is failure
5. EDID Learning Mode
1) Connect display to input 4(EDID port for learning EDID from display).
2) Push “input- (learn)”button to select the input channel which you want to learn EDID from EDID
Port and then keep pushing “input- (learn)”button when you select your desired input channel
3) Push the “+”or “-” output push button and then the LED will show “E”“Number” to enter Learn
Output EDID Mode.
Ex: Learn EDID Port to Input 2
The LED will show “E””2”
4) Release “input- (learn)”button, and then the LED will blink twice and the setting will be effective
5) It will quit the Learn Output EDID Mode if you push the “input+ (default)”button before the
setting is effective
6) The LED will show “0”“0” if the setting is success
The LED will show “F”“F” if the setting is failure

10
Method B: IR Remote Control
1. IN/OUT Switch
Push the button on the checkerboard to select Input & Output port.
Ex: Select Input 2 to Output 3
Push the red circle button as below to select Input 2 to Output 3
2. Function Key
Button
Function
OFF
Standby mode
ON
Power on the matrix switcher
MUTE
Turn off output’s video and audio
STATUS
Preset output status
SAVE
Save current mapping mode
PRESET
Preset mapping mode
DEFAULT EDID
Begin default EDID selection
LEARN EDID
Begin EDID learning from one output
CLEAR
Clear the previous IR operation procedure
TAKE
Trigger the previous setting

11
F1
Reserved
F2
Reserved
Operation
Procedure
7-Segment LED
Output Status
Status + A~D(Output 1~4) + Take
Ex: Output 4
(Input 2)
1.Press “STATUS” button
-
-
2.Press number key “D” to select Output 4
4
-
3.Press “TAKE” button
4
2
Save Current Mapping
Save + A~H(1-8 storage site) + Take
Ex: Save current
mapping to 5
1.Press “SAVE” button
d
-
2.Press number key “E” to select the storage site
5
d
5
3.Press “TAKE” button
Preset Mapping
Preset + A~H(1-8 storage site) + Take
Ex: Preset saved
mapping from 5
1.Press “PRESET” button
P
-
2.Press number key “E” to select the storage site
5
P
5
3.Press “TAKE” button
Learn default EDID
Default EDID + A~H(1-8 default EDID) +Ⅰ~Ⅳ(input
1~4) + Take
Ex: Default EDID 2
Input 3
1.Press “DEFAULT EDID” button
E
d
2.Press number key “B” to select default EDID 2
2
d
3.Press number key “Ⅲ” to select Input 3
2
3
4.Press “TAKE” button
0 F
0 (success) F(fail)
Learn EDID Port EDID
Learn + D(EDID Port) +Ⅰ~Ⅳ(input 1~4) + Take
Ex: Learn EDID Port
Input 3
1.Press “LEARN” button
E
L
2.Press number key “D” to select EDID Port
4
L
3. Press number key “Ⅲ” to select Input 3
4
3
4.Press “TAKE” button
0 F
0 (success) F(fail)
Mute Output
Mute + A~D(Output 1~4) + Take
Ex: Mute Output 3
1. Press “MUTE” button
-
0
2. Press number key “C” to select Output 3
3
0
3.Press “TAKE” button
3
0

12
Method C: Software Control through RS-232 port / Ethernet port
1. System Requirement
1) OS Information: MS WinXP/7
2) Baud rates: 9600
3) Software size: 3 MB
4) Minimum RAM requirement: 256 MB
1
I/O Routing Button
2
Rename I/O Button
3
EDID Button
4
Network Button
5
F/W Update & Default Reset Button
6
Refresh COM Port
7
COM Port Selection
8
Connection Status
9
Connect/Disconnect Button
10
Control SW via RS-232
11
Control SW via Network
1
2
3
4
5
6
7
8
9
10
11

13
2. Input Selection and Mapping
I/O:
Select the input
Click “Send” to change the I/O setting
Save Mapping:
Select Mapping 1-8
Click “Save” button to save current mapping
Preset Mapping:
Select Mapping 1-8
Click “Recall” button to recall previous mapping which are saved

14

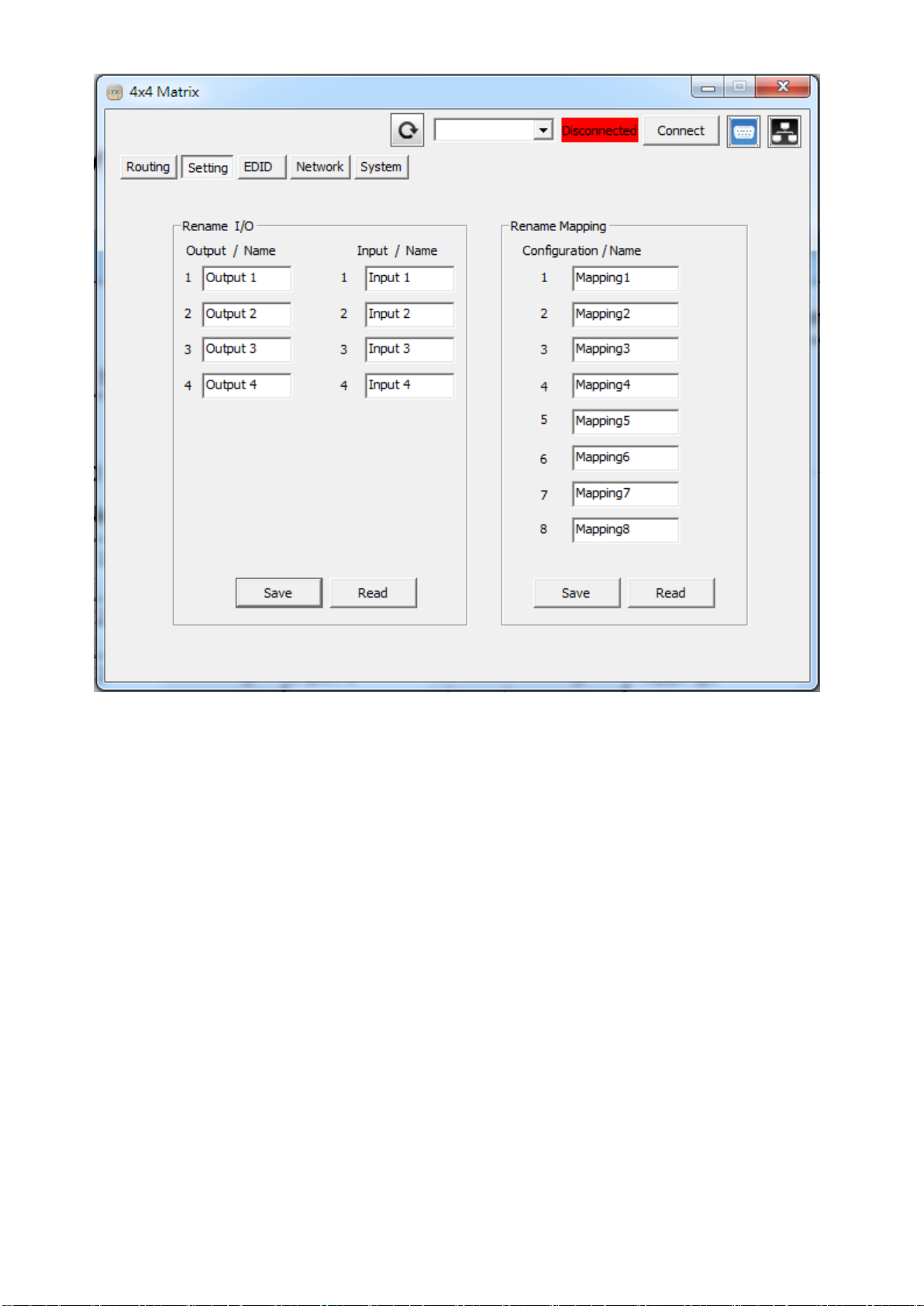

3. Rename I/O Button
Rename I/O:
Rename output name
Rename input name
Rename Mapping:
Rename Mapping name

15
4. EDID Button
Learn EDID from Default
Select Default EDID (1-8 Default EDID)
1. Full-HD(1080p@60)-24bit 2D & 2ch
2. Full-HD(1080p@60)-24bit 2D & 7.1ch
3. Full-HD(1080p@60)-24bit 3D & 2ch
4. Full-HD(1080p@60)-24bit 3D & 7.1ch
5. HD(1080i@60)(720p@60)-24bit 2D & 2ch
6. HD(1080i@60)(720p@60)-24bit 2D & 7.1ch
7. Full-HD(1080p@60)-36bit 2D & 2ch
8. Full-HD(1080p@60)-36bit 2D & 7.1ch
Select Input
Click “Learn” button to learn default EDID
Learn EDID from Display
Select output
Select input
Click “Learn” button to learn display EDID

16
View EDID
Select input or HDMI output
Create EDID
Click “Create” button to create EDID file
Select the EDID content
Click “Save EDID on Computer” to save the generated EDID as a file
5. Network Button
DHCP mode
Click DHCP to automatically get the IP address
Static mode
Click Static and then key in the “IP”, “MASK”, “GATEWAY” information. After setting
IP address, please click “Save Setting” to save IP address information
Save Setting

17
Save the IP address which is manually entered
Read Setting
Read the IP address from the device
6. System Button
Version
Get the firmware version information
Factory Reset
To do factory default reset
Firmware update
Firmware update main Board/Front Panel/Web IC

18
Method D: Web interface Control
The default IP address: 192.168.1.111
Account: admin
Password: matrix
1
I/O Routing Button
2
Setting Button
3
EDID Button
4
Refresh I/O Status & Read I/O Name Button
1. I/O Routing Button
I/O:
Select the input
Save Mapping:
Select Mapping (1-8)
1
2
3
4
