SIIG AV-GM07L3-S1 User manual

16x16 HDBaseT-Lite Matrix with POC & 4K2K
P/N: AV-GM07L3-S1

Safety and Notice
The AV-GM07L3-S1 16x16 HDBaseT-Lite Matrix with POC & 4K2K has been tested for
conformance to safety regulations and requirements, and has been certified for international
use. However, like all electronic equipments, the AV-GM07L3-S1 should be used with care.
Please read and follow the safety instructions to protect yourself from possible injury and to
minimize the risk of damage to the unit.
●Follow all instructions and warnings marked on this unit.
●Do not attempt to service this unit yourself, except where explained in this manual.
●Provide proper ventilation and air circulation and do not use near water.
●Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
●Use only the power adapter and power cords and connection cables designed for this unit.
●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the
device before cleaning.
TABLE OF CONTENTS
INTRODUCTION.................................................................................................................1
FEATURES.........................................................................................................................1
PACKAGE CONTENTS......................................................................................................1
SPECIFICATIONS..............................................................................................................2
PANEL DESCRIPTIONS.....................................................................................................3
Transmitting unit ► MA-5216V2..............................................................................3
Receiving unit ► CV-57VA-RX [Sold Separately]....................................................4
IR PASS-THROUGH...........................................................................................................5
CONNECTION DIAGRAM ..................................................................................................6
OPERATION APPROACH..................................................................................................7
EDID LEARNING..............................................................................................................25
WARRANTY .....................................................................................................................26

1
INTRODUCTION
The AV-GM07L3-S1 16x16 HDBaseT-Lite Matrix with POC & 4K2K provides the most flexible and
cost effective solution in the market to route high definition video sources plus multi-channel (up to
7.1-channel) digital audio from any of the four HDMI sources to the remote displays at the same
time. Through only one low cost Cat-5/5e/6 LAN cables, not only high quality video and audio can
be transmitted to the display sites, but also users can switch among four HDMI sources using the
push-in button or remote control. Furthermore, the built-in IR extension function makes users at
display site access the DVD player, PS3 or any HDMI supported devices directly!
FEATURES
●Supports HDMI Deep Color & full 3D & 4K2K@30 (HDBaseT technology)
●Extends the transmission up to 60m (198ft) from the HDMI source at Full HD 1080p 48-bit and
40m (130ft) at 4K2K@30
●Supports PoC(Power over Cable) which can power both units from TX side with power supply
●HDCP 1.4 compliant
●Bi-directional IR pass-though
●Allows controlling local HDMI sources or display through control path
●Allows to control main matrix center through control line at remote receiver
●Pure unaltered uncompressed 7.1ch digital HDMI over Cat.5/5e/6 cable transmission
●Allows any source to be displayed on multiple displays at the same time
●Allows any HDMI display to view any HDMI source at any time
●Supports 7.1 channel digital audio
●Supports default HDMI EDID and learns the EDID of displays
●The matrix master can switch every output channels to any HDMI inputs by Front Panel, IR
remote control, RS-232 and IP control
●Easy installation with rack-mounting
●Fast response time –2~4 seconds for channel switch
PACKAGE CONTENTS
●1x AV-GM07L3-S1 ●1x UL AC C13 power cord
●17x IR receiver ●16x IR blaster*
●1x Rack-mounting ear set ●1x IR Remote control*
●1x Installation software CD ●1x User Manual
* Additional IR remote controllers and IR blasters can be purchased as optional accessories to
control the HDMI sources located separately.

2
SPECIFICATIONS
Model Name
AV-GM07L3-S1
Technical
AV-GM07L3-S1
Role of usage
True 16x16 matrix switcher
Transmitter [TX]
HDMI compliance
HDMI Deep Color & full 3D & 4K2K@30
HDCP compliance
Yes [HDCP 1.4]
Video bandwidth
Single-link 340MHz [10.2Gbps]
Video support
480i / 480p / 720p / 1080i / 1080p@60/ 4K2K@30
Audio support
Surround sound (up to 7.1ch) or stereo digital audio
HDMI over UTP
transmission range
1080p@60 60m (198ft) [CAT5e]
Input TMDS signal
1.2 Volts [peak-to-peak]
Input DDC signal
5 Volts [peak-to-peak, TTL]
ESD protection
Human body model —±15kV [air-gap discharge] & ±8kV [contact discharge]
PCB stack-up
4-layer board [impedance control —differential 100Ω; single 50Ω]
Input
16x HDMI / 1x RS-232 / 1x Ethernet /17x IR socket for IR receiver
Output
16x HDMI / 16x RJ-45(HDBaseT) /17x IR socket for IR blaster
HDMI Input selection
Push-in button / IR remote control / RS-232 control / Ethernet control
HDMI source control
Controllable via IR pass-through from IR receiver at RX to IR blaster at TX
IR remote control
Electro-optical characteristics: = 25° / Carrier frequency: 20-60kHz
HDMI connector
Type A [19-pin female]
RJ-45 connector
WE/SS 8P8C[Reversed mode]
RS-232 connector
DE-9 [9-pin D-sub female]
USB connector
None
3.5mm connector
Earphone jack for IR blaster
[All IR Out] IR control on all source devices
[IR1~IR16] IR control on individual source device
Earphone jack for IR receiver
[System IR] Receives IR commands from remote control
[IR1~IR16] Receives IR commands from individual remote control
Mechanical
AV-GM07L3-S1
Enclosure
Metal case
Dimension
s
(L x W x H)
Model
440 x 349 x 131mm [1'4" x 1'1" x 5.1"]
Package
528 x 458 x 273mm [1'7" x 1'5" x 10.7"]
Carton
542 x 472 x 296mm [1'8" x 1'5" x 11.6"]
Weight
Model
9.9kg [21 lbs]
Package
14.6kg [32 lbs]
Fixedness
3 RU rack-mount with ears
Wall hanging holes
Power supply
AC Power 100-240V
Power consumption
120 Watts [max]
Operation
temperature
0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]

3
PANEL DESCRIPTIONS
Transmitting unit ►AV-GM07L3-S1
Front Panel
1. Power Switch: Power ON/OFF switch
2. 7-segment LED: for output 1-16 status
3. Source Status: Input source indicator LED
4. IR SENSOR: IR sensor for receiving the IR commands from IR remote
5. Push Button: Select the output and input
6. Push Button: Enter Button
Rear Panel
7. IR Blaster 1-16: 3.5mm IR blaster socket for individual HDMI source control
8. IR Receiver 1-16: Infrared 3.5mm socket for plugging in the extension cable of IR receiver
9. INPUT 1-16: HDMI inputs
10. Output Port 1-16: RJ-45 outputs for each output channel
11. LED: Link indicator
12. HDMI Local Loopout Port 1-16: Local loopout HDMI outputs for each output channel
13. RS-232: RS-232 control port
14. Ethernet: Ethernet control port
15. All IR Output: 3.5mm IR blaster socket for HDMI source control on all 16 inputs

4
16. System IR Receiver: Ext. IR receiver
17. AC Power: 100-240V
Receiving unit ►CV-57VA-RX [Sold Separately]
1. LED: Power LED, Status LED, Link LED, HDCP LED
Power LED: This LED light always shine is meant that works fine.
Status LED: This LED light is blinking it means functions well.
Link LED: This LED light always shine is meant that works fine.
HDCP LED: HDCP ON –the LED light always shine
HDCP LED: HDCP OFF –the LED light is blinking
2. Latch-locking power jack: Connect to 12V DC power supply
3. RJ-45: Plug in a Cat-5/5e/6 cable that needs to be linked to the receiving unit CV-57VA-RX
4. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver
5. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster
6. RS-232 (terminal block format): The order of RS-232 pin are TX, RX, GND (from the left side to
the right)
7. HDMI OUT: Connects to a HDMI display with HDMI male-male cable

5
IR PASS-THROUGH
IR Extenders
IR Blaster
IR Receiver
IR Sockets
AV-GM07L3-S1
All IR Out: The default location for IR blaster to transmit all IR command signals received from any
of the four remote receivers to all of the HDMI sources.
IR BLASTER 1-16: IR blaster connected here can only transmit IR command signals from the remote
receivers that are setting at respective input channel from 1 to 4.
System IR: Receives IR commands from remote control
IR RECEIVER 1-16:Receives IR commands from individual remote control
CV-57VA-RX
IR BLASTER: IR control on individual display device
IR RECEIVER: IR receiver connected here can receive all IR command signals from the IR remote
controls of AV-GM07L3-S1 and all other HDMI source devices.
Definition of IR Earphone Jack
IR Blaster
IR Receiver
Incorrect placement of IR Blaster and Receiver may result in the failure of the IR
extenders. Please check carefully before plugging in the IR extender to the
respective IR sockets. Warranty will not cover the damage.
CAUTION!

6
CONNECTION DIAGRAM
You can buy any IR extension cables in the market that are compatible to the definition of
the IR sockets for the matrix if necessary for replacement use. However, IR cables longer
than 2m (6-ft) may not work.

7
OPERATION APPROACH
Method A: Push-in Button
Input / Output Mapping
1) Use the “LEFT” or “RIGHT” push button to select the output desired to switch sources to.
2) Use the “UP” or “DOWN” push button to select the specific source
3) Press “SET” to start & confirm
Method B: IR Remote Control
Button
Function
ON
Power on the matrix switcher
OFF
Standby mode
PRESET
Preset mapping mode
SAVE
Save current mapping mode
Number button
1-9
Select a number
+10
Select a number
To
Transfer key
TAKE
Trigger the previous setting
MUTE
Turn off/Mute the selected Output
SWITCH
Begin input and output selection
DEFAULT EDID
Begin default EDID selection
LEARN
Begin EDID learning from one
output
ALL
Select all inputs or outputs
CLEAR
Clear the previous IR operation
procedure
STATUS
Reserved
F1
Reserved
F2
Reserved
F3
Reserved

8
F4
Reserved

9
Example of function key
Operation
Procedure
7-Segment LED
IN / OUT Switch
Switch + number(input) + To + number(output) + Take
Ex: Input 3 To Output 4
1. Press “SWITCH” button
-
-
2. Press number key “3” to select Input
-
3
3. Press “To” button
-
3
4. Press number key “4” to select Output
4
3
5. Press “TAKE” button
4
3
Ex: Input 3 To Output All
Switch + number(input) + To + All(output) + Take
1. Press “SWITCH” button
-
-
2. Press number key “3” to select Input
-
3
3. Press “To” button
-
3
4. Press “ALL” to select All Output
A
3
5. Press “TAKE” button
4
3
Factory Reset
Status + Status + Status + Take
1. Press “STATUS” button
-
-
2. Press “STATUS” button
d
-
3. Press “STATUS” button
d
d
4. Press “TAKE” button
1
1
Learn default EDID
Default EDID + number(1-16 default EDID) + To +
number(input) + Take
Ex: Default EDID 2 Input 3
1. Press “DEFAULT EDID” button
E
d
2. Press number key “2” to select default EDID
2
d
3. Press “To” button
2
D
4. Press number key “3” to select Input
2
3
5. Press “TAKE” button
0 F
0 (success)
F (fail)
Default EDID + number(output) + To + All(input) +
Take
Ex: Default EDID 2 Input
All
1. Press “DEFAULT EDID” button
E
D
2. Press number key “2” to select default EDID
2
D
3. Press “To” button
2

10
D
4. Press “ALL” to select All Input
2
A
5. Press “TAKE” button
0 F
0 (success)
F (fail)

11
Learn Output EDID
Learn + number(output) + To + number(input) + Take
Ex: Learn Output 2 Input
3
1. Press “LEARN” button
E
L
2. Press number key “2” to select Output
2
L
3. Press “To” button
2
L
4. Press number key “3” to select Input
2
3
5. Press “TAKE” button
0 F
0 (success)
F (fail)
Learn + number(output) + To + all(input) + Take
Ex: Learn Output 2 Input
All
1. Press “Learn” button
E
L
2. Press number key “2” to select Output
2
L
3. Press “To” button
2
L
4. Press “ALL” to select All Input
2
A
5. Press “TAKE” button
0 F
0 (success)
F (fail)
Save Current Mapping
Save + number(output) + Take
1. Press “SAVE” button
d
-
Ex: Save current mapping
to 5:
2. Press number key “5” to select the storage site
5
-
3. Press “TAKE” button
Preset Mapping
Preset + number(1-16 storage site) + Take
Ex: Learn Output 2 Input
All
1. Press “Save” button
P
-
2. Press number key “5” to select the storage site
5
-
3. Press “TAKE” button

12

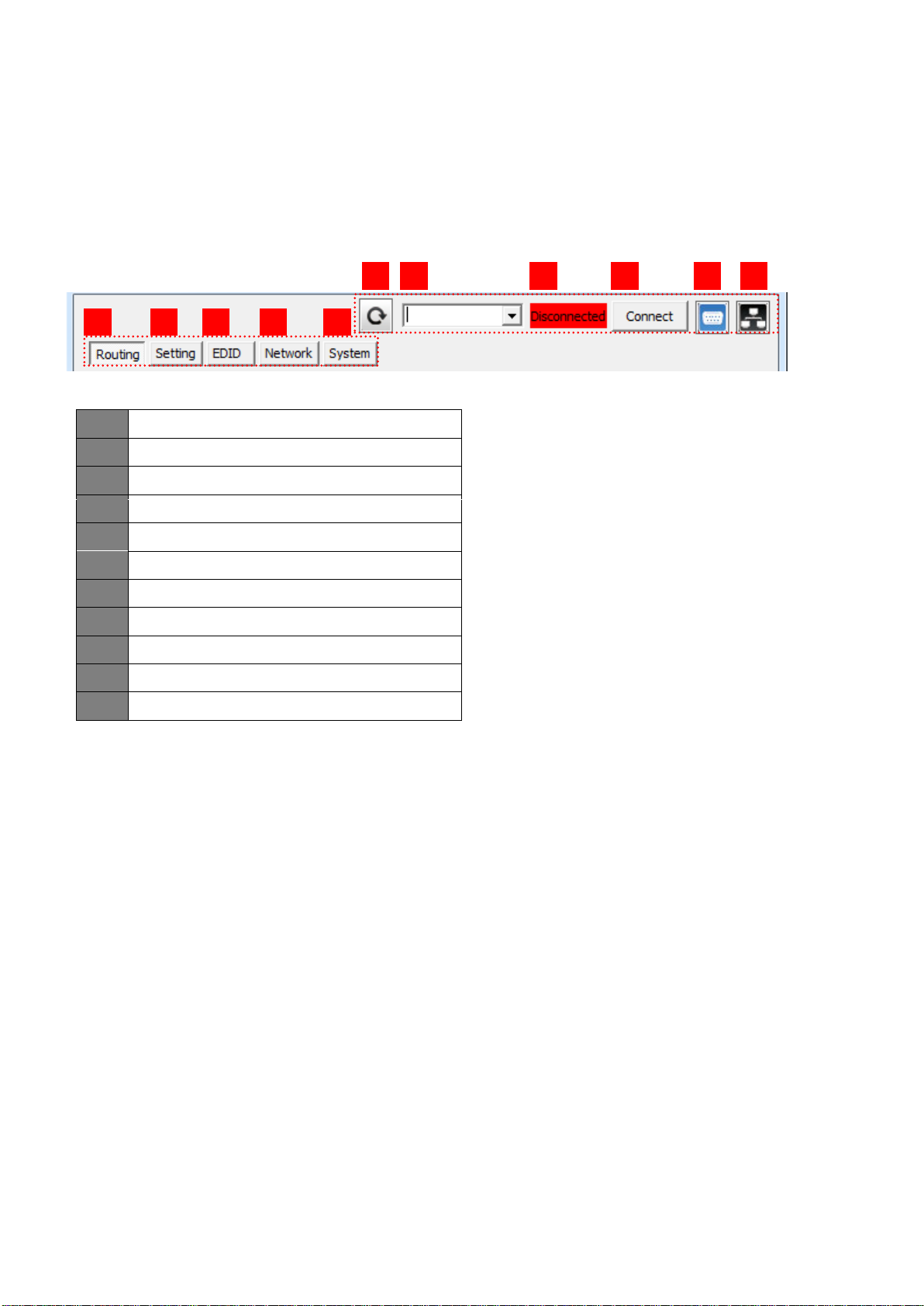

Method C: Software Control through RS-232 port / Ethernet port
System Requirement
1) OS Information: MS WinXP/7
2) Baud rates: 9600
3) Software size: 3 MB
4) Minimum RAM requirement: 256 MB
1
I/O Routing Button
2
Rename I/O Button
3
EDID Button
4
Network Button
5
F/W Update & Default Reset Button
6
Refresh COM Port
7
COM Port Selection
8
Connection Status
9
Connect/Disconnect Button
10
Control SW via RS-232
11
Control SW via Network
1
2
3
4
5
6
7
8
9
10
11

13
1. I/O Routing Button
I/O:
Select the input
Save Mapping:
Select Mapping(1-8)
Click “Save” button to save current mapping
Preset Mapping:
Select Mapping(1-8)
Click “Recall” button to recall previous mapping which are saved

14
2. Rename I/O Button
Rename I/O:
Rename output name
Rename input name
Rename Mapping:
Rename Mapping name

15
3. EDID Button
Learn EDID from Default
Select Default EDID(1-10 Default EDID)
1. Full-HD(1080p@60)-24bit 2D & 2ch & Dolby 5.1ch
2. Full-HD(1080p@60)-24bit 2D & 7.1ch
3. Full-HD(1080p@60)-24bit 3D & 2ch
4. Full-HD(1080p@60)-24bit 3D & 7.1ch
5. HD(1080i@60)(720p@60)-24bit 2D & 2ch
6. HD(1080i@60)(720p@60)-24bit 2D & 7.1ch
7. Full-HD(1080p@60)-36bit 2D & 2ch
8. Full-HD(1080p@60)-36bit 2D & 7.1ch
9. 4K2K@30Hz 24-Bit 7.1ch
10. 4K2K@30Hz 24-Bit 2ch
Select Input

16
Click “Learn” button to learn default EDID
Learn EDID From Display
Select output
Select Input
Click “Learn” button to learn display EDID
Load EDID File to Input
Select Input
Click “Load” button to select the EDID file
View EDID
Select Input or HDMI output
Click “View” button to read the EDID and analysis
Create EDID
Click “Create”button to create EDID file

17
Select the EDID content
Click “Save EDID on Computer” to save the generated EDID as a file
4. Network Button

18
Save Setting
Save the IP address which you key in on the column
Read Setting:
Read the IP address from the device
PS: The default IP address is 192.168.1.111
