Silvercrest HG00783A Technical specifications

PREMIUM WIRELESS DOORBELL
IAN 275101
DESIGN-FUNKTÜRKLINGEL
Montage-, Bedienungs- und
Sicherheitshinweise
PREMIUM WIRELESS DOORBELL
Assembly, operating and safety instructions
TRÅDLØS DØRKLOKKE
Monterings-, betjenings- og sikkerhedshenvisninger
SONNETTE SANS FIL DESIGN
Instructions de montage, d‘utilisation et
consignes de sécurité
DRAADLOZE DESIGN-DEURBEL
Montage-, bedienings- en veiligheidsinstructies

GB/IE Assembly, operating and safety instructions Page 5
DK Monterings-, betjenings- og sikkerhedshenvisninger Side 20
FR/BE Instructions de montage, d‘utilisation et
consignes de sécurité Page 34
NL/BE Montage-, bedienings- en veiligheidsinstructies Pagina 50
DE/AT/CH Montage-, Bedienungs- und Sicherheitshinweise Seite 66

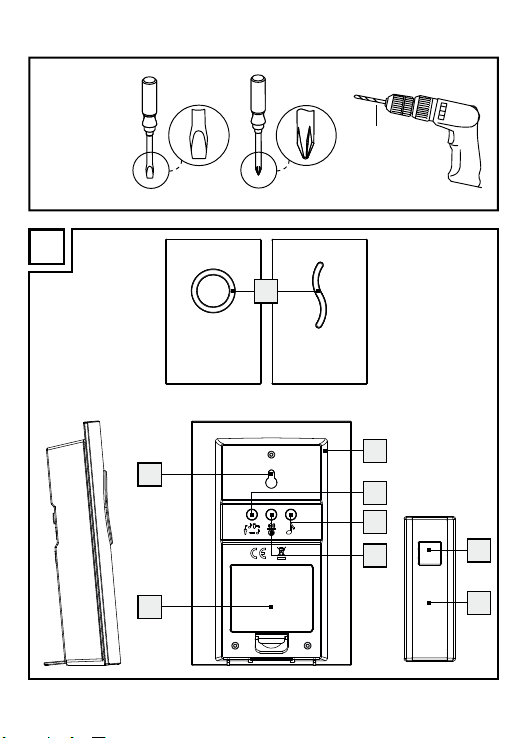

You need
Du skal bruge
Il vous faut
U hebt nodig
Sie benötigen:
ø 6mm
A
1
6
2
3
4
9
10
5
7
HG00783A HG00783B

B
8
6
C1
181211
15

D
C2
7
16
14 13
17

E17
16
F
14

G
18
12
H
12 18
19
C B A

4 - 12V, AC/
4 - 12V, DC
I
J

5GB/IE
Introduction..................................................................................Page 6
Intended use .......................................................................................Page 6
Parts and features...............................................................................Page 6
Included items.....................................................................................Page 7
Technical data ....................................................................................Page 8
Safety.................................................................................................Page 8
General safety information ................................................................Page 9
Safety instructions for batteries..........................................................Page 9
Assembly ........................................................................................Page 10
Preparing for use ....................................................................Page 11
Inserting/replacing the batteries ......................................................Page 11
Synchronising transmitter/receiver...................................................Page 12
Setting the signal type........................................................................Page 13
Setting the volume ..............................................................................Page 13
Selecting the chime.............................................................................Page 14
The procedure for connecting the transmitter to existing bell
system or existing doorbell button.....................................................Page 14
Connecting the transmitter to a existing
bell system.....................................................................................Page 15
Connecting a existing doorbell button ................Page 15
Troubleshooting........................................................................Page 16
Cleaning and maintenance.............................................Page 16
Disposal............................................................................................Page 17
Declaration of conformity................................................Page 18
Warranty........................................................................................Page 18

6 GB/IE
Premium Wireless Doorbell
Introduction
We congratulate you on the purchase of your new device. You have
chosen a high quality product. The instructions for use are part of the
product. They contain important information concerning safety, use
and disposal. Before using the product, please familiarise yourself
with all of the safety information and instructions for use. Only use the
unit as described and for the specified applications. If you pass the
product on to anyone else, please ensure that you also pass on all
the documentation with it.
Intended use
This product is intended for the wireless transmission of the doorbell
signal. The product is not intended for commercial use.
Parts and features
Receiver
1Signal indicator
2Speaker
3Signal type selector button
(optical, acoustic, optical and acoustic signal)
4Melody selection button

7GB/IE
5Volume/ Synchronisation button
6Battery compartment cover
7Hanger
8Battery compartment
Transmitter
9Chime button
10 Name plate
11 Lock
12 Holder (for wall mounting)
13 Battery compartment
14 Inner cover
Mounting
15 Rubber cover
16 Screw
17 Dowel
18 Cable exit hole
19 Cable holder
Included items
1 Transmitter
1 Receiver
3 Batteries 1.5V
, type AA (receiver)
1 Battery 3V
, type CR2032 (transmitter)
3 Screws (for transmitter and for mounting the receiver on a wall)

8 GB/IE
3 Dowels
5 Name plates (for the doorbell)
1 Operating instructions
Technical data
Range: 150 m (unobstructed area)
Transmission frequency: 434 MHz
Battery types: Receiver: 3 x 1.5 V
(type AA/ LR6),
Transmitter: 1 x 3V
(type CR2032)
Receiver: Audible signal volume (at maximum
volume setting): approx. 73dB (at a
distance of 1 m from the device)
Ingress protection rating
of the transmitter: IP44 (splash water proof)
Safety
Read all safety information and instructions!
STORE ALL SAFETY INFORMATION AND INSTRUCTIONS IN A
SAFE PLACE IN CASE YOU NEED TO REFER TO THEM AGAIN
IN THE FUTURE!

9GB/IE
General safety information
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
Check that all parts are in sound condition. If you use damaged
parts when assembling the device, you risk injury.
Safety instructions for batteries
DANGER TO LIFE! Batteries can be swallowed,
which can prove fatal. Consult a doctor immediately if anyone
swallows a battery.
EXPLOSION HAZARD! Never recharge non-
rechargeable batteries, short-circuit and/or open bat-
teries. This can cause them to overheat, burn or burst.
Never throw batteries into fire or water. The batteries may explode.
Immediately remove depleted batteries from the device; other-
wise there will be an increased risk of leakage!
Always replace all the batteries at the same time and insert
batteries of the same type.

10 GB/IE
Do not use different types of batteries or mix used and new
batteries together.
Batteries do not belong in household refuse. Dispose of used
batteries in an environmentally friendly manner.
Consumers are under a legal obligation to dispose of batteries in
the proper way.
Keep the battery out of the reach of children, do not dispose of
the battery in fire, do not short-circuit it, and do not take it apart.
Failure to observe these instructions may result in the battery dis-
charging beyond its end voltage, which poses a risk of leakage.
If the battery in your instrument has leaked, have it removed im-
mediately to prevent damage to the instrument.
Avoid contact with skin, eyes and mucous membrane. In the event
of contact with battery acid, rinse the affected area with plenty of
water and/or consult a doctor.
Never use rechargeable batteries.
The supply terminals are not to be short-circuited.
Do not mix old batteries with new ones.
Remove the batteries from the device if they have not been used
for a long period.
Make sure you insert the batteries the right way round (polarity).
Assembly
Note: You will need a screwdriver and a drill to assemble the
doorbell.

11GB/IE
Note: Only use the screws and dowels supplied for the assembly of
the device.
Mount the receiver (see Fig. D)

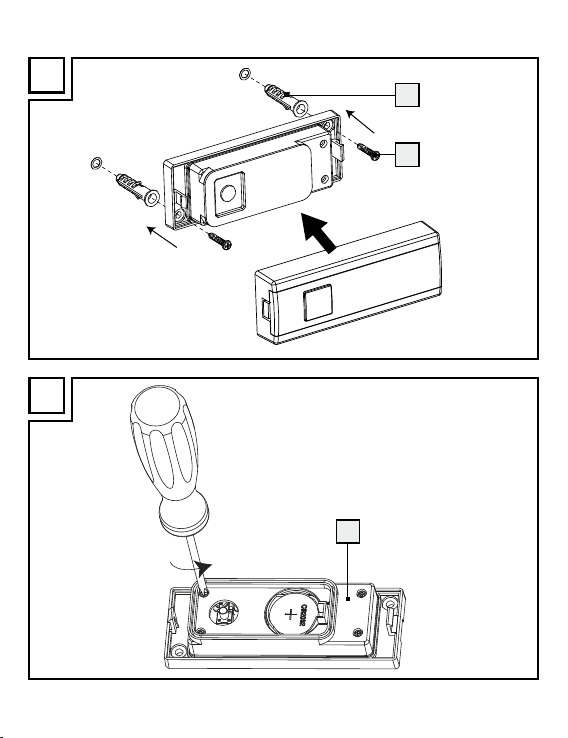

Mount the transmitter (see Fig. E)
Preparing for use
Inserting/replacing the batteries
Insert the batteries to provide power to the device before prepar-
ing it for use.
CAUTION! Use the indicated battery types only. Failure to ob-
serve this advice may result in damage to the product.
Receiver (see Fig. B):
Remove the battery compartment cover 6from the back of the
device.
Remove the used batteries, if present.
Insert 3 batteries (1.5V , type AA).
Note: Ensure correct polarity. This is indicated in the battery
compartment 8.
Close the battery compartment 8.
Transmitter:
Remove the holder 12 by pressing the lock 11 from the back of

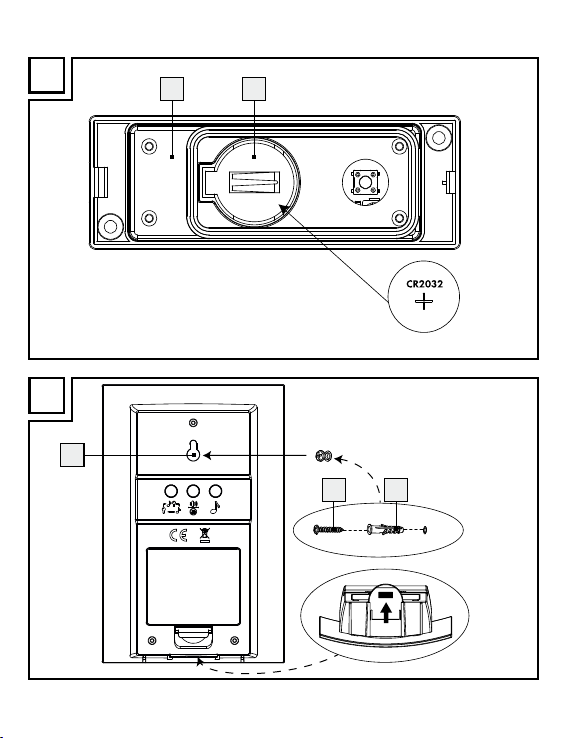

the transmitter and remove the rubber cover 15 (see fig. C1).

12 GB/IE
Remove the used batteries, if present (see fig. C2).
Insert a battery (3V , type CR 2032). The side marked “+”
must face upwards.
Install the rubber cover 15 , close the holder 12 of the transmitter
back on to the back of the device.
Synchronising transmitter/receiver
The doorbell works on 434MHz which is a quite common fre-
quency. To ensure that the function gets no influenced be doorbells in
the neighborhood, the transmitter and the receiver hence have to be
synchronized in regard of the encryption. Every transmitter is working
with a different encryption of the signal.
Synchronise the transmitter and receiver as follows:
As soon as the batteries are installed, the receiver enters synchro-
nizing mode for approx. 1 minute. During the synchronizing
mode, the signal indicator 1steadily lights up in blue color.
You can also manually enter synchronising mode by holding the
synchronising button 5for approx. 3 seconds.
The signal indicator 1on the receiver will steadily light up for
approx. 1 minute, to indicate that the receiver is in synchronizing
mode.
Press the chime button 9of the transmitter, while the receiver is
in synchronise mode. If the receiver receives the signal, the steady
blue light of the signal indicator 1flickers 6 times to indicate
that the synchronization is successful.

13GB/IE
Setting the signal type
The receiver can indicate the reception of a door signal either both
optically and acoustically, acoustically or optically.
Using the signal type selector button 3, select whether the
signal is to be indicated both optically and acoustically or acous-
tically or optically.
Press the signal type selector button 3once. An acoustical
signal will sound up and the afterwards the signal indicator 1
will flash. The receiver will now indicate the door signal acousti-
cally and optically. Press again the signal type selector button 3.
An acoustical signal will sound. The receiver will now indicate the
door signal acoustically. Press again the signal type selector
button 3. The receiver will now indicate the door signal in an
optical way.
Setting the volume
Press the volume button 5until the desired volume is reached.
There are a total of 4 possible volume settings: very loud, loud,
medium, soft.

14 GB/IE
Selecting the chime
Note: The doorbell has 16 different chimes.
Press the melody selection button 4. The first audible signal
sounds.
Press the melody selection button 4again to move on to the
next audible signal.
Repeat this process until you have selected your desired audible
signal. The last-selected audible signal is automatically stored.
The procedure for connecting the
transmitter to existing bell system or
existing doorbell button
Remove the holder 12 by pressing the lock 11 from the back of
the transmitter and remove the rubber cover 15 (see fig. C1).
Open the inner cover 14 by cross head screw driver (see fig. F).
Remove the plastic clip of cable exit hole 18 with a flat head
screw driver (see fig. G).
Insert the cable through cable holder 19 and cable exit hole 18
(see fig. H).
Connect cable to the terminals A and C (for connecting to exist-
ing doorbell) or the terminals B and C (for connecting to existing
door bell button) by using screw driver (see fig. H).

15GB/IE
Connecting the transmitter
to a existing bell system (see Fig. I)
Extension of an already existing doorbell system:
An already existing doorbell system can be extended with this wire-
less doorbell.
The operating voltage of the doorbell system must be between 4–12V.
It makes no difference whether this comes from direct current or 50Hz
alternating current. In the event that you are dealing with an existing
doorbell system using direct current, you must connect the positive ter-
minal of the doorbell to contact C of the transmitter and the negative
terminal to contact A of the transmitter.
IMPORTANT! Never reverse polarity. This can damage the device.
The connection terminals A and C, found on the circuit board of the
transmitter as shown in fig. I must be connected directly to the electri-
cal connection terminals of the signal generators (e.g. bell). The
button of the transmitter may also be used for this type of operation.
Note: Contact a qualified electrician in case of problems during
installation.
Connecting a existing
doorbell button (see Fig. J)
The separate bell button must not be connected to the existing door-
bell system. The battery must remain in the transmitter. The B and C

16 GB/IE
terminals are to this purpose with a two-core cable connected to the
bell push. The bell push may only be connected to the transmitter.
Troubleshooting
After the influence of extraordinary environmental conditions (e.g. a
strong electromagnetical field) the function of the item may be af-
fected. In this case, please take off the batteries of both appliances
for approximately 2 minutes. Then proceed again as described in the
section “Synchronising the transmitter/receiver”.
Electrostatic discharges may lead to malfunctions. If such malfunctions
do occur, remove the battery for a short time and then replace it again.
Then proceed again as described in the section “Synchronising the
transmitter/receiver”.
Cleaning and maintenance
Under no circumstances should you use liquids or detergents, as
these will damage the device.
The device should only be cleaned on the outside with a soft dry
cloth.
