Silvercrest STK 16 B2 Technical specifications

PREMIUM WIRELESS DOORBELL
STK 16 B2
DESIGN-FUNKTÜRKLINGEL
Montage-, Bedienungs- und
Sicherheitshinweise
PREMIUM WIRELESS DOORBELL
Assembly, operating and safety instructions
TRÅDLØS DØRKLOKKE
Monterings-, betjenings- og sikkerhedshenvisninger
SONNETTE SANS FIL DESIGN
Instructions de montage, d‘utilisation et
consignes de sécurité
DRAADLOZE DESIGN-DEURBEL
Montage-, bedienings- en veiligheidsinstructies
IAN 298815

GB/IE/NI Assembly, operating and safety instructions Page 5
DK Monterings-, betjenings- og sikkerhedshenvisninger Side 21
FR/BE Instructions de montage, d‘utilisation et
consignes de sécurité Page 37
NL/BE Montage-, bedienings- en veiligheidsinstructies Pagina 54
DE/AT/CH Montage-, Bedienungs- und Sicherheitshinweise Seite 71

You need
Du skal bruge
Il vous faut
U hebt nodig
Sie benötigen:
ø 6mm
A
1
6
2
3
4
9
10
5
7
HG00783A HG00783B

B
8
6
C1
191211
16

D
C2
7
17
14 13
18

E18
17
F
14
15

G
19
12
H
12 19
20
C B A

4 - 12V, AC/
4 - 12V, DC
I
J

5GB/IE/NI
Introduction..................................................................................Page 6
Intended use .......................................................................................Page 6
Parts and features...............................................................................Page 6
Included items.....................................................................................Page 7
Technical data ....................................................................................Page 8
Safety.................................................................................................Page 9
General safety information ................................................................Page 9
Safety instructions for batteries/rechargeable batteries.................Page 10
Assembly ........................................................................................Page 12
Preparing for use ....................................................................Page 12
Inserting/replacing the batteries ......................................................Page 12
Synchronising transmitter/receiver...................................................Page 13
Setting the signal type........................................................................Page 14
Setting the volume ..............................................................................Page 15
Selecting the chime.............................................................................Page 15
The procedure for connecting the transmitter to existing bell
system or existing doorbell button.....................................................Page 16
Connecting the transmitter to a existing
bell system.....................................................................................Page 16
Connecting a existing doorbell button ................Page 17
Troubleshooting........................................................................Page 17
Cleaning and maintenance.............................................Page 18
Disposal............................................................................................Page 18
Simplified EU declaration of conformity.............Page 19
Warranty........................................................................................Page 20

6 GB/IE/NI
Premium Wireless Doorbell
Introduction
We congratulate you on the purchase of your new product. You have
chosen a high quality product. The instructions for use are part of the
product. They contain important information concerning safety, use
and disposal. Before using the product, please familiarise yourself
with all of the safety information and instructions for use. Only use the
product as described and for the specified applications. If you pass
the product on to anyone else, please ensure that you also pass on
all the documentation with it.
Intended use
This product is intended for the wireless transmission of the doorbell
signal. The product is not intended for commercial use.
Parts and features
Receiver
1Signal indicator
2Speaker
3Signal type selector button
(acoustic, optical, optical and acoustic signal)
4Melody selection button

7GB/IE/NI
5Volume /Synchronisation button
6Battery compartment cover
7Hanger
8Battery compartment
Transmitter
9Chime button
10 Name plate
11 Lock
12 Holder (for wall mounting)
13 Battery compartment
14 Inner cover
Mounting
15 Screw
16 Rubber cover
17 Screw
18 Dowel
19 Cable exit hole
20 Cable holder
Included items
1 Transmitter
1 Receiver
3 Batteries 1.5V
(direct current) , type AA (receiver)
1 Battery 3V
(direct current) , type CR2032 (transmitter)

8 GB/IE/NI
3 Screws (for transmitter and for mounting the receiver on a wall)
3 Dowels
5 Name plates (for the doorbell)
1 Operating instructions
Technical data
Range: 150 m (unobstructed area)
Transmission frequency: 434 MHz
Transmission power: <10dBm
Battery types: Receiver: 3 x 1.5V
(direct current)
(type AA/LR6),
Transmitter: 1 x 3V
(direct current)
(type CR2032)
Receiver: Audible signal volume (at maximum
volume setting): approx. 73dB (at a
distance of 1 m from the device)
Ingress protection rating
of the transmitter: IP44 (splash water proof)

9GB/IE/NI
Safety
Read all safety information and instructions!
STORE ALL SAFETY INFORMATION AND INSTRUCTIONS IN A
SAFE PLACE IN CASE YOU NEED TO REFER TO THEM AGAIN
IN THE FUTURE!
General safety information
This product can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the
product in a safe way and understand the hazards involved. Chil-
dren shall not play with the product. Cleaning and user mainte-
nance shall not be made by children without supervision.
Check that all parts are in sound condition. If you use damaged
parts when assembling the device, you risk injury.

10 GB/IE/NI
Safety instructions for batteries /
rechargeable batteries
DANGER TO LIFE! Keep batteries /rechargeable batteries out
of reach of children. If accidentally swallowed seek immediate
medical attention.
DANGER OF EXPLOSION! Never recharge non-
rechargeable batteries. Do not short-circuit batter-
ies/ rechargeable batteries and/or open them.
Overheating, fire or bursting can be the result.
Never throw batteries/rechargeable batteries into fire or water.
Do not exert mechanical loads to batteries/rechargeable batteries.
Risk of leakage of batteries/rechargeable batteries
Avoid extreme environmental conditions and temperatures, which
could affect batteries/rechargeable batteries, e.g. radiators/
direct sunlight.
If batteries/rechargeable batteries have leaked, avoid contact
with skin, eyes and mucous membranes with the chemicals! Flush
immediately the affected areas with fresh water and seek medical
attention!
WEAR PROTECTIVE GLOVES! Leaked or dam-
aged batteries/rechargeable batteries can cause
burns on contact with the skin. Wear suitable protec-
tive gloves at all times if such an event occurs.
In the event of a leakage of batteries/rechargeable batteries,
immediately remove them from the product to prevent damage.

11GB/IE/NI
Only use the same type of batteries/rechargeable batteries. Do
not mix used and new batteries/rechargeable batteries.
Remove the batteries/ rechargeable batteries if the product will
not be used for a longer period.
Risk of damage of the product
Only use the specified type of battery/rechargeable battery!
Insert batteries/ rechargeable batteries according to polarity
marks (+) and (-) on the battery/rechargeable battery and the
product.
Clean the contacts on the battery/rechargeable battery and in
the battery compartment before inserting!
Remove exhausted batteries/rechargeable batteries from the
product immediately.
Do not ingest the battery, chemical burn hazard.
The product contains a coin/button cell battery. If the coin/button
cell battery is swallowed, it can cause severe internal burns in just
2 hours and can lead to death.
Keep new and used batteries away from children.
If the battery compartment does not close securely, stop using the
product and keep it away from children.
If you think batteries might have been swallowed or placed inside
any part of the body, seek immediate medical attention.

12 GB/IE/NI
Assembly
Note: You will need a screwdriver and a drill to assemble the product.
Note: Only use the screws and dowels supplied for the assembly of
the product.
Mount the receiver (see Fig. D)
Mount the transmitter (see Fig. E)
Preparing for use
For first time use, please remove the protective foil from the name
plate of the transmitter and insert your name plate into the recess on
the transmitter.
Replace the protective foil on the transmitter.
Inserting/replacing the batteries
Insert the batteries to provide power to the product before pre-
paring it for use.
CAUTION! Use the indicated battery types only. Failure to ob-
serve this advice may result in damage to the product.
Receiver (see Fig. B):
Remove the battery compartment cover 6from the back of the
receiver.

13GB/IE/NI
Remove the used batteries, if present.
Insert 3 batteries (1.5V (direct current) , type AA).
Note: Ensure correct polarity. This is indicated in the battery
compartment 8.
Close the battery compartment cover 6.
Transmitter:

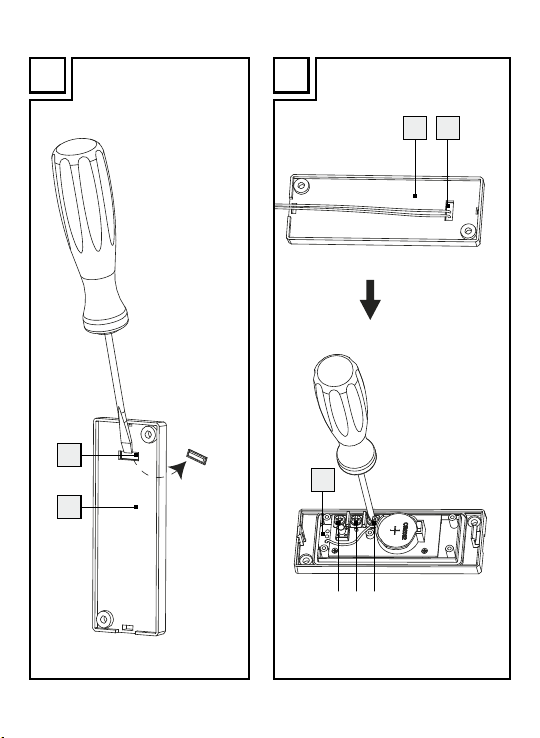

Remove the name plate from the holder 12 by pressing the lock
11 and remove the rubber cover 16 (see fig. C1).
Remove the used batteries, if present (see fig. C2).
Insert a battery (3 V (direct current) , type CR 2032). The side
marked “+” must face upwards.
Install the rubber cover 16 , close the holder 12 of the transmitter
back on to the back of the product.
Fasten the holder, screw 15 of the transmitter back on to the back
of the product & name plate.
The transmitter battery compartment with the holder must be in-
stalled by the screw 15 while in use. If the holder is damaged,
stop using the product.
Synchronising transmitter/receiver
The product works on 434MHz which is a quite common frequency.
To ensure that the function gets no influenced be doorbells in the
neighborhood, the transmitter and the receiver hence have to be syn-
chronized in regard of the encryption. Every transmitter is working
with a different encryption of the signal.

14 GB/IE/NI
Synchronise the transmitter and receiver as follows:
As soon as the batteries are installed, the receiver enters synchro-
nizing mode for approx. 2 minutes. During the synchronizing
mode, the signal indicator 1steadily lights up in blue color.
You can also manually enter synchronising mode by holding the
synchronising button 5for approx. 3 seconds.
The signal indicator 1on the receiver will steadily light up for
approx. 1 minute, to indicate that the receiver is in synchronizing
mode.
Press the chime button 9of the transmitter, while the receiver is
in synchronise mode. If the receiver receives the signal, the steady
blue light of the signal indicator 1flickers 6 times to indicate
that the synchronization is successful.
Setting the signal type
The receiver can indicate the reception of a door signal either both
optically and acoustically, acoustically or optically.
Using the signal type selector button 3, select whether the
signal is to be indicated both optically and acoustically or acous-
tically or optically.
Press the signal type selector button 3once. An acoustical
signal will sound up and the afterwards the signal indicator 1
will flash. The receiver will now indicate the door signal acousti-
cally and optically. Press again the signal type selector button 3.
An acoustical signal will sound. The receiver will now indicate the

15GB/IE/NI
door signal acoustically. Press again the signal type selector
button 3. The receiver will now indicate the door signal in an
optical way.
When the battery of receiver is drained, signal indicator will
flash. You can replace the used battery with a new one of the
same type.
Setting the volume
Press the volume button 5until the desired volume is reached.
There are a total of 4 possible volume settings: very loud, loud,
medium, soft.
Selecting the chime
Note: The product has 16 different chimes.
Press the melody selection button 4. The first audible signal
sounds.
Press the melody selection button 4again to move on to the
next audible signal.
Repeat this process until you have selected your desired audible
signal. The last-selected audible signal is automatically stored.

16 GB/IE/NI
The procedure for connecting the
transmitter to existing bell system or
existing doorbell button
Remove the holder 12 by pressing the lock 11 from the back of
the transmitter and remove the rubber cover 16 (see fig. C1).
Open the inner cover 14 by cross head screw driver (see fig. F).
Remove the plastic clip of cable exit hole 19 with a flat head
screw driver (see fig. G).
Insert the cable through cable holder 20 and cable exit hole 19
(see fig. H).
Connect cable to the terminals A and C (for connecting to exist-
ing doorbell) or the terminals B and C (for connecting to existing
door bell button) by using screw driver (see fig. H).
Connecting the transmitter
to a existing bell system (see Fig. I)
Extension of an already existing doorbell system:
An already existing doorbell system can be extended with this product.
The operating voltage of the doorbell system must be between 4–12V.
It makes no difference whether this comes from direct current or 50Hz
alternating current. In the event that you are dealing with an existing
doorbell system using direct current, you must connect the positive ter-
minal of the doorbell to contact C of the transmitter and the negative
terminal to contact A of the transmitter.
