Silvercrest SLS 2200 B1 Instruction sheet

V 1.26
English.................................................................................2
Dansk................................................................................19
Français.............................................................................36
Nederlands .......................................................................53
Deutsch..............................................................................70

SilverCrest SLS 2200 B1
2 - English
Table of Contents
Trademarks.............................................................................. 3
Introduction.............................................................................. 3
Intended use............................................................................. 3
Package contents ..................................................................... 4
Technical specifications ............................................................. 5
Safety instructions .................................................................... 6
Maintenance / cleaning ............................................................ 9
Copyright ................................................................................. 9
Overview of controls.............................................................. 10
Before you start ..................................................................... 11
Fitting the suction pads .....................................................................................11
Charging using the solar panel .......................................................................13
Charging via the USB cable ............................................................................13
Getting started ....................................................................... 14
Using the ON/OFF pushbutton.......................................................................14
Viewing the battery level..................................................................................15
Compatible devices ..........................................................................................15
Charging external devices ...............................................................................15
Troubleshooting ..................................................................... 16
Environmental regulations and disposal information ............. 16
Conformity notes.................................................................... 17
Warranty and Service Information......................................... 17

SilverCrest SLS 2200 B1
English - 3
Trademarks
USB is a registered trademark.
Other names and products can be the trademarks or registered trademarks of
their respective owners.
Introduction
Thank you for choosing the SilverCrest SLS 2200 B1 Solar Power Bank. The
Solar Battery Bank can convert sunlight into electrical energy and store it. This
allows you to charge a mobile phone, an MP3 player or a digital camera
when you are on the move without access to a wall socket.
Intended use
This is an information technology product and has been designed to charge the
batteries installed in mobile phones, MP3 players, digital cameras or other
battery-powered devices. The Solar Battery Bank converts sunlight into
electrical power and stores it into the built-in battery. The device may only be
used for private purposes, not for industrial or commercial ones. The device
may also not be used in tropical climates. The manufacturer is not liable for any
damage or problems caused by unauthorised modifications. Only use
accessories recommended by the manufacturer. Observe the regulations and
laws in the country of use.

SilverCrest SLS 2200 B1
4 - English
Package contents
A SilverCrest SLS 2200 B1 Solar Power Bank
B USB cable
C Holders (2 pieces)
D Suction pads (4 units)
E These operating instructions (line-art illustration)

SilverCrest SLS 2200 B1
English - 5
Technical specifications
Solar module
Power
Dimensions (W x H)
5.0V , 100mA
approx. 59 x 105 mm
Rechargeable Li-Ion battery 3.7V / 2200mAh
Input voltage/current (USB) 5.0V / 0.5A
Output voltage/current 5.0V +/– 5%, 1A
Charging time for built-in Li-Ion
battery
Via solar panel
PC adapter
approx. 22-30 hours*
approx. 4-6 hours
Dimensions (W x H x D) approx. 70 x 129 x 20 mm
Weight (without accessories) approx. 122 g
Operating temperature 5°C to 45 °C
Operating humidity max. 85% rel. humidity
(non-condensing)
Permissible storage conditions -5 °C to +50 °C,
max. 85 % rel. humidity
(non-condensing)
* The charging time varies greatly depending on the sun's radiation (intensity).
This depends on the season, the cloud cover and the location. These factors
may also increase the charging time.
The technical specifications and design can be changed without prior notice.

SilverCrest SLS 2200 B1
6 - English
Safety instructions
Before you use this device for the first time, please read the following notes in
this manual and heed all warnings, even if you are familiar with handling
electronic devices. Keep this manual in a safe place for future reference. If you
sell the device or pass it on, it is essential that you also hand over this manual,
as it is part of the product.
CAUTION! This symbol and the word “Caution” alert you to a
potentially dangerous situation. Ignoring it can lead to severe
injury or even death.
This symbol denotes further information on the topic.
Operating environment
The device is not designed for use in environments with high humidity (e.g.
bathrooms) or excessive levels of dust. Operating temperature and operating
humidity: +5 to +45 °C, max. 85 % relative humidity. Please note that when
using the product in a car, especially behind the windscreen, the temperature
can significantly increase above +45 °C.

SilverCrest SLS 2200 B1
English - 7
CAUTION! Always make sure that
the device is not exposed to direct heat sources (e.g. radiators)
the device is not exposed to strong artificial light
contact with water spray and drops and aggressive fluids is avoided and the
device is never operated near water; the device is never submerged (do not
place any items containing liquids, such as drinks, vases, etc. on or near the
device).
the device is never placed near magnetic fields (e.g. speakers)
no naked flames (e.g. burning candles) are placed on or near the device
no foreign bodies can penetrate into the device
the device is not subjected to any major temperature fluctuations as this can
cause condensation and short-circuiting. If the device has been exposed to
strong temperature fluctuations, wait for it to reach the ambient temperature
before using it (about 2 hours)
the device should not be subjected to excessive shocks and vibrations
when using an optional USB power adapter, you read the corresponding
operating instructions
the device is not covered
Failure to heed the warnings above may result in damage to the device or
injury.

SilverCrest SLS 2200 B1
8 - English
CAUTION! Danger of explosion
Never throw the device into fire, as this could cause the built-in battery to
explode.
CAUTION! Children and persons with
disabilities
Electrical devices are not suitable for children. Also persons with reduced
physical, sensory or mental capabilities should only use electrical devices in
appropriate circumstances. Do not allow children or persons with disabilities to
use electrical devices unsupervised, unless they are instructed accordingly and
supervised by a competent person responsible for their safety. Children should
always be supervised to ensure that they do not play with the product. Small
parts can represent choking hazards. Keep the packaging away from children
and persons with disabilities.
CAUTION! There is a risk of suffocation.
CAUTION! Cables
Unplug all cables by holding the plugs and never pull on the cables
themselves. Never place pieces of furniture or other heavy objects on the
cables and take care that they do not become damaged, especially at the
plugs and sockets. Never tie knots in a cable and do not tie them to other
cables. All cables must be laid so that nobody can trip over them or be
obstructed by them.

SilverCrest SLS 2200 B1
English - 9
Maintenance / cleaning
Repairs are required if this device has been damaged in any way, for example
if the device housing is damaged, if liquids or objects have penetrated the
device or if the product has been exposed to rain or moisture. Repairs are also
necessary if the product is not working properly or has been dropped. If you
notice any smoke, unusual noises or strange smells, unplug all cables
immediately and disconnect the optional USB power adapter from the power
supply. If this occurs, do not continue to use the device and have it checked out
by an expert. All repairs must be carried out by qualified service personnel.
Only use a clean, dry cloth for cleaning. Never use aggressive liquids. Do not
attempt to open the housing of the device, this will void your warranty.
Copyright
All the contents of this user manual are protected by copyright and provided to
the reader for information only. Copying data and information without the prior
explicit written consent of the author is strictly forbidden. This also applies to
any commercial use of the contents and information. All texts and diagrams are
up-to-date as of the date of printing.

SilverCrest SLS 2200 B1
10 - English

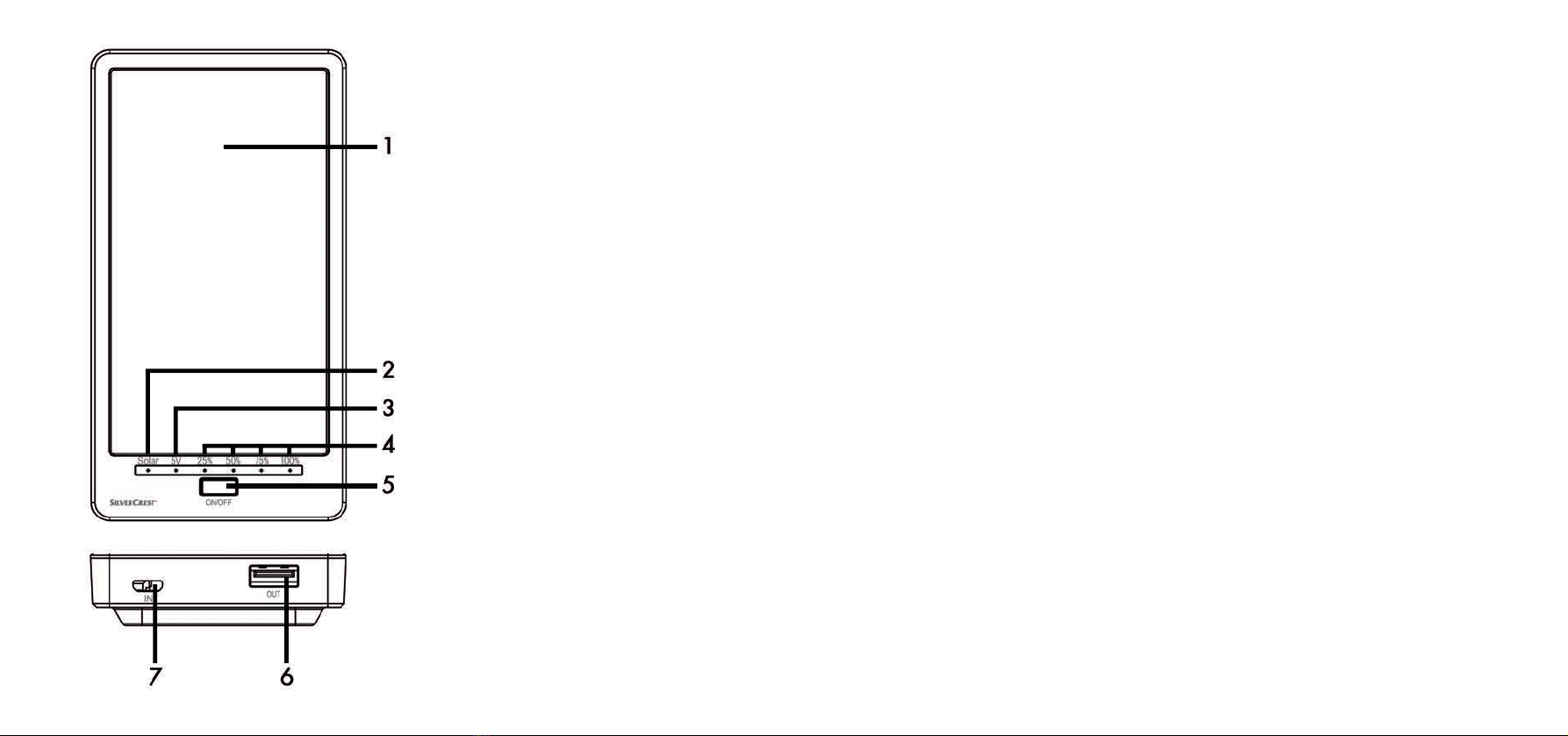

Overview of controls
An illustration of the items and controls and their corresponding numbers can
be found on the inside page of the fold-out cover of this user manual. You can
keep this page folded out whilst reading the different chapters of this user
manual. This allows you to refer to the relevant controls at any time.
1 Solar panel
2 Solar LED
3 5V LED (output voltage)
4 Battery capacity LEDs
5 ON/OFF pushbutton
6 OUT socket (to connect the device to be charged)
7 IN socket (to connect a PC or USB power adapter)

SilverCrest SLS 2200 B1
English - 11
Before you start
Remove the Solar Power Bank and the accessories from the packaging.

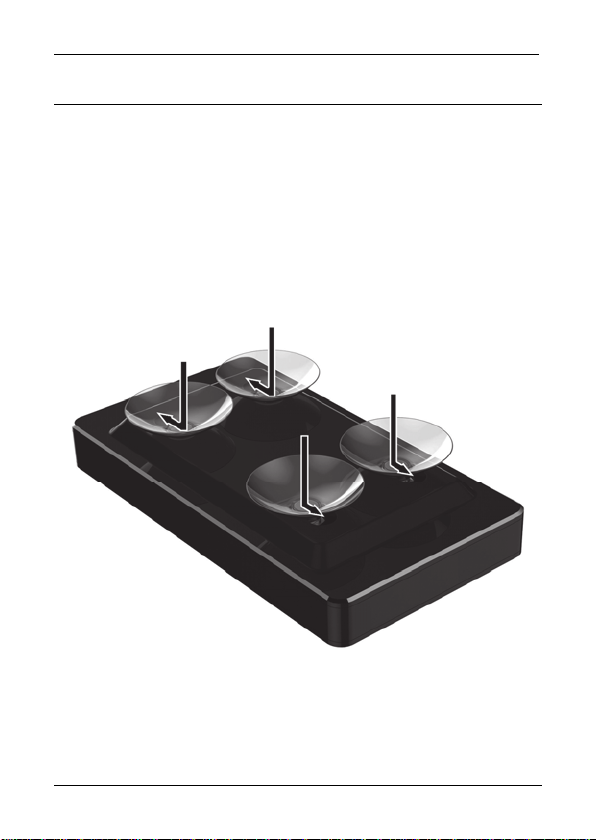

Fitting the suction pads
Option I
Option I can be used to mount the Solar Power Bank on a flat, even surface.
Fix the four suctions pads (D) to the bottom of the Solar Power Bank as shown
in the diagram below. Insert the suction pads (D) into the hole. Next, fix the
suction pads (D) by sliding them into the smaller hole.
You can now mount the Solar Power Bank to a flat, even surface using the
suction pads.

SilverCrest SLS 2200 B1
12 - English

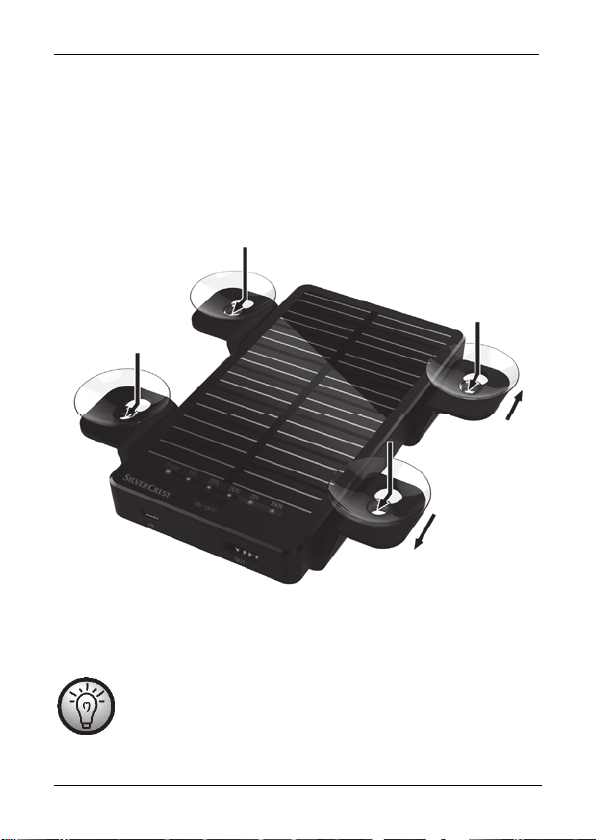

Option II
Option II can be used to mount the Solar Power Bank behind a window. Fix
the four suctions pads (D) to the holder (C) as shown in the diagram below.
Insert the suction pads (D) into the hole. Next, fix the suction pads (D) by
sliding them into the smaller hole. Next mount the holder (C) to the bottom of
the Solar Power Bank. To do so, insert the holding notches into the
corresponding holes on the back of the device.
You can now mount the Solar Power Bank behind a window using the suction
pads.
The surface should be free of dust, oil and grease for the
suction pads to stick well.

SilverCrest SLS 2200 B1
English - 13
Charging using the solar panel
Make sure that the maximum ambient temperature of +45 °C is
not exceeded. This is especially important if you are using the
product in a car.
You can charge the built-in battery of the Solar Power Bank using the solar
panel (1). Make sure that the solar panel (1) receives sufficient sunlight. As
soon as there is enough sunlight, the Solar LED (2) goes orange to indicate that
the battery is being charged. If the Solar LED (2) does not light up, there is not
enough sunlight. In this case, move the device to a different position or place it
in direct sunlight. When the Solar LED (2) goes green, the battery is fully
charged.
Charging via the USB cable
If there is no sunlight, you can also charge the built-in battery in your Solar
Power Bank using the USB cable (B). Insert the smaller plug of the USB cable
(B) into the IN socket (7) of your Solar Power Bank. Then insert the USB plug of
the USB cable (B) into a USB port on your computer. You can monitor the
charging process using the Battery capacity LEDs (4).
Battery capacity LEDs (4) State of charge
All LEDs flashing in sequence 0 – 25 %
1 LED on, 3 LEDs flashing in sequence 25 – 50%
2 LEDs on, 2 LEDs flashing in sequence 50 – 75%
3 LEDs on, 1 LED flashing 75 – 100%
All LEDs on 100 %
Some computers do not supply USB power while they are
turned off. If the battery of your Solar Power Bank does not
charge, make sure your computer is powered on.

SilverCrest SLS 2200 B1
14 - English
Alternatively, you can use an external USB power adapter (not
supplied) to charge the battery of your Solar Power Bank. To
do this, you will need the USB cable (B) supplied. You can
purchase a suitable 5V USB power adapter with at least
500mA from any electronics retail outlet.
When not using the Solar Power Bank for a long time, it is
recommended to recharge the battery from time to time. This
ensures a longer battery endurance.
When using an external power adapter, it must be connected
to an easily accessible wall outlet so that it can be disconnected
quickly in case of an emergency.
Getting started
Using the ON/OFF pushbutton
Powering on
Briefly press the ON/OFF pushbutton (5) to switch the Solar Power Bank on.
The 5V LED (3) and the battery capacity LEDs (4) light. After approx. 5
seconds the battery capacity LEDs (4) go off, and the output 5V LED (3) lights
while a connected device is being charged.
Auto power off
If no device to be charged is connected within 20 seconds, the device will
power off to safe battery power.
Powering off
Keep the ON/OFF pushbutton (5) pressed for at least 3 seconds to switch the
Solar Power Bank off and to cancel the current charging process.

SilverCrest SLS 2200 B1
English - 15
Viewing the battery level
Press the ON/OFF pushbutton (5) briefly to display the battery level for a few
seconds. The Battery capacity LEDs (4) indicate the battery level as a
percentage (25%, 50%, 75% and 100%).
Compatible devices
The Solar Power Bank can be used to charge external devices with a max.
charging current of 1A.
If the charging current of your connected device exceeds 1A, the Solar Power
Bank will automatically power off after you turn it on with the ON/OFF
pushbutton (5). In this case, double-check the external device compatibility by
reading its technical specifications (operating instructions).
Charging external devices
Connect the charger cable of your external device to the OUT socket (6) of the
Solar Power Bank and to your external device.
Now press the ON/OFF pushbutton (5) briefly to start the charging process.
Then the 5V LED (3) lights while the connected device is being charged. When
your external device is fully charged, the Solar Power Bank switches off. To
cancel the charging process at any time, simply disconnect the external device.
If your external device is not fully charged but the 5V LED (3) goes out during
charging, the built-in battery of your Solar Power Bank is empty. You will need
to recharge your Solar Power Bank in order to charge external devices.
Recharging the built-in battery of your Solar Power Bank and an external
device at the same time is only possible in solar mode. Recharging the Solar
Power Bank and an external device at the same time via the USB IN port (7) is
not possible.

SilverCrest SLS 2200 B1
16 - English
Troubleshooting
A connected device is not charging.
Press the ON/OFF pushbutton (5) briefly to start the charging process.
The battery of your Solar Power Bank is empty, recharge it.
No connection to the external device, double-check the connection.
The Solar Power Bank can be used to charge external devices with a max.
charging current of 1A. If the charging current of your connected device
exceeds 1A, the Solar Power Bank will automatically power off after you
turn it on with the ON/OFF pushbutton (5). In this case, double-check the
external device compatibility by reading its technical specifications
(operating instructions).
Cannot charge the battery of the Solar Power Bank using the
solar panel.
Make sure that the solar panel (1) is receiving enough sunlight.
Cannot charge the battery of the Solar Power Bank via the USB
cable.
Faulty connection, double-check the connection.
Some computers do not supply USB power while they are turned off. If the
battery of your Solar Power Bank does not charge, make sure your
computer is powered on.
Environmental regulations and disposal
information
Devices marked with this symbol are subject to the European
Directive 2012/19/EU. All electrical and electronic devices
must be disposed of separately from household waste at
official disposal centres. Proper disposal of old devices
prevents damage to the environment or your health. For
further information about proper disposal, contact your local
council, recycling centre or the shop where you bought the
device.

SilverCrest SLS 2200 B1
English - 17
The built-in rechargeable battery cannot be removed for
disposal.
Dispose of all packaging in an environmentally friendly manner. Cardboard
packaging can be taken to paper recycling centres or public collection points
for recycling. Any film or plastic contained in the packaging should be taken to
your public collection points for disposal.
Conformity notes
This device complies with the basic and other relevant
requirements of EMC Directive 2004/108/EC and the
RoHs Directive 2011/65/EU. The Declaration of
Conformity can also be found at the end of this Manual.
Warranty and Service Information
Warranty of TARGA GmbH
This device is sold with three years warranty from the date of purchase. Please
keep the original receipt in a safe place as proof of purchase. Before using
your product for the first time, please read the enclosed documentation. Should
any problems arise which cannot be solved in this way, please call our hotline.
Please have the article number and, if available, the serial number to hand for
all enquiries. If it is not possible to solve the problem on the phone, our hotline
support staff will initiate further servicing procedures depending on the fault.
Within the warranty period the product will be repaired or replaced free of
charge as we deem appropriate. No new warranty period commences if the
product is repaired or replaced. Consumables such as batteries, rechargeable
batteries and lamps are not covered by the warranty.
Your statutory rights towards the seller are not affected or restricted by this
warranty.

SilverCrest SLS 2200 B1
18 - English
Service
Phone: 0207 – 36 50 744
E-Mail: [email protected]
Phone: 01 – 242 15 83
E-Mail: [email protected]
Phone: 800 – 62 175
E-Mail: [email protected]
Phone: 800 – 92 496
E-Mail: [email protected]
IAN: 107036
Manufacturer
TARGA GmbH
Coesterweg 45
59494 SOEST
GERMANY
