Silvercrest STKK 16 B1 User manual

WIRELESS BATTERY-FREE DOORBELL
STKK 16 B1
BATTERIELOSE FUNKTÜRKLINGEL
Bedienungsanleitung
IAN 373415_2104
WIRELESS BATTERY-FREE DOORBELL
Operating instructions

GB/IE/NI Operating instructions Page 1
DE/AT / CH Bedienungsanleitung Seite 33
Before reading, unfold the page containing the
illustrations and familiarise yourself with all
functions of the device.
Klappen Sie vor dem Lesen die Seite mit den Ab-
bildungen aus und machen Sie sich anschließend
mit allen Funktionen des Gerätes vertraut.

A
C
3x 2x 2x
B

STKK 16 B1 GB│IE│NI │ 1■
Contents
Introduction .......................3
Proper use.............................. 3
Warnings and symbols used................ 4
Safety............................6
Basic safety instructions.................... 7
Appliance description ..............10
Package contents and transport
inspection........................12
Handling and operation ............13
Power supply: receiver ................... 13
Setting the signal type.................... 13
Selecting the ringer tone .................. 14
Adjusting the volume..................... 14
Synchronising with additional transmitters .... 15
Mounting the transmitter .................. 16
IB_373415_STKK16B1_LB6_GB-IE-NI.indb 1IB_373415_STKK16B1_LB6_GB-IE-NI.indb 1 13.09.2021 13:38:1113.09.2021 13:38:11

STKK 16 B1
■ 2 │ GB│IE│NI
Maintenance .....................19
Troubleshooting ..................19
Cleaning .........................20
Storage .........................21
Disposal .........................22
Disposal of the device.................... 22
Disposal of the packaging ................ 23
Appendix ........................24
Technical specifications................... 24
Notes on the Declaration of Conformity...... 25
Kompernass Handels GmbH warranty....... 25
Service ............................... 30
Importer .............................. 31
IB_373415_STKK16B1_LB6_GB-IE-NI.indb 2IB_373415_STKK16B1_LB6_GB-IE-NI.indb 2 13.09.2021 13:38:1113.09.2021 13:38:11

STKK 16 B1 GB│IE│NI │ 3■
Introduction
Congratulations on the purchase of your new
appliance. You have selected a high-quality product.
The operating instructions are part of this product.
They contain important information about safety,
usage and disposal. Before using the product, please
familiarise yourself with all operating and safety
instructions. Use the product only as described and
for the range of applications specified. Retain these
operating instructions for future reference. Please also
pass these operating instructions on to any future
owner.
Proper use
This appliance serves as a wireless doorbell system
to announce visitors, allowing for the operation of
a door bell without any wiring. It is not intended for
any other purpose nor for use beyond the scope
described. The appliance is not intended for use in
commercial or industrial environments.
IB_373415_STKK16B1_LB6_GB-IE-NI.indb 3IB_373415_STKK16B1_LB6_GB-IE-NI.indb 3 13.09.2021 13:38:1213.09.2021 13:38:12

STKK 16 B1
■ 4 │ GB│IE│NI
Claims of any kind for damage resulting from mis-
use, incompetent repairs, unauthorised modification
or the use of unauthorised replacement parts will not
be accepted. The risk is borne solely by the user.
Warnings and symbols used
The following warnings and symbols are used in
these operating instructions:
DANGER
A warning at this hazard level indicates
a hazardous situation.
Failure to avoid this hazardous situation will result
in serious injuries or death.
► Follow the instructions on this warning label to
avoid the risk of death or serious injury.
IB_373415_STKK16B1_LB6_GB-IE-NI.indb 4IB_373415_STKK16B1_LB6_GB-IE-NI.indb 4 13.09.2021 13:38:1413.09.2021 13:38:14

STKK 16 B1 GB│IE│NI │ 5■
WARNING
A warning at this hazard level indicates
a potentially hazardous situation.
Failure to avoid this hazardous situation could
result in serious injuries or death.
► Follow the instructions on this warning label to
avoid the risk of death or serious injury.
CAUTION
A warning at this hazard level indicates
a potentially hazardous situation.
Failure to avoid this hazardous situation could
result in injuries.
► Follow the instructions on this warning label to
prevent injuries.
IB_373415_STKK16B1_LB6_GB-IE-NI.indb 5IB_373415_STKK16B1_LB6_GB-IE-NI.indb 5 13.09.2021 13:38:1413.09.2021 13:38:14

STKK 16 B1
■ 6 │ GB│IE│NI
ATTENTION
A warning at this hazard level indicates
a risk of property damage.
Failure to avoid this situation could result in
property damage.
► Follow the instructions in this warning to prevent
property damage.
NOTE
► A note provides additional information that
makes handling the appliance easier for you.
Safety
This section contains important safety instructions
for handling the device. This device complies with
the statutory safety regulations. Improper use may
result in personal injury and property damage.
IB_373415_STKK16B1_LB6_GB-IE-NI.indb 6IB_373415_STKK16B1_LB6_GB-IE-NI.indb 6 13.09.2021 13:38:1413.09.2021 13:38:14

STKK 16 B1 GB│IE│NI │ 7■
Basic safety instructions
■ This device may be used by children aged
8years and above and by persons with limited
physical, sensory or mental capabilities, or lack
of experience and knowledge, provided that
they are under supervision or have been told
how to use the device safely and are aware of
the potential risks. Do not allow children to play
with the device. Cleaning and user maintenance
tasks may not be carried out by children unless
they are supervised.
■ The mains plug is used as a separator from
the electricity grid and must always be readily
accessible.
■ Do not place any open flames, such as lit can-
dles, on the appliance.
■ Before use, check the appliance for visible
external damage. Do not operate an appliance
that has been damaged or dropped.
IB_373415_STKK16B1_LB6_GB-IE-NI.indb 7IB_373415_STKK16B1_LB6_GB-IE-NI.indb 7 13.09.2021 13:38:1413.09.2021 13:38:14

STKK 16 B1
■ 8 │ GB│IE│NI
■ Do not expose the device to direct sunlight or
high temperatures. Otherwise, it may become
overheated and irreparably damaged.
■ Do not expose the receiver to water spray or
dripping water, and do not place liquid-filled
objects such as vases or open drink containers
on or near the receiver.
■ Warning: electrical voltage! Never open
the housing of the receiver. None of the com-
ponents in the appliance can be serviced or
replaced by the user.
■ Do not make any unauthorised modifications or
alterations to the appliance.
■ All repairs to the appliance must be carried out
by authorised specialist companies or by the
Customer Service department. Improper repairs
may put the user at risk. They will also invalidate
any warranty claim.
IB_373415_STKK16B1_LB6_GB-IE-NI.indb 8IB_373415_STKK16B1_LB6_GB-IE-NI.indb 8 13.09.2021 13:38:1413.09.2021 13:38:14

STKK 16 B1 GB│IE│NI │ 9■
■ Unplug the appliance immediately if you smell
burning or notice smoke. Have the device
checked by a qualified specialist before using
it again.
DANGER
► Do not allow children to play with the pack-
aging material! Keep all packaging materials
away from children.
There is a risk of suffocation!
NOTE
► No user action is required to switch the product
between 50 and 60 Hz. The product switches
automatically to either 50 or 60 Hz.
IB_373415_STKK16B1_LB6_GB-IE-NI.indb 9IB_373415_STKK16B1_LB6_GB-IE-NI.indb 9 13.09.2021 13:38:1413.09.2021 13:38:14

STKK 16 B1
■ 10 │ GB│IE│NI
Appliance description

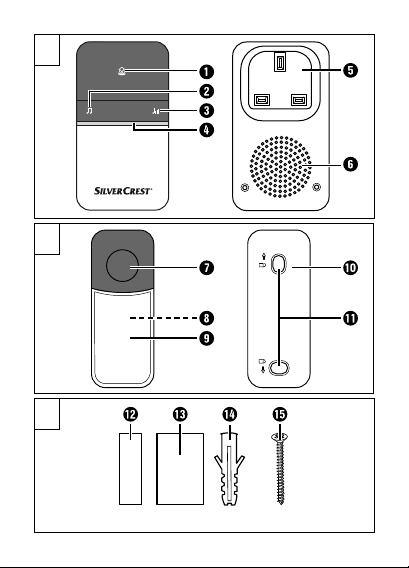

(See fold-out page for illustrations)
Figure A: Receiver
1Signal type selection button (optical signal/
acoustic and optical signal/synchronisation)
2Ringer tone selection button
3Volume control button
4Signal LED
5Power plug
6Speaker
Figure B: Transmitter
7Ringer button
8Nameplate
9Nameplate cover
0Wall bracket
q Fixing eyelets (for wall mounting)
IB_373415_STKK16B1_LB6_GB-IE-NI.indb 10IB_373415_STKK16B1_LB6_GB-IE-NI.indb 10 13.09.2021 13:38:1413.09.2021 13:38:14

STKK 16 B1 GB│IE│NI │ 11 ■
Figure C: Accessories
wDouble-sided tape
eNameplate
r Wall plug
t Screw
IB_373415_STKK16B1_LB6_GB-IE-NI.indb 11IB_373415_STKK16B1_LB6_GB-IE-NI.indb 11 13.09.2021 13:38:1413.09.2021 13:38:14

STKK 16 B1
■ 12 │ GB│IE│NI
Package contents and transport
inspection
The package contents include the following com-
ponents (see fold-out page for illustrations):
● 1 x Receiver
● 1 x Transmitter
● 3 x Name plates
● 2 x Wall plugs
● 2 x Screws
● 1 x Double-sided tape
● These operating instructions
♦ Remove all parts of the appliance from the
packaging and remove all packaging materials.
♦ Check the package for completeness and signs
of visible damage.
♦ If the delivery is incomplete or damage has
occurred as a result of defective packaging or
during transport, contact the Service hotline
(see section Service).
IB_373415_STKK16B1_LB6_GB-IE-NI.indb 12IB_373415_STKK16B1_LB6_GB-IE-NI.indb 12 13.09.2021 13:38:1413.09.2021 13:38:14

STKK 16 B1 GB│IE│NI │ 13 ■
Handling and operation
Power supply: receiver
The receiver is plugged into a properly installed
mains power outlet and does not require batteries.
Setting the signal type
The receiver can indicate the reception of a door-
ring signal either acoustically and optically, or only
optically.
♦ Press the signal type selection button 1to
select the acoustical and optical signal: when
pressing the ringer button 7,a ringer tone
sounds and the signal LED4 flashes white.
♦ Press the signal type selection button 1
again to select only the optical signal:
There is no ring when pressing the ringer 7
button. Instead, the signal LED4flashes green
and blue six times, then flashes green four times
and finally stays green for 10seconds.
IB_373415_STKK16B1_LB6_GB-IE-NI.indb 13IB_373415_STKK16B1_LB6_GB-IE-NI.indb 13 13.09.2021 13:38:1413.09.2021 13:38:14

STKK 16 B1
■ 14 │ GB│IE│NI
Selecting the ringer tone
The receiver features 16 ringer tones.
♦ Repeatedly press the ringer tone selection
button 2to select a ringer tone.
♦ Stop the selection when you hear the desired
ringer tone. The appliance will use the last
selected ringer tone.
Adjusting the volume
To select the desired ringer tone volume, keep
pressing the volume control button 3until the
desired volume is set.
quiet low medium loud very loud
IB_373415_STKK16B1_LB6_GB-IE-NI.indb 14IB_373415_STKK16B1_LB6_GB-IE-NI.indb 14 13.09.2021 13:38:1513.09.2021 13:38:15

STKK 16 B1 GB│IE│NI │ 15 ■
Synchronising with additional trans-
mitters
The transmitter and receiver of this wireless
doorbell system are already synchronised with one
another at the factory. You can also expand this
wireless doorbell system with up to five additional
transmitters.
In order to synchronise additional transmitters with
the receiver, proceed as follows:
♦ Press and hold the signal type selection button
1on the receiver for approx. 3 seconds.
You will hear a beep and the signal LED 4will
flash blue twice.
♦ Now press the ringer button7on the transmitter
that you want to synchronise with the receiver.
You will hear another beep after 10 seconds and
the signal LED4 will flash blue twice.
The receiver and transmitter are now syn-
chronised.
IB_373415_STKK16B1_LB6_GB-IE-NI.indb 15IB_373415_STKK16B1_LB6_GB-IE-NI.indb 15 13.09.2021 13:38:1513.09.2021 13:38:15

STKK 16 B1
■ 16 │ GB│IE│NI

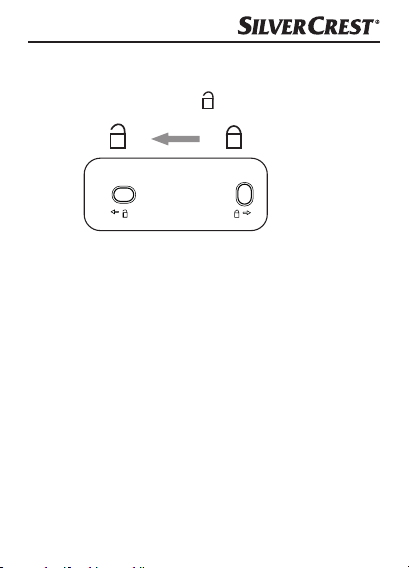

Mounting the transmitter
NOTE
► You will need a Phillips screwdriver and a drill
with a 5 mm drill bit to mount the transmitter.
► Only use the screwstand wall plugs r
provided to mount the transmitter.
► Ensure that there are no electric lines, water or
heating pipes installed at the proposed drilling
location!
► The supplied wall plugsr are only suitable for
mounting in concrete or stone. Before starting
the installation, please check your installation
location carefully for its suitability for the wall
plugs r . The assembly material must be suita-
ble for the respective location.
If in doubt, consult a professional.
► Alternatively, you can mount the transmitter
using the double-sided adhesive tape w onto a
suitable surface (maximum height 2 m).
♦ Select a suitable positioning for the transmitter,
close to your outer door.
IB_373415_STKK16B1_LB6_GB-IE-NI.indb 16IB_373415_STKK16B1_LB6_GB-IE-NI.indb 16 13.09.2021 13:38:1513.09.2021 13:38:15

STKK 16 B1 GB│IE│NI │ 17 ■
♦ Remove the wall bracket0from the rear side
of the transmitter by sliding it in the direction of
the open lock symbol (see fig. 1).
Fig. 1
♦ Mark the positions for the two required drill
holes by holding the wall bracket0 against the
wall at the desired mounting location
(maximum
height 2 m) . Then mark the drill holes with the
two fixing eyeletsq.
♦ Use a drill with a 5 mm drill bit to drill the two
holes for the supplied wall plugsr.
♦ Insert the wall plugsr into the drill holes.
♦ Screw the wall bracket0onto wall at the
desired mounting location using the screwdriver
and the
supplied screwst .
IB_373415_STKK16B1_LB6_GB-IE-NI.indb 17IB_373415_STKK16B1_LB6_GB-IE-NI.indb 17 13.09.2021 13:38:1513.09.2021 13:38:15
