Silvercrest STK 36V2 A1 Technical specifications

WIRELESS DOORBELL STK 36V2 A1
IAN 303733
FUNK-TÜRKLINGEL
Montage-, Bedienungs- und Sicherheitshinweise
SONNETTE SANS FIL
Instructions de montage, d‘utilisation et
consignes de sécurité
DRAADLOZE DEURBEL
Montage-, bedienings- en veiligheidsinstructies
TRÅDLØS DØRKLOKKE
Monterings-, betjenings- og
sikkerhedshenvisninger
WIRELESS DOORBELL
Assembly, operating and safety instructions

GB/IE/NI Assembly, operating and safety instructions Page 5
DK Monterings-, betjenings- og sikkerhedshenvisninger Side 20
FR/BE Instructions de montage, d‘utilisation et
consignes de sécurité Page 34
NL/BE Montage-, bedienings- en veiligheidsinstructies Pagina 49
DE/AT/CH Montage-, Bedienungs- und Sicherheitshinweise Seite 64

You need · Du skal
bruge · Il vous faut
U hebt nodig
Sie benötigen:
ø 6mm
VOL
A
1
6
2
3
4
5

SIZE AA LR06
SIZE AA LR06
B
7
8
9

GB/IE/NI 5
Introduction..................................................................................... Page 6
Intended use........................................................................................... Page 6
Technical data........................................................................................ Page 6
Included items ........................................................................................ Page 7
Parts and features.................................................................................. Page 8
Safety.................................................................................................... Page 9
General safety information................................................................... Page 9
Safety instructions for batteries/ rechargeable batteries.................. Page 10
Assembly............................................................................................ Page 12
Preparing for use........................................................................ Page 12
Inserting/replacing the batteries......................................................... Page 12
Operation.......................................................................................... Page 13
Synchronising transmitter/receiver ..................................................... Page 13
Setting the signal type........................................................................... Page 14
Setting the volume ................................................................................. Page 15
Selecting the chime................................................................................ Page 15
Troubleshooting...................................................................................... Page 15
Cleaning and maintenance............................................... Page 16
Disposal............................................................................................... Page 16
Simplified EU declaration of conformity.............. Page 18
Warranty............................................................................................ Page 18

GB/IE/NI6
Wireless Doorbell
Introduction
We congratulate you on the purchase of your new product.
You have chosen a high quality product. The instructions for
use are part of the product. They contain important informa-
tion concerning safety, use and disposal. Before using the product,
please familiarise yourself with all of the safety information and instruc-
tions for use. Only use the product as described and for the specified
applications. If you pass the product on to anyone else, please ensure
that you also pass on all the documentation with it.
Intended use
This product is intended for the wireless transmission of the doorbell chime.
The product is not intended for commercial use.
Technical data
Range: 100m (unobstructed area)
Frequency band: 433MHz
Max. transmitted power: <10dBm

GB/IE/NI 7
Battery types: Receiver: 2 x 1.5V (direct current)
(type AA/ LR6),
Transmitter: 1x 3 V
(direct current)
(type CR2032)
Receiver: Audible signal volume (at maximum volume
setting): min. 73dB (at a distance of 1 m
from the device)
Transmitter: IP rating: IPX4
Included items
1 Transmitter
1 Receiver
2 Batteries 1.5V
(direct current) , type AA (receiver)
1 Batteries 3V
(direct current) , type CR2032 (transmitter)
3 Long screws (for mounting transmitter and receiver on a wall)
2 Short screws (for transmitter)
3 Dowels
5 Exchangeable name plates (for the doorbell)
1 Doorbell cover
1 Operating instructions

GB/IE/NI8
Parts and features

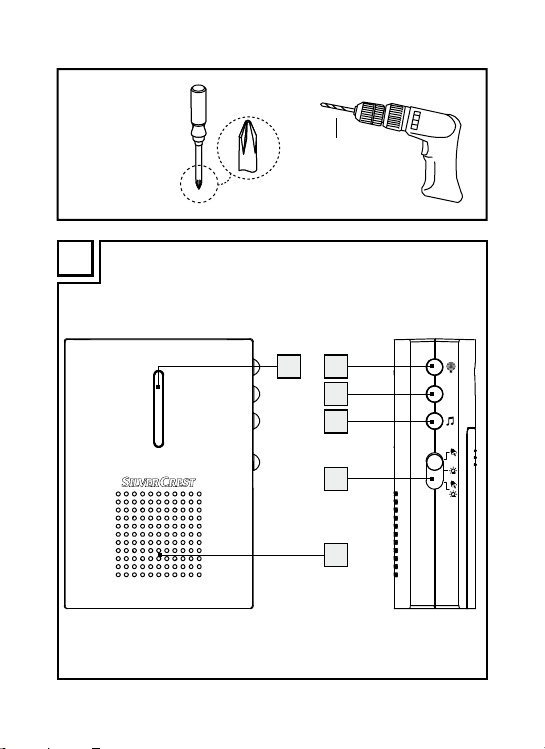

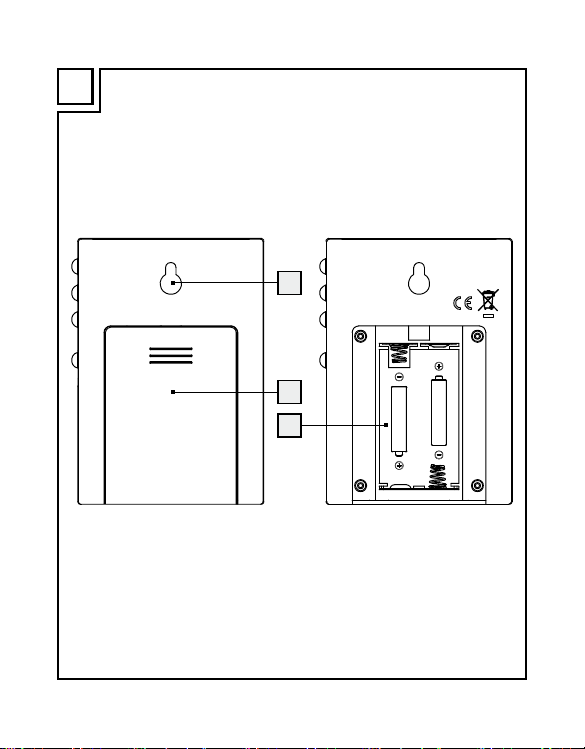

Receiver (Figs. A/B):
1Signal indicator
2Synchronisation button
3Volume button (VOL)
4Melody selection button
5Signal type selector sliding switch (acoustic , optical , optical
and acoustic signal )
6Speaker
7Hanger
8Battery compartment cover
9Battery compartment
Transmitter (Figs. C/D):
10 Signal indicator
11 Name plate
12 Chime button
13 Battery compartment
14 Holder (for wall mounting)
Mounting (Figs. E/ F):
15 Long screw
16 Dowel
17 Short screw (for transmitter)

GB/IE/NI 9
Safety
Read all safety information and instructions. Failure
to comply with the safety information and instructions may cause fire
and/ or serious injury.
YOU SHOULD STORE ALL SAFETY INFORMATION AND INSTRUC-
TIONS IN A SAFE PLACE IN CASE YOU NEED TO REFER TO THEM
AGAIN IN THE FUTURE!
General safety information
DANGEROUS TO LIFE AND RISK
OF ACCIDENTS FOR TODDLERS AND CHILDREN!
Never leave children alone and unsupervised with the
packaging material. There is a risk of suffocation from the packaging
material. Children often underestimate risks. Always keep children
away from the product. This is not a toy.
This product can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given super-
vision or instruction concerning use of the product in a safe way and
understand the hazards involved. Children shall not play with the
product. Cleaning and user maintenance shall not be made by
children without supervision.

GB/IE/NI10
Check that all parts are in sound condition. If you use damaged
parts when assembling the product, you risk injury.
Check that all parts have been assembled correctly. There is a risk
of injury if the product is not properly assembled.
Keep the product away from open flames or sources of heat (e.g.
burning candles).
Safety instructions for batteries/
rechargeable batteries
DANGER TO LIFE! Keep batteries/ rechargeable batteries out of
reach of children. If accidentally swallowed seek immediate medical
attention.
DANGER OF EXPLOSION! Never recharge non-re-
chargeable batteries. Do not short-circuit batteries/re-
chargeable batteries and/ or open them. Overheating,
fire or bursting can be the result.
Never throw batteries/ rechargeable batteries into fire or water.
Do not exert mechanical loads to batteries/rechargeable batteries.
Risk of leakage of batteries/ rechargeable batteries
Avoid extreme environmental conditions and temperatures, which
could affect batteries/rechargeable batteries, e.g. radiators/direct
sunlight.
If batteries /rechargeable batteries have leaked, avoid contact with
skin, eyes and mucous membranes with the chemicals! Flush immedi-

GB/IE/NI 11
ately the affected areas with fresh water and seek medical attention!
WEAR PROTECTIVE GLOVES! Leaked or damaged
batteries/rechargeable batteries can cause burns on
contact with the skin. Wear suitable protective gloves at
all times if such an event occurs.
In the event of a leakage of batteries/rechargeable batteries, im-
mediately remove them from the product to prevent damage.
Only use the same type of batteries/rechargeable batteries. Do not
mix used and new batteries/ rechargeable batteries.
Remove batteries/rechargeable batteries if the product will not be
used for a longer period.
Risk of damage of the product
Only use the specified type of battery/ rechargeable battery!
Insert batteries/rechargeable batteries according to polarity marks
(+) and (-) on the battery/ rechargeable battery and the product.
Clean the contacts on the battery / rechargeable battery before in-
serting!
Remove exhausted batteries/rechargeable batteries from the
product immediately.
Notes for coin /button cell batteries
WARNING! Do not ingest the battery, chemical burn hazard.
This product contains a coin/button cell battery. If a coin/button cell
battery is swallowed, it can cause severe internal burns in just 2 hours
and can lead to death.

GB/IE/NI12
Keep new and used batteries away from children.
If the battery compartment does not close securely, stop
using the product and keep it away from children.
If you think batteries might have been swallowed or placed inside
any part of the body, seek immediate medical attention.
Assembly
Note: Remove all packaging materials from the product.
Note: You will need a screwdriver and a drill to assemble the doorbell.
Note: Only use the screws and dowels supplied for the assembly of
the product.
Mount the receiver (see Fig. E)
Mount the transmitter (see Fig. F)
Preparing for use
Inserting/replacing the batteries
Insert the batteries to provide power to the product before
preparing it for use.
CAUTION! Use the above-indicated battery types only. Failure to
observe this advice may result in damage to the product.

GB/IE/NI 13
Receiver:
Remove the battery compartment cover 8from the back of the
product.
Remove the used batteries, if present.
Insert 2 batteries (1.5V (direct current) , type AA).
Note: Ensure correct polarity. This is indicated in the battery
compartment 9.
Close the battery compartment 9.
Transmitter:
Remove the holder 14 from the back of the transmitter.
Open the battery compartment 13 by turning the battery compartment
cover anticlockwise.
Insert a battery (3 V (direct current) , type CR 2032). The side
marked “+” must face upwards.
Place the battery compartment cover on the battery compartment 13
and tighten it by turning it clockwise.
Fasten the holder 14 of the transmitter back on to the back of the
transmitter.
Operation
Synchronising transmitter/ receiver
Synchronise the transmitter and receiver as follows:
Press the synchronisation button 2.

GB/IE/NI14
Press the chime button 12 ; the signal indicator 1flashes red. The
programmed audible signal sounds and the signal indicator 1
ceases to illuminate when , optical and acoustic signal is
selected by the signal type selector sliding switch 5.
If the receiver does not react as described, press the synchronisation
button 2again to switch off the synchronisation function and
repeat the synchronisation process.
The transmitter indicates the transmission of the signal to the receiver by
the signal indicator 10 flashing briefly.
Setting the signal type
The receiver can indicate the reception of a door signal either acoustically
or optically or both optically and acoustically.
Using the signal type selector sliding switch 5, select whether
the signal is to be indicated acoustically or optically or both optically
and acoustically.
Note: When the battery of receiver is drained, signal indicator 1will
flash. You can replace the used battery with a new one of the same type.

GB/IE/NI 15
Setting the volume
Press the volume button (VOL) 3until the desired volume is reached.
There are a total of 5 possible volume settings: very loud, loud, medi-
um, soft, very soft.
Selecting the chime
Note: The doorbell has 36 different chimes.
Press the melody selection button 4. The first audible signal sounds.
Press the melody selection button 4again to move on to the
next audible signal.
Repeat this process until you have selected your desired audible signal.
The last-selected audible signal is automatically stored.
Troubleshooting
After the influence of extraordinary environmental conditions (e.g. a strong
electromagnetical field) the function of the item may be affected. In this
case, please take off the batteries of the transmitter and the receiver for
approximately 2 minutes. Then proceed again as described in the section
“Synchronising the transmitter/ receiver”.
Electrostatic discharges may lead to malfunctions. If such malfunctions
do occur, remove the battery for a short time and then replace it again.

GB/IE/NI16
Then proceed again as described in the section “Synchronising the
transmitter/ receiver”.
Cleaning and maintenance
Under no circumstances should you use liquids or detergents, as
these will damage the product.
T he product should only be cleaned on the outside with a soft dry c loth.
Disposal
The packaging is made entirely of recyclable materials, which you may
dispose of at local recycling facilities.
b
a
Observe the marking of the packaging materials for waste
separation, which are marked with abbreviations (a) and
numbers (b) with following meaning: 1–7: plastics/20–22:
paper and fibreboard/80–98: composite materials.
The product and packaging materials are recyclable, dispose
of it separately for better waste treatment. The Triman logo is
valid in France only.

GB/IE/NI 17
Contact your local refuse disposal authority for more details
of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product
properly when it has reached the end of its useful life and not
in the household waste. Information on collection points and
their opening hours can be obtained from your local authority.
Faulty or used batteries /rechargeable batteries must be recycled in ac-
cordance with Directive 2006/66/EC and its amendments. Please return
the batteries/ rechargeable batteries and/or the product to the available
collection points.
Environmental damage through incorrect disposal
of the batteries/
rechargeable batteries!
Batteries/rechargeable batteries may not be disposed of with the usual
domestic waste. They may contain toxic heavy metals and are subject to
hazardous waste treatment rules and regulations. The chemical symbols
for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead.
That is why you should dispose of used batteries/rechargeable batteries
at a local collection point.

GB/IE/NI18
Simplified EU declaration of conformity
Hereby, OWIM GmbH & Co. KG, Stiftsbergstraße 1, DE-74167
Neckarsulm, GERMANY, declares that the product Wireless Doorbell
HG04115A, HG04115B, is in compliance with Directives 2014/53/EU
and 2011/65/EU.
The full text of the EU declaration of conformity is available at the following
internet address: www.owim.com
Warranty
The product has been manufactured to strict quality guidelines and meti-
culously examined before delivery. In the event of product defects you
have legal rights against the retailer of this product. Your legal rights are
not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. Should
this product show any fault in materials or manufacture within 3 years
from the date of purchase, we will repair or replace it – at our choice –
free of charge to you.
The warranty period begins on the date of purchase. Please keep the
original sales receipt in a safe location. This document is required as
your proof of purchase. This warranty becomes void if the product has
been damaged, or used or maintained improperly.

GB/IE/NI 19
The warranty applies to defects in material or manufacture. This warranty
does not cover product parts subject to normal wear, thus possibly con-
sidered consumables (e.g. batteries) or for damage to fragile parts, e.g.
switches, rechargeable batteries or glass parts.

DK20
Indledning..........................................................................................Side 21
Anvendelse efter bestemmelsen............................................................Side 21
Tekniske specifikationer..........................................................................Side 21
Leveringsomfang.....................................................................................Side 22
Deleoversigt.............................................................................................Side 22
Sikkerhed............................................................................................Side 23
Generelle sikkerhedshenvisninger.........................................................Side 24
Sikkerhedshenvisninger for batterier/akkuer......................................Side 25
Montering...........................................................................................Side 27
Ibrugtagning....................................................................................Side 27
Batterier indsættes/ skiftes ....................................................................Side 27
Betjening..............................................................................................Side 28
Sender/modtager synkroniseres..........................................................Side 28
Signalart indstilles...................................................................................Side 29
Lydstyrken indstilles.................................................................................Side 29
Signaltone vælges ..................................................................................Side 29
Fejl afhjælpes ..........................................................................................Side 30
Rengøring og pleje.....................................................................Side 30
Bortskaffelse...................................................................................Side 30
Forenklet EU-konformitetserklæring........................Side 32
Garanti..................................................................................................Side 32
