Digital Half Cylinder
Page 4
1.0 Method of Operation
1.0 General Information
The outer dimensions of the Digital Half Cylinder exactly match those of a mechanical
cylinder complying with DIN 18252. Please ask for approved self-locking and anti-
panic locks at the manufacturer.
1.1 Opening and Locking
When not activated, the outer knob turns freely. It is not possible to open the door or
to lock it. Hold the transponder at a distance of approximately 10 to 40 cm (4 to 16
inches) from the digital half cylinder and briefly press the transponder button once. If
this is an authorised transponder, a double signal tone sounds and the cylinder cou-
ples. Now turn the outer knob in the locking or opening direction. You have approxi-
mately five seconds for this process. Then a single signal tone sounds and the outer
knob turns freely again. Make sure that the outer knob of the half cylinder turns freely
again after the coupling process.
& If this is a transponder that is not authorised at this time because of the time
zone plan, a single signal tone sounds. The cylinder does not couple, how-
ever, and you cannot open the door.
2.0 Special Models
The Digital Half Cylinder 3061 is also available in the following optional versions:
2.0 PLUS Version
Design is similar to the standard version but with access logging and time zone
control.
Access logging The locking cylinder stores the last 128 accesses with date,
time and the user name of the transponder. You can read out
the data with the PalmCD2 or over the network.
Time zone control You can program locking cylinders in such a way that
authorised transponders are authorised for access only at
certain times.

Digital Half Cylinder
Page 5
3.0 Additional Functions
3.1 OMRON
All product versions can be operated in OMRON mode. You will find a detailed
description in the Smart Relay manual.
3.2 Extending the Coupling Time
The default time for the coupling of the cylinder is approximately 5 seconds. You can
use the software to extend this time to approximately 10 seconds. This shortens the
lifetime of the battery, however.
3.3 Logging Unauthorised Access Attempts
For cylinder version 10.2 and later and in combination with the LDB Version
1.40, it is possible to log unauthorised access attempts, as well as authorised
accesses. This includes both access attempts without authorisation and
access attempts outside the specified time zone. In this connection, however,
only transponders from the locking system are logged, which means that the
transponder must have the same locking system ID (SID).
3.4 No Acoustic Programmer Acknowledge
When programming over the network, it can be advantageous to deactivate the
acoustic programmer acknowledge. You can do that with this function.
4.0 Battery Warnings
4.1 Half Cylinder
Warning level 1 for main battery
If the main battery of the half cylinder goes empty, eight short signal tones, coming
quickly one after another, sound after you operate the transponder and before the
cylinder couples. You must replace both batteries now.
Warning level 2 for backup battery (SW Version 10.0 & SW Version 10.1)
In addition to the main battery warning, an additional sixteen short signal tones, com-
ing quickly one after another, sound for the backup battery warning. The cylinder
does not couple until after the signals. From now on, the backup battery is active. You
must replace both batteries as soon as possible.
Warning level 2 for backup battery (SW Version 10.2 and later)
In addition to the main battery warning, the signal tones of the backup battery warning
now sound for approximately 30 seconds. The cylinder does not couple until after the
signals. From now on, the backup battery is active. You must replace both batteries
as soon as possible.

Digital Half Cylinder
Page 6
Warning Level 3 (SW version 10.3 and later)
If you continue to ignore the backup battery warning, either the door can be used
50 more times or the cylinder switches off after 4 - 5 weeks if there is no further op-
eration. In both cases, the cylinder switches into the so-called storage mode. After
this, you can only open the cylinder with the programming device.
4.2 Transponder
If the transponder battery voltage is coming to an end, eight short signal tones,
coming quickly one after another, sound each time the transponder is operated and
after the uncoupling.
& Attention: Do not take out the transponder battery because this will probably
result in the loss of data. See the “Transponder 3064” manual for more
information.
5.0 Battery Replacement
Only authorised personnel are permitted to replace the battery. Use only batteries
that are supplied by SimonsVoss.
1. Firmly hold the knob and remove the locknut on the back of the knob from the
knob with the special tool for half cylinders.
2. Use an authorised transponder to couple the cylinder and unscrew the knob
by turning it counter-clockwise. While doing this, you must firmly hold the
catch with your hand if the half cylinder is not installed. If the half cylinder is
installed, the catch is held by the stop within the lock.
3. Replace the main and emergency batteries. Make sure that the polarity is
correct.
4. Use an authorised transponder to couple the half cylinder and tightly screw
the knob in until the stop. Make sure that the knob is screwed on up to the
stop (important for the function). While doing this, you must firmly hold the
catch with your hand if the half cylinder is not installed. If the half cylinder is
installed, the catch is held by the stop within the lock.
5. Firmly hold the knob and use the special tool for half cylinders to firmly screw
the locknut onto the knob.
6. Now operate an authorised transponder and test the function.
Dispose of used batteries immediately, keep out of reach of children, do not open and
do not throw into a fire!
& Reversing the polarity can result in damage to the locking cylinder. Incorrect
handling of the batteries used in this device can result in the risk of fire or
burns. Do not charge, open, heat to more than 100° C (212° F) or burn.
& Never operate the cylinder without a main battery because otherwise the en-
tire power consumption of the cylinder runs over the backup battery.

Digital Half Cylinder
Page 7
& For PLUS versions, you must reset the time of day after the battery change
because the clock does not work without current (Software Operating Instruc-
tions: Programming Æ Setting the clock on the locking).
6.0 Installation Instructions
6.1 General Information
Only trained and authorised personnel are permitted to perform the installation. The
battery used in the cylinder can present a risk of fire and burns if not handled cor-
rectly! Do not charge, open, heat to more than 100° C (212° F) or burn! Do not short-
circuit! When installing the digital half cylinder, make sure that there are no sources of
interference in the vicinity. You should install half cylinders at least 0.5 m (approxi-
mately 1.5 feet) from one another and Smart Relays or activation units at a distance
of at least 1.5 m (approximately 5 feet). The PC housing of the half cylinder is not al-
lowed to stick out into the exterior area more than 3 mm. If necessary, attach a profile
cylinder rosette. Furthermore, you must ensure that no water can penetrate into the
cylinder in the area of the catch.
6.2 Programming a Half Cylinder
You must program the digital locking cylinder and accompanying transponders in the
locking plan before you install them. Please refer to the Software Operating Instruc-
tions for more detailed information.
& The locking cylinders are delivered in so-called storage mode, which means
that no communication is possible with the transponder (exception: program-
ming transponder). You can also use software and the programming device to
remove the storage mode. Please refer to the Software Operating Instructions
for more detailed information.

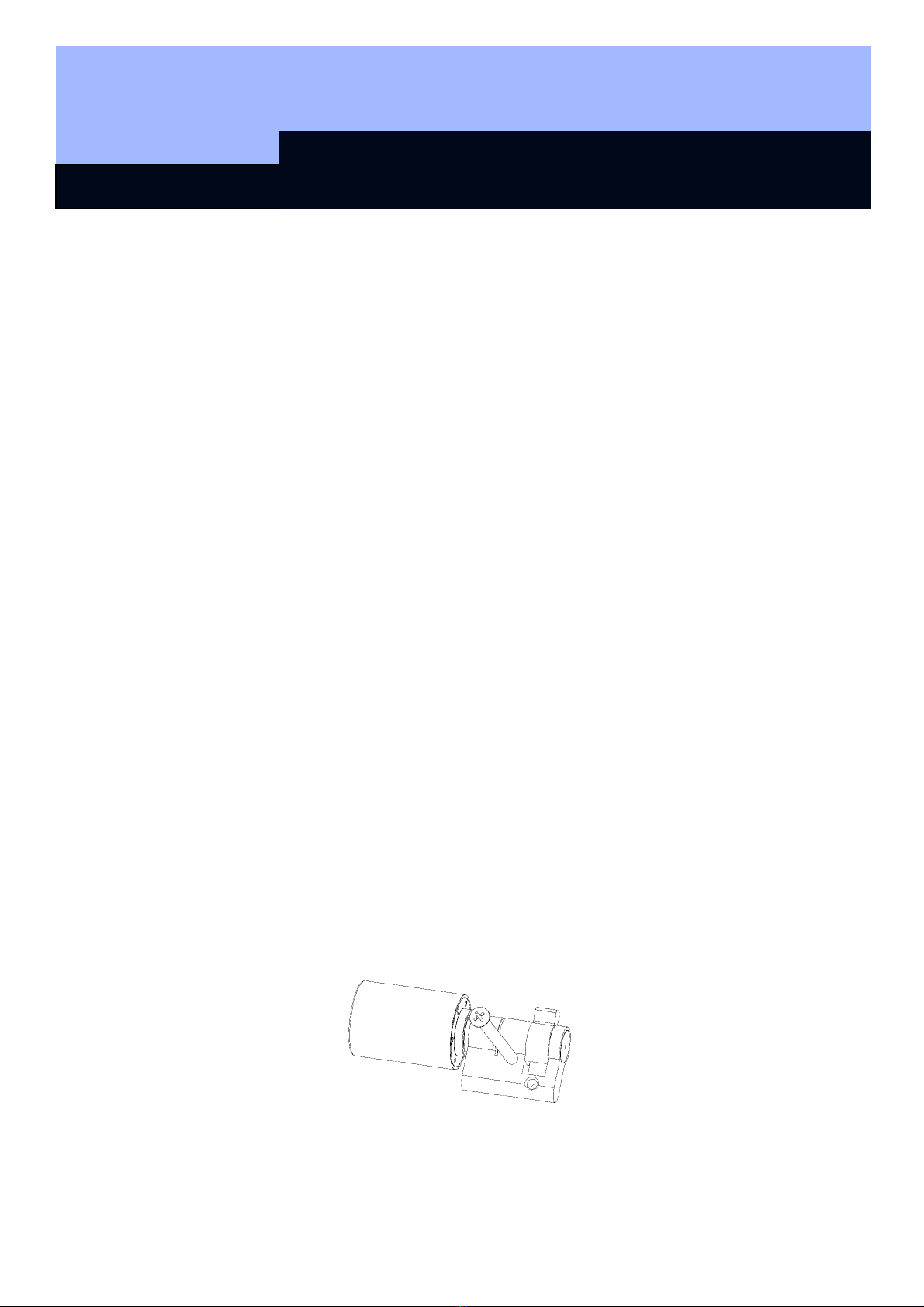

6.3 Installing in Doors
Insert the cylinder through the lock from the outside of the door towards the inside
and secure it with the lock screw.
& Never hit against the knobs during installation. Do not bring the cylinder into
contact with oil, paint or acid.

Digital Half Cylinder
Page 8

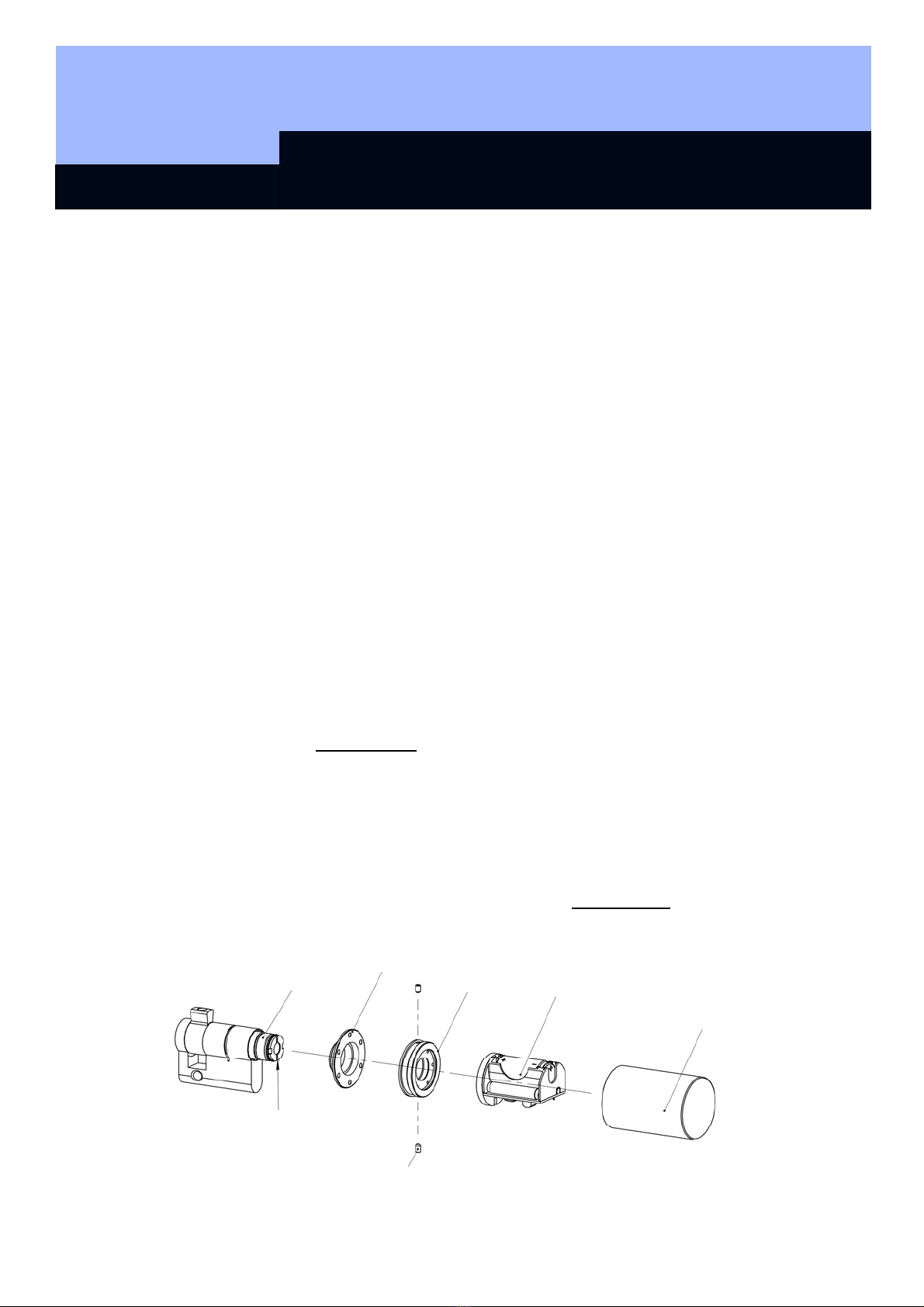

p
i
p
e
locknut
p
i
p
e
setscrews
knob
main
battery
backuo
battery
electronics
module
allen screw
flange
cable
slot
6.4 Installation Behind Blanks for Half Cylinders With 3 Setscrews
(New Flange Mounting)
6.4.1 Removal of the Knob and Flange of the Half Cylinder
1. Firmly hold the knob and remove the locknut on the back of the knob from the
knob with the special tool for half cylinders. (If the locknut is already bumping
into the profile, then start to unscrew the knob as described in the following
point (approximately one rotation) and continue).
2. Use an authorised transponder to couple the cylinder and then unscrew the
knob. While doing this, you must firmly hold the catch with your hand if the half
cylinder is not installed. If the half cylinder is installed, the catch is held by the
stop within the lock.
3. Carefully pull the cable out of the socket-contact in the electronics but do not
remove the insulation sleeving. The electronic covering is thermally welded on
and also remains on the unit.
4. Remove the two Allen screws that are parallel to the battery from the flange
with an Allen key (1.5 mm). Remove the electronics module.
5. Remove the three setscrews on the outer circumference of the flange (same
Allen key).
Note: If you can see two setscrews here, this cylinder has an old flange
mounting (in this case, refer to Point 6.5).
6. Remove the flange and locknut.
7. Now you can install the blank.

Digital Half Cylinder
Page 9
6.4.2 Installing the Knob and Flange of the Half Cylinder
1. Put on the locknut. The flat surface with the bore holes faces away from the
cylinder.
Note: If you cannot see any screw thread on the end of the pipe, this cylinder
has a new flange mounting (in this case, refer to Point 6.4).
2. Put the flange onto the end of the pipe; the side of the flange with the screw
thread faces away from the cylinder. The flange contains a crosspin that sticks
out of the interior diameter. This crosspin must catch in the longitudinal slot of
the pipe. Push the flange up against the stop on the pipe.
3. Holding it in this position, fix the three setscrews very tightly with the Allen key
(1.5 mm). Check whether the setscrews are really tightly screwed, because
this is important for correct functioning.
4. Fix the electronics module to the flange with the Allen screws that are parallel
to the battery (same Allen key as above). Guide the cable through the recess
next to the connector. Make sure that the cable is not pinched.
5. Connect the cable to the electronics socket and lay it so that it is flat on the
electronics covering and not in the way when screwing on the knob (danger of
pinching).
6. Use an authorised transponder to couple the half cylinder and tightly screw
the knob in until the stop. Make sure that the knob is screwed on up to the
stop (important for the function). While doing this, you must firmly hold the
catch with your hand if the half cylinder is not installed. If the half cylinder is
installed, the catch is held by the stop within the lock.
7. Firmly hold the knob and use the special tool for half cylinders to firmly screw
the locknut onto the knob.
6.5 Installation Behind Blanks for Half Cylinders With 2 Setscrews
(Old Flange Mounting)
slot for positioning of the
special tool
setscrew
pipe
locknut flange
electronics module
knob

Digital Half Cylinder
Page 10
6.5.1 Removal of the Knob and Flange of the Half Cylinder
1. Firmly hold the knob and remove the locknut on the back of the knob from the
knob with the special tool for half cylinders.
2. Use an authorised transponder to couple the cylinder and then unscrew the
knob. While doing this, you must firmly hold the catch with your hand if the half
cylinder is not installed. If the half cylinder is installed, the catch is held by the
stop within the lock.
3. Carefully pull the cable out of the socket-contact in the electronics but do not
remove the insulation sleeving. The electronic covering is thermally welded on
and also remains on the unit.
4. Remove the two Allen screws that are parallel to the battery from the flange
with an Allen key (1.5 mm). Remove the electronics module.
5. Remove the setscrew on the outer circumference of the flange (same Allen
key). Note: If you can see 3 setscrews here, this cylinder has a new flange
mounting (in this case, refer to Point 6.4)
6. The fore-part of the pipe, which sticks out of the profile, contains two slots on
which you can position the special tool (offset 90° to the lengthwise slot which
guides the cable). The narrow end of the installation tool can move into this
slot. This ensures that the pipe cannot twist.
7. Now you can unscrew the flange without the pipe also turning.
8. Remove the locknut.
9. Now you can install the blank.
6.5.2 Installing the Knob and Flange of the Half Cylinder
1. Put on the locknut. The flat surface with the bore holes faces away from the
door.
Note: If you cannot see any screw thread on the end of the pipe, this cylinder
has a new flange mounting (refer to Point 6.4).
2. Please note the two lateral impressions on opposite sides of the pipe. The lat-
eral setscrews of the flange must fit into this later in order to guarantee that
the flange holds securely. To find the exact position quickly, the flat surfaces
of the pipe and flange have black markings that must line up.
3. Put the flange on the end of the pipe without screwing it in. The side with the
small outside diameter points towards the door. The fore-part of the pipe,
which sticks out of the profile, contains two slots in which you can position the
special tool (offset 90° to the lengthwise slot which guides the cable). The nar-
row end of the installation tool can move into this slot. This ensures that the
pipe cannot twist.
4. The pipe should not turn during the following steps (see Point 3). Lightly screw
on the flange until it reaches the stop and the markings line up. In this posi-
tion, tighten the two setscrews with the Allen key (1.5 mm) so that they center
in the indentations of the pipe. Then tighten both setscrews securely. Please
check whether the setscrews are really tightly screwed, because this is im-
portant for correct functioning!

Digital Half Cylinder
Page 11
5. Fix the electronics module to the flange with the Allen screws that are parallel
to the battery (same Allen key). Make sure that the cable is not pinched.
6. Connect the cable to the electronics socket and lay it so that it is flat on the
electronics covering and not in the way when screwing on the knob (danger of
pinching).
7. Use an authorised transponder to couple the half cylinder and tightly screw
the knob in until the stop. While doing this, you must firmly hold the catch with
your hand if the half cylinder is not installed. If the half cylinder is installed, the
catch is held by the stop within the lock.
8. Firmly hold the knob and use the special tool for half cylinders to firmly screw
the locknut onto the knob.
6.6 Perform Function Test
1. Operate an authorised transponder and turn the knob in the lock and open di-
rections when the door is open. The knob must turn easily.
2. Close the door and repeat the process. If the locking cylinder is stiff, you must
align the door or correct the edge plate.

Digital Half Cylinder
Page 12
7.0 Data Sheet
Dimensions Standard length 30/10 mm
Max. profile length
Knob diameter
Knob length
100 mm (in 5mm intervals)
32 mm
51.5 mm (distance from knob end to
profile fore-part)
Standard for profile
dimensions
DIN 18252
Battery Batteries Lithium, 3.6V, ½ AA, 900mAh
Lithium 3V, CR1220
Use only original replacement batteries
from SimonsVoss
Service life Max. 50,000 operations or roughly 4 years
Environmental
Conditions
Operating temperature
range -20°C to +50°C (-4°F to +122°F)
Storage temperature
range
Degree of protection
-35°C to +50°C (-31°F to +122°F)
IP 54 (when installed)
