Simons Voss Technologies SmartLocker AX SmartIntego User manual

SmartLocker AX
SmartIntego
Manual
14.07.2022

Contents
1 Intended use................................................................................................................................................ 3
2 General safety instructions .................................................................................................................... 4
3 Scope of delivery ........................................................................................................................................7
4 Exploded view............................................................................................................................................. 8
5 Initial operation .......................................................................................................................................... 9
5.1 Programming..................................................................................................................................................... 9
5.2 Measurement and calculation.................................................................................................................. 9
5.3 Installation .........................................................................................................................................................10
6 Subsequent fixation on wooden doors............................................................................................. 25
7 Operation ...................................................................................................................................................26
8 LockNode ................................................................................................................................................... 27
8.1 Intended use .....................................................................................................................................................27
8.2 Installation .........................................................................................................................................................27
9 Battery change .........................................................................................................................................39
9.1 Emergency power supply ...........................................................................................................................41
10 Signalisation..............................................................................................................................................42
11 Disassembly ..............................................................................................................................................43
12 Technical specifications........................................................................................................................44
12.1 Dimensional drawings.................................................................................................................................45
12.2 Drawings of installation situations....................................................................................................... 46
13 EU/UK Declaration of conformity ..................................................................................................... 50
14 Help and other information ...................................................................................................................51
SmartLocker AX SmartIntego (Manual) Contents
2 / 53

1 Intended use
SmartLocker AX allows you to manage and control your cabinets and
lockers conveniently and efficiently. You can programme directly from your
workstation or carry out remote opening via the optional radio link.
SmartLocker AX is operated with passive identification media, active
transponders or both.
SmartLocker AX SmartIntego
(Manual)
1. Intended use
3 / 53

2 General safety instructions
Signal word (ANSI
Z535.6) Possible immediate effects of non-compliance
DANGER Death or serious injury (likely)
WARNING Death or serious injury (possible, but unlikely)
CAUTION Minor injury
IMPORTANT Property damage or malfunction
NOTE Low or none
WARNING
Blocked access
Access through a door may stay blocked due to incorrectly fitted and/or in-
correctly programmed components. SimonsVoss Technologies GmbH is
not liable for the consequences of blocked access such as access to in-
jured or endangered persons, material damage or other damage!
Blocked access through manipulation of the product
If you change the product on your own, malfunctions can occur and access through a door can
be blocked.
Modify the product only when needed and only in the manner described in the
documentation.
CAUTION
Fire hazard posed by batteries
The batteries used may pose a fire or burn hazard if handled incorrectly.
1. Do not try to charge, open, heat or burn the batteries.
2. Do not short-circuit the batteries.
IMPORTANT
Damage resulting from electrostatic discharge (ESD)
This product contains electronic components that may be damaged by electrostatic discharges.
1. Use ESD-compliant working materials (e.g. Grounding strap).
2. Ground yourself before carrying out any work that could bring you into contact with the
electronics. For this purpose, touch earthed metallic surfaces (e.g. door frames, water pipes
or heating valves).
SmartLocker AX SmartIntego
(Manual)
2. General safety instructions
4 / 53

Damage resulting from liquids
This product contains electronic and/or mechanic components that may be damaged by liquids
of any kind.
Keep liquids away from the electronics.
Damage resulting from aggressive cleaning agents
The surface of this product may be damaged as a result of the use of unsuitable cleaning agents.
Only use cleaning agents that are suitable for plastic or metal surfaces.
Damage as a result of mechanical impact
This product contains electronic components that may be damaged by mechanical impacts of
any kind.
1. Avoid touching the electronics.
2. Avoid other mechanical influences on the electronics.
Damage due to polarity reversal
This product contains electronic components that may be damaged by reverse polarity of the
power source.
Do not reverse the polarity of the voltage source (batteries or mains adapters).
Operational malfunction due to radio interference
This product may be affected by electromagnetic or magnetic interference.
Do not mount or place the product directly next to devices that could cause electromagnetic
or magnetic interference (switching power supplies!).
NOTE
Intended use
SmartIntego-products are designed exclusively for opening and closing
doors and similar objects.
Do not use SmartIntego products for any other purposes.
Malfunctions due to poor contact or different discharge
Contact surfaces that are too small/contaminated or different discharged batteries can lead to
malfunctions.
1. Only use batteries that are approved by SimonsVoss.
2. Do not touch the contacts of the new batteries with your hands.
3. Use clean and grease-free gloves.
4. Always replace all batteries at the same time.
Different times for G2 locks
The internal time unit of the G2 locks has a technical tolerance of up to ± 15 minutes per year.
SmartLocker AX SmartIntego
(Manual)
2. General safety instructions
5 / 53

Qualifications required
The installation and commissioning requires specialized knowledge.
Only trained personnel may install and commission the product.
Incorrect installation
SimonsVoss Technologies GmbH accepts no liability for damage caused to doors or compon-
ents due to incorrect fitting or installation.
Modifications or further technical developments cannot be excluded and may be implemented
without notice.
The German language version is the original instruction manual. Other languages (drafting in the
contract language) are translations of the original instructions.
Read and follow all installation, installation, and commissioning instructions. Pass these instruc-
tions and any maintenance instructions to the user.
SmartLocker AX SmartIntego
(Manual)
2. General safety instructions
6 / 53

3 Scope of delivery
Reader
Motor block
Connection socket
3 adapter plates (can be reordered: LL.PLATE5)
Adapter plate with positioning guide (can be reordered: LL.PLATEVAR)
2 flange extensions (can be re-ordered)
M4 screws with round head (16mm, 20mm, 25mm)
M4 hex nut
Tensioning element with tapping screw
4 bolt blocks (one of which is pre-fitted)
2 fastening pieces for wooden doors
0.9mm hex wrench
Fastening tool for M4 screws
Tool for ribbon cable connectors
Quick guide
The reader unit also contains two spare screws for the cover lock ex works.
SmartLocker AX SmartIntego
(Manual)
3. Scope of delivery
7 / 53

4 Exploded view
SmartLocker AX SmartIntego
(Manual)
4. Exploded view
8 / 53

5 Initial operation
5.1 Programming
(For programming for SmartIntego, see Step-by-Step Guide).
5.2 Measurement and calculation
1. Measure the distance between the inside of the door and the dead-bolt
stop (A), e.g. with the depth rod of a caliper gauge.
2. Measure the thickness of the door/door panel (B).
3. Refer to the tables for the parts required from the scope of delivery (ad-
apter plates, dead-bolt fixture, flange extensions and screw). Additional
parts can be ordered (see manual).
Inner side of door up to dead-bolt
stop (A)
Adapter plate P
(LL.PLATE5)
Dead-bolt fix-
ture R
0.0mm to 5.95mm None 4 (5.9mm)
6.05mm to 7.25mm None 3 (7.5mm)
7.35mm to 8.85mm None 2 (9.1mm)
8.95mm to 10.45mm None 1 (10.4mm)
10.55mm to 10.95mm 5mm 4 (5.9mm)
11.05mm to 12.25mm 5mm 3 (7.5mm)
12.35mm to 13.85mm 5mm 2 (9.1mm)
13.95mm to 15.45mm 5mm 1 (10.4mm)
15.55mm to 15.95mm 2 × 5mm 4 (5.9mm)
16.05mm to 17.25mm 2 × 5mm 3 (7.5mm)
SmartLocker AX SmartIntego
(Manual)
5. Initial operation
9 / 53

Inner side of door up to dead-bolt
stop (A)
Adapter plate P
(LL.PLATE5)
Dead-bolt fix-
ture R
17.35mm to 18.85mm 2 × 5mm 2 (9.1mm)
18.95mm to 20.45mm 2 × 5mm 1 (10.4mm)
20.55mm to 20.95mm 3 × 5mm 4 (5.9mm)
21.05mm to 22.25mm 3 × 5mm 3 (7.5mm)
22.35mm to 23.85mm 3 × 5mm 2 (9.1mm)
23.95mm to 25.45mm 3 × 5mm 1 (10.4mm)
Dead-bolt fixtures are numbered:
Door/door panel thickness B+ ad-
apter plates P
Flange exten-
sions F Screw
10mm to 16.0mm None M4×16mm
16.1mm to 19.0mm 1× M4×20mm
19.1mm to 25.0mm 2× M4×25mm
25.1mm to 30mm 3× M4×30mm
5.3 Installation
The adapter plates are not used for wooden doors. Use the supplied
fastening pieces.
You will need the following tools:
0.9 mm hex wrench (included)
Electronics needle-nosed pliers
SmartLocker AX SmartIntego
(Manual)
5. Initial operation
10 / 53

PH1 screwdriver
Slotted screwdriver (if the dead-bolt block needs to be replaced)
2.5 mm hex wrench
TX10 screwdriver
üSmartLocker AX locked ex works = dead bolt extended, programme if
necessary (see
Programming [}9] .
üDoor and parts calculated (see Measurement and calculation [}9] ).
1. Insert the 0.9mm hex key into the lower screw.
2. Gently press the reader cover against the floor and turn the lower screw
clockwise inwards until you can lift off the cover.
SmartLocker AX SmartIntego
(Manual)
5. Initial operation
11 / 53

3. Remove the cover.
4. Using needle-nosed pliers, disconnect the plug of the cable below the
circuit board.
5. Disassemble the reader and engine block.
6. Insert the socket into the D-hole (mount for nut pointing towards the
edge of the door).
SmartLocker AX SmartIntego
(Manual)
5. Initial operation
12 / 53

7. Insert the adapter plate with the parallel forced guide onto the socket
from the rear.
8. Slide the forced guide out until it rests against the inner edge of the
door.
9. Continue to press the forced guide against the inner edge and screw the
screws tight with approx. 20 Ncm (PH1 screwdriver) until the forced
guide can no longer be moved.
SmartLocker AX SmartIntego
(Manual)
5. Initial operation
13 / 53

10. If necessary, insert additional adapter plates into the socket.
11. If necessary, lever the dead-bolt block out of the engine block using a
slotted screwdriver.
12. If necessary, insert another dead-bolt block into the engine block.
SmartLocker AX SmartIntego
(Manual)
5. Initial operation
14 / 53

13. Hook the screw into the holder and hold it in place.
14. Fix the screw through the dead-bolt side hole on the back with the
plastic mounting tool.
15. If necessary, plug in the flange extensions on the engine block.
SmartLocker AX SmartIntego
(Manual)
5. Initial operation
15 / 53

16. For wooden doors: Insert the fastening pieces into the recesses
provided.
17. Hold the plastic mounting tool with one finger and place the engine
block on the adapter plate or through the D-hole bushing.
18. Thread the socket cable through the socket.
SmartLocker AX SmartIntego
(Manual)
5. Initial operation
16 / 53

19. Place the nut on the screw and carefully tighten the nut with the as-
sembly tool already inserted until it sits on the hexagonal mount.
SmartLocker AX SmartIntego
(Manual)
5. Initial operation
17 / 53

20.For wooden doors: Straighten the motor block and firmly tighten the
fastening pieces with suitable screws.
21. Tighten the nut with 1Nm (2.5 mm hex wrench).
SmartLocker AX SmartIntego
(Manual)
5. Initial operation
18 / 53

22. Insert the clamping element and the plastic countersunk screw into the
D-hole bushing from the front.
SmartLocker AX SmartIntego
(Manual)
5. Initial operation
19 / 53

23. Screw the tensioner until it stops (TX10 key) without screwing through
the screw.

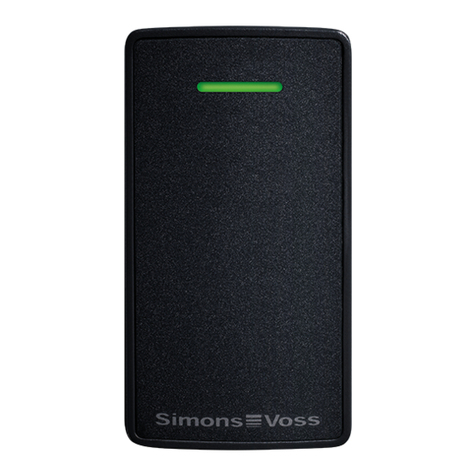

24.Place the reader at an angle (approx. 60°).
SmartLocker AX SmartIntego
(Manual)
5. Initial operation
20 / 53
