BSM-2 Installation manual | 1
ENGLISH

2 | BSM-2 Installation manual
Compliance Statements
The BSM-2 Broadband Sounder™ Module complies with
the following regulations and standards:
FCC Part 15-
CE compliant per EN60945 and EN 60529-
C - Tick-
Warning
The user is cautioned that any changes or modifications
not expressly approved by the party responsible for
compliance could void the user’s authority to operate the
equipment.
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
the interference will not occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna•
Increase the separation between the equipment and•receiver
Connect the equipment into an outlet on a circuit•different from that of the receiver
Consult the dealer or an experienced technician for•help

BSM-2 Installation manual | 3
ENGLISH
Industry Canada
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including
interference that may cause undesired operation of the
device.
Warranty
The warranty card is supplied as a separate document.
In case of any queries, refer to our website.

4 | BSM-2 Installation manual
Contents
Introduction.................................................. 5
About this manual.........................................5
The BSM-2 module layout...............................5
Parts included in package...............................6
Required tools and supplies............................6
Installation and wiring .................................. 7
Mounting location..........................................7
Securing BSM-2 module.................................8
Wiring .........................................................8
General................................................8
Grounding the unit ................................9
Wiring diagram .....................................9
Terminal connections........................... 10
Power connection................................ 11
Transducers connection ....................... 11
Connecting the BSM-2 to your display.... 14
Trouble shooting.......................................... 16
Technical specication ................................ 17
Dimensional drawing................................... 20
Spare parts and accessories........................ 21
Spare parts........................................21
Accessories .......................................21
Transducers........................................21

BSM-2 Installation manual | 5
ENGLISH
Introduction
About this manual
This document describes how to install the BSM-2 and
connect the unit to transducers and display units.
Separate installation instruction for transducers are
included with the transducer package.
The BSM-2 is compatible with the following displays and
systems:
NSE-
NSO-
NSS-

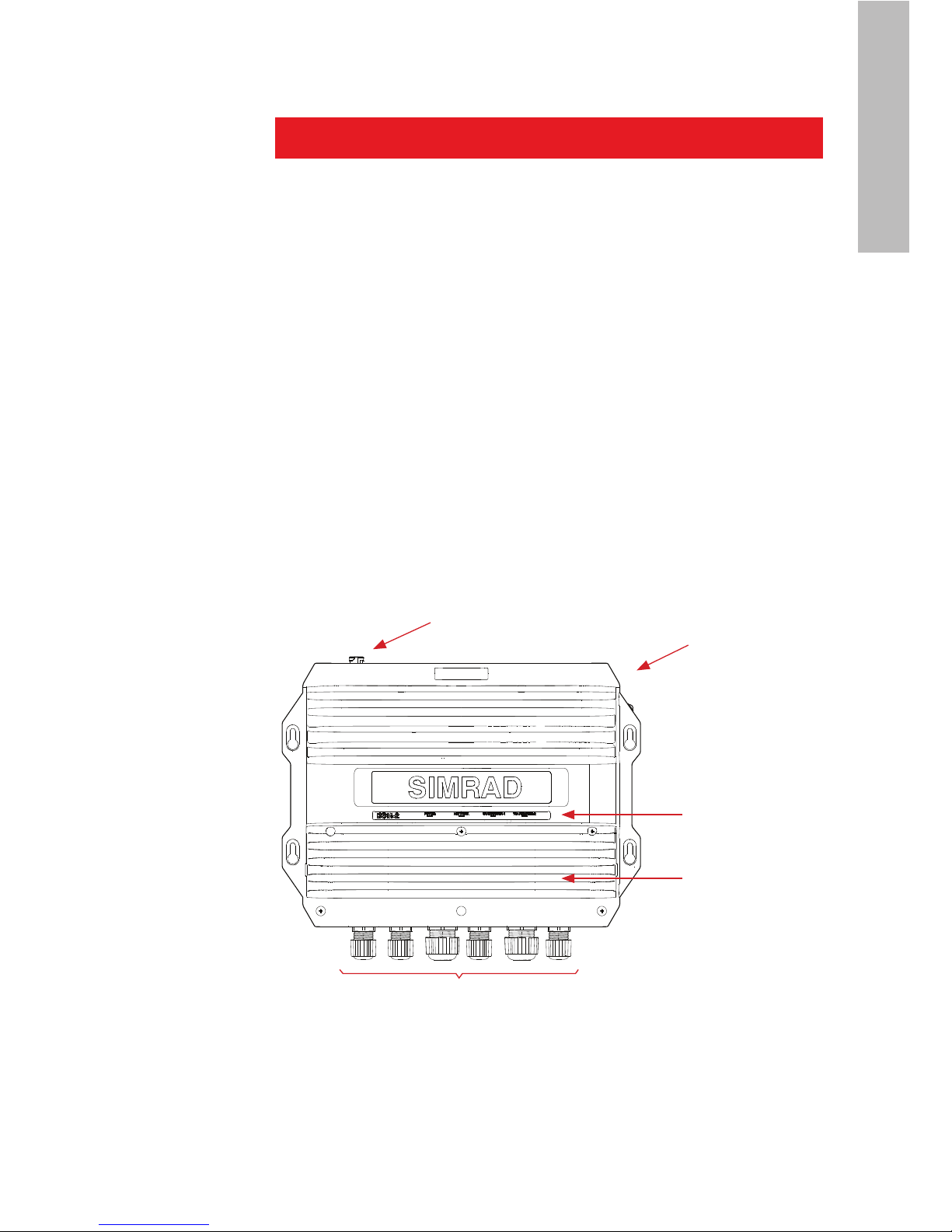

The BSM-2 module layout
REMOVABLE
COVER
LED STATUS
INDICATORS
ETHERNET
CONNECTOR
WATERTIGHT
CABLE GLANDS
GROUNDING
SCREW

6 | BSM-2 Installation manual

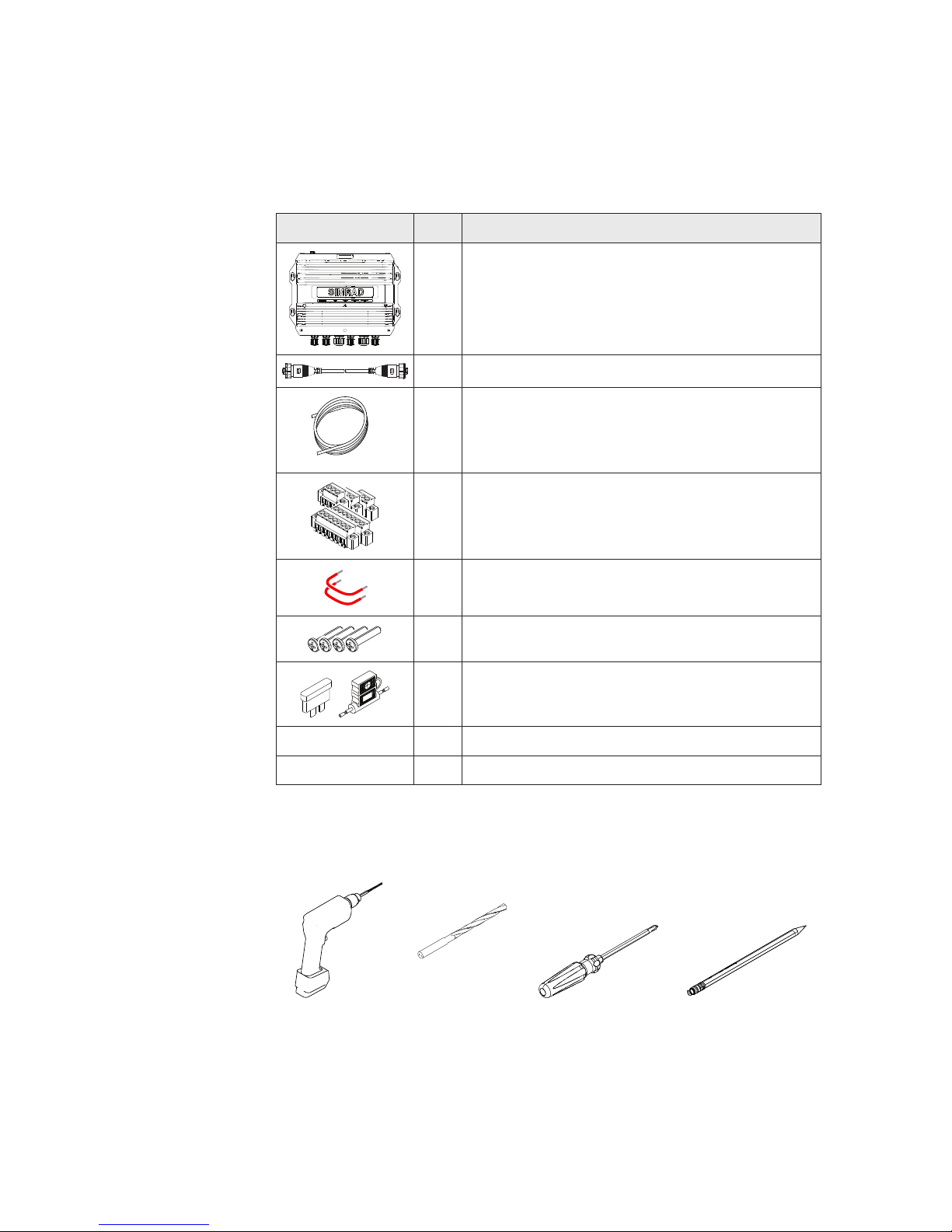

Parts included in package
For spare parts and part numbers, see Spare parts and
accessories page 21.
Item No. Description
1BSM-2 sounder module
1Ethernet adapter cable, 4.5 m (15 ft)
1
Power cable (bare wires), 2 m (6.5 ft)
Power and GND: 16 gauges-
Switch connection: 18 gauges-
1Terminal block connection kit, including;
6 Terminal blocks-
2Jumper wires for impedance selection
4Screws
1Spare Fuse kit including;
3A Fuses and fuse holders-
1Warranty card
1This manual
Required tools and supplies
Drill
2 mm
(5/64”)
Drill Bit Screw driver Pencil

BSM-2 Installation manual | 7
ENGLISH
Installation and wiring
Mounting location
Before installing the BSM-2, consider location and cable
runs necessary to connect the module to display unit,
transducer and power source.
The mounting location must allow for required working
area when connecting the cables. Also ensure that the
location allows viewing the unit’s LED indicators.
The units should be mounted with special regard to the
units’ environmental protection, temperature range and
cable length.
The mounting surface needs to be structurally strong,
with as little vibration as possible. If possible mount the
unit close to the edges of a panel to minimize vibration.
Do not run the transducer cabling near the BSM-2 power
cables, any VHF antenna coax cables or any DC or AC
power cables. Avoid placing Ethernet cables close to VHF
antennas.
The BSM-2 conforms to the appropriate Electromagnetic
Compatibility (EMC) standards, but proper installation
is required to get best use and performance from

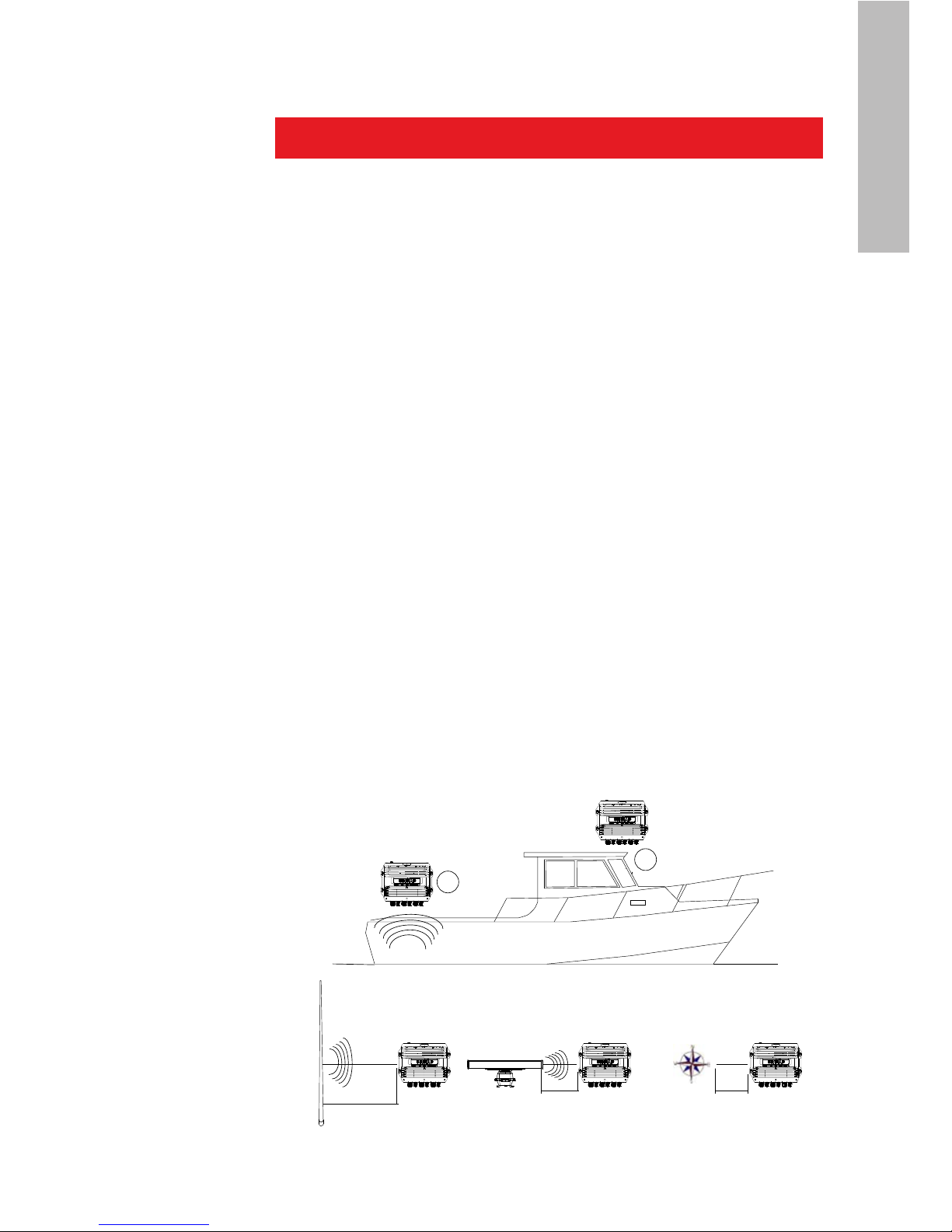

this product. Ensure you have as much separation as
possible between different electrical equipment, (see
diagram below).
X
X
Electromagnetic interference
Gasoline fumes
Vibration
Heat
Sunlight
Salt spray
Physical damage
2.0 m (6.5 ft) Min 1.8 m (6 ft) Min
1.5 m (5 ft) Min
RADAR
Radio or AIS Transmitter
Compass

8 | BSM-2 Installation manual
Securing BSM-2 module
Mount the BSM-2 on a vertical surface with the power
and transducer cable entries exiting downwards.
Fasten the BSM-2 by using the 4 stainless steel self
tapping screws included with the unit.
Wiring
General
The power and the transducer
cables connect with screw
terminals inside the BSM-2
unit. Refer wiring diagram and
connection details on the following
pages.
The BSM-2 contains high voltages and specialized
parts; the operator should never remove the
module’s cover without removing the power
connection.
Removing the transducer cable from the BSM-2
while the module is powered on can cause sparks.
Remove the transducer cables only after the
module has been disconnected from its power
source.

BSM-2 Installation manual | 9
ENGLISH
Grounding the unit
For additional safety install grounding cable in ground
screw hole as indicated on illustration. Recommended 16
awg wire.
Wiring diagram
BSM-2 NEP-2
12 - 24 V DC
+_
1
3
2
Ref Description
1Ethernet cable
2BSM-2 Power cable
3Transducer cables
SINGLE
DISPLAY
SYSTEM
MULTIPLE
DISPLAY
SYSTEM
TRANSDUCERS

10 | BSM-2 Installation manual
Terminal connections

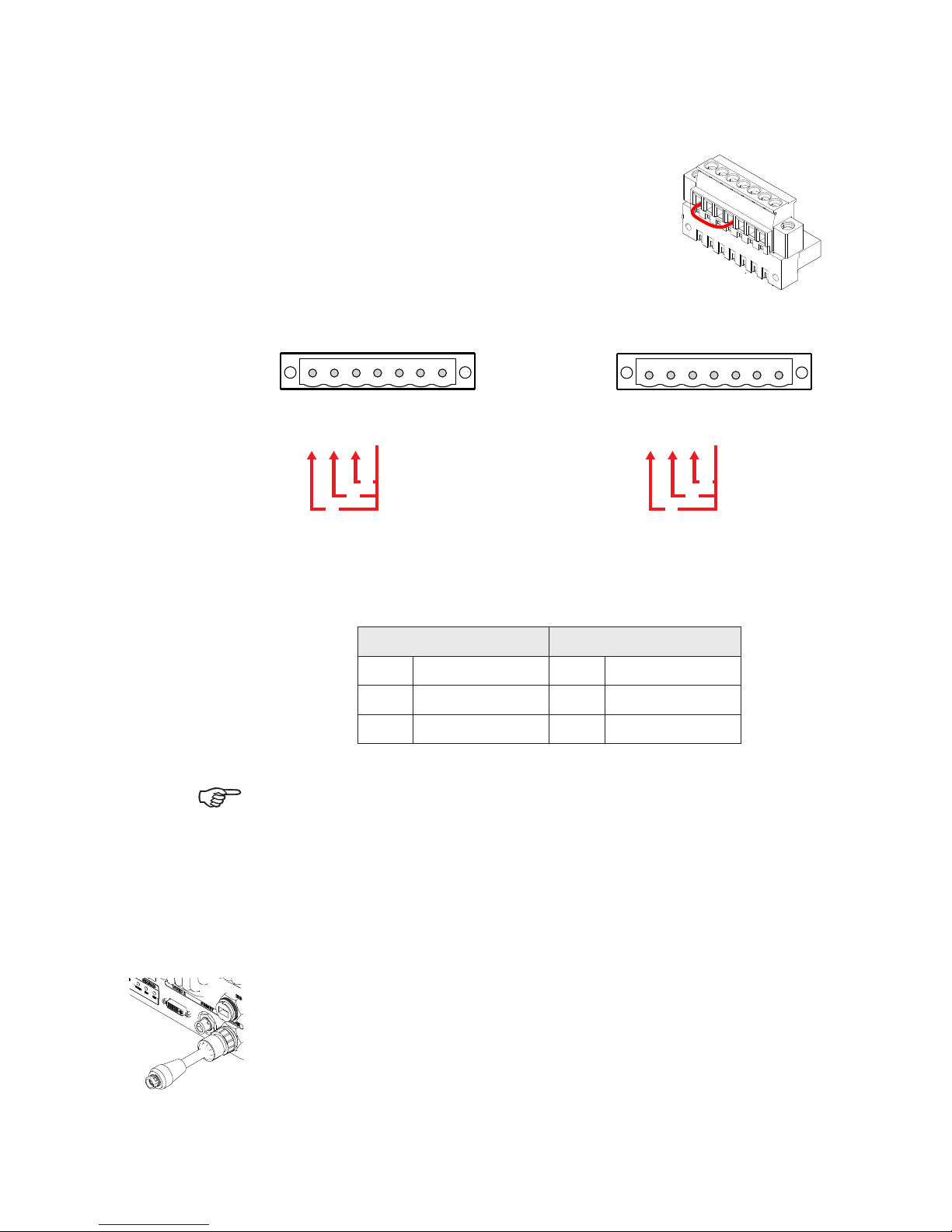

Select cable inlets according to cable diameter and1 labelling on the front plate

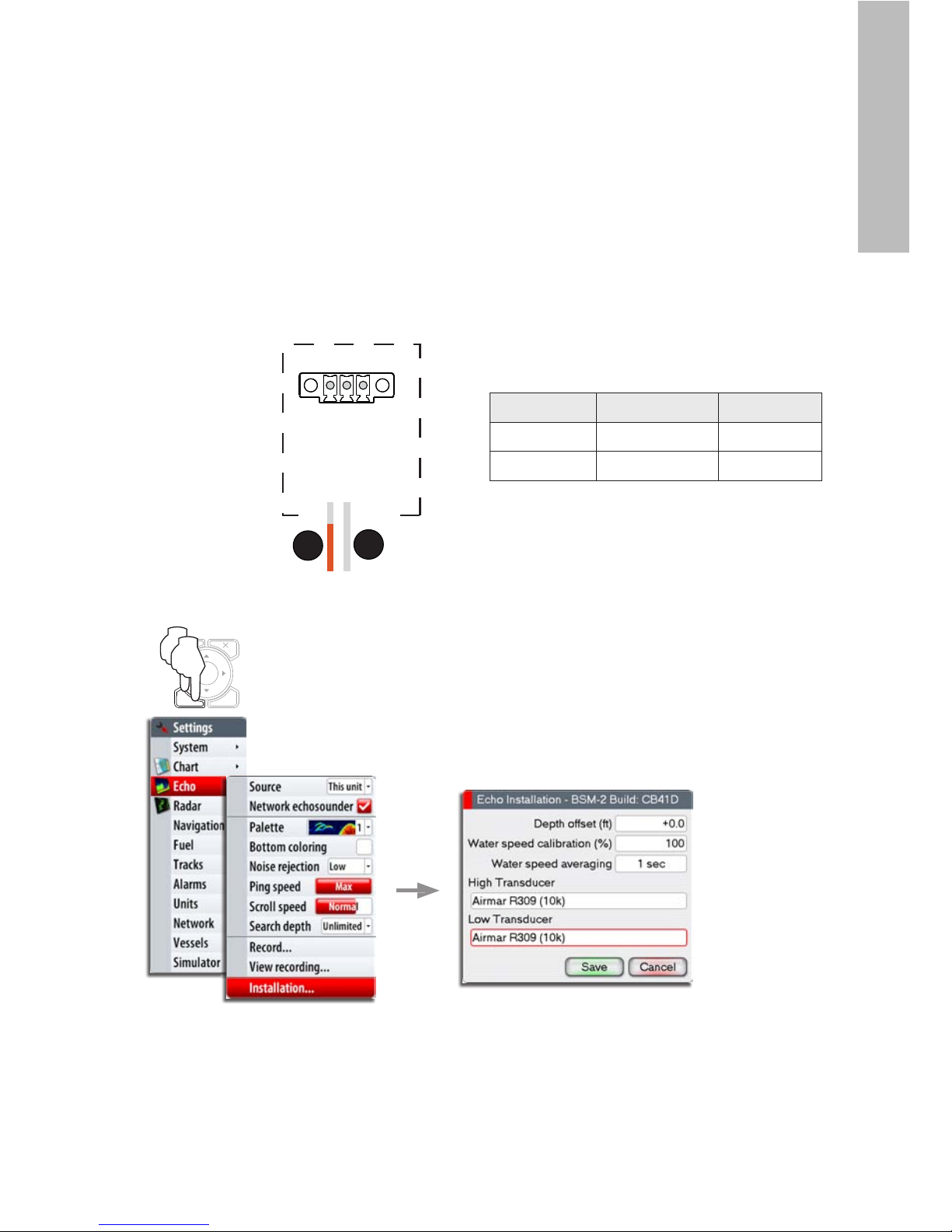

POWER XDCR HI XDCR LO
SPEED TEMP 1 TEMP 2
Cable Cable diameter
M20
Transducer 1-
Transducer 2-
10.0 mm - 14.0 mm
(3.94” - 5.51”)
M16
Power-
Speed-
Temperature 1-
Temperature 2-
6.0 mm - 10.0 mm
(2.36” - 3.94”)
2 Remove the outer sealing nuts from selected cable
glands, and thread those on to the cables
3 Terminate the wires to the terminal blocks
according to the terminal specication in the
following pages
Connect the terminal blocks to the pcb4
Tighten the outer sealing nuts by hand5
Close the BSM-2 cover and secure the cables6

BSM-2 Installation manual | 11
ENGLISH
Power connection
The unit has no power key and will turn on when power
is applied.
When used in an
NSE/NSS system, it
is recommended to
connect the BSM-2 to
the Power control bus,
and set display system
to power control
master.
If the BSM-2 is connected
directly to the vessel’s
battery, the module will
continue to draw power even
when it is not in operation. It
is recommended that the
yellow power cable wire be
fitted with an optional on/off
switch, allowing the BSM-2
to be powered off when not
in use.
POWER
POS (+)
J3 1
NEG (-) ACC PWR
1 3 42
Transducers connection
For a list of compatible transducers see Spare parts
and accessories page 21, or contact your dealer.
BSM-2
12 - 24 V DC
Red
Black
Yellow Red
Black
Yellow
+_
NSE
Power
Control bus
Blue
(n/c)
Blue
(n/c)
BSM-2
Switch
12 - 24 V DC
+_
Red
Black
Yellow
Blue
(n/c)
REF. COLOR FUNCTION
1Yellow Power control
(18 gauges)
2Black Battery -
(16 gauges)
3Red Battery +
(16 gauges)
4Blue NC

12 | BSM-2 Installation manual
Airmar transducers
The wiring diagram below shows how to connect an
Airmar transducer (R309).
On some models Low frequency XDCR+ wire (yellow) can
be color blue/white.
On some transducer models temperature brown cable is
connected internally to XID GND, and there is no need to
connect bare and brown cable together.
Consult XDCR documentation for correct wiring diagram
before connecting transducer!

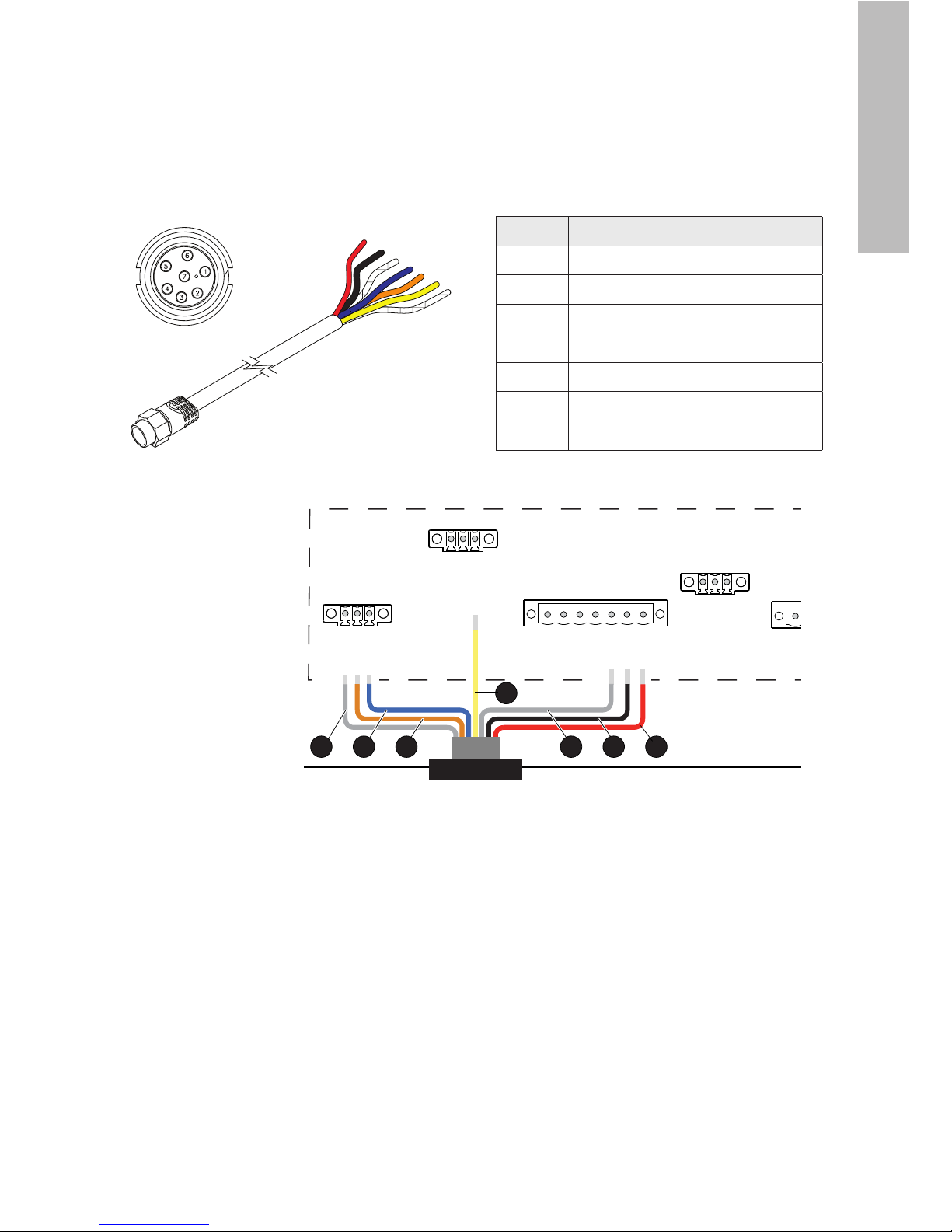

REF. COLOR FUNCTION
1Orange XID
2Shield XID ground (if available)
3Brown Thermistor (XID ground)
4White Thermistor
5Shield High freq. depth shield
6Black High freq. negative
7Blue High freq. positive
8Shield Low freq. depth shield
9Black Low freq. negative
10 Yellow or blue/white Low freq. positive
XDCR LOW
SPD PWR SPD IN GND
SPEED
J4
1
XDCR HIGH
XDCR Z1 XDCR Z2 XDCR Z3 XDCR - XDCR + SHIELD IMP SEL
J8
1
XDCR Z1 XDCR Z2 XDCR Z3 XDCR - XDCR + SHIELD IMP SEL
J7
1
TEMP LOW
TEMP LOW GND XDCR ID LOW
J6
1
TEMP HIGH
TEMP HIGH GND XDCR ID HIGH
J5
1
9
10
568
7
1 2 3 4

BSM-2 Installation manual | 13
ENGLISH
7 pins transducers
An optional transducer adapter cable is available
(000-10377-001) for connecting 7 pin transducers to the
BSM-2.
Front View
XDCR LOW
SPD PWR SPD IN GND
SPEED
J4
1
XDCR HIGH
XDCR Z1 XDCR Z2 XDCR Z3 XDCR - XDCR + SHIELD IMP SEL
J8
1
XDCR Z1 XDCR Z2
XDCR Z3
XDCR - XDCR + SHIELD IMP SEL
J7
1
TEMP LOW
TEMP LOW GND XDCR ID LOW
J6
1
TEMP HIGH
TEMP HIGH GND XDCR ID HIGH
J5
1
1
4
3 267 5
REF. COLOR FUNCTION
1Red XDCR+
2Black XDCR-
3XDCR Shield SHIELD
4Yellow TEMP
5Orange SPD IN
6Blue SPD PWR
7Shield GND

14 | BSM-2 Installation manual
Strap settings for transducer impedance
Each transducer connector has 3
transducer impedance jumpers, used to
assure max power is being transferred
to the sonar elements.
The transducer list on page 21 shows
how to set the jumper for transducers
that can be used with BSM-2.
A
BD E
FC
XDCR HIGH
XDCR Z1 XDCR Z2 XDCR Z3 XDCR - XDCR + SHIELD IMP SEL
J8
1
XDCR LOW
XDCR Z1 XDCR Z2 XDCR Z3 XDCR - XDCR + SHIELD IMP SEL
J7
1
For any transducer not included in the list, connect
the jumper to the impedance selector according to the
transducer impedance based on the following table:
HIGH FREQ LOW FREQ
A100 Ohm D100 Ohm
B270 Ohm E270 Ohm
C400 Ohm F400 Ohm
If the Transducer impedance doesn’t appear in the table,
select the closest impedance that is higher than the
customers value.
Connecting the BSM-2 to your display
The BSM-2 connects to your display system over an
Ethernet network, either directly or via a Network
Expansion Port. Refer Cabling diagram, page 9.
When connected to an NSO, the RJ45 to 5 pin cross-over
Ethernet cable included with the NSO system must be
used.
For details refer to the display system’s Installation
manual.

BSM-2 Installation manual | 15
ENGLISH
Setting up the transducers
The BSM-2 is compatible with Airmar’s Transducer ID
protocol. If you have an Airmar transducer that supports
this feature, BSM-2 will read your transducer’s
specification at start-up and automatically adjust the
frequency and temperature settings. The transducer’s
XID wire (orange) should be connected to the XDCR_ID_
HIGH/LOW terminal in the TEMP HIGH/LOW connector as
shown below.
TEMP HIGH
TEMP HIGH GND XDCR ID HIGH
J5
1
12
If your transducer doesn’t support Airmar’s Transducer
ID protocol, the transducer selection and configuring
needs to be done from the display as shown on the
graphics below.
A detailed description is found in the relevant
documentation for the display.
REF. COLOR SIGNAL
1Orange XID
2Shield XID GND
MENU WIN
x2

16 | BSM-2 Installation manual

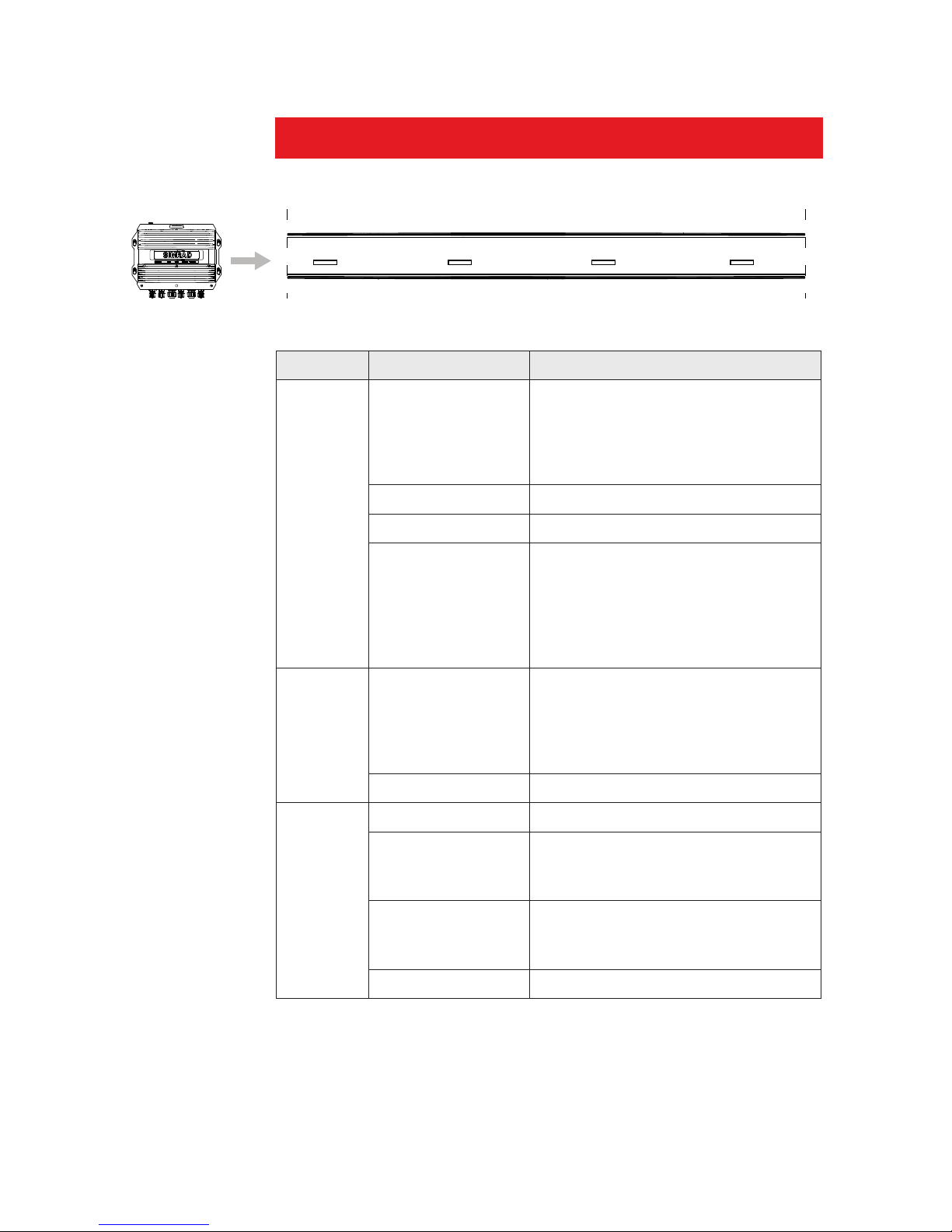

Trouble shooting
POWER NETWORK TRANSDUCER-2TRANSDUCER-1
IND. STATUS DESCRIPTION
Power
Off
No power connection
Check power and power-cable
Check yellow wire-
On - Red System starting
On - Green System operational
Flashing -
Red/Green
Software error or unit
reprogrammed
Restart the unit-
If still not ok contact-Customer Support
Network Off
No Ethernet connection
Check cable-
Verify that remote unit is-turned ON
On - Green Ethernet connected and ok
Trans-
ducers
Off Transducer not connected
Flashing every
0.5 second -
Green Initializing transmitter
Flashing every
second -
Green Searching for bottom signal
On - Green System operational

BSM-2 Installation manual | 17
ENGLISH
Compliance and Environmental
Compliance CE, C-TICK
Technical
Standards IEC 60945,
IEC 60529
Waterproof IPX5
Humidity Up to 95% at 35°C non-
condensing
Storage
Temperature –30°C to +70°C
Operating
Temperature –15°C to +55°C
General
Connectors 6 Glands and 1 Ethernet Glands: Depth transducer
(x2), Temperature (x2), Speed
transducer, Power Connector: 5
pin Yellow RJ45
Weight 4.8 kg (10.6 lbs) Die Cast Aluminum
Dimensions
(WxHxD) mm/
in
340x100x289 mm
(13.38x3.94x11.37 inches)
With watertight glands and
connector outside dimensions
included
Mounting 4 keyholed mounting tabs Mount below deck but NOT in
engine compartment
Sonar Specications
Power Output 250 Watts RMS
2,000 Watts (peak to
peak)
With CHIRP; Transducer
dependent with 3 impedance taps
Power requirements
Power
Consumption Range dependent – normally less than 10W 3A internal fuse
Technical specication

18 | BSM-2 Installation manual
Sonar Specications
Frequencies Broadband Frequencies
Transceiver High:
130- 210Khz; 40--60Khz
Broadband Frequencies
Transceiver Low:
40-60Khz; 25-45Khz-
Narrowband Frequencies
Transceiver High:
200Khz; 50Khz-
Narrowband Frequencies
Transceiver Low:
50Khz; 38Khz; 28Khz-
Transmitter
and Receiver
Type
Dual Broadband Tuned
receivers
Dual Tuned CHIRP
Transmitters
Pulse Length Range Dependent - to
70ms max CHIRP produces 5X better resolution
Impedance 3 taps Accommodates all narrowband
used on BSM-1, most Airmar
latest Broadband Transducers
and SIMRAD COMBI-C
Max. transmit
rate Range dependent – to 20Hz in shallow depths.
User selectable.
2X, 4X, 8X scroll speed available
Range scales 5, 8, 10, 15, 20, 30, 40,
60, 80,100,120, 150, 200,
250, 300, 400, 500, 600,
700, 800, 900, 1000,
1500, 2000, 4000, 6000,
8000, 10,000, 12,000,
15,000
NOTE: all numbers above
in ft.
Can be changed to
metrics in NSE/NSO/NSS
unit.
To 15,000 ft, 2500 fa, 4500
meters
Sees digital depth to 10,000’ with
Airmar R309 28-45Khz

BSM-2 Installation manual | 19
ENGLISH
Range control Auto/manual range with
zoom,
alternating dual frequency
display with CHIRP,
simultaneous with
narrowband
With Upper and Lower Limit
Zoom size Auto/manual x2, x3,
x4, x5, x6, x7, x8 (user
selectable)
DC Voltage Requirements
Voltage 10.7–32 VDC (for 12 or 24
VDC systems)
Interfaces
Network Ethernet 10/100 4 LED status indicators
