TWIN MOTOR UNDERMOUNT RANGEHOOD
INSTALLATION INSTRUCTIONS
Congratulations on your purchase!
Thank you for choosing a Sirius product.
SL926DLTM850 EAN #9351116002800
SL926DLTM1000 EAN #9351116002817
SL926DLTM1200 EAN #9351116002824
www.siriusbrand.com

2
The symbol on the product or on its packaging indicates that this product
may not be treated as house-hold waste. Instead it shall be handed
over to the applicable collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate
waste handling of this product. For more detailed information about
recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the
product. This appliance is marked according to the European directive
2002/96/EC on waste electrical and electronic equipment (WEEE).
BEFORE YOU INSTALL – please read
Sirius warranty covers only Sirius product. If you choose to install a non-Sirius branded accessory
such as flexible ducting, Sirius will only warrant the hood and motor. If installation is found to be
the cause of failure or issue then charges will apply for service and parts.
Flexible ducting is not permitted under any circumstances. Flexible ducting has been found to
increase noise levels, increase vibration and reduce airflow.
Sirius Semi-rigid or solid ducting can be used in lieu.
There is a range available to suit any application.
Ducting available at www.siriusbrand.com
6 Year Warranty when Sirius Ducting is used. Full replacement warranty on parts and labour.
See website for terms & conditions.
A reduction in the duct diameter from stated ducting size will void warranty.
If you are in doubt about the ducting, please contact Sirius on 1300 762 219 prior to installation
CAUTION
WARNING
The appliance must be installed and
connected to the power supply only by a
qualified technician.
• There shall be adequate ventilation of the room when the range hood is used at the same time as
appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the
room)
• The details concerning the method and frequency of cleaning
• There is a fire risk if cleaning is not carried out in accordance with the instructions;
• Do not flambé under the range hood;
• CAUTION: Accessible parts may become hot when used with cooking appliances.

3

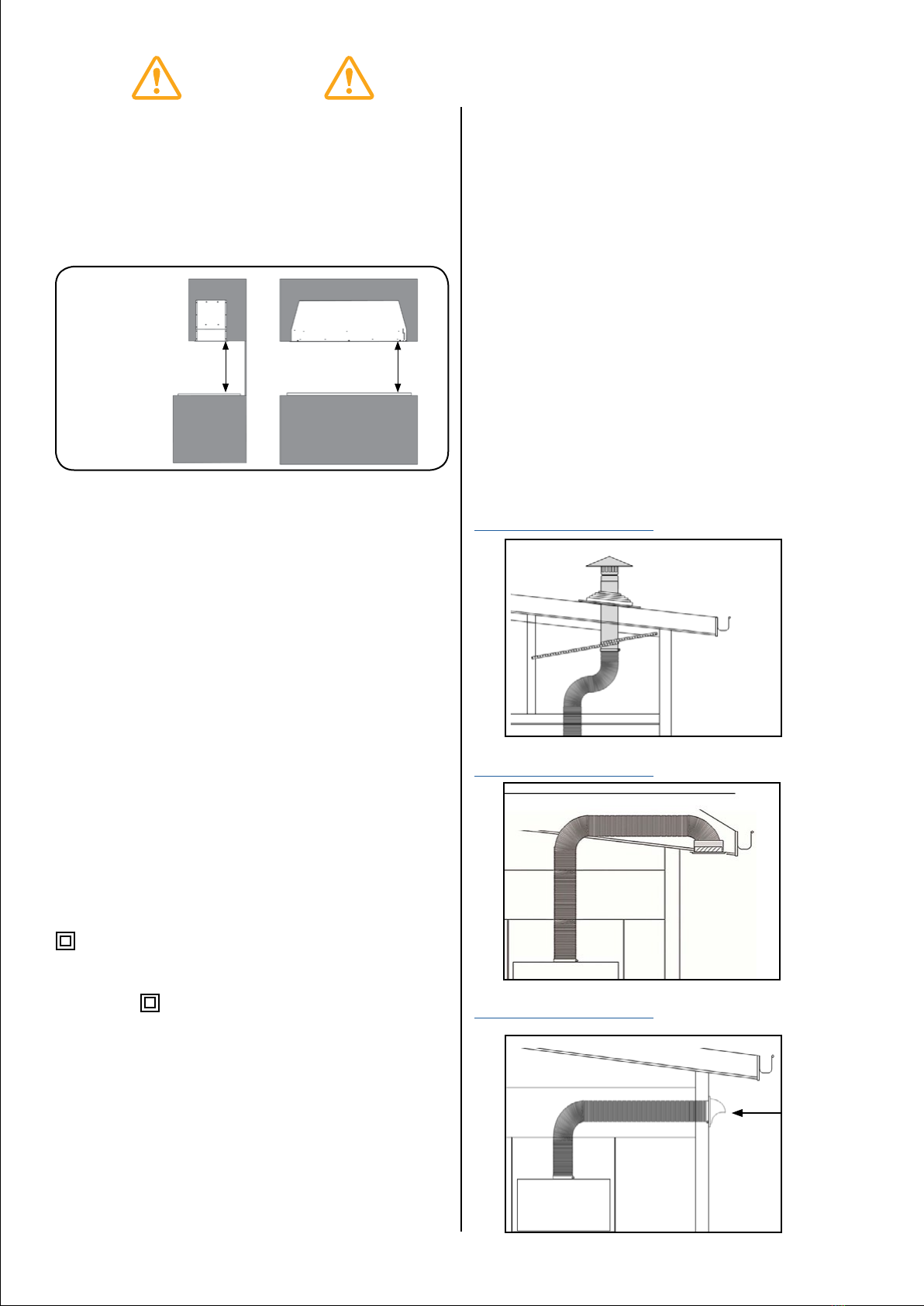

Min. 600mm - Max. 750mm for induction cooktops.
Min. 650mm - Max. 750mm gas cooktops.
If the rangehood is positioned above the max height
recommended, warranty may be compromised
as performance of the rangehood will be affected.
Measurement is taken from the top of the trivets to
the underside of the hood. (Fig.1)
• The air being drawn can’t be conveyed through
or into a duct used to let out fumes from
appliances fed by energy other than electric
power (eg. centralized heating, radiators, water
heaters, etc.).
• Attention: remove any possible PVC film from the
stainless steel, including the filters.
• To externally vent, please comply with the
pertaining rules given by competent authorities.
• Provide the room with an adequate ventilation
when a rangehood and appliances fed by energy
other than electric power (gas, oil, or coal stoves,
etc.) are used simultaneously. The rangehood,
when evacuating the air, could generate a
negative pressure in the room which can’t exceed
the limit of 0.04 mbar, in order to avoid the
suck of exhausts deriving from the heat source.
Therefore the room should be provided with air
intakes to allow a constant flow of fresh air.
If the rating label in the rangehood shows the symbol
, the appliance is built in class II° and it does not
need any earth connection.
If the rating label in the rangehood does not show
the symbol , the appliance is built in class I° and it
needs the earth connection.
When performing the electrical connections on the
appliance, please make sure that the current-tap
is provided with earth connection and that voltage
values correspond to those indicated on the label
placed inside the appliance itself.
Before carrying out any cleaning or maintaining
operations, the appliance needs to be switched off.
If the appliance is not provided with a non-separable
When ducting rangehood, options are as follows:
Roof vent - EASYROOF 200T/M
*Kit includes roof flashing
Download installation guide
Eave vent - EASYEAVE 200
Download installation guide
Wall vent - EASYWALL 200
Download installation guide
flexible cable and plug, or with another device
ensuring omnipolar disconnections from the grid,
with an opening distance between the contacts of at
least 3mm, then such disconnecting devices must be
supplied within the fixed installation.
If the fixed appliance is endowed with a supply cord
and a plug, the appliance has to be put in a place
where the plug can be reached easily.
The use of materials which can burst into flames
should be avoided in close proximity of the appliance.
When frying, please pay particular attention to fire
risk due to oil grease. Being highly flammable, fried
oil is especially dangerous. Do not use uncovered
electric grills. In order to avoid possible fire risk, all
instructions for grease-filter cleaning and for removing
eventual grease deposits should be strictly followed.
WARNING
600 - 750mm (induction)
650 - 750mm (gas)
600 - 750mm (induction)
650 - 750mm (gas)
(Fig. 1)
(Fig. 2a)
(Fig. 2b)
(Fig. 2c)
Dome
featured on
200mm kit
only
SIDE VIEW FRONT VIEW

4
To install the appliance please respect the follow
instructions:
• The appliance must be installed by qualified
technicians, or where possible use a Sirius
recommended installer. See siriusbrand.com. In
order to avoid damage to the electronic parts
of the appliance, please do not use additional
screws.
• Essential precautions to respect before installing
the appliance are the following:

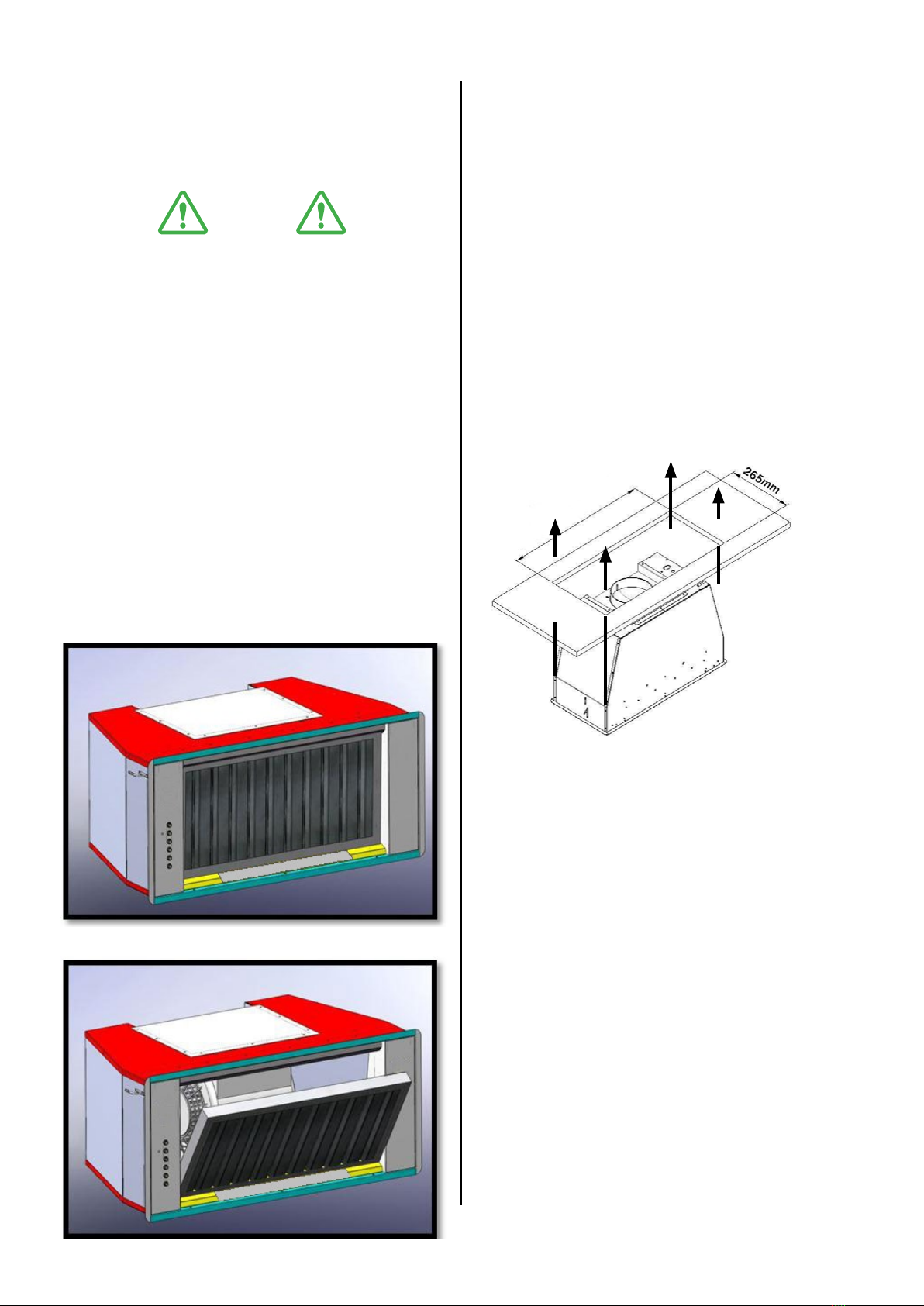

To have made a cutout on the bottom of the
cabinet which is suitable to hold the appliance in
position (fig. 4):
SL926DLTM 850 - 835 x 265mm
SL926DLTM 1000 - 985 x 265mm
SL926DLTM 1200 - 1100 x 265mm
SL926DLTM series INSTALLATION -
ONBOARD
Before installing the appliance, make sure that
none of the parts are damaged in any way. In
case of damaged parts, contact your retailer
and do not proceed with installation. Read all
of the following instructions with care before
installing the appliance.
• Use ducting within the min/max specifications
• Limit the number of ducting bends.
• Do not make any changes in ducting diameter
(recommended constant diameter: Ø 200 mm or
equal surface area).
Before installing the appliance - in order not to
damage the appliance itself - the metal grease filter
should be removed. These filters could be removed
by pushing the handles towards the back side of the
rangehood and pulling it downwards to unfasten it
from its slot. (Fig.3).
NOTE
(Fig.3a)
(Fig.3b)
(Fig.4)
1. Prepare the power supply - 240 volts.
2. Prepare a hole for the exhaust - 210mm for twin
motor versions.
• Do not use screws to fix the ducting to the
rangehoods as they will prevent the movement of
non-return valves.
• Limit the number of elbows in the ducting, since
each elbow reduces the duct efficiency by 1
metre. (i.e. if you use two 90° elbows, the length
of ducting must not exceed 5 metres.)
• Avoid abrupt direction changes.
• Use 200mm constant diameter for the whole
length for the twin motor rangehood.
• The use of Sirius ducting will increase the
warranty of the unit to 6 years.
WARNING: Failure to install the screws or fixing
device in accordance with these instructions
may result in electrical hazards.

5
CAUTION
WARNING
(Fig.5)
(Fig.6)
27mm

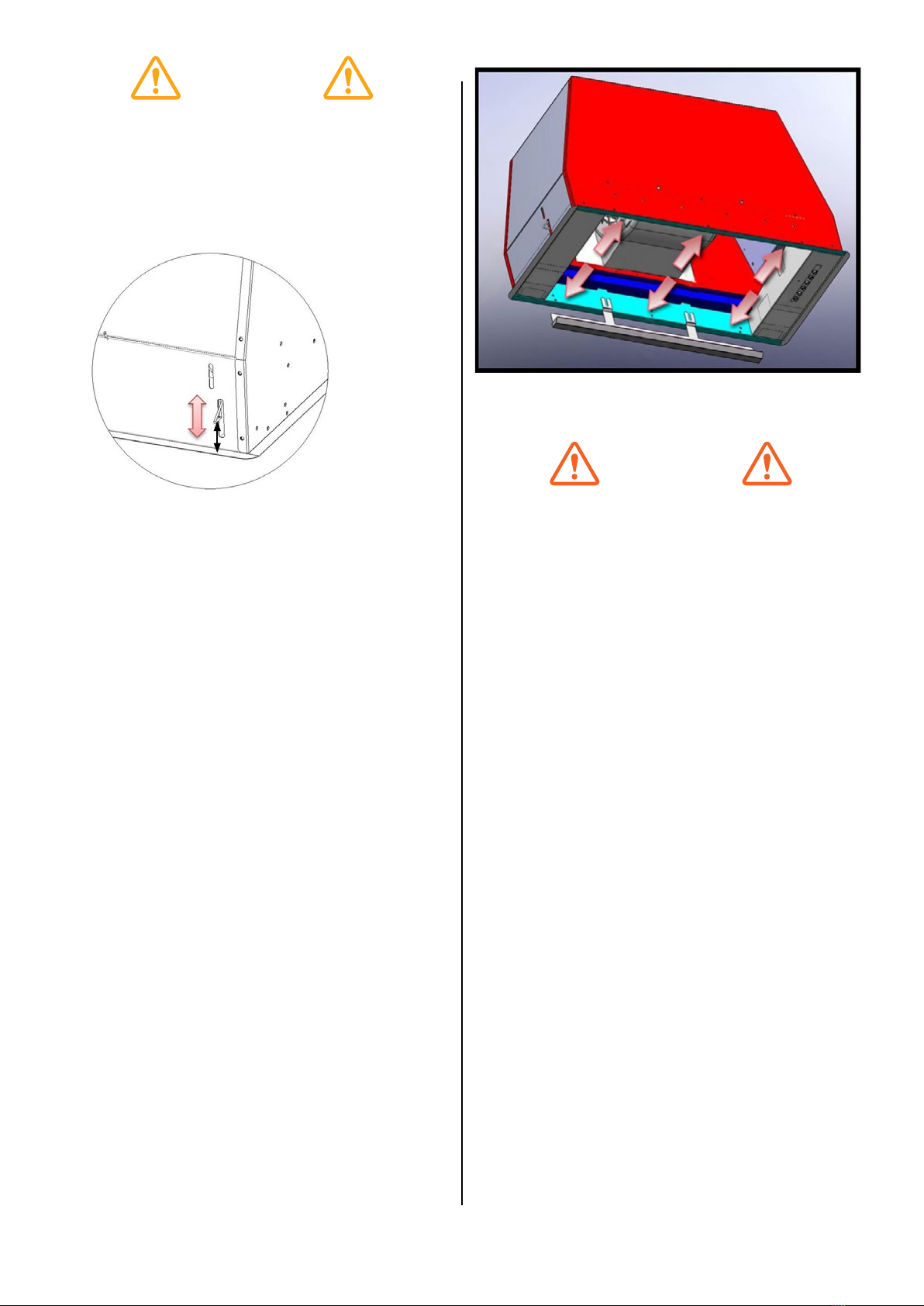

The rangehood is quite heavy, so two people
will be needed for installation.
1. To install the appliance, adjust the position of the
adjustable side-springs using the supplied screws
(fig.5), according to the thickness of the board, in
which the appliance will be fixed.
2. Insert the rangehood into the cutout in the
cabinet until the stop click of the side-springs is
heard and the rangehood is supported.
3. Insert the 25mm screws provided into the holes
inside the rangehood (Fig.6) to fix it to cabinetry.
4. Insert the grease channel.
5. Insert the grease filter (Fig.3b)
Before connecting any ducting to the motor,
make sure the non-return valves - which are on
the air outlet of the motor - can swing open.
External venting
• Connect the flange to the exhaust hole with the
appropriate ducting. Connect the rangehood with
the electrical mains through the supply cord.

6
If the supply cord is damaged, it must be
replaced by the manufacturer or its service
agent or a similarly qualified person in order to
avoid a hazard.
REPLACING THE LED LIGHT ON THE
SL 906-L
1. Before replacing the LED light, switch off the
rangehood, then - by using appropriate tools -
remove the LED light from its slot (fig.12).
2. Take out the LED light from its connector and
replace.
• To find the correct LED light, please contact Sirius
directly on our toll-free number: 1300 762 216.
• Accurate maintenance guarantees good
functioning and long-lasting performance.
• Particular care is due to the grease filter panel. It
can be removed by pushing its handle toward the
back side of the rangehood and pulling the filter
downwards so to unfasten it from its slot (Fig.3).
To insert the filter just perform the opposite
operation.
• After 30 hours of operation, the push button
control panel will flash, signaling the filters are due
for cleaning. Press the timer button to reset.
The grease filter needs cleaning by regular
handwashing or in dishwashers every two
months at least, depending on its use.
Filters may require cleaning sooner if
frequent heavy frying is done.
• To clean the appliance itself, water and detergent
are recommended, while abrasive products
should be avoided. For steel appliances
specialized detergents are recommended (please
follow the instructions indicated on the product
itself to obtain the desired results).
To remove the rangehood from the cabinet,
remove the fixing screws (fig. 6) using a
screwdriver, and remove the grease filters
(fig.3).
• Push down on the small handle of the springs,
which are inside the rangehood, with the
necessary strength to unhook the hood from the
cabinet.
MAINTENANCE
WARNING
NOTE
SL926DLTM
A: Light switch on/off
B: Motor switch on speed 1/off - (low/simmer)
C: Motor switch on speed 2 - (general cooking)
D: Motor switch on speed 3 - (high power)
E: Motor switch on speed 4 - (booster)
F: 10 minute shut-off timer
OPERATION
(Fig.12)
(Fig.11)
• NB: light is easier to remove from centre of
LED globe. Use a small, flathead screwdriver
(pictured), pallette knife or blunt butter knife.

7

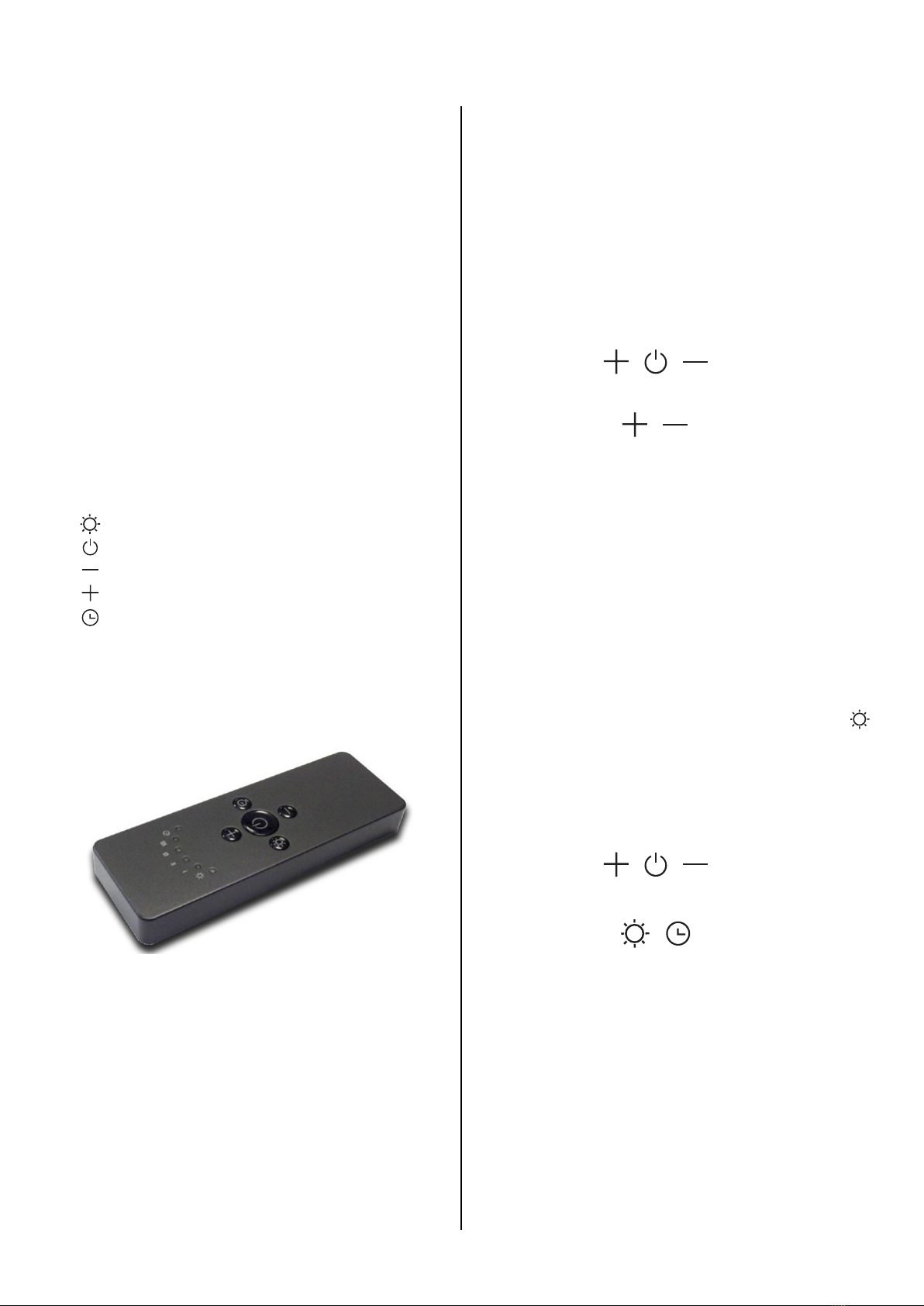

SL926 DL
Working:
6 channel control for rangehood remote.
• When the rangehood is first turned on, hold the
lighting button for 5 seconds.
TECHNICAL DATA
• Alkaline battery powered: 12 V mod. 23 A
• Operating frequency: 433.92 Mhz
• Combinations: 32.768
• Max. consumption: 25 mA
• Operating temperature: -20 ÷ + 55 °C
• Dimensions: 120 x 45 x 15 mm.
OPERATING THE REMOTE
The transmitter is equipped with 5 buttons as
specified below:
: Light ON/OFF.
: Motor ON (speed level 1) / OFF.
: Reduce speed.
: Increase speed.
: 10-minute shut-off timer.
DEFAULT OPERATING CONDITION
The manufacturer supplies the remote control unit
ready to be used with codes preset in the factory.
REMOTE CONTROL OPERATION MODE
Standard configuration:
Standard configuration requires all rangehood remote
control systems to be provided with the same
transmission code. In the event two rangehoods are
installed in the same room or nearby, each system
may affect the operation of the another. Therefore,
the code of one remote control system must be
changed.
Generating a new transmission code:
The system is provided with preset codes. Should
new codes be required, proceed as follows: Press
simultaneously buttons:
for two seconds. When LEDs are on, press buttons:
(within 5 seconds). The LEDs flash 3 times to indicate
the procedure is completed.
WARNING! This operation deletes permanently
the preset codes.
Learning the new transmission code.
Once the transmission code is changed in the
remote control unit, the electronic central unit of the
rangehood must be made to set the new code in the
following way:
Press the red main power-off button of the hood
and then restore power to the electronic control unit.
Within the next 15 seconds, press the Light Button
to synchronise the central unit with the code.
Reset of the Factory configuration:
To restore the Factory configuration, follow the
procedure described below: press simultaneously
buttons:
for 2 seconds. When LEDs light on, press buttons:
(within 5 seconds). LEDs flash 6 times to indicate the
procedure is completed.
WARNING! This operation deletes permanently
the preset codes.
Emergency button:
In the event that the remote control does not work,
use the emergency button to switch the appliance
off. After any necessary repairs have been performed,
reset the emergency button.

8
WARNING
The battery should be replaced every year to
guarantee the optimal range of the transmitter. To
replace the battery, take the plastic lid off, remove the
battery and replace it with a new one, making sure it
is placed the correct way.
Used batteries should be discarded in special
collection bins.
NOTE: The removal of the battery may cause
the remote frequency to lose transmission with
the rangehood. Follow the procedure on page 8
of the manual to generate the new code if this
occurs.
The below product:
RC001 Remote Controls complies with the
specifications set out in the Directive RED 2014/53/
EU.
WARNING
Any adjustments or modifications which have not
been expressly approved by the holder of the legal
conformity certificate may invalidate the user’s rights
relating to the operation of the device.
The products are fitted with an electronic device
which swicthes off the unit after 4 hours from the
remote or manual buttons being used.
DIMMABLE LIGHT FUNCTION
This function provides for lights dimmability, ranging
from 20% to 100%, by holding down light key on the
remote control or rangehood buttons.
Functions are the following:
- rangehood light off- shortly press the key - light on
a 100%
- light on at 100% - shortly press the key - light off
- light on at 100% - hold down the light button
to reduce brightness.
- releasing the key during reduction, or increase -
light keeps the luminous intensity reached.
- Light on - dimmed - hold down the light button to
increase brightness.
COLOUR TEMPERATURE SETTING (KELVIN)
Make sure that the lights and the fan are off. Holding
down the TIMER key will turn on the light at the
previously set colour temperature.
Press the TIMER key again. As long as the key
is kept pressed, the colour temperature is changed
from warm to cool, just leave the light key to select
the desired colour. Exit the colour temperature
selection function by pressing the ON/OFF key.
‘BI-POWER’ FUNCTION
The new Smart-Switch BI-POWER feature is
designed to offer the user a rangehood with the
option for significant energy saving and noise
reduction, specifically for cooking that does not
require high-powered extraction performances.
Activating the BI-POWER feature increases the
airflow power of the hood for when a more powerful
extraction is required.
To activate the Bi-Power function, select a speed
on the rangehood by pressing one of the buttons,
and then hold that same button for 3 seconds. You
should be able to hear the rangehood motor power
change. To disactivate the function, press and hold
the current speed setting for 3 seconds.

9
THE SIRIUS APP
DOWNLOAD SIRIUS APP FOR ANDROID
1. Open the Google Play Store App
2. Search or browse for SIRIUS App.
3. Select it.
4. Tap to Install.
5. Follow the onscreen instructions to complete the
transaction and get the content.
You can change what language is displayed when
you visit Google Play on your computer by changing
your Google Accounts settings.
Note: Apps are designed for use with supported
Android and Chromebook devices and can’t be used
on Windows or Mac computers.
DOWNLOAD SIRIUS APP FOR iOS
Notes:
• After requesting an app, you may be asked to
verify your identity by entering your passcode or by
using Touch ID or Face ID.
• The steps below don’t apply to the iPhone 5c,
iPhone 5, iPhone 4s or the iPhone 4.
1. Open the App Store
• To install apps, you must sign in with your Apple ID
or create one.
2. To browse the App Store, tap Apps (at the bot
tom).
3. Tap Search (at the bottom) then enter SIRIUS App.
4. Tap the app.
5. Tap GET then tap INSTALL.
• If you have a compatible iPhone with Face ID
enabled, double-tap the Side button then look at the
screen to authenticate.
6. If prompted, sign in to the iTunes Store to
complete the install

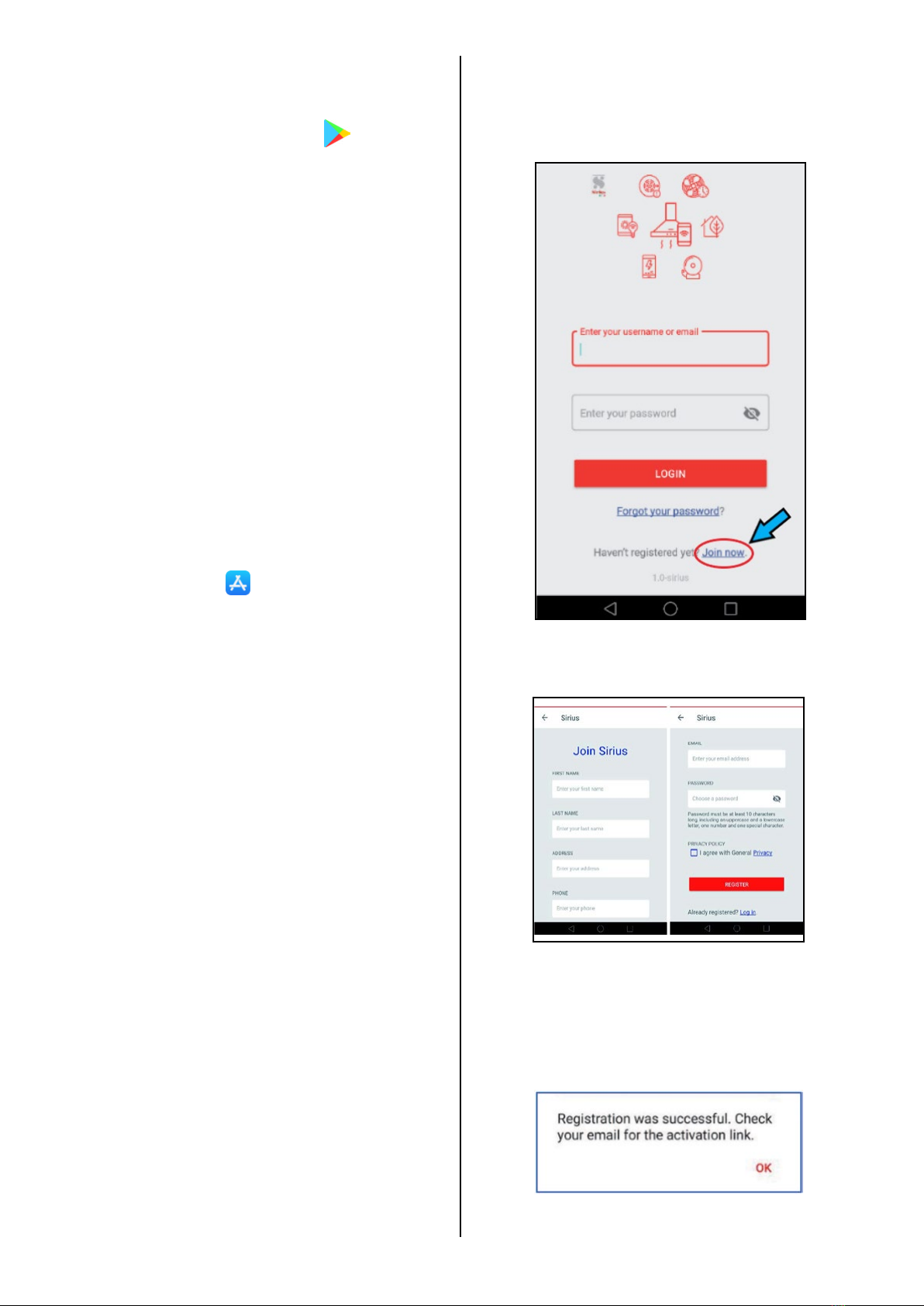

CREATE YOUR ACCOUNT ON SIRIUS APP.
1. From Home App, Tap on Join now.
2. Insert your account data
Tap Agree with General Privacy and tap on Register.
3. If all instructions are done correctly a Popup
message “Registration was successful. Check
your email for the activation link” appears.

10
4. Go to your e-mail address and Confirm your
account.
Note: We’ll send the email from
[email protected], so you can quickly
search for it. If it isn’t in your inbox, check your
folders. If a spam filter or email rule moved the email,
it might be in the Spam, Junk, Trash, Deleted Items,
or Archive folder. If you didn’t find yet please create
another account.
5. From Login page Insert the e-mail and password
of your account and tap LOGIN.
Fast way using the WPS procedure, if your router has
no WPS button, please follow the next instructions.
PAIRING WPS MODE
1. After Login Tap the App Menu (top left) and
select DEVICES.
PAIRING YOUR PRODUCT
Note: If you forgot your password, tap on Forgot
your password? insert your e-mail address and tap
Send me a Link.
2. Tap ADD NEW DEVICE.

11

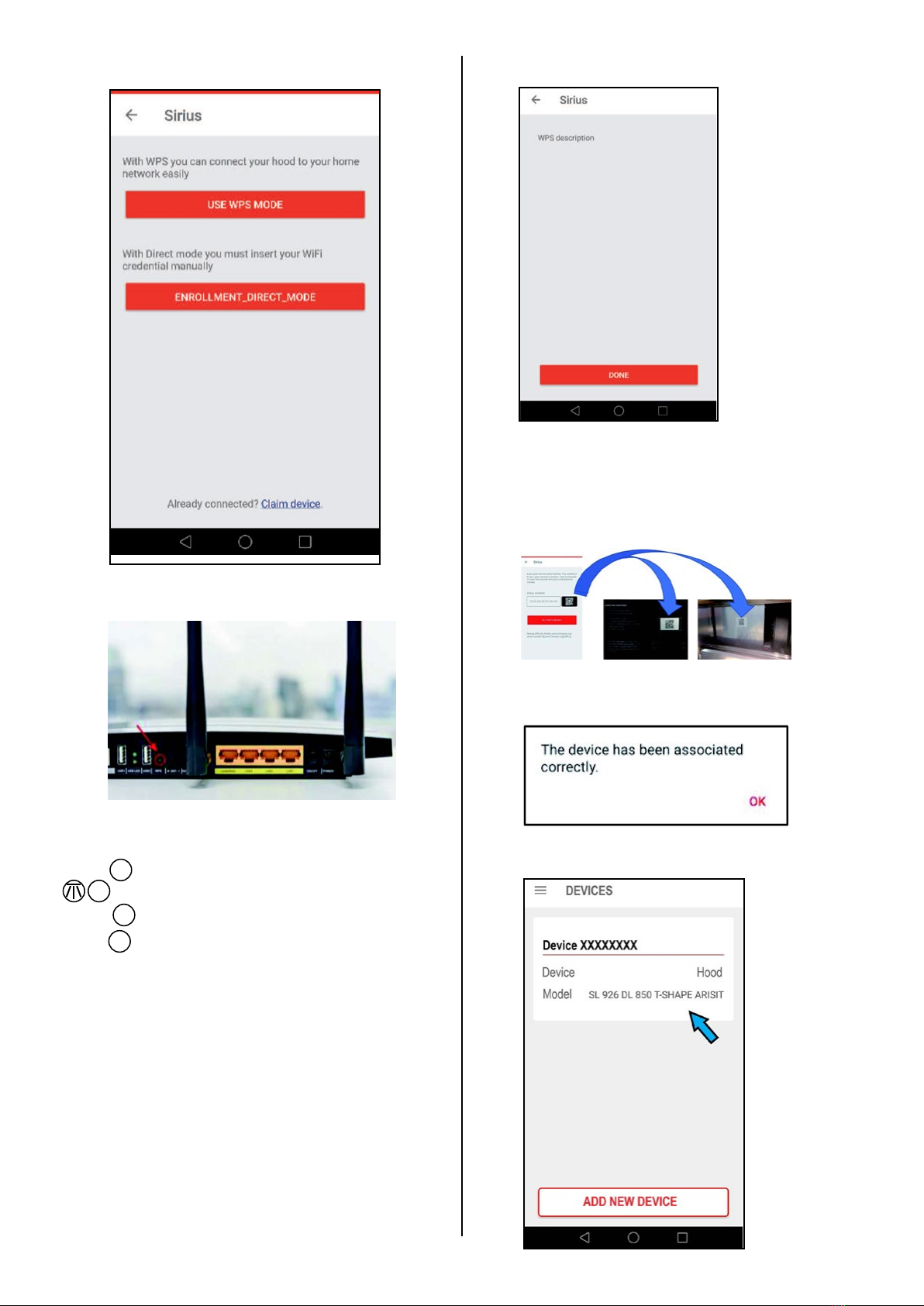

3. Tap USE WPS MODE.
4. On your Router WI-FI press WPS button.
6. Press DONE on WPS description.
7. Use the QR code reader to connect the product
with the App, using the label on the brochure or using
the label located inside the product, found on the
motor when you remove the grease filters.
8. Press ACTIVATE DEVICE and you have a pop-up
message.
8. Tap the device icon. Enjoy your device.
5. On your range hood:
• Switch off completely (light and motor)
• Hold button for 3 sec for settings menu
( LEDs will flash)
• Press button to enable WPS pairing.
• Hold button for 3 sec to save.
Note:
If buttons are not pressed within 10 secs the system
automatically exits from settings menu and all
unsaved operations will be discarded.
01
01
2
01

12
PAIRING MANUAL MODE
1. After Login Tap the App Menu (top left) and
select DEVICES
2. Tap ADD NEW DEVICE
3. Tap ENROLLMENT_DIRECT_MODE
5. Tap OPEN SETTINGS
4. ON YOUR RANGE HOOD:
• Switch off completely (light and motor)
• Hold button for 3 secs for settings menu
( LEDs will flash)
• press button to enable manual pairing
• Hold button for 3 sec button to save.
Note:
If buttons are not pressed within 10 secs the system
automatically exits from settings menu and all
operations unsaved will be discarded.
01
01
3
01

13

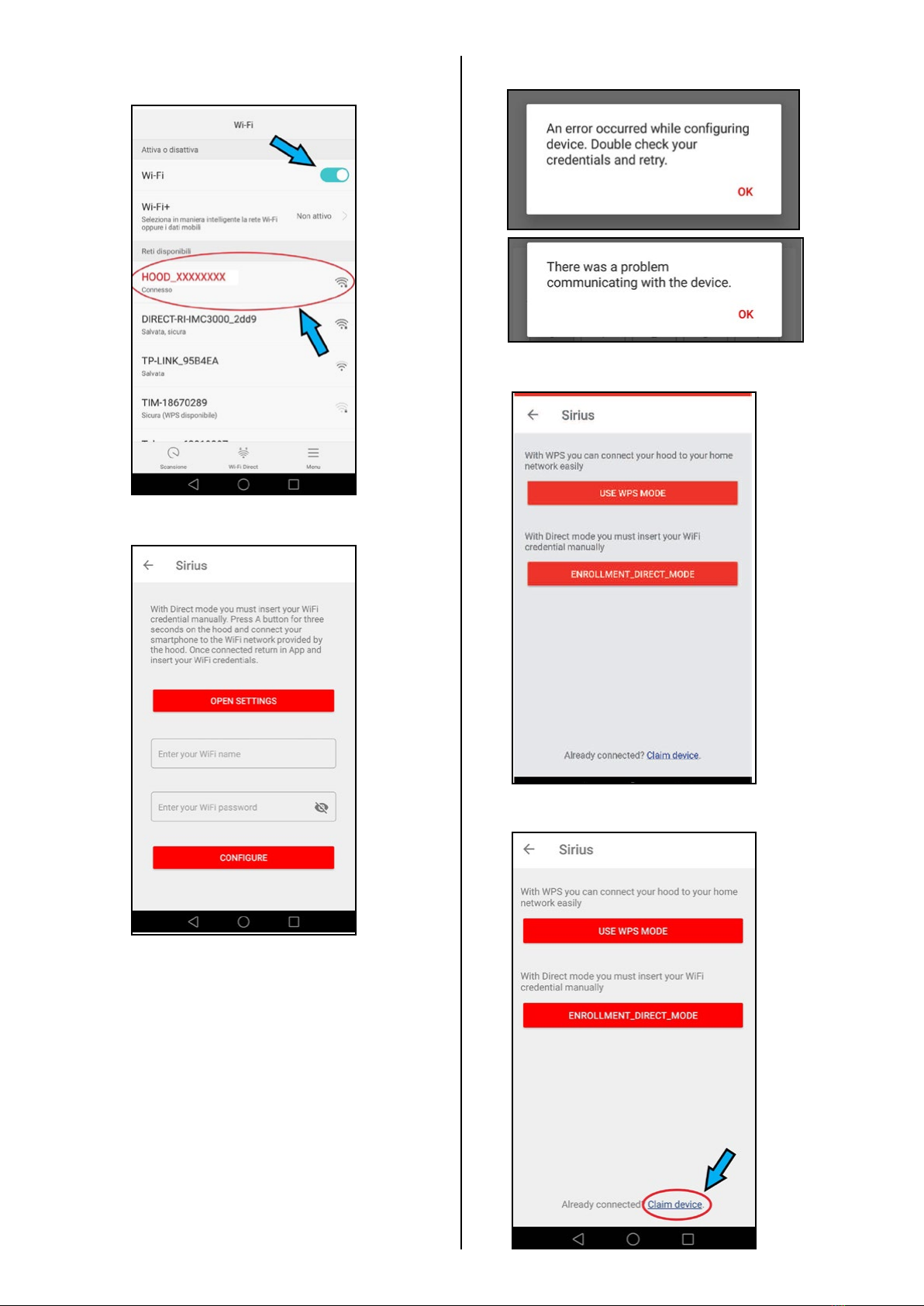

6. Connect to “HOOD network” inserting as
passwork “password”.
7. TURN BACK
8. ENTER WI-FI NAME AND WI-FI PASSWORD
9. TAP CONFIGURE
10. In case of following error
Go back to the home page.
TAP “Claim Devices”.

14
11. Use the QR code reader to connect the product
with the App, using the label on brochure or using the
label located inside the product, visible by removing
the grease filters.
12. Connect your mobile to your home Wi-Fi
Router network.
13. Press ACTIVATE DEVICE and you have a
pop-up message.
14. Tap the device icon. Enjoy your device.
REMOVE ONE DEVICE FROM APP
1. After Login Tap the App Menu (top left) and
select DEVICES
2. On DEVICES slice your device on left and tap
Remove.

15

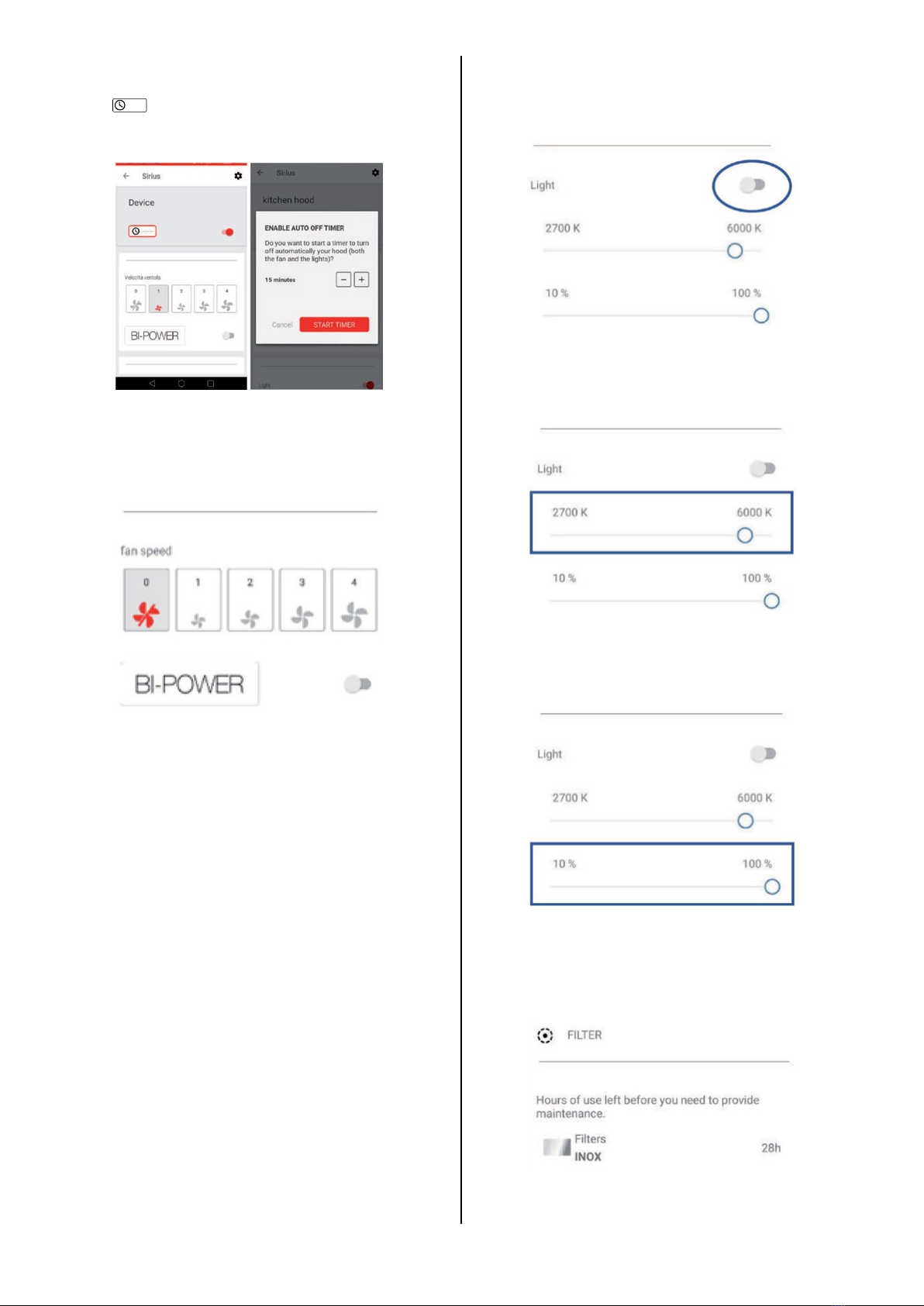

FUNCTIONS
Timer
Tap on and set the minutes for shutting down
the device.
Fan speed
Tap on the speed you want, select ‘0’ for switching
OFF.
BI-POWER
The BI-POWER function allows reducing the
performance of the fan, if the maximum efficiency of
the product is not required.
LIGHT
Slide the toggle switch for switching ON/OFF.
Slide the scrollbar for setting the colour
temperature (°K)
Slide the scrollbar for lights dimmability, ranging
from 10% to 100%.
FILTERS CLEANING
-:-:-

16
RENAME DEVICE
Tap on and rename device.
SHARE DEVICE
Tap on and share device only to subscribed
account.

17

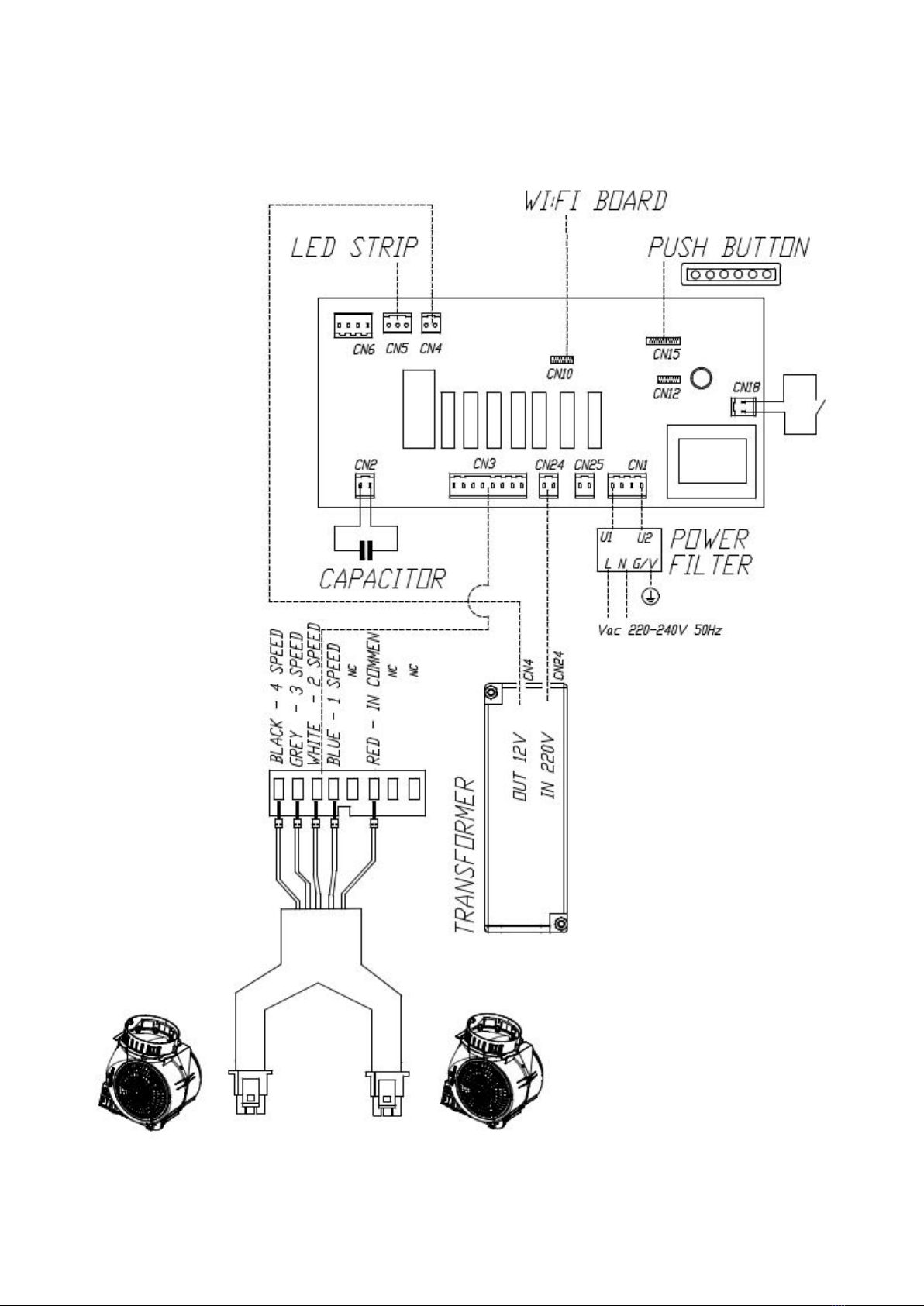

WIRING DIAGRAM: SL926DLTM

18
NOTES

19
NOTES

20
ARISIT PTY LIMITED (Australia)
ABN 23 091 515 294
40-50 Mark Anthony Drive
Dandenong South VIC 3175
P: Sales & Service: 1300 762 219
F: Sales & Service: [phone]
E: [email protected]
ARISIT PTY LIMITED (New Zealand)
1A Howe Street Newton, Auckland 1145
PO Box 68-140 Newton, Auckland 1145
P: [phone] - Fax: [phone]
E: [email protected]
Sirius Hoods and ducting products are only available
from our select group of Sirius Professional Stockists
nationwide. For the latest list of Sirius Stockists
near you, please refer to www.siriusbrand.com
All efforts have been made to ensure that the
information provided in this brochure is correct at
the time of printing. Due to continuous product
improvement and ongoing development, Sirius
reserves the right to make changes to the
products and technical data without prior notice.
Some products appearing in this brochure may
be for illustrative purposes only. Diagrams are
indicative measures only. Prior to commencing
cabinetry cutouts the operating/installation
instructions accompanying the product must
be referred to at www.siriusbrand.com
www.arisit.com
www.arisitwarranties.com.au
www.siriusbrand.com
when Sirius ducting is used.
Full replacement warranty on parts and labour. Check website for T&Cs.
Year
Warranty
