S-DDH1.1 INDUCTION DOWNDRAFT
INSTALLATION AND OPERATION MANUAL
Congratulations on your purchase!
Thank you for choosing a Sirius product.

2
DEAR CUSTOMER
The built-in induction cooktop is intended for household use only. Materials used for packaging are nature
friendly and may be recycled, deposited or destroyed without any threat to the environment.
In order to recognize these features, all packing materials are marked with relevant symbols.
When you plan to replace your rangehood, deposit your old appliance with the authorized depot dealing with
used household appliances.
INSTALLATION
Instructions for use have been prepared for the user, and describe the particulars and handling of the
appliance. These instructions apply to different models from the same family of appliances, therefore you may
find information and descriptions that may not apply to your particular appliance.
INSTALLATION INSTRUCTIONS
He appliance should be connected to the power supply in accordance with the instructions from the chapter
“Electrical connections” and in line with the standing regulations and standards. The connections should be
carried out by a qualified personnel only.
FIRE HAZARD PROTECTION
Appliances are allowed to be mounted on one side next to a high kitchen cabinet, the height of which may
exceed that of the appliance. On the opposite side however, only a kitchen cabinet of equal height as the
appliance is allowed.
The symbol on the product or on its packaging indicates that this product
may not be treated as household waste. Instead it shall be handed
over to the applicable collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate
waste handling of this product. For more detailed information about
recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the
product. This appliance is marked according to the European directive
2002/96/EC on waste electrical and electronic equipment (WEEE).

3
IMPORTANT WARNINGS ABOUT THE COOKING HOB
IMPORTANT WARNINGS ABOUT THE DOWNDRAFT
TECHNICAL DRAWING
INSTALLATION SEQUENCE
INSTALLING THE INDUCTION DOWNDRAFT
DUCTING TO SEM 7 / SEM 8 MOTOR
(SIDE OR BOTTOM VENTING
DUCTING TO SEM 7 / SEM 8 MOTOR
(FRONT OR REAR VENTING
DUCTING FROM MOTOR TO WALL VENT

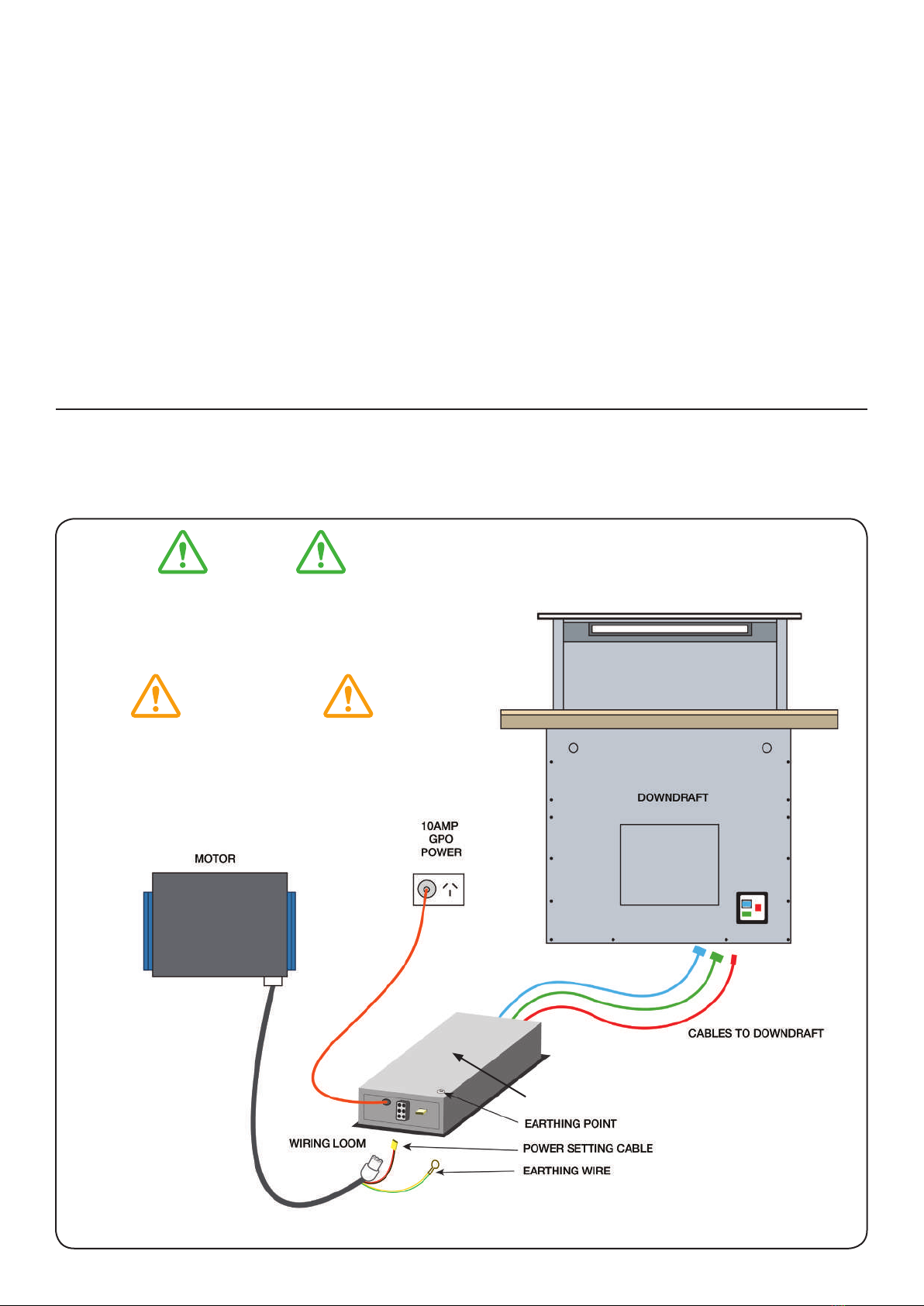

ELECTRICAL CONNECTION
CONNECTION TO THE POWER SUPPLY

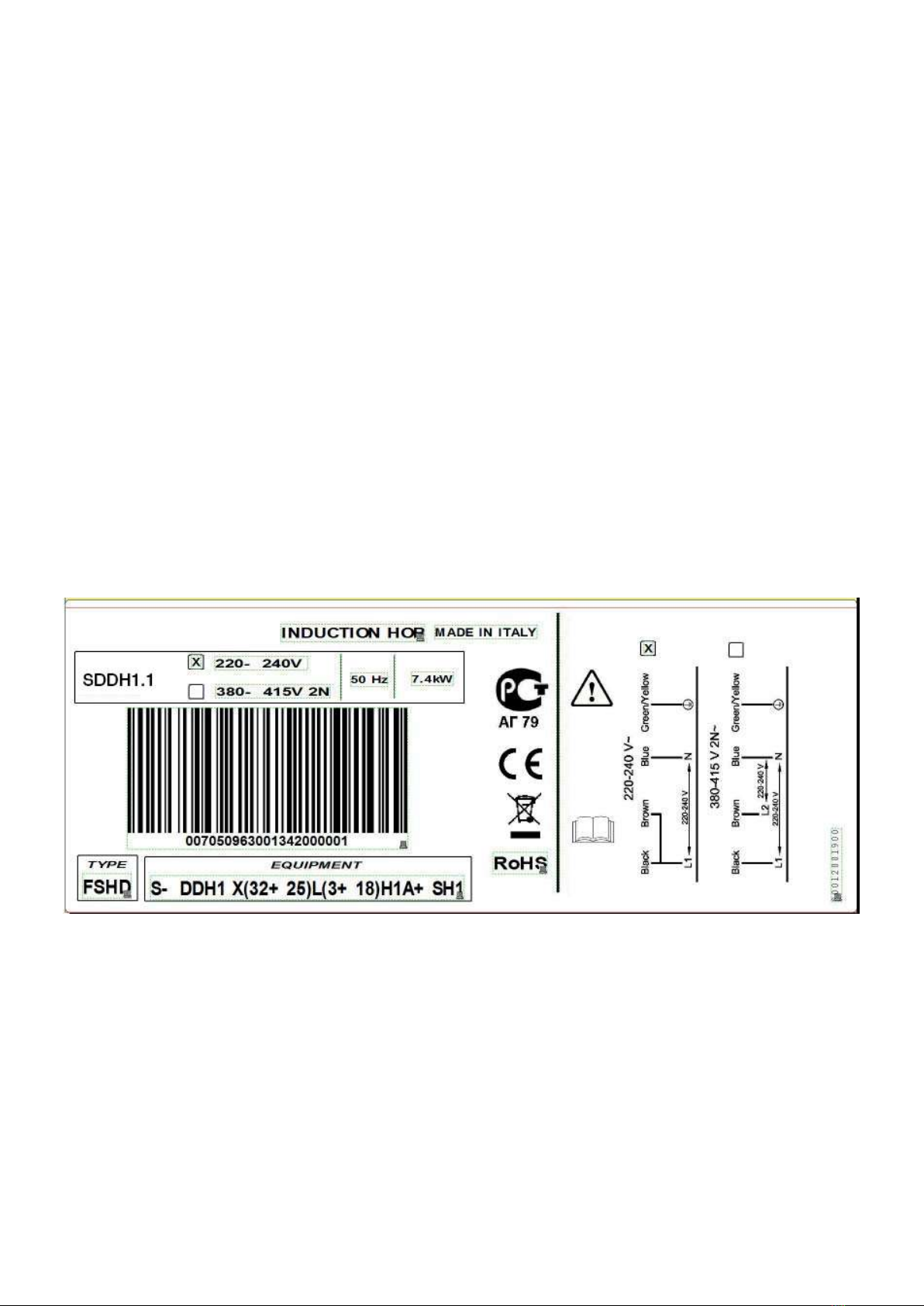

TECHNICAL INFORMATION

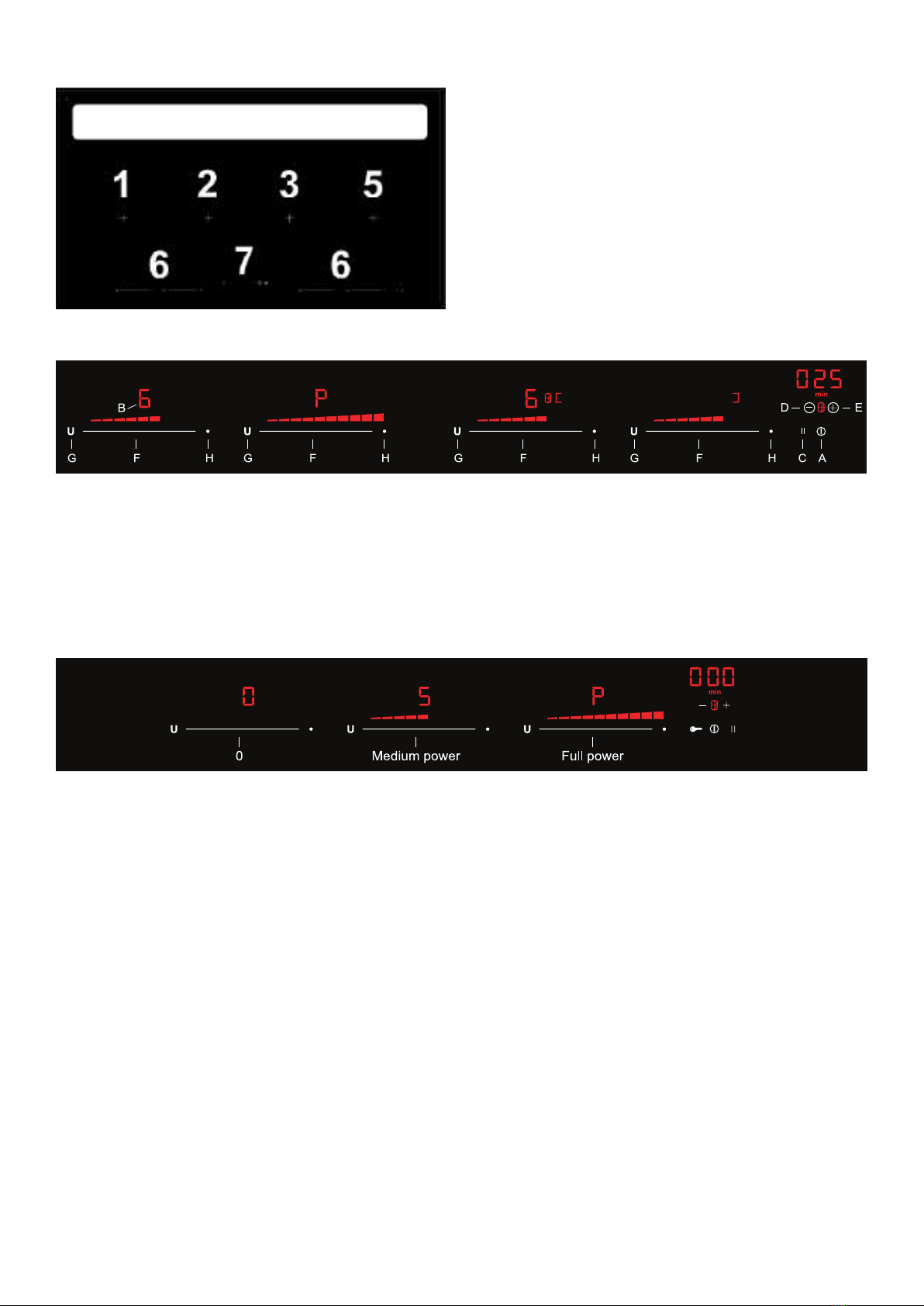

INDUCTION COOKTOP FUNCTIONS
SAFETY FUNCTION AND ERROR SIGNALS
CLEANING AND MAINTENANCE
USING THE DOWNDRAFT
ELECTRICAL CONNECTION OF THE DOWNDRAFT
FUNCTIONS OF THE DOWNDRAFT
CLEANING AND MAINTENANCE OF THE DOWNDRAFT
TROUBLESHOOTING
AFTER SALES SERVICE
INSTALLATION GUIDE
4
5
6
7
8
11
12
14
14
16
17
20
30
31
32
33
35
36
36
37
38

4
IMPORTANT WARNINGS
ABOUT THE INDUCTION COOKTOP
• The appliance may be installed and connected to
the power supply only by a qualified technician.
• Particular areas of the cooktop surface (adjacent
to the induction zones) are hot during operation.
• Hot oil ignites, so be sure to prepare food (such
as fries) under constant supervision.
• Induction zones may not be left in operation
empty, without any cookware on top.
• Never use the induction cooktop as a working
surface. Sharp objects may damage the cooktop.
• Never place any metal objects upon the induction
hotplate, such as knives, forks, spoons, pot lids
etc., as they may get very hot.
• Preparation of food in aluminium or plastic
cookware is not allowed. Never place any plastic
objects or aluminium foil upon the cooktop
surface.
• In case any other appliances are plugged in the
electric mains close to the cooktop, prevent the
plug cable from connecting with the cooking
zones.
• Never store any flammable objects or chemicals,
like cleaning agents, sprays, detergents, etc.,
below the appliance.
• Never use cracked or broken ceramic glass
cooktop. In case you notice any visible cracks on
the surface, cut the power supply immediately.
• In case of any malfunctions, disconnect the
appliance from the power supply and call service
department.
• Do not use high-pressure steam cleaner or hot
steam to clean the appliance.
• The appliance is manufactured in compliance
with the relevant effective safety standards.
• The appliance is not intended for use by children
• The hob can not be activated by external timers
or remote controls systems.
• Be careful not to drop objects or crockery on the
induction surface. Even light objects (e.g. a salt
shaker) can crack or damage the cooktop.
• If the appliance is built in over an oven with a
pyrolytic system, it should not be operated while
the pyrolytic process is in progress because it
can trigger the overheating protection of the
cooktop.
• Don’t connect the hob to the power supply
with an extension cable or multiple sockets,
because they don’t assure a sufficient safety (e.g.
overheating risk of multiple sockets).
• After using the cooktop, remove all cookware
from the cooking surface. Do not rely on the pot
detector.
• Connect the power cable to a permanent
connection.
• Stationary appliances not fitted with means for
disconnection from the supply mains having a
contact separation in all poles that provide full
disconnection under overvoltage category III, the
instructions state that means for disconnection
must be incorporated in the fixed wiring in
accordance with the wiring rules.
• If the glass is broken, please disconnect not only
the supply chain of the cooking appliance but
that of the downdraft also.
WARNING
WARNING
Unattended cooking on a hob with fat or oil can
be dangerous and may result in fire.
• NEVER try to extinguish a fire with water, but
switch off the appliance and then cover flame e.g.
with a lid or a fire blanket.
• If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid any
kind of hazard.
• You may also find these instructional materials on
the website of the manufacturer.
Fire danger: Do not store items on the cooking
surfaces.

5
IMPORTANT WARNINGS
ABOUT THE DOWNDRAFT
• It is designed to work in both ducted mode with
outside evacuation, and recirculating mode.
• These hoods have been designed for personal
use in the home. The appliance must be used
by adults. Make sure that the appliance is out of
reach of children. Make sure that children do not
operate the controls.
• When the appliance is delivered, check the overall
appearance of the packaging.
Any remarks should be written on the delivery
coupon, of which you keep a copy.
Your appliance is designed for normal domestic
use. It is not designed for commercial or industrial
use, or for purposes other than those for which it
was designed.
• Any consequences of or damage from incorrect
installation or incorrect use of the appliance will
not be covered by the manufacturer’s guarantee.
• Do not ever change or try to change the
characteristics of this appliance. This would be
a danger. Repairs must be performed only by an
authorised technician.
Always disconnect the hood before carrying out
cleaning or maintenance operations.
• Adequately ventilate the room when a cooker
hood and other appliances, powered by energy
other than electricity, are used simultaneously,
so that the hood does not suck any combustion
fumes.
• It is not allowed to cook food over open flames
(flambé) or operate gas hobs without pots
or pans on them under the hood itself (the
flames sucked into the hood might damage the
appliance).
• Frying with oil must be done under constant
supervision as hot oils and fats may ignite
• Respect the guidelines for cleaning and
replacement of grease filters. Accumulated
deposits of grease are a fire hazard.
• Never use steam or high-pressure devices
for cleaning your hood (regulations regarding
electrical safety).
• Never use the rangehood without the grease
filters.
• The minimum distance between the downdraft
(closed) and the surface above it must be at least
800mm.
• When handling the downdraft, never put your
hands in the field of action of the extractable unit.
• This appliance can be used by children aged
from 8 years old. Children shall not play with this
appliance. Cleaning and user maintenance shall
not be made by children without supervision
• NEVER try to extinguish a fire with water, but
switch off the appliance and then cover the flame
e.g. with a lid or a fire blanket.
• If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a
hazard.
• If the supply cord of the appliance is provided
with a hob, this must be easily accessible.
• You may also find these instructional materials on
our website: www.siriusbrand.com.
In the case of the version with external motor, for
normal downdraft operation, it is necessary to
use an external motor made by Sirius.
• Keep these instructions for use with the
appliance.
• If the appliance should be sold or passed on
to others, make sure that the instructions are
passed on with it.
• We thank you for taking note of these
suggestions before installing and using the
appliance.
• They have been written for your personal safety
and the safety of others.

6

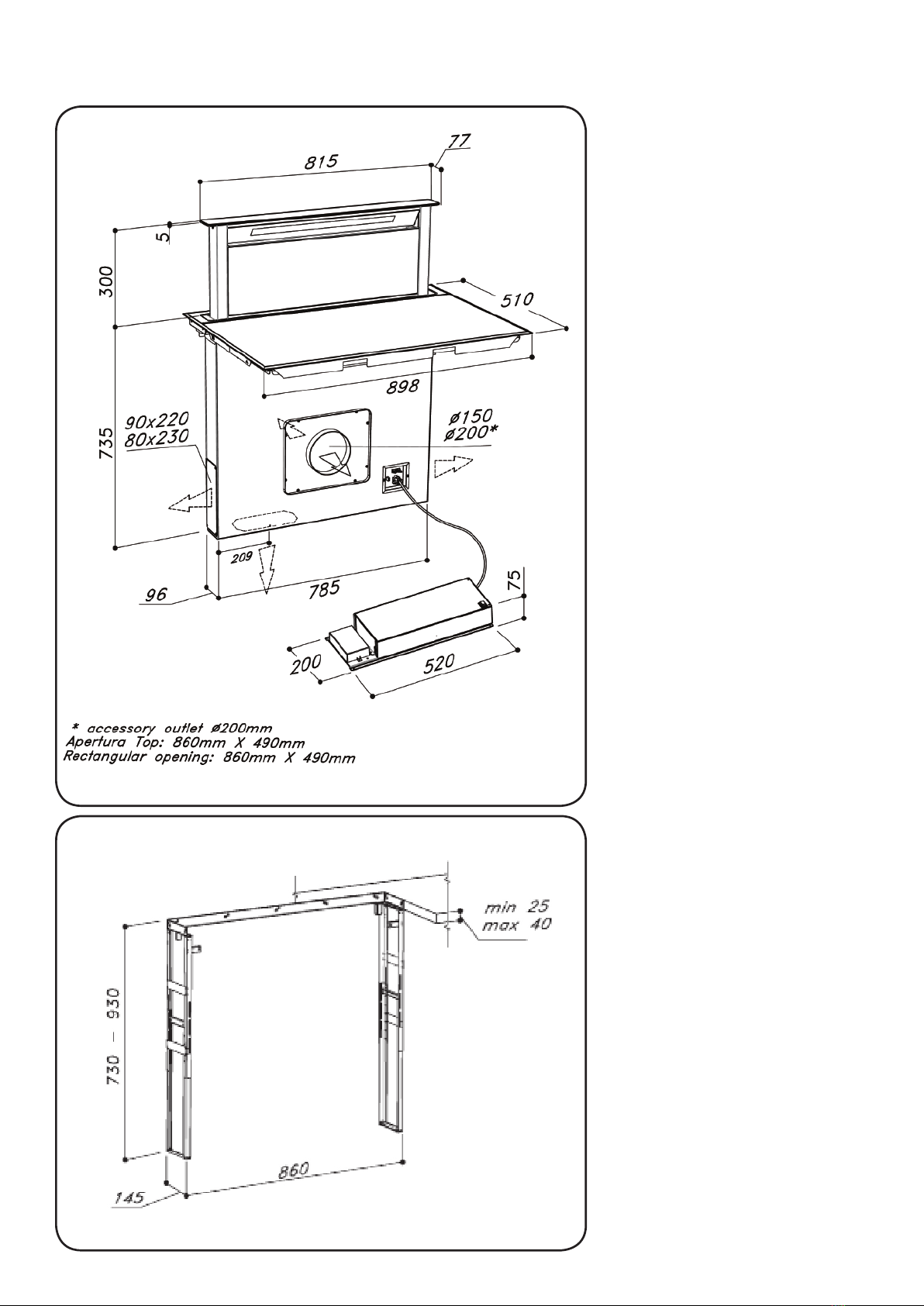

TECHNICAL DRAWING

7
INSTALLATION SEQUENCE
HOLE CUT FOR INSTALLING THE HOB
DOWNDRAFT INSTALLATION COOKING HOB INSTALLATION
INSERTION OF THE METAL INSTALLATION
STRUCTURE
Step 1
Step 3
Step 2
Step 4

8
INSTALLATION OF INTEGRATED
INDUCTION DOWNDRAFT
BUILT-IN INDUCTION HOB
OPENING DIMENSIONS
• The installation and the connection of the product
to the mains electricity must only be carried out
by qualified personnel.
• The kitchen unit into which the product is to be
installed must be realised in materials (including
adhesives and finishes) that are resistant to a
temperature of 100°C.
• After the installation, the product must be
accessible for any servicing requirements.
• Overhead cabinets must be a minimum of
800mm for installaton or removal of downdraft
section.
• The cornice of the worktop can have a thickness
greater than the worktop because an opening is
maintained in the front part of the kitchen unit of
at least 5mm (refer to design below) to ensure an
adequate passage of air to avoid overheating the
product.
• Before cutting the hole, check inside the kitchen
unit where the product will be housed to ensure
that there are no obstructions such as parts of
the unit’s structure or anything else that could
cause problems for a correct installation. Check
that the overall dimensions of the downdraft and
the cooking hob are compatible with the kitchen
cabinets so that the installation is feasible.
• Induction hob may be built into the 25 to 40
mm thick worktops.
S-DDH1.1
A 898mm
B 510mm
C 860mm
D 490mm
E 45
F 5
G 50
CAUTION

9
• A horizontal and vertical space of at least 20mm
from the lower surface of the cooking hob and at
least 20mm from the downdraft must be foreseen
so as to create a passage for the air necessary to
cool the product (refer to the above illustration).
• There must be an opening of at least 50mm the
whole width of the kitchen unit in the lower and
rear part of the furniture to allow for the passage
of air to avoid the product overheating.
• Ensure that the passage of air in the lower part of
the kitchen unit permits a constant flow of air to
cool the product, i.e., a vent in kicker.
• Fitting the oven underneath the cooking hob is
possible with fan-cooled ovens. Before installing
the oven, remove the rear wall of the kitchen
unit where the oven will be fitted into the kitchen
furniture.
There must also be a minimum aperture of 5mm
in the front part and above all in the lower part
of the kitchen furniture to ensure an adequate
passage of air necessary to cool the product.
PRE-INSTALLATION CHECKS
Connect all of the electrical components to the unit
and motor to make sure both the unit and the motor
are functioning properly.
(NOTE: The motor plug is fitted with a dummy
plug - with the exception of SEM1 motor - to
protect the connection from dust. Ensure the
red dummy plug is removed and replaced
with the two pin motor plug from the power
transformer box. Failure to do so will result in
only two speeds operating).
Before installing the product, check that all
components are not damaged. If any components
are damaged, contact the retailer and do not go
ahead with the installation.
Before installing the downdraft, remove the safety
spacer highlighted in the photograph
(Fig. 1, Page 38).
Furthermore, carefully read all the instructions as
follows:
• Utilise an air extraction duct that has a maximum
length of not more than 7 metres.
• Limit the number of curves in the duct because
each curve reduces the efficiency of the
extraction equal to 1 linear metre (E.g., if two 90°
curves are utilised, the length of the duct must
not exceed 5 metres in length).
• Avoid drastic changes of direction.
• Utilise a duct with a 200mm diameter along its
whole length.
• Utilise a duct that is manufactured from material
approved to the norm. The supplying company
will not respond to problems of flow capacity or
noise if there is a lack of respect of the previously
mentioned instructions and the guarantee will be
annulled.
1. Position the support bracket of the downdraft in
the rear part of the realised aperture (refer to Fig.
2).
2. The bracket must be positioned approximately
two/three millimetres from the upper surface of
the worktop, as shown in Fig.3.
3. Fix the support bracket of the downdraft to the
worktop by utilising the screws supplied in the
case of wood worktops. For worktops realised in
materials different to wood, utilise the appropriate
screws.
4. Utilise the upper and lower holes positioned in the
support bracket of the downdraft in accordance
with the thickness of the worktop into which the
product is installed.
5. Fix the two worktop reinforcement telescopic
structures to the lower sides of the support
bracket of the downdraft, as shown in Fig. 4.
6. After fixing the reinforcement structures, adjust
their telescopic travel so as to reach the base
underneath (Fig. 5). Fix the structure to the base
underneath utilising the screws supplied.
7. Check that the worktop is perfectly level then
block the travel of the structures utilising the four
self-threading screws, positioned as in Fig. 6.
8. Insert the downdraft into the installed support
bracket (refer to Fig. 7). The fixtures positioned
on the downdraft must coincide perfectly with the
support bracket installed in the kitchen unit (refer
to Fig. 8).
9. Install the cooking hob ensuring that the opening
at the rear of the product coincides perfectly with
the downdraft (refer to Fig. 9).

10
INSTALLING THE FOAM GASKET
Before installing the cooking hob in its appropriate
position in the worktop, apply the adhesive gasket in
expanded polyurethane supplied with the product to
the lower part of the cooking hob.
INSTALLATION PROCEDURE
WARNING
The gasket should be attached to the appliance in
the following way:
• Remove the protective film from the gasket.
• Then, attach the gasket to the lower side of
the glass, approximately 2-3 millimetres from
the edge.
• The gasket must be attached along the entire
length of the glass edge and should not over-
lap at the corners.
• When installing the gasket, make sure that
the glass does not come into contact with
any sharp objects.
• The worktop must be perfectly level.
• Place the cooking hob into the previously real
ised opening in the worktop.
• Press the induction hob down forcefully onto
the worktop, in correspondence to the edges
of the cooking hob.
• If the downdraft is not perfectly aligned with
the induction hob, adjust the alignment
screws (Fig. 10A) on the right and left of
the product. Screw in the screws to lift
the downdraft and unscrew to lower the
downdraft.
• Before the installation, the screws indicated
in Fig. 10B must be unscrewed as much as
possible so as to keep the downdraft near to
the rear part of the kitchen cabinetry.
• If the downdraft is not centred correctly with
the cooking hob after the installtion has been
carried out, utilise the adjustment screws Fig.
10B to shift is forwards by screwing in the
screws on both the right and left side of the
product.
1. Check that the downdraft inside the kitch unit
is perfectly vertical. FIx it utilising the brackets
supplied (Fig.11)
2. Permanently fix the downdraft utilising the
two screws indicated in Fig. 12
3. Connect the electrical cables of the
downdraft as shown in Fig. 13 and then carry
out the connection to the mains electricity in
accordance with the information reported on
the relative technical date plate.
Position the metal box containg the electronic
components in an easily accessible position
in the case of any servicing requirements.
Unattended cooking on a hob with fat or oil can
be dangerous and may result in fire.

11
For SEM 8 motor with SDD2 L EMTC 880/1180 - 200mm option only.
1B: Connect a duct expander (Part ‘H’) to rectangular to round adapter (Part ‘A’), then connect
length of ducting (Part ‘K.2’) to the 200mm outlet.
2B: Secure to the motor with a universal ring clamp (Part ‘G’).
• See page 12 for ducting to vent (N/A for SEM 7 motor)
Ducting to SEM 7 motor (200mm ducting)
Ducting to SEM 8 motor (200mm ducting)
PART ‘B’
PART ‘B’
PART ‘A’
PART ‘A’
PART ‘H’
PART ‘H’
SIDE VENT
OPTION
PART ‘G ’
PART ‘K.2’
PART ‘K.2’
OUTSIDEINSIDE
BOTTOM VENT
OPTION
WALL
MIN HEIGHT FROM GROUND
500mm - 2mtrs

12
INSTALLATION INSTRUCTIONS
FOR SEM 7, SEM 8
FRONT OR REAR VENTING
• If venting from the rear, remove 200mm adaptor
plate (Part ‘D’) and replace with front cover plate
(Part ‘E’).
If venting from front, check to see if front adaptor
plate (Part ‘D’) is attached.
STEP 2:
Remove & replace with
cover plate (Part ‘C’)
Remove & replace with
cover plate (Part ‘C’)
(For side or bottom venting instructions, see pages 7 - 9)
Remove & replace with
cover plate (Part ‘C’)
STEP 3:
(Fig. 7)
(Fig. 5)
• Carefully lower downdraft into cutout cabinetry.
• Fix the downdraft inside the cabinet, using the
special fixing brackets (Part ‘F’) supplied with the
product.
• Insert the brackets in the lower side of the
downdraft in such a way that there is a 2 mm
distance between the lower side of bracket and
the bottom of the cabinet.
• This distance will allow the traction to be
positioned downwards of the product, at the
moment of fixing, in order to have the stain-
less steel trim perfectly adhering with the work
surface.
• Before inserting the screws, please make sure
that the appliance is perfectly perpendicular with
the work surface, ensuring unit is square and
levelled with spirit level before turning on. (Fig. 5)
NB: If the unit is not levelled, the downdraft will
shudder when rising. This could cause damage
to your unit, which is not covered by warranty.
This is installation damage.
2mm
Part ‘F’

13
STEP 4:
1. Use 200mm ducting (Part ‘K.2’).
2. The ducting fits directly onto the collar on the front adaptor plate (Part ‘D’).
3. Fix in place using a universal ring clamp (Part ‘G’).
PART ‘G’
PART ‘G’
SEM 7
OUTSIDEINSIDE
WALL
Ducting to SEM 8 motor (internal motor)
Ducting to SEM 7 motor (external motor)
URC-25/325
MIN HEIGHT FROM GROUND
500mm - 2mtrs
PART ‘K.2’
PART ‘K.1’ / ‘K.2’ PART ‘K.1’ / ‘K.2’

14
POWER TRANSFORMER
7 METRE POWER CORD
Power transformer can be located anywhere beneath
the bench. It must be accessible for servicing.
ELECTRICAL CONNECTION
DUCTING FROM MOTOR TO WALL VENT: (SEM 8)
1. Run the length of ducting to the motor. (Additional lengths of ducting can be attached using an
additional internal connector pieces.)
NOTE: No connector required as it connects directly to the collar of the motor.
2. Secure with another universal ring clamp (Part ‘G’).
NOTE: The location of the motor is to be no less than 2 metres away from the downdraft. Failure to
do so may result in additional noise level of the downdraft. Maximum distance is 7 metres, however
3 - 5 metres is optimum to minimise noise and maximise performance.
3. Using another length of semi-rigid duct run from the exit collar on the SEM 8 to a predetermined exit point
and connect to weatherproof vent with a clamp.
See www.siriusbrand.com for multiple vent options or see our nearest retail partner.
WARNING
Place the power transformer at a distance of no
less than 65 cm from gas cooktops.
NOTE
We recommend installing the power transformer
at least 10 cm above floor level and at a suitable
distance from all heat sources (e.g. oven sides or
cook top).

15
WARNING
After having replaced the filters, reinstall
the front stainless steel panel, otherwise
the Downdraft is not enabled to function.
Water splashing against the enclosure from any
direction shall have no harmful effect, utilizing either:
a) an oscillating fixture, or b) A spray nozzle with no
shield.
Test a) is conducted for 10 minutes. Test b) is
conducted (without shield) for 5 minutes minimum.
Oscillating tube: Test duration: 10 minutes, or spray
nozzle (same as IPX3 spray nozzle with shield
removed).
(Fig. 8)
ELECTRICAL CONNECTION
CAUTION
DANGER
NOTE
While installing the appliance and carrying
maintenance operation, make sure it is disconnected
from the electrical network or the fuses are cut out or
removed.
Check that:
• Power is connected.
• Feeder lines (mains) are in good conditions.
• The cables diameter complies with installation
regulations.
This appliance is fitted with an H05 VVF 3 conductor,
0.75 mm2 (neutral, phase, and ground) power cord.
This can be connected up to a 220 - 240 V
monophase electrical network through a CEI 60083
approved power socket (10AMP power socket),
which must remain accessible after installation, in
compliance with installation regulations. We decline
any responsibility in case of accidents caused by
a lack of ground connection or incorrect ground
connection. The appliance must be fed through a
differential protection device (RCD), with a nominal
residual current not exceeding 30mA. If the power
cord is damaged, call the after-sales service to avoid
any risk.
If the appliance has no plug or if the plug is not
easily accessible, then a device needs to be fitted to
disconnect off from the electric network; this device
must have an opening distance between contacts on
all poles of at least 3 mm.
This appliance complies with the European
Directives 2006/95/EC (Low Voltage
Directive) and 2004/108/EC (Electromagnetic
Compatibility).
If the rangehood presents any anomaly,
disconnect the appliance or remove the
fuse corresponding to the appliance
power disconnecting line.
WARNING
The downdraft connection to the electrical
network must be carried out only by
professional and qualified technicians.
The downdraft must be connected to a properly
installed and suitable electrical network.
The electrical system must comply with VDE0100
standard.
NOTE

16
CONNECTION TO THE POWER SUPPLY
INSTALLATION DIAGRAM
BASIC ADJUSTMENT OF SENSOR TO THE
AMBIENCE
• Connections may be carried out by a
qualified technician only. The earthing
protection must comply with the standing
regulations.
• Connection terminals are revealed when the
connection box cover is removed.
• Prior any attempted connection check that
the voltage indicated on the rating plate is in
line with your home power supply.
• The rating plate is located underneath the
appliance.
• The cooking hob operates at 220V-240V~.
In order to make a fixed connection to
the mains, insert an all-pole circuit breaker
between the appliance and the mains. This
device shall have a contact separation in
all poles, providing full disconnection under
over-voltage category III conditions.
• Such appliances are allowed to be mounted
on one side next to a high kitchen cabinet,
the height of which may exceed that of the
appliance. On the opposite side however,
only a kitchen cabinet of equal height as the
appliance is allowed.
• Upon the completion of installation, live wires
and isolated cables must be adequately
protected against accidental touching.
• Cooktops models SDDH1.1 are equipped
with power cables.
• The connection needs to be made on the
terminals of the power cable directly during
the connection with the electrical net as you
can find both in the rating plate and in the
electrical scheme here below.
Before attempting any repairs on the appliance,
disconnect the power supply. In accordance
with the mains voltage the appliance should be
connected in line with the attached diagram.
The earthing wire (PE) must be connected to the
terminal marked with the earthing symbol.
The connection cable must lead through the
relief safety device, protecting it from accidental
pulling out.
Upon each connection to the power supply
the sensors of the appliance are automatically
adjusted to the environment to ensure their
proper function. All displays turn on and are fully
illuminated for a few seconds.
During the adjustment procedure the sensors
must be free of any objects, otherwise the
adjustment procedure will be interrupted until
such objects are removed from the sensor
surface. During this period the regulation of the
cooktop is impossible.
WARNING

17
TECHNICAL INFORMATION
APPROPRIATE COOKWARE FOR INDUCTION
HOTPLATES
HOTPLATE FUNCTION PRINCIPAL
• Induction hob is fitted with four cooking
zones.
• Hob surface is completely flat and
smooth,without edges to accumulate dirt.
• The cooking hob is equipped with a highly
functional induction cooking zone. The
heat is formed directly in the bottom of the
cooking plate. This way, the required extent
of energy is considerably smaller compared
to traditional heaters, which operate on
radiation principals.
• Glass ceramic hotplate is not heated directly,
but only by return heat transmitted by the
dish. This heat figures as “remaining heat”
after the hotplate is turned off. The induction
hotplate generates heat from the induction
coil, installed underneath the ceramic glass
surface. The coil stabilises the magnetic field.
• Induction hotplate will function perfectly only
if appropriate cookware is used.
• Cookware should be in the middle of the
hotplate during cooking.
• The appropriate cookware is the one which
enables induction, for example steel, enamel
or steel alloy cookware. Pots made from steel
alloy with copper or aluminium bottom, or
glass pots are inappropriate.
• When buying cookware, check if it bears
the label “allows induction”.
P=Extra powerful setting
SDDH1.1
Width 898 x 630
Rated Voltage 220-240V ~ o 380-415V
2N~50/60 Hz
Type of Switch Electronic Sensors
Cooking zones (Ø,mm/kWx)
Forward left 184 x 220, 2,1 (P=3,7)
Middle left 184 x 220, 2,1 (P=3,7)
Middle -
Middle right 184 x 220, 2,1 (P=3,7)
Forward right 184 x 220, 2,1 (P=3,7)
Total power (W) 7400
In case sugar or other heavily sweetened
substance is spilled on the hotplate, wipe is
immediately and remove the sugar residues
with a plstic scraper although the cooking
zone is still hot, otherwise the hotplate may be
dameged. Avoid cleaning the cookplate while
the cooking zones are still hot, as you may
damage the hob.
NOTE

18
Cooking zones Min. pan bottom Ø
min.
Max. pan
bottom
Ø
184x220mm
(SINGLE) Ø 115mm Ø 180mm
184x220mm
(SINGLE) IN
BRIDGED MODE
Ø
135mm Ø 180mm
184x220mm
(DOUBLE) IN
BRIDGED MODE
2 ZONES - 380x220
mm
4 ZONES Ø 330mm Ø 400mm
MAGNET TEST POWER REGULATION
Use small magnet to test if the dish bottom is
magnetic. Only dishes where magnet sticks to
the bottom are suitable for induction cooking.
Dish recognition
One of great advantages of the induction
hotplate is pot recognition. Even if there are no
dishes upon the hotplate, or the dish diameter
is smaller than the diameter of the relevant
hotplate, there are no thermal energy losses.
When the hotplate is on, the power indicator
displays letter “U”. If you place the dish over
that hotplate within the following 10 minutes,
the hotplate recognizes the dish and turns on
to the preset power value.
At the moment you remove the dish from
the hotplate, power is suspended. If you
place smaller dish upon the hotplate and it
is recognized, the hotplate will only use the
amount of energy required to heat the dish
according to its size.
Hotplate may be damaged if:
• It is turned on and left empty, or an empty
dish is placed on it;
• You use clay dishes which leave scratches
on the ceramic glass surface;
• You fail to wipe the dish bottom dry prior
placing it on the induction cooktop; heat
induction is obstructed and the hotplate
may be damaged;
• You fail to use the appropriate dishes that
can be magnetized: steel dishes, enamel
or steel alloy dishes; induction hotplate will
not function otherwise.
Hotplate may be damaged if:
• Heating power of the hotplates may be set
at nine different levels.
The following chart indicates illustrative use
of each power setting.
Power
setting Purpose
0Off, using remaining heat
1-2 Maintaining warm food, slow
simmer of smaller quantities
3Slow simmer (continuation of
cooking after a powerful start-up)
4-5
Slow cooking (continuation) of
larger quantities, roasting larger
chunks
6Roasting, browning
7-8 Roasting
9Start of cooking, roasting
AAutomatic initial setting
PEspecially powerful setting for
extremely large quantities of food

19
ENERGY SAVING TIPS
• When buying cookware be careful in
selecting size: pot diameter usually refers
to the top edge of the dish, which is often
larger than the dish bottom.
Steam-pressure pots (economic pots),
which use pressure in tightly sealed interior,
are especially economic, and save both
time and energy. Shorter cooking time
leaves more vitamins in food.
• Always leave enough water in steam-
pressure pots, otherwise it may result in
overheating which may damage both the
pot and the hotplate.
• Always cover the cookware with lids of
appropriate size.
• Use such dish size to accommodate the
quantity of food to be prepared. If you use
excessively large pot for small amount of
food, you will consume considerably more
energy.

20
INDUCTION COOKTOP FUNCTIONS
HOB CONTROL ELEMENTS
SLIDE CONTROL POWER
1. Induction hotplate front left
2. Induction hotplate middle left
3. Induction hotplate middle right
4. Induction hotplate middle
5. Induction hotplate front right
6. Hob control panel
7. Downdraft control unit
A. ON/OFF sensor of cooktop
B. Power level indicator
C. Pause and recall function sensor
D. Sensor (-) of timer
E. Sensor (+) of timer
F. Slide control
G. Warming function sensor
H. Booster
