INTRODUCTION
Dear Customer,
TECNOPLUS S.r.l., owner of the SISTEM AIR Trademark, would first of all like to thank you for having
chosen to buy TECNO Style unit, the new Tecno-Line vacuum cleaner. We are sure that the
characteristics described in this manual will satisfy your needs.
TECNO Style has been designed and produced in strict compliance with the Machinery Directive
2006/42/CE (transposed into Italian Legislation by Decree Law 17/10), Low Tension Directive 2006/95/
CE, and Electromagnetic Compatibility Directive 2004/108/CE. The system has been manufactured
with top quality materials and with particular care paid to reduction of of injury risk as much as possible.
Therefore we have written this manual in order to provide adequate instructions for the correct use and
maintenance of the system which are crucial to ensure the user’s safety, the correct functioning and the
long working life of the vacuum cleaning unit.
Please read the entire manual carefully, follow the instructions precisely, and above all, for
safety reasons, do not intervene in any way if not specifically indicated.
12 MAINTENANCE 25
12.1 Programmed routine maintenance 25
12.2 Cleaning the suction container (cylinder) 26
12.3 Emptying the dust bin 26
12.4 Dust collection, transfer and disposal 27
12.5 Disposal of filter cartridge 27
13 REPAIRS AND SPARE PARTS 28
13.1 Intervention criteria 28
13.2 Recommended spare parts 28
13.3 Putting the suction system out of service 28
14 SOUND EMISSION 29
15 IDEAL LOCATION OF THE UNIT TO REDUCE SOUND EMISSION 29
16 VIBRATIONS 29
17 TROUBLESHOOTING 30
INDEX
For the best results, please use SISTEM AIR’s original accessories and materials. The SISTEMAIR
Trademark is a registered trademark and is property of TECNOPLUS S.r.l.

3
2
05/05/11 Rev:1.0.0
English
1 - GENERAL INFORMATION
1. How to use the manual
The instruction manual has been written by the manufacturer and is an integral part of the vacuum
cleaner. If the system is resold, given or hired out to others, the manual must be handed over to the
new user or owner.
We recommend to use and store it carefully for the entire working life of the vacuum cleaner.
This manual explains how to use the equipment correctly in order to obtain the best performance
while maintaining optimal working and safety conditions.
It is strictly forbidden to reproduce, copy or disclose any part of this document by any means without
prior written consent of TECNOPLUS s.r.l., which is the owner of the SISTEM AIR Trademark.
TECNOPLUS s.r.l. reserves the right to upgrade or modify this manual or the vacuum cleaner itself at
anytime without giving any prior notice to third parties.
2. DESCRIPTION OF THE VACUUM CLEANER
Constant research applied to central vacuum cleaners and advanced electronic technology have
allowed TECNOPLUS s.r.l. to create TECNO Style.

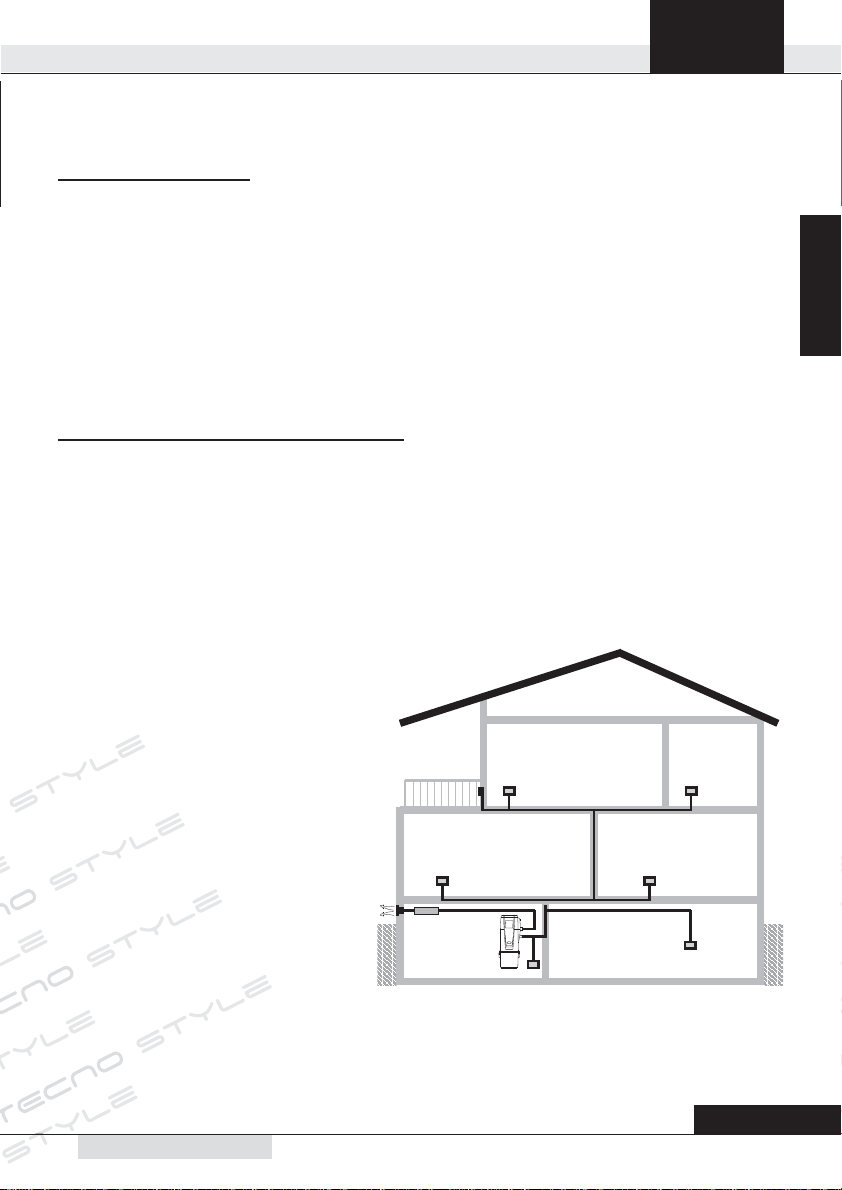

The central vacuum cleaner, suitable for any type of residential building (private houses, offices, hotels,
service sector), consists of a network of PVC trace pipes, housed in walls or in false ceilings running
through the various rooms; at the end of the pipes suction sockets are positioned.
The SISTEM AIR vacuum cleaner is usually placed in a utility room, garage or other storeroom and
connected to the suction pipes’ network.
The system is switched on by inserting the sleeve coupling of the flexible vacuum cleaning hose in any
of the suction sockets.
If the piping network doesn’t feature any
electrical power supply, the system can be
switched on and off by means of a remote
control device (available upon request).

Instruction manual TECNO Style
411/01/2012 Rev:1.0.0
CENTRAL VACUUMSYSTEMS ByTecnoplus s.r.l.

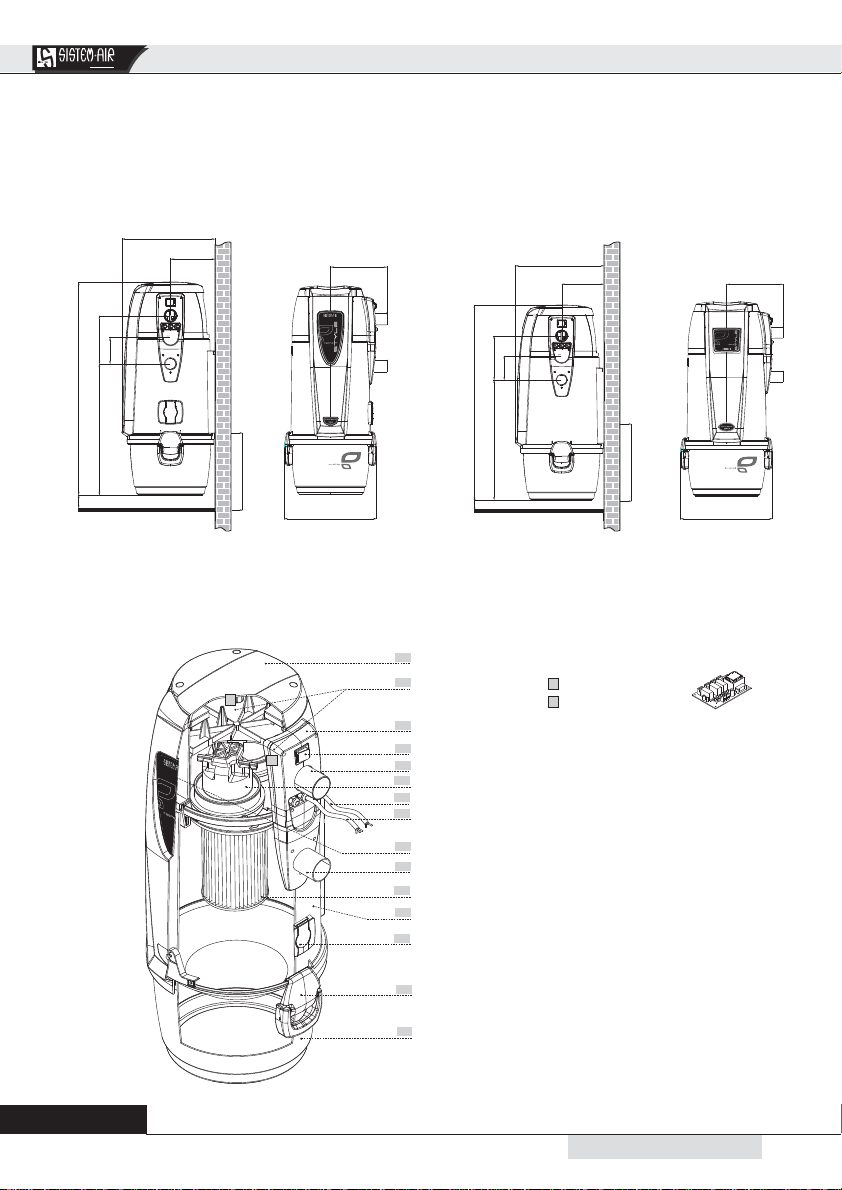

3- TECHNICAL DATA
Tecno Style Model
1
8
3
4
5
6
7
9
13
10
11
12
14
15
Service inlet switch (not available on the MINI version)
Sound-absorbing dome
Motor group
Printed Circuit Board holding panel
Start switch
Switch-on signal cable (Micro line)
Power supply cable
Air venting
Dust inlet
Filter cartridge
Motor body
Handle and closing clip
Dust bin
Service inlet (not available on the MINI version)
A
B
A
B
HG
FE
C
D
x
HG
FE
C
D
x
Model TECNO Style 150/250/350/450 Model TECNO Style MINI
2Printed circuit board
( = mod. 350/450
= mod. MINI/150/250
A
B
B
A

5
2
05/05/11 Rev:1.0.0
English
TECNO Style
Model
Article
TECNO
Style MINI
TECNO
Style 150 TECNO Style 250 TECNO Style 350 TECNO Style 450
3107.1TER 3110.1TER 3112.1TER 3113.1TER 3115.1TER
Service inlet NO YES YES YES YES
Air inlet Ø mm 50 50 50 50 50
IP Protection Degree IP 44 44 44 44 44
Power supply V ac 220/240 220/240 220/240 220/240 220/240
Frequency Hz 50/60 50/60 50/60 50/60 50/60
Motor power kW 1,25 1,25 1,35 1,9 2,1
Absorption A 5,5 5,5 5,8 8,2 9,5
Inlet power supply V dc 12 12 12 12 12
Maximum air ow m3/h 200 200 234 309 320
Filtering surface cm23100 6700 6700 6700 6700
Dust bin capacity l 15 21 21 21 21
Air exhaust Ø mm 50 50 50 50 50
Air exhaust silencer YES YES YES YES YES
Weight kg 8,5 17 17 19 19
Size A mm 210 230 230 230 230
Size B mm 325 370 370 370 370
Size C mm 345 380 380 380 380
Size D mm 168 185 185 185 185
Size E mm 108 108 108 195 195
Size F mm 315 585 585 585 585
Size G mm 650 915 915 915 915
Size H (min.) mm 100 100 100 100 100
Size X (min.) mm 350 500 500 500 500
Sound level below dB(A) 70

Instruction manual TECNO Style
611/01/2012 Rev:1.0.0
CENTRAL VACUUMSYSTEMS ByTecnoplus s.r.l.
4 - CONSTRUCTION CHARACTERISTICS
The Tecno Style vacuum cleaners are manufactured with plastic materials, polypropylene and ABS,
in order to resist atmospheric agents. The vacuum systems have been designed and manufactured in
compliance with all the criteria imposed by the current regulations and the European directives while
carefully paying attention to crucial elements like performance, power and operating capacity.
The main technical characteristics are as follows:
• Polypropylene self-supporting cylindrical body.
• Polypropylene and ABS protection and coatings.
• Polypropylene dust collection bin with handles (15/21 litre capacity).
• Soundproofed motor compartment (max. sound level below 70 dBA).
• Optional left or right connection of pipes.
• Motor-rotor group, equipped with direct-cooling single-phase electric brush motors.
• Overcurrent and overvoltage double protection printed circuit board.
• 12 V dc power supply of the suction inlets.
• Polyester L-Class filter cartridge, washable in water.
• Vacuum breaker valve to ensure the motor is not operating in critical conditions.
• Soft Start system, specific for vacuum systems.
• IP44 Protection Degree.
• Safety thermal switch to protect the motor with automatic cut-off and re-set in case of malfunctioning.
The vacuum cleaner features a Class 2 insulation level.
Maximum
surface
Model Article
Max. nr.
suction
inlets
Max.
nr. of
users
Service
inlet
Dust bin
capacity
(l)
Filtering
surface
(cm
2
)
Power supply
(Volt ac)
Motor
power(kW)
Max air
ow
(m
3
/h)
Max 150 m2 TECNO Style MINI 3107.1TER 4 1 NO 15 3100 220/240 1,25 200
Max 150 m2TECNO Style 150 3110.1TER 4 1 YES 21 6700 220/240 1,25 200
Max 250 m2TECNO Style 250 3112.1TER 7 1 YES 21 6700 220/240 1,35 234
Max 350 m2TECNO Style 350 3113.1TER 11 1 YES 21 6700 220/240 1,9 309
Max 450 m2TECNO Style 450 3115.1TER 16 1 YES 21 6700 220/240 2,1 320
T

7
2
05/05/11 Rev:1.0.0
English
4.1 TECNO Style mod. MINI
Sound-absorbing
dome
Fixing plate
Main switch
Dust inlet
Conveyor cone
Dust bin
3
2
5
6
7
Motor
Thermal safety sensor
Front sticker
Filter cartridge
Closing handle
and hook
8
9
10
11
12
12
14
Air exhaust
1
Cover
Cilynder motor
body 4

Instruction manual TECNO Style
811/01/2012 Rev:1.0.0
CENTRAL VACUUMSYSTEMS ByTecnoplus s.r.l.
4.2 TECNO Style mod. 150/250
3
2
4
6
7
Motor
Thermal safety sensor
Service inlet
switch
Filter cartridge
Closing handle
and hook
8
9
12
11
13
10
14
15
16
Sound-absorbing
dome
Air exhaust
Dust inlet
Main switch
Gasket
Fixing plate
Service inlet
Conveyor cone
Dust bin
1
Cover
Cilynder motor
body 5

9
2
05/05/11 Rev:1.0.0
English
4.3 TECNO Style mod. 350/450
3
2
4
6
7
Motor
Thermal safety sensor
Service inlet
switch
Filter cartridge
Closing handle
and hook
8
9
12
11
13
10
14
15
16
Sound-absorbing
dome
Air exhaust
Dust inlet
Main switch
Gasket
Fixing plate
Service inlet
Conveyor cone
Dust bin
1
Cover
Cilynder motor
body 5

Instruction manual TECNO Style
10 11/01/2012 Rev:1.0.0
CENTRAL VACUUMSYSTEMS ByTecnoplus s.r.l.
5 SAFETY FEATURES
In compliance with safety regulations detailed in the Machinery Directive 2006/42/CE (transposed into
the Italian Legislation by Decree Law 17/10), in the Low Voltage Directive 2006/95/CE, and in the
Electromagnetic Compatibility Directive 2004/108/CE, the TECNO Style complies with the
standard established for electrical appliances for household and similar purposes EN 60335-1 (2008)
and with the Regulation C EN 60335-2-2 (2011), specially conceived for vacuum cleaners for household
and similar purposes with rated voltage not exceeding 250 V.
It is recommended to read carefully all the installation, use and maintenance instructions
detailed in this manual.
Furthermore, the following WARNINGS should always be observed:
• Never use the machine for unauthorized purposes.
• Keep children away from the vacuum cleaner whilst in function. Children should not play with the ma-
chine nor with the suction sockets.
• This equipment should not be used by persons (including children) with reduced psychic, sensory or
mental capacities or by persons with no experience nor knowledge of the system, unless they are
under the guidance or instructed to use the machine by persons responsible for their safety.
• Children must always be supervised to ensure they do not play with the machine.
• Switch off the power supply immediately if:
- the electric cable is damaged or worn.
- the vacuum cleaner has been exposed to rain or excessive humidity.
- the vacuum cleaner has been knocked or the outer cover has been damaged in any way.
- you think the system requires maintenance or repair.
• Wear protective gloves and mask to carry out maintenance, to empty the dust bin or replace and clean
the filter.
• Only use original spare parts and accessories.
• Do not vacuum clean fabrics, heavy materials, ashes or hot embers.
• Never vacuum clean liquids.
• Do not use the system without a filter cartridge.
• Do not block the exhaust air pipes or the motor cooling intakes.
• No part of the body should come into contact with the suction accessories.
• Use only one suction socket at a time.
• Do not leave the system switched on when not using it and disconnect it from power supply when the
system is not to be used for a long period of time.
• Do not vacuum powder such as concrete, lime wastes, plaster dust, etc. This will quickly clog the filter
cartridge and the system too.
Finally, remind that pictograms or danger and warning signals can be found on those parts of the
equipment where, if not strictly followed, potential risky situations may occur.

11
2
05/05/11 Rev:1.0.0
English
WARNING: TECNOPLUS S.R.L. declines any form of responsibility or guarantee if the purchaser,
or anyone in his stead, makes even the slightest modification or adjustment to the purchased product.
The unit has been designed to satisfy at best the present needs of the domestic central vacuum cleaners
market, both in terms of quality and operating capacity.
All materials and components used to manufacture this product comply with CE safety regulations. All
relevant certifications are held at the offices of TECNOPLUS S.R.L.
5.1 IP Protection Degree
IP 44: The appliance features a protection against solid objects having a size exceeding 1 mm and
protectionagainst splashes of water.
5.2 Electrical insulation degree
CLASS II: the appliance features double electrical insulation. They doesn’t need a connection to the
ground circuit through the main electric circuit.
5.3 Declaration of absence of dangerous substances
TECNOPLUS S.r.l. declares that its products and appliances have been manufactured with materials
which comply with the restrictions established by the health and environment protection regulations in
force and do not contain SVHC-classified substances (Substance of Very High Concern) in compliance
with CE regulation 1907/2006 (REACH: i.e. Registration, Evaluation, Authorization and Restriction of
Chemical Substances).Although these substances have not been used during the processing cycles of
raw materials and during the manufacturing cycles of our products, their presence in p.p.m. (parts per
million) cannot be completely excluded due to micro-pollution of raw materials.
5.4 Fixed closure guards safety
The vacuum cleaner is delivered to the Customer with its main body completely assembled. Moving
parts (suction motor turbine blades) are protected by a protection grid directly assembled on the inlet of
the suction motor compartment. This protection grid cannot be accessed by the operator. The operator
also does not have access to the electrically-operated parts of the appliance which are protected by a
cover which can only be removed by unscrewing the Torsen screws used to fix the soundproofing dome
of the housing where the suction motors are assembled.
Every intervention on the control board and on the motors must be carried out by qualified personnel
only after disconnecting the electrical power supply and by removing the electric plug from the electric
socket.

Instruction manual TECNO Style
12 11/01/2012 Rev:1.0.0
CENTRAL VACUUMSYSTEMS ByTecnoplus s.r.l.
5.5 Movable closure guards safety
Therearenomovableclosure guardsassembledontheappliance. Everyguardassembled isconsidered
a fixed guard and is fastened with special screws. TECNOPLUS s.r.l. reminds you that it is absolutely
forbidden to replace the screws used for the design and manufacture the appliances with screws with
feature different characteristics.
TECNOPLUS s.r.l. will immediately suspend the product guarantee in case of machine tampering
carried out by the Customer.

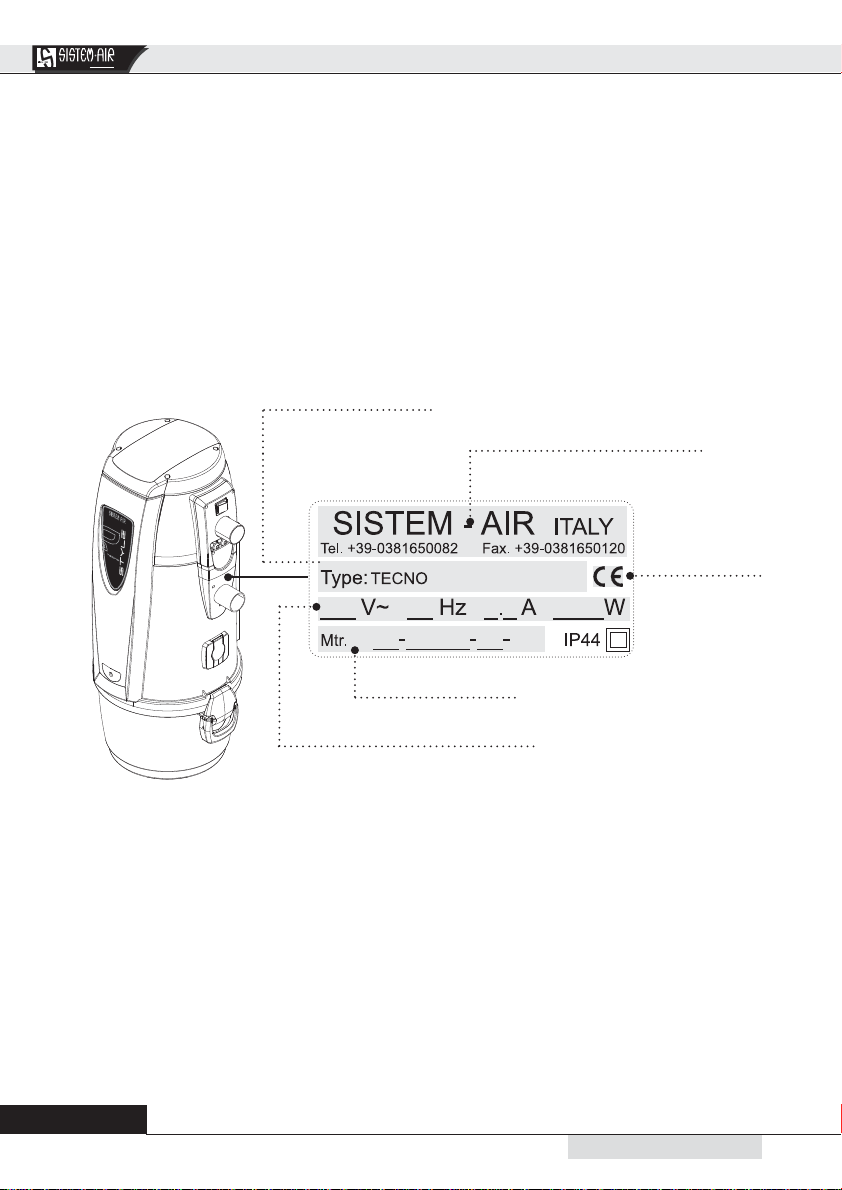

5.6 Identification plate
The CE identification plate is assembled on the side of the connection to the piping network. This should
not be removed or damaged.
Type of Central vacuum cleaner
Manufacturer Identification
CE conformity
marking
Style
Technical data of the electric motor
Serial Number

13
2
05/05/11 Rev:1.0.0
English
6 - AUTHORIZED USE OF THE VACUUM CLEANER
The TECNO Style vacuum cleaner has been designed exclusively to vacuum clean dust, very
small-size solids and dry materials. The use of the central vacuum cleaner is authorized for household
and civil uses, connected to a PVC wall-traced piping network and to a standard home electrical wiring.
The vacuum cleaner can be installed in domestic dwellings with the following characteristics:
• Surface to be cleaned up to 450 m²
• Piping network featuring 50-mm diameter pipe
• 220/240 V ac power supply
• Air exhaust conveyed to the outside
• Suitable for a single-operator use
• Suitable for installation in domestic spaces such as store rooms, boiler rooms, garages and balconies
(protected from the elements).
7 - UNAUTHORIZED USE OF THE VACUUM CLEANER
It is extremely important NOT to use the system in the following circumstances which are
considered to be inappropriate and dangerous:
• The system must not be used to vacuum clean fabrics, heavy or hot/burning materials.
• The system must not be used to vacuum clean liquids.
The system has not been designed to be used in environments with risk of explosion, and
therefore:
• it is forbidden to vacuum clean materials with high exploshion risk (gunpowder) or materials which are
individually inert but that, once collected and mixed in the dust bin, could provoke dangerous chemical
reactions.
• It is absolutely forbidden to use the vacuum cleaner in explosive atmosphere or outside the standard
temperature, pressure and humidity levels.
Any use of the appliance other than those specified above is forbidden.
Any change or modification made to the system in order to vacuum clean a particular type of
material must obtain the prior written approval of the manufacturer.
The use of the system for purposes other than those for which it was manufactured, represents
an irregular condition which can cause damage to the product and seriously compromise the
operator’s safety.

Instruction manual TECNO Style
14 11/01/2012 Rev:1.0.0
CENTRAL VACUUMSYSTEMS ByTecnoplus s.r.l.

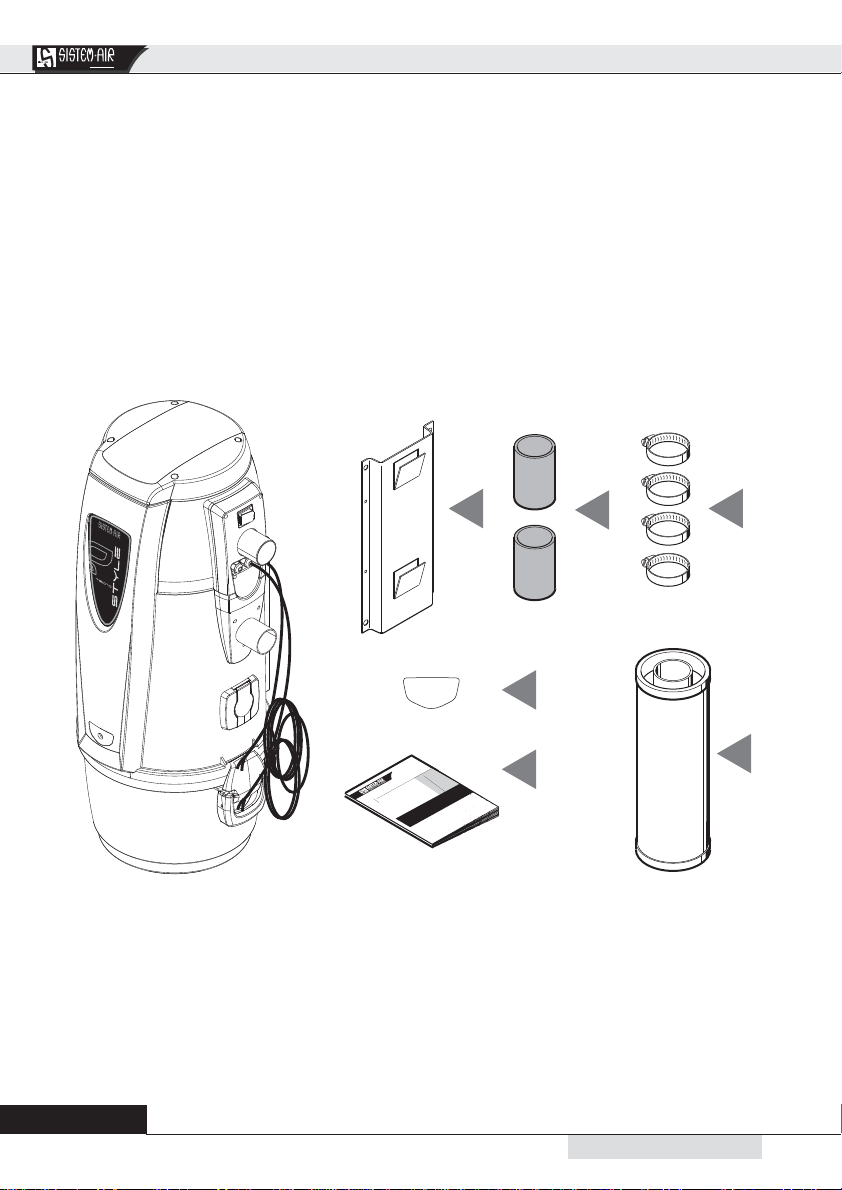

8- EQUIPMENT AND ACCESSORIES
Together with the unit, delivered with this instruction manual, the following accessories are supplied in
the packaging as follows
1) N°1 metal bracket to fix the system to the wall
2) N°2 rubber sleeves for the connection to the suction pipe network
3) N°4 metal clamps to fix the sleeves
4) N°1 adhesive label detailing the system model
5) N°1 installation, use and maintenance manual
6) N°1 plastic venting silencer for air exhaust
Check that the system, the accessories and the kit correspond to the products ordered and that they
have not been evidently damaged during transport.
In case of problems contact your Retailer immediately.
12 3
4
56
TECNO style
250
MANUALE TECNICO
www.sistemair.it
Domestic
TE
CNO
style
s
s
s
st
t
s
s
TE
CNO
NO
N
style
TE
CNO
style
e
TE
T
T
T
TE
T
T
T
CNO
style
le
e
le
TE
TE
CNO
C
C
N
CNO
C
C
N
C
style
ty
ty
TE
CNO
NO
style
st
TE
CNO
style
yle
sty
TECNO style

15
2
05/05/11 Rev:1.0.0
English
9 - INSTALLATION
- WARNING -
THESE PROCEDURES MUST BE CARRIED OUT
BY QUALIFIED PERSONNEL
9.1 Preliminary operations
The suction system is shipped to the customer completely assembled and packed.
Before switching the machine on, the following checks are advisable:
• Check that the packaging is intact.
• Check that the appliance has not been damaged in any way and in particular check that all the
protruding parts are intact.
• Verify the correct tightening of the filter cartridge.
• Using the equipment list and the kit and accessories list, check that the equipment and the kit have
been exactly and completely delivered.
• Check that the Guarantee Certificate has been provided.
If any damage or irregularity is found or if any accessory is missing, do not install the appliance and
contact your Retailer.
9.2 Place of installation
The use of the vacuum cleaner requires a suction piping network installed by qualified personnel who
has already selected the most suitable location.
Below you will find the main indications to be followed for a correct installation:
• if the appliance will be connected to a pipe network on more than one floor, we suggest you to install
it in the lowest part of the building.
• install the system in service rooms (e.g. garage or store room) away from bad weather, dampness
and excessive temperature variations.
• Choose a place far from heat sources such as stoves and radiators.
• Make sure that there is sufficient space around the system and that the surrounding area is well lit to
facilitate the interventions for maintenance and repairs.
When the vacuum cleaner, for specific installation needs, is installed on the highest floors of the
building with regard to the level where the pipe network is housed (attic, garret etc.), we suggest
you to install a vacuum cleaner featuring a power category higher than the one needed to clean the
desired surface.
For any further information, do not hesitate to contact the Manufacturer’s Technical Service.

Instruction manual TECNO Style
16 11/01/2012 Rev:1.0.0
CENTRAL VACUUMSYSTEMS ByTecnoplus s.r.l.

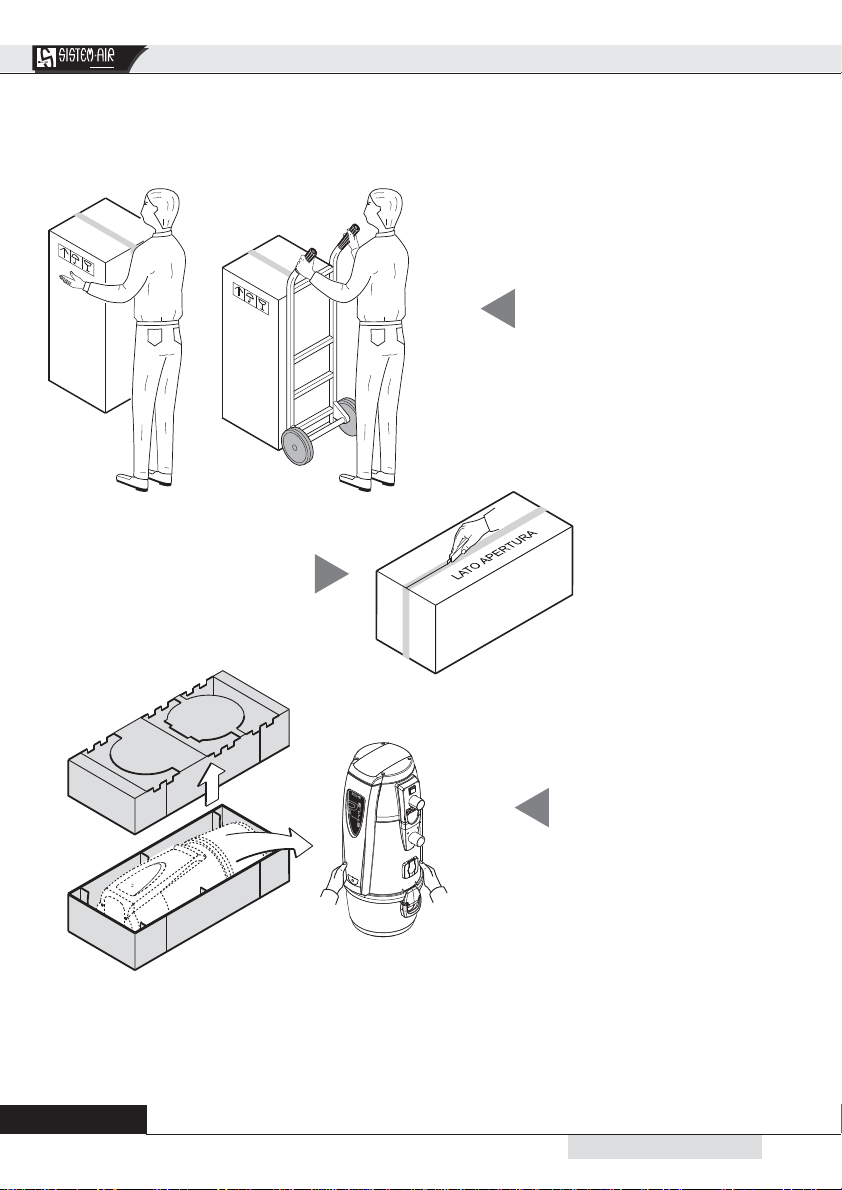

9.3 Transport and unpacking
For transport and handling always maintain the system inside its own packaging until it reaches the
place of installation.
The accessories are contained in the dust collection bin. Open it and remove the accessories. Dispose
of the cardboard box according to the regulations in force.
If necessary, use a hand-truck or
ask someone to help you.
Open the box, remove the upper
protective cardboard, lift the
vacuum cleaner and carefully
place it in a vertical position
on the ground removing the
dustproof protective bag.
Place the cardboard box on the
ground with the “Open here” side
on the top and cut the adhesive
sealing tape.
1
3
2

17
2
05/05/11 Rev:1.0.0
English
9.4 Positioning of the vacuum cleaning unit
For a correct use and to facilitate maintenance it is advisable to keep a minimum distance of 60 cm on
three sides around the appliance (excluding the side on which it is fixed to the wall).

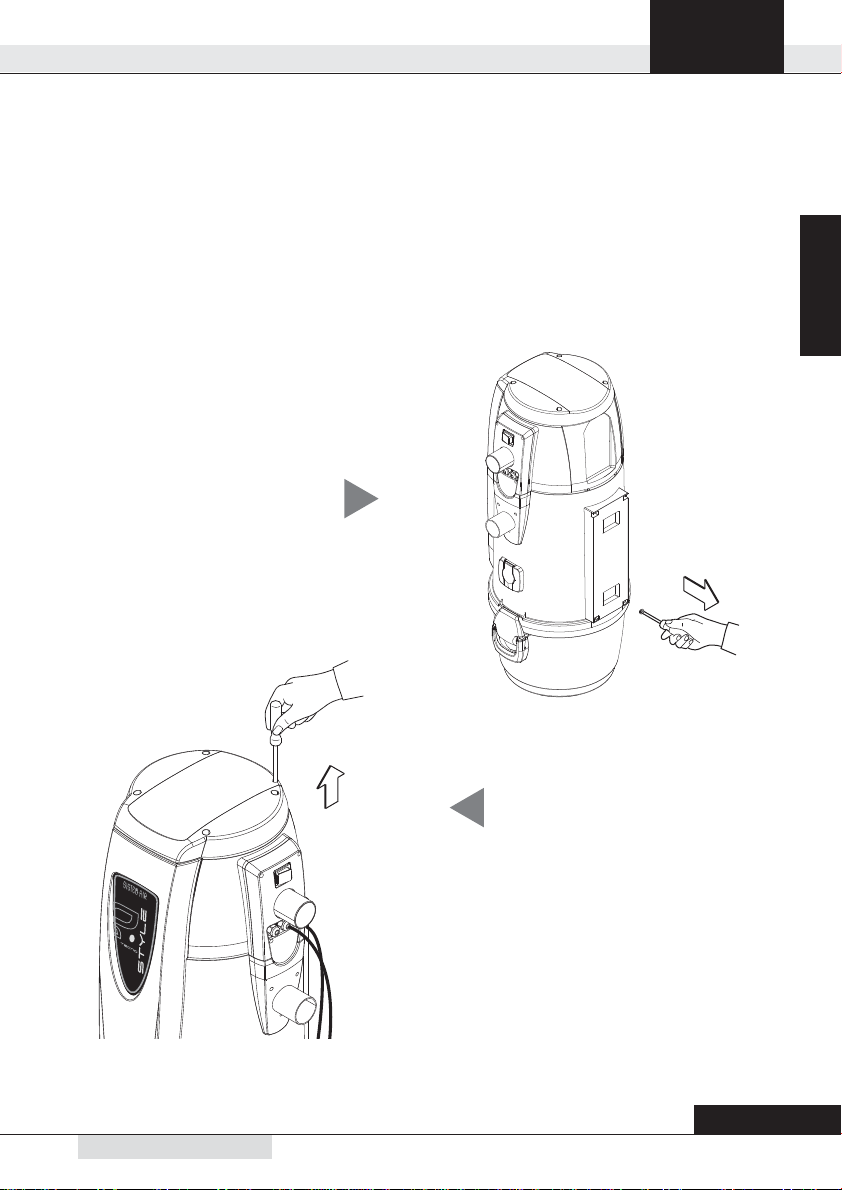

9.5 Transforming DX version (outlet pipes fitted on the right) into SX version
(outlet pipes fitted on the left)
The TECNO Style vacuum cleaners are generally supplied with suction and exhaust pipes on the right
side (RIGHT version). Upon request, the system can be transformed so to have the pipe connection on
the left side (LEFT version).
To do this:
Unscrewthe screwsand remove
the top cover.
Unscrew the screws and remove
the rear fixing plate.
2
1

Instruction manual TECNO Style
18 11/01/2012 Rev:1.0.0
CENTRAL VACUUMSYSTEMS ByTecnoplus s.r.l.
Remove the plate, remove the
screws underneath and remove
the front panel.
Replace the upper dome, position the
electric cable in the special grooves
and position again the dustproof
sponge disk to completely close the
hole of the cable outlet.
3
5
Replace the panel on the
opposite side.
4
Replace the fixing plate, fix the
adhesive label supplied and
tighten the screws.
6

19
2
05/05/11 Rev:1.0.0
English
2
Trace the drilling position using the template provided
(drilling template); if this has already been done, proceed to
the next step.
Drill the holes
9.6 Fixing the vacuum cleaner to the wall
The vacuum cleaner must be securely and permanently fixed to a solid wall using the bracket provided
and the suitable wall anchors or plugs taking into account that the total weight to be supported can be
seven/eight times that of the system itself.
The system should be positioned high enough off the ground to allow the dust collection bin to be
emptied and the filter to be replaced in a simple way.
Position the system so as to keep a minimum distance of 60 cm around the appliance for extraordinary
maintenance.
To do this follow the instructions detailed below:
Height from the ground is detailed in the table below:
1
TECNO Style
Model
Article
Tecno
Style MINI Tecno Style 150 Tecno Style 250 Tecno Style 350 Tecno Style 450
3107.1TER 3110.1TER 3112.1TER 3113.1TER 3115.1TER
Measure X (min.) mm 350 500 500 500 500

Instruction manual TECNO Style
20 11/01/2012 Rev:1.0.0
CENTRAL VACUUMSYSTEMS ByTecnoplus s.r.l.
Tighten the screws in the wall
plugs and check that the bracket is
well anchored to the wall. 3
Hook the vacuum cleaner to the
anchoring bracket by lifting it, leaning it
against the wall and allowing it to slide
down until it fits into the fixing plate.
4
