SKF LINCOLN SP User manual

Version 01
951-170-234-EN
EN
Assembly instructions
acc. to Machinery Directive 2006/42/EC
SP/FH single-piston grease lubrication pump

- 2 -
951-170-234-EN
Version 01
EN
Jürgen Kreutzkämper
Manager R&D Germany
SKF Lubrication Business Unit
Stefan Schürmann
Manager R&D Hockenheim/Walldorf
SKF Lubrication Business Unit
EC Declaration of Incorporation acc. to Machinery Directive 2006/42/EC, Appendix II Part 1 B
The manufacturer, SKF Lubrication Systems Germany GmbH, Hockenheim Plant, 2. Industriestraße 4, DE - 68766 Hockenheim, hereby declares
the conformity of the partly completed machinery
Designation: Manually operated single-piston grease lubrication pump
Type: SP/FH
Item numbers: 764-X0X-XXXX
Year of manufacture: See rating plate
with the essential protection requirements of Machinery Directive 2006/42/EC at the time of placing on the market.
1.1.2 · 1.1.3 · 1.3.2 · 1.3.4 · 1.5.1 · 1.5.6 · 1.5.8 · 1.5.9 · 1.6.1 · 1.7.1 · 1.7.3 · 1.7.4
The technical documentation described in Annex VII, Part B of this Directive has been prepared. We undertake to transmit, in response to a reasoned request
by the national authorities, the special documents for this partly completed machine. The Head of Technical Standardization is the authorized representative
for the technical documentation. See the manufacturer information for the address.
Furthermore, the following Directives and (harmonized) standards were applied in the applicable areas:
Standard Edition
DIN EN ISO 12100 2011
DIN EN 809 2012
The partially completed machinery must not be put into service until the machinery into which it is to be incorporated has been declared in conformity with the
provisions of Machinery Directive 2006/42/EC and all other applicable Directives.
Hockenheim, 10/12/2016
EC Declaration of Incorporation

- 3 - 951-170-234-EN
Version 01
EN
Masthead
Training
SKF conducts detailed training in order to
enable the maximum safety and efficiency.
SKF recommends taking advantage of this
training. For information, contact the rel-
evant SKF service address.
Copyright
© Copyright SKF
All rights reserved.
Warranty
The instructions do not contain any informa-
tion on the warranty. This can be found in
our General Terms and Conditions.
Disclaimer of liability
The manufacturer shall not be held liable for
damage resulting from:
○Improper usage, assembly, operation,
configuration, maintenance, repair, or
accidents
○Improper reaction to malfunctions
○Unauthorized modifications to the
product
○Intentional or gross negligence
○Use of non-original SKF spare parts
The maximum liability for loss or damage
resulting from the use of our products is
limited to the purchase price. Liability for in-
direct damage of any kind is excluded.
Masthead
Manufacturer
SKF Lubrication Systems Germany GmbH
Address of manufacturer plants
Headquarters
Walldorf Plant
Heinrich-Hertz-Str. 2-8
69190 Walldorf
Germany
Tel: [phone]
Fax: [phone]
Berlin Plant
Motzener Straße 35/37
12277 Berlin
Germany
Tel. [phone]
Fax [phone]
Hockenheim Plant
2. Industriestraße 4
68766 Hockenheim
Germany
Tel. [phone]
Fax [phone]
E-mail: [e-mail]
www.skf.com/lubrication

- 4 -
951-170-234-EN
Version 01
EN Table of contents
Table of contents
Masthead.....................................................................................................3
Explanation of symbols and signs ...............................................................6
1. Safety instructions.........................................................................8
1.1 General safety instructions....................................................................8
1.2 General behavior when handling the product .....................................8
1.3 Intended use............................................................................................9
1.4 Foreseeable misuse................................................................................9
1.5 Modifications to the product.................................................................. 9
1.6 Inspections prior to delivery .................................................................. 9
1.7 Failure to comply with safety instructions............................................9
1.8 Notes on the rating plate .....................................................................10
1.9 Note on CE marking..............................................................................11
1.10 Persons authorized to use the product ..............................................11
1.10.1 Operator...........................................................................................11
1.10.2 Qualified mechanic .........................................................................11
1.11 Instruction of outside fitters ................................................................11
1.12 Provision of personal protective gear.................................................11
1.13 Operation...............................................................................................12
1.14 Transport, assembly, maintenance, malfunction, repair,
shutdown, disposal ...............................................................................12
1.15 Initial commissioning, daily startup ....................................................13
1.16 Cleaning .................................................................................................13
1.17 Residual risks ........................................................................................13
2. Lubricants................................................................................... 14
2.1 General information .............................................................................14
2.2 Selection of lubricants..........................................................................14
2.3 Material compatibility...........................................................................15
2.4 Aging of lubricants................................................................................15
3. Overview, functional description ................................................ 16
3.1 SP/FH components...............................................................................16
3.2 SP/FH operation ...................................................................................17
3.2.1 Without pressure relief valve (pump designs A2/A4)..................17
3.2.2 With pressure relief valve (pump designs A1/A3) .......................18
4. Technical data ............................................................................. 19
4.1 Technical data........................................................................................19
4.2 Order code/pump designs....................................................................20
5. Delivery, returns, storage ........................................................... 21
5.1 Delivery..................................................................................................21
5.2 Return shipment...................................................................................21
5.3 Storage...................................................................................................21

- 5 - 951-170-234-EN
Version 01
EN
Table of contents
6. Assembly..................................................................................... 22
6.1 General information .............................................................................22
6.2 Assembly location .................................................................................22
6.2.1 Surface.............................................................................................22
6.3 Minimum mounting dimensions.........................................................23
6.4 Mounting equipment............................................................................23
6.5 Mounting the single-piston grease lubrication pump ......................24
6.5.1 Installation example for a single-piston grease lubrication
pump with progressive feeder and angle bracket.......................25
6.6 Connect the lubricant line ....................................................................26
6.7 Mounting the lubricant line to the single-piston grease
lubrication pump...................................................................................27
6.8 Filling with lubricant .............................................................................27
6.9 Venting...................................................................................................27
7. Commissioning ........................................................................... 28
7.1 Inspections before commissioning .....................................................28
7.2 Inspections during commissioning .....................................................28
7.3 SP/FH with pressure relief valve (A1/A3) ...........................................29
7.3.1 Lubrication process ........................................................................29
7.3.2 Pressure relief .................................................................................29
7.3.3 Pressure relief time ........................................................................29
7.4 SP/FH without pressure relief valve (A2/A4) .....................................29
8. Operation.................................................................................... 30
8.1 Fill level control .....................................................................................30
8.2 Top up lubricant ....................................................................................30
9. Cleaning ...................................................................................... 31
9.1 Cleaning agents.....................................................................................31
9.2 Exterior cleaning ...................................................................................31
9.3 Interior cleaning....................................................................................31
10. Maintenance ............................................................................... 32
11. Malfunctions ............................................................................... 33
12. Repairs........................................................................................ 33
13. Shutdown, disposal .................................................................... 34
13.1 Temporary shutdown ...........................................................................34
13.2 Permanent shutdown, disassembly ...................................................34
13.3 Disposal..................................................................................................34
14. Spare parts, accessories............................................................. 35
14.1 Spare parts for SP/FH06...A1/A2/A3/A4 ...........................................35
14.1.1 Spare parts for SP/FH 0,6M1A4035
(material number 764-200-4037) .............................................38
14.1.2 Spare parts for SP/FH 0,6M1A4033
(material number 764-200-4035) .............................................40
14.2 Accessories ............................................................................................42
14.2.1 Accessories for lubrication line connection..................................42
14.2.2 Other accessories............................................................................42

- 6 -
951-170-234-EN
Version 01
EN Explanation of symbols, signs, and abbreviations

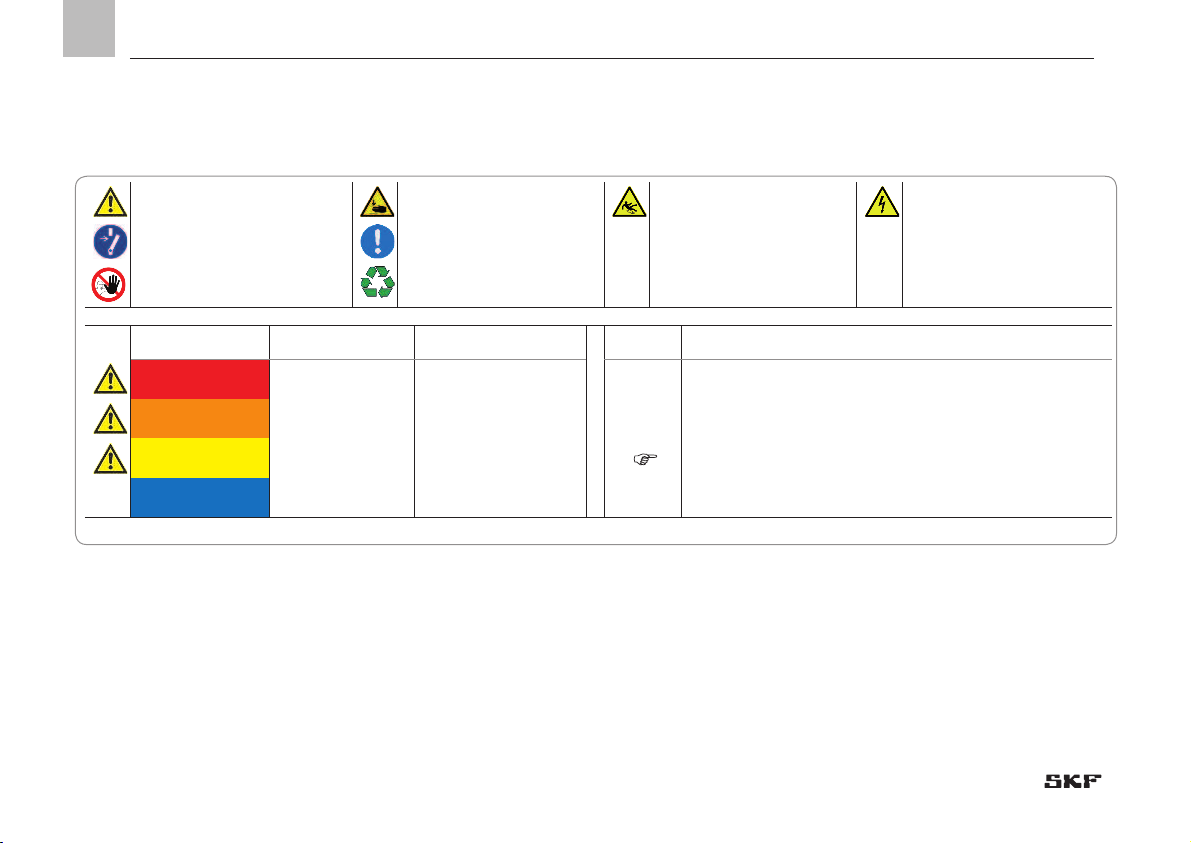

Explanation of symbols and signs
General warning Crushing hazard Risk of slipping Risk of electrical shock
Unlock the product General notes
Unauthorized persons must be
kept away Disposal, recycling
Warning level Consequence Probability Symbol Meaning
DANGER Death, serious injury Immediate lChronological instructions
WARNING Serious injury Possible ¡Bullet list items
CAUTION Minor
injury Possible Indicates the requirements that must be met for the actions
described in the following
IMPORTANT NOTE Property damage Possible üRecommended procedure

- 7 - 951-170-234-EN
Version 01
EN
Explanation of symbols, signs, and abbreviations
Abbreviations and conversion factors
approx. approximately °C degrees Celsius °F degrees Fahrenheit
i.e. that is K Kelvin Oz. ounce
incl. including N Newton fl. oz. Fluid ounce
min. minimum h hour in. inch
max. maximum s second psi pound per square inch
min minute d day sq.in. square inch
etc. et cetera Nm Newton meter cu. in. cubic inch
e.g. for example ml milliliter mph miles per hour
kW kilowatt ml/d milliliters per day rpm revolutions per minute
U voltage ccm cubic centimeter gal. Gallon
R Resistance mm millimeter lb. pound
I current intensity l liter hp horsepower
V volt db (A) sound pressure level kp kilopound
Wwatt > greater than fpsec feet per second
AC alternating current < less than Conversion factors
DC direct current ± plus minus Length 1 mm = 0.03937 in.
A ampere Ø diameter Area 1 cm² = 0.155 sq.in.
Ah ampere hour kg kilogram Volume 1 ml = 0.0352 fl.oz.
Hz Frequency (Hertz) RH relative humidity 1 l = 2.11416 pints (US)
NC normally closed contact ≈approximately Dimensions 1 kg = 2.205 lbs
NO normally open contact = equal to 1 g = 0.03527 oz.
% percent Density 1 kg/cm³ = 8.3454 lb./gal(US)
‰ per mil (thousandth) 1 kg/cm³ = 0.03613 lb./cu.in.
≥greater or equal Force 1 N = 0.10197 kp
≤less or equal Pressure 1 bar = 14.5 psi
mm2square millimeter Temperature °C = (°F-32) x 5/9
rpm Revolutions per minute Power 1 kW = 1.34109 hp
Acceleration 1 m/s² = 3.28084 ft./s²
Speed 1 m/s = 3.28084 fpsec
1 m/s = 2.23694 mph

- 8 -
951-170-234-EN
Version 01
EN 1. Safety instructions
1. Safety instructions
1.1 General safety instructions
○The operator must ensure that the in-
structions are read by all persons tasked
with working on the product or who
supervise or instruct such persons. The
operator must also ensure that the staff
fully understands the content of the in-
structions. Putting the products into op-
eration or operating them without having
read the instructions is prohibited.
○Retain the instructions for further use.
○The products described here were
manufactured according to the state of
the art. Risks may, however, arise from
non-compliant usage and may result in
personal injury or damage to material
assets.
○Any malfunctions which may affect safety
must be remedied immediately. In ad-
dition to these instructions, the statu-
tory regulations for accident prevention
and environmental protection must be
observed.
1.2 General behavior when handling the
product
○The product may only be used in aware-
ness of the potential dangers, in proper
technical condition, and according to the
information in this manual.
○Familiarize yourself with the functions
and operation of the product. The speci-
fied assembly and operating steps and
their sequences must be observed.
○Any unclear points regarding proper con-
dition or correct assembly/operation must
be clarified. Operation is prohibited until
issues have been clarified.
○Unauthorized persons must be kept away
○Wear personal protective equipment.
○All safety regulations and in-house in-
structions relevant to the particular activ-
ity must be observed.
○Responsibilities for different activities
must be clearly defined and observed.
Uncertainty seriously endangers safety.
○Protective and safety mechanisms must
not be removed, modified, nor disabled
during operation and must be checked
for proper function and completeness at
regular intervals.
○If protective and safety mechanisms must
be removed, they must be reinstalled
immediately following conclusion of work
and then inspected for proper function.
○Any malfunctions that occur must be
resolved according to responsibility. The
supervisor must be notified immediately
in case of malfunctions outside one's in-
dividual scope of responsibility.

1
- 9 - 951-170-234-EN
Version 01
EN
1. Safety instructions
1.3 Intended use
Feed lubricants only in compliance with the
specifications, technical data, and limits pre-
sented in this manual.
Usage is permitted exclusively in the context
of commercial or business activity by profes-
sional users.
1.4 Foreseeable misuse
Any usage of the product other than as
specified in this manual is strictly prohibited.
Particularly prohibited are:
○Use outside the specified operating tem-
perature range
○Use of non-specified equipment
○Use in areas with aggressive, corrosive
substances (e.g., high ozone loads)
○Use in areas with damaging radiation
(e.g., ionizing radiation)
○Use to feed, forward, or store hazardous
substances and mixtures as defined in
Annex I Part 2-5 of the CLP Regulation
(EC 1272/2008) that are marked with
hazard pictograms GHS01-GHS06 and
GHS08.
○Use to feed / forward / store gases, lique-
fied gases, dissolved gases, vapors, or
fluids whose vapor pressure exceeds nor-
mal atmospheric pressure (1013 mbar)
by more than 0.5 bar at their maximum
permissible operating temperature
1.5 
Unauthorized modifications and changes
can have an unpredictable effect on safety.
Unauthorized modifications and changes are
therefore prohibited.
1.6 Inspections prior to delivery
The following tests were performed prior to
delivery:
○Safety and functional tests
In addition to this manual, the following
documents must be observed by the respec-
tive target group:
○Operational instructions, approval rules
○The safety data sheet of the lubricant
used
If necessary:
○Project planning documents
○Instructions for other components for
setting up the centralized lubrication
system
○Other relevant documents for integration
of the product into the main machine,
system
1.7 Failure to comply with safety
instructions
Failure to comply with the safety instructions
may nullify any claims for compensation for
damages.

- 10 -
951-170-234-EN
Version 01
EN 1. Safety instructions
1.8 Notes on the rating plate
The rating plate provides important data such as the item number, product designation including order code*, product serial number, and the
production date.
The rating plate is located on the front side of the product. To avoid loss of this data in case a rating plate becomes illegible, these required
characteristics of the pump should be entered below in the manual.
Made in Germany
SKF Lubrication Systems Germany GmbH
764-000-0004
Schmierpumpe SP/FH 0,6M1A2
731
26/16
Example rating plate
Product serial number:
Item number:
Order code: Production date:
*see Chapter 4.2, “Order code/pump designs”

1
- 11 - 951-170-234-EN
Version 01
EN
1. Safety instructions
1.9 Note on CE marking
Note on Pressure Equipment Directive
2014/68/EU
Due to its performance characteristics,
the product does not reach the limit values
defined in Article 4, Paragraph 1, Subpara-
graph (a) item (i) and is, pursuant to Article
4, Paragraph 3, excluded from the scope of
Pressure Equipment Directive 2014/68/EU.
1.10 Persons authorized to use the
product
1.10.1 Operator
A person competent due to training, knowl-
edge, and experience to execute the func-
tions and activities associated with normal
operation; this also includes the avoidance
of possible hazards that may arise during
operation.
1.10.2 
A person with appropriate technical train-
ing, knowledge, and experience who can
recognize and avoid the hazards that may
occur during transport, assembly, commis-
sioning, operation, maintenance, repair, and
dismantling
1.11 
Before commencing work, the operator
must inform outside fitters of the opera-
tional safety regulations, applicable accident
prevention regulations, and the functions of
the main machine and its protective devices.
1.12 Provision of personal protective gear
The operator must provide personal protec-
tive gear appropriate for the location and
intended application.

- 12 -
951-170-234-EN
Version 01
EN 1. Safety instructions
1.13 Operation
The following must be observed during
commissioning and operation:
○All information within this manual and
all information within the referenced
documents
○All laws and regulations that the operator
must observe
1.14 Transport, assembly, maintenance,
malfunction, repair, shutdown,
disposal
○All relevant persons must be informed of
the activity prior to the start of this work.
Precautionary operational measures,
work instructions must be observed.
○Transport only with suitable transport
and lifting gear on suitable paths.
○Maintenance and repair work can be sub-
ject to restrictions at low or high temper-
atures (e.g., altered flow properties of the
lubricant). Maintenance and repair work
should therefore preferably be performed
at room temperature.
○Prior to performing work, the product
and the machine in which the product
will be integrated must be de-energized,
depressurized, and secured against un-
authorized activation.
○
Take appropriate measures to ensure that
moving, detached parts are immobilized
during the work and that no limbs can be
pinched by unintended movements.
○Assemble the product only outside the
operating range of moving parts, at an
adequate distance from sources of heat
or cold. Other units of the machine must
not be damaged or impaired in their
function by the installation.
○Dry any wet, slippery surfaces or cover
appropriately.
○Cover hot or cold surfaces appropriately.
○Drill required holes only on non-critical,
non-load-bearing parts. Use existing
boreholes. Do not damage lines or cables
when drilling.
○Observe any possible wearing spots. Pro-
tect components appropriately.
○All components used must be designed
for:
- The maximum operating pressure
- The maximum/minimum ambient
temperature
-The lubricant to be delivered
The operating and ambient conditions
at the place of use.
○No parts may be subjected to torsion,
shear, or bending.
○Check parts for contamination before use
and clean if necessary.
○Lubrication lines should be filled with
lubricant prior to assembly. This simplifies
subsequent venting of the system.
○Adhere to the specified torques. Use
a calibrated torque wrench when
tightening.
○Avoid mixing up/incorrectly assembling
disassembled parts. Label parts.

1
- 13 - 951-170-234-EN
Version 01
EN
1. Safety instructions
1.15 Initial commissioning, daily startup
Ensure that:
○All safety mechanisms are fully present
and functional.
○All connections are properly connected.
○All parts are correctly installed.
1.16 Cleaning
○There is a fire hazard from the use of
flammable cleaning agents. Use only
non-flammable cleaning agents that are
suitable for the intended purpose.
○Do not use corrosive cleaning agents.
○Do not use stream-jet equipment or
high-pressure cleaners.
○Mark wet areas accordingly.
1.17 Residual risks
Residual risk Possible in
lifecycle Avoidance / Remedy
Personal injury / property dam-
age due to falling of hoisted parts A, B, G, H, K
Unauthorized persons must be kept away.
Nobody is allowed to be present below hoisted
parts. Lift parts using suitable and tested lifting
gear.
Personal injury/property damage
due to tilting or falling product
due to non-compliance with
specified torques
B, C, G
Adhere to the specified torques. Secure the
product only to components with a sufficient
load-carrying capacity. If no torques are speci-
fied, use those specified for the screw size for
screws of strength class 8.8.
Personal injury / property damage
due to spilled, leaked lubricant B, C, D, F, G, H, K
Be careful when filling the reservoir and then
connecting or disconnecting the lubricant lines.
Use only hydraulic screw unions and lubrication
lines suitable for the specified pressure. Do not
install lubrication lines on moving parts or wear-
ing spots. If this cannot be avoided, use flexible
hose lines or anti-kink coils and/or conduits.
Lifecycles: A = Transport, B = Assembly, C = Commissioning, D = Operation, E = Cleaning,
F = Maintenance, G = Malfunction/repair, H = Shutdown, K = Disposal

- 14 -
951-170-234-EN
Version 01
EN 2. Lubricants
2. Lubricants
2.1 General information
Lubricants are used specially for specific
applications. To fulfill the task, lubricants
must meet various requirements to varying
degrees. The most important requirements
for lubricants are:
○Reduction in friction and wear
○Corrosion protection
○Noise reduction
○Protection against contamination/
ingress of foreign matter
○Cooling (primarily for oils)
○Durability (physical/chemical stability)
○Compatible with as many materials as
possible
○Economic and environmental aspects
2.2 Selection of lubricants
SKF Lubrication Systems considers lubri-
cants to be an element of system design.
The selection of a suitable lubricant should
reasonably be made during the design of the
machine and forms the basis for planning
the centralized lubrication system.
The manufacturer/operator of the machine
should preferably make the selection with
the supplier of the lubricant on the basis of
the requirements profile of the specific task.
If you have no or little experience selecting
lubricants for centralized lubrication sys-
tems, please contact SKF.
We gladly assist our customers in the selec-
tion of suitable components for feeding the
selected lubricant and in the planning and
design of a centralized lubrication system.
This will spare you potentially costly down-
time due to damage to the machine/system
and/or damage to the centralized lubrication
system.
Only lubricants specified for the
product may be used
(see “Technical data” chapter).
Unsuitable lubricants may lead to
failure of the product.
Do not mix lubricants. This can
have unpredictable effects on the
usability and this function of the
centralized lubrication system.
Due to the large number of pos-
sible additives, it is possible that
individual lubricants that meet
the required specifications ac-
cording to the manufacturer’s
data sheet are not suitable for
use in centralized lubrication
systems (e.g., incompatibility
between synthetic lubricants and
materials). To avoid this, always
use lubricants that have been
tested by SKF.

2
- 15 - 951-170-234-EN
Version 01
EN
2.Lubricants
2.3 Material compatibility
The lubricants must generally be compatible
with the following materials:
○Steel, gray cast iron, brass, copper,
aluminum
○NBR, FKM (FPM), ABS, PA, PU
2.4 Aging of lubricants
In case of extended machine downtime,
check before re-commissioning that the
lubricant is still suitable for use in terms of
chemical and physical signs of aging. We
recommend performing this inspection after
one week of machine downtime.
In case of doubt regarding the suitability of
the lubricant, replace it before re-commis-
sioning and, if necessary, perform an initial
lubrication manually.
Lubricants can be tested in the company's
laboratory for suitability for pumping in cen-
tralized lubrication systems (e.g., "bleeding").
Please contact SKF if you have further ques-
tions regarding lubricants.
An overview of the lubricants we have tested
is available on request.

- 16 -
951-170-234-EN
Version 01
EN 3. Overview, functional description
3. Overview, functional description
6
5
7
13
11
14
16
15
SP/FH without pressure relief valve
SP/FH with pressure relief valve
3.1 SP/FH components
1Ball knob
2Hand lever
3Line terminal (lubricant outlet) 1)
4Lid
5Reservoir
6Dip stick with grease follower plate
7Pump body
8Pressure relief valve 2)
9Relief groove 2)
10 Inlet chamber
11 Check valve
12 Lubricant outlet
(line connection 1)
13 vent plug
14 Flange
15 Pressure spring
16 Working piston
1) Position relative to hand lever varies
2) Only present on designs A1 and A3
For prefix 1 and prefix 2, see Chapter 4.2,
“Order code/pump designs”
4
8
Overview of SP/FH, Fig. 1
2
3
1
10
12
9

3
- 17 - 951-170-234-EN
Version 01
EN
3. Overview, functional description
3.2 SP/FH operation
See Figure 1
CAUTION
Crushing hazard
Be careful when actuating the hand
lever. Always actuate the hand lever
by the ball knob.
Lubricant feeding is performed by pulling or
pressing down the hand lever (2). Lubricant
feeding ends once the hand lever is released.
The single-piston grease lubrication pump
SP/FH is available in two different basic de-
signs that are described below.
The pump is used without a pressure relief
valve to directly supply lubrication points or
to supply a progressive feeder.
The pump is used with a pressure relief
valve primarily to supply single-line grease
metering elements.

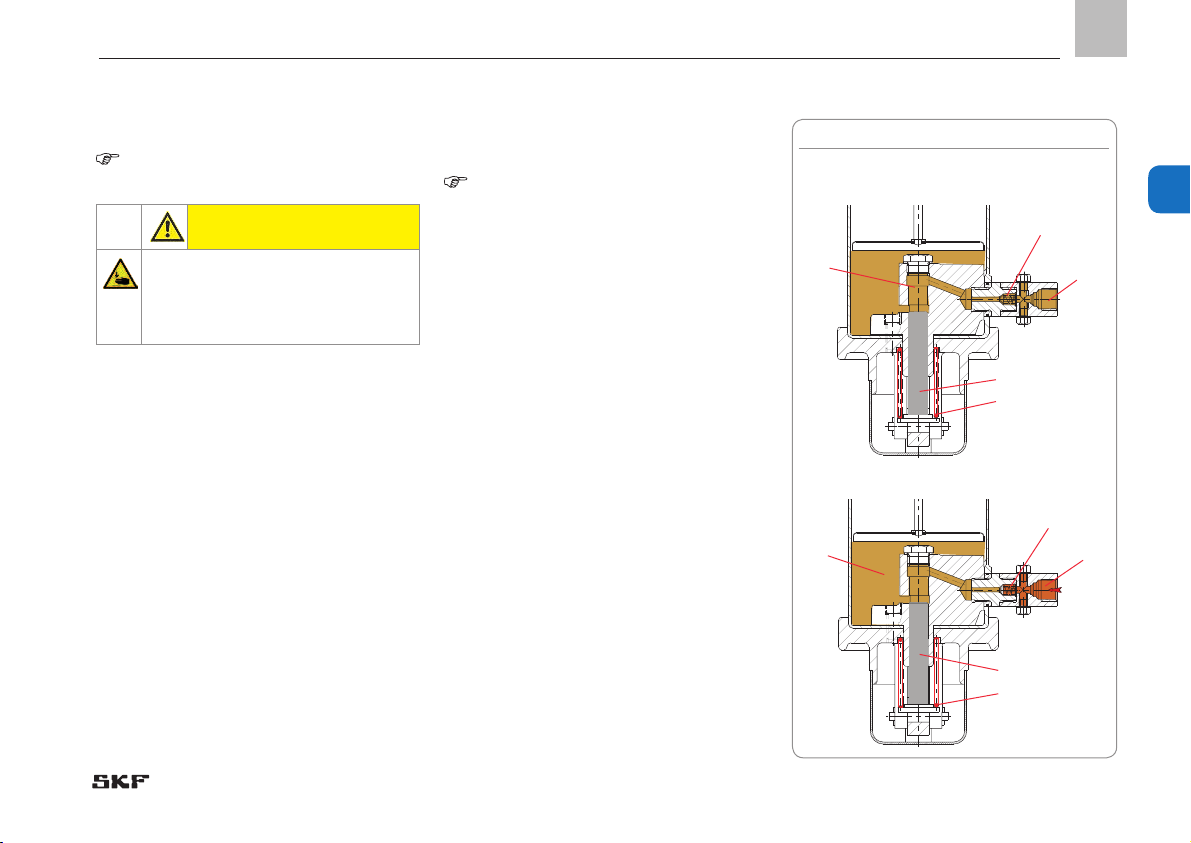

Design A2/A4, Fig. 2
Behavior in a
pressure stroke
Behavior in
pressure relief
16
15
16
15
10
10
11
11
12
12
3.2.1 Without pressure relief valve
(pump designs A2/A4)
See Figures 1 and 2
Pulling the hand lever (2) performs one
pressure stroke. The working piston (16)
pushes against the spring force of the pres-
sure spring (15). The lubricant is transported
from the inlet chamber (10) to the pump’s
lubricant outlet (12) via the opening check
valve (11).
After the hand lever (2) is released, the
spring force of the pressure spring (15)
moves the working piston (16) downward
and moves the hand lever (2) back to its nor-
mal position. In the process, the check valve
(11) closes and prevents the lubricant from
flowing back. At the same time, the inlet
chamber (10) refills with lubricant.

- 18 -
951-170-234-EN
Version 01
EN 3. Overview, functional description
See Figures 1 and 3
Pulling the hand lever (2) performs one
pressure stroke. The working piston (16)
pushes against the spring force of the pres-
sure spring (15). The lubricant is transported
from the inlet chamber (10) and presses
against the pressure relief valve (8). The re-
lief groove (9) closes in the process. The duct
leading to the check valve (11) fills with lu-
bricant. The lubricant from the inlet chamber
presses the lubricant to the lubricant outlet
(12) via the opened check valve (11) and
then to the connected components.Multiple
strokes to build up pressure are possible.
Returning the hand lever (2) to its normal
position causes the pressure spring (15)
to be relieved, which presses the working
piston (16) back to its normal position. In
the process, the check valve (11) closes and
prevents the lubricant from flowing back. At
the same time, the inlet chamber refills with
lubricant. With a slight delay, the pressure
relief valve (8) unblocks the relief groove (9)
and the remaining lubricant is relieved back
into the lubricant reservoir (5).The pump is
depressurized.

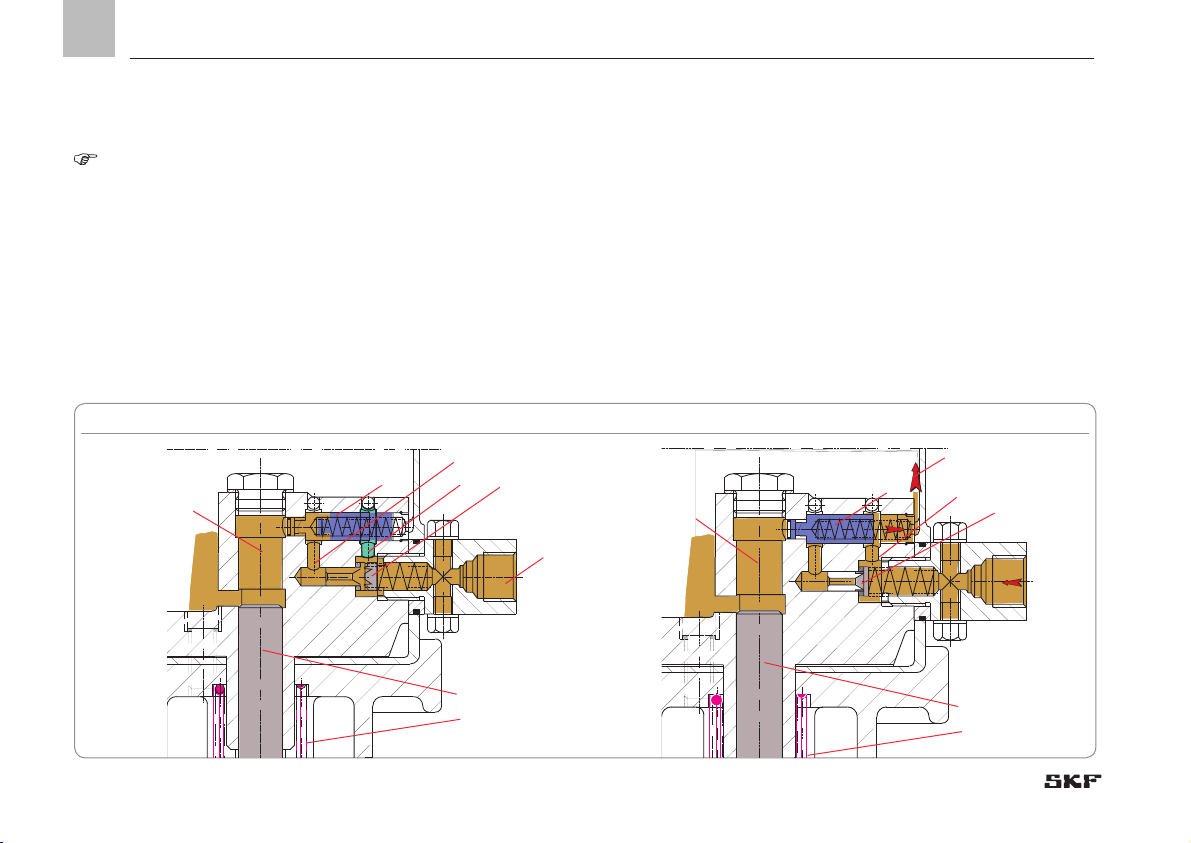

Design A1/A3, Fig. 3
16
15
10
8 9 11
16
15
10
8 9
Behavior in a
pressure stroke Behavior in
pressure relief
3.2.2 With pressure relief valve (pump designs A1/A3)
Duct
12
5
Lubricant
11

4
EN
4. Technical data
3
- 19 - 951-170-234-EN
Version 01
4. Technical data
4.1 Technical data
General
Mounting position Vertical
Reservoir capacity 0.6 l
Line connection Thread M16x1.5
Weight Approx. 5 kg
Ambient and lubricant temperature range -15°C to +80°C
Hydraulic system
Operating pressure Max. 100 or 150 bar1)
Feedable lubricants Greases based on mineral oil
Worked penetration ≥ 265 1/10 mm
Delivery volume 3 cm³/stroke
1) Depending on pump design (see Chapter 4.2, “Order code/pump designs”)

EN 4. Technical data
- 20 -
951-170-234-EN
Version 01
4.2 Order code/pump designs
Order code Part No. Design1)
Position of hand lever
relative to
lubricant outlet
Operating
pressure
max.(bar)
Pressure
relief
valve
With mounted feeder
Type Part No.
SP/FH 0,6M1A1 764-101-1110 A1 M1 100 Yes
SP/FH 0,6M2A1 764-101-1120 A1 M2 100 Yes
SP/FH 0,6M3A1 764-101-1130 A1 M3 100 Yes
SP/FH 0,6M1A2 764-000-0004 A2 M1 100 No
SP/FH 0,6M2A2 764-000-0005 A2 M2 100 No
SP/FH 0,6M3A2 764-000-0006 A2 M3 100 No
SP/FH 0,6M1A3 764-000-0060 A3 M1 150 Yes
SP/FH 0,6M2A3 764-000-0061 A3 M2 150 Yes
SP/FH 0,6M3A3 764-000-0062 A3 M3 150 Yes
SP/FH 0,6M1A4 764-000-0063 A4 M1 150 No
SP/FH 0,6M2A4 764-000-0064 A4 M2 150 No
SP/FH 0,6M3A4 764-000-0065 A4 M3 150 No
SP/FH 0,6M1A4035 764-200-4037 A4 M1 150 No VPBM-3... 24-3820-0128
SP/FH0,6M1A4033 764-200-4035 A4 M1 150 No VPKM-3... 24-3810-0346
Hand lever
Lubricant outlet
M1
Plan view
Position of hand lever relative to lubricant outlet, Fig. 4
M2 M3
1) A1 and A3 for pumps for single-line grease metering elements (pumps with pressure relief valve);
A2 and A4 for pumps for direct supply or for progressive feeders (pumps with check valve)
