Skil PWR CORE 20 BL4714E-00 User manual
WARNING: To reduce the risk of injury, the user must read and understand the
Owner’s Manual before using this product. Save these instructions for future reference.
For Customer Service
Brushless Blower
Model: BL4714E-00
TM
1300-017-545 OR www.skil.com.au

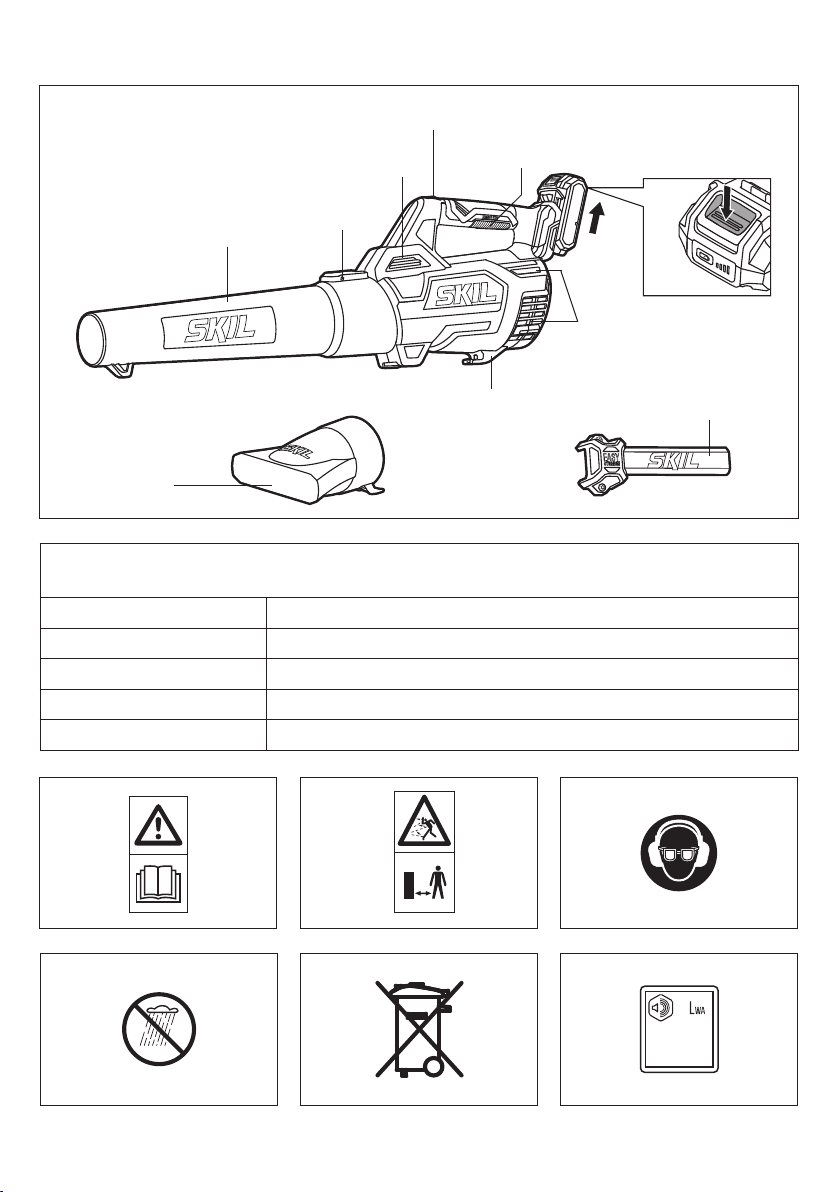

2
XXdB
4
6 7 8
5
3
1
Unlock button
Tube
Ventilation slots
On/o dial wheel with
variable speed function
Anti static wire
Storage rail
Storage hook
Ventilation
slots
Nozzle
2SPECIFICATIONS
Rated Voltage 20V max d.c.
Weight 2.3 kg (with 2.5 Ah battery pack attached)
Weight 2.6 kg (with 5.0 Ah battery pack attached)
Air Volume 680 m3/h
Air Velocity 160 km/h
3
99
9
9
q
w e
Battery level
indicator
Nozzle
Tube
Tube
Tube
a
b
c
Storage rail
Storage hook
Unlock button
4
• Never operate the tool with a detective tube, nozzle or
housing
• Replace worn of damaged parts
• Keep all nuts, bolts and screws tight to be sure that the
tool is in a safe working condition
DURING USE
• Operate the tool at a walking pace only (do not run)
• Keep proper footing on slopes
• Always ensure the air inlets are kept clear of impurities
• Take a secure stance when working (do not overreach,
especially when using steps or a ladder)
AFTER USE
• Store the tool indoors in a dry and locked-up place, out
of reach of children
-store the battery pack separately from the tool
• Only use the following batteries and chargers with
this tool
-SKIL battery: BY5197E-03 BY5196E-03
-SKIL charger: SC5358E-01 QC5360E-01 QC5359E-00
• Do not use the battery when damaged; it should be
replaced
• Do not disassemble the battery
• Do not expose tool/battery to rain
• Permitted ambient temperature (tool/charger/battery):
-when charging 4...40°C
-during operation –20...+50°C
-during storage –20...+50°C
EXPLANATION OF SYMBOLS ON TOOL/BATTERY
3 Read the instruction manual before use
4Pay attention to the risk of injury caused by ying
debris (keep bystanders a safe distance away from work
area)
5 Wear protective glasses and hearing protection
6Do not expose tool to rain
7 Do not dispose of electric tools and batteries together
with household waste material
8 Guaranteed sound power level
USE
• Assembly instructions q
-tube automatically ts on housing by snapping button
-ensure that the tube is assembled correctly
-nozzle automatically ts on tube by snapping lock lever
w
• Charging battery
! read the safety warnings and instructions
provided with the charger
• Removing/installing the battery 1
• On/o
-switch on tool by turning wheel
-with wheel the air ow control can be adjusted from 0 to
high (0 – max)
! before switching on the tool, ensure that it is not
in contact with any object
! after switching o the tool the motor continues to
run for a few seconds
• Battery protection
The tool is suddenly being switched o or prevented from
being switched on, when
-the load is too high --> remove load and restart
INTRODUCTION
• This tool has been designed for blowing dry leaves and
other dry garden rubbish such as grass and twigs
• This tool is intended for domestic use only and is not
designed to be used under wet conditions
• This tool is not intended for professional use
• Check whether the packaging contains all parts as
illustrated in drawing 1
• When parts are missing or damaged, please contact your
dealer
• Read this instruction manual carefully before use
and save it for future reference 3
• Pay special attention to the safety instructions
and warnings; failure to follow these may result in
serious injury
SAFETY
GENERAL
• Never allow children, persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge or people unfamiliar with these instructions to
use the machine
• Store idle power tools out of reach of children and do
not allow persons unfamiliar with the blower or these
instructions to operate the blower
• Only use the tool in daylight or with appropriate articial
lighting
• Only use the tool when completely assembled
• Avoid using the tool in bad weather conditions, especially
when there is a risk of lightning
• Do not use the tool on wet lawns and when the materials
to be blown are wet
• Do not blow at or towards hot, ammable or explosive
materials
• Never operate the tool in the direct vicinity of persons
(especially children) and animals
• The user is responsible for accidents or hazards
occurring to other people or their property
• Always switch o the tool and remove the battery
-whenever leaving the tool unattended
-before clearing jammed material
-before checking, cleaning or working on the tool
-after striking a foreign object
-whenever the tool starts vibrating abnormally
PERSONAL SAFETY
• Never blow debris in the direction of bystanders
• Always wear long trousers, long sleeves and sturdy
shoes when operating the tool
• Wear protective gloves, safety glasses, close-tting
clothes and hair protection (for long hair)
• Failure to keep long hair away from the air inlet could
result in personal injury
• Wear a dust mask when working in a dusty environment
ELECTRICAL SAFETY
• Do not use the tool if the switch does not turn on and o;
always have a damaged switch repaired by a qualied
person
BEFORE USE
• Be familiar with the controls and the proper use of the
tool
• Check the functioning of the tool before each use and,
in case of a defect, have it repaired immediately by a
qualied person; never open the tool yourself
5
-the battery temperature is not within the allowable
operating temperature range of -20 to +50°C --> 2
levels of the battery level indicator start ashing when
pressing button 9c; wait until battery has returned
within the allowable operating temperature range
-the battery is nearly empty (to protect against
deep discharge) --> a low battery level or ashing low
battery level 9b is shown by the battery level indicator
when pressing button; charge battery
! do not continue to press the on/o switch after the
tool is switched o automatically; battery may be
damaged
MAINTENANCE / SERVICE
• This tool is not intended for professional use
• Always switch o the tool, remove battery pack, and
ensure that all moving parts have come to a complete
standstill
• Always keep tool clean (especially ventilation slots 1)
-clean the tool after each use with a soft brush or a
cloth (do not use cleaning agents or solvents)
• Storage e
-securely mount storage rail on the wall with 2 screws
(not supplied) and horizontally leveled
-store the tool indoors in a dry and locked-up place, out
of reach of children
-do not cover the tool with plastic (plastic may cause
moisture with rust/corrosion as a result)
TROUBLESHOOTING
-The following listing shows problem symptoms,
possible causes and corrective actions (if these do not
identify and correct the problem, contact your dealer or
service station)
! in case of electrical or mechanical malfunction,
immediately switch o the tool and remove battery
Motor does not start or stops suddenly
-empty battery -> charge battery
-hot battery -> let battery cool down
-on/o switch defective -> contact dealer/service station
-defective motor -> contact dealer/service station
Tool operates intermittently
-on/o switch defective -> contact dealer/service station
-internal wiring defective -> contact dealer/service
station
-impeller blocked by foreign object -> remove blockage
ENVIRONMENT
Do not dispose of electric tools, batteries,
accessories and packaging together with household
waste material. The electric tools, accessories and
packaging should be sorted for environmental-friendly
recycling
! prior to disposal protect battery terminals with
heavy tape to prevent short-circuit
6
WARRANTY
SKIL WARRANTY POLICY
For all SKIL warranty & enquiries, please contact 1300 01
SKIL (1300 01 7545) Monday to Friday 9:00am to 5:00pm
EST
Chervon Australia Pty Ltd ABN 36 165 077 501 (“Chervon”)
warrants to the original domestic purchaser that this product
will be free from defects in materials and workmanship for
5 years from date of purchase, and any battery or charger
will be free from defects in materials and workmanship for 3
years from date of purchase. Consumables will be covered
by a 3-month warranty and a complete list can be found
inside the manual.
Notwithstanding the foregoing, if a SKIL consumer Power
Tool is used for industrial, professional or commercial
purposes, the foregoing warranty will apply for a duration
of ninety days from the date of purchase. This ninety-day
commercial warranty pertains to the SKIL Power Tool range
only.
This SKIL product warranty is only applicable to purchases
from authorised SKIL retailers. This warranty will not apply to
SKIL products that are purchased from Amazon, eBay and
any other non-authorised online retailer. This SKIL product
warranty does not apply to any parallel imported product and
does not apply to any SKIL products that are not purchased
from an authorised SKIL retailer. To make a claim, return
the faulty item together with proof of purchase directly to
your closest service agent or to the place of purchase. Any
handling and transportation costs (and other expenses
incurred in claiming this warranty) are not covered by this
warranty and will not be borne by Chervon. The replacement
product or part or repaired product will be made available
for your collection at an address nominated by Chervon.
Where a valid warranty claim is made, Chervon will replace
the defective product or repair the fault. Where the product is
repaired, Chervon may use refurbished parts. This warranty
does not cover normal wear and tear, misuse or abuse. This
warranty may also be further limited or voided as specically
detailed in the product manual. Chervon has no other liability
under this warranty. The benets to you given by this warranty
are in addition to other rights and remedies imposed by State
and Federal legislation that cannot be excluded. Our goods
come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement
or refund for a major failure and compensation for any other
reasonably foreseeable loss or damage. You are also entitled
to have the goods repaired or replaced if the goods fail to
be of acceptable quality and the failure does not amount to
a major failure. Chervon Australia Pty Ltd, Unit 14, 5 Kelletts
Road, Rowville, VIC. 3178.
Ph; 1300 01 SKIL (1300 01 7545).
Email: [email protected]
The following accessories and consumables have a 3-month
warranty period:
Chucks Allen keys
Brushes Angle grinder anges
Collets Dust canisters
Industry leading battery
technology wraps each
cell with cooling material
to keep the battery
powering on for 25%
longer run time compare
to general battery
technology.
SKIL’s patented technology
extends the battery life 2X
longer compare to general
battery technology.
LONGER
RUN TIME
PWRCORE 20™
LITHIUM
*
2X
BATTERY LIFE
PWRCORE 20™
LITHIUM
*
*
