Smanos DB-20 User manual

Smart Video Doorbell
Instruction Manual

Welcome to the Smart Home Family!
Thank you for choosing “Smart Video Doorbell”. This product integrates motion
detection and video recording into your doorbell system. Please take your time to
unpack and familiarize yourself with the included parts and this instruction manual
to learn how to to setup the “Smart Video Doorbell”.
Disclaimer
This instruction manual has been reviewed thoroughly and has been designed
to ensure that your product setup will be quick and easy with our easy to follow
guide. All statements, technical information and recommendations in this manual
are believed to be reliable, but the accuracy and completeness thereof are not
guaranteed or warranted.
The specications and information regarding the products in this document are
subject to change without further notice.
Photocopy, copy, reproduction, translation to any language, modication, storage
in a retrieval system or retransmission, in any form or by any means, electronic,
mechanical or otherwise, is strictly prohibited without written permission.
In no event we are liable for any indirect, special, incidental or consequential
damages, including, without limitation, monetary loss or loss or damage to data
arising out of the use or inability to use this document, even if the product has been
advised of the possibility of such damages.

Contents
Things to Note before Getting Started������������������������������� 1
WiFi Internet Connection��������������������������������������������������������� 1
WiFi Network and Password������������������������������������������������������ 1
Operating System Requirements ������������������������������������������������ 1
In the Box ������������������������������������������������������������ 2
Getting to Know Your Smart Video Doorbell���������������������� 3~4
Overview������������������������������������������������������������������������� 3
LED Indicators�������������������������������������������������������������������� 4
Getting Started���������������������������������������������������� 5~7
Operating Requirement ���������������������������������������������������������� 5
Connecting to the Existing Doorbell ��������������������������������������������� 5
Download the App��������������������������������������������������������������� 6
Signing Up/In �������������������������������������������������������������������� 7
Installation������������������������������������������������������������������������ 7
Adding Device ������������������������������������������������������������������� 7
Setting Up Your Doorbell ���������������������������������������� 8~10
App Operation��������������������������������������������������11~24
Main Page�����������������������������������������������������������������������11
Live Video�����������������������������������������������������������������������12
Answering Your Door �����������������������������������������������������������13
History ��������������������������������������������������������������������������14
Album���������������������������������������������������������������������������15
Settings �������������������������������������������������������������������� 16~21
Account Management ����������������������������������������������������� 22~24
Specications ������������������������������������������������������� 25
FAQs ������������������������������������������������������������26~30

4
Things to Note before Getting Started
WiFi Internet Connection
� One critical factor affecting the performance of your doorbell is the relative
positions of your home WiFi router and doorbell. Place your doorbell in an open
area (DO NOT place it directly on the oor); the closer the doorbell is to the
router, the stronger the WiFi signal will be, resulting in optimum performance and
satisfaction.
� A slow network speed will also affect the performance of your doorbell. It is
recommended that you have an upload speed of at least 2Mbps or faster.
To test your networks upload speed we recommend www.speedtest.net or the
speedtest App by Ookla it is FREE and very informative about your network’s TRUE
performance.
WiFi Network and Password
� Have your WiFi network name and password handy. The WiFi network name is
normally referred to as the SSID. The password or security ID is normally the next
line or two down from the WiFi/SSID network name.
These can be easily found on your WiFi router if you did not change them when
you rst installed your WiFi router, for example:
- WiFi/SSID Network Name: XXXX
- WiFi/SSID Network Password/Security Key: XXXXX
Operating Requirements
- iOS 8.0 or above with iPhone 5 or newer;
- Android 5.0 or newer;
� Connect to the existing doorbell with a voltage of 8~24VAC
1

2
In the Box
Smart Video Doorbell x 1
Waterproof Case x 1
Extra Terminal Screw x 2
* For securing the wires on the back of doorbell
Wire Connector x 2
* To connect the wires Harness to your existing wires
Mounting Bracket x 1
Mounting Screw x 4
* Used to mount doorbell with Phillips screwdriver (not
included in the package)
Anchor x 4
* For installing on concrete/stucco/brick
Security Screw x 4 (2 for Extra Use)
* Used to secure the mounting bracket
Screwdriver x 1
* The screwdriver used for the security screws
Power Regulator x 1
Wire Harness x 1
* Used to connect the power regulator to your internal chime
Extra Wire Connector x 2
* To connect the wires Harness to your existing wires

2
3
Getting to Know Your Smart Video Doorbell
Overview
Front View
Camera
Microphone
PIR Sensor
Ringer
IR LEDs
Rear View
Conguration
Button
Tamper Switch
Wiring Terminals

4
LED Indicators
The LED indicators on the doorbell give you an idea of the device’s current status.
Here is a list of light indicators and the corresponding status it refers to.
Light indicator Status
Solid red light lasts for 30 seconds and then off Powering on
Green light ashes fast (once every 0.2s) WiFi signal searching
Green and red light ash alternatively WiFi conguration mode
OFF WiFi connected
Green light ashes slowly (once every second) Doorbell ringing
Solid green light Live streaming
Red lights ashes fast (with warning beeps) Tampering alarm
Red light ashes once Motion detected
Red light ashes slowly (once every 3s) Low battery

4
5
Getting Started
Operating Requirement
This video doorbell is only available to connect to a low voltage 8~24VAC
transformer or an existing traditional doorbell with a voltage of 8~24VAC. In
general, your traditional doorbell consists a ringer to be installed outdoor, and an
indoor chime with a transformer. When the ringer is pressed by visitor, a ringtone of
“ding dong” will remind the family there has a visitor.
If you don’t get a detailed information about your existing doorbell, please consult
your local agency or installer.
To ensure a good performance of the smart doorbell, please check the things
below:
(1) Please do not install the smart doorbell on the mental.
(2) Mount your smart doorbell at a proper height. It is highly recommended to
mount it at the height of 1.2~1.3m from the ground.
(3) One critical factor affecting the performance of this video doorbell is the WiFi
quality it connecting with, It is recommended to close your door and do a WiFi
speed test via speedtest app (for example) in the location where you want it to be
installed on to make sure that you have an upload speed of at least 2Mbps.
(4) The app of this video doorbell is available to run at iOS 8.0 or above with iPhone
5 or newer, Android 5.0 or newer.
Connecting to the Existing Doorbell
This part is recommended to be done by qualied electrician.
Step 1: For your safety, please shut off the power source of your existing doorbell
system.
Step 2: Remove the cover of your internal chime and you can see 4 wires, two of
them are connected with its transformer, and two of them are connected with the
outdoor ringer.
Step 3: Disconnect the wire on the "front" terminal (outdoor ringer) and the wire on
the "transformer" terminal.
Step 4: Attach the newly disconnected wires into the provided Power Regulator.
Push down the orange fasteners to secure the wires in place.
Step 5: Then attach the other end of wires from the Power Regulator in parallel
back to the "front" and "transformer" terminals of internal chime. Tighten the screws
on top to secure the wires in place.

6
Step 6: Fix the Power Regulator inside the chime with double-sided tape, if it does
not t inside, you can attach it to the wall next to your chime. Place the cover back
onto the chime.
Step 7: Remove the wires attached to the outdoor ringer. You can disconnect the
wires by loosening the screws on top of the wires.
Step 8: Attach the newly disconnected wires into the doorbell in any pairing. Push
down the orange fastener to secure the wires in place.
Step 9: Restore the power back to the doorbell system. The ringer LED will be red
on boot.
Step 10: The initial boot takes about 30 seconds. There will be an audio indication
when the boot is completed. The ringer LED will also change to green.
Downloading the App
smart home
Special Tips
Tap “Allow” to allow receiving notications from App. Forbidden to receive notications may
result in an application running failure, please allow it to send notications to your phone in
case of alarm.

6
7
Signing Up/In
If you have not registered an account with us, please press “Sign up” just below the
“Sign in” icon on the App, and follow the instructions to create your account rst.
* If you do not receive an account verication code in your email inbox during the
registration process, please remember to check your spam/junk folder and make
sure the notice has not been blocked by your service provider.
Once you have an account with us, please select the “Sign in” icon and enter your
email address and password to log in.Once you have an account with us, please
select the “Sign In” icon and enter your email address and password to log in.
Installation
The voltage of the doorbell is 8�24 VAC. To see how to connect the power, please
scan the QR code below to watch the video.
Adding Device
Press the [+] button on the Device List page.

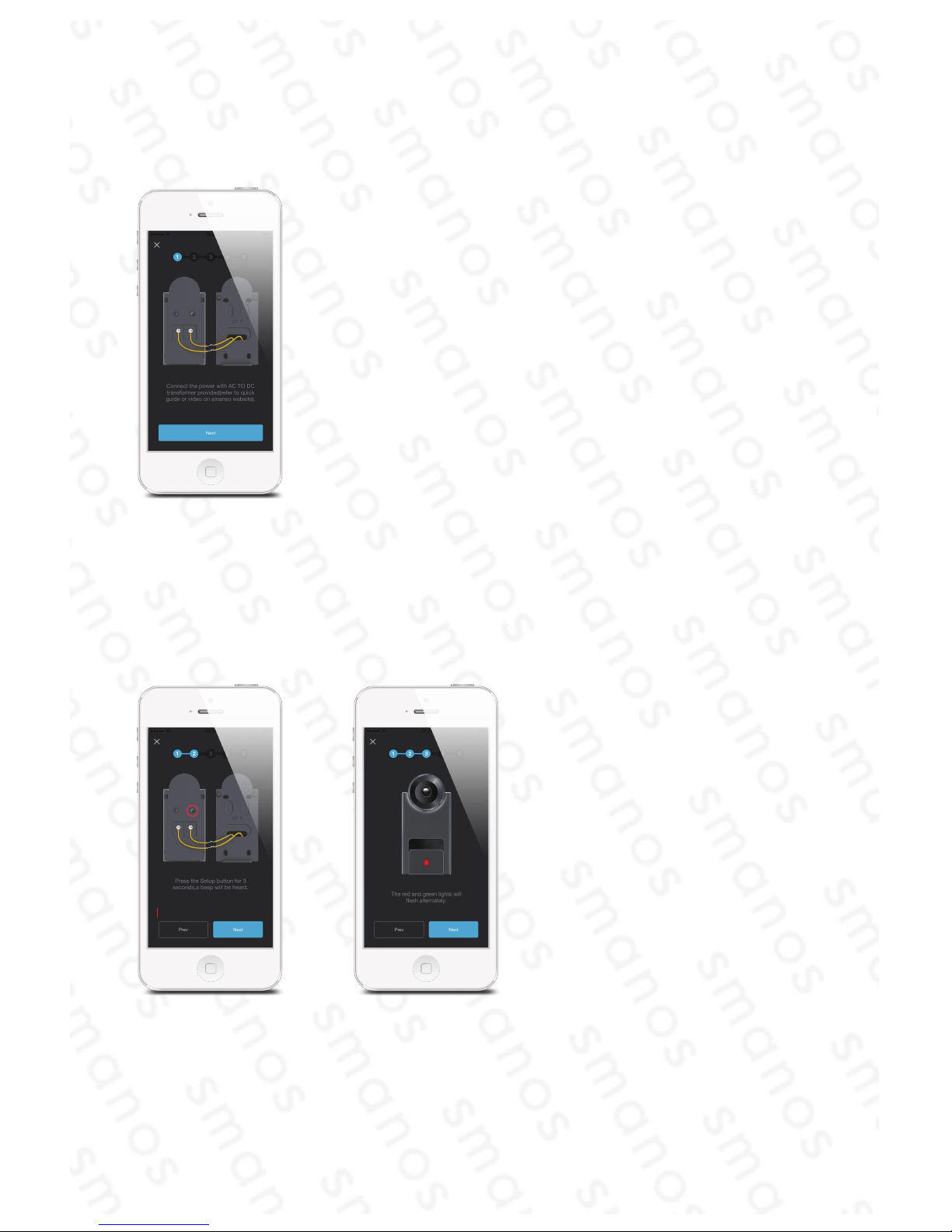

Tap on [Smart Video Doorbell], and then follow the conguration steps to set up
your doorbell with your home WiFi.

8
Setting Up Your Doorbell
Powering On
Putting the Doorbell into WiFi Conguration Mode
Press and hold the Conguration Button on the back until the doorbell beeps once
(about 3 seconds), and then the indicator would ash red and green alternately,
indicating that the doorbell has been switched into the WiFi conguration mode.

8
9

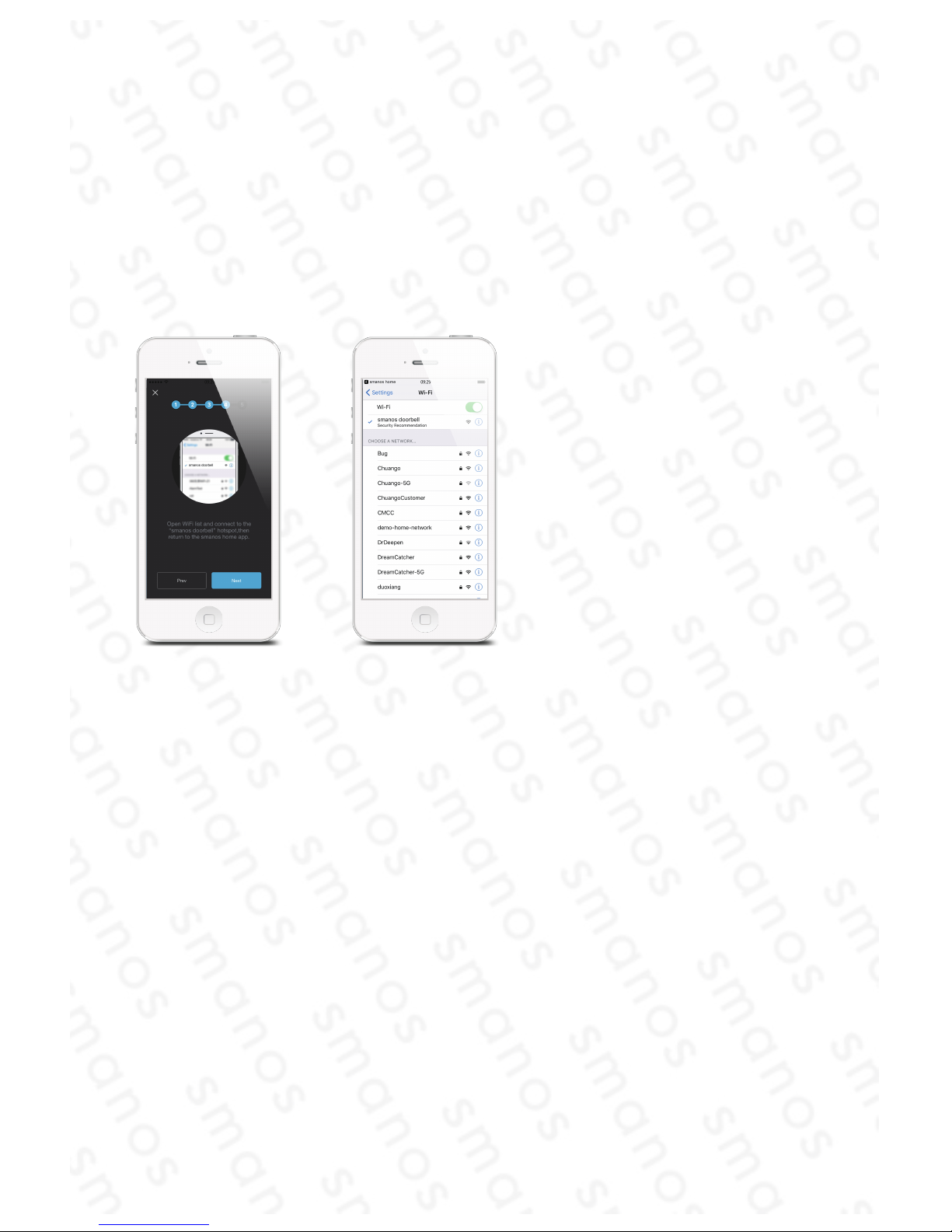

Connecting the Doorbell to Your Smartphone
NOTE: Android users may need to disable cellular (mobile) data before proceeding
to this step. This setting is normally found in your smartphone’s settings under Data
Usage, or Mobile Networks.
If you’re unable to nd the setting location, we suggest searching on Google with
the following syntax: Disable (Phone Model) cellular data.
Go to your smartphone’s WiFi settings, and select “smanos doorbell” to connect to
the doorbell. Now, your smartphone is the control center of your doorbell.

10

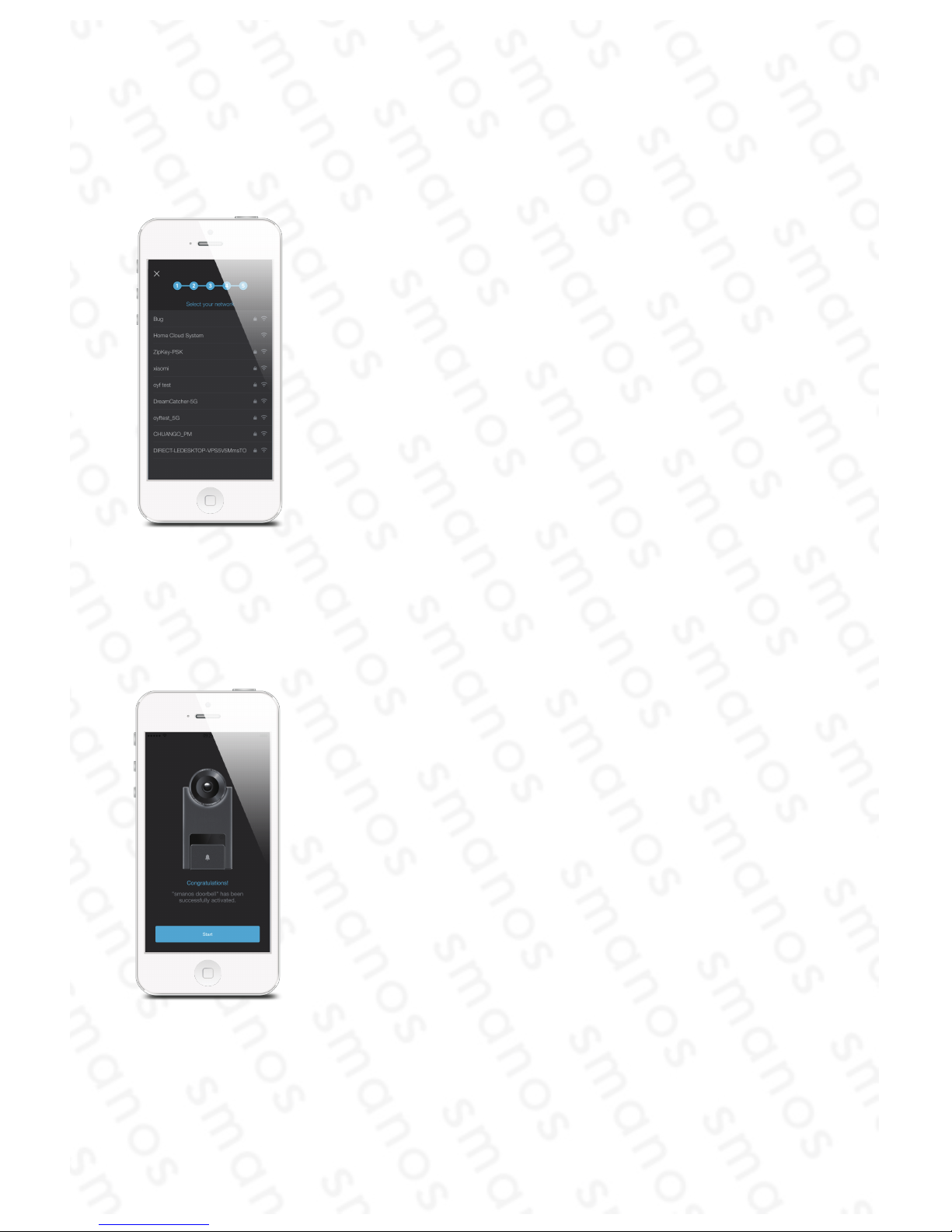

Entering WiFi Details for the Doorbell
Pick your home WiFi network from the drop down box listed on the app, and
enter the WiFi network’s password. The doorbell will connect to the selected WiFi
network. This binding process should take about three minutes.
The doorbell indicator light will be off when a successful connection has been
established.
Starting to Use
Now, your doorbell is ready for a spin!

10
11
App Operation
Main Page
Checking device status after setting up
When the status bar turns
into teal, it means the
device is ONLINE and
available.
This icon on the left of your
device indicates that the
device was shared to you
by family or friends.
If it's gray, it means the
device is OFFLINE and
cannot be accessed.
Editting your device(s) as you wish

12
Deleting Device
Tap on the Edit Button [ ], and press the Delete Button [ ].
Sorting
Tap on the Edit Button [ ], press and hold the Sort Button [ ], drag it up or
down to the position where you want it to be located.
Live Video
Please tap on the “Smart Video Doorbell” icon from the main page and enter the
live video page.
1. Signal Strength
Indicate the signal strength between the WiFi network and the connected devices.
Note: Another critical factor affecting video quality is the upload speed of your
selected home WiFi network.
2. Video Quality
Tap on the video quality icon at the top right of the Live Page, there are 3 different
levels of video quality you can choose: 1080p, 720p, 360p; please choose video
quality according to your need and network situation.
If the level of 1080p is selected, the upload rate for the network that the device is
connected should be not less than 200KB/S (above ADSL 4M), and the download
rate for the network that the mobile phone is connected should not be less than
200KB/S.

12
13
If the level of 720p is selected, the upload rate for the network that the device is
connected should be not less than 120KB/S (above ADSL 4M), and the download
rate for the network that the mobile phone is connected should not be less than
120KB/S.
If the level of 360p is selected, the upload rate for the network that the device is
connected should be not less than 30KB/S (above ADSL 1M), and the download
rate for the network that the mobile phone is connected should not be less than
30KB/S.
3. Snapshot (left) / Record (right)
Real�time screenshots and video clips can be recorded directly onto your phone.
Tap on “Album” to view them.
4. Listen (left) / Speak (right)
Press the microphone button to speak and press it again when you nish. Anyone
in the vicinity of your doorbell will hear you.
If you want to listen in on the surrounding area of your doorbell, all you need to do
is tap on the Listen In button.
5. Latest Alerts
The latest three alerts will appear on this area. And the corresponding 15�second
videos can be played directly ONLY if you have purchased a smanos cloud plan.

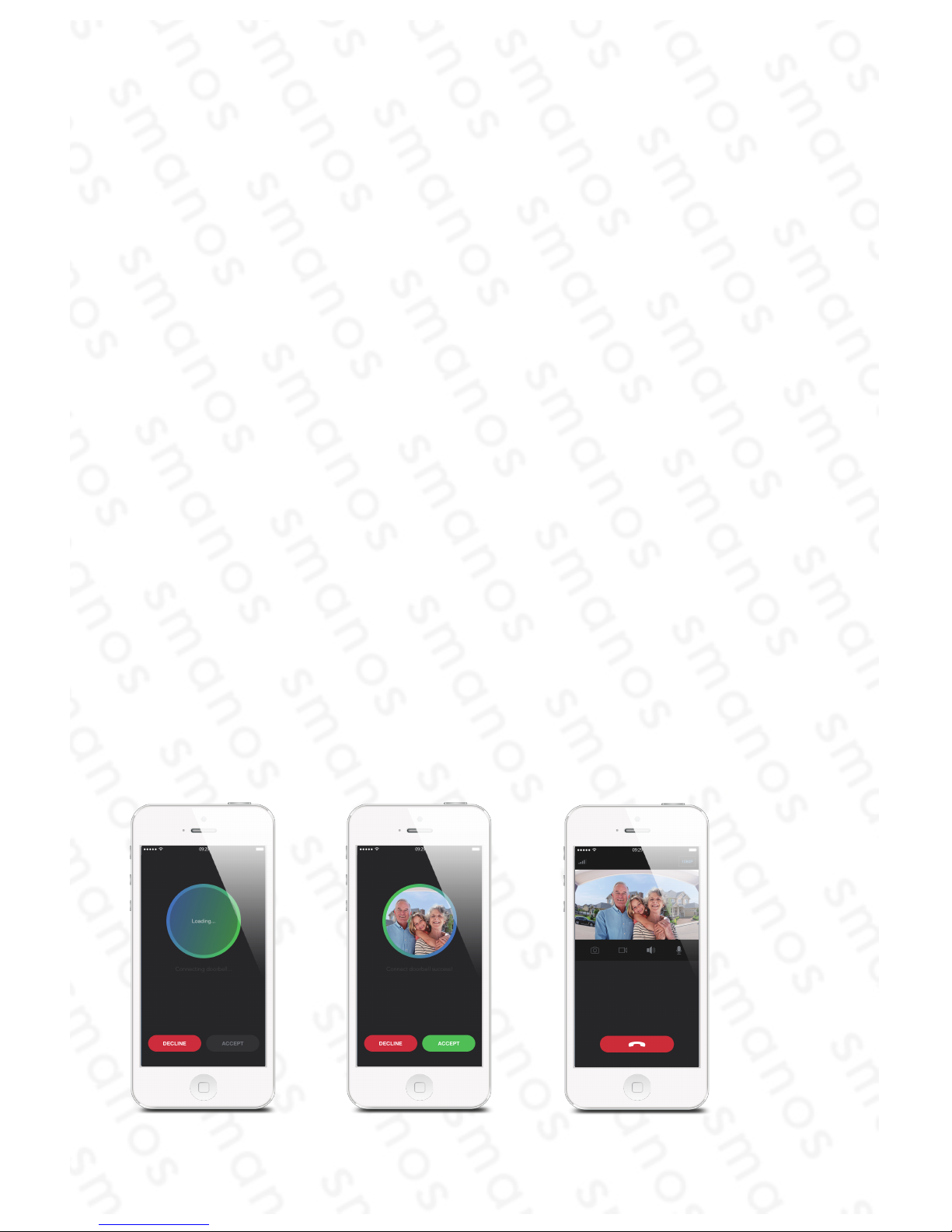

Answering Your Door
When someone is infront your door and ring the doorbell, it will show on your App:

14
After loading successfully, it will show the image of the outdoor situation. Press
“Accept” button to speak to the ringer directly or just tap on “decline” to nish the
conversation.
History
If you already have had our smanos cloud service, motion�triggered alerts,
accepted or missed ring logs can be reviewed from this History page directly and
the corresponding 15�second videos can be played.
Tap on [ ] to pick a specic day and search for an alert.
Tap on the edit icon [ ] and then press the shown [ ] to delete the selected
15�second videoes.
Tap on the edit icon [ ], and then press the shown [ ] to share the selected
15�second videoes.

14
15
Album
You can nd all your manually saved video clips and snapshots on this page. Any
video or snapshot found here is stored on your phone and can be edited and
shared as you wish.
Deleting Video(s) or Snapshot(s)
Tap on edit icon [ ] and then press the shown [ ] to delete video clip(s) or
snapshot(s).
Sharing Video(s) or Snapshot(s)
Tap on edit icon [ ], and then press the shown [ ] to share the video clips or
snapshots of interest.

16
Settings
General
Device Name
This setting enables you to rename your doorbell, and the new name will be shown
on the Device List on Main Page.
Tampering Alarm
This setting enables you to switch on/off the tampering function on your doorbell.

16
17
Notications
This setting enables you to:
1. Change the alert tone of the push notications.
Note: The notication for motion alerts will be sent to you without any ring tone.
2. If you want to receive an email notication whenever the motion is detected, you
can turn on the “Email” function and input the receiving email addresses.
