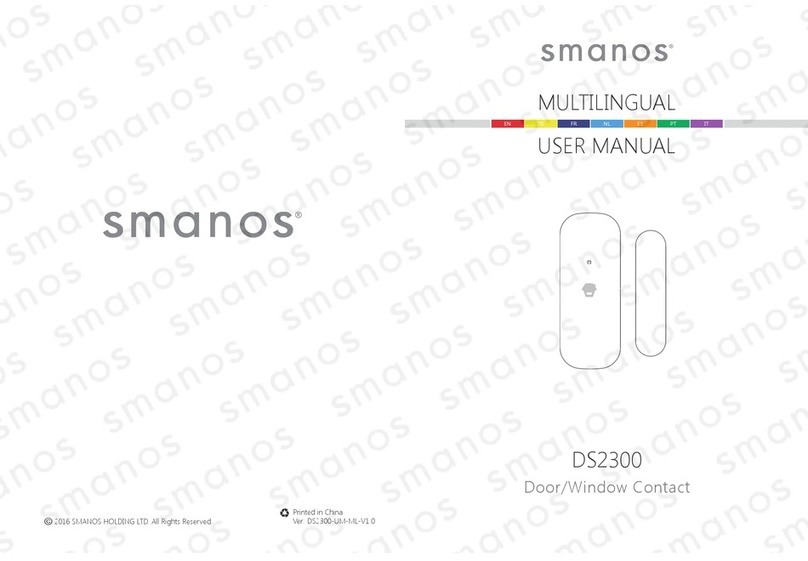

Smanos DS2300 User manual

EN EN
Introduction
The contact contains a transmitter and a magnet, which can be
mounted on a door, window, or any object that can be opened
or closed. When the transmitter and magnet are separated, the
contact will send a signal to the control panel and the control panel
will trigger an alarm. The tamper switch ensures that sabotage
attempting to disassemble the contact will trigger an alarm.
Overview
LED
Indicator
Magnet
Front side Back side
Tamper Switch
Transmitter
LED Indication
Flash once: Intruder is detected.
Flash once per 3 seconds after triggered: Low battery. Replace
the battery as soon as possible.
PCB Layout
Tamper Switch CR2032 Lithium Cell
Battery
Note: When tamper switch is pressed, system will alarm immediately.

EN EN
Installation
After conrming that the door/window contact works properly, the
installation steps can be proceed as follow:
Secure the transmitter and
magnet on the desired locations
(like door or window which can
be opened and closed) with
double-sided tapes.
Note: lf this product is installed on
a metal door, place spacers under
the transmitter and magnet. This
product is not suitable for shutter
doors, please purchase shutter
door sensor for your use.
Connect the Door/Window Contact
Connecting the door/window contact is to build a wireless
connection between the door/window contact and the control
panel.
1. Make sure the triangle mark is close to each other and within the
range of 1cm.
2. Control panel enters into the connecting state (For details, please
refer to the relative user manual).
3. Separate the transmitter and magnet with the space more
than 2 cm, the control panel beeps once, indicating successful
connection.
≥2cm
Note: If the control panel beeps twice when the above operation is done, it
means the contact has been connected before.

EN
Specications
Power Supply: DC 3 V (CR2032 lithium button cell battery x 2)
Standby Current: < 1 uA
Alarm Current: < 20 mA
Transmitting Distance: < 80 m (Open area/no interference)
Radio Frequency: 868MHz or 915MHz
*Only 868MHz is available for Europe
Housing Material: ABS plastic
ERP(dBm).MAX: -10.26
Operation Condition:
Temperature: 0 °C~+50 °C
Relative Humidity: < 90% (non-condensing)
Transmitter Dimensions: 72.5 x 28 x 10 mm
Magnet Dimensions: 58 x 14 x 9.5 mm
EN CE Declaration of Conformity
DE CE-Konformitätserklärung FR Déclaration de
conformité CE NL CE-conformiteitsverklaring
ES Declaración de conformidad CE PT Declaração de
Conformidade CE IT Dichiarazione di conformità CE
EN According to the EC Council Directive 2014/53/EU Radio Equipment
DE Gemäß der Richtlinie 2014/53/EU des Europäischen Rates über Funkanlagen
FR Conforme à la directive 2014/53/UE du Conseil européen sur les équipements
radioélectriques NL Volgens de EG-Richtlijn 2014/53 / EU Radioapparatuur
ES Conforme a la Directiva del Consejo de la CE 2014/53 / UE sobre Equipos de
Radio PT Em conformidade com a Diretiva do Conselho CE 2014/53/UE relativa
aos Equipamentos de Rádio IT In conformità alla direttiva del Consiglio Europeo
2014/53/UE per apparecchiature radio
EN We DE erklären wir, FR Nous, NL Wij ES Nosotros, PT Nós, IT Noi
smanos Europe
Postbus 3071, 2130 KB Hoofddorp
The Netherlands
EN Declare that the Product detailed below: DE dass das im Folgenden
beschriebene Produkt FR déclarons que le produit détaillé ci-dessous : NL verklaren
dat het product hieronder wordt beschreven: ES Declaramos que el producto
descrito a continuación: PT Declaramos que o Produto detalhado abaixo: IT
Dichiariamo che il prodotto riportato qui sotto:
EN Model: DS2300 Wireless Door & Window Contact DE Modell: DS2300 Tür-/
Fensterkontakt FR Modèle: DS2300 Contact de porte/fenêtre NL Model: DS2300
Deur-/raamcontact ES Modelo: DS2300 Contacto de puerta/ventana PT Modelo:
DS2300 Contacto da porta/janela IT Modello: DS2300 Contatto per porta/ nestra
EN is herewith conrmed to comply with the requirements set out in the EC
Council Directive 2014/53/EU Radio Equipment. For the evaluation of the
compliance with this Directive, the following standards were applied: DE den in der
Richtlinie 2014/53/EU des Europäischen Rates über Funkanlagen niedergelegten
Anforderungen entspricht. Für die Beurteilung der Konformität mit dieser
Richtlinie wurden die folgenden Normen angewandt: FR est certié conforme aux

EN INFORMATION FOR THE USERS
At the end of its life, the device has to be separated from the other waste.
Consign the device and all its components together to a center of electronical and
electrotechnical waste recycling center, designated by your local authorities.
DE INFORMATIONEN FUR DIE BENUTZER
Das Gerat am Ende seiner Lebensdauer von den anderen Abfallen getrennt werden
muss. Der Benutzer sollte das Great und alle seine Komponenten zusammen
mit einem geeigneten Zentrum des elektronischen und elektrotechnischen
Abfallrecyclingzentrum, das von ihren ortlichen Behorden benannt ist, verteilen.
FR INFORMATIONS POUR LES UTILIZATEURS
Qu’en n de vie, l’appareil doit etre séparé des autres déchets. Consigner l’appareil
et tous ses composants dans un centre appropriè de recydage des déchets
électroniques et électrotechniques, désigné par vos autorités locales.
NL INFORMATIE VOOR DE GEBRUIKERS
Aan het einde van zijn levensduur moet het apparaat van het andere afval worden
gescheiden. Verzend het apparaat en alle componenten samen naar een centrum
voor elektronische en elektrotechnische afvalrecycling, aangewezen door uw lokale
autoriteiten.
ES INFORMACION DEL USUARIO
Al nal de su vida util, el dispositivo debe separarse de los otros residuos. El usuario
debe remitir el dispositivo y todos sus componentes a un centro adecuado de
centro de reciclaje electrotécnico, designado por las autoridades locales.
PT A INFORMACAO DOS UTILIZADORES
No nal de sua vida, o dispositivo deve ser separado dos outros residuos. O
usuario deve consignar o dispositivo e todos os seus componentes em um centro
apropriado dereciclagem de residuos eletronicos e elotrotécticos, designado pelas
autoridades locais.
IT INFORMAZIONE AGLI UTENTI
Il simbolo del cassonetto barrato riportato sull’apparecchiatura indica che il prodotto
alla ne della propria vita utile deve essere raccolto separatamente dagli altri
riuti. L’utente dovrà, pertanto, conferire l’apparecchiatura integra dei componenti
essenziali giunta a ne vita agli idonei centri di raccolta differenziata dei riuti
elettrici ed elettronici, oppure riconsegnarla al rivenditore al momento dell’acquisto
di nuova apparecchiatura di tipo equivalente. Lo smaltimento abusivo del prodotto
da parte dell’utente comporta l’applicazione delle sanzioni amministrative di cui al
Decreto Legislativo N. 49 del 14 Marzo 2014.
"
exigences de la directive 2014/53/UE du Conseil européen sur les équipements
radioélectriques. Pour l’évaluation de la conformité avec cette directive, les normes
suivantes ont été appliquées : NL Hiermee wordt bevestigd dat het voldoet aan
de vereisten uiteengezet in de EG-richtlijn 2014/53 / EU voor radioapparatuur
van de EU. Voor de beoordeling van de naleving van deze richtlijn werden de
volgende normen toegepast: ES cumple con requisitos establecidos en la Directiva
del Consejo de la CE 2014/53 / Equipo de Radio de la UE. Las siguientes normas se
aplicaron para evaluar el cumplimiento de esta Directiva: PT está em conformidade
e cumpre os requisitos denidos na Diretiva do Conselho CE 2014/53/UE relativa
aos Equipamentos de Rádio. Para a avaliação de conformidade com esta diretiva, as
seguintes normas foram aplicadas: IT soddisfa i requisiti contenuti nella direttiva del
Consiglio Europeo 2014/53/UE per apparecchiature radio. Per la valutazione della
conformità a tale direttiva, sono stati applicati i seguenti standard:
EN301 489-1 V2.1.1: 2017
EN301 489-3 V2.1.1:2017
EN300 220-1 V3.1.1:2017
EN300 220-2 V3.1.1:2017
EN62479: 2010
EN62368-1: 2014
Brian P. Borghardt
General Manager
Hoofddorp, 08/06/2017

FCC STATEMENT
1.This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1)This device may not cause harmful interference.
(2)This device must accept any interference received, including interference that may
cause undesired operation.
2. Changes or modications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the FCC radio frequency
exposure limits, Human proximity to the antenna shall not be less than 20cm(8 inches)
during normal operation.
Industry Canada Notice
This device complies with Industry Canada licence-exempt RSS standard(s).
1. Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
2. Changes or modications not expressly approved by the party responsible for complian
ce could void the user's authority to operate the equipment.
