Smithco SUPER LINER 44-901 User manual

SUPER LINER
44-901
SN: SLN270
Revised March, 2014
Product Support: 1020 Hwy 224; Humboldt, KS 66748
1-888-422-5173 [email protected]
Wayne, PA 19087 www.smithco.com
Owner’s Manual

TABLE OF CONTENTS
TITLE PAGE
Introduction 1
Safe Practices 2
Specifications 3
Mixing Instructions 4
Maintenance Instructions 4
Operating Instructions 5
Troubleshooting 5
Main Frame Drawing 6
Main Frame Parts List 7-8
Engine & Pump Drawing 9
Engine & Pump Parts List 10

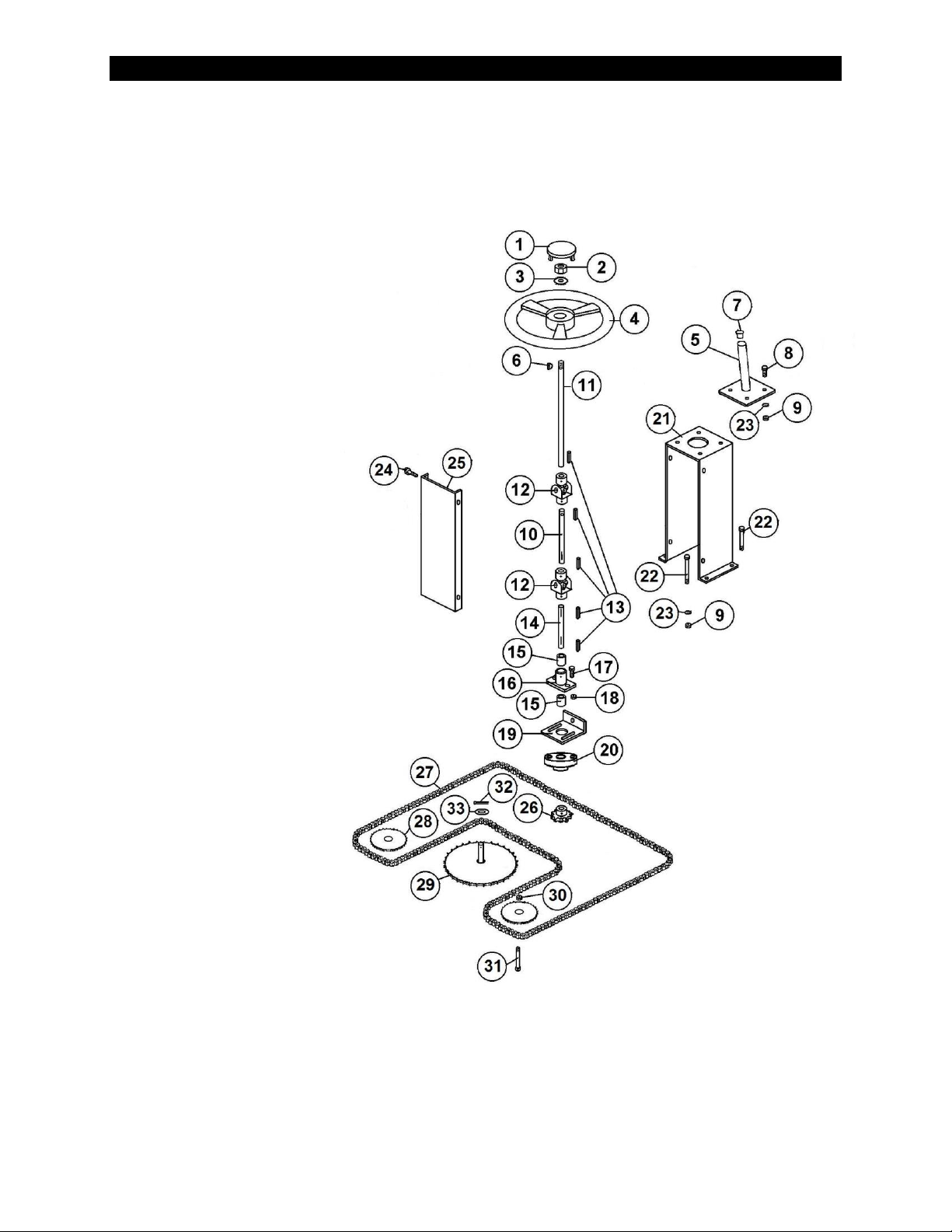

Steering Drawing 11
Steering Parts List 12
Hydraulic Hose Diagram 13
Hydraulic Hose Parts List 14

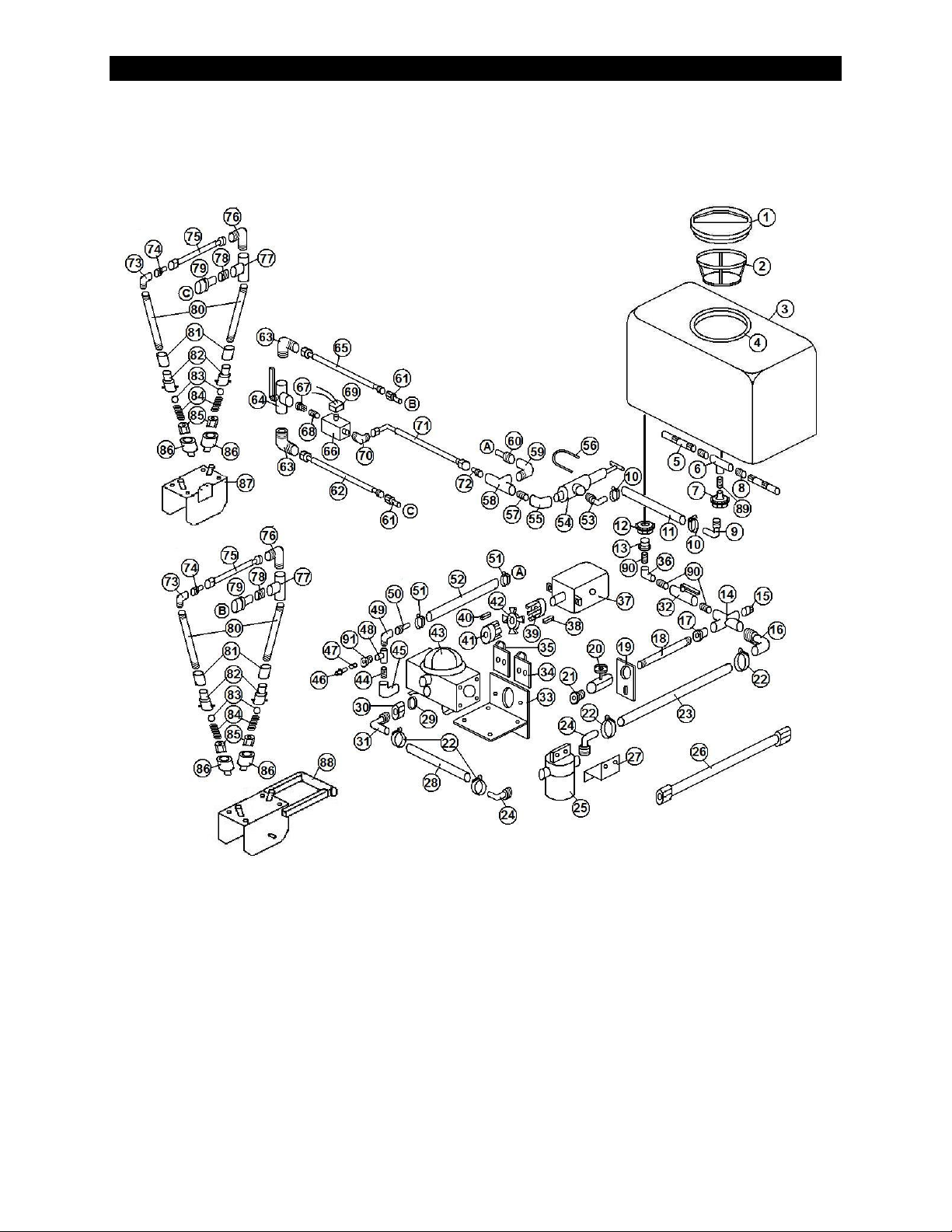

Plumbing Drawing 15
Plumbing Parts List 16-17
Frame & Tank Drawing 18
Frame & Tank Parts List 19
Wiring Diagram 20
Wiring Parts List 21
49-028 Side Line Boom Drawing & Parts List 22
Warranty

INTRODUCTION
Thank you for purchasing a SMITHCO #44-901 Super Liner.
Carefully read this manual and the engine manual as they include safety, operating, assembly
and maintenance instructions. Failure to do so could result in personal injury or equipment
damage.
Keep manuals in a safe place after operator and maintenance personnel have read them. Right
and left sides are from the operator’s seat, facing forward.

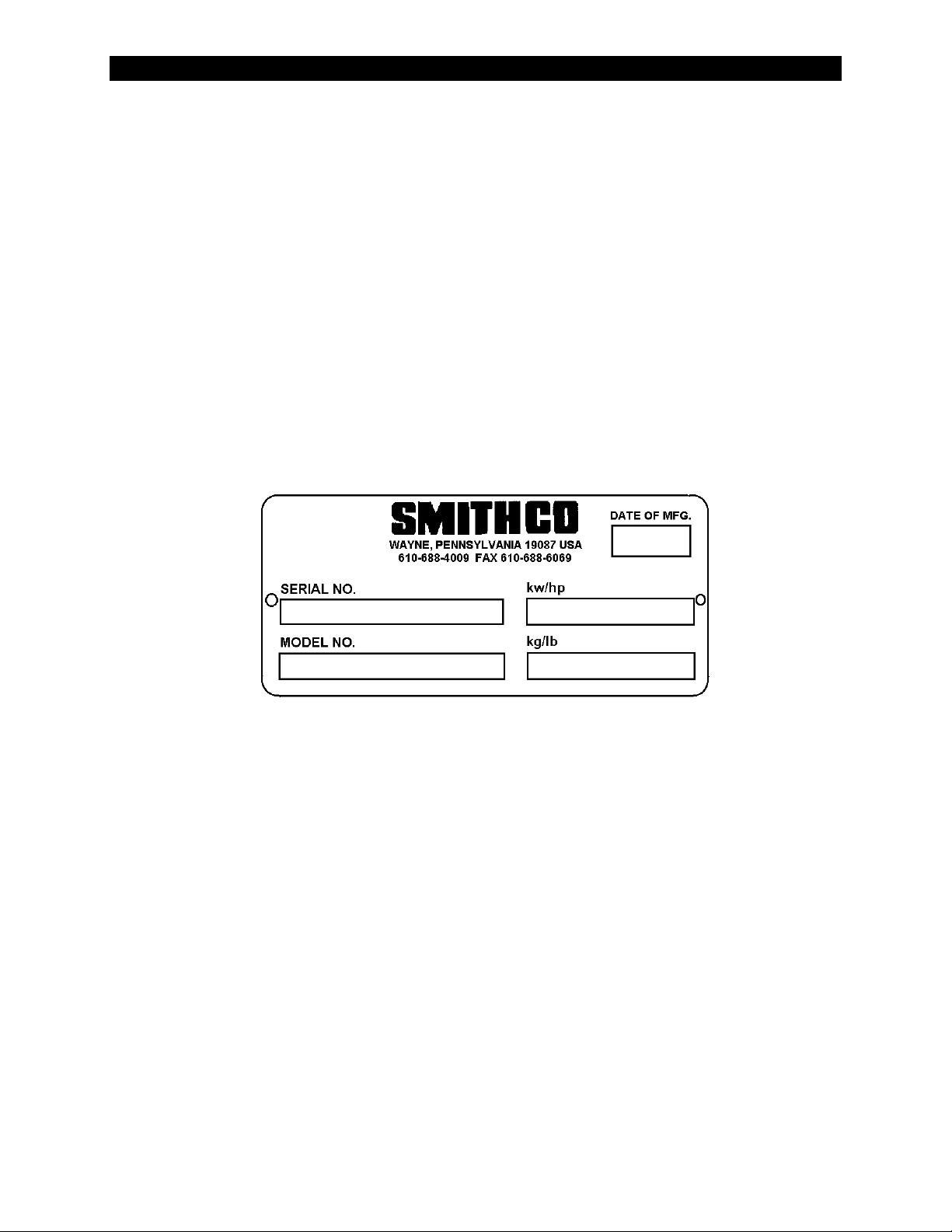

All SMITHCO machines have a Serial Number and Model Number. Both numbers are needed
when ordering parts. The serial number plate on the #44-901 Super Liner is located under the
tank, on the left side wall of the tank mount.
For easy access, record your Serial and Model numbers here.
Information needed when ordering replacement parts:
1. Model Number of machine.
2. Serial Number of machine.
3. Name and Part Number of part.
4. Quantity of parts.
5. Ship Via
1

SAFE PRACTICES
1. It is your responsibility to read this manual and all publications associated with this
machine (engine and accessories).
2. Never allow anyone to operate or service the machine or its accessories without proper
training and instructions. Never allow minors to operate any equipment.
3. Learn the proper use of the machine, the locations and purpose of all the controls before
you operate the equipment. Working with unfamiliar equipment can lead to accidents.
4. Wear all the necessary protective clothing and personal safety devises to protect your head,
eyes, ears, hands and feet. Operate the machine only in daylight or in good artificial light.
5. Inspect the area where the equipment will be used. Pick up all debris you can find before
operating. Beware of overhead obstructions and underground obstacles. Stay alert for
hidden hazards.
6. Never operate equipment that is not in perfect working order or without decals, guards,
shields, or other protective devices in place.
7. Never disconnect or bypass any switch.
8. Carbon monoxide in the exhaust fumes can be fatal when inhaled, never operate a machine
without proper ventilation.
9. Fuel is highly flammable, handle with care.
10. Keep engine clean. Allow the engine to cool before storing and always remove the ignition
key.
11. After engine has started machine must not move. If movement is evident, the neutral
mechanism is not adjusted correctly. Shut engine off and readjust so the machine does not
move when in neutral position.
12. Never use your hands to search for oil leaks. Hydraulic fluid under pressure can penetrate
the skin and cause serious injury.
13. This machine demands your attention. To prevent loss of control or tipping of the vehicle:
Use extra caution in backing up the vehicle. Make sure area is clear. Do not stop or
start suddenly on any slope. Avoid driving sideways on hills as much as possible.
Reduce speed on slopes and in sharp turns. Use caution when changing directions on
slopes.
Stay alert for holes in the terrain and other hidden hazards.
14. Before leaving operator’s position for any reason:
Disengage all drives.
Shut engine off and remove the ignition key.
15. Keep hands, feet and clothing away from moving parts. Wait for all movement to stop before
you clean, adjust or service the machine.
16. Keep the area of operation clear of all bystanders.
17. Never carry passengers.
18. Stop engine before making repairs/adjustments or to check or add oil to the crankcase.
19. Use parts and materials supplied by SMITHCO only. Do not modify any function or
part.
These machines are intended for professional maintenance on flat grass athletic fields. Other
use will void the warranty.
2

SPECIFICATIONS
SUPERLINER SPECIFICATIONS
MODEL #44-901
Weight and Measurements
Length 77” overall (without boom)
Width 48” overall (without boom)
Ground Clearance 7”
Weight 815 lbs; Crated - 1015 lbs
Tires
2 front wheels - 18 x 8.50 x 10; 2 ply; 2 rear wheels - 23 x 11 x 10
Wheel Base
45” (Turning Radius 10’)
Drive
Hydrostatic power using 16cc displacement hydraulic pump driving (1) hydraulic drive motor on
each wheel.
Electrical
12v electric start
Sound Level
At 10’ (3m): 63 dbA; at 50’ (15m): 53 dbA; at 100’ (30m): 50 dbA
Controls
Forward / Reverse hand control
Brakes
Dynamic braking, through hydrostatic system.
Seat
High –Back, one piece for operator comfort.
Main Frame
Hydraulically formed, electrically welded heavy wall steel tubing.
Ground Speed
Infinitely variable, 0 –12 mph (0-16kph)
Engine
16 hp (12 kW) Vanguard V twin cylinder, air cooled, gasoline, cast iron sleeves, 29.3cu in
displacement, electronic ignition, full pressure lubrication with oil filter, engine mounted air
cleaner.
Paint Tank
50 Gallon Poly Tank
Paint Pump
Hypro D252 Pump
Steering
Chain and sprocket system.
Liquid Capacities
Hydraulic system & Engine oil 10W30 –2 Gallons; Gasoline (unleaded) –3 Gallons
3

MIXING INSTRUCTIONS
Use only top quality paint. Inferior paint voids SMITHCO warranty.
1. Completely follow mixing instructions on paint container.
2. Never use mixed paint without straining.
3. The depth of the color of the line will be determined by percentage of water added to the
paint. In most cases, the mix should be at least 2 parts water to 1 part paint. NEVER use
more than 50% paint.
4. Use spraying nozzle TeeJet 8002VS tip only. These tips have been tested and work best
with the SMITHCO pumping system.
5. Fill tank with the desired amount of water.
6. Start unit and turn the paint pump on, increase engine rmp, thus starting agitation.
7. Pour the strained paint into the tank slowly to properly mix.
MAINTENANCE INSTRUCTIONS
NOTE: IF MACHINE IS TO BE LEFT MORE THAN ONE HOUR, SYSTEM SHOULD BE
FLUSHED. DO NOT LEAVE PAINT IN SYSTEM OVER NIGHT.
1. After each day’s use, follow instructions below.
A. Open the gate valve, located at the rear of the tank. Drain remaining paint into a
resealable container using the hose provided. Drain and replace the strainer.
B. Flush the paint tank with fresh water for 5 minutes with the drain valve open until all
the paint residue is out of the tank.
C. Close the ball valve at the bottom of the tank. Connect the hose from the gate valve
to a clean water source.
D. Turn the selector valve to “Flush”.
E. Start the engine, turn on the paint pump.
F. Turn on the water.
G. Turn on the spray switch. Flush tips until the water flows clear.
H. Turn off the water, disconnect the hose. Open the ball valve and drain the tank
again. Drain the strainer again also.
I. Remove spray tips from both booms. Clean thoroughly using a soft bristle brush and
soapy water.
2. Lubricate the following:
A. Steering shaft bearings.
B. Hub bearings.
C. Both boom arms.
D. Front axles.
3. See engine manual for maintenance instructions on the engine.
4. When storing the unit after the painting season, the battery should be disconnected.
5. For winter storage, the unit and nozzle tips must be thoroughly cleaned and flushed.
6. System requires 10W40 Oil.
4

OPERATING INSTRUCTIONS
1. Set the shift control lever to neutral.
2. Turn the key to start engine, choke as needed. Allow engine to warm for 3 minutes.
3. Select the front or side boom with the selector valve on the left control box.
4. Engage the pump switch to the “ON” position to begin agitation.
5. Lower desired boom. Preset the line guide to existing line or string line.
6. Do not paint until the unit is moving in the desired route of travel.
7. When ready to paint, locate the hand shifter on right of the control box, set to desired
speed on the line to be painted. Depress the spray switch located on the right side of the
floorboard. Note: Line width can be adjusted by moving the flaps on the booms.
TROUBLESHOOTING
There are a number of variables affecting the line density if it is not satisfactory.
A. Paint may be inferior: Paint mixture may be too thick or too thin.
B. Hoses or tips may be clogged: Tips must be clean. System may need to be flushed, or
paint may need to be restrained.
C. Nozzle tips may be worn out: Replace with TeeJet 8002EVS stainless steel.
D. Reducing speed increases paint applied. Increasing speed decreases paint applied.
E. Proper lining color should be ascertained in the field, because of variations in marking
paint and the percentage of water added. Never use more than 50% paint. 1 part paint to
2 parts water.
F. Unit will not start if the operator is not in the seat.
G. If unit is not building pressure, then check to make sure that the pump switch is on.
H. If switch is on and the pump is still not building pressure then speed up the engine RPM.
NOTE: If you have any further questions, please contact our SMITHCO Technical Consultant at
1-888-422-5173.
5

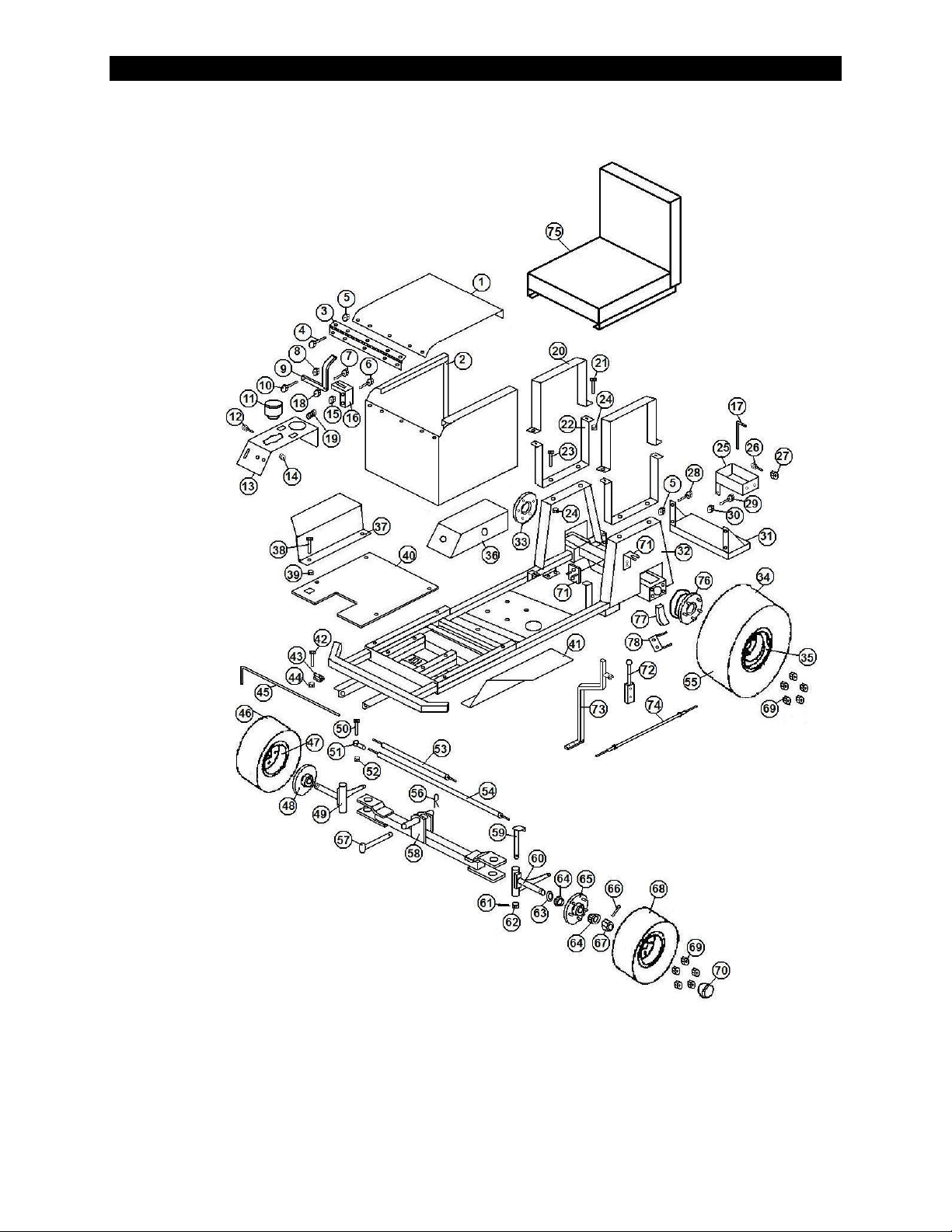

44-901 MAIN FRAME DRAWING
6

44-901 MAIN FRAME PARTS LIST
REF.# PART# DESCRIPTION QTY.
1 750-253-1 Seat Plate 1
2 44-926 Engine Cover 1
3 750-254 Seat Plate Hinge 1
4 400-002 5/16” x 1” Bolt 10
5 400-102 5/16” Hex Nut 14
6 400-029-1 ½” x 3” All Thread Bolt 1
7 400-090 3/8” x 1 ¼” Bolt 2
8 400-109 5/16” Locknut 1
9 44-948 Boom Lift Handle 1
10 400-003 5/16” x 1 ¼” Bolt 1
11 943-116 Plastic Cup 1
12 400-044 ¼” x 1” Bolt 2
13 44-927 Shift Control Box 1
14 400-101 ¼” Hex Nut 2
15 400-105 ½” Hex Nut 1
16 44-964 Side Boom Lift Lock 1
17 720-080 Battery Hold Down 1
18 400-103 3/8” Hex Nut 2
19 19-674 Spring 1
20 44-950 Upper Strap 2
21 400-005 5/16” x 1 ¾” Bolt 4
22 44-951 Lower Strap 2
23 400-255 Elevator Bolt 4
24 400-102 5/16” Hex Nut 8
25 44-963 Battery Box 1
26 400-044 ¼” x 1” Bolt 3
27 400-101 ¼” Hex Nut 2
28 400-002 5/16” x 1” Bolt 3
29 400-003 5/16” x 1 ¼” Bolt 1
30 400-102 5/16” Hex Nut 1
31 44-942 Step 1
32 44-925 Main Frame 1
33 44-919 Taper Hub 5 Bolt 2
34 44-911-1 Rear Tire Only 2
35 44-911-2 Rear Wheel Only 2
36 44-928 Valve Control Box 1
37 44-966 Fender Right 1
38 400-044 ¼” x 1” Bolt 6
39 400-201 ¼” Flat Washer 6
40 44-934 Deck Plate 1
41 44-965 Fender Left 1
42 400-002 5/16” x 1” Bolt 2
43 44-946 Guide Rod Slide 1
44 400-060 5/16” Thumb Screw 1
45 44-945 Guide Rod 1
46 44-937-1 Front Tire Only 2
7

44-901 MAIN FRAME PARTS LIST (Continued)
REF.# PART# DESCRIPTION QTY.
47 44-937-2 Front Wheel Only 2
48 44-923 Front Hub 1
49 44-922 Front Axle Right 1
50 400-029-1 ½” x 3” All Thread Bolt 1
51 713-806 Ball Joint 4
52 400-112 ½” Locknut 3
53 44-933 Bent Tie Rod 1
54 44-932 Tie Rod 1
55 44-911 Rear Turf Tire & Wheel 2
56 2050 Hair Pin 1
57 44-982 Front Axle Pin 1
58 44-931 Main Front Axle 1
59 44-977 King Pin 2
60 44-921 Front Axle Left 1
61 720-043 Cotter Pin 2
62 44-978 Slotted Nut 2
63 709-171 Seal 2
64 2028 Bearing 4
65 44-923 Front Hub 1
66 720-043 Cotter Pin 2
67 709-126 Spindle Nut 2
68 44-937 Front Tire & Wheel 2
69 1187 Lug Nut 20
70 2024 Dust Cap 2
71 44-974 Motor Switch Plate 1
72 44-763 Parking Brake Lever 1
73 44-1001 Brake Bracket 1
74 44-001-1 Brake Cable 1
75 832-123 Seat 1
76 44-1003 Brake Disc 1
77 44-893 Brake Caliper 1
78 44-1004 Brake Caliper Bracket 1
8

44-901 ENGINE & PUMP DRAWING
9

44-901 ENGINE & PUMP PARTS LIST
REF.# PART# DESCRIPTION QTY.
1 943-100 16hp Engine 1
2 943-115 Muffler 1
3 1517 ¼” x 1” Key 1
4 750-851 Pump Hub 1
5 720-027 Element 1
6 41-147 1” Coupler 1
7 750-201 #5 Key 1
8 750-255 Bell Housing 1
9 750-127-1 Bell Housing Cover 1
10 750-846 Pump with Aux Charge Pump 1
11 638 Gas Line 12 ½” 1
12 44-912 Gas Tank 1
13 943-241 Carbon Canister 1
14 943-240 Carbon Canister Mount 1
15 638 Purge Line 13” 1
16 638 Vent Line 12 ½” 1
17 943-159 Oil Filter Adapter 1
18 943-104 Oil Filter 1
19 44-912-1 Fuel Cap 1
20 44-912-2 Fuel Fitting 1
21 943-110-4 Vent Valve 2
22 44-983 ¼” Barb Tee 1
23 638 Vent Line 12 ½” 1
24 638 Vent Line 1 ¼” 1
25 400-202 5/16” Flat Washer 6
26 400-209 3/8” Lock Washer 6
27 400-090 3/8” x 1 ¼” Bolt 6
28 18-003 ¼” Hose Clamp 6
29 943-145 Tail Pipe 1
30 943-146 Muffler Clamp 1
31 44-912-3 Fuel Gauge f/44-912 1
10

44-901 STEERING DRAWING
11

44-901 STEERING PARTS LIST
REF.# PART# DESCRIPTION QTY.
1 730-046-2 Steering Wheel Cap 1
2 932-122 5/8” – 18 Hex Jam Nut 1
3 400-143 5/8” Lock Washer 1
4 730-046 Steering Wheel 1
5 750-366 Steering Mechanism 1
6 740-023 3/16” x ¾” Woodruff Key 1
7 2110 Bushing 2
8 400-002 5/16” x 1” Bolt 4
9 400-102 5/16” Hex Nut 8
10 44-984 Steering Shaft 4 3/16” Long 1
11 750-362 Upper Steering Shaft 1
12 41-120 U-Joint ¾” x ¾” 2
13 1088 3/16” x 1” Key 5
14 750-266 Steering Sprocket Shaft 1
15 520-007 Bronze Bushing 2
16 750-195 Steering Tube 1
17 400-005 5/16” x 1 ¾” Bolt 2
18 400-109 5/16” Lock Nut 2
19 41-194 Chain Adjuster 1
20 1036 Bearing 1
21 750-106 Steering Column 1
22 400-055 5/16” x 3” Bolt 4
23 400-207 5/16” Lock Washer 8
24 400-073 ¼” x 1” Drill Screw 4
25 750-107 Steering Column Cover 1
26 1075 #40 Jackshaft Sprocket 11T 1
27 44-929 Steering Chain 1
28 1066 #40 Drive Chain Idler 2
29 44-930 Steering Sprocket 1
30 400-070 5/8” – 11 x 2” HHCS 2
31 400-121 5/8” Lock Nut 2
32 720-042 Cotter Pin 1
33 713-368 Machine Bushing 1
12

44-901 HYDRAULIC HOSE DIAGRAM
13

44-901 HYDRAULIC HOSE PARTS LIST
REF.# PART# DESCRIPTION QTY.
1 44-985 #8 LPH 14” w/#8 90° 1
2 44-986 #8 LPH 8” w/#8 90° 1
3 44-987 #6 LPH 12” w/#6 90° 1
4 44-988 #6 HPH 11” w/#6 St. 1
5 44-989 #6 HPH 22” w/#6 90° & St. 1
6 44-990 #8 HPH 12” w/#8 St. 2
7 44-991 #6 HPH 12” w/#6 90° & St. 2
8 44-992 #6 HPH 24 ½” w/#6 90° & St. 1
9 44-993 #8 HPH 12” w/#8 90°& St. 1
10 44-994 #8 HPH 10 ½” w/#8 90° & St. 1
11 44-995 #8 HPH 14” w/#8 90° & St. 1
12 44-996 #8 HPH 8” w/#8 90° & St. 1
13 750-208 #8 90° 2
14 750-205 #6 to #6 St. 3
15 44-958 #4 to #6 St. 2
16 44-959 3/8” MNPT x #6 x #6 1
17 44-877 3/8” MNPT x #8 St. 1
18 750-325 #12 x #8 St. 2
19 750-302 Filter Head 1
20 44-997 #12 x #6 St. 2
21 750-848 #8 x #8 St. 1
22 44-961 #6 x #6 90° 1
23 44-960 #6 Tee 1
24 44-962 #8 Tee 2
25 750-326 #10 x 6 St. 4
*26 750-801 Wheel Motor 2
*27 44-918 Motor Switch 1
*28 44-917 Pump Motor 1
*29 750-118 Oil Tank 1
*30 750-846 Pump 1
*31 750-118-1 Oil Tank Cap 1
32 750-300 Oil Filter 1
Note: The complete hose kit is 44-940.
*Parts not in the hose kit.
14

44-901 PLUMBING DRAWING
15

44-901 PLUMBING PARTS LIST
REF# PART# DESCRIPTION QTY.
1 44-999 Tank Lid 1
2 44-998 Paint Strainer Basket 1
3 760-159 Poly Tank 50 gal. 1
4 44-909 Fillwell 1
5 702-144 Agitator 2
6 709-331 ½” Poly Tee 1
7 160-206 ½” Double Thread Fitting 1
8 709-344 ½” Poly Close Nipple 2
9 709-387 ½” NPT x 3/8” Barb Elbow Poly 1
10 709-312 ½” Hose Clamp 2
11 750-316 3/8” Hose 36”
12 160-204 1” Fitting 1
13 500-105 1” x ¾” Bushing Gal. 1
14 500-805 ¾” Cross 1
15 500-605 ¾” Plug 1
16 709-341 ¾” x ¾” Barb Elbow Poly 1
17 500-103 ¾” x ½” Bushing Gal. 1
18 500-510 ½” x 9” Nipple Gal. 1
19 44-952 Drain Support 1
20 709-287 ½” Gate Valve 1
21 707-050 ¾” MGHT x ½” MNPT Adapter 1
22 709-314 ¾” Hose Clamp 4
23 647 ¾” LP Hose 5 ½”
24 709-341 ¾” x ¾” Barb Elbow Poly 2
25 44-865 Strainer Aluminum & Nylon 1
26 44-947 Clean out Hose 1
27 44-949 Strainer Mounting Bracket 1
28 647 ¾” LP Hose 6”
29 106-110 O-Ring 1
30 106-108 Barb Nut 1
31 106-107 Hose Barb 1
32 709-265 ¾” Ball Valve 1
33 44-939 Pump Mounting Bracket 1
34 44-973 Single Ring Hose Bracket 1
35 44-972 Double Ring Hose Bracket 1
36 500-405 ¾” Elbow Gal. 1
37 44-917 Pump Motor 1
38 44-917-1 5/32” Key f/44-917 1
39 44-920 5/8” Coupler 1
40 1088 3/16” x 1” Key 1
41 720-025 ¾” Coupler 1
42 720-027 Element 1
43 44-916 D252 Hypro Pump 1
44 500-505 ½” Close Nipple Gal. 1
45 500-401 ½” Elbow Gal. 1
46 44-008 Plug 1
16

44-901 PLUMBING PARTS LIST (continued)
REF# PART# DESCRIPTION QTY.
47 18-011 Nipple, ¼” Close 1
48 500-700 ½” Tee Gal. 1
49 500-402 ½” Street Elbow Gal. 1
50 709-300 ½” NPT x ½” Barb Brass 1
51 709-312 ½” Hose Clamp 2
52 641 ½” LP Hose 40”
53 709-387 ½” NPT x 3/8” Barb Elbow 1
54 705-068 Relief Valve ½” x 300 psi 1
55 500-425 ½” 45° Elbow 1
56 610-229 U-Bolt 1
57 500-505 ½” Close Nipple Gal. 1
58 500-700 ½” Tee Gal. 1
59 500-402 ½” Street Elbow Gal. 1
60 709-300 ½” NPT x ½” Barb Brass 1
61 44-008 Plug 2
62 44-908 Boom Hose 1
63 44-953 ½” MNPT x #6 O-Ring Face 2
64 44-811 ½” 3-Way Ball Valve 1
65 44-908 Boom Hose 1
66 41-118 Electric Valve 1
67 500-111 ½” x ½” Bushing 1
68 18-011 Nipple, ¼” Close 1
69 41-119 Plug w/Wires 1
70 44-876 Valve Elbow 1
71 44-907 Supply Hose 1
72 44-875 Strainer Fitting 1
73 500-400 ¼” Elbow Gal. 2
74 44-879 Boom Box Fitting 2
75 44-888 ¼” x 13 Boom Box Hose 2
76 44-878 ¼” Boom Box Elbow 2
77 18-012 ¼” Brass Tee 2
78 18-011 ¼” Close Nipple 2
79 44-007 Socket 2
80 500-243 ¼” x 4” Gal Nipple 4
81 500-314 ¼” Coupler 4
82 19-697 Nozzle Body 4
83 19-698 Ball 4
84 19-699 Spring 4
85 709-081-XR8002VS Tip 4
86 19-680 Brass Nozzle Cap 4
87 44-971 Side Boom Box 1
88 44-970 Front Boom Box 1
89 44-957 ½” PVC Nipple 1
90 500-512 ¾” Close Nipple 3
91 500-111 ½” x ¼” Bushing 1
17

44-901 FRAME & TANK DRAWING
18
