Smooth Fitness CE 3.2E User manual

USER’S MANUAL - BEDIENUNGSANLEITUNG
SMOOTH CE 3.2E ELLIPTICAL TRAINER
MODEL NUMBER: CE 3.2E
USER WEIGHT LIMITATION: 300 lbs. (135kg)
MAXIMALES BENUTZERGEWICHT: 135 kg
UK: TOLL FREE CUSTOMER SERVICE NUMBER : 0800-097 2100
DE: SERVICENUMMER: + 49 (911) 8105924
SERIAL NUMBER (found on frame) - SERIENNUMMER (auf Rahmen):
DE
GB
Copyright © 2007-2nd

CE 3.2E ELLIPTICAL TRAINER
Table of Contents- Inhaltsverzeichnis
1. ENGLISH ------------------------------------------------------------------------------------------------------------ P 2
2. DEUTSCH ----------------------------------------------------------------------------------------------------------- P 41

CE3.2E ELLIPTICAL TRAINER
Visit us at: www.smoothfitness.co.uk
2
PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and
information before operating the Elliptical Trainer. It is the responsibility of the owner to ensure that all users of this Elliptical
Trainer are adequately informed of all warnings and precautions.
•Use the Elliptical Trainer only as described in this manual.
•Place on a level surface, with enough space behind it. Do not place the Elliptical Trainer on any surface that blocks
air openings. To protect the floor or carpet from damage, place a mat under the Elliptical Trainer.
•When choosing a location for the Elliptical Trainer makes sure that the location and position permit access to a plug.
•Keep the Elliptical Trainer indoors, away from moisture and dust. Do not put the Elliptical Trainer in a garage or
covered patio, or near water.
•Do not operate the Elliptical Trainer where aerosol products are used or where oxygen is being administered.
•Keep children under the age of 12 and pets away from the Elliptical Trainer at all times.
•The Elliptical Trainer should not be used by persons weighing more than 300 lbs (135kg)
•Never allow more than one person on the Elliptical Trainer at a time. Wear appropriate exercise clothing when using
the Elliptical Trainer. Do not wear loose clothing that could become caught in the Elliptical Trainer. Athletic support
clothes are recommended for both men and women. Always wear athletic shoes. Never use the Elliptical Trainer
with bare feet, wearing only stockings, or in sandals.
•When connecting the power cord, plug the power cord into a grounded circuit. No other appliance should be on the
same circuit.
•Always examine your Elliptical Trainer before using to ensure all parts are in working order.
•Never insert any object or body parts into any opening.
•Follow the safety information in regards to plugging in your Elliptical Trainer.
•Keep the power cord away from moving handle bars and do not run the power cord underneath your Elliptical
Trainer. Do not operate the Elliptical Trainer with a damaged or frayed power cord.
•Always unplug the Elliptical Trainer before cleaning and/or servicing. Service to your Elliptical Trainer should only be
performed by an authorized service representative, unless authorized and/or instructed by the manufacturer. Failure
to follow these instructions will void the Elliptical Trainer warranty.
GB

CE3.2E ELLIPTICAL TRAINER
Visit us at: www.smoothfitness.co.uk
3
POWER REQUIREMENTS
IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING CONNECTOR CAN RESULT IN A RISK OF
AN ELECTRIC SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE MAN IF YOU ARE IN
DOUBT AS TO WHETHER THE PRODUCT IS PROPERLY GROUNDED. DO NOT MODIFY THE PLUG
PROVIDED WITH THE PRODUCT, IF IT WILL NOT FIT THE OUTLET; HAVE A PROPER OUTLET
INSTALLED BY A QUALIFIED ELECTRICIAN.
This Elliptical Trainer can be seriously damaged by sudden voltage changes in your home’s electrical power. Voltage spikes,
surges and noise interference can result from weather conditions or from other appliances being turned on or off. To reduce
the possibility of Elliptical Trainer damage, always use a surge protector (not included) with your Elliptical Trainer. Surge
protectors can be purchased at most hardware stores.
This Elliptical Trainer is provided with two different grounding plugs for Central Europe and United Kingdom. Please choose
the right one and plug in your Elliptical Trainer.
Please make sure that your local voltage is appropriate for the power requirements of this Elliptical Trainer before you plug it
in.
This product is for use with a voltage of 230V+ 5%.
Do not use a voltage transformer with this product.
Do not use an extension cord with this product when you are not sure if the product is still properly grounded.

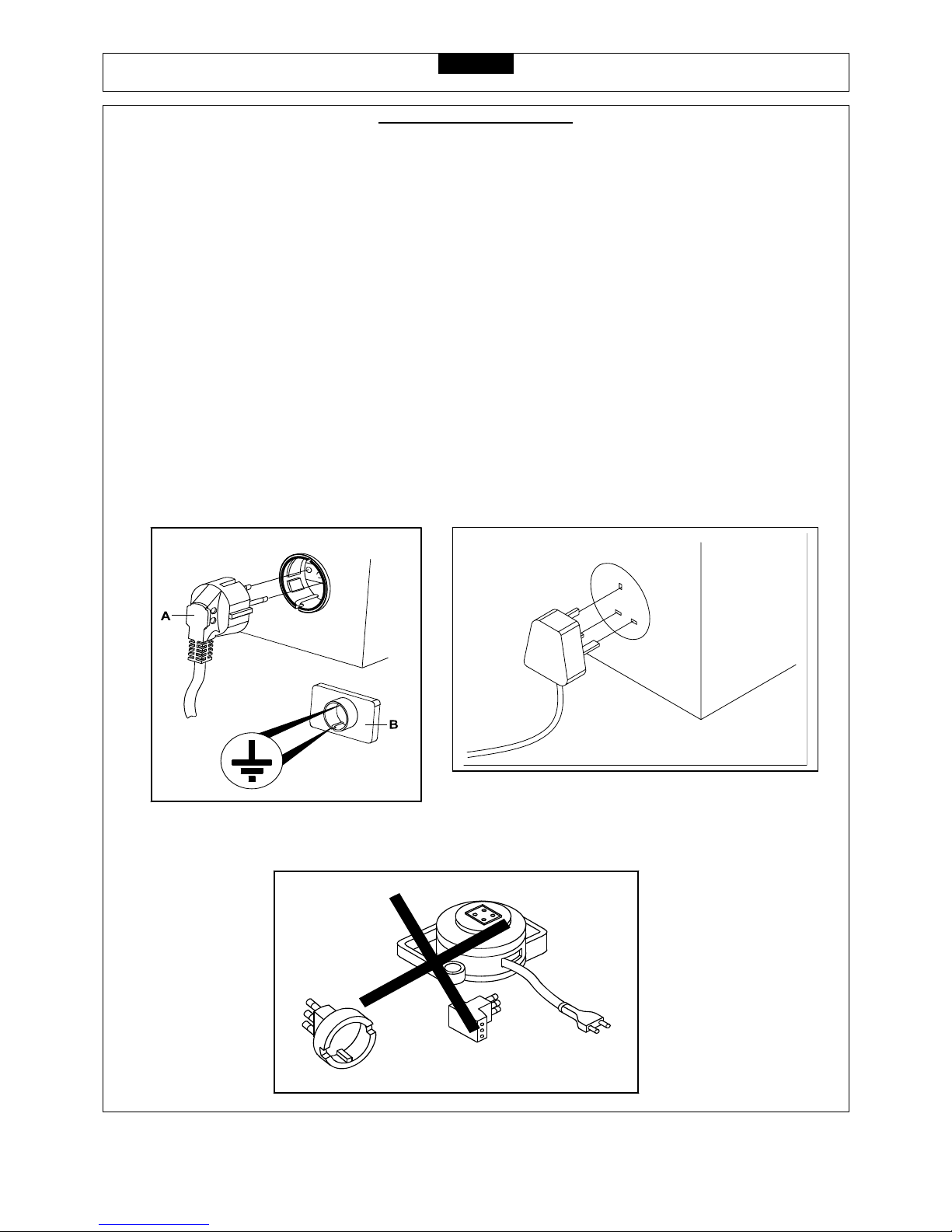

The following pictures show the two delivered plugs:

CE3.2E ELLIPTICAL TRAINER
Visit us at: www.smoothfitness.co.uk
4
PREASSEMBLY
Open the boxes:
You are now ready to open the boxes of your new equipment. Make sure to inventory all of the parts that are included in the
boxes. Check the Parts List for a full count of the number of parts included for this product to be assembled properly. If you
are missing any parts or have any assembly questions call your local dealer or contact us directly at 888-800-1167.
Gather your tools:
Before starting the assembly of your unit, make sure that you have gathered all the necessary tools you may require to
assemble the unit properly. Having all of the necessary equipment at hand will save time and make the assembly quick and
hassle-free.
Clear your work area:
Make sure that you have cleared away a large enough space to properly assemble the unit. Make sure the space is free
from anything that may cause injury during assembly. After the unit is fully assembled, make sure there is a comfortable
amount of free area around the unit for unobstructed operation.
Invite a friend:
Some of the assembly steps may require heavy lifting. It is recommended that you obtain the assistance of another person
when assembling this product.
User Weight Limitation:
Please note that there is a weight limitation for this product. If you weigh more than 135kg (300lbs) it is not
recommended that you use this product. Serious injury may occur if the user’s weight exceeds the limit shown here.
This product is not intended to support users whose weight exceeds this limit.

CE3.2E ELLIPTICAL TRAINER
Visit us at: www.smoothfitness.co.uk
5
HARDWARE COMPARISON CHART
Hardware chart:
For your convenience, we have identified the hardware used in the assembly of this product. This chart is provided to help
you identify those items that may be unfamiliar to you.
NO. DESCRIPTION QTY.
730
731
B
C
D
E
A
732
709
710
722
719 729
708
827
107
701 15 x 92 x M14 Bolt 2
708 M8 x 60mm Allen Head Bolt 2
709 M10 x 94mm Bolt 2
710 M8 x 65mm Allen Head Bolt 2
719 M14 Nut 2
722 ID 8mm Curve Washer 2
728 Φ3 x 16 mm Screw 8
729 M10 Cap Nut 2
730 M4 x 50mm Bolt 1
731 ID 10mm Curve Washer 2
732 M4 x 19mm Screw 24
A M14 Bushing Tool 1
B 5mm Allen Key 1
C 8mm Allen Key 1
D Wrench for M10 Nut 1
E Screw Driver 1
MILLIMETERS

CE3.2E ELLIPTICAL TRAINER
Visit us at: www.smoothfitness.co.uk
6
PLASTIC COMPARISON CHART
Plastic chart:
For your convenience, we have identified the plastic used in the assembly of this product. This chart is provided to help you
identify those items that may be unfamiliar to you.
NO. DESCRIPTION QTY.
315
305
306
308 307
523524
316
320
308 Side Upright Upper Cover- L 2
307 Side Upright Upper Cover- R 2
306 Side Upright Upper Cover-#1 2
305 Side Upright Upper Cover-#2 2
315 Handlebar Cover 2
316 Handlebar inside Cover 4
320 Pedal Arm Front Pivot Cover 4
524 Front Frame Cover -Upper 1
523 Front Frame Cover -Lower 1

CE3.2E ELLIPTICAL TRAINER
Visit us at: www.smoothfitness.co.uk
7
PARTS LIST
No. Description Qty. Order No. No. Description Qty. Order No.
101Computer1CE3.2E‐101402 PedalArm‐Left1CE3.2E‐402
102Keypad1CE3.2E‐102403 PedalFixingBase2CE3.2E‐403
103ConsoleHousing–Upper1CE3.2E‐103404 Bearing608WN8CE3.2E‐404
104ConsoleHousing‐Bottom1CE3.2E‐104405 Bushing12X57.6mm4CE3.2E‐405
106HandPulseSensorWire‐Upper2CE3.2E‐106406 PedalBufferSets2CE3.2E‐406
107WireHarness‐Upper1CE3.2E‐107407 PedalSupportBase2CE3.2E‐407
108Overlay1CE3.2E‐108408 Pedal2CE3.2E‐408
201FrontUprightFrame1CE3.2E‐201409 PedalSoftCushion2CE3.2E‐409
202FixedHandlebarFoamGrips2CE3.2E‐202412 Bearing6002zz4CE3.2E‐412
203FixedHandleBarEndCap2CE3.2E‐203413 PedalArmRearShaft2CE3.2E‐413
204WireHarness‐Middle1CE3.2E‐204414 Bearing2203zz2CE3.2E‐414
205HandPulseSensorWire‐Middle2CE3.2E‐205415 CClips2CE3.2E‐415
301ActionHandlebar‐Left1CE3.2E‐301417 PedalCover2CE3.2E‐417
302ActionHandlebar‐Right1CE3.2E‐302418 PedalPivotBushing2CE3.2E‐418
303LeftUpright1CE3.2E‐303419 PedalBushing2CE3.2E‐419
304RightUpright1CE3.2E‐304501 Frame1CE3.2E‐501
305SideUprightUpperCover‐#22CE3.2E‐305502 CrankDisk2CE3.2E‐502
306SideUprightUpperCover‐#12CE3.2E‐306503 Crank2CE3.2E‐503
307SideUprightBottomCover‐R1CE3.2E‐307504 Belt1CE3.2E‐504
308SideUprightBottomCover‐L1CE3.2E‐308506 RearStabilizerCap2CE3.2E‐506
309HandleBarEndCap2CE3.2E‐309507 RearStabilizerCushion2CE3.2E‐507
310HandPulseSensor2CE3.2E‐310508 Bearing6300zz4CE3.2E‐508
311ActionHandlebarFoamGrips2CE3.2E‐311509 StrengthenWheelAdjustersSet1CE3.2E‐509
312HandPulseWire‐Lower1CE3.2E‐312514 Bearing6005zz2CE3.2E‐514
313Bearing6004zz4CE3.2E‐313515 CrankDiskAxle1CE3.2E‐515
314HandlebarPivotInsideBushing2CE3.2E‐314516 FlywheelAssembly1CE3.2E‐516
315HandlebarCover 2CE3.2E‐315517 CrankDiskSupportBushing2CE3.2E‐517
316HandlebarInsideCover4CE3.2E‐316518 CrankDiskSupportCover2CE3.2E‐518
317HandlebarPivotOutsideBushing2CE3.2E‐317519 FlywheelShaftFixing1CE3.2E‐519
318LevelAdjusters2CE3.2E‐318520 MagnetBracket 1CE3.2E‐520
319RubberCushion2CE3.2E‐319521 Bearing6000zz3CE3.2E‐521
320PedalArmFrontPivotCover 4CE3.2E‐320522 WireHarness‐Lower1CE3.2E‐522
321HandPulseSensorCover2CE32.E‐321523 FrontFrameCover‐Lower1CE3.2E‐523
401PedalArm‐Right1CE3.2E‐401524 FrontFrameCover‐Upper1CE3.2E‐524

CE3.2E ELLIPTICAL TRAINER
Visit us at: www.smoothfitness.co.uk
8
PARTS LIST
No. Description Qty. Order No. No. Description Qty. Order No.
525VoluteShaft1CE3.2E‐525719 M14Nut2CE3.2E‐719
526MotorBracket1CE3.2E‐526720 M10NylonNut4CE3.2E‐720
527SpiralShaft1CE3.2E‐527721 M12Nut1CE3.2E‐721
528AdjusterMotor1CE3.2E‐528722 ID8mmCurveWasher4CE3.2E‐722
529VoluteBracket1CE3.2E‐529723 26x10x3mmWasher2CE3.2E‐723
530MotorControlBoard1CE3.2E‐530724 20x10x5mmCurveWasher2CE3.2E‐724
531MagnetBracketShaft1CE3.2E‐531725 M4x45mmCAPScrew1CE3.2E‐725
532FlywheelAxle1CE3.2E‐532726 M4x19mmHardScrew38CE3.2E‐726
533Magnet 1CE3.2E‐533727 M4x10mmScrew12CE3.2E‐727
534SpeedSensor1CE3.2E‐534728 Φ3x16mmScrew8CE3.2E‐728
601FrontCover1CE3.2E‐601729 M10CapNut2CE3.2E‐729
602FrameInsideCover‐Right1CE3.2E‐602730 M4x50mmBolt1CE3.2E‐730
603FrameInsideCover‐Left1CE3.2E‐603731 ID10mmCurveWasher2CE3.2E‐731
604FrameOutsideCover‐Left1CE3.2E‐604732 M4x19mmScrew24CE3.2E‐732
605FrameOutsideCover‐Right1CE3.2E‐605733 M6x20mmBolt4CE3.2E‐733
70115x92xM14mmBolt2CE3.2E‐701734 M8x20mmScrew4CE3.2E‐734
702Spring1CE3.2E‐702735 M8Nut2CE3.2E‐735
703AluminiumDisk1CE3.2E‐703736 ID8mmWasher2CE3.2E‐736
704Caster2CE3.2E‐704737 ID6.5x20x22CE3.2E‐737
705M8x15mmAllenHeadBolt26CE3.2E‐705738 ID10CurveWasher2CE3.2E‐738
706M8x20mmCAPScrews2CE3.2E‐706739 M3x8mmScrew2CE3.2E‐739
707M8x90mmAllenHeadBolt4CE3.2E‐707740 MagnetSensorBase1CE3.2E‐740
708M8x60mmAllenHeadBolt2CE3.2E‐708741 ID6mmWasher1CE3.2E‐741
709M10x94mmBolt2CE3.2E‐709742 M6x35mmBolt1CE3.2E‐742
710M8x65mmAllenHeadBolt2CE3.2E‐710743 M6Nut1CE3.2E‐743
711M8x23mmBolt6CE3.2E‐711744 M5x10mmBolt8CE3.2E‐744
712M10x45mmAllenHeadBolt2CE3.2E‐712745 ID6.5x30x2.5Washer2CE3.2E‐745
713M10x45mmScrew2CE3.2E‐713746 ID10x20x2Washer2CE3.2E‐746
714M6x14mmAllenHeadBolt8CE3.2E‐714747 M8x8mmBolt2CE3.2E‐747
715M6x12mmAllenHeadBolt4CE3.2E‐715748 M10x37mmBolt2CE3.2E‐748
716FixingInserts12CE3.2E‐716749 ID6.5x13x2Washer2CE3.2E‐749
717M6NylonNut8CE3.2E‐717750 M4.2x25mm2CE3.2E‐750
718M8NylonNut5CE3.2E‐718751 M5x15mmScrew2CE3.2E‐751

CE3.2E ELLIPTICAL TRAINER
Visit us at: www.smoothfitness.co.uk
9

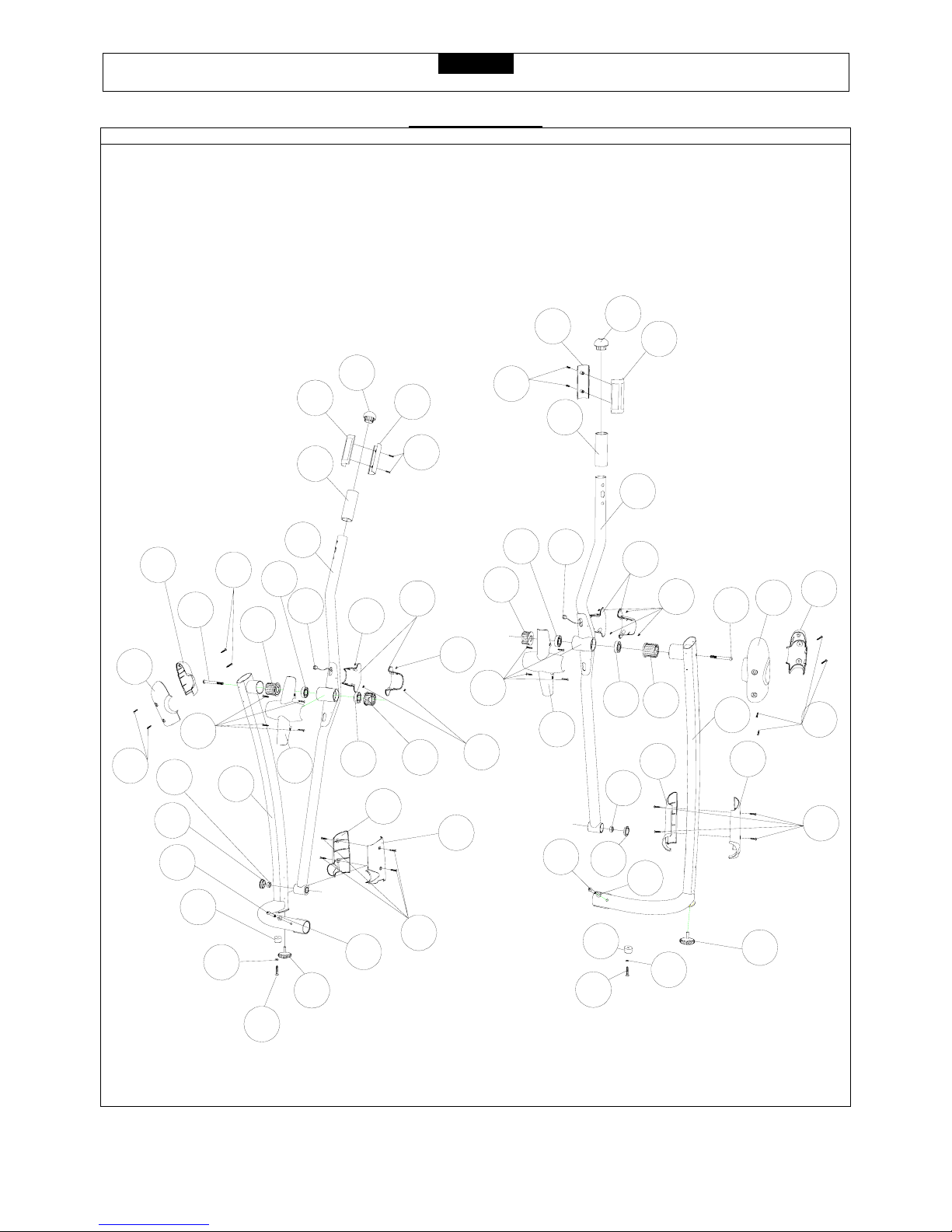

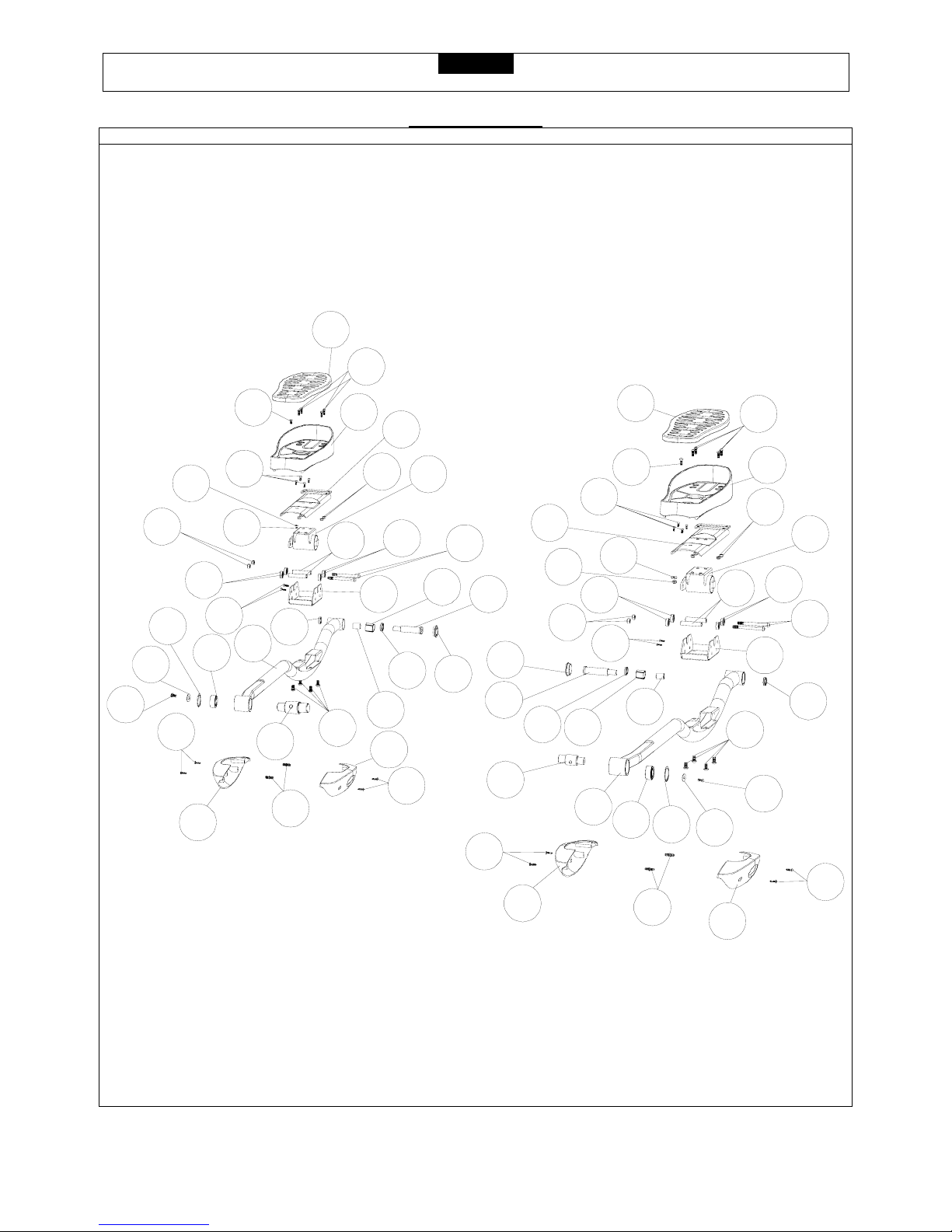

PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.
731 731
101
203
733
106
107 103
104
102
205
204
108
202 202
201
709
709
729
203

CE3.2E ELLIPTICAL TRAINER
Visit us at: www.smoothfitness.co.uk
10
PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.
309 321
310
311 726
732
305
306
710
102
317
313312
301
732
728 316
728
728
314
313
308 307
732
750
318
749
319
722
708
320
719 303 315
310
302
311
321 309
313
314
312 316
728 305
306
710
732
732
307
304
308
313 317
732
315
722
320
708
319
750 749 318
726
719

CE3.2E ELLIPTICAL TRAINER
Visit us at: www.smoothfitness.co.uk
11
PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.
707
418 701
320
412
419
705
413
716
417
726
417
726
715
737
415 414 402
734
736
735
718
717
407
404
412
403
404
405
406
409
715
408
706
705
409 715
408
706
736
407
735 404
718
320
701
413
412
734
418
309
726
417 716
401 414 415 737
715
705
419 412
403
707
404
405
406
717
417
726

CE3.2E ELLIPTICAL TRAINER
Visit us at: www.smoothfitness.co.uk
12
PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.
747
748
743
746
720 741
736
744
738
529
530
527
723 531
524 730
716
702
525
521 520
721
501
724
509
521
523
526
715
705 703 516 517
514
712
506
704
720
515
726
507
519
532
508 503
748
744
725
514
517
713
506
712
726
704
507
711
747
504
518 503
715
705
705
502
528
718
744
742
745
738
534
751
748
522
518
745
533

CE3.2E ELLIPTICAL TRAINER
Visit us at: www.smoothfitness.co.uk
13
PARTS DIAGRAM
A MAJORITY OF THE PARTS SHOWN HERE HAVE BEEN PREASSEMBLED AT THE FACTORY.
727
605
726
726
602
601
716
603
726
727
604
727
727
726
726
727

CE3.2E ELLIPTICAL TRAINER
Visit us at: www.smoothfitness.co.uk
14
ASSEMBLY

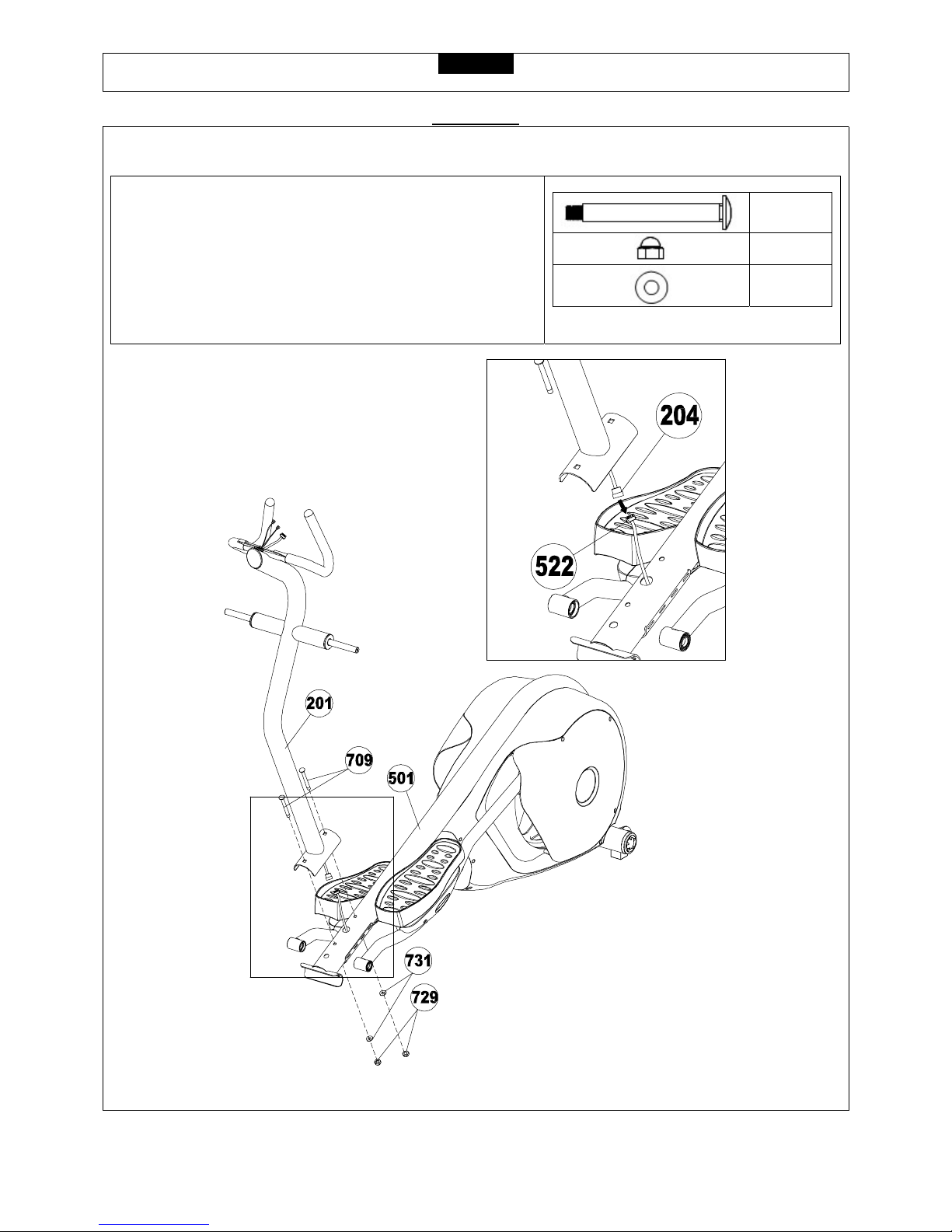

STEP 1:
(A) First make sure to connect the Wire Harness – Middle (204) and
Wire Harness – Lower (522) as shown below.
(B) Attach the Front Upright Frame (201) to the Frame (501) and
secure using two M10 x 94 mm Bolts (709), two ID 10mm Curve
Washers (731) and two M10 Nuts (729).
NOTE:
Make sure the wire is recessed into the frame, do not trap the wire.
709x 2
729 x 2
731 x 2

CE3.2E ELLIPTICAL TRAINER
Visit us at: www.smoothfitness.co.uk
15
ASSEMBLY

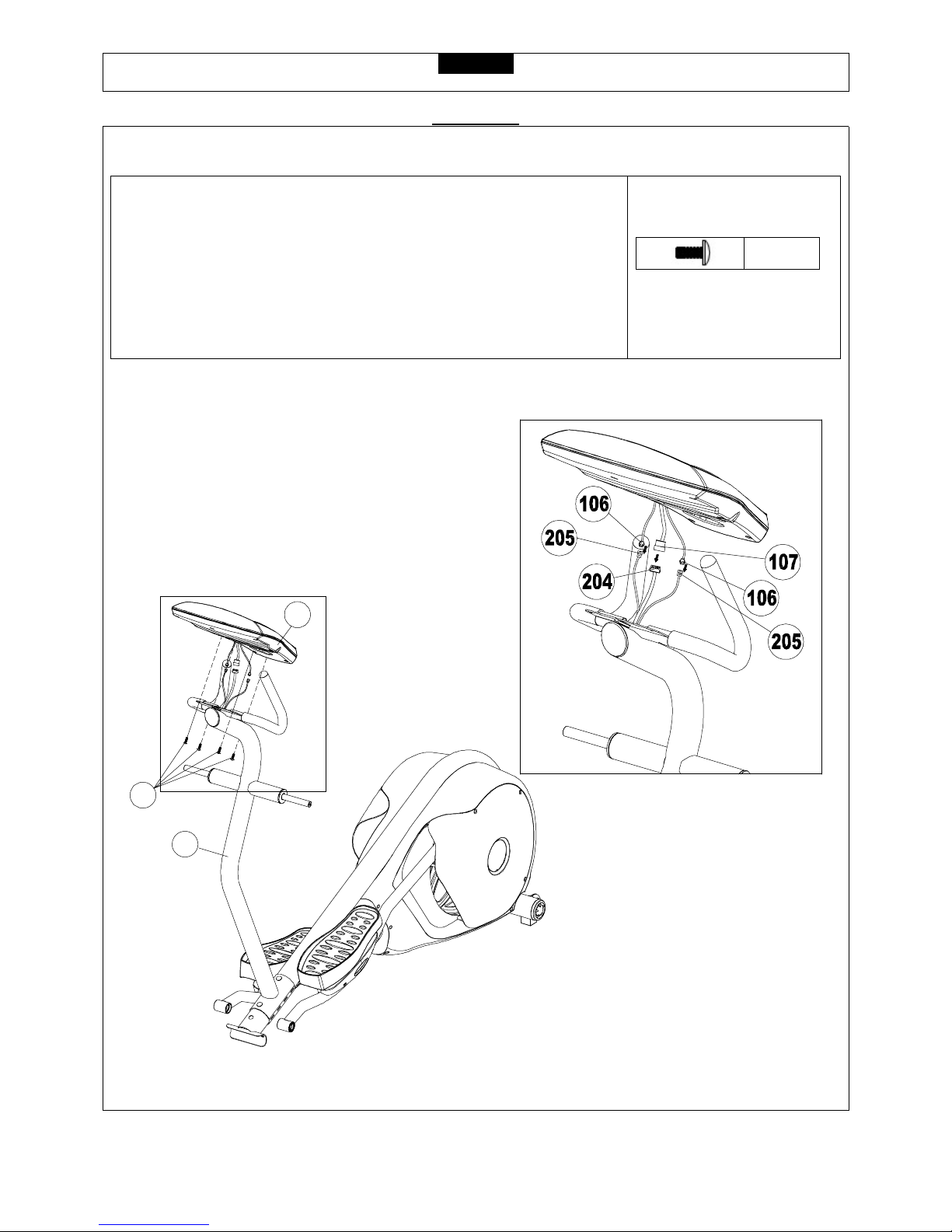

STEP 2:
(A) First make sure to connect the Wire Harness - Upper (107) with Wire Harness -
Middle (204) and Hand Pulse Sensor Wire – Upper (106) with Hand Pulse Sensor
Wire – Middle (205) as shown below.
(B) Attach the Computer (101) to the Front Upright Frame (201) using four M6 x
20mm Bolts (733).
NOTE:
Make sure all wires are recessed into the Console Housing, do not trap or pinch any
of the wires.
733 x 4
733
101
201

CE3.2E ELLIPTICAL TRAINER
Visit us at: www.smoothfitness.co.uk
16
ASSEMBLY
STEP 3:
(A) Slide the Handlebar – Left (301) and Handlebar – Right (302) onto the Front Upright
Frame (201).
(B) Connect the Hand Pulse Sensor Wire - Middle (205) with Hand Pulse Sensor Wire –
Lower (312) as shown below.

CE3.2E ELLIPTICAL TRAINER
Visit us at: www.smoothfitness.co.uk
17
ASSEMBLY

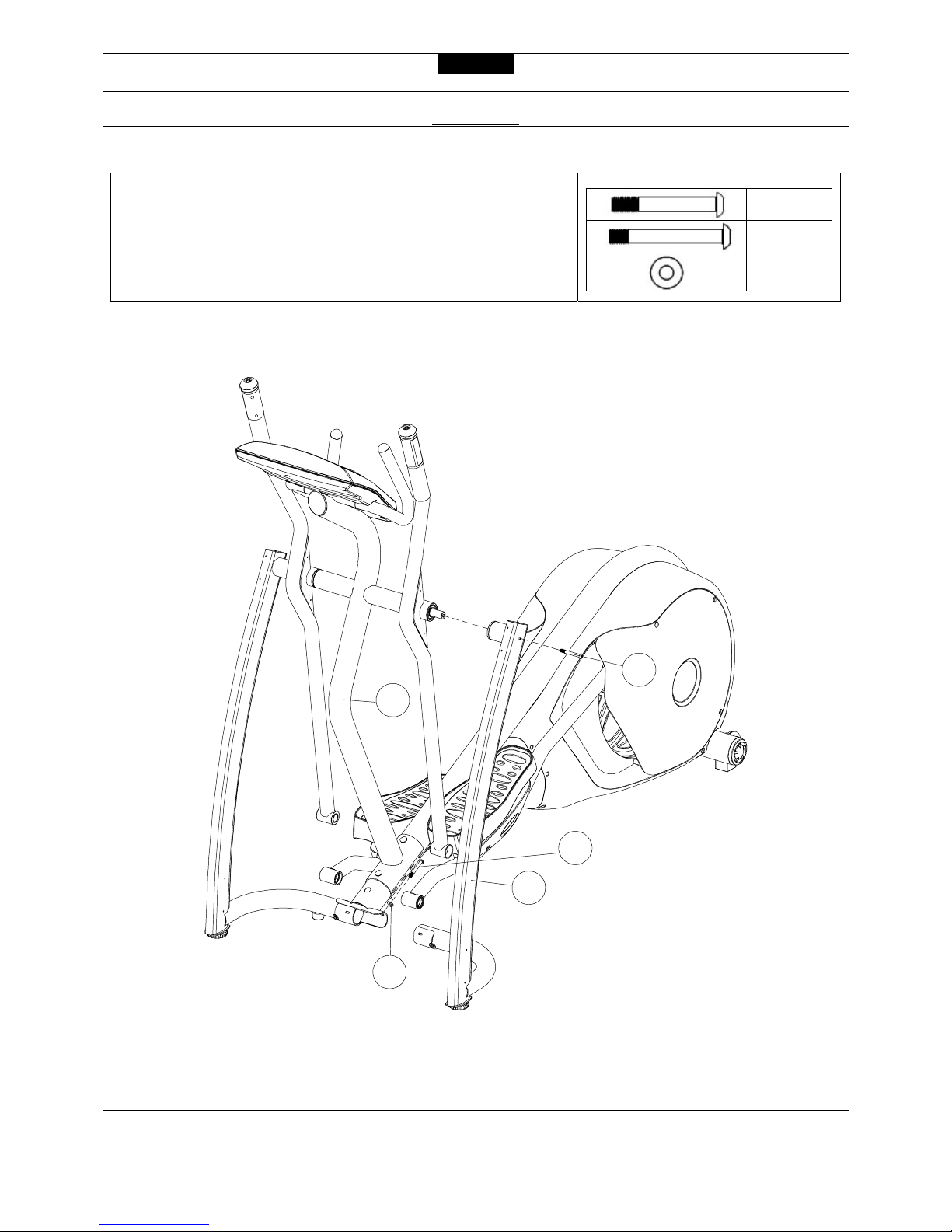

STEP 4:
(A) Attach the Left Upright (303) to the Frame (501) and secure using two
M8 x 60mm Allen Head Bolts (708), two ID 8mm Curve Washers (722) and
two M8 x 65 mm Allen Head Bolt (710).
(B) Repeat the procedure on Right Upright (304).
708 x 2
710 x 2
722 x 2
201
303
722
708
710

CE3.2E ELLIPTICAL TRAINER
Visit us at: www.smoothfitness.co.uk
18
ASSEMBLY
STEP 5:
(A) Slide the 15 x 92 x M14mm Bolt (701) through the Pedal Arm
–Right (401) and Handlebar – Right (302) and secure with M14
Nut (719) as shown.
701 x 1
719 x 1
302
401 701
B719
C
A

CE3.2E ELLIPTICAL TRAINER
Visit us at: www.smoothfitness.co.uk
19
ASSEMBLY

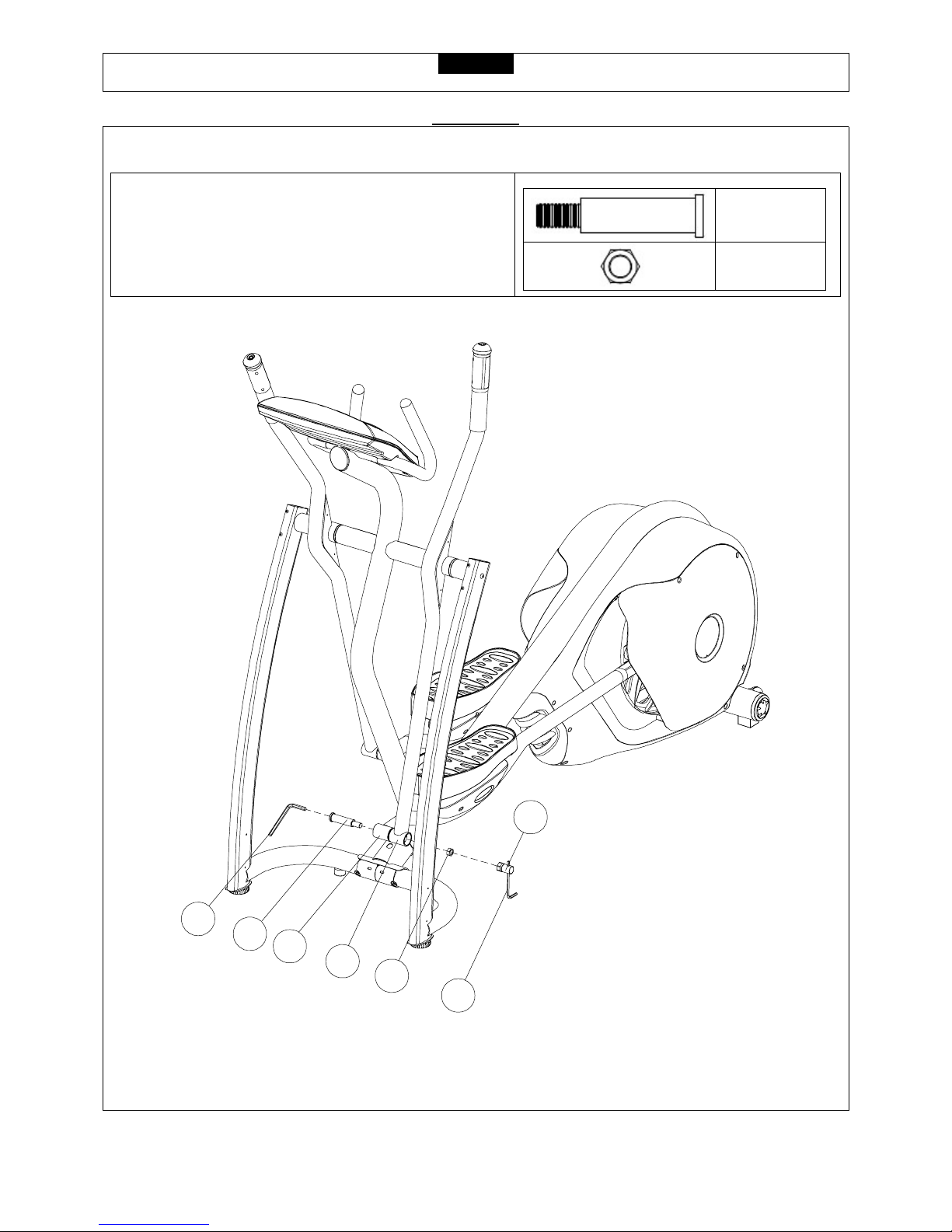

STEP 6:
(A) Slide the 15 x 92 x M14 mm Bolt (701) through the Pedal Arm
Left (402) and Handlebar – Left (301) and secure with M14
Nut (719) as shown.
701 x 1
719 x 1
C
719 B
A
313
402
701
