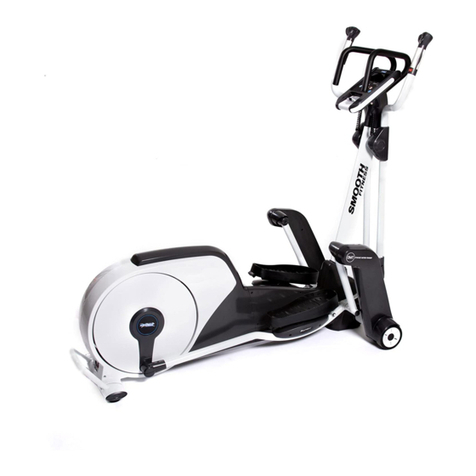

Smooth Fitness SMOOTH AGILE DMT X1 User manual

USER’S MANUAL
SMOOTH AGILE DMT X1
USER WEIGHT LIMITATION: 350lbs(160kgs).
SERIAL NUMBER (found on frame):
ST-MNL-X1-SMUS-01

2 SMOOTH AGILE DMT X1
PREASSEMBLY
For future service or related questions:
Please staple your receipt and/or write in the name and phone number of the retail store where you purchased your Smooth
Fitness AGILE DMT X1.
Name: ______________________________ Phone Number: ___________________ Receipt: ______________________
Open the boxes:
You are now ready to open the boxes of your new equipment. Make sure to inventory all of the parts that are included in the boxes.
Check the Parts List for a full count of the number of parts included for this product to be assembled properly. If you are missing
any parts or have any assembly questions call your local dealer or contact us directly at 888-800-1167.
Gather your tools:
Before starting the assembly of your unit, make sure that you have gathered all the necessary tools you may require to assemble
the unit properly. Having all of the necessary equipment at hand will save time and make the assembly quick and hassle-free.
Clear your work area:
Make sure that you have cleared away a large enough space to properly assemble the unit. Make sure the space is free from
anything that may cause injury during assembly. After the unit is fully assembled, make sure there is a comfortable amount of free
area around the unit for unobstructed operation.
Invite a friend:
Some of the assembly steps may require heavy lifting. It is recommended that you obtain the assistance of another person when
assembling this product.
User Weight Limitation:
Please note that there is a weight limitation for this product. If you weigh more than 350lbs. it is not recommended that you use this
product. Serious injury may occur if the user’s weight exceeds the limit shown here. This product is not intended to support users
whose weight exceeds this limit.

www.smoothfitness.com 3
POWER REQUIREMENTS
Power Requirements:
IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING CONNECTOR CAN RESULT IN THE RISK OF AN ELECTRIC
SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE MAN IF YOU ARE IN DOUBT AS TO WHETHER THE
PRODUCT IS PROPERLY GROUNDED. DO NOT MODIFY THE PLUG PROVIDED WITH THE PRODUCT, IF IT WILL NOT FIT
THE OUTLET; HAVE A PROPER OUTLET INSTALLED BY A QUALIFIED ELECTRICIAN.
This AGILE Trainer can be seriously damaged by sudden voltage changes in your home’s electrical power. Voltage spikes, surges
and noise interference can result from weather conditions or from other appliances being turned on or off. To reduce the possibility
of AGILE Trainer damage, always use a surge protector (not included) with your AGILE Trainer.
Surge protectors can be purchased at most hardware stores. The manufacturer recommends a single outlet surge protector with a
UL 1449 rating as a Transient Voltage Surge Suppressor (TVSS) with a UL suppressed voltage rating of 400V or less and an
electrical rating 110VAC, 15 amps.
This AGILE Trainer must be grounded to reduce the risk of electrical shock. Grounding provides a path of least resistance for
electric current, should the AGILE Trainer malfunction. This AGILE Trainer is equipped with an electrical cord that has an
equipment-grounding conductor and a grounding plug. Always plug the power cord into a surge protector, and plug the surge
protector into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
This product is for use on a nominal 110-volt circuit, and has a grounding plug that looks like the plug illustrated in the drawing
below.
GFCI outlets and GFCI Circuit Breakers are NOT recommended for use on this product. GFCI outlets and GFCI Circuit Breakers
may cause this equipment to function improperly.

4 SMOOTH AGILE DMT X1
SUPPLIED COMPONENTS
This list identifies the major components you will use to assemble this product.
No. Description Qty.
A1 Handlebar Assembly – Left 1
A2 Console Assembly 1
A3 Handlebar Assembly – Right 1
A4 Main Frame Assembly 1
A5 Incline Frame Assembly 1
701 Action Handlebar Lower Cover 4
702 Pedal Arm Front Pivot Cover 2
703 Incline Frame Cover 1
704 Undercarriage Cover - Left 1
705 Undercarriage Cover - Right 1
706 Nylon Bushing 2
707 Action Handlebar Cap 2
708 Incline Frame Holder – Front 2
F Chest Belt (optional) 1
G Power Cord 1
701 702 703 704 705
706 G
F
707
A4 A5
A
1
A
2A3
708

www.smoothfitness.com 5
SUPPLIED HARDWARE
This list identifies the hardware you will use to assemble the product. To help distinguish between the various types of
screws and bolts, use the scale below to measure them and compare them to the sizes listed.
No. Description Qty.
501 4 x 12mm Screw – Cone Point 4
502 15 x 22 – M8 x 10mm Bolt 2
503 15 x 26 – M8 x 15mm Bolt 2
504 M8 x 16mm Allen Head CAP Bolt 4
505 20 x 78 – M14 x 35mm Bolt 2
506 4 x 12mm Screw – Flat Point 4
507 M10 x 56mm Allen Head Bolt 1
508 M10 Nylon Nut 1
509 4x 19mm Screw 3
510 4.5 x 15mm Screw 6
511 M10 x 40mm Allen Head CAP Bolt 4
513 8 x 27 x 2mm Washer 2
514 8 x 14 x T2.0mm Spring Washer 2
515 M8 x 20mm Allen Head Bolt 2
516 M5 x 6mm Screw 2
517 10 x 16 x T.20mm Spring Washer 4
520 8 x 27 x 1mm Plastic Washer 2
521 20.7 x 29.1 x 0.3mm Wave Washer 2
A 2.5mm Allen Key 1
B 6mm Allen Key 1
C 8mm Allen Key 1
D Wrench 1
E Screwdriver 1
501 502 503 504 505
521
510
509
508
507
506
EDCB
A
511
513 514 515 516 517 520
MILLIMETERS

6 SMOOTH AGILE DMT X1
COMPLETE PARTS LIST
Item No. Description Qty. Part No.
100
101 Console Support Tube 1 X1-101
102 Action Handlebar – Left 1 X1-102
103 Action Handlebar – Right 1 X1-103
104 Moving Linkage – Left 1 X1-104
105 Moving Linkage – Right 1 X1-105
106 Pedal Arm – Left 1 X1-106
107 Pedal Arm – Right 1 X1-107
108 Pedal Swing Arm 2 X1-108
109 Incline Frame 1 X1-109
110 Incline Transmission Tube-Front 1 X1-110
111 Incline Transmission Tube-Back 1 X1-111
112 Main Frame 1 X1-112
113 Cover Support Tube 1 X1-113
114 Electro-magnetic System Bracket 1 X1-114
115 Tension Wheel Bracket 1 X1-115
116 Pedal Support Base 2 X1-116
117 Pedal Buffer Set 2 X1-117
200
201 Handlebar Foam Grip 2 X1-201
202 Handlebar Cap 2 X1-202
203 Hand Pulse Sensor Back Cover 2 X1-203
204 Hand Pulse Sensor Cover 2 X1-204
206 Incline Frame Holder – Rear 2 X1-206
210 Bearing 6004 4 X1-210
211 Bearing 2201 2 X1-211
212 Bearing 608zz 8 X1-212
213 Moving Linkage Bushing 4 X1-213
214 Bearing 6804 4 X1-214
215 Bearing 2203 2 X1-215
216 Pedal Fixing Base 4 X1-216
217 Bearing 6205 4 X1-217
218 Bushing 25.6 x 28.6 x 50mm 2 X1-218
219 Bushing 16 x 22.2 x 10.7mm 4 X1-219
220 Bushing 18 x 12mm 2 X1-220
221 Flywheel Pivot 1 X1-221
222 Bearing 6003 2 X1-222
223 Aluminum Disk 1 X1-223
224 Flywheel 1 X1-224
225 Bearing 6300 2 X1-225

www.smoothfitness.com 7
COMPLETE PARTS LIST
Item No. Description Qty. Part No.
226 Crank 2 X1-226
227 Crank Disk 1 X1-227
228 Crank Disk Oval Cap 2 X1-228
229 Crank Axle Bushing 2 X1-229
230 Bearing 6005 2 X1-230
231 Crank Disk Axle 1 X1-231
232 Bearing Holder 1 X1-232
233 Belt 1 X1-233
234 Level Adjuster 2 X1-234
235 Control Board Base 1 X1-235
236 Speed Sensor Base 1 X1-236
237 Overlay 1 X1-237
300
301 Console Housing - Upper 1 X1-301
302 Console Side Cover 1 X1-302
303 Fan Cover – Top 1 X1-303
304 Fan Cover – Bottom 1 X1-304
305 Blade 1 X1-305
306 Fan Holder Ring 2 X1-306
307 Console Housing – Bottom 1 X1-307
308 Console Support Tube Cover – Rear 1 X1-308
309 Console Support Tube Cover – Front 1 X1-309
310 Console Top Cover 1 X1-310
311 Pivot Cap 2 X1-311
312 Pivot Arm Bottom Cover – Left 1 X1-312
313 Pivot Arm Bottom Cover – Right 1 X1-313
315 Action Handlebar Cover – LL 1 X1-315
316 Action Handlebar Cover – LR 1 X1-316
317 Action Handlebar Cover – RL 1 X1-317
318 Action Handlebar Cover – RR 1 X1-318
319 Switch Plate 1 X1-319
320 Pedal Soft Cushion 2 X1-320
321 Pedal 2 X1-321
322 Rubber Cushion – Front 2 X1-322
323 Rubber Cushion – Rear 2 X1-323
324 Pedal Bushing Cover 4 X1-324
325 Pedal Arm Cover – Top 2 X1-325
326 Pedal Arm Cover – Bottom 2 X1-326
327 Crank Disk Cover 2 X1-327
328 Crank Cover 2 X1-328
329 Pedal Swing Arm Cap 2 X1-329
330 Incline Frame Positioner 1 X1-330

8 SMOOTH AGILE DMT X1
COMPLETE PARTS LIST
Item No. Description Qty. Part No.
331 Wheel Cap 112 x 41.5mm 2 X1-331
332 Wheel Cap 46 x 12mm 2 X1-332
333 Wheel 140 x 51.86mm 2 X1-333
334 Bearing Bracket 2 X1-334
335 Control Board Cover 1 X1-335
336 Oval Tube Cap 2 X1-336
337 Rear Cover – Left 1 X1-337
338 Rear Shroud – Left 1 X1-338
339 Rear Shroud – Right 1 X1-339
340 Rear Cover –Right 1 X1-340
341 Pivot Arm Cover – LL 1 X1-341
342 Pivot Arm Cover – LR 1 X1-342
343 Pivot Arm Cover – RL 1 X1-343
344 Pivot Arm Cover – RR 1 X1-344
400
401 4 x 12mm Screw 6 X1-401
402 3 x 10mm Screw 6 X1-402
403 Taper Fixing Insert 11 X1-403
404 M8 x 16mm Allen Head CAP Bolt 6 X1-404
405 8 x 14 x T2.0mm Spring Washer 11 X1-405
406 M10 x 40mm Allen Head Cap Bolt 2 X1-406
407 4 x 19mm Screw 13 X1-407
408 4 x 15mm Screw – Cone Point 2 X1-408
409 4 x 12mm Screw – Flat Point 6 X1-409
410 M5 x 12mm Screw 8 X1-410
411 4 x 12mm Screw – Cone Point 21 X1-411
412 M32 C Clip 2 X1-412
413 12 x 20 x 2mm PU Washer 2 X1-413
414 M6 x 12mm Allen Head Bolt 10 X1-414
415 M8 x 25mm Allen Head Bolt 2 X1-415
416 M8 x 15mm Allen Head Bolt 13 X1-416
417 M8 Nylon Nut 11 X1-417
418 M8 x 20mm Bolt 4 X1-418
419 Bushing 12 x 62mm 4 X1-419
420 M8 x 90mm Allen Head Bolt 4 X1-420
421 M12 C Clip 2 X1-421
422 12 x 20 x 0.5mm PU Washer 2 X1-422
423 2.5 x 7mm Screw 14 X1-423
424 M6 x 12mm Allen Head CAP Bolt 3 X1-424
425 6 x 10 x 1mm Spring Washer 11 X1-425
426 20 x 6 x T1.5mm Washer 3 X1-426
427 M42 C Clip 2 X1-427
428 M8 x 16mm Allen Head Bolt 8 X1-428

www.smoothfitness.com 9
COMPLETE PARTS LIST
Item No. Description Qty. Part No.
429 M10 x20mm Bolt 4 X1-429
430 10 x 16 x 2mm Spring Washer 6 X1-430
431 10 x 30 x T3.0 Washer 3 X1-431
432 M4 Nylon Nut 2 X1-432
433 M10 Nylon Nut 3 X1-433
435 16 x 25 x T3.0 Washer 4 X1-435
436 M10 x 40mm Allen Head Bolt Thread:10mm 1 X1-436
437 M6 x 12mm Screw 6 X1-437
438 17 x 22 x T1.5mm Plastic Washer 3 X1-438
439 M8 x 50mm Allen Head CAP Bolt 2 X1-439
441 Bearing Bushing 10.2 x 16 x 8mm 1 X1-441
442 M10 x 45mm Bolt Thread:15mm 1 X1-442
443 M10 x 95mm Allen Head CAP Bolt 1 X1-443
444 M12 x 20mm Allen Head Bolt 2 X1-444
445 Pedal Arm Pivot 2 X1-445
446 3/4” Nut 2 X1-446
447 M10 x 30mm Allen Head CAP Bolt 2 X1-447
448 M4 x 15mm Screw 2 X1-448
449 4 x 25mm Screw 2 X1-449
450 M3 x 16mm Screw 2 X1-450
451 M4 x 45mm Allen Head CAP Bolt 1 X1-451
452 M5 x 8mm Allen Head Bolt 2 X1-452
453 M4 x 8mm Screw 4 X1-453
454 Pin Nut 4 X1-454
455 M4 x 45mm Screw 2 X1-455
456 M3 x 8mm Screw 2 X1-456
457 Iron Plate Nut 6 X1-457
458 M5 X 12mm Screw 4 X1-458
459 M8 x 45mm Bolt 3 X1-459
460 8 x 23 x T2.0mm Washer 3 X1-460
461 M6 x 10mm Screw 2 X1-461
462 M4 x 10mm Screw 2 X1-462
467 M5 x 15mm Screw 1 X1-467
468 M5 Nut 2 X1-468
469 5 x 0.6mm Lock Washer 1 X1-469
500
501 4 x 12mm Screw – Cone Point 4 X1-501
502 15 x 22 – M8 x 10mm Bolt 2 X1-502
503 15 x 26 – M8 x 15mm Bolt 2 X1-503
504 M8 x 16mm Allen Head CAP Bolt 4 X1-504
505 20 x 78 – M14 x 35mm Bolt 2 X1-505
506 4 x 12mm Screw – Flat Point 4 X1-506
507 M10 x 56mm Allen Head Bolt 1 X1-507
508 M10 Nylon Nut 1 X1-508
509 4 x 19mm Screw 3 X1-509
510 4.5 x 15mm Screw 6 X1-510

10 SMOOTH AGILE DMT X1
COMPLETE PARTS LIST
Item No. Description Qty. Part No.
511 M10 x 40mm Allen Head CAP Bolt 4 X1-511
513 8 x 27 x 2mm Washer 2 X1-513
514 8 x 14 x T2.0mm Spring Washer 2 X1-514
515 M8 x 20mm Allen Head Bolt 2 X1-515
516 M5 x 6mm Screw 2 X1-516
517 10 x 16 x T2.0mm Spring Washer 4 X1-517
520 8 x 27 x 1mm Plastic Washer 2 X1-520
521 20.7 x 29.1 x 0.3mm Wave Washer 2 X1-521
600
601 8Pin Power Wire – Upper 1 X1-601
602 8Pin Power Wire – Middle 1 X1-602
603 8Pin Power Wire – Middle 1 X1-603
604 Elector-magnetic Wire 1 X1-604
605 Power Connect Wire 3 X1-605
606 3C Power Wire 1 X1-606
607 Hand Pulse Sensor Wire – Upper 350mm 2 X1-607
608 Hand Pulse Sensor Wire – Middle 160mm 2 X1-608
609 Hand Pulse Sensor Wire – Lower 900mm 2 X1-609
610 PC Board 1 X1-610
611 Button Board Connect Wire 100mm 1 X1-611
612 Receiver Wire 350mm 1 X1-612
613 Button Board 1 X1-613
614 Fan 1 X1-614
615 Receiver 1 X1-615
616 Elevation Motor 1 X1-616
617 Speed Sensor 1 X1-617
618 Transformer 1 X1-618
619 Control Board 1 X1-619
620 Power Insert 1 X1-620
621 Power Switch 1 X1-621
622 Power Breaker 1 X1-622
623 Elector-magnetic System 1 X1-623
624 Magnetic Sensor 1 X1-624
625 5/16” Cable Tie 4 X1-625
626 3/8” Cable Tie 3 X1-626
627 Cable Plug 2 X1-627
628 Touch Control Board 1 X1-628
700
701 Action Handlebar Lower Cover 4 X1-701
702 Pedal Arm Front Pivot Cover 2 X1-702
703 Incline Frame Cover 1 X1-703
704 Undercarriage Cover – Left 1 X1-704
705 Undercarriage Cover – Right 1 X1-705
706 Nylon Bushing 2 X1-706
707 Action Handlebar Cap 2 X1-707
708 Incline Frame Holder – Front 2 X1-708

www.smoothfitness.com 11
423
613
304
306
614
303
305
302 301 302
423
310
401
401
458 307 309 409
308
101
409
423
237
610
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.

12 SMOOTH AGILE DMT X1
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
503 701 501
502
701
412
211
105
413
503 501
701
502
701
412 211 104
504
504
513 210
627
707 315 515
706
407
102
514
402
203 403 204
210
317
407 513 514
402
403
204
706 407 203
627 318707
202
201
202
201
501 501
413
103
316 515
520
520

www.smoothfitness.com 13
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
428
428
403
411
326
325
411
414
419
216
417
213
212
417
418
416
212
117
116
416
321
415
320
411
213 422
421
420
324
411
324
702 505 214
107
215 426
427
424
214
419
213 521 505
420
702
213
422
421
212
417 418
416
117
323
415
320
414
116
403 216
324
411
325
428
426
424
215
427
425 326 411 106 324 411
425
321.
417
322
322
323
411
521
212

14 SMOOTH AGILE DMT X1
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
217
218
217
329434
218
217 217
430 429
329
330
508 411 507
311
458
311
434
108
431
430
429
220
431
435
219 435 430
429
404
405
404
405
111-1
111-3
111-2
111-1
111-4 109
220 333 332 331
435
333
435
430
331
429 332 219
438
222
334
425
437
221
230 229 228
447
232
448
230
231
233
229
624
227
226 446 447
445
327 414
459
430
228
411
416 405 223 224
438 416 405
425437 424
425
222334 426
446
226
430
442
441
225
433
114
443 417
433
444 433
439
623
616 436
110
618
112
425
425
405 327
432
410
328 414
416 445
328410
438
417
460

www.smoothfitness.com 15
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
313
408
511
312
113
408
115
451
452
450
617
411
236
456 620 234
621
622
234
336
455
335
453
454619
235
411
449
336
319
457
705
510
703
509
506
409
510
407
407
407
457
403
457
704
506
411
403
409
510
337
338
340
339
343 344
403
403
342
341
407
403
403
205
708
206
462
462
509
402 402
517
430
406
430
467
468
469

16 SMOOTH AGILE DMT X1
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
606
603
617
616618
609
606
605
601
609
602
603
618
617
623
616
619
620
621
622
616
604
602
628
301
204
204
203
203
609
608
603
608
609
101
102 103
614
615
612
601
607
607
610
611
613
301

www.smoothfitness.com 17
1
2
3
4
5
6
7
8
CUT
CUT CUT
CUT
ASSEMBLY
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.

18 SMOOTH AGILE DMT X1
ASSEMBLY
STEP 1: Connect the Main Frame to Incline Frame
(A) Place Styrofoam block under Main Frame tube to provide clearance to
position Incline Frame (109) for assembly.
Remove the Blue film before you assemble the Incline Frame.
(B) Hold the Incline Frame Holder – Front (708) to the Incline Frame (109),
secure using M10 x 40mm Allen Head CAP Bolts (511), 10 x 16 x T2.0mm
Spring Washer on the Incline Frame Holder by 8mm Allen Key (C).
Don’t completely tighten M10 x40mm Allen Head CAP Bolt (511) until
STEP 2
511 X4
517 X4
708 X2
109
112
8
109
C
708
511
517
511
708

www.smoothfitness.com 19
ASSEMBLY
STEP 2: Connect the Incline Transmission Tube
(A) Rotate the Incline Frame (109) to align the bolt holes with the mating bolt
holes in the Incline Transmission Tube-Front (110).
(B) Assemble the Incline Transmission Tube-Front (110) to the Incline Frame
(109) with M10 x 56mm Allen Head Bolt (507), M10 Nylon Nut (508), and
by 8mm Allen Key (C) and Wrench (D).
(C) Tight the M10 x40mm Allen Head CAP Bolt (511) by 8mm Allen Key.
507 X1
508 X1
D
109
507110
109
C
508
D
508
110
C
708
511
C
109

20 SMOOTH AGILE DMT X1
ASSEMBLY
STEP 3:Assemble the Console Support Tube
(A) Assemble the Console Support Tube (101) to the Main Frame and secure
using four M8 x 16mm Allen Head CAP Bolts (504) by 6mm Allen Key (B)
(B) Connect the 8Pin Power Wire – Middle (602) to 8Pin Power Wire – Lower
(603).
504 X4
B
504
602
603
112
101
504
112
101
101
112
