USER’S MANUAL
SMOOTH CE3.7 Elliptical Trainer
USER WEIGHT LIMITATION: 325lbs
SERIAL NUMBER (Found on Frame):

2 SMOOTH CE3.7 Elliptical
Visit us at : www.smoothfitness.com

SMOOTH CE3.7 Elliptical 3
Visit us at : www.smoothfitness.com
PREASSEMBLY
For future service or related questions:
Please staple your receipt and/or write in the name and phone number of the retail store where you purchased your
Smooth Fitness Elliptical Trainer.
Name: _____________________________
Phone Number: ______________________
Receipt: ____________________________
Open the boxes:
You are now ready to open the boxes of your new equipment. Make sure to inventory all of the parts that are
included in the boxes. Check the Parts List for a full count of the number of parts included for this product to be
assembled properly. If you are missing any parts or have any assembly questions call your local dealer or contact us
directly at 888-800-1167.
Gather your tools:
Before starting the assembly of your unit, make sure that you have gathered all the necessary tools you may require
to assemble the unit properly. Having all of the necessary equipment at hand will save time and make the assembly
quick and hassle-free.
Clear your work area:
Make sure that you have cleared away a large enough space to properly assemble the unit. Make sure the space is
free from anything that may cause injury during assembly. After the unit is fully assembled, make sure there is a
comfortable amount of free area around the unit for unobstructed operation.
Invite a friend:
Some of the assembly steps may require heavy lifting. It is recommended that you obtain the assistance of
another person when assembling this product.
User Weight Limitation:
Please note that there is a weight limitation for this product.
If you weigh more than 325lbs. it is not recommended that you use this product. Serious injury may occur if
the user’s weight exceeds the limit shown here. This product is not intended to support users whose weight
exceeds this limit.

SMOOTH CE3.7 Elliptical4
Visit us at : www.smoothfitness.com
SUPPLIED COMPONENTS
This list identifies the major components you will use to assemble this product.
No. Description Qty.
A1 Computer Assembly 1
A2 Main Assembly 1
A3 Incline Frame Assembly 1
A4 Upright Assembly 1
A5 Action Handlebar-Left Assembly 1
A6 Action Handlebar-Right Assembly 1
213 Upright Upper Cover-Front 1
214 Upright Upper Cover-Back 1
309 Action Handlebar Bushing Cover 2
314 Swing Arm Lower Cover 4
330 Pedal Arm Front Pivot Cover 2
416 Incline Frame Cover-Front 1
417 Incline Frame Cover-Left 1
418 Incline Frame Cover-Right 1
419 Incline Frame Holder-Front 2
607 Adapter 1
A5 A6
A4
314 309 417 418
A
2
A
1
A
3
416 323 214 213
419 607
MILLIMETERS

SMOOTH CE3.7 Elliptical 5
Visit us at : www.smoothfitness.com

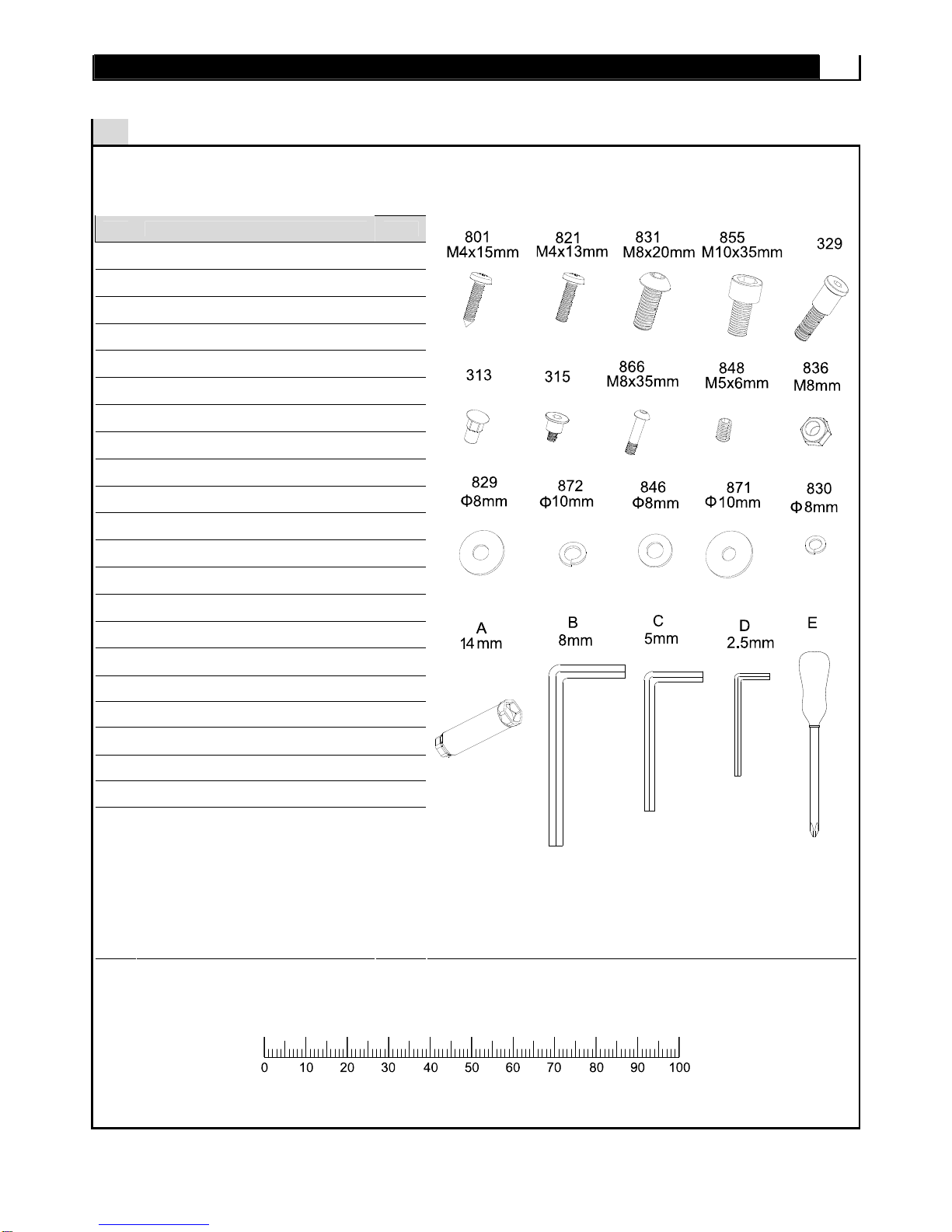

SUPPLIED HARDWARE
This list identifies the hardware you will use to assemble the product. To help distinguish between the various types
of screws and bolts, use the scale below to measure them and compare them to the sizes listed.
No. Description Qty.
801 Φ4x15mm Screw 13
821 Φ4x13mm Screw 2
829 Φ8x23x2.0 Washer 2
830 Φ8x14 Spring Washer 2
831 M8x20mm Allen Head Cap Bolt 6
836 M8 Locknut 1
846 Φ8x18x1.0 Washer 1
848 M5x6mm Allen Bolt 2
855 M10x35mm Allen Head Cap Bolt 4
866 M8x35mm Allen Head Cap Bolt 1
871 Φ10x20.5x1.5 Washer 4
872 Φ10 Spring Washer 4
313 M8-16X26mm Bolt 2
315 M8-16X22mm Bolt 2
329 Pedal Fixing Axes 2
A M14 Bushing Tool 1
B 8mm Allen Key 1
C 5mm Allen Key 1
D 2.5mm Allen Key 1
E Screwdriver 1
MILLIMETERS

6 SMOOTH CE3.7 Elliptical
Visit us at : www.smoothfitness.com
COMPLETE PARTS LIST
Part No. Parts Description Quantity Order Number
100 COMPUTER 1 CE3.7-100
101 Console-Upper 1 CE3.7-101
102 Console-Lower 1 CE3.7-102
103 Computer PC Board 1 CE3.7-103
104 Amplifier PC Board 1 CE3.7-104
105 Speaker Bracket 1 CE3.7-105
106 iPod Bracket 1 CE3.7-106
107 Speaker Bracket Cover 1 CE3.7-107
108 Pad 1 CE3.7-108
109 Speaker 2 CE3.7-109
110 Speaker Cover 2 CE3.7-110
111 iPod Dock PC Board 1 CE3.7-111
112 Dock Cover – Top 1 CE3.7-112
113 Dock Cover – Bottom 1 CE3.7-113
114 Fan 1 CE3.7-114
115 Overlay 1 CE3.7-115
116 Console Top Cover 1 CE3.7-116
200 UPRIGHT
201 Handlebar Foam 2 CE3.7-201
202 handlebar End Cap 2 CE3.7-202
203 Upright 1 CE3.7-203
204 Incline Adjust Handle Cover-Left 1 CE3.7-204
205 Incline Adjust Handle Cover-Right 1 CE3.7-205
206 Incline Adjust Handle Cover 1 CE3.7-206
207 Incline Adjust Handle 1 CE3.7-207
208 Incline Adjust Handle Fixing Axes 1 CE3.7-208
209 Incline Adjust Tube 1 CE3.7-209
210 Incline Adjust Equipment 1 CE3.7-210
211 Tighten Spring 1 CE3.7-211
212 Cushion 1 CE3.7-212
213 Upright Upper Cover-Front 1 CE3.7-213
214 Upright Upper Cover-Back 1 CE3.7-214
217 Cable Tie 2 CE3.7-217
300 ACTION HANDLEBAR AND PEDAL TUBE
301 Action Handlebar End Cap 2 CE3.7-301
302 Action Handlebar Foam 2 CE3.7-302
303 Hand Pulse Sensor 2 CE3.7-303
304 Hand Pulse Sensor Cover 2 CE3.7-304
305 Bearing 6004ZZ 4 CE3.7-305
306 Shaft Bushing 2 CE3.7-306

SMOOTH CE3.7 Elliptical 7
Visit us at : www.smoothfitness.com
COMPLETE PARTS LIST
Part No. Parts Description Quantity Order Number
307 Action Handlebar Cover-LL 1 CE3.7-307
308 Action Handlebar Cover-LR 1 CE3.7-308
309 Action Handlebar Bushing Cover 2 CE3.7-309
310 Action Handlebar-Left 1 CE3.7-310
311 Action Handlebar -Right 1 CE3.7-311
312 Wire Protector 2 CE3.7-312
313 M8-16X26mm Bolt 2 CE3.7-313
314 Swing Arm Lower Cover 4 CE3.7-314
315 M8-16X22mm Bolt 2 CE3.7-315
316 Swing Linkage Tube-Left 1 CE3.7-316
317 Swing Linkage Tube-Right 1 CE3.7-317
318 Pedal Arm- Left 1 CE3.7-318
319 Pedal Arm-Right 1 CE3.7-319
320 Pedal Fixing Base 2 CE3.7-320
321 Pedal Buffer Set 2 CE3.7-321
322 Pedal Support Base 2 CE3.7-322
323 Pedal 2 CE3.7-323
324 Pedal Soft Cushion 2 CE3.7-324
325 Pedal Side Cover 4 CE3.7-325
327 Swing Linkage Tube Bush 4 CE3.7-327
328 Bearing Bushing 4 CE3.7-328
329 Pedal Fixing Axes(81xΦ15-M14x36) 2 CE3.7-329
330 Pedal Arm Front Pivot Cover 2 CE3.7-330
331 Bearing 608ZZ 8 CE3.7-331
332 Bearing 2203ZZ 2 CE3.7-332
333 Bearing 2201ZZ 2 CE3.7-333
334 Bearing 6002ZZ 4 CE3.7-334
335 Action Handlebar Cover-RL 2 CE3.7-335
336 Action Handlebar Cover-RR 2 CE3.7-336
337 Pedal Bumper-Front 2 CE3.7-337
338 Pedal Bumper-Rear 2 CE3.7-338
339 Pedal Pivot Bushing 2 CE3.7-339
340 Pedal Bushing 2 CE3.7-340
400 SWING ARM
401 Incline Frame 1 CE3.7-401
402 Pedal Swing Arm Cover-LL 1 CE3.7-402
403 Pedal Swing Arm Cover-RR 1 CE3.7-403
404 Pedal Swing Arm Cover-LR 1 CE3.7-404
405 Pedal Swing Arm Cover-RL 1 CE3.7-405
406 Pedal Swing Arm Bottom Cover-Left 1 CE3.7-406

SMOOTH CE3.7 Elliptical8
Visit us at : www.smoothfitness.com
COMPLETE PARTS LIST
Part No. Parts Description Quantity Order Number
407 Pedal Swing Arm Bottom Cover-Right 1 CE3.7-407
408 Transportation Wheel 2 CE3.7-408
409 Transportation Wheel Bushing 4 CE3.7-409
410 Pedal Swing Arm 2 CE3.7-410
411 Pedal Swing Arm End Cap 2 CE3.7-411
412 Pedal Swing Arm Cover-Upper 2 CE3.7-412
413 Swing Arm Bearing Bush 2 CE3.7-413
414 Incline Frame Localizer 1 CE3.7-414
415 Bearing 6205ZZ 4 CE3.7-415
416 Incline Frame Cover-Front 1 CE3.7-416
417 Incline Frame Cover-Left 1 CE3.7-417
418 Incline Frame Cover-Right 1 CE3.7-418
419 Incline Frame Holder-Front 2 CE3.7-419
420 Incline Frame Holder-Back 2 CE3.7-420
500 MAIN FRAME
501 Main Frame 1 CE3.7-501
502 Crank Disk Fixing Plate 1 CE3.7-502
503 Crank Disk 1 CE3.7-503
504 Crank Axle Bushing 2 CE3.7-504
505 Crank 1 CE3.7-505
506 Crank Disk Axle 1 CE3.7-506
507 Pedal Arm Eccentric Shaft 2 CE3.7-507
508 Rear Stabilizer Cap 2 CE3.7-508
509 Belt 1 CE3.7-509
510 Rear Stabilizer Adjust Cushion 2 CE3.7-510
511 Flywheel Axle Stator 1 CE3.7-511
512 Motor Set 1 CE3.7-512
513 Magnet Set 1 CE3.7-513
514 Speed Sensor 1 CE3.7-514
515 Flywheel Assembly Set 1 CE3.7-515
516 Flywheel Axle 1 CE3.7-516
517 Tension Wheel Bracket 1 CE3.7-517
518 Magnet Bracket Shaft 1 CE3.7-518
519 Spring 1 CE3.7-519
520 Bearing 6300ZZ 4 CE3.7-520
521 Bearing 6500ZZ 2 CE3.7-521
600 MAIN COVER
601 Main Frame Cover-Left 1 CE3.7-601
602 Main Frame Cover-Right 1 CE3.7-602
603 Main Frame Outside Cover-Left 1 CE3.7-603

SMOOTH CE3.7 Elliptical 9
Visit us at : www.smoothfitness.com
COMPLETE PARTS LIST
Part No. Parts Description Quantity Order Number
604 Main Frame Outside Cover-Right 1 CE3.7-604
605 Main Frame Cover-Front 1 CE3.7-605
606 Fixing Clamp 8 CE3.7-606
607 Internal Power Wire 1 CE3.7-607
700 WIRE
701 7Pin Wire-Upper 1 CE3.7-701
702 Hand pulse wire- Upper 2 CE3.7-702
703 7Pin Wire-Middle 1 CE3.7-703
704 Hand pulse wire- Lower 2 CE3.7-704
705 7Pin Wire-Lower 1 CE3.7-705
706 Adaptor 1 CE3.7-706
707 Hand pulse Connect Wire 2 CE3.7-707
800 FASTENER
801 Φ4x15mm Screw 28 CE3.7-801
802 Φ4x19mm Screw 14 CE3.7-802
803 Φ12 Snap link 3 CE3.7-803
804 Φ12x20 PU Cushion 2 CE3.7-804
805 Φ12 Plastic Washer 2 CE3.7-805
806 M4x12mm Screw 12 CE3.7-806
807 Φ32 Snap link 2 CE3.7-807
808 Φ6x12-9x2 Plastic Insert 6 CE3.7-808
809 M8x12mm Allen Head Cap Bolt 3 CE3.7-809
810 M10x35mm Allen Head Cap Bolt 2 CE3.7-810
811 M6x12mm Allen Head Cap Bolt 4 CE3.7-811
812 Φ6.5x32 Washer 2 CE3.7-812
813 Φ10.6x20.5 Washer 2 CE3.7-813
814 M8x8mm Allen Bolt 2 CE3.7-814
815 Tension Pulley Bracket 2 CE3.7-815
816 Φ10x20Washer 2 CE3.7-816
817 M10 Nut 2 CE3.7-817
818 M8x15mm Screw 5 CE3.7-818
819 M4x40mm Screw 1 CE3.7-819
820 M4 Nut 1 CE3.7-820
821 Φ4x13mm Screw 2 CE3.7-821
822 M8x27mm Allen Head Cap Bolt 1 CE3.7-822
823 M6x38mm Bolt 1 CE3.7-823
824 M5 Locknut 1 CE3.7-824
825 M12 Nut 1 CE3.7-825
826 Φ10x26Washer 2 CE3.7-826
827 5X15mm Screw 2 CE3.7-827
829 Φ8x26 Washer 2 CE3.7-829
830 Φ8x14 Spring Washer 2 CE3.7-830

SMOOTH CE3.7 Elliptical10
Visit us at : www.smoothfitness.com
COMPLETE PARTS LIST
Part No. Parts Description Quantity Order Number
831 M8x20mm Allen Head Cap Bolt 6 CE3.7-831
832 M5x10mm Bolt 2 CE3.7-832
834 M8x90mm Allen Head Cap Bolt 4 CE3.7-834
835 Φ8x23mm Washer 2 CE3.7-835
836 M8 Locknut 8 CE3.7-836
837 M8x20mm Bolt 4 CE3.7-837
838 Φ6 Spring Washer 2 CE3.7-838
839 Φ42 Snap Link 2 CE3.7-839
840 Φ6x12-9x3 Plastic Insert 7 CE3.7-840
841 Φ3x14mm Screw 4 CE3.7-841
842 M5x10mm Allen Head Cap Bolt 4 CE3.7-842
843 M6x12mm Allen Head Cap Bolt 8 CE3.7-843
844 M8X12mm Allen Head Cap Bolt 16 CE3.7-844
845 M8x20x14 mm Bolt 2 CE3.7-845
846 Φ8x16 Washer 3 CE3.7-846
847 Φ10x33 Washer 2 CE3.7-847
848 M5x6mm Bolt 2 CE3.7-848
849 M10x20mm Allen Head Cap Bolt 4 CE3.7-849
850 Φ10x16 Washer 2 CE3.7-850
851 M5x20mm Allen Head Cap Bolt 2 CE3.7-851
852 Φ16x25 Washer 4 CE3.7-852
854 M6x15mm Allen Head Cap Bolt 2 CE3.7-854
855 M10x35mm Allen Head Cap Bolt 4 CE3.7-855
856 M10x20mm Allen Head Cap Bolt 4 CE3.7-856
857 M8x8mm Allen Bolt 2 CE3.7-857
858 M6x10mm Bolt 1 CE3.7-858
859 Φ6X13mm Washer 1 CE3.7-859
860 Φ9.5 Snap link 2 CE3.7-860
861 M8x30mm Bolt 2 CE3.7-861
862 Φ10x20Washer 2 CE3.7-862
863 Φ8 Snap link 1 CE3.7-863
864 Incline Adjust Tube Connector 1 CE3.7-864
865 Φ3.5x13mm Screw 1 CE3.7-865
866 M8x35mm Allen Head Cap Bolt 1 CE3.7-866
867 Incline Adjust Equipment Axes 1 CE3.7-867
869 Φ4x5mm Screw 1 CE3.7-869
870 Φ6x12-9x2 Plastic and Metal Insert 4 CE3.7-870
871 Φ10x26 Washer 8 CE3.7-871
872 Φ10 Spring Washer 8 CE3.7-872
UM User Manual 1 CE3.7-UM
HK Hardware Kit 1 CE3.7-HK

SMOOTH CE3.7 Elliptical 11
Visit us at : www.smoothfitness.com

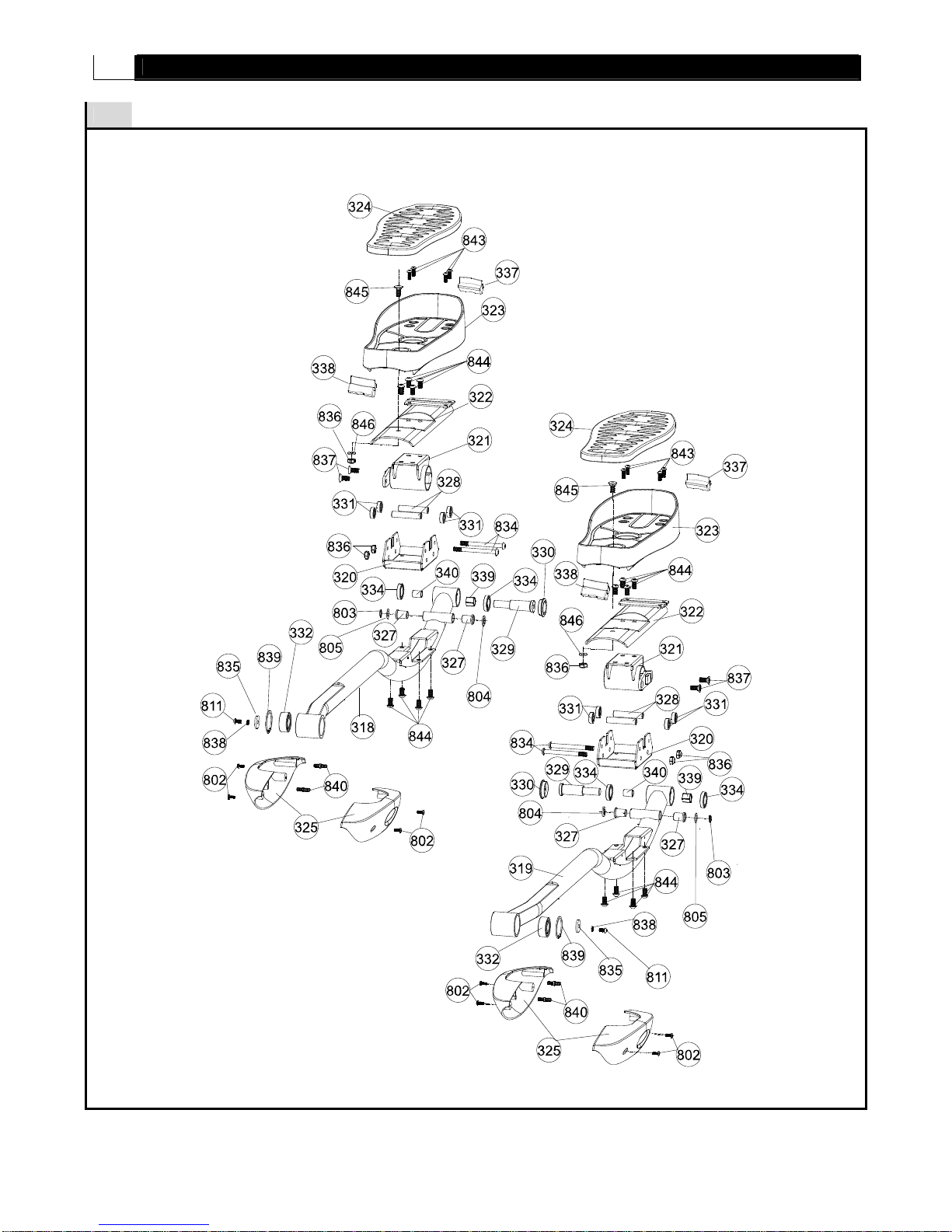

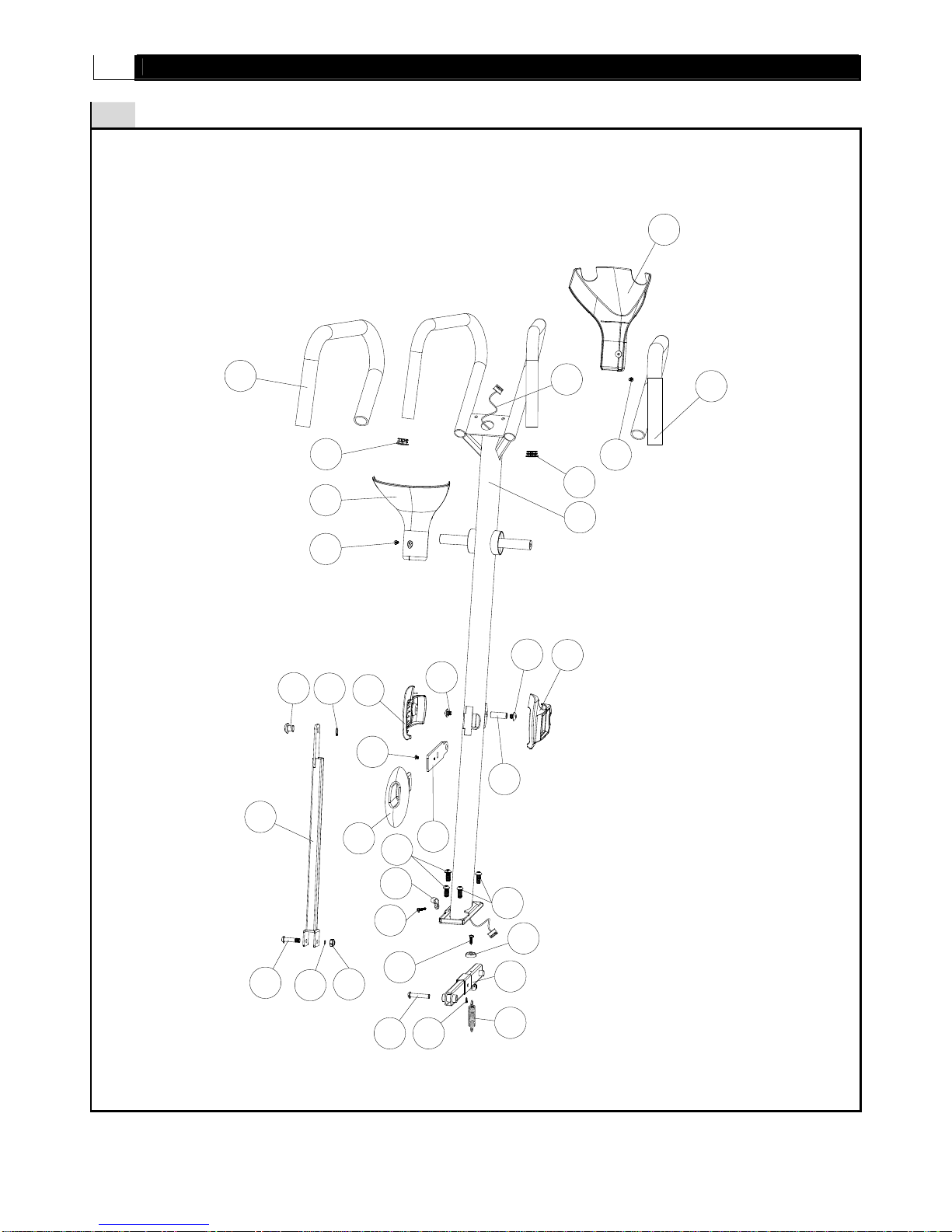

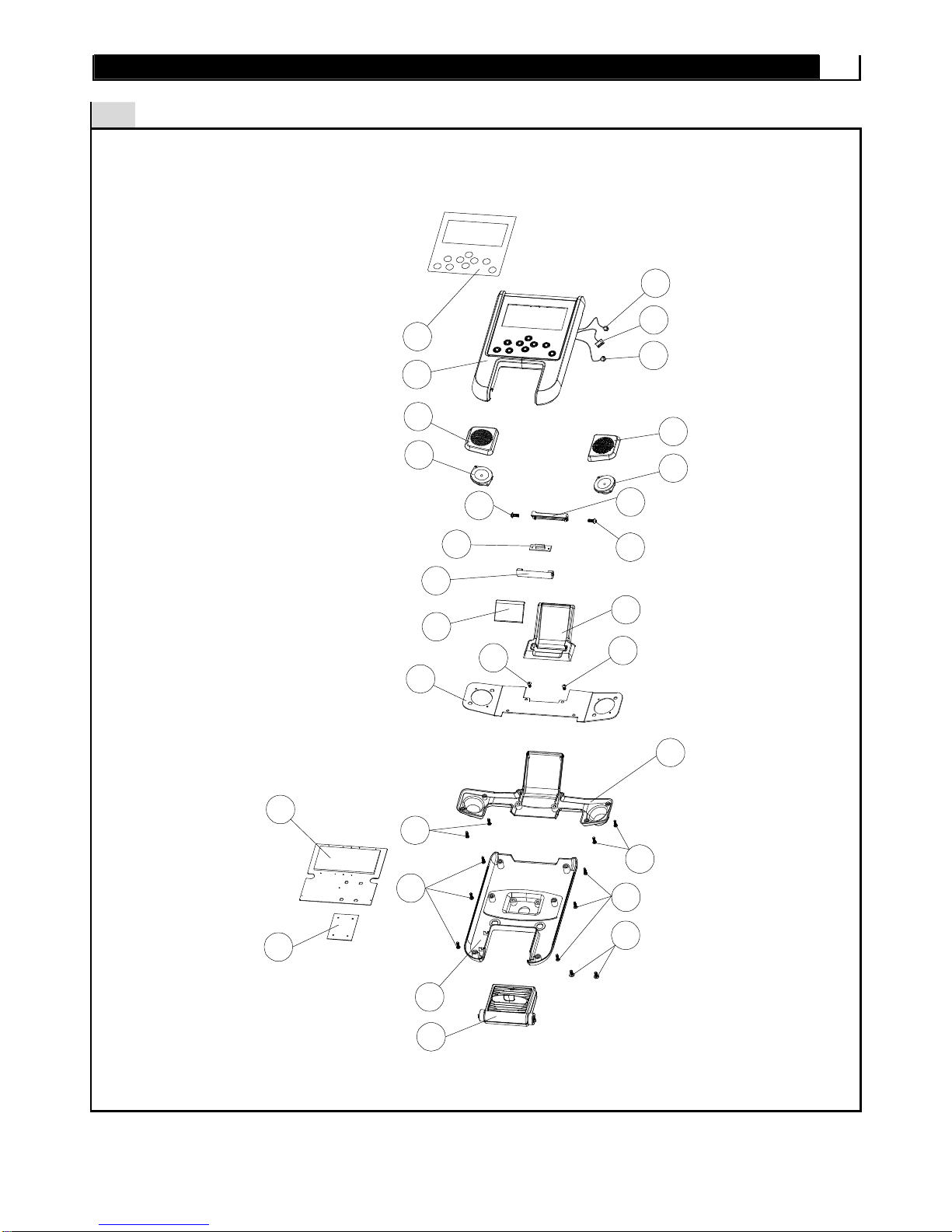

PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
102
104
103
106
832
114
833 833
833
833
107
105
109
110
109
110
101
854
854 112
111
113
108
842 842
115 701
702
702

SMOOTH CE3.7 Elliptical12
Visit us at : www.smoothfitness.com
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
201
201
203
205
803 857
867
209
866 836
831
831
206
204
208
857
207
869
211
210
863864
202
202
214
213
801
801
212
703
217
801
865
846

SMOOTH CE3.7 Elliptical 13
Visit us at : www.smoothfitness.com
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.

SMOOTH CE3.7 Elliptical14
Visit us at : www.smoothfitness.com
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.

SMOOTH CE3.7 Elliptical 15
Visit us at : www.smoothfitness.com
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
849 852
409
408
404
402 801
849 850 847
410
412 851 415
411 848
801
401
413 415 413
415 415 851 412
410
848 411
801
850 849
847 405 403
407 852 849
409 408
801
801
418
416
417
801 840
419
856
420
406 801
801
414
801
855 855
419
821
821
801
872
871
872
871
856
871
872

SMOOTH CE3.7 Elliptical16
Visit us at : www.smoothfitness.com
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
502 810 505 504
507 814
521
818
815
861
508
510
508
503 827514
836
512
822
519 826 518 825
824
823
513
520
862
816
817
819
517
501
506 504 521 505
810 812 813
811 858 859
814 507
515
860
516 511
818
509
811
812
809
820
705
801
217

SMOOTH CE3.7 Elliptical 17
Visit us at : www.smoothfitness.com
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.

SMOOTH CE3.7 Elliptical18
Visit us at : www.smoothfitness.com
ASSEMBLY
zIMPORTANT: Please invite one or more people to help assemble.
STEP 1: Assemble the Upright
1) Connect the 7pin wire-Middle (703) to the 7pin wire-Lower (705) before assembling the
upright (203).
2) Attach the upright to the Main frame front and secure with four M8 x 20mm Bolts (831).
3) Then use one M8 x 35mm Bolts(866), one Φ8mm Washer (846) and one M8mm Nut
(836) to connect the Incline adjustment tube (209) to Incline adjustment Equipment
(210).
831
4
836
1
846
1
866 1

SMOOTH CE3.7 Elliptical 19
Visit us at : www.smoothfitness.com
ASSEMBLY
STEP 2:Assemble the Incline Frame- 1
1). Attach the Incline Frame assembly (A3) to the Main Frame Assembly(A2), See FIG.1
2). Please make sure the axle (210) lock into the first lock channel and middle of the two bracket of the elevation locking
mechanism before you fasten the bolts.
A3
F
IG
.1

SMOOTH CE3.7 Elliptical20
Visit us at : www.smoothfitness.com
ASSEMBLY
STEP 3: Assemble the Incline Frame- 2
Attach the Incline Frame Holder- Front (419) to the Incline Frame, then secure with four
M10x35mm Bolts (855), four Φ8mm washers (871) and four Φ8 mm spring washers
(872).
NOTE:
The upper two bolts should be screwed not too tight in order to adjust the elevation arm
easily when training.
855 4
871 4
872 4
