Smooth Fitness AGILE User manual

USER’S MANUAL - BEDIENUNGSANLEITUNG
SMOOTH AGILE TRAINER
USER WEIGHT LIMITATION: 350lbs
MAXIMALES BENUTZERGEWICHT: 160 KG
UK: TOLL FREE CUSTOMER SERVICE NUMBER: 0800-097 2100
DE: SERVICENUMBER: [phone]
SERIAL NUMBER (found on frame) – SERIENNUMMER (auf Rahmen)
ST-MNL-WT100-SMEU-01

2 SMOOTH AGILE TRAINER
PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and
information before operating the Elliptical Trainer. It is the responsibility of the owner to ensure that all users of this Elliptical Trainer
are adequately informed of all warnings and precautions.
•Use the Elliptical Trainer only as described in this manual.
•Place on a level surface, with enough space behind it. Do not place the Elliptical Trainer on any surface that blocks air
openings. To protect the floor or carpet from damage, place a mat under the Elliptical Trainer.
•When choosing a location for the Elliptical Trainer make sure that the location and position permit access to a plug.
•Keep the Elliptical Trainer indoors, away from moisture and dust. Do not put the Elliptical Trainer in a garage or covered
patio, or near water.
•Do not operate the Elliptical Trainer where aerosol products are used or where oxygen is being administered.
•Keep children under the age of 12 and pets away from the Elliptical Trainer at all times.
•The Elliptical Trainer should not be used by persons weighing more than 350 lbs (160 kg)
•Never allow more than one person on the Elliptical Trainer at a time. Wear appropriate exercise clothing when using the
Elliptical Trainer. Do not wear loose clothing that could become caught in the Elliptical Trainer. Athletic support clothes are
recommended for both men and women. Always wear athletic shoes. Never use the Elliptical Trainer with bare feet,
wearing only stockings, or in sandals.
•When connecting the power cord, plug the power cord into a grounded circuit. No other appliance should be on the same
circuit.
•Always examine your Elliptical Trainer before using to ensure all parts are in working order.
•Never insert any object or body parts into any opening.
•Follow the safety information in regards to plugging in your Elliptical Trainer.
•Keep the power cord away from moving handle bars and do not run the power cord underneath your Elliptical Trainer. Do
not operate the Elliptical Trainer with a damaged or frayed power cord.
•Always unplug the Elliptical Trainer before cleaning and/or servicing. Service to your Elliptical Trainer should only be
performed by an authorized service representative, unless authorized and/or instructed by the manufacturer. Failure to
follow these instructions will void the Elliptical Trainer warranty.

www.smoothfitness.co.uk 3
POWER REQUIREMENTS
IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING CONNECTOR CAN RESULT IN A RISK OF AN ELECTRIC
SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE MAN IF YOU ARE IN DOUBT AS TO WHETHER THE
PRODUCT IS PROPERLY GROUNDED. DO NOT MODIFY THE PLUG PROVIDED WITH THE PRODUCT, IF IT WILL NOT FIT
THE OUTLET; HAVE A PROPER OUTLET INSTALLED BY A QUALIFIED ELECTRICIAN.
This Elliptical Trainer can be seriously damaged by sudden voltage changes in your home’s electrical power. Voltage spikes,
surges and noise interference can result from weather conditions or from other appliances being turned on or off. To reduce the
possibility of Elliptical Trainer damage, always use a surge protector (not included) with your Elliptical Trainer. Surge protectors can
be purchased at most hardware stores.
This Elliptical Trainer is provided with two different grounding plugs for Central Europe and United Kingdom. Please choose the
right one and plug in your Elliptical Trainer.
Please make sure that your local voltage is appropriate for the power requirements of this Elliptical Trainer before you plug it in.
This product is for use with a voltage of 230V+5%.
Do not use a voltage transformer with this product.
Do not use an extension cord with this product when you are not sure if the product is still properly grounded.
The following pictures show the two delivered plugs:

4 SMOOTH AGILE TRAINER
PREASSEMBLY
Open the boxes:
You are now ready to open the boxes of your new equipment. Make sure to inventory all of the parts that are
included in the boxes. Check the Parts List for a full count of the number of parts included for this product to be
assembled properly. If you are missing any parts or have any assembly questions call your local dealer or contact
us directly at 0800-0972100
Gather your tools:
Before starting the assembly of your unit, make sure that you have gathered all the necessary tools you may require
to assemble the unit properly. Having all of the necessary equipment at hand will save time and make the assembly
quick and hassle-free.
Clear your work area:
Make sure that you have cleared away a large enough space to properly assemble the unit. Make sure the space is
free from anything that may cause injury during assembly. After the unit is fully assembled, make sure there is a
comfortable amount of free area around the unit for unobstructed operation.
Invite a friend:
Some of the assembly steps may require heavy lifting. It is recommended that you obtain the assistance of another
person when assembling this product.
User Weight Limitation:
Please note that there is a weight limitation for this product. If you weigh more than 350lbs (160kg) it is not
recommended that you use this product. Serious injury may occur if the user’s weight exceeds the limit
shown here. This product is not intended to support users whose weight exceeds this limit.

www.smoothfitness.co.uk 5

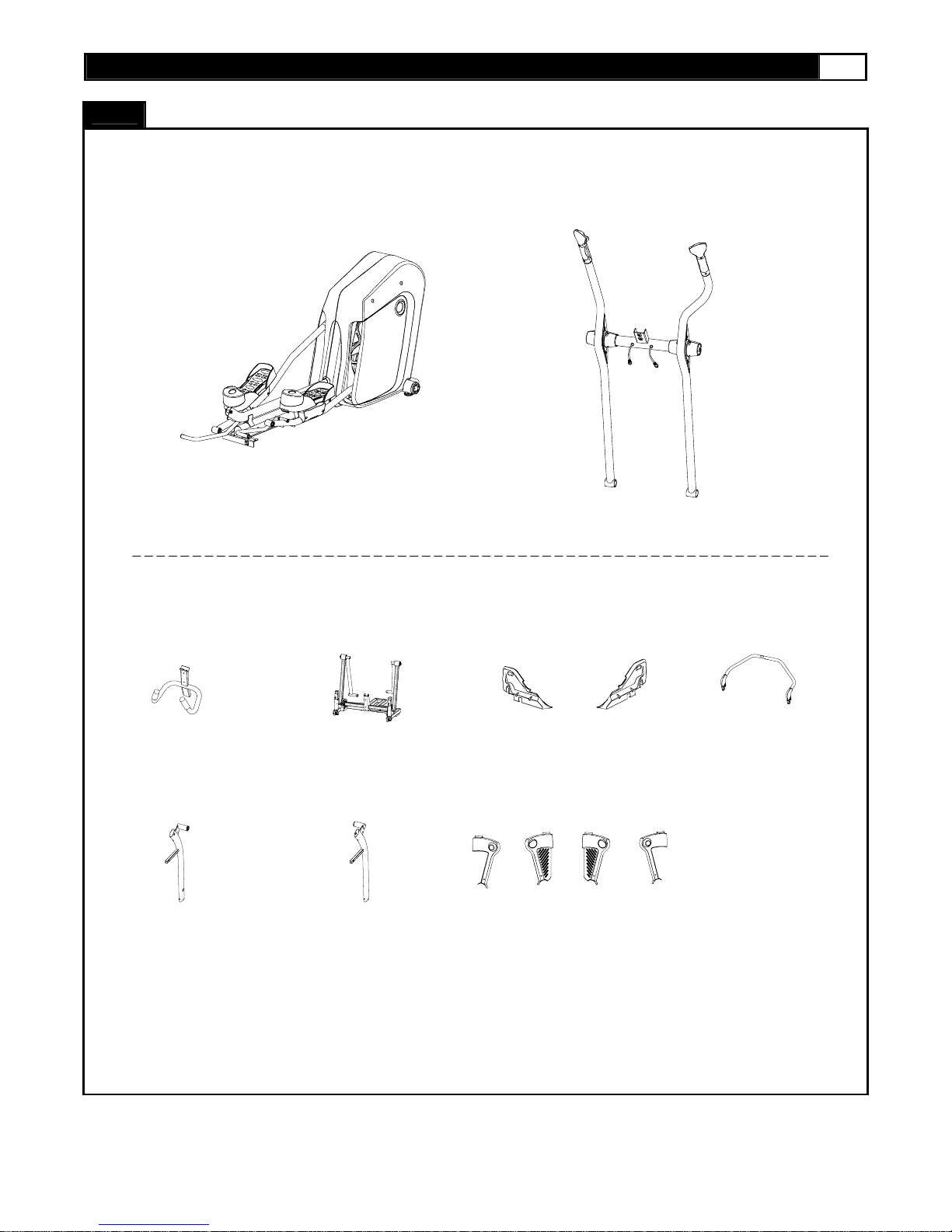

SUPPLIED COMPONENTS
This list identifies the major components you will use to assemble this product.
Main Frame Assembly Handleba
r
Assembly
Undercarriage Cover
Pivot Arm Cover
Upright -Right
Upright-Left
Console Support
Fixed Handlebar Base Frame
[ 110 ] [ 111 ]
[ 719 / 720 ]
BOX - A
BOX - B
Base FrameFixed Handleba
r
Main Frame Assembl
y
Handlebar Assembl
y
Undercarriage Cove
r
Console Support
Tube
Upright-Left Upright-Right Pivot Arm Cove
r

6 SMOOTH AGILE TRAINER
SUPPLIED COMPONENTS
This list identifies the major components you will use to assemble this product.
[ 709 / 710 ] [ 712 / 711 ]
Front Side Panel
Computer
BOX - C
BOX - D
Front Side Panel LL - LR
Compute
r
Front Side Panel LL - LR Front Side Panel RL - RR

www.smoothfitness.co.uk 7
SUPPLIED HARDWARE
This list identifies the hardware you will use to assemble the product. To help distinguish
etween the various types of screws and bolts, use the scale below to measure them and
compare them to the sizes listed.
b
(1 piece)
(1 piece)
H
(1 piece)
(1 piece)
G
(1 piece) (1 piece)
ABC
(1 piece)
(1 piece) (1 piece)
DE F
(1 piece)
2PCS
515
2PCS
514
6PCS
513
10PCS
512
1PCS
511
2PCS
510
2PCS
509
1PCS
508
4PCS
507
2PCS
506
2PCS
505
8PCS
504
2PCS
503
2PCS
502
501
721 Pedal Arm Front Pivot 4PCS
718 Pivot Side Cap 2PCS
717 Pivot Cap 2PCS
702 Upright Side Cover-Right
701 Upright Si
d
e Cover-Left
703 Console Back Cover
2PCS
Water Bottle
20 x 78 - M14 x 35mm Bolt
12 x 62 - M10 x 20mm Bolt
M5 x 8mm Screw
M8 x 20mm Allen Head Bolt
M8 x 40mm Allen Head Bolt
M8 x 65mm Allen Head Bolt
M10 x 20mm Allen Head Bolt
M10 x 62mm Allen Head Bolt
M6 x 40mm Screw
12x20x2SpringWasher
M10 Nylon Nut
4x12mmScrew
4x19mmScrew
12x18x24.5mmSleeve
12x22x2Washer
516 2PCS
M5 x 6mm Bolt
JK
Allen Wrench
5mm
(1 piece)
I
Allen key
8mm6mm
Allen key
Allen key
5mm
2.5mm
Allen key Wrench Slotted
Screwdriver
Screwdriver-L
Chest BeltPower Cord
326 Taper FixingInsert 4PCS
MILLIMETERS
BOX - E

8 SMOOTH AGILE TRAINER
COMPLETE PARTS LIST
Item No. Description Qty. Part No.
100
101 Fixed Handlebar 1 AGILE-101
102 Crossbar 1 AGILE-102
103 Console Support Tube 1 AGILE-103
104 Base Frame 1 AGILE-104
105 Main Frame 1 AGILE-105
106 Pedal Arm-Left 1 AGILE-106
107 Pedal Arm-Right 1 AGILE-107
108 Action Handlebar - Left 1 AGILE-108
109 Action Handlebar - Right 1 AGILE-109
110 Upright-Left 1 AGILE-110
111 Upright-Right 1 AGILE-111
112 Moving Linkage-Left 1 AGILE-112
113 Moving Linkage-Right 1 AGILE-113
114 Incline Frame 1 AGILE-114
115 Incline Transmission Tube-Front 1 AGILE-115
116 Incline Transmission Tube-Back 1 AGILE-116
117 Clamp Bracket 2 AGILE-117
118 Flywheel 1 AGILE-118
119 Tension Wheel Bracket 1 AGILE-119
120 Pedal Swing Arm 2 AGILE-120
200
201 Bearing 6004 4 AGILE-201
202 Bearing 6005 2 AGILE-202
203 Bearing 6300 6 AGILE-203
204 Bearing 6804 4 AGILE-204
205 Bearing 2203 2 AGILE-205
206 Bearing 6205 4 AGILE-206
207 Bearing 608zz 8 AGILE-207
208 Action Handlebar Shaft Bushing 2"x38-20 2 AGILE-208
209 Action Handlebar Shaft Bushing 2"x38-9 2 AGILE-209
210 Elector-magnetic System 1 AGILE-210
211 Oil-Impregnated Bearing 2 AGILE-211
212 Clamp Bushing- Top 2 AGILE-212
213 Clamp Bushing- Bottom 2 AGILE-213

www.smoothfitness.co.uk 9
COMPLETE PARTS LIST
Item No. Description Qty. Part No.
214 Belt 1 AGILE-214
215 Aluminum Disk 1 AGILE-215
216 Crank 1 AGILE-216
217 Crank 25x186.7 1 AGILE-217
218 Crank Disk Axle 1 AGILE-218
219 Wheel 2 AGILE-219
220 Pedal Buffer Set 2 AGILE-220
221 Level Adjuster 2 AGILE-221
222 Crank Disk 1 AGILE-222
224 Action Handlebar End Cap 2 AGILE-224
225 Hand Pulse Sensor Cover 2 AGILE-225
226 Oval Tube Cap 2 AGILE-226
227 Hand Pulse Sensor Back Cover 2 AGILE-227
228 Fixed Handlebar Foam Grip 2 AGILE-228
229 Electro-magnetic System Bracket 1 AGILE-229
230 Flywheel Axle Fixing Plate 1 AGILE-230
231 Speed Sensor Base 1 AGILE-231
232 Pedal Support Base 2 AGILE-232
233 Pedal Fixing Base 2 AGILE-233
234 Crank Disk Oval Cap 1 AGILE-234
235 Switch Fascia 1 AGILE-235
238 Bearing 2201 2 AGILE-238
239 5/16" Cable Tie 1 AGILE-239
240 1/8" Cable Tie 1 AGILE-240
241 3/8" Cable Tie 4 AGILE-241
242 Wheel Bushing 4 AGILE-242
243 Bearing 6000 3 AGILE-243
244 Self-adhesive Wire Clip 1 AGILE-244
249 3/16" Cable Tie 1 AGILE-249
250 1/4" Cable Tie 9 AGILE-250
251 Hand Grip Gasket 2 AGILE-251
252 Bearing Support Tube 1 AGILE-252
253 Rear Shroud Holder 1 AGILE-253
300
302 Rear Shroud-Left 1 AGILE-302
303 Rear Shroud-Right 1 AGILE-303
304 Rear Side Panel-Left 1 AGILE-304
305 Rear Side Panel-Right 1 AGILE-305

10 SMOOTH AGILE TRAINER
COMPLETE PARTS LIST
Item No. Description Qty. Part No.
306 Switch Plate 1 AGILE-306
307 Pedal 2 AGILE-307
308 Toe Cap 2 AGILE-308
309 Pedal Soft Cushion 2 AGILE-309
310 Pedal Bushing Cover-Left 2 AGILE-310
311 Pedal Bushing Cover-Right 2 AGILE-311
312 Console Housing - Upper 1 AGILE-312
313 Console Housing – Bottom 1 AGILE-313
314 Console Plastic Cover 1 AGILE-314
315 Rubber Strip-4 4 AGILE-315
316 Rubber Strip-3 4 AGILE-316
317 Rubber Strip-2 4 AGILE-317
318 Rear Shroud Plug-1 2 AGILE-318
319 Rear Shroud Plug-2 2 AGILE-319
320 Rubber Strip-1 4 AGILE-320
321 Cable Plug 2 AGILE-321
322 Incline Transmission Tube Holder 1 AGILE-322
323 Moving Linkage Bushing 4 AGILE-323
324 Control Board Cover 1 AGILE-324
325 Pedal Swing Arm Cap 2 AGILE-325
326 Taper Fixing Insert 35 AGILE-326
327 Support Lump 1 AGILE-327
328 Oblong Cushion 2 AGILE-328
329 Circular Cushion 2 AGILE-329
330 Rubber Cushion – Front 2 AGILE-330
331 Rubber Cushion – Rear 2 AGILE-331
332 Fixing Insert 22 AGILE-332
333 Fixing Insert-Metal Inside 7 AGILE-333
336 Action Handlebar Front Cover 4 AGILE-336
337 Action Handlebar Cover 2 AGILE-337
338 Elbow-Left 2 AGILE-338
339 Elbow-Right 2 AGILE-339
340 Button 1 AGILE-340
341 Taper Fixing Insert-Metal Inside 3 AGILE-341

www.smoothfitness.co.uk 11
COMPLETE PARTS LIST
Item No. Description Qty. Part No.
400
401 Fix Bolt 2 AGILE-401
402 25 x 10 x 55 - M10 x 15mm Bolt 2 AGILE-402
403 M5 x 8mm Allen Head Bolt 7 AGILE-403
404 M6 x 12mm Allen Head Bolt 11 AGILE-404
405 M8 x 15mm Allen Head Bolt 23 AGILE-405
406 M8 x 25mm Allen Head Bolt 2 AGILE-406
407 M10 x 20mm Allen Head Cap Bolt 4 AGILE-407
408 M10 x 40mm Allen Head Bolt 1 AGILE-408
409 M4 X 40mm Allen Head Cap Bolt 1 AGILE-409
410 M8 x 50mm Allen Head Cap Bolt 2 AGILE-410
411 M10 x 40mm Allen Head Cap Bolt 2 AGILE-411
412 M12 x 70mm Allen Head Cap Bolt 2 AGILE-412
414 M8 x 20mm Bolt 6 AGILE-414
415 M3 x 8mm Screw 2 AGILE-415
416 M8 x 65mm Allen Head Cap Bolt 2 AGILE-416
417 M6 x 12mm Allen Head Cap Bolt 2 AGILE-417
418 M8 x 16mm Allen Head Cap Bolt 4 AGILE-418
419 M8 x 90mm Allen Head Bolt 4 AGILE-419
421 M8 Nylon Nut 8 AGILE-421
422 M10 Nylon Nut 3 AGILE-422
423 M14 Nylon Nut 3 AGILE-423
424 M8 Blind Nut 2 AGILE-424
425 M6 x 15mm Screw 2 AGILE-425
426 3/4" x 16 Nut 2 AGILE-426
427 Flywheel Axle 1 AGILE-427
428 10 x 36mm Shaft 2 AGILE-428
429 12 x 210 - M14 x 70mm Shaft 1 AGILE-429
430 Bushing 12 x 60 4 AGILE-430
431 M4 x 15mm Screw 2 AGILE-431
432 4 x 12mm Round Head Screw 8 AGILE-432
433 Action Handlebar Shaft 1 AGILE-433

12 SMOOTH AGILE TRAINER
COMPLETE PARTS LIST
Item No. Description Qty. Part No.
434 Pedal Arm Support Axle 2 AGILE-434
435 Crank Axle Bushing 2 AGILE-435
436 M10 C Clip 6 AGILE-436
437 M12 C Clip 2 AGILE-437
438 M42 C Clip 2 AGILE-438
439 10 x 18 x T1.0 Fiber Washer 2 AGILE-439
440 15 x 8 x T2.0 Spring Washer 11 AGILE-440
441 10 x 16 x T2.0 Spring Washer 7 AGILE-441
442 20 x 6 x T2.0 Washer 3 AGILE-442
443 32 x 6 x T2.0 Washer 1 AGILE-443
444 35 x 14 x T2.0 Washer 2 AGILE-444
445 10 x 18 x T5.1 Washer 4 AGILE-445
446 M3 x 16mm Screw 2 AGILE-446
447 M3 x 10mm Screw 18 AGILE-447
448 4 x 12mm Screw 47 AGILE-448
449 M2 x 6mm Screw 8 AGILE-449
450 4 x 12mm Coarse Thread Screw 23 AGILE-450
451 M32 C Clip 2 AGILE-451
452 M4 x 45mm Screw 2 AGILE-452
453 M4 x 8mm Screw 4 AGILE-453
454 7 x 12 - M5 x 5mm Pin Nut 4 AGILE-454
456 10 x 23 x T2.0 Washer 4 AGILE-456
457 6 x 10 x 1 Spring Washer 2 AGILE-457
458 28.6 x 35.5 Bushing 2 AGILE-458
459 12 x 20 x 0.5 Washer 2 AGILE-459
460 12 x 20 x 2 PU Washer 2 AGILE-460
500
501 12 x 62 - M10 x 20mm Bolt 2 AGILE-501
502 20 x 78 - M14 x 35mm Bolt 2 AGILE-502
503 M5 x 8mm Screw 2 AGILE-503
504 M8 x 20mm Allen Head Bolt 8 AGILE-504
505 M8 x 40mm Allen Head Bolt 2 AGILE-505
506 M8 x 65mm Allen Head Bolt 2 AGILE-506
507 M10 x 20mm Allen Head Bolt 4 AGILE-507
508 M10 x 62mm Allen Head Bolt 1 AGILE-508

www.smoothfitness.co.uk 13
COMPLETE PARTS LIST
Item No. Description Qty. Part No.
509 M6 x 40mm Screw 2 AGILE-509
510 12 x 20 x 2 Spring Washer 2 AGILE-510
511 M10 Nylon Nut 1 AGILE-511
512 4 x 12mm Screw 10 AGILE-512
513 4 x 19mm Screw 6 AGILE-513
514 12 x 18 x 24.5mm Sleeve 2 AGILE-514
515 12 x 22 x 2 Washer 2 AGILE-515
516 M5 x 6mm Bolt 2 AGILE-516
600
601 Speed Sensor 1 AGILE-601
602 Magnetic Sensor 1 AGILE-602
603 Power Switch 1 AGILE-603
604 Power Breaker 1 AGILE-604
605 Power Insert Set 1 AGILE-605
606 Receiver 1 AGILE-606
607 Transformer 1 AGILE-607
608 Computer PC Board 1 AGILE-608
609 Elevation Motor 1 AGILE-609
610 Control Board 1 AGILE-610
611 Button Sticker 1 AGILE-611
612 Overlay 1 AGILE-612
613 Elector-magnetic Wire 1 AGILE-613
614 Power Connect Wire 3 AGILE-614
615 8Pin Power Wire-Top 200mm 1 AGILE-615
616 8Pin Power Wire-Upper 1000mm 1 AGILE-616
617 8Pin Power Wire-Middle 900mm 1 AGILE-617
618 8Pin Power Wire-Lower 800mm 1 AGILE-618
619 8Pin Power Wire-Bottom 2700mm 1 AGILE-619
620 3C Power Wire 1000mm 1 AGILE-620
621 Hand Pulse Sensor Wire-Top 350mm 2 AGILE-621
622 Hand Pulse Sensor Wire-Upper 620mm 2 AGILE-622
623 Hand Pulse Sensor Wire-Lower 650mm 2 AGILE-623
624 Receiver Wire 350mm 1 AGILE-624
626 Control Board Connect Wire 250mm 1 AGILE-626

14 SMOOTH AGILE TRAINER
COMPLETE PARTS LIST
Item No. Description Qty. Part No.
700
701 Upright Side Cover-Left 1 AGILE-701
702 Upright Side Cover-Right 1 AGILE-702
703 Console Back Cover 1 AGILE-703
704 Pivot Arm Cover-LL 1 AGILE-704
705 Pivot Arm Cover-LR 1 AGILE-705
706 Pivot Arm Cover-RR 1 AGILE-706
707 Pivot Arm Cover-RL 1 AGILE-707
708 Pivot Arm Insert 2 AGILE-708
709 Front Side Panel-LL 1 AGILE-709
710 Front Side Panel-LR 1 AGILE-710
711 Front Side Panel-RR 1 AGILE-711
712 Front Side Panel-RL 1 AGILE-712
713 Front Side Frame-LL 1 AGILE-713
714 Front Side Frame-LR 1 AGILE-714
715 Front Side Frame-RR 1 AGILE-715
716 Front Side Frame-RL 1 AGILE-716
717 Pivot Cap 2 AGILE-717
718 Pivot Side Cap 2 AGILE-718
719 Undercarriage Cover-Left 1 AGILE-719
720 Undercarriage Cover-Right 1 AGILE-720
721 Pedal Arm Front Pivot Cover 4 AGILE-721
A Screwdriver-L 1 AGILE-A
B 2.5mm Allen Key 1 AGILE-B
C 5mm Allen Key 1 AGILE-C
D 6mm Allen Key 1 AGILE-D
E 8mm Allen Key 1 AGILE-E
F 14 x 17 Wrench 1 AGILE-F
G Slotted Screwdriver 1 AGILE-G
H 5mm Allen Wrench 1 AGILE-H
I Water Bottle 1 AGILE-I
J Power Cord 1 AGILE-J
K Chest Belt 1 AGILE-K

www.smoothfitness.co.uk 15

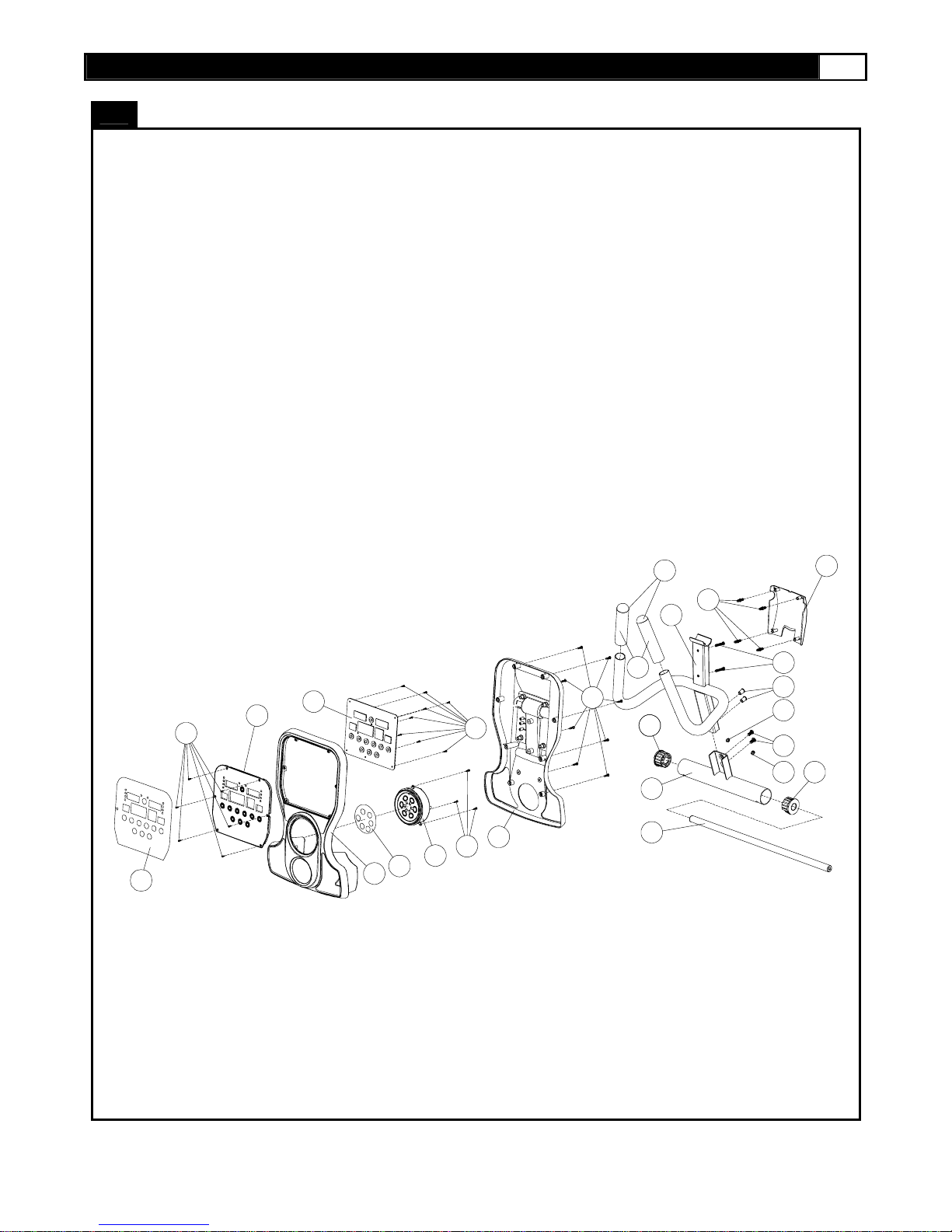

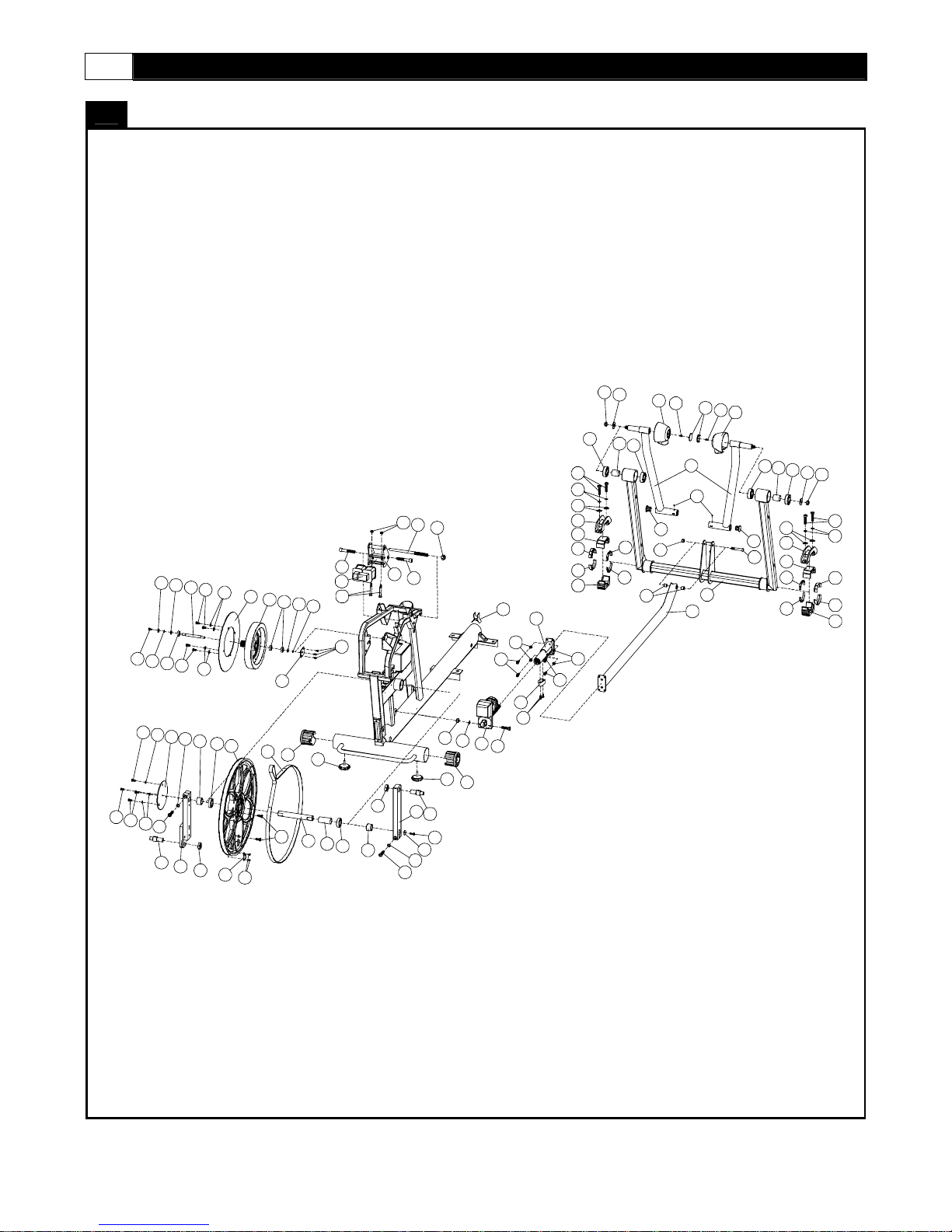

PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
228
101
450
450
703
326
509
224
340
313
312
612 611
102
449
608
447
314
208
433
208
321
424
321
504

16 SMOOTH AGILE TRAINER
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
109
111
103
238 451 510
501
201 209
448
336
432
336
337
448
416
506
504
701
721501
504
702
514 515
721
504
209
504
505
447 227
225
238
514
451
515
510
432
336 336
432
448
337
448
201
416
506
110 108
112
332
332 716 715
513 712
513
315
316
317
332
512
711
447
320
326
326
513
513
710
513
512
332
332
713 714
332
709
315
316
317
320
447
326
326
513
251
251 225 227 447
339
326
326
338
339
338
113

www.smoothfitness.co.uk 17
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
205
442
417
405
204
414
331
307
406
309
308
405
450
421
419
207
220
421
404
430
207
233
437
323
459
448 310
323
311 448
106
438
502
460
457
232
330
721
326
107 460
204
437
323
405
417
442
205
207 419
421
414
233
220
326
310
448 448
430
311
450
405 232
307
438
421
502
457
404
450
308
309
406
307
331 330
459
721

18 SMOOTH AGILE TRAINER
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
410
412
421
229 412
429 423
436
230
215 118
403
440 202
435
234 441
426
404
411
602 431
221
218
226
214
222
414
202 435
426
221
411
441
443
404
216 434
226
210
405
322
434 217
427
436
440
405
405
440
439
442
439
422 441 609 408
120
511
423 444 717 503 718 503 717
325
211 114
115
325
508
516
440
418 440
116
418
327
425
243
243
206
458
206
206 458 206 444 423
405 440
407
441
117
212
213
456
248
247
245
246
441
407
117
212
213
456
247
248
246
245
404
253

www.smoothfitness.co.uk 19
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
704
326
708 705
512
436
448
328
329
512
720
512
333
448
332
304
319
318
448
402 445
119
203
403 409
422
448
446 231
512
719
507
326
326
448
328
448
448
607
454
610 453
324
452
319
448
332
448
305
302
318
601
329
303
450
450
105
104
445
448
512
219
242
436 428
436
219
242
436 428
250 448
448
448 240
450
708 450 326
326
706
707
512
244
401-3
401-1
401-2
401-3
401-1
401-2
249 241
241
241 250
239
448
448
341
415 403
403
235
604
605
603
306
333
252

20 SMOOTH AGILE TRAINER
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE BEEN PRE-ASSEMBLED.
601
613
619
620
622
620
614
621
624
606
340
626
615
607 609
613
613
623
623
623
615
616
617
617
618
619
620
614 620
619
