Solax S3021 User manual

1
Introduction
Dear Customer
Thank you for choosing Solax-S3021 foldable scooter !
Please read this manual carefully before operating Solax-S3021 because this manual will help
you to operate Solax-S3021 smoothly. If you can’t understand all of the content completely or
you need the assistance, please contact the scooter dealer of Solax-3021 or Dongguan Prestige
Sporting Goods Co. Ltd.
TEL：[phone], E-mail: [e-mail].
This manual covers Solax-S3021’s main structure characteristics, main components,
function of each part, safety requirements and instructions, battery instructions, matters need
attention, the methods of dealing with emergencies, and scooter’s maintenance.
The following symbols used in this manual are to indicate warning and matters need to
pay attention; therefore, it is important for you to fully understand and master the content.
WARNING: Failure to note the warnings from this manual will cause your personal injury.
NOTIFICATION: Failure to note the notification from this manual will damage your
Solax-S3021.
All of the information and pictures in this manual are subject to the factory’s products
(FIG 1) and only for customer reference. The product will continue to be improved and
modified without prior notice. Please do understand and support us.

2
(FIG 1-S2091-scooter)
Finally, we believe that Solax-S3021 will lead you to the comfortable, convenient, and
wonderful life.
Contents
Ⅰ. S3021 Feature Guide …………………………………………………………3-4
Ⅱ. Product specifications and relevant Parameters…………………………5-6
Ⅲ. Main Parts and Relevant Function……………………………………………7-9
Ⅳ. The Folding and Unfolding of S3021………………………………………10-11
Ⅴ. Safety Requirements……………………………………………………………12-13
Ⅵ. Battery and Battery Charging………………………………………………14-15
Ⅶ. Operation Instruction…………………………………………………………16-17
Ⅷ. Basic Troubleshooting…………………………………………………………18
Ⅸ. Maintenance…………………………………………………………………19

3
I. S3021 Feature Guide
Solax-S3021 is mainly composed of the following parts: Front and rear frame, Control
panel, Front/Rear cover, Front wheels, Rear wheels, Handle switch, Handle, Drawtube, Release
switch, Foldable seat, Seat supporting frame, Foldable armrest, armrest supporting frame,
Footboard, Carry handle, Battery, Charger, Motor set.(FIG2)

4
The overall design of Solax-S3021 scooter is full of modern recreational flavor. It’s safe
and comfortable, easy operation, convenient to be folded and carried, lightweight and steady. It
mainly has the following characteristics:
1. The frame is consisting of advanced aluminum alloy with features of light, strong and
durable.
2. It can be folded and unfolded without any tool used. Easy operation.
3. Seat, front and rear frames can be folded, which make it easy to carry.
4. It can be put in the trunk or take it with you when taking the public transportation for its
light weight and small size
5. Battery is easy to load and unload, and also convenient for user to carry.
6. Comfortable—with the ergonomic seat and the handle tube can be adjusted to a
comfortable height and gradient.
7. 6 inch solid front tires and 7 inch solid rear tires.
8. Start smoothly and brake flexible and stable
9. Body shape, the stream is beautiful and elegant, surface is smooth and bright,
environmental protection and durable.
In conclusion, Solax-S3021 is a unique scooter, for middle age, elderly, disabled, walking
difficulties, weak and lack endurance elder people, cripple or physically disabled people. The
scooter is a trustworthy product. It also used for theme park, amusement park, zoo, museum
etc. , meanwhile it is ideal ride instead of walking, shopping tools for middle aged and elderly
people. (FIG 3)

5
2. Product specifications and relevant Parameters

6
Specifications
Model:
S3021 Automatic folding scooter
Overall Length:
0.93m (36.9in)
Overall Width:
0.45m (18.1in)
Tires (Solid wheels):
Tire Size Front 6 ″x 1.5″
Tire Size Rear 7 ″x 2.36 ″
Maximum Speed:
6km/h (3.7mph)
Safe Gradient/
Maximum Gradient
0-15°
Range Up To:
20km (13.7mile)
Turning Circle:
1.4m (55in)
Weight (without battery pack):
24kg (53ibs)
Color:
Red, yellow, blue
Brake:
Intelligent, regenerative, and

7
electromagnetic
Drive system：
S-drive 45A
Handlebar:
PU foam
Maximum weight capacity:
136kg (300ibs)
Seat Width:
0.43m (17in)
Seat Height (from the ground):
0.56m (22in)
Battery :
Power Type/ Lithium battery
Motor:
24V 120W
Battery Charger:
29.4V 2A

8
3. Main Parts and Relevant Function
Control panel
The control panel is an operating controlling component, which is mainly to control the
connecting and cutting of the power, moving forward and backward as well as show the battery
level. It consists of power switch (rocker switch), speed control switch, direction control lever,
battery condition indicator, control panel, top and bottom cover, etc. (FIG 5)
NOTIFICATION: Do not put the control panel in the humid area. If the control panel has been
affected by moisture before using, please ensure it is dry when you operate it.
Power Switch (In different regions, the power switch design is divided into the key switch
and rocker switch)
1. Rocker switch (FIG 7)
Turn on the power before driving

9
「-」Power on, can drive.
「0」Power off, can’t drive
2. Key switch (FIG 8)
Turn the key switch clockwise to ON, can drive.
●Turn the key switch anticlockwise to OFF, can’t drive
Please turn the power off when stop driving.
WARNING: If the key is removed during use or press the ship type switch to ”0”. The
electromagnetic brake will be locked and your scooter will stop suddenly.
Speed controller (FIG 9)
The speed controller is used for controlling the speed when driving. You can set the speed from
0Km/h to 6Km/h.When you adjust the knob to the left end (the tortoise ), it’s the minimum
speed; when you adjust the knob to the right end (the rabbit), it’s the maximum speed.
Warning: when you turning or driving backward, please do not adjust the speed to the
maximum speed.

10
Power indicator（FIG 10）
Switch the rocker switch to「-」， the power
indicator will show the power condition.
Green means the power is enough; yellow
means the power is weak; red means it needs recharging.
Direction control lever（FIG 11）
The direction control lever is used to control the
forward and backward.
● Hold the rubber handlebar with both hands.
● Pull the control lever on the right,
the scooter will go forward.
● Pull the control lever on the left,
the scooter will go backward.
● When the scooter moves backward, the horn will start the beeping.
●The control lever will return to the center position when released
and the brake will be locked.
Horn button（FIG 12）
When you press the button, it will sound the beeping alarm.

11
In order to prevent accidents and injury, please use it in time.
Telescopic handle
Open the handle switch outward (FIG 13) and make it in loose state. Then the handle
drawtube will draw back down (FIG 13). Buckle up the handle switch after the handle
drawtube draw back in place (FIG 14).
Controller
Controller is fixed in the rear cover and it receives the signal from the control panel and transfers
the signal to motor, brake and bulb.
Notice：Do not store the controller in the moisture environment. If the controller has
been affected by moisture, make sure to dry it before operation.
Brake
S3021 install the electromagnetic brake and it can not brake by manual. You can raise the
headstock to move the scooter or pull the scooter after fold.
Motor/Transmission component

12
Motor/ Transmission component as a mechanical and electrical part will convert the electrical
energy to rear wheel drive.
Remote control（FIG 15）
Remote control operation:
S3021 folding operation
1）Press B button for 2seconds and release
2）（FIG 16-17，scooter will folding
automatic)
3）You will hear”creak”after folding totally.

13
S3021 unfolding operation
Press Abutton for 2 senconds and release
Unfolding totally（FIG 18）
四、Folding and unfolding
When the remote control is broken or damage the function，you can operate as following:
S3021 folding and unfolding operation：（ FIG 19-22）
`

14
Note: 1. Do not put your hand in the sacro-iliac jointsin case by task.
2. Do not unfold the scooter before open the release switch.
3021 folding operation:

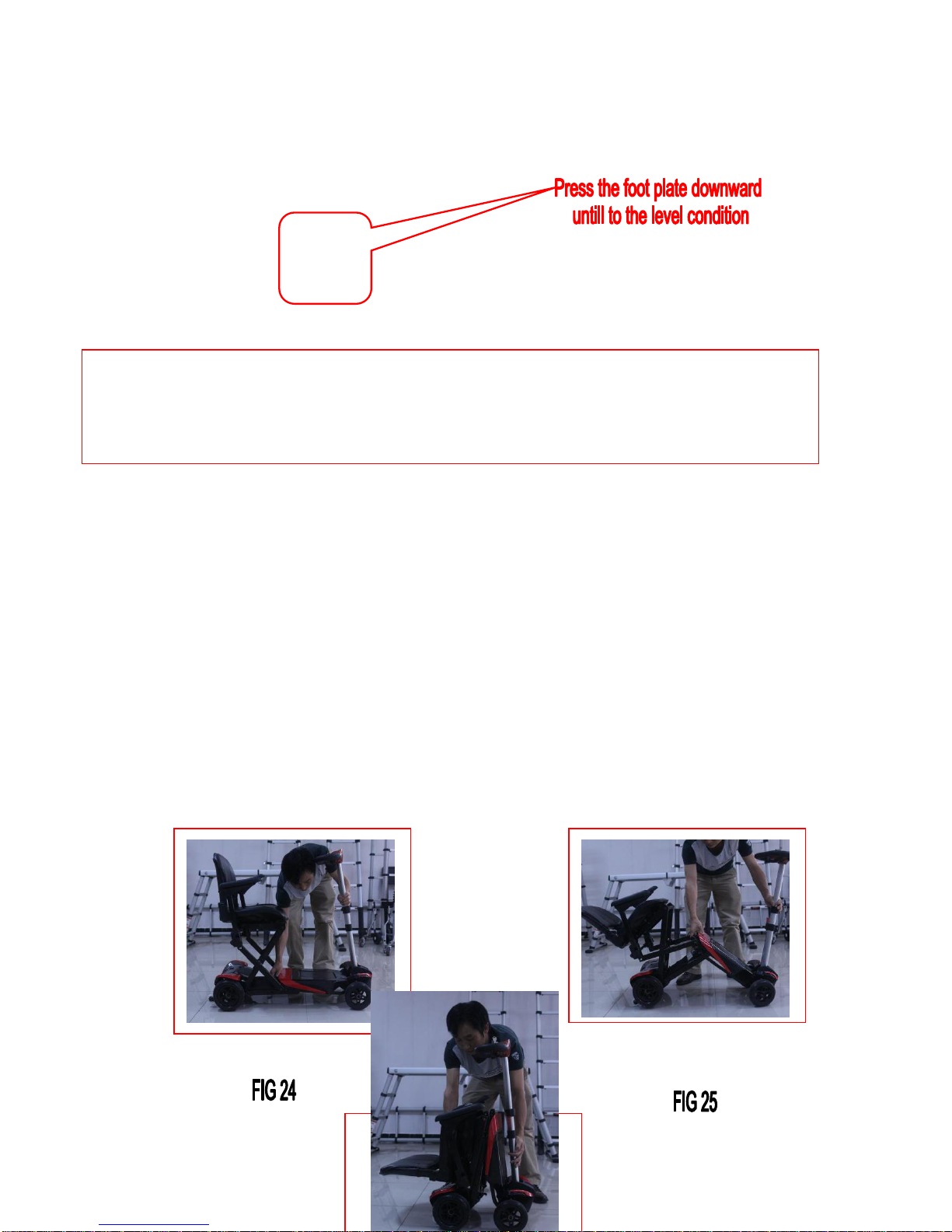

Hold the handle tube and pull upward（FIG 24）， then the front and rear frame will draw
close to the middle fold（FIG 25）. After the current frame collapse to a certain degree and push
inside with your hands until the front and rear frame completely folded in place（one hand press
the frame margin, the other hand press the seat cushion）（ FIG 26）

15
Warning：You will hear the “click”after the scooter folding totally.
五、Safety requirements
Driving Surface
SOLAX-S3021 has the best stability under the normal driving conditions(such as dry level
ground with the constituent concrete or asphal). However. It may meet other grounds, such as
grassland, gravel and etc. So there are some requirements before riding the scooter :
Please read this manual before driving the scooter.
●Make sure about your physical condition before driving the scooter.
●Solax scooter can be used in the park and grass safely.
●Try to avoid driving in the loose gravel, covered soil and sandstone.
●Do not drive the scooter if you can’t tell the condition of the roads.
●SOLAX scooter can stride over an obstacle with a certain height, but you must minimize the speed
and slowly drive over the obstacle(FIG 27)
Load
capacity
Height

16
＜136Kg
60mm
Warning: Do not exceed the specify climbing angle(0-15°).Please do follow the
manual instruction before operation.
Safety precautions
●Do not operate your scooter before you fully read and understand this manual.
●Do not carry passengers or drunk driving when you drive the scooter.
●Ensure the seat is fixed and fastened.
●Please slow down when driving on the uneven or soft ground.
●Please slow down before turning.
●Do not park on slopes.
●Approach slope end, slopes, raised group and unprotected edge zone(such as curbside, vestibule
and stairs ets.) with extra care.
●Changing initial setting or refitting your scooter is forbidden.
●Please be careful when driving in the busy steets, market or shopping center; driving in the unsafe
zone. Prohibited area is forbidden. Please consult local authorities about the traffic rules for
scooters.
●Hold the handle with both hands and put both feet on the footboard when driving.
●Using your scooter as a seat on moving vehicle is forbidden.
H

17
●Please ensure the safety of the batteries when your scooter is on the other vehicles for
transportation.
●Climbing or driving along the edges of roads is forbidden, otherwise, the scooter will be damaged
permanently.
●Do not exceed the maximum tolerance gradient when driving.
●Do not carry passengers or exceed the maximum weight capacity.
●Do not reverse on uneven slopes or uneven ground; be careful when passing over slopes.
Warning：The battery should be protected in freezing temperature! Do not charge the
frozen battery. Otherwise, it will damage the battery and may cause personal injury.
Warning: Do not drive on freezing, slippery or salty ground, otherwise, you may suffer
accident and personal injury.
六、Battery and battery charging
This scooter is designed with one maintenance free of power Li-polymer battery with a long
usage time as well as a long useful life. Charging with a 29.4V/2AR charger makes it easy to use.
● Charge the battery before the first operation. Please charge the battery every 3 months.
●If you don’t use your scooter for a long time, please take off after charging full. Do not put in the
scooter.
The guide for charging steps:
1. Close (the ship stype switch or key switch) and place the charger. Then switch off its power and
open the bottom charger cap and insert the plug into the charge socket. FIG-28

18
Warning：Match the charger socket and charger plug properly.
Insert one end of the AC power wire into the scoket of household power then insert the other plug into
the socket of the charger.(FIG 29) Verify the connection before you turn on the main power switch.
Red light indicates power on, orange light indicates on charging and green light means fully charged.

19
3. Turn off the power switch first when the battery is fully charged. Then take out the DC charging
connector before you take out the AC input power socket.
Warning：You must turn off the power switch once the battery is fully charged and then
take out the plug otherwise you may shorten the working life of the battery.
4. If the red light is off when the power on, please check whether the power plug is properly inserted.
5. Normally allows 8-14 hours for charging.
Note：The scooter has a self-locking function to prevent driving when you charge the
battery.
Guide to safe and lasting battery
How does charger work?
When the battery vollage is low, the battery charger outputs a large current to charge the
battery. When battery vollage is close to full, the battery charger outputs a small current.
When battery is full, the battery charger will output very little current which is almost
zero. Therefore. The battery will continually charge after connecting the charge, but will
not overcharge. It is better to charge no more than 24 hours.
How does the indicator light(LED) in charger display.
There are two LED indicator lights in the charger. The red indicator light is the power indicator
light. Regarding the other one, it is orange when charging and it will become green when the battery is
charged fully. The red one will sometimes still on after pulling the charger plug out from the power
socket; then you may think there is some thing wrong with the charger, however, in fact, it needs
seconds for the red light to snuff out when the battery voltage is up to 26V.
Other chargers can be used?
In order to charge safely and efficiently, we suggest using the charger supplied by
original manufacturer.

20
How often should charge the battery?
The charge time depend on the following elements:
●Driving scooter all day.
●Driving scooter occasionally for few times.
Following information will offer the safe and reliable charge method.
●If you driving scooter everyday, you should charge it after using. So that it is convenient for
you to use it next day. Charging of the battery should be vary from 8 up to 12 hours.
●If driving scooter once a week, then charge battery once a week. Charging the battery should
be vary from 12 up to 14 hours.
●Make sure your battery fully charged and saturation.
How can you get the maximum operating distance？
Some driving conditions such as hills, sidewalk gaps, uneven and soft surface, turning and
against the wind will affect the driving distance and time after per battery charging.
Several methods for obtaining the maximum driving distance
●Fully charged your battery before driving it.
●Avoid hills, gaps, macadam and soft surface.
●Only to carry the necessities and reduce the luggage weight.
●Keep a constant speed.
●Avoid intermittent driving.
Which types and specifications of the battery should be used?
We recommend the Li-polymer battery which S2061 has fitted with.
Warning: Please do not dismantle the Li-polymer battery and do not add water.
Failure to observe this note will invalidate the warranty, and damage the battery and
scooter.
