SOLTEK SL-B8D-F User manual

4
SL-B8D-F /SL-B8D-FR
Contents
Chapter 1 Specification ............................................. 8
1-1 SL-B8D-F/SL-B8D-FR Mainboard Layout..........................9
1-2 Chipset System Block Diagram........................................... 10
1-3 Mainboard Specification Table ............................................11
1-4 Mainboard Specifications .................................................... 12
1-4.1 CPU Socket ................................................................................... 12
1-4.2 System Chipsets ........................................................................... 12
1-4.3 Memory ......................................................................................... 12
1-4.4 AMI BIOS ..................................................................................... 12
1-4.5 Integrated Multiplexed AGP and DVO Interface .................. 13
1-4.6 Multi-I/O Functions .................................................................... 13
1-4.7 Expansion Slots ............................................................................ 13
1-4.8 Advanced System Power Management .................................... 14
1-4.9 LAN on board............................................................................... 14
1-4.10 Hardware Monitor on board ................................................... 14
1-4.11 AC’97 Audio Codec on board ................................................. 14
1-4.12 Front Panel Audio-out Connector .......................................... 14
1-4.13 IEEE 1394 Interface.................................................................. 15
1-4.14 SATA RAID Interface (B8D-FR Only) .................................. 15
1-4.15 Form Factor................................................................................ 15
Chapter 2 Hardware Setup ..................................... 16
2-1 CPU Installation with Socket 478B .................................... 17

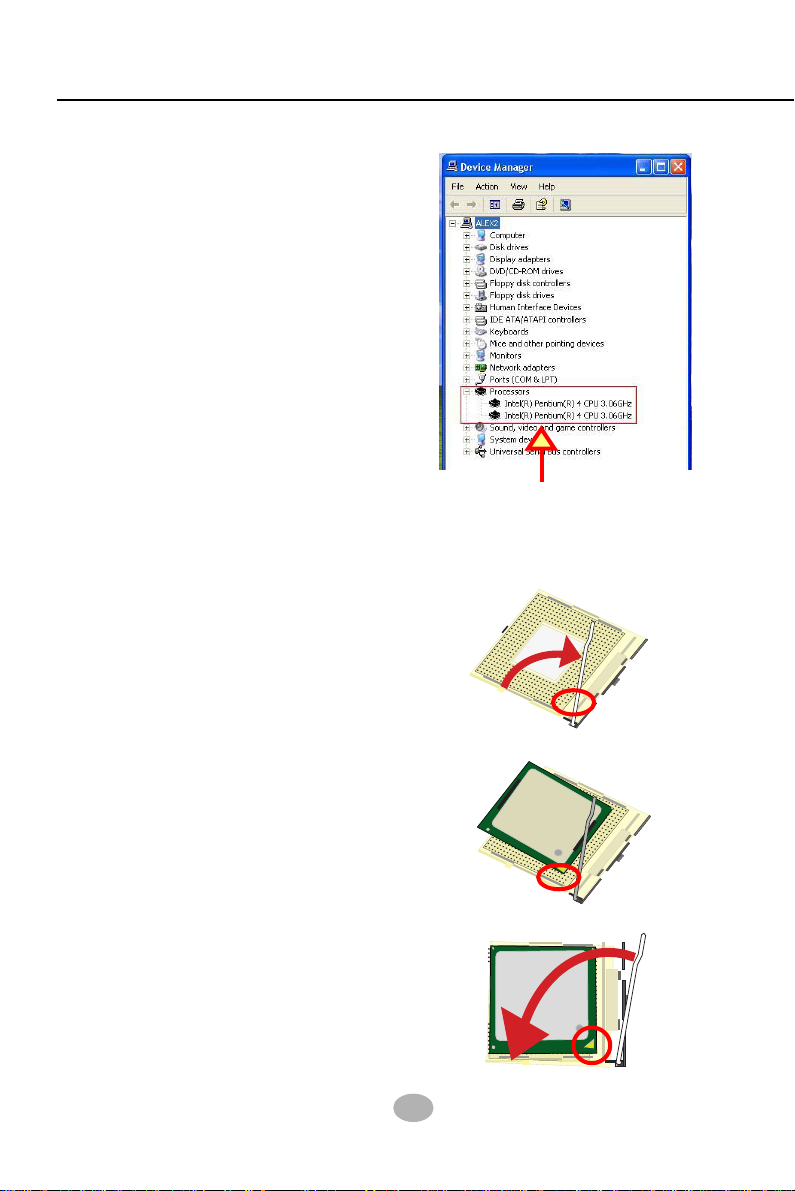

2-1.1 To Identify a Pentium 4 CPU..................................................... 17
2-1.2 CPU Installation with Socket 478B .......................................... 18

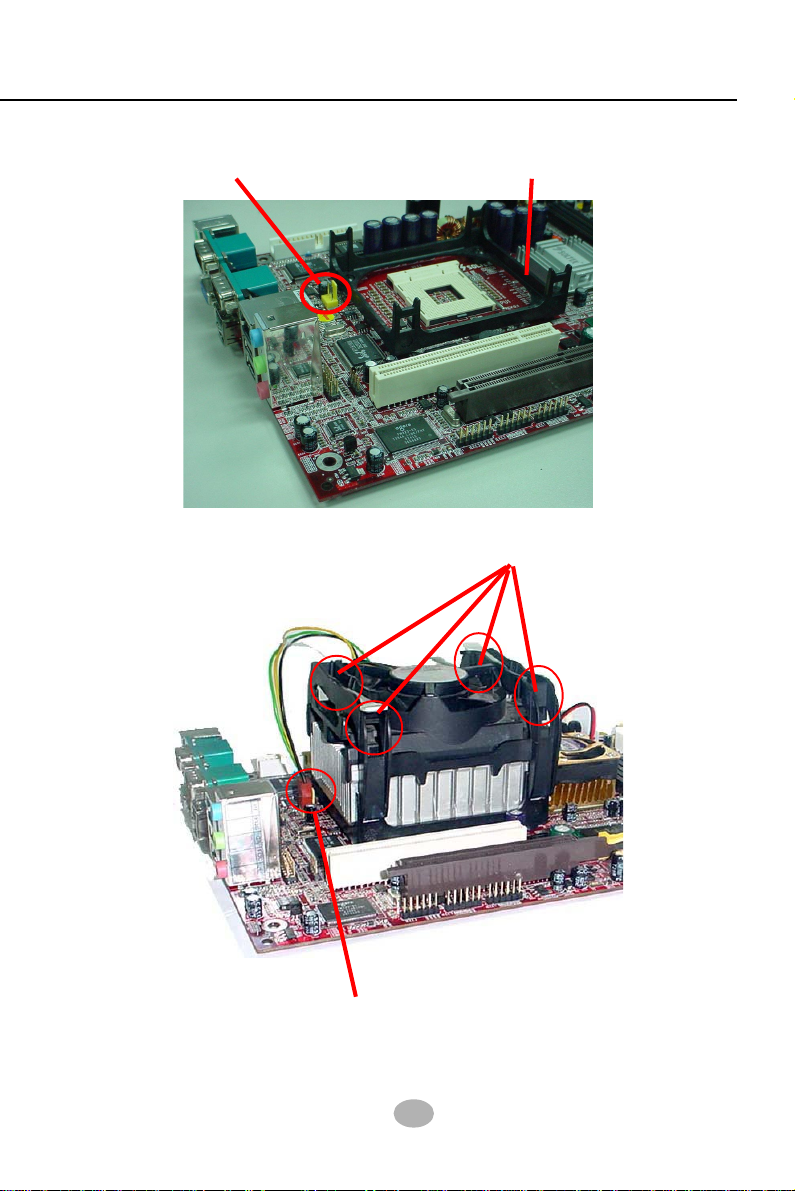

2-2 Pentium 4 CPU Fan Installation ......................................... 19
2-3 Memory Installation ............................................................. 20

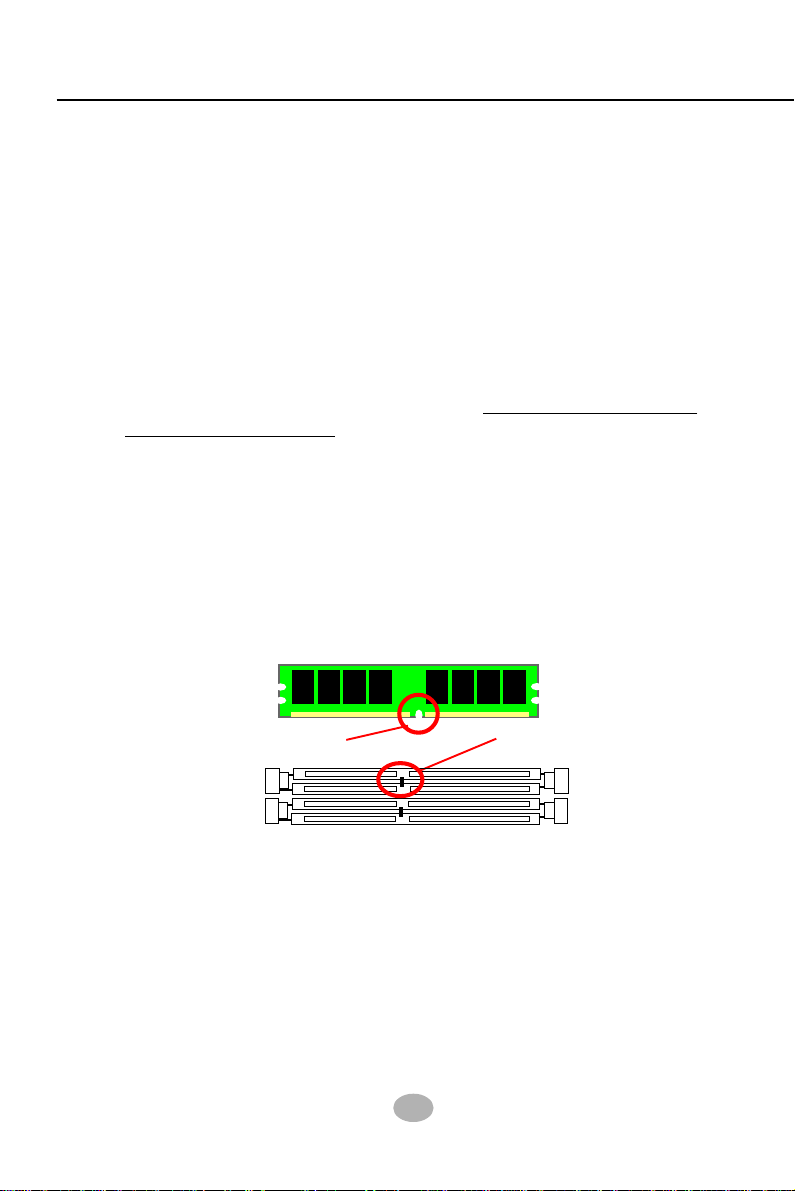

2-3.1 To Install DDR SDRAM Module .............................................. 20

5
Contents
2-3.2 To Remove a DIMM .................................................................... 20
2-4 VGA / AGP 4X Slot Installation .......................................... 21
2-5 IDE Connector Installation ................................................. 23
2-6 Floppy Drive Connector Installation ................................. 24
2-7 SATA RAID Connectors (B8D-FR only) ........................... 25
2-8 ATX V2.03 Power Supply Installation ............................... 26
2-9 Jumper Settings ..................................................................... 27
2-9.1 How to tackle the Jumpers: ....................................................... 27
2-9.2 JBAT1: Clear CMOS .................................................................. 28
2-9.3 JKB1: Keyboard / Mouse Wake Up ......................................... 28
2-10 Other Connectors Configuration...................................... 29
2-10.1 On Board Fan Connectors ....................................................... 29
2-10.2 USB Ports and USB Pin-headers ............................................ 30
2-10.3 Front Panel Connectors............................................................ 31
2-10.4 Back Panel Connectors............................................................. 33
2-10.5 LAN Connector .......................................................................... 33
2-10.6 PS/2 Mouse And PS/2 Keyboard............................................. 34
2-10.7 CD-ROM Audio Connectors.................................................... 34
2-10.8 JAUD1: Front Panel Audio Connector .................................. 35
2-10.9 IEEE 1394a Port/Pin-header ................................................... 36
2-10.10 Printer Port: JPNT1 (optional)............................................. 37
Chapter 3 Software Setup ....................................... 38
3-1 To Open up the Support CD ................................................ 39
3-2 Intel Chipset Software Installation Utility........................ 40
3-3 Intel Application Accelerator Installation......................... 41
3-4 DirectX Installation............................................................... 43
3-5 Graphics Driver Installation ............................................... 44
3-6 AC’97 Audio Driver Installation......................................... 45
3-6.1 Install AC’97 6-channel Audio Driver ..................................... 45
3-6.2 Verify 6-channel Audio ............................................................... 46

6
SL-B8D-F /SL-B8D-FR
3-7 Hardware Monitor Utility Installation .............................. 49
3-7.1 Installation ................................................................................... 49
3-7.2 Verification .................................................................................. 50
3-8 LAN Drivers Installation ..................................................... 51
3-8.1 RTL8100B LAN driver on Windows ME / 2000 / XP............ 51
3-8.2 RTL8100B LAN driver on Windows 9X.................................. 51
3-9 To Install USB 2.0 Driver for Windows 2000/XP ............. 53
Chapter 4 AMI BIOS Setup.................................... 54
4-1 About BIOS Setup ................................................................. 55
4-2 To Run BIOS Setup ............................................................... 55
4-3 About CMOS .......................................................................... 55
4-4 The POST ( Power On Self Test ) ....................................... 55
4-5 To Update BIOS ..................................................................... 56
4-6 BIOS SETUP --- CMOS Setup Utility................................ 58
4-6.1 CMOS Setup Utility .................................................................... 58
4-6.2 Standard CMOS Setup ............................................................... 60
4-6.3 Advanced BIOS Features ........................................................... 62
4-6.4 Advanced Chipset Features ....................................................... 65
4-6.5 Power Management Features .................................................... 68
4-6.6 PNP / PCI Configurations .......................................................... 70
4-6.7 Integrated Peripherals................................................................ 71
4-6.8 Hardware Monitor Status .......................................................... 73
4-6.9 Frequency/Voltage Control ....................................................... 75
4-6.10 Set Supervisor Password .......................................................... 77
4-6.11 Load Optimized Defaults ........................................................ 79
4-6.12 Save & Exit Setup...................................................................... 79
4-6.13 Exit Without Saving .................................................................. 79
Chapter 5 RAID & RAID Driver ........................... 81
5-0 About Disk Array................................................................... 82
5-0-1 Disk Array Interpretation.......................................................... 82

7
Contents
5-0-2 Disk Array Member .................................................................... 82
5-0-3 Disk Array Types Supported by Promise PDC20378............ 82
5-1. SATA RAID Layout on B8D-FR ........................................ 83
5-2. First Step to Set up RAID - Populate Disk Drives.......... 83
5-3. To Enter RAID BIOS ........................................................... 83
5-4. To Enter the Main Menu of FastBuild Utility ................. 84
5-5. View Drive Assignment before RAID Setup .................... 85
5-6. Enter “Auto Setup” for RAID Setup ................................ 85
5-7. Choose “ Performance” for RAID 0 (Stripe)................... 86
5-8. Press <Ctrl-Y> to Save the Choice .................................... 86
5-9. Create RAID only / Create and Quick Initialize............. 87
5-10. Array Created and Reboot System.................................. 87
5-11. Stripe Array Detected at Reboot System........................ 88
5-12 To Install Promise RAID Driver ....................................... 89
5-12-1 To Install RAID Driver on Windows 2000/XP ..................... 89
5-12-2 To Install RAID Driver on Windows 98SE/Me .................... 92
APPENDICES.......................................................... 94
Appendix-1 Identify Mainboard Model Number ................... 95
Appendix-2 Technical Terms ...................................................... 96

8
SL-B8D-F /SL-B8D-FR
Topics included in this chapter are:
1-1 Mainboard Layout
1-2 Mainboard Specifications**
1-3 Mainboard Specification Table
1-4 Chipset Diagram
Introduction
Chapter 1 Specification
This series of mainboards features an integration of the powerful pro-
cessor Intel Pentium 4 and the single-chip North Bridge Intel 845GE.
The Intel P4 processor is a rapid execution engine supporting 800/
533/400MHz system bus, while North Bridge Intel 845GE is a high per-
formance integrated chipset providing DDR 333/266 SDRAM memory
interface, Hub interface, AGP interface as well as an integrated Graph-
ics Port for VGA display.
Integrated with 845GE, South Bridge Intel ICH4 supports LPC I/O,
upstream Hub interface, PCI interface, IDE interface, USB 2.0 interface,
AC’97 2.2 (6-channel) Audio interface and the interrupt control. This
chapter is to introduce to users every advanced function of this high
performance integration.
** If any difference is found between the mainboard description
and the Mainboard you are using, please look up the Errata/
Update Slip enclosed inside for the correction or updated
information, or else contact the mainboard Dealer or visit our
Web Site for the latest manual update.

9
Chapter 1 Specification
PCI 1
DIMM1
IDE1
IDE2
VT6307S
AGP1 4X
PW2
PW1
Main Power
RTL
ALC650
USB2
1
PS/2
Mouse
(ontop)
DIMM2
DDR 333/266/200 MHz
Li
Battery
FD1
IT8712F
LPC I/O
PS/2K/B
(underside)
USB
Fan1
RJ45
(ontop)
Linein
(ontop)
Mic
(underside)
LineOut
(middle)
IEEE2
1
CD-IN1
1
1
JPNT1
Fan2
1
HDD IR PWR
20
SPK RST +
-
+
-
PWLED
LED
USB3
1
1
JBAT1
1
JKB1
USB
COM2
(ontop)
IEEE1
+12V Power
VGA
COM1
(ontop)
BIOS
VIA
PDC20378
ATA2
1
JAUD1
RTL8100B
mPGA478B
1
ATA1
NJ1
Intel
ICH4
Intel
845GE

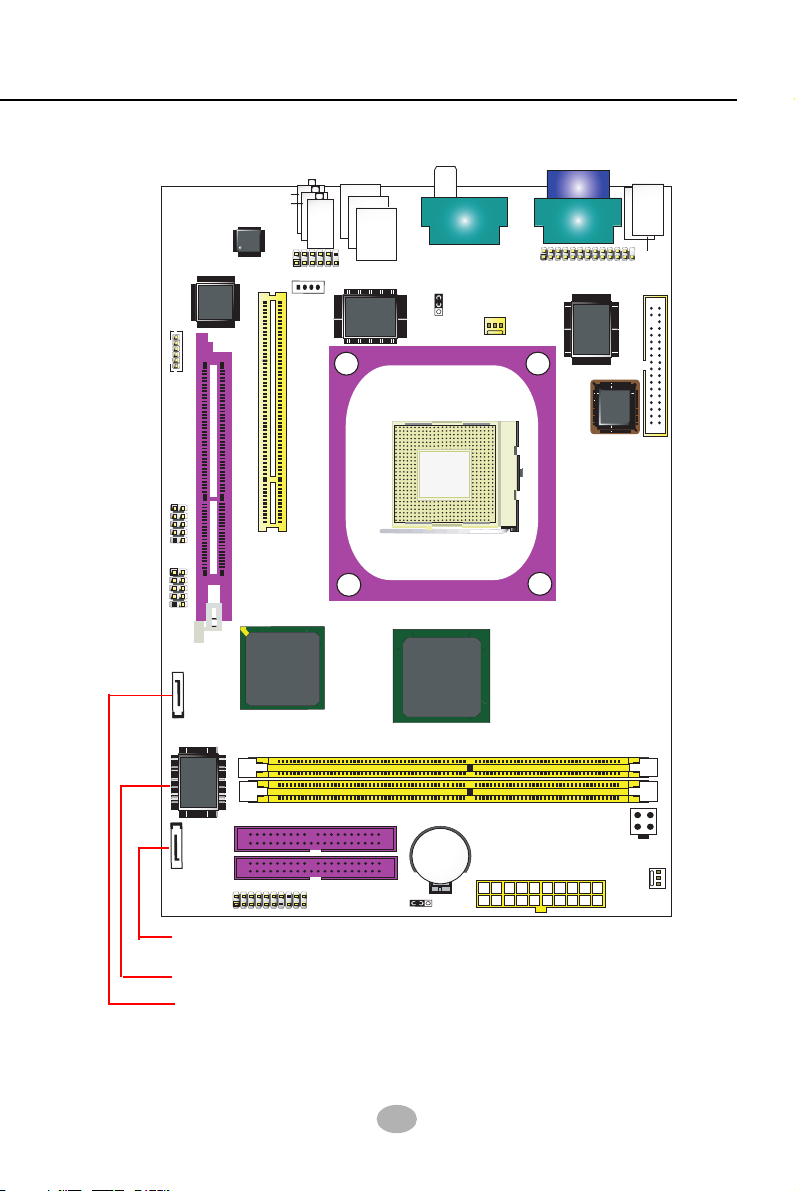

1-1 SL-B8D-F/SL-B8D-FR Mainboard Layout
ATA2
PDC 20378 for B8D-FR only
}
ATA1

10
SL-B8D-F /SL-B8D-FR
Pentium 4 + Intel 845GE + Intel ICH4 Diagram
System Bus 400/533/*800MHz
845GE
266MB/s
Hub Interface
ICH4
South
Bridge
PCI Bus
ATA 100/66/33
2 IDE
Connectors
USB Bus V2.0
USB
Ports
PCI Slot
RTL8100B
RJ45
IR
FDD
Mouse/Keyboard
Serial Ports
Printer Port
Hardware Monitor
BIOS
LPC I/O
IT8712F

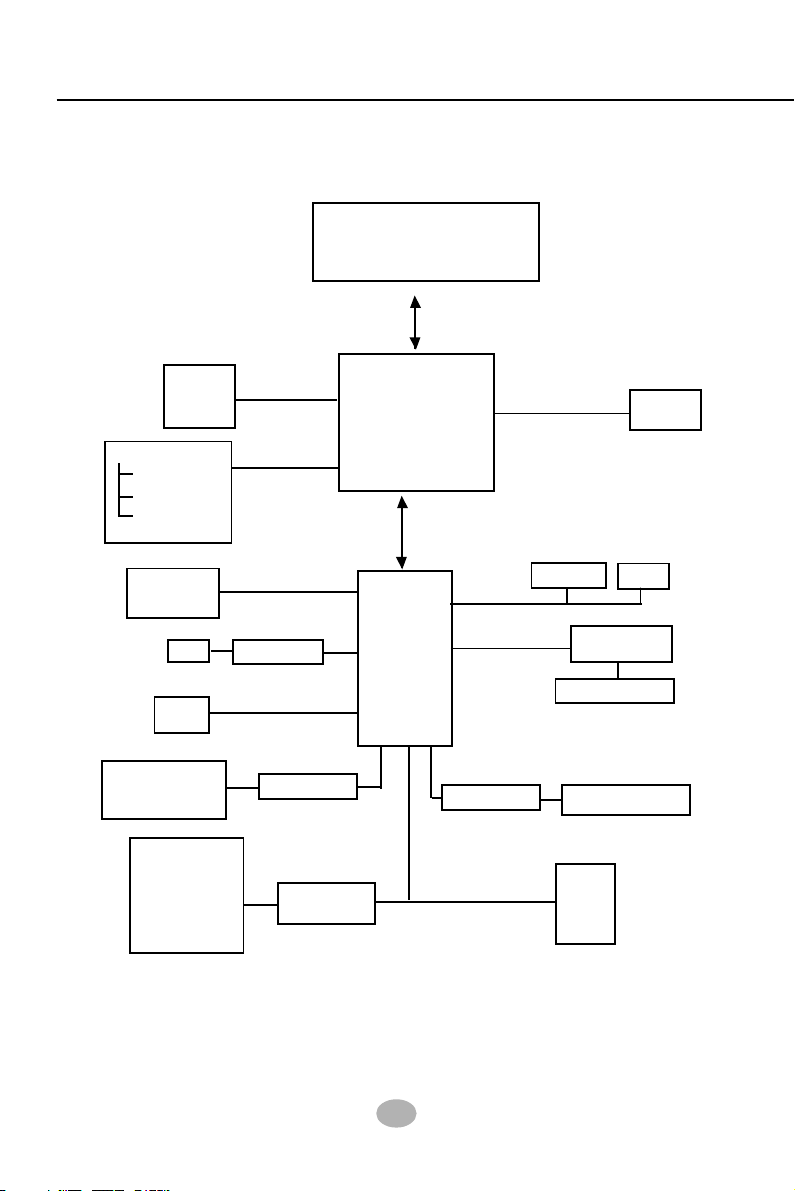

1-2 Chipset System Block Diagram
AGP 4X
VGA
Connector
VGA
Interface
AGP Slot
DVO(digital)
TV Out
AGP 4X card
System
Memory
DDR memory
Interface
DDR 333/266
SDRAM
Intel
North Bridge
AC’97 2.2 Audio Codec
(6-channel)
S/PDIF in/out
1394A
Intel Pentium 4 CPU
(Hyper-Threading and
Prescott CPU included)
2 IEEE1394 ports
VIA VT6307
2 SATA RAID
ports PDC 20378
*FSB 800MHz is an unguaranted overclock support for 200MHz CPU.
(B8D-FR)

11
Chapter 1 Specification
1-3 Mainboard Specification Table
CPU
B8D-F/ B8D-FR Specifications and Features
B8D-F
No
SATA RAID
Controller
on board
Optional
Features
Models
Intel 845GE, 400/533/*800MHz FSB
Keyboard/Mouse Wake Up
LAN Controller RTL8100B and Connector RJ45
6 USB V2.0, 1 FDD port, 2 COM ports, 1 LPT,
1 IrDA, 1 PS/2 K/B, 1 PS/2 Mouse
1 PCI Master slot on board
AC’97 Audio 2.2 compliant, 6 channel audio
AGP4X Mode only; 1 AGP Slot on board
IT8712F, with Hardware Monitor
DDR 333/266 SDRAM, up to 2GB in 2 DIMM slots
AMI BIOS
B8D-FR
Yes
Other common
features
Networking
I/O Connectors
PCI Slot
IDE Interface
Audio
AGP interface
I/O Chip
Memory
BIOS
South Bridge
North Bridge
Intel ICH4
2 UATA 66/100 IDE ports
IEEE1394
Interface
1 x VGA connector on board for analog displayVGA Display
VIA VT6307 IEEE1394 Controller on board
supporting 2 IEEE1394 ports.
Socket 478 for P4 CPU (Celeron-D, HT CPU and
*Prescott 533CPU up to 2.8GNz included)
*FSB 800MHz (Prescott 800 not supported) is an unguaranted overclock
support for 200MHz CPU.

12
SL-B8D-F /SL-B8D-FR
1-4 Mainboard Specifications
1-4.1 CPU Socket
CPU Socket 478B on board, supporting Intel®Pentium 4 and Northwood
processors (including Intel Celeron-D, Hyper-Threading CPUs and
Prescott 533 CPU 2.8GHz) in the 478-pin package for :
-- *800/533/400MHz System Bus -- 512KB L2 Advanced Transfer Cache
-- Hyper-pipelined technology -- Advanced dynamic execution;
-- Rapid Execution Engine -- Streaming SIMD Extensions 2
-- 128 Bit Enhanced Floating Point Unit -- Execution Trace Cache
1-4.2 System Chipsets
North Bridge Intel 845GE:
• A high performance integrated chipset providing P4 processor interfac
(including Hyper-threading Technology), *800/533/400MHz FSB, DDR
333/266 SDRAM memory, Hub interface, AGP interface as well as
another integrated VGA interface with one on-board display port.
• Showing Hyper-Threading Logo when booting with a Hyper-thread
ing CPU.
South Bridge Intel ICH4:
• Supporting the LPC I/O, upstream Hub interface, PCI interface, IDE
interface, USB 2.0 interface, AC’97 2.2 (6-channel) Audio interface
and the interrupt control.
1-4.3 Memory
2 DDR DIMM 184-pin slots on board :
• Supporting unregistered, non-ECC DDR 333/266 SDRAM to 2GBs
• SPD (Serial Presence Detect) Scheme for DIMM Detection supported
1-4.4 AMI BIOS
Flash Memory for easy upgrade, Year 2000 compliant, and supporting
various hardware configuration during booting system (See Chapter 4
BIOS Setup):
• Standard BIOS Features(Times, Date, System Information etc.)
• Advanced BIOS Features (CPU,IDE, Floppy, SuperIO, Hardware
Health, ACPI, USB, and Frequency/Voltage Control)
• Advanced Chipset Features (NorthBridge, SouthBridge Configuration)
• PCI/PNP Resource Management (IRQ Settings, Latency Timers etc.)
• Boot Configuration Setup (Boot Settings, Boot Device Priority etc.)
• BIOS Security Features (Supervisor Password, User Password)
*FSB 800MHz (Prescott 800 not supported) is an unguaranted overclock
support for 200MHz CPU.

13
Chapter 1 Specification
1-4.6 Multi-I/O Functions
• PCI EIDE Controller, supporting:
-- 2 UATA100/66/33 IDE connectors supporting up to 4 IDE devices
• Dedicated IR Functions:
-- Third serial port dedicated to IR function either through the two
complete serial ports or the third dedicated port Infrared-IrDA (HPSIR)
and ASK (Amplitude Shift Keyed) IR
• Multi-mode Parallel Data Transfer:
-- Standard mode, high speed mode ECP and enhanced mode EPP
• Floppy Disk Connector:
-- 1 FDD connector supporting 2 floppy drives with drive swap support
• Universal Serial Bus Transfer Mode:
-- USB V2.0 compliant; 480Mb/s USB Bus, supporting Windows 2000 or
later operating systems (no support for Windows 9X/Me)
-- 2 built-in USB Ports and 2 USB Headers which require 2 additional
USB cables to provide 4 more optional USB ports
• PS/2 Keyboard and PS/2 Mouse
• UARTs (Universal Asynchronous Receiver / Transmitter):
-- Two serial ports on board
1-4.7 Expansion Slots
• 1 PCI Bus Master slots
• 1 AGP slot
• 2 DDR SDRAM DIMM slots
1-4.5 Integrated Multiplexed AGP and DVO Interface
Integrated multiplexed AGP and DVO interface in 845GE,supporting
AGP performance and analog/Digital display:
• One AGP slot on board, supporting both Digital Video Out card or
AGP4x card for analog/digital display (TMDS,LVDS and TV-out)
(See AGP Installation in Chapter 2 of this manual)
• One 15-pin VGA connector on board, supporting analog display
• Hardware motion compensation assist for software MPEG/DVD de-
code
• Integrated 2D/3D graphics accelerator
• VGA Driver enclosed in Support CD for user’s installation

14
SL-B8D-F /SL-B8D-FR
1-4.11 AC’97 Audio Codec on board
AC’97 Audio Codec 2.2 compliant on board
• Supporting 6-channel display of PCM audio output
• 6 channel audio consists of Front Left, Front Right, Back Left, Back
Right, Center and Subwoofer for complete surround sound effect
• AC’97 Audio Codec Driver enclosed in Support CD for user’s
installation
1-4.12 Front Panel Audio-out Connector
• 1 Front Panel Audio-out connector supporting Front Panel S/PDIF
Input/Output, Front Panel Mic-In and Front Panel Line-out
• This Front Panel Audio-out distinguishing itself from the Back Panel
Audio Connectors
1-4.9 LAN on board
PCI local bus single-chip Fast Ethernet Controller RTL8100B on board:
• Supporting 10/100Mb data transfer
• Supporting Wake On LAN function through the on-board RJ45 LAN
Connector
• LAN Driver enclosed in Support CD for user’s installation.
1-4.10 Hardware Monitor on board
• Hardware Monitor supported by IT8712F, providing monitoring and
alarm for flexible desktop management of hardware voltage, tempera-
tures and fan speeds.
• Utility Software Soltek Hardware Monitor for displaying system status
is enclosed in Support CD for user’s installation.
1-4.8 Advanced System Power Management
• ACPI 1.0B compliant (Advanced Configuration and Power Interface),
including ACPI suspend mode support
• APM V1.2 compliant (Legacy Power Management)
• Keyboard / Mouse Power On/Wake Up
• Supporting Real Time Clock (RTC) for date alarm, month alarm, and
century field configuration

15
Chapter 1 Specification
1-4.15 Form Factor
• Soltek Mini Form Factor, ATX Power Supply, version 2.03 compliant,
supported by 1x Main Power Connector, 1x +12V Power Connector.
• Mainboard size: 180mm x 260mm
1-4.13 IEEE 1394 Interface
The IEEE 1394 Controller, VIA VT6307 chipset on board, providing en-
hanced PC connectivity for a wide range of devices, including consumer
audio/video components, storage periperals, and other portable devices.
• PCI-bus based open host controller, compliant with IEEE 1394A-2000
standard for high performance serial bus
• Supporting two fully compliant ports with Plug and Play-compatible
expansion interface. The IEEE 1394 controller provides up to 400MB/
sec transfer rate to fulfill various requirments of any multimedia
devices.
1-4.14 SATA RAID Interface (B8D-FR Only)
Serial ATA RAID Interface supported by PDC20378:
• Supporting 2 Serial ATA RAID connectors for 2 serial ATA RAID hard
disks with up to 150MB/s transfer rate
• Supporting RAID 0, 1 configuration
• SATA RAID Controller Driver enclosed in Support CD / Floppy Disk
for user’s installation.

16
SL-B8D-F /SL-B8D-FR
Chapter 2 Hardware Setup
1. We recommend to install your CPU before any other components.
For detailed installation instructions of processor, you can also refer
to the pamphlet enclosed in your CPU package.
2. Installing a cooling fan with a good heat sink is a must for proper
heat dissipation for your CPU. Get ready an appropriate fan with
heat sink for proper installation. Improper fan and installation will
damage your CPU.
3. In case CPU Vcore, CPU clock or Frequency Ratio is adjustable on
board, please follow the instructions described in the User’s manual
for proper setup. Incorrect setting will cause damage to your CPU.
The following topics are included in this chapter:
To Get Things Ready for Hardware Setup !
2-1 CPU Installation with Socket 478B
2-2 Pentium 4 CPU Fan Installation
2-3 Memory Installation
2-4 VGA / AGP 8X/4X Slot Installation
2-5 IDE Connectors Installation
2-6 Floppy Drive Connector Installation
2-7 Serial ATA Connectors Installation
2-8 ATX V2.03 Power Supply Installation
2-9 Jumper Settings
2-10 Other Connectors Configuration

17
Chapter 2 Hardware Setup
2-1 CPU Installation with Socket 478B
1) CPU Working Frequency
On the heatsink side of a Pentium 4 CPU, there printed a line of figures
to identify its specifications. The line consists of 4 parts:
1. CPU Working Frequency: this part depicts the working frequency of
the CPU. The Intel P4 processor with three differeent System Bus
mode provides a variety of speeds ranging from 2A Ghz to 3.2Ghz.
400MHz System Bus: 2.60, 2.50, 2.40, 2.20, 2A GHz
533MHz System Bus: 3.06, 2.80, 2.66, 2.53, 2.40, 2.26 GHz
800MHz System Bus: 3.20, 3, 2.80C, 2.60C, 2.40C GHz
2. CPU L2 Cache: this part depicts the L2 Cache size. For example,
512 stands for 512 KB L2 Cache; 256 stands for 256 KB L2 Cache
3. System Bus: this part depicts the System Bus (Front Side Bus) is
provided by CPU clock x 4. For example,
800MHz = 200MHz(CPU clock) x 4; 533MHz = 133MHz x 4
400MHz = 100MHz x 4
Note: System Bus vs CPU Clock
P4 CPU is a quad-pumped CPU. The system bus is provided by the
CPU clock x 4. Therefore, users can figure out the P4 CPU clock by the
System Bus divided by 4.
Intel
PENTIUM 4
2.80 GHz / 512 / 800
2) CPU L2 Cache
3) System Bus
Pentium 4 with Hyper Threading Technology :
(1) P4 processors at 2.40C, 2.60C, 2.80C, 3, 3.20GHz with an advanced
800MHz system bus
(2) P4 processor at 3.06Ghz with 533MHz system bus
2-1.1 To Identify a Pentium 4 CPU
(Hyper-Threading & Prescott CPU included)

18
SL-B8D-F /SL-B8D-FR
2-1.2 CPU Installation with Socket 478B
mPGA478B
Intel Pentium4
mPGA478B
Pin 1
This mainboard is built with CPU
Socket 478B (478-pin) supporting the
Intel Pentium 4 CPU:
• Follow the steps described in this
section to install the 478-pin Pen-
tium 4 CPU into the on board
Socket 478.
• After installation of Pentium 4 CPU,
you must also install the specific
Pentium 4 CPU fan designed in
tandem with this CPU. This CPU
Fan installation is described in next
section.
• This mainboard supports Hyper-
threading dual-in-one CPU, the
function of which can be enabled
by Windows XP. (See illustration
on the right.)
1. First pull sideways the lever of
Socket 478, and then turn it up
900so as to raise the upper layer
of the socket from the lower
platform.
3. Make sure that all CPU pins have
completely entered the socket
and then lower down the lever
to lock up CPU to socket.
2. Configure Pin 1 of CPU to Pin 1
of the Socket, just as the way
shown in the diagram on the
right. Adjust the position of CPU
until you can feel all CPU pins
get into the socket with ease.
mPGA478B
Intel Pentium4
Pin 1
( If Hyper Threading CPU is
installed successfully with O/S
Win XP, the O/S will enable the
dual-in-one CPU function.)

19
Chapter 2 Hardware Setup
The above pictures are taken from sample mainboards as installation illustr-
ation. The layout in the pictures may be different from your mainboard.
2-2 Pentium 4 CPU Fan Installation
Cooling Fan to CPU FAN connector
Press down the spring locks to lock up the fan
CPU Fan Connector Pentium 4 Fanbase

20
SL-B8D-F /SL-B8D-FR
2-3 Memory Installation
How to tackle the memory Modules:
• Make sure to unplug your power supply before adding or removing
memory module. Failure to do so may cause severe damage to both
your mainboard and the memory module.
• Pay attention to the orientation of the DIMM slots. Forcing a DIMM
into a slot improperly will damage the memory module and slot itself.
• Make sure you have the right type of memory module for your
mainboard.
• This mainboard supports up to 2GB unbuffered DDR 333/266/200
SDRAM, with 2 DDR DIMM slots on board. Do not insert other type of
modules into these slots.
• DDR DIMM slot has 184-pins and one notch. Insert a DDR SDRAM
vertically into the 184-pin slot with the notch-to-rib matching. Press
the Module down in a gradual way until it surely reaches the bottom
and clicks straight up the two latches on the left and right of the slot.
If any one of the latches has not turned up completely, you should
unplug the module and press it down a bit more firmly.
2-3.1 To Install DDR SDRAM Module
2-3.2 To Remove a DIMM
First power off system and then press down the holding latches on
both sides of slot to release the module from the DIMM slot.
184-Pin DIMM Notch Key Definition
Slot Rib
(2.5V Voltage Key) DDR Notch
DIMM1
DIMM2

21
Chapter 2 Hardware Setup
PCI 1
DIMM1
IDE1
IDE2
VT6307S
AGP1 4X
PW2
PW1
Main Power
RTL
ALC650
USB2
1
PS/2
Mouse
(ontop)
DIMM2
DDR 333/266/200 MHz
Li
Battery
FD1
IT8712F
LPC I/O
PS/2K/B
(underside)
USB
Fan1
RJ45
(ontop)
Linein
(ontop)
Mic
(underside)
LineOut
(middle)
IEEE2
1
CD-IN1
1
1
JPNT1
Fan2
1
HDD IR PWR
20
SPK RST +
-
+
-
PWLED
LED
USB3
1
1
JBAT1
1
JKB1
USB
COM2
(ontop)
IEEE1
+12V Power
VGA
COM1
(ontop)
BIOS
VIA
PDC20378
ATA2
1
JAUD1
RTL8100B
mPGA478B
1
ATA1
NJ1
Intel
ICH4
Intel
845GE
1. To install on-board VGA, please connect your monitor directly to VGA
connector on board.
2-4 VGA / AGP 4X Slot Installation
2. To install Digital-Video-Out(DVO) / TV Out display, please insert an
AGP / DVO /TV Out card into the AGP slot. This AGP slot supports
AGP 4X card(analog), DVO card and TV Out card, respectively but
not simultaneously.
VGA
Connector
LCD (digital)
Monitor
DVI
Connector
DVI Cable
DVO Card
TV Out Display
(analog)
Analog
Monitor Insert an AGP 4X card / DVO / TV Out card to
AGP slot for AGP / DVO / TV Out Display

22
SL-B8D-F /SL-B8D-FR
PCI 1
DIMM1
IDE1
IDE2
VT6307S
AGP1 4X
PW2
PW1
Main Power
RTL
ALC650
USB2
1
PS/2
Mouse
(ontop)
DIMM2
DDR 333/266/200 MHz
Li
Battery
FD1
IT8712F
LPC I/O
PS/2K/B
(underside)
USB
Fan1
RJ45
(ontop)
Linein
(ontop)
Mic
(underside)
LineOut
(middle)
IEEE2
1
CD-IN1
1
1
JPNT1
Fan2
1
HDD IR PWR
20
SPK RST +
-
+
-
PWLED
LED
USB3
1
1
JBAT1
1
JKB1
USB
COM2
(ontop)
IEEE1
+12V Power
VGA
COM1
(ontop)
BIOS
VIA
PDC20378
ATA2
1
JAUD1
RTL8100B
mPGA478B
1
ATA1
NJ1
Intel
ICH4
Intel
845GE
3. If user wants AGP display, please insert 1.5V AGP 4X card into the
AGP slot to boot system. A Rib is specifically added to the 4X slot so
as to match the AGP 4X card. To insert a 3.3V AGP 2X card into the
AGP 8X/4X slot will damage the system chip and burn the 1.5V
circuitry.
AGP 4X Slot
Insert an AGP 4X card / DVO / TV Out card to
AGP slot for AGP / DVO / TV Out Display
AGP Accelerator
4X notch

23
Chapter 2 Hardware Setup
PCI 1
DIMM1
IDE1
IDE2
VT6307S
AGP1 4X
PW2
PW1
Main Power
RTL
ALC650
USB2
1
PS/2
Mouse
(ontop)
DIMM2
DDR 333/266/200 MHz
Li
Battery
FD1
IT8712F
LPC I/O
PS/2K/B
(underside)
USB
Fan1
RJ45
(ontop)
Linein
(ontop)
Mic
(underside)
LineOut
(middle)
IEEE2
1
CD-IN1
1
1
JPNT1
Fan2
1
HDD IR PWR
20
SPK RST +
-
+
-
PWLED
LED
USB3
1
1
JBAT1
1
JKB1
USB
COM2
(ontop)
IEEE1
+12V Power
VGA
COM1
(ontop)
BIOS
VIA
PDC20378
ATA2
1
JAUD1
RTL8100B
mPGA478B
1
ATA1
NJ1
Intel
ICH4
Intel
845GE
2-5 IDE Connector Installation
To install IDE Connector, you may connect the blue connector of IDE
cable to the primary (IDE1) or secondary (IDE2) connector on board,
and then connect the gray connector to your slave device and the
black connector to your master device. If you install two hard disks,
you must configure the second drive to Slave mode by setting its
jumpers correctly. Please refer to your hard disk documentation for
the jumper settings.
Orient the red line on the IDE
Flat Cable to Pin1.
Pin 1 (to Red Line)
Hard Disk Drive Connector
IDE1 IDE2
IDE1 / IDE2
Gray connector
Blue connector
Black connector
Red line
80-conductor IDE Cable
(with Slave Connector)
(To Mainboard)(To Master Device)
(To slave device)
Blue connector
(To Mainboard)
Black connector
(To Master Device)
Red line
This kind of cable is not recommmended
for the Mini-barebone system because
the ribbon cannot be bundled up and will
block the air flow in the barebone cabinet.
This kind of cable is dedicated for Mini-
barebone system because the ribbon
can be bundled up and will not block
the air flow in the barebone cabinet. A
dedicated cable with a gray connector
for a slave device is an optional item in
the Mini-barebone System.
80-conductor IDE Cable
(dedicated for Barebone)
Bundle Strap
80-conductor
IDE cable
