SOLTEK SL-65EP+-T User manual

R
The Soul Of Computer Technology
SL-65EP-T/65EP+-T
Mainboard
SL-65EP-T/65EP+-T
User Manual V1.0

his User’s Guide & Technical Reference is to help system
manufacturers and end-users set up and install the mainboard.
Every effort has been made to ensure that the information in this
manual is accurate. Soltek omputer Inc. is not responsible for
printing or clerical errors. Information in this document is subject to
change without notice and does not represent a commitment on the
part of Soltek omputer Inc.
No part of this manual may be reproduced, transmitted, translated
into any language in any form or by any means, electronic or
mechanical, including photocopying and recording, for any purpose
without the express written permission of Soltek omputer Inc.
ompanies and products mentioned in this manual are for identifi-
cation purpose only. Product names appearing in this manual may
or may not be registered trademarks or copyrights of their respec-
tive companies.
Soltek omputer inc. provides this manual “As is “ without warranty
of any kind, either express or implied, including but not limited to
the implied warranties or conditions of merchantability or fitness for
a particular purpose. In no event shall Soltek computer inc. be
liable for any loss or profits, loss of business, loss of use or data,
interruption of business, or for indirect, special, incidental, or
consequential damages of any kind, even if Soltek computer inc.
has been advised of the possibility of such damages arising from
any defect or error in this manual or product.
Copyright © 2001 Soltek Computer Inc. All Rights Reserved.
NO ICE
Product Model : SL-65EP-T/EP+-T
Manual evision : V1.0
elease Date : October 2001
• Intel, eleron, Pentium II, Pentium III are trademarks of Intel orporation.
• Intel 82815 Graphic Memory ontroller Hub(GM H), 82801 I/O ontroller Hub(I H) are
trademark of Intel orporation.

SOLTEK AROUND THE WORLD
SOL EK COMPU ER INC.
Address : 7F, No. 306-3, Ta-Tung Rd, Sec.1, Hsi- hih, Taipei-
Hsien, Taiwan, R.O. .
Telephone : [phone]
Fax : [phone]
E-mail : [email protected]
Web site : http://www.soltek.com.tw
SOUL ECHNOLOGY EUROPE B.V.
Address : Hongkongstraat 55, 3047 BP Rotterdam. The Neth-
erlands
Telephone : [phone]
Fax : [phone]
E-mail : [email protected]
Web site : http://www.soultech-europe.com
SOL EK KOREA INC.
Address : 1002, hung Jin Bldg. 53-5 Wonhyo-Ro, 3-Ka,
Yongsan-Ku Seoul 140-113, Korea
Telephone : [phone]
Fax : [phone]
E-mail : [email protected]

65EP-T/EP+-T
4
CONTENT
Chapter 1 Introduction.......................................................... 8
1-1 Mainboard Specification ............................................................ 9
1-1.1 Processor .......................................................................................... 9
1-1.2 hipset .............................................................................................. 9
1-1.3 AWARD BIOS V6.0, Supporting ........................................................ 9
1-1.4 Sound ontroller ............................................................................... 9
1-1.5 Integrated SDRAM ontroller ........................................................... 9
1-1.6 Full Featured Accelerated Graphics Port (AGP) ontroller ............... 9
1-1.7 Power Management ........................................................................ 10
1-1.8 Multi-I/O Function ............................................................................ 10
1-1.9 Form Factor ..................................................................................... 10
1-1.10 Expansion Slots ............................................................................ 11
1-1.11 Hardware Monitoring ..................................................................... 11
1-1.12 Others ........................................................................................... 11
1-2 Mainboard Layout .................................................................... 12
1-2.1 Mainboard Layout --- 65EP-T .......................................................... 12
1-2.2 Mainboard Layout --- 65EP+-T........................................................ 13
1-3 hipset System Block Diagram ............................................... 14
1-4 Mainboard Specification Table Of 65EP-T/EP+-T.................... 15
Chapter 2 Hardware Setup ................................................. 17

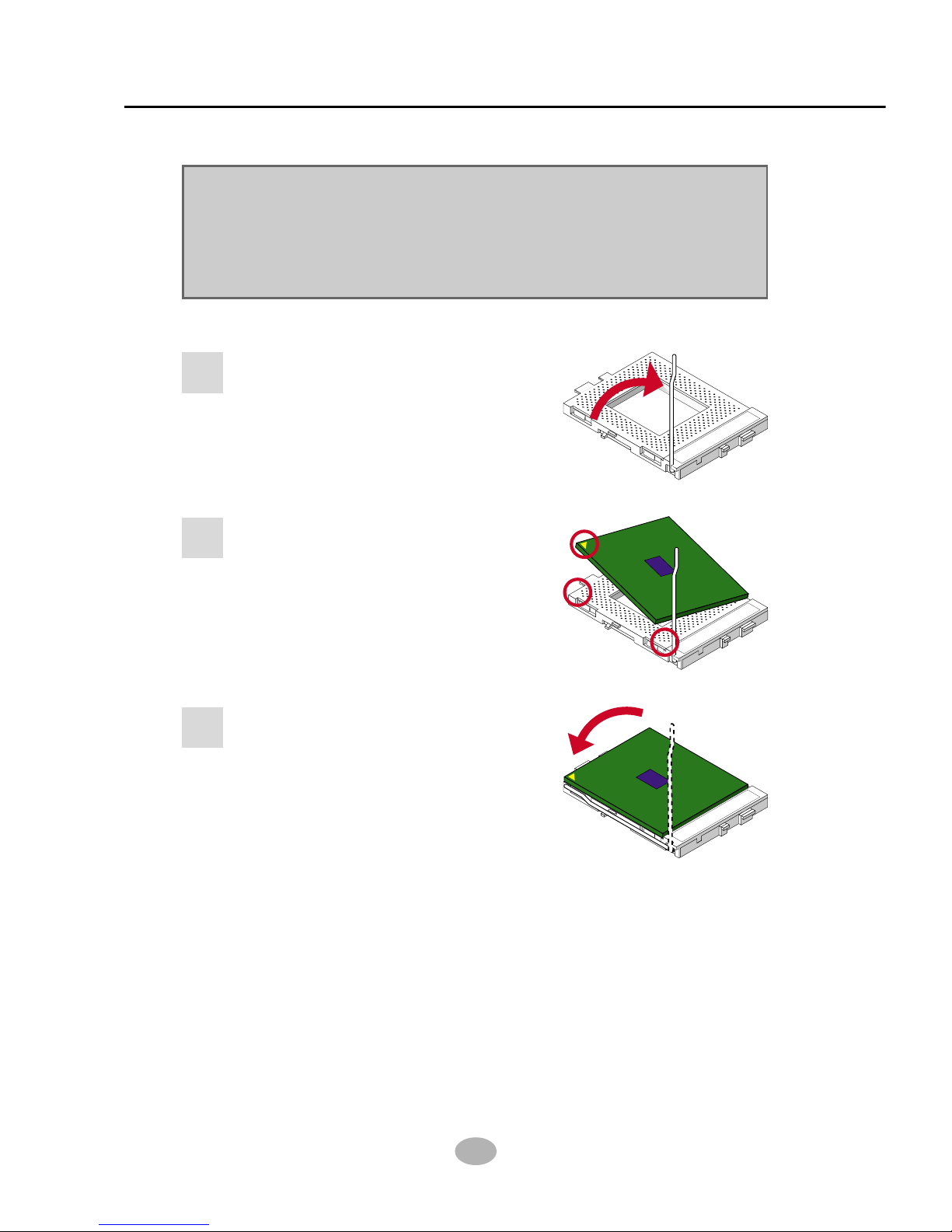

2-1 PU Installation ....................................................................... 18
2-1.1 PU Frequency ............................................................................... 18

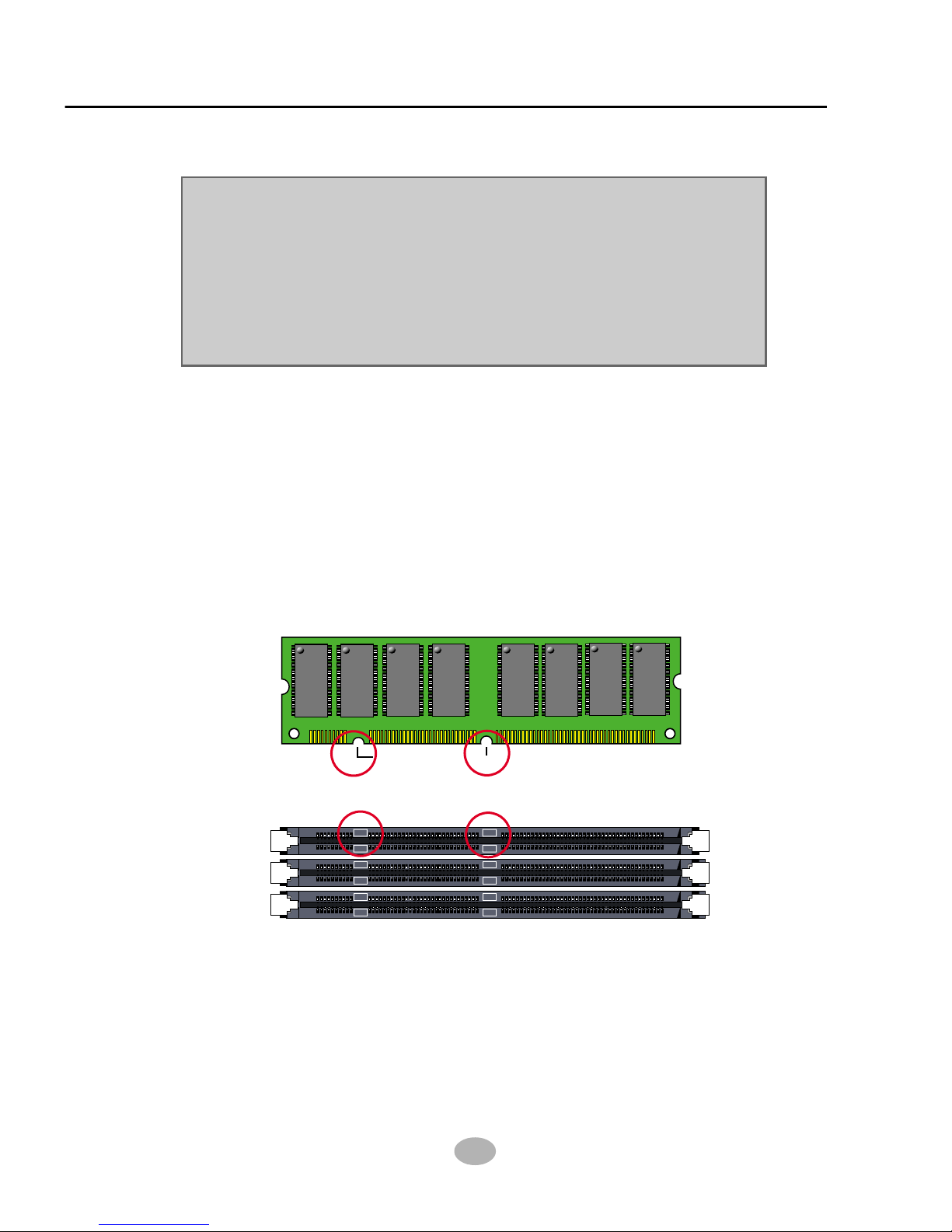

2-2 Memory Installation.................................................................. 19
2-2.1 Supported System Bus And System Memory Bus Frequencies Table .... 20
2-3 HDD/FDD Installation .............................................................. 21
2-4 Jumper Setting For Devices On Board .................................... 23

5
2-4.1 JP1 Keyboard/Mouse Power On ..................................................... 23
2-4.2 JP5/JP6 FSB Frequency Select ...................................................... 24
2-4.3 BIOS Boot Block Lock (JP16) ......................................................... 25
2-4.4 JP21 On-Board reative Sound Select (For 65EP+-T only) ........... 25
2-4.5 JBAT1/JBAT2 For lear MOS DATA ............................................ 26
2-5 ONNE TORS ONFIGURATIONS ...................................... 27
2-5.1 On Board FAN onnector ( PUFA1, AUXFA1, HAFA1) .............. 27
2-5.2 JWOL1 Wake On LAN .................................................................... 28
2-5.3 D-ROM Audio onnector ( D_IN1/ D_IN2) ................................ 29
2-5.4 TAD1/TV1 onnector ...................................................................... 30
2-5.5 Thermal Sensor onnector (RT2) (Optional) .................................. 31
2-5.6 omplex Header J2&J3 ................................................................. 32
2-5.7 ATX Power Supply onnector ......................................................... 33
2-5.8 hassis Panel onnector ............................................................... 34
2-5.9 Smart ard Reader onnector (S R1) .......................................... 35
2-5.10 ommunication And Networking Riser Slot ( NR) ....................... 36
2-5.11 USB1 Header ................................................................................ 37
2-5.12 PS/2 Mouse And PS/2 Keyboard .................................................. 37
2-6 IRQ Description ....................................................................... 38
Chapter 3 Software Setup .................................................. 40
3-1 Open up the Support D and choose Drivers and Utilities ..... 41
3-2 Install “Intel hipset Software Installation Utility” ..................... 42
3-3 Install “Intel Application Accelerator” ........................................ 43
3-4 reative Audio Driver Installation (For 65EP-T Only) .............. 45
3-4.1 To Install reative Audio Driver ....................................................... 45
3-4.2 To Enable The Rear Line Out (For 4 Speakers) .............................. 46
3-4.3 Identifying onnectors On The Built-in Audio ................................. 47
3-5 A ’97 Audio Driver Installation (For 65EP-T Only) .................. 48

65EP-T/EP+-T
6
3-6 Proceed To Hardware Monitor Utility Installation ..................... 49
Chapter 4
BIOS Setup ............................................................................ 52
4-1 What Is BIOS Setup ................................................................. 53
4-2 How To Run BIOS Setup ......................................................... 53
4-3 What Is MOS ......................................................................... 53
4-4 What Is POST .......................................................................... 53
4-5 BIOS Upgrade ......................................................................... 53
4-5.1 Before Upgrading BIOS .................................................................. 54
4-5.2 Upgrade Process ............................................................................ 54
4-6 BIOS Setup --- MOS Setup Utility ......................................... 58
4-6.1 MOS Setup Utility ......................................................................... 58
4-6.2 Standard MOS Setup ................................................................... 59
4-6.3 Advanced BIOS Features ................................................................ 62
4-6.4 Advanced hipset Features ............................................................ 66
4-6.5 Integrated Peripherals ..................................................................... 69
4-6.6 Power Management Setup .............................................................. 75
4-6.7 PNP / P I onfiguration ................................................................. 80
4-6.8 P Health Status ............................................................................. 83
4-6.9 Frequency/Voltage ontrol .............................................................. 85
4-6.10 Load Optimized Defaults ............................................................... 88
4-6.11 Set SuperVisor / User Password ................................................... 89
4-6.12 Save & Exit Setup ......................................................................... 90
4-6.13 Exit Without Saving ....................................................................... 90
Appendix ................................................................................ 92
Appendix-1 Identifying BIOS Version & BIOS Part Number ......... 93
Appendix-2 Identifying Mainboard model Number ........................ 94
Appendix-3 Technical Terms .......................................................... 95

7
Chapter 1 Introduction
Mainboard
====Support D
====User’s Manual
====Bundled Bonus Pack D
====Bundled Bonus Pack Manual
====Temperature Sensor able (Optional)
====ATA66/100 IDE able
FDD able
I EM LIS CHECKUP

8
65EP-T/EP+-T
• This chapter briefly introduces this characteristics of the mainboard.
It includes the information regarding the chipset, PU types, built-in
functions and layout. Users will have more ideas about mainboards
after reading this chapter.
his chapter contains the following topics :
1-1 Mainboard Specification
1-2 Mainboard Layout
1-3 Chipset Diagram
1-4 Mainboard Specification able
Chapter 1
Introduction

9
Chapter 1 Introduction
1-1 Mainboard Specification
1-1.1 Processor
• Supporting Intel® FC-PGA Pentium IIITM up to 1GHz.
• Supporting Intel® FC-PGA CeleronTM processor up to 1.1GHz.
• Supporting Intel® FC-PGA2TM processors.
• Supporting IA® Cyrix IIITM up to 800MHz.
• Supporting CPU voltage Auto-Detect circuit.
1-1.2 Chipset
• INTEL 82815EP B-stepping Memory Controller Hub (MCH) & INTEL
82801BA I/O Controller Hub (ICH2).
• ITE 8712 EC-LPC I/O chip.
1-1.3 AWARD BIOS 6.0, Supporting
• Plug & Play 1.0.
• Flash Memory for easy upgrade.
• BIOS writing protection.
• Year 2000 compliant.
1-1.4 Sound Controller
• Built-in AC’97 Audio codec (for 65EP-T only).
• Built-in Creative CT5880 Audio chip (for 65EP+-T only).
1-1.5 Integrated SDRAM Controller
• Providing 3pcs DIMM slots for double-sided DIMMs.
• Supporting 100/133MHz SDRAM spec.
• Supporting total memory from 32MB to 512MB using 32Mb/64Mb/128Mb/
256Mb technology.
• Supporting up to 3 double sided DIMMs at 100MHz system memory bus.
• Supporting up to 2 double sided or 3 single sided DIMMs at 133MHz system
memory bus.
• Unbuffered, Non-ECC SDRAM supported only.
1-1.6 Full Featured Accelerated Graphics Port (AGP) Controller
• Provides 1x/ 2x/ 4x AGP controller
• AGP v2.0 compliant.

10
65EP-T/EP+-T
1-1.7 Power Management
• A PI 1.0 compliant (Advanced onfiguration and Power Interface).
• APM V1.2 compliant (Legacy power management).
• Supporting POS mode (Power On Suspend).
• System event monitoring with two event classes.
• Supporting PS/2 Keyboard & Mouse power on.
• Supporting Wake On LAN (WOL) & Wake On Modem.
• Supporting real time clock (RT ) with date alarm, month alarm, and century field.
1-1.8 Multi-I/O Function
• Integrated IDE ontroller.
• Supporting Ultra ATA100/66, BMIDE and PIO modes Universal Serial
Bus connector:
-- USB v1.1 compliant.
-- 2 built-in USB connectors, in addition to one internal USB header which
requires a USB cable to support 2 more optional USB ports.
• Two UART’s for omplete Serial Ports.
• Dedicated IR connector:
-- Third serial port dedicated to IR function either through the two complete serial
ports or the third dedicated port Infrared-IrDA (HPSIR) and ASK (Amplitude Shift
Keyed) IR.
• Multi-mode parallel connector supporting:
-- Standard mode, E P and EPP.
• Floppy Disk connector supporting:
-- One FDD connector with drive swap support .
• Universal Serial Bus connector supporting:
--- USB v1.1 and Intel Universal H I v1.1 compatible.
--- 2 built-in USB connectors and one USB Header (USB1) which requires an
optional USB cable to provide 2 more optional USB ports.
• PS/2 Keyboard connector.
• PS/2 Mouse connector.
1-1.9 Form Factor
• ATX form factor 4-layer P B.
• Mainboard size: 30.5cm x 19.0cm.

11
Chapter 1 Introduction
1-1.10 Expansion Slots
• Five P I bus Master slots.
• One AGP 4x mode slot.
• One NR slot.
• Three DIMM slots.
• One S R (Smart ard Reader) slot.
1-1.11 Hardware Monitoring
• Programmable control, status, to provide monitoring and alarm for flexible
desktop management of hardware temperature (software provided in
support D).
• 8 positive voltage statuses monitoring.
• 3 temperatures statuses monitoring.
• 3 Fan-speeds statuses monitoring.
1-1.12 Others
• PU core voltage adjusting.

12
65EP-T/EP+-T
1-2.1 Mainboard Layout --- 65EP-
Using non-compliant memory with higher bus clock (over-clocking) may
severely compromise the reliability of system.
Clock
Generator
J2 J3
SPK RS KEYLOCK /LED
HDD/LED IR PWR SUSPEND
++
--
+-
1 15 1 15
I/O
Controller
FWH
Intel
ICH2
SOCKE 370
LP 1
COM1COM2
GAME/MIDI POR
LINE OU
LINE IN
MIC
Intel
82815EP
MCH
Li
Battery
R 1
DIMM2 DIMM1 DIMM3
PCI 1
PCI 2
PCI 3
PCI 4
PCI 5
JWOL1
CD_IN1
CD_IN2
CNR1
SCR1
IDE2 IDE1
FDC1
CPUFA1
A X POWER
AUXFA1
1 11
1 3 1 3
JP5 JP6
CHAFA1
R 2
AC'97
Codec
1 3
1 3
1 3
JBA 1
JBA 2
JP16
USB1
1
16
1 3
1 3
1 3
PS/2 MOUSE PS/2 K/B
upper lower
USB1 USB0
upper lower
1 4
1 4
1 3
JP1
AGP 4X
1-2 Mainboard Layout

13
Chapter 1 Introduction
CHAFA1
1 3
1 3
1 3
Clock
Generator
9 16
1 8
J2 J3
SPK RS KEYLOCK /LED
HDD/LED IR PWR SUSPEND
++
--
+-
1 15 1 15
I/O
Controller
FWH
Intel
ICH2
SOCKE 370
LP 1
COM1COM2
GAME/MIDI POR
LINE OU
LINE IN
MIC PS/2
MOUSE PS/2 K/B
upper lower
USB1 USB0
upper lower
Intel
82815EP
MCH
Li
Battery
C 5880
R 1
DIMM2 DIMM1 DIMM3
PCI 1
PCI 2
PCI 3
PCI 4
PCI 5
JWOL1
AD1
V1
CD_IN1
CD_IN2
JP21
1 3
CNR1
USB1 SCR1
IDE2 IDE1
FDC1
1 3
JP1
CPUFA1
A X POWER
AUXFA1
1 11
1 3 1 3
JP5 JP6
R 2
1 3
1 3
1 3
JBA 1
JBA 2
JP16
1 4
1 4
AGP 4X
1-2.2 Mainboard Layout --- 65EP+-
Using non-compliant memory with higher bus clock (over-clocking) may
severely compromise the reliability of system.

14
65EP-T/EP+-T
1-3 Chipset System Block Diagram
Intel 82815EP M H hipset Diagram
System
Memory
PCI
Agent
Super
I/O
Keyboard
Mouse,FD,PP
SP,IR
Intel 815EP Chipset
Digital Video Out
64bit 66/
100/133MHz
FWH
(Firmware Hub)
ICH2
(I/O Controller Hub)
Intel 82815EP
B-stepping
(MCH)
-Memory Controller
-AGP Controller
PCI Bus
GPIO
System Bus (66/100/133MHz)
4 USB Ports
4 IDE Drivers
Ultra DMA100/66 PCI Slots
Audio Codec(s)
LAN Connect
Intel Pentium III Processor
or
Intel Celeron Processor
AGP Slot
AGP 2.0
AC'97 2.1
LPC I/F

15
Chapter 1 Introduction
1-4 Mainboard Specification able Of 65EP- /EP+-
Model 65EP-
Memory
Controller Hub Intel 82815EP B-stepping (MCH)
Intel 82801BA (ICH2)
I E 8712
I/O
Controller Hub
LPC I/O Chip
AGP Interface AGP 4X Mode
Creative C 5880
built-in AC'97
Memory Supports PC133 and PC100 SDRAM up to 512MB
3 DIMM Slots
Audio
IDE 2 x A A 66/100
IDE ports
I/O
8 positive voltage statuses
monitioring, 3 temperatures
statuses monitoring, 3 Fan-speeds
statuses monitoring
Yes*
(Provides a Smart Card Reader connector)
Yes
Yes
4 x USB ports, 1 x FDD port, 2 x COM ports,
1 x LP port, 1 IrDA, 1 PS/2 Mouse, 1 PS/2 K/B
PCI slot 5 PCI Master Slots
CNR slot 1 x CNR slot
Hardware
Monitoring
Smart card
reader support
BIOS writing
Protection
Keyboard power
on function
Remark
65EP+-

16
65EP-T/EP+-T
MEMO
MEM
O

17
Chapter 2 Hardware Setup
2-1 CPU Installation
2-2 MEMORY Installation
2-3 AGP PRO Installation
2-4 HDD/FDD Installation
2-5 BUS Clock Select
2-6 Jumper Setting For Devices On Boards
2-7 Connectors Configuration
A EN ION !!!
1. Please refer to your processor installation or other
documentation attached to your CPU for more detailed
installing instruction.
2. Installing a heat sink and cooling fan is necessary for
proper heat dissipation from your CPU. Incorrect in-
stallation may result in overheating and damage of
your CPU.
3. Before changing the setting of CPU Vcore from BIOS
program, user SHOULD make sure of correct specifi-
cation both of CPU CLOCK and RA IO. Incorrect set-
ting may cause damage to your CPU.
his chapter contains the following topics :
Chapter 2
Hardware Setup

18
65EP-T/EP+-T
WAR I G !!!
• Make sure that +5V DCV and +3.3 DCV of your power supply are suitable
for the processor.
• Any attempt to operate the Celeron or III processor without a suitable
cooling Fan will damage processor and other component.
2-1 CPU Installation
2-1.1 CPU Frequency
• The PU’s “ PU LO K RATIO” and “ PU HOST/P I LO K” settings
are automatically detected to be default value by BIOS in the “Frequency/
Voltage ontrol” section.
• We do not suggest and assume the responsibility for any action such as
overclocking that changes the PU default setting. Incorrect LO K
RATIO and HOST/P I LO K settings may cause damage to your PU.
Make sure that the PU is
placed into the socket tightly.
Then lower down the lever to
complete the PU installation.
SOCKE 370
3
Take notice of the red circles
as shown here. While inserting
the PU into the socket, you
can find out there is a definite
pin orientation for PU and
socket.
SOCKE 370
2
Pull out the lever from the socket,
and then raise the lever up to a
90-degree angle.
SOCKE 370
1

19
Chapter 2 Hardware Setup
Removing DIMM
• Press down the holding clips on both sides of a DIMM socket and the
module will be released from it.
Installing DIMM
• Make sure you have the correct memory module type for your mainboard.
• Insert the module(s) as shown below, DIMMs have 168-pins and two
notches that will be matched by the onboard DIMM socket. Memory
modules are installed by inserting them straight into the slot until they
“click” in the right place. They only fit in one direction, so do not force
them in by a wrong direction.
WARNING!!!
• Make sure to unplug your power supply before adding or removing memory
modules or other system components. Failure to do so may cause severe
damage to both your mainboard and expansion cards.
• Be careful when inserting or removing DIMM. Forcing a DIMM in or out
of a socket improperly may damage the memory module or the socket.
Some DIMMs which contain EDO or F M DRAM are incompliant with
the mainboard. The M/B supports 3.3V true SDRAM DIMMs only.
2-2 Memory Installation
168-Pin DIMM Notch Key Definitions(3.3V)
DRAM Key Position Voltage Key Position
Unbuffered 3.3V

20
65EP-T/EP+-T
2-2.1 Supported System Bus And System Memory Bus
Frequencies able
• The 82815EP B-stepping M H has a new type of clocking architecture. It
has integrated SDRAM buffers that run at either 100 or 133 MHz,
independent of the system bus frequency. See table below for supported
system bus and system memory bus frequencies of 82815EP B-stepping.
Front Side Bus
Frequency
System Memory
Bus Frequency
AGP Bus
Frequency
PCI Bus
Frequency
Supported
Maximum DIMM
numbers
66MHz 66MHz 33MHz 3 single sided DIMMs
3 single sided DIMMs
2 double sided or 3
single sides DIMMs
2 double sided or 3
single sides DIMMs
33MHz
33MHz
33MHz
66MHz
66MHz
66MHz
100MHz 100MHz
100MHz
100MHz
133MHz
133MHz 133MHz
