Notice to End Users
This UserÕs Guide & Technical Reference is for assisting system
manufacturers and end users in setting up and installing the
mainboard.
Every effort has been made to ensure that the information in this
manual is accurate. Soltek Computer Inc. is not responsible for
printing or clerical errors. Information in this document is subject to
change without notice and does not represent a commitment on the
part of Soltek Computer Inc.
No part of this manual may be reproduced, transmitted, translated
into any language in any form or by any means, electronic or
mechanical, including photocopying and recording, for any purpose
without the express written permission of Soltek Computer Inc.
Companies and products mentioned in this manual are for
identification purposes only. Product names appearing in this
manual may or may not be registered trademarks or copyrights of
their respective companies.
SOLTEK COMPUTER INC. PROVIDES THIS MANUAL ÒAS ISÓ
WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR
CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. IN NO EVENT SHALL SOLTEK COMPUTER
INC. BE LIABLE FOR ANY LOSS OR PROFITS, LOSS OF BUSINESS, LOSS
OF USE OR DATA, INTERRUPTION OF BUSINESS, OR FOR INDIRECT,
SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY
KIND, EVEN IF SOLTEK COMPUTER INC. HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR
ERROR IN THIS MANUAL OR PRODUCT.
© Copyright 1998 Soltek Computer Inc. All right reserved
Web site:http://www.soltek.com.tw
email: [email protected]
Edition: December 1998
Version: 1.0
SL-67EZ SERIALS
®

Contents iii
Contents
Chapter 1: Introduction --------------------------------------- 1
Features -------------------------------------------------------------------------1
CPU ------------------------------------------------------------------------1
Chipset -------------------------------------------------------------------- 1
L2 Cache ------------------------------------------------------------------1
Main Memory ----------------------------------------------------------- 1
BIOS ------------------------------------------------------------------------ 2
Super I/O Function ----------------------------------------------------2
Other Functions --------------------------------------------------------- 2
Mainboard Layout with Default Settings ------------------------------3
Chapter 2: Hardware Setup---------------------------------- 4
CPU Type Configuration---------------------------------------------------4
CPU 3.5X Clock Setting ----------------------------------------------- 4
Deschutes Ð 350/100MHz ---------------------------------------4
Pentium II Ð 233/66MHz---------------------------------------- 4
CPU 4.0X Clock Setting ----------------------------------------------- 5
Deschutes Ð 400/100MHz ---------------------------------------5
Pentium II Ð 266/66 MHz --------------------------------------- 5
CPU 4.5X Clock Setting ----------------------------------------------- 5
Deschutes Ð 450/100MHz ---------------------------------------5
Pentium II Ð 300/66 MHz --------------------------------------- 5
CPU 5.0X Clock Setting ----------------------------------------------- 5
Deschutes Ð 500/100MHz ---------------------------------------5
Pentium II Ð 333/66 MHz --------------------------------------- 5
System Memory Configuration------------------------------------------- 6
CPU Installation -------------------------------------------------------------- 6

iv
Jumper Settings ------------------------------------------------------------- 10
JP2: Keyboard Power Selection----------------------------------- 10
XFAN 1: Onboard FAN (12V) Connector ---------------------- 11
JBAT1: Clear CMOS Data ------------------------------------------ 11
JP6: Power Lost Resume-------------------------------------------- 11
JP3, JP4: USB Port Select-------------------------------------------- 12
JVGA1: VGA Card--------------------------------------------------- 12
SW1: 5Ð6 Bus Clock Select ----------------------------------------- 12
SW1: 1Ð4: Bus Ratio Select ----------------------------------------- 13
IDE LED Activity Light: (J2 pin1Ð4)------------------------------ 13
Infrared Port Module Connector (J2 pin6Ð10) ----------------- 14
J2 pin12, 13: PWR Switch------------------------------------------- 14
SLEEP Switch (J2 pin14, 15) ---------------------------------------- 14
Speaker Connector (J3 pin1Ð4) ------------------------------------ 14
Reset Switch (J3 pin5, 6)--------------------------------------------- 14
J1: Audio Socket (SB Link)----------------------------------------- 14
Power LED and Keylock Switch (J3 pin8Ð12)------------------ 14
JWOL1: Wake On Lan (WOL) Connector ---------------------- 15
Green LED (J3 pin14, 15)-------------------------------------------- 15
J2 Switch Signal Summary ----------------------------------------- 16
J3 Switch Signal Summary ----------------------------------------- 17
Chapter 3: BIOS Setup ---------------------------------------18
Standard CMOS Setup ---------------------------------------------------- 19
BIOS Features Setup ------------------------------------------------------- 21
Chipset Features Setup --------------------------------------------------- 25
Power Management Setup ----------------------------------------------- 29
PnP/PCI Configuration Setup ------------------------------------------ 33
Load Setup Defaults ------------------------------------------------------- 35
Integrated Peripherals ---------------------------------------------------- 36
Supervisor/User Password---------------------------------------------- 40
IDE HDD Auto Detection ------------------------------------------------ 41
Save & Exit Setup ---------------------------------------------------------- 41
Exit Without Saving ------------------------------------------------------- 41

Introduction1
Chapter 1
Introduction
Features
CPU
1. Supports Intel Pentium II, Deschutes, and Celeron CPUs
using SLOT1 at 233 ~ 533 MHz (PII/Celeron) or
800MHz (Deschutes)
2. Supports CPU voltage autodetect circuit
3. Supports 66/100MHz Bus Clock with autodetect (BIOS
provides 103/112 MHz Bus Clock without auto detect)
Chipset
1. Intel 82440ZX chipset
2. PCI Rev 2.1, 5V, 33MHz interface compliant
3. Supports AGP 1x/2x Mode, 3.3V AGP (Accelerated
Graphics Port) slot
L2 Cache
1. PII (Deschutes) supports 256K/512k write back cache
with Pipelined Burst SRAMs
Main Memory
1. Memory range from 8MB (minimum) to 256MB(SDRAM)
(maximum) with DRAM Table Free configurations
2. Supports SDRAM with 12/10/8ns DRAM speed
3. Supports 2pcs 168pin DIMM sockets (3.3V
Unbuffered type)
4. DRAM supports ECC or Parity function

2
BIOS
1. AWARD Plug and Play BIOS
2. Supports Advanced Power Management Function
3. Flash Memory for easy upgrade
Super I/O Function
1. Integrated USB (Universal Serial Bus) controller with
two USB ports.
2. Supports 2 IDE channels with 4IDE devices (including
120MB IDE floppy)
3. Provides PCI IDE Bus Master function and supports
Ultra DMA33 function
4. One floppy port
5. Two high speed 16550 FIFO UART ports
6. One parallel port with EPP/ECP/SPP capabilities
7. PS/2 mouse connector
8. Built-in RTC, CMOS, keyboard controller on single I/O
chip
9. Peripherals boot function (with ATX power)
Other Functions
1. ATX size 17cm x 30.5cm
2. 5 PCI Master slots, 2 ISA slots, and 1 AGP slot
3. Supports CPU temperature warning function (optional)
4. Provides DIP switch setting
5. Supports 66/100MHz Bus Clock
6. Supports keyboard Power On function
7. Supports Wake On LAN function
8. Supports Power Lost Resume function
9. BIOS supports 103/112MHz Bus clock.

Introduction 3
Mainboard Layout with Default Settings
The default settings of the following figure is for the
Pentium II (Celeron) 233/66MHz or Deschutes
350/100MHz.
Figure 1-1. Motherboard Layout
Note: For 100MHz CPU environment, the SDRAM
specification must comply with PC-100 spec.

4
Chapter 2
Hardware Setup
CPU Type Configuration
CPU 3.5X Clock Setting
Deschutes ¡Ð 350/100MHz
Pentium II ¡Ð 233/66MHz
Figure 2-1 CPU Type Configuration

Hardware Introduction5
CPU 4.0X Clock Setting
Deschutes - 400/100MHz
Pentium II -266/66 MHz
Figure 2-2 CPU Type Configuration
CPU 4.5X Clock Setting
Deschutes - 450/100MHz
Pentium II -300/66 MHz
Figure 2-3 CPU Type Configuration
CPU 5.0X Clock Setting
Deschutes -500/100MHz
Pentium II -333/66 MHz
Figure 2-4 CPU Type Configuration

6
System Memory Configuration
This 82440ZX motherboard supports 168 pin DIMM of 4MB,
8MB, 16MB, 32MB or 64MB to form a memory size between
8MB to 256MB(SDRAM). 82440ZX chipsets provide ÒTable-
FreeÓ function. It means that users can install DRAM with
any configuration and in any bank, and that is why the
DRAM table is not needed but do remember that the DRAM
must be 3.3V type. For 100MHz CPU environment, the
SDRAM specification must comply with PC-100 spec.
CPU Installation
Follow the following steps in order to install your Intel
Pentium II , Celeron, and Deschutes properly.
Step 1:
Be sure you are in contact with heat sink vendors for
attaching the heat sink on to the CPU.
Heat Sink
Latch
Intel Pentium II (or Celeron)
CPU Side View
Heat Sink
Intel Pentium II (Klamath)
Latch
CPU Top View
Notice that the heat sink may be different from the drawings
shown here.

Hardware Installation 7
Step 2:
Install the 2 pairs of screws, which are shown in the
following drawing, onto the mainboard under the SLOT1
Socket.
Two of the screws are right around the SLOT1 Socket and
the other pair of screws should be inserted opposite the first
pair. The screws should be inserted from the bottom of the
motherboard upward.
Step 3:
Retention clip is shown in the following figure:

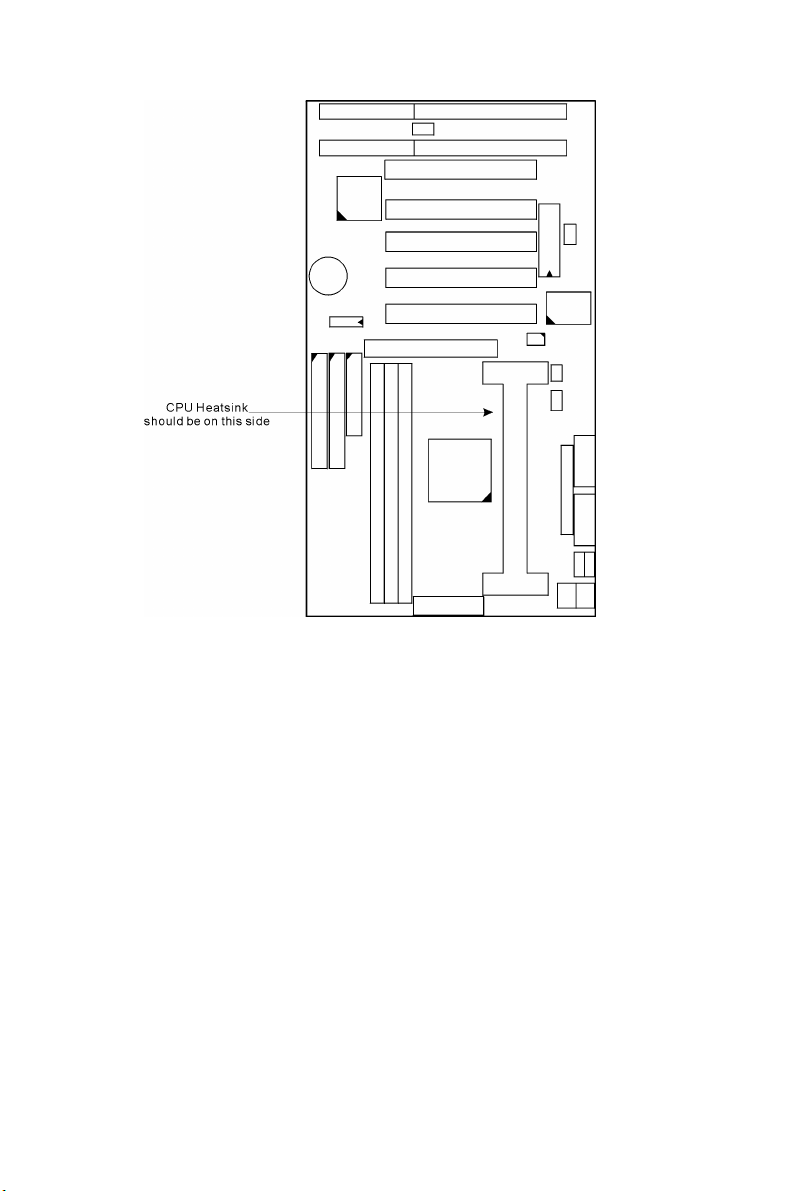

Set the board according to the following diagram before
installing the retention clip.

8
The retention clip should be inserted so that the small
rectangle window is more toward to the right hand side of
the board.
If installed incorrectly, you will not be able to insert the CPU
into the retention clip and in this situation you might need
to rotate the retention clip by 180°
Tighten the 4 screws on the retention clip till the neck of the
screws can not be seen from the bottom of the board
Step 4:
Pull the latches up on the base of the CPU supporter and
insert it into the two holes directly to the left of the retention
clip so that the larger hole is on the bottom.
Press the base of the CPU supporter down in to the holes
and lock the latches.

Hardware Installation 9
Latch Latch
Side View of CPU Supporter Base
Step 5:
Flatten the two latches on the side of CPU. Insert the CPU
into the retention clip and notice that the heat sink is on the
right hand side of the board. Lock the two latches to secure
the CPU.

10
Step 6:
Insert the clip portion of the CPU supporter so that the heat
sink can sit on the top of the whole CPU supporter.
Top View of CPU Support Clip
Notice that the base and the clip of CPU Supporter may be
different from the figures shown here.
Jumper Settings
JP2: Keyboard Power Selection
Keyboard Power On
Disabled (default)
Enabled
JP2
1
3
1
3
Note: 1. If the JP2 is fixed by jumperwire then the board
does not support keyboard power on function.
2. When the keyboard power on function shows
any compatible problem, choose Disabled and
report the keyboard model to the vendor/maker.
3. Keyboard power on function must be set from
the BIOS. Refer to the “Integrated Peripherals”
section in the Chapter 3.

Hardware Installation11
XFAN 1: Onboard FAN (12V) Connector
FAN# Function
SFAN1 System FAN
CFAN1 CPU FAN
PFAN1 Chasis FAN
JBAT1: Clear CMOS Data
Clear the CMOS memory by shorting this jumper
momentarily; then remove the cap to retain new settings.
CMOS Data
Clear Data
Retain Data
(default)
JBAT1
31
31
JP6: Power Lost Resume
This jumper allows you to use the switch of ATX power
supply to control on/off switch directly instead of using the
power switch on the mainboard.
Power Lost Resume
Normal (default)
Enabled
JP6
31
31

12
JP3, JP4: USB Port Select
13
JP4
JP3
USB Port JP3/JP4
13
JP4
JP3
Redirect USB1 to
AGP port
Redirect all USB ports
to USB connector
(default)
JVGA1: VGA Card
JVGA1
For Special VGA Card*
Normal
(default)
Note: This jumper is set for the special VGA card. Open
this jumper when the systme isn’t able to boot
SW1: 5–6 Bus Clock Select
65
On
On
Off
Bus Clock SW: 5~6
66MHz
65
On
Off Off
100MHz
65
On
On
Off
Auto Detect
(default)

Hardware Installation 13
SW1: 1–4: Bus Ratio Select
3.0x
4321
Off
On On
On
ON
Bus Ratio SW: 1~4
5.0x
4321
Off Off
On On
ON
Bus Ratio
3.5x
4321
Off Off
On On
ON
5.5x
4321
Off Off Off
On
ON
4.0x
4321
Off
On On On
ON
6.0x
4321
Off On
On On
ON
6.5x
4321
Off
On On
Off
ON
4.5x
4321
Off Off
On On
ON
SW: 1~4
7.0x
4321
Off Off On
On
ON
Bus Ratio
7.5x
4321
Off Off Off On
ON
8.0x
4321
Off On
On
Off
ON
SW: 1~4
IDE LED Activity Light: (J2 pin1–4)
This connector connects to the hard disk activity indicator
light on the case.

14
Infrared Port Module Connector (J2 pin6–10)
The system board provides a 5-pin infrared connectorÑIR1
as an optional module for wireless transmitting and
receiving. Pin 6 through 10 are Transmit, GND, Receive
(low speed), Receive (high speed), and Vcc, respectively.
J2 pin12, 13: PWR Switch
Power Switch: Toggle this pin for turnning on/off of the
power supply (for ATX power only).
SLEEP Switch (J2 pin14, 15)
Toggle this jumper forces the system to sleep and the system
wonÕt wake up until the hardware event is coming. (The
BIOS Power Management setting muse be Enabled.)
Speaker Connector (J3 pin1–4)
The speaker connector is a 4-pin connector for connecting
the system and the speaker. (See the following drawing for
jumper position.)
Reset Switch (J3 pin5, 6)
The system board has a 2-pin connector for rebooting your
computer without having to turn off your power switch.
This prolongs the life of the systemÕs power supply.
J1: Audio Socket (SB Link)
This socket is designed for using SoundBlast PCI sound
card.
Power LED and Keylock Switch (J3 pin8–12)
The keylock switch is a 5-pin connector for locking the
keyboard for security purposes. (See the following drawing
for jumper position, and pin1~3 is connected to power LED
and pin 4~5 is connected to keylock switch.)

Hardware Installation 15
JWOL1: Wake On Lan (WOL) Connector
This connector is designed to use Lan to bootup the system.
Connect the wake on signal from Lan card to this connector.
Green LED (J3 pin14, 15)
Reserved.
J2 HD/LED IR PWR/SW
J3 GRN-LED
EXTSM1
KEYLOCKRESETSPK
J2 HD/LED IR PWR/SW
J3 GRN-LED
EXTSM1
KEYLOCKRESETSPK

16
J2 Switch Signal Summary
J2 Pin Signal Description
1 +5V
HDD LED Connector 2 HDD LED Signal
3 HDD LED Signal
4 +5V
N.C. 5 No Connection
6 Infrared Transmit Signal
7 GND
Infrared Connector 8 Infrared Receive Signal
(low speed)
9 Infrared Receive Signal
(high speed)
10 +5V
N.C. 11 No Connection
PWR 12 GND
13 Power Switch (for ATX
Power)
SLEEP 14 GND
15 Sleep Signal
