SOMFY Maestria WT User manual

Manual
Maestria WT motor

2
Setting1: Manual setting of the end limits 3
Setting 2: Semi-automatic setting of the end limits 5
Setting 3: Automatic setting of both end limits 7
Adjusting the end limits 9
Adjusting the upper end limit 9
Adjusting the down end limit 11
Obstacle detection 13
Activate the obstacle detection 13
De-activate the obstacle detection 15
Blocking or activating the end limit adjustment 17
Resetting a WT motor 18
Maestria WT Table of content

3
Maestria WT
Setting 1: Setting of 2 fixed end limits
A cable with a shunt (WT) switch is needed for setting a WT motor.
This switch allows powering both directions simultaneously and it is needed to start and stop the
setting process.

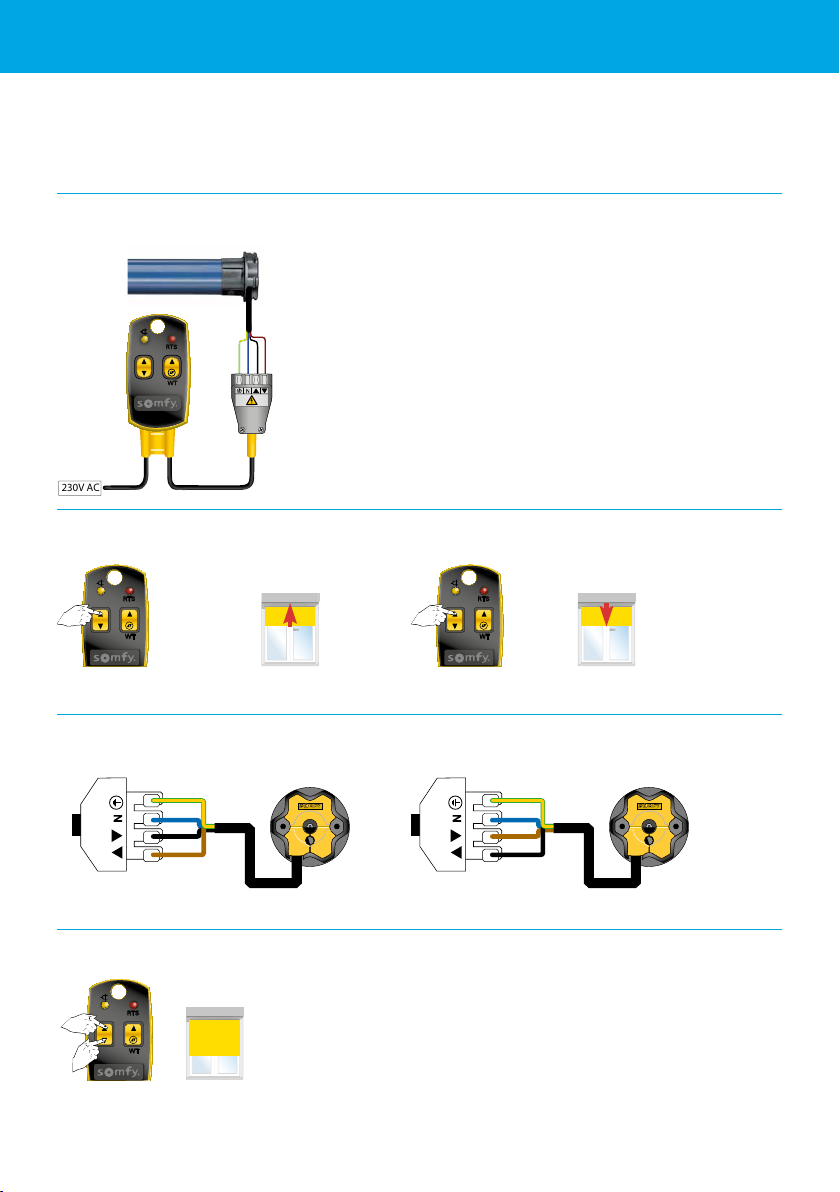

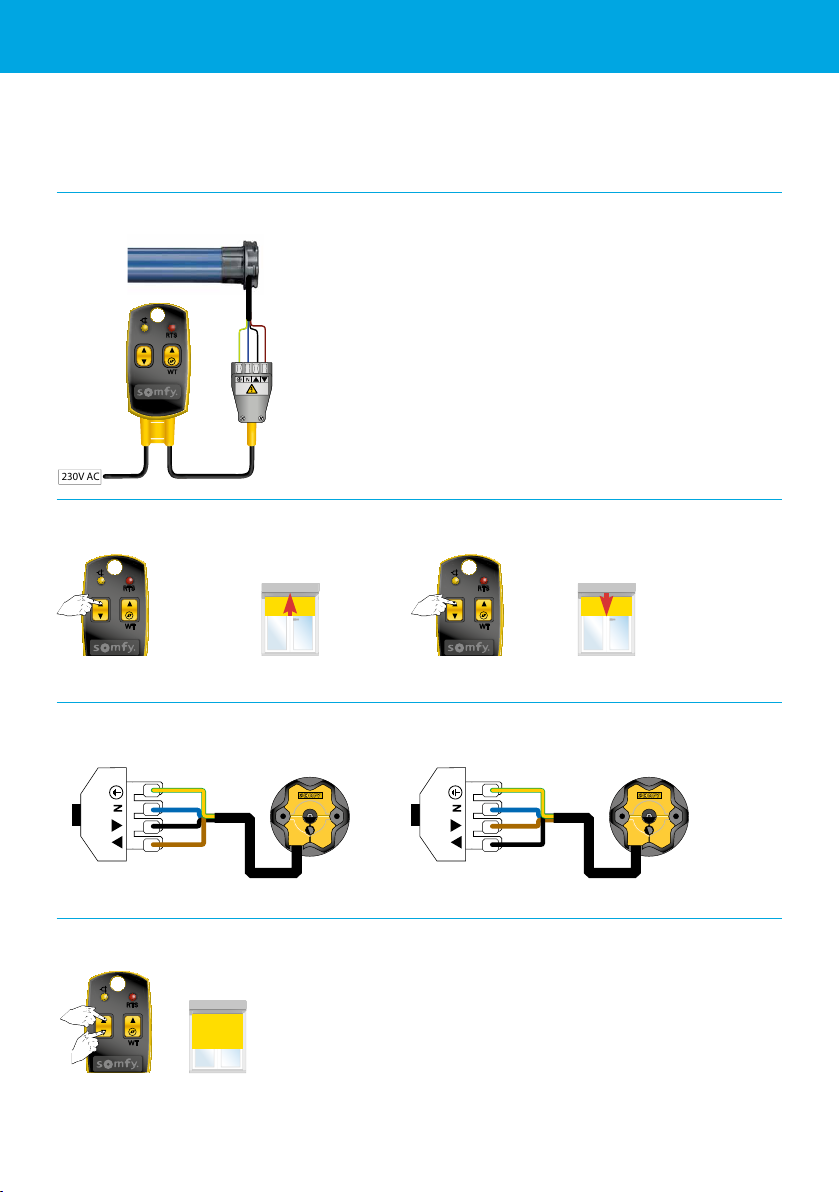

1 Connect the motor using a setting cable
2 Check the rotation direction
3 Adjust the rotation direction (cut first the power to the motor)
4 Activate the setting mode
RTS
WT
RTS
WT
RTS
WT
OK 4

Not OK 3
Switch the brown and the black wires
EarthEarth
Neutral Neutral
Push the WT button
until...
...a short up and down
movement
RTS
WT
230V AC
Motor
reacts aer
+/- 1 s
Setting the Maestria WT motor
Remark:
Keep the button(s) pushed until
the end of the second movement

4
Maestria WT
Setting the Maestria WT motor

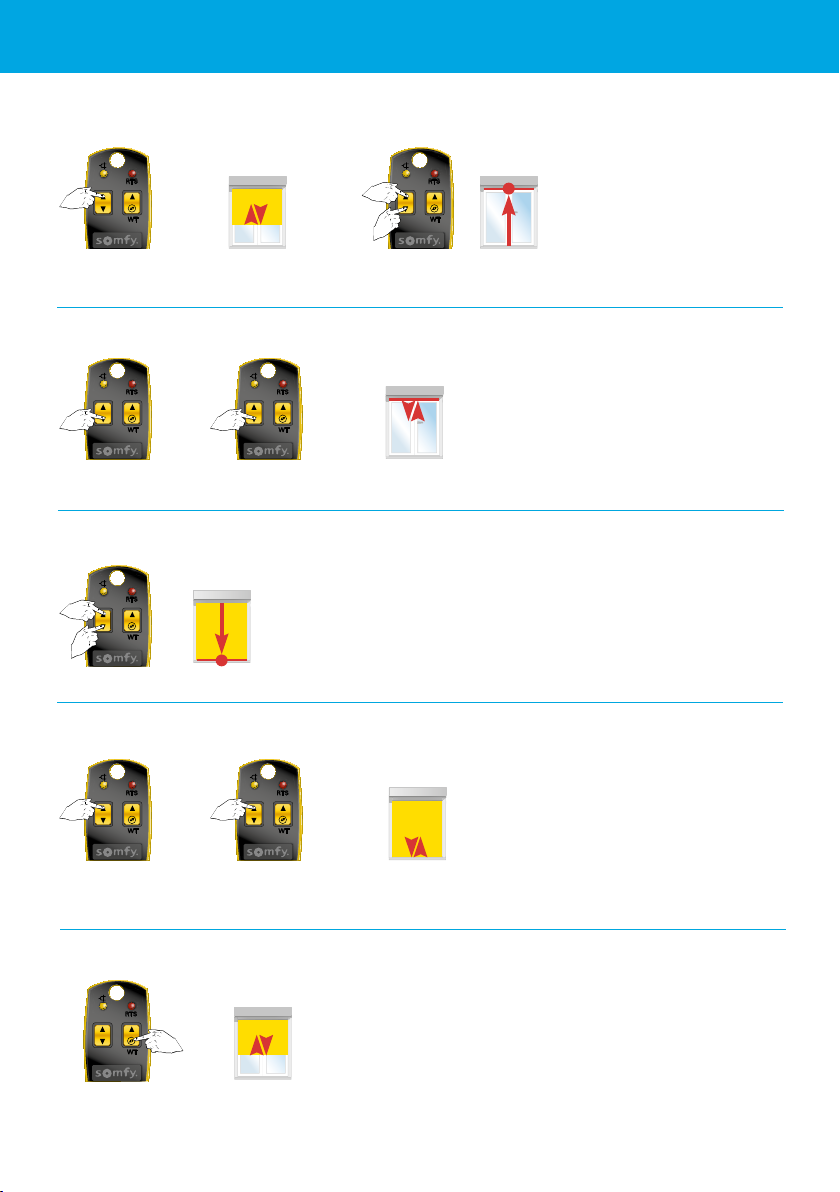

5 Setting of the upper end limit
6 Confirm the upper end limit
8 Confirm the down end limit
9 Closing the setting mode
7 Setting of the down end limit
RTS
WT
RTS
WT
RTS
WT
RTS
WT
RTS
WT
RTS
WT
Push the WT button
until...
...short up and down
movement
...a short up and down
movement
Push the UP button
until…
Set the end limit
Set the end limit
RTS
WT
or
RTS
WT
or
3 s
<1 s
<1 s
+ 3 s
+ 3 s
Push the DOWN
button briefly +
Push the UP button
briefly +
...short up and down
movement
...short up and down
movement
Keep the DOWN
button pushed until...
Keep the UP button
pushed until...
3 s
Remark:
Keep the button(s) pushed until
the end of the second movement
Remark:
Keep the button(s) pushed until
the end of the second movement
Remark:
Keep the button(s) pushed until
the end of the second movement
Remark:
Keep the button(s) pushed
until the end of the
second movement

5
Maestria WT
Setting 2: Setting of 1 fixed down end limit and an automatic upper end
limit.
Aer the setting, the bottom bar will compensate the fabric lengthening every 30 cycles. Aer 180
cycles, this frequency will change to every 90 cycles. A cable with a shunt (WT) switch is needed for
setting a WT motor. This switch allows powering both directions simultaneously and it is needed to
start and stop the setting process.
Setting the Maestria WT motor
1 Connect the motor using a setting cable
2 Check the rotation direction
3 Adjust the rotation direction (cut first the power to the motor)
4 Activate the setting mode
RTS
WT
RTS
WT
RTS
WT
OK 4

Not OK 3
Switch the brown and the black wires
EarthEarth
Neutral Neutral
Push the WT button
until...
...short up and down
movement
3 s
RTS
WT
230V AC
Motor
reacts aer
+/- 1 s
Remark:
Keep the button(s) pushed until
the end of the second movement

6
Setting the Maestria WT motor

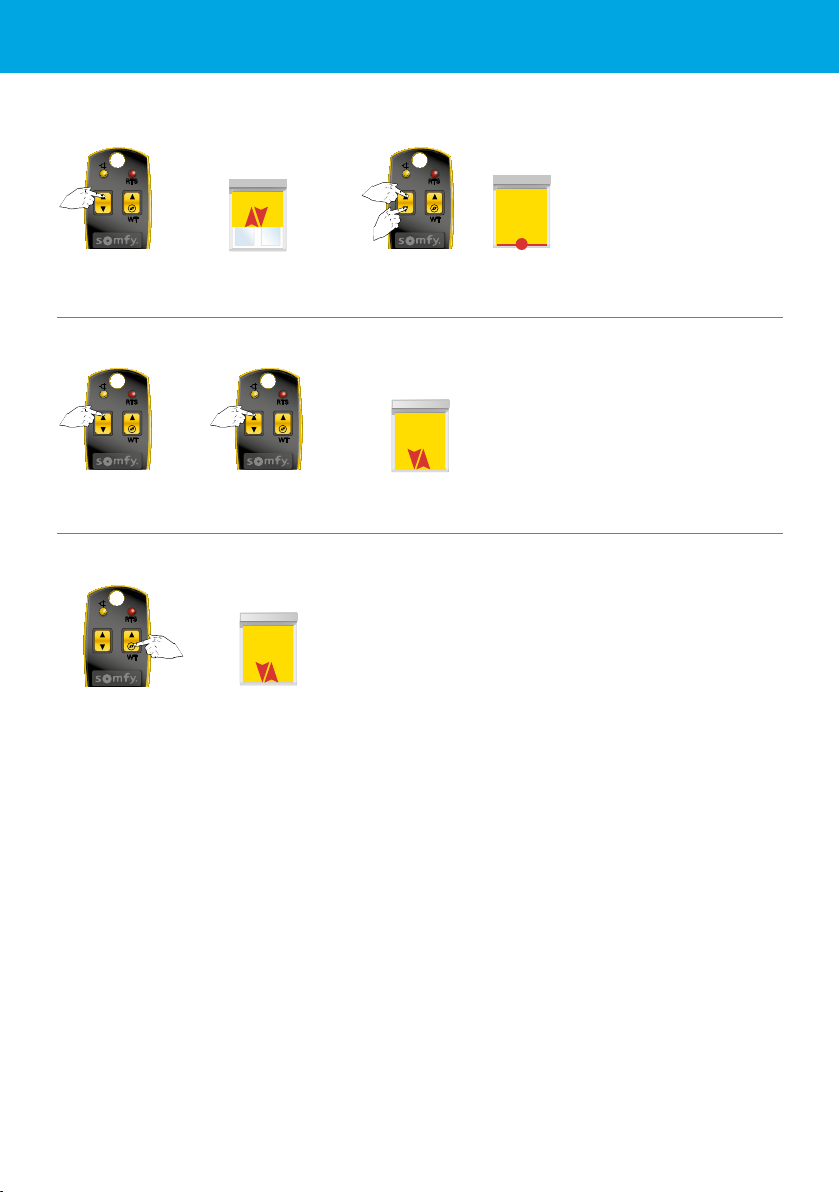

5 Setting the down end limit
6 Confirm the down end limit
7 Closing the setting mode
RTS
WT
RTS
WT
RTS
WT
RTS
WT
Push the WT button
until...
...short up and down
movement
...short up and down
movement
Push the UP button
until...
Set the end limit
RTS
WT
or
3 s
3 s
<1 s + 3 s
Push the UP
button +
...short up and down
movement
Keep pushed the UP
button unitil...
Maestria WT
Remark:
Keep the button(s) pushed until
the end of the second movement
Remark:
Keep the button(s) pushed until
the end of the second movement
Remark:
Keep the button(s) pushed
until the end of the second
movement

7
Maestria WT
Setting 3: Setting of 2 automatic end limits
Aer the setting, the bottom bar will compensate the fabric lengthening every 30 cycles. Aer 180
cycles, this frequency will change to every 90 cycles. A cable with a shunt (WT) switch is needed for
setting a WT motor. This switch allows powering both directions simultaneously and it is needed to
start and stop the setting process.
Setting the Maestria WT motor
1 Connect the motor using a setting cable
2 Check the rotation direction
3 Adjust the rotation direction (cut first the power to the motor)
4 Activate the setting mode
RTS
WT
RTS
WT
RTS
WT
OK 4

Not OK 3
Switch the brown and the black wires.
Push the WT button
until...
...short up and down
movement
3 s
RTS
WT
230V AC
Motor reacts
aer +/- 1 s
Remark:
Keep the button(s) pushed until
the end of the second movement.
EarthEarth
Neutral Neutral

8
Setting the Maestria WT motor
5 Activeate the full automatic mode
6 Go to the down end limit
7 Close the setting mode
RTS
WT
RTS
WT
RTS
WT
Push the WT button
until...
...short up and down
movement
...short up and down
movement
...short up and down
movement
Push the up button
until…
Push the WT
button until...
RTS
WT
3 s
3 s
Set the screen in
the middle
...the motor stops automatically
in the down end position
Keep the down button
pushed until…
Maestria WT
Remark:
Keep the button(s) pushed until
the end of the second movement.
Remark:
Keep the button(s) pushed
until the end of the second
movement.
RTS
WT
or

9
Oximo WT, Altus WT and Maestria WT
Adjusting end limits on the WT motors (for motors from 2015)
A cable with a shunt (WT) switch is needed for setting a WT motor. This switch allows powering
both directions simultaneously and it is needed to start and stop the setting process.

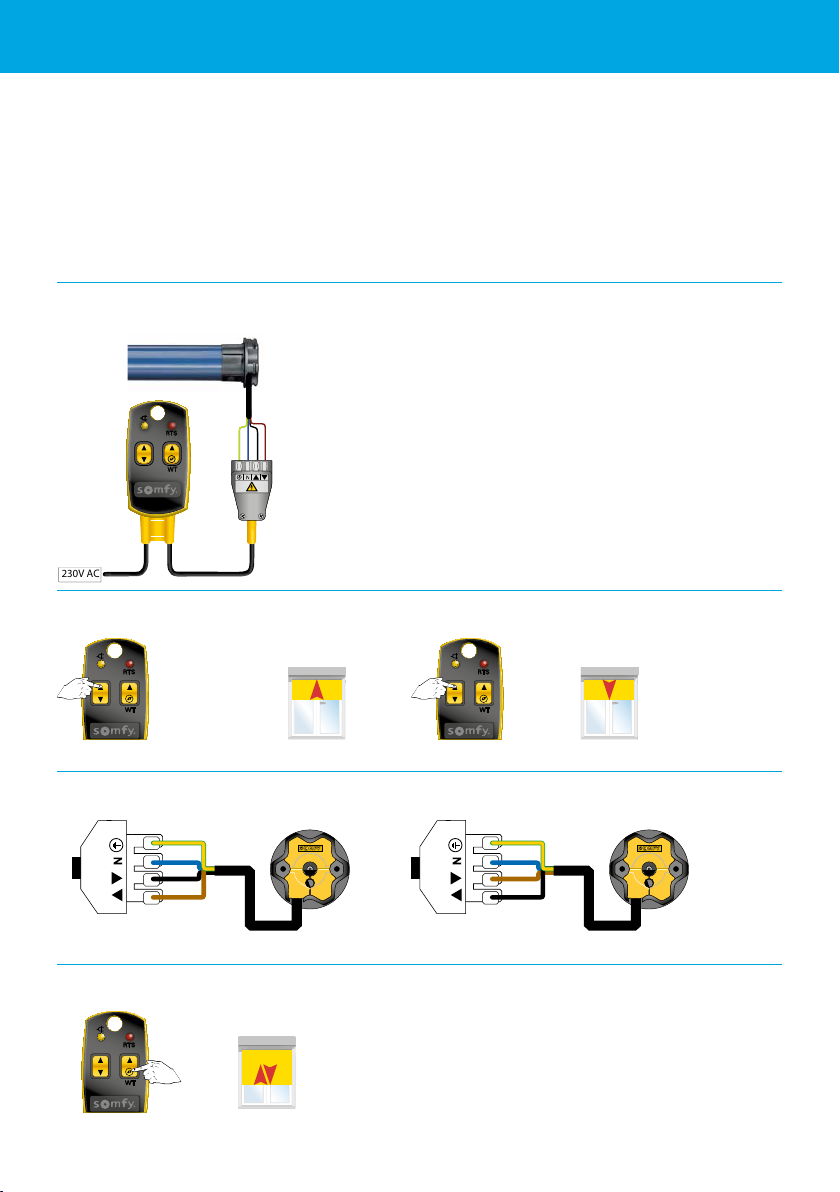

1 Connect the motor using a setting cable
RTS
WT
RTS
WT
RTS
WT
OK 4

Not OK 3
Switch the brown and the black wires.
EarthEarth
Neutral Neutral
4 Put the rolling shutter or the screen in the upper end limit
2 Check the rotation direction
RTS
WT
230V AC
3 Adjust the rotation direction (cut the power to the motor first)
Adjusting the upper end limit of a Maestria WT motor (fixed end limit), an
Oximo WT motor (fixed end limit) or an Altus WT motor

10
Oximo WT, Altus WT and Maestria WT
Adjusting end limits on the WT motors (for motors from 2015)
RTS
WT
RTS
WT
5 Adjusting the upper end limit
Push the UP button for 5 s,
then wait 2 s
Push the DOWN button
briefly and wait for 2 s
5 s
±6 s
0,5 s
2 s
2 s
...short up and down
movement
...short up and down
movement
RTS
WT
Push the UP button
until short up and down
movement
RTS
WT
Push the UP button
until short up and down
movement
RTS
WT
Push the UP button
until short up and down
movement
RTS
WT
Push the UP button
until short up and down
RTS
WT
RTS
WT
Push the UP button
until...
Push the DOWN
button until...
6
7 Adjusting the upper end limit
8 Confirm the new upper end limit and close
Adjust
RTS
WT
or
Aer 6 s the rolling shutter or screen responds
Maximum of 6 s between 2 operations
Motor responds
aer +/- 1 s
RTS
WT
Keep the WT button
pushed until...
...short up and down
movement
3 s
Remark:
Keep the button(s) pushed
until the end of the second
movement

11
Oximo WT, Altus WT, Orea WT and Maestria WT
Adjusting end limits on the WT motors (for motors from 2015)
A cable with a shunt (WT) switch is needed for setting a WT motor. This switch allows powering
both directions simultaneously and it is needed to start and stop the setting process.
1 Connect the motor using a setting cable
2 Check the rotation direction
3 Adjust the rotation direction (cut the power to the motor first)
RTS
WT
RTS
WT
RTS
WT
OK 4

Not OK 3
Switch the brown and the black wires.
EarthEarth
Neutral Neutral
4 Put the rolling shutter or screen in the down end limit
RTS
WT
230V AC
Adjusting the down end limit of a Maestria WT motor (fixed end limit),
an Oximo WT motor (fixed end limit), an Altus WT motor or an
Orea WT motor

12
Oximo WT, Altus WT Orea WT and Maestria WT
Adjusting end limits on the WT motors (for motors from 2015)
RTS
WT
5 Adjusting the down end limit
Push the DOWN button
for 5 s, then wait 2 s
2 s
...short up and down
movement
RTS
WT
Push the DOWN
button until...
6
7 Adjusting the down end limit
8 Confirm the new down end limit and close
Adjust
RTS
WT
or
±6 s
RTS
WT
Push the DOWN button until
short up and down movement
Push the DOWN button until
short up and down movement
Push the DOWN button until
short up and down movement
Push the DOWN button until
short up and down movement
RTS
WT
RTS
WT
RTS
WT
Aer 6 s the rolling shutter or screen responds
Maximum of 6 s between operations
Motor responds
aer +/- 1 s
RTS
WT
Push the UP button briefly
and wait for 2 s
0,5 s 2 s
...short up and down
movement
RTS
WT
Push the UP button
until...
RTS
WT
Keep the WT button
pushed until...
...short up and down
movement
3 s
Remark:
Keep the button(s) pushed
until the end of the second
movement

13
Activate the obstacle detection
A cable with a shunt (WT) switch is needed for setting a WT motor. This switch allows powering
both directions simultaneously and it is needed to start and stop the setting process.
Setting the Maestria WT motor
1 Connect the motor using a setting cable
2 Check the rotation direction
3 Adjust the rotation direction (cut the power to the motor first)
RTS
WT
RTS
WT
OK 4

Not OK 3
Switch the brown and the black wires.
EarthEarth
Neutral Neutral
RTS
WT
230V AC
Maestria WT
Motor reacts
aer +/- 1 s
4 Place the screen in the middle position
Place the screen in the middle
position
RTS
WT
or

14
Setting the Maestria WT motor
6 Activate the obstacle detection
7 Closing the setting mode
RTS
WT
RTS
WT
Push the WT button
until...
...short up and down
movement
<1 s
Push the DOWN
button briefly
...short up and down
movement
3 s
Maestria WT
The obstacle
detection is now
activated.
5 Activate the setting mode
RTS
WT
Keep the WT button
pushed until...
...short up and down
movement
Execute the next
step within 10 s.
Remark:
Keep the button(s) pushed until
the end of the second movement
Remark:
Keep the button(s) pushed until
the end of the second movement

15
De-activation of the obstacle detection
A cable with a shunt (WT) switch is needed for setting a WT motor. This switch allows powering
both directions simultaneously and it is needed to start and stop the setting process.
Setting the Maestria WT motor
1 Connect the motor using a setting cable
2 Check the rotation direction
3 Adjust the rotation direction (cut the power to the motor first)
RTS
WT
RTS
WT
OK 4

Not OK 3
Switch the brown and the black wires.
EarthEarth
Neutral Neutral
RTS
WT
230V AC
Maestria WT
Motor
reacts aer
+/- 1 s
4 Place the screen in the middle
Place the screen in the middle
RTS
WT
or
Remark:
Keep the button(s) pushed until
the end of the second movement

16

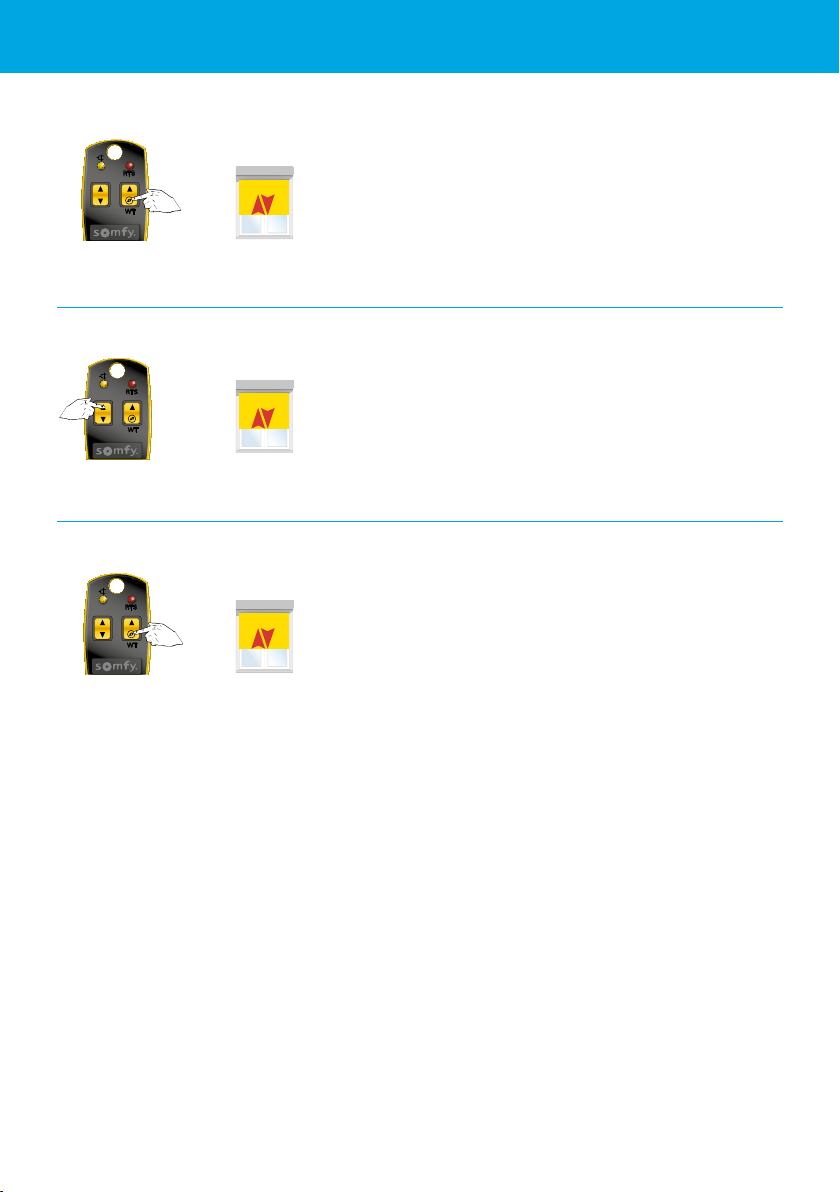

Setting the Maestria WT motor
6 De-activate the obstacle detection
7 Closing the setting mode
RTS
WT
RTS
WT
Push the WT button
until...
...short up and down
movement
<1 s
Push the UP
button briefly
Slow up and down
movement
3 s
Maestria WT
The obstacle detection
is de-activated
5 Activate the setting mode
RTS
WT
Keep the WT button
pushed until...
...short up and down
movement
Execute the next
step within 10 s.
Remark:
Keep the button(s) pushed until
the end of the second movement
Remark:
Keep the button(s) pushed until
the end of the second movement

17
Blocking or activating the end limit adjustment
A cable with a shunt (WT) switch is needed for setting a WT motor. This switch allows powering
both directions simultaneously and it is needed to start and stop the setting process.
Setting the Maestria WT motor
1 Connect the motor using a setting cable
2 Blocking or activating the end limit adjustment
Short feedback: the
obstacle detection is
de-activated
Slow feedback: the
obstacle detection is
activated
RTS
WT
Press the WT button
long
RTS
WT
Press the WT button
briefly +
RTS
WT
Press the WT button
briefly +
RTS
WT
230V AC
Maestria WT
+ +
Remark:
Keep the button(s) pushed until
the end of the second movement

18
WT
Resetting a WT motor
A cable with a shunt (WT) switch is needed for setting a WT motor. This switch allows powering
both directions simultaneously and it is needed to start and stop the setting process.
1 Connect the motor using a setting cable
2 Reset the motor
3 The motor has been reset
RTS
WT
Press the WT button
for 8 s until...
...2 short up and down movements
8 s

RTS
WT
230V AC
