Dexxo Compact RTS
CONTENTS
GENERAL INFORMATION
Thank you for choosing a SOMFY product. This equipment has been designed and manufactured by Somfy in accordance with a quality policy complying with
the ISO 9001 standard.
About Somfy
Somfy develops, manufactures and sells automatic control devices for domestic opening and closing systems. We offer alarm systems, automatic control
devices for awnings, roller shutters, garages and gates. We guarantee all Somfy products will meet your expectations in terms of safety, comfort and time
saving on a daily basis.
At Somfy, the pursuit of quality is a continuous process of improvement. Somfy's reputation has been built upon the reliability of its products and the Somfy
brand is synonymous with innovation and technological expertise worldwide.
Assistance
Getting to know our customers, listening to them, meeting their needs: this is Somfy's approach.
For further information on how to choose, purchase or install Somfy systems, please ask your Somfy installer for advice or contact a Somfy advisor directly for
help and assistance.
www.somfy.com
As part of our policy of continuous innovation and improvement of our models, we reserve the right to make any modications deemed necessary at any time.
© SOMFY. Somfy SAS, with a capital 20.000.000 Euros, RCS Annecy 303.970.230
SAFETY INSTRUCTIONS
Standards
This product complies with the “safety, specic rules for powering vertically opening garage doors in residential use” standard (standard EN 60335-2.95). This
product, which is installed in accordance with this guide and the "installation verication sheet", complies with the EN 13241-1 and EN 12453 standards.
The instructions referred to in the product's installation guide and instructions for use are designed to prevent damage to property and personal injury along
with compliance with the above standards. Failure to comply with these instructions absolves Somfy of any liability resulting from damage that may be caused.
The Dexxo Compact RTS product must be installed inside the garage with an integrated emergency control system.
Somfy declares that this product complies with the essential requirements and other relevant provisions of
Directive 1999/5/EC. A Declaration of Conformity is available at www.somfy.com/ce (Dexxo Compact RTS).
Product can be used in the European Union and Switzerland.
Important safety instructions. It is important to follow these instructions for the safety of all persons.
Retain these instructions.
GENERAL INFORMATION_________________________________________________1
About Somfy 1
Assistance 1
SAFETY INSTRUCTIONS _________________________________________________1
Standards 1
PRODUCT DESCRIPTION _________________________________________________2
Description 2
OPERATION AND USE ___________________________________________________2
Normal operation 2
Safety instructions 2
Specic operation 3
Power outage 4
ADDITIONAL DEVICES ___________________________________________________4
MAINTENANCE _________________________________________________________4
Changing the integrated light bulb 4
Checks 5
Replacing the battery 5
RECYCLING ____________________________________________________________5
TECHNICAL DATA _______________________________________________________5

2
EN
Dexxo Compact RTS
123
24V 21W max.
4
Description (Fig. 4)
The Dexxo Compact RTS assembly has been designed for the motorisation of garage doors for
residential use. This motorisation is composed of:
• a motor head (No. 1) with integrated lighting (No. 2).
• a rail assembly (No. 3) with a manual back release device (No. 4).
PRODUCT DESCRIPTION
Normal operation
Operation in "Total opening" mode with a Keytis type remote control or similar (Fig. 5)
5
OPERATION AND USE
Safety instructions
This device is not designed to be used by persons (including children) whose physical, sensory or mental capacity is impaired, or persons with little experience
or knowledge, unless they are under supervision or have received instructions on using the device by a person responsible for their safety.
Every month, check that the door reverses its movement when it encounters an object which is at least 50 mm high on the ground. If this is not the case, contact
your installer. Take care when using the manual back release device as a manual door can suddenly fall off if the springs are weak, broken, or incorrectly
balanced.
Frequently check the installation, particularly the cables, springs and mountings, to reveal any signs of wear, deterioration or incorrect balancing. Do not use
the system if a repair or adjustment is necessary as a fault in the installation or an incorrectly balanced door can cause injuries. Have the motorisation checked
every year by a qualied technician.
For all direct operations on the motorisation, please contact a qualied technician (installer).
In the event of incorrect operation, switch off the power supply, use the manual release device to enable access and request assistance from a qualied
technician (installer).
Before any handling or maintenance operations, disconnect the electrical power supply and if necessary, remove the battery (Fig. 1).
Do not allow children to play with the door control devices. Keep remote controls out of the reach of children (Fig. 2).
For the integrated lighting, only use a bulb with a maximum power of 24 V 21 W, BA 15s socket (Fig. 3).
Monitor the movement of the door and ensure that people are kept at a distance until the end of the movement.
When using a switch without a locking device (for example: code keypad, etc.), ensure that other people remain at a distance.
Do not deliberately prevent the door from moving.
Do not try to open the door manually if the motor is not released.
Do not modify the motorisation components.
Never clean the motorisation system with high pressure water cleaning equipment.
Integrated lighting operation
The lighting comes on each time the motorisation is switched on. When the door stops moving, it goes off automatically after 30 seconds. Repetitive use will cause
the light to be lit constantly which may result in the light being switched off automatically due to thermal protection.

3
EN
Dexxo Compact RTS
8
Obstacle detection operation (Fig. 6 and 7)
When an obstacle is detected during opening, the door will stop (Fig. 6).
When an obstacle is detected during closing, the door will stop and then re-open (Fig. 7).
The integrated lighting is activated intermittently for 30 seconds.
67
Operation of the manual back release device (Fig. 8)
The Dexxo Compact RTS is equipped with a manual back release device which makes it possible to manipulate the door manually, for example in the event of
an electrical fault. This device must be able to be accessed easily, at a maximum of 1.80 m from the ground.
[1]. Releasing the motorisation
Pull on the cord until the door drive system is released.
[2]. Manual manipulation of the door
This is possible as the drive system is released.
[3]. Re-engaging the motorisation
Move the door manually until the drive mechanism re-locks on the transmission rail.
When releasing the motorisation, sudden movements may occur if the door is incorrectly balanced which may be dangerous.
Only use the cord to release the motorisation. Never use the cord to manipulate the door manually.
It is essential that the motorisation is re-engaged before any new commands.
Specic operation
Depending on the peripherals installed and the operating options programmed by your installer, the Dexxo Compact RTS motor may have the following specic
functions:
Operation in "Total opening" mode with a TELIS type remote control or similar (Fig. 9)
9
Operation with safety cells
An obstacle placed between the cells will prevent the door from closing.
if an obstacle is detected when the door is closing, the door stops then reopens.
The integrated lighting is activated intermittently for 30 seconds.
Operation with orange ashing light
The orange light is activated whenever the door moves, with a 2-second pre-warning before movement starts.
Operation using the backup battery
If a backup battery is installed, the Dexxo Compact RTS motor will work even during a general power outage.
Operation is then activated under the following conditions:
• Reduced speed.
• The lighting does not work.
• The safety devices do not work.
Battery specications:
• Operation time: 24 hours; 5 to 10 operating cycles depending on the weight of the door.
• Recharging time: 72 hours
• Service life before replacement: Approximately 3 years.
For optimum battery life, it is recommended that the main power supply be switched off and the motor operated using the battery for several cycles, three times
a year.

4
EN
Dexxo Compact RTS
Power outage
Following a power outage, the motor must recognise its "fully open" position again.
Open the door fully using a memorised remote control. The door will open at a degraded speed.
Allow the door to open to the "fully open" position.

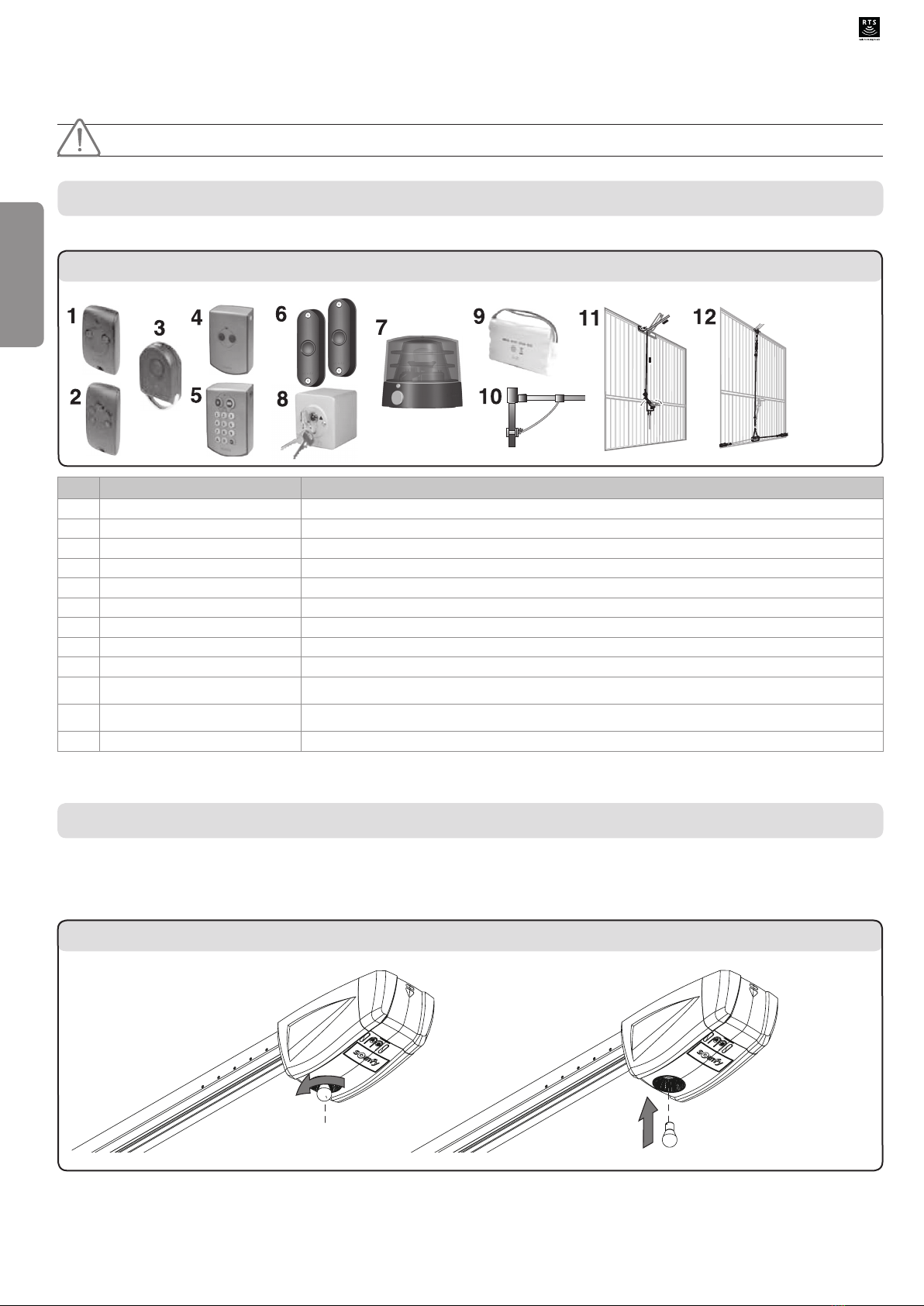

ADDITIONAL DEVICES
Several additional devices are available.
No. Description Comments
1KEYTIS 2NS RTS remote control 2-channel portable remote control:
2KEYTIS 4NS RTS remote control 4-channel portable remote control:
3KEYGO remote control 4-channel keyring remote control:
4Push-button RTS 2-channel wall control point. Use inside the garage.
5RTS radio code keypad Access code control point. Use outside the garage.
6Photoelectric cells To prevent the door from closing in the event of an obstacle.
7Orange light To warn of door movements outside the garage.
8Key lock Key control switch. Use outside the garage.
9Battery To ensure correct operation in the event of a power outage.
10 Unlocking lock Enables the motorisation to be unlocked from the outside using a key.
Highly recommended when the garage door is the only way to access the garage.
11 External unlocking Enables the motorisation to be unlocked from the outside using the handle on the door.
Highly recommended when the garage door is the only way to access the garage.
12 Door locking kit System used to reinforce door locking.
10
MAINTENANCE
Changing the integrated lighting bulb (Fig. 11)
Unscrew the faulty bulb and replace it.
Only use a 24 V 21 W bulb, BA15s socket.
11
24 V 21 W max.

5
EN
Dexxo Compact RTS
Checks
Obstacle detection
Every month, check that the door reverses its movement when it encounters an obstacle which is at least 50 mm high placed on the ground.
Safety devices (cells)
Check the correct operation every 6 months (see page 3).
Backup battery
For optimum battery life, it is recommended that the main power supply be switched off and the motor operated using the battery for several cycles, three times
a year.
Replacing the battery (Fig.12)
12
3V
CR 2430
+
3V
CR 2430
+
3V
CR 2430
+
RECYCLING
TECHNICAL DATA
Basic technical data
Power supply 230 V - 50 Hz
Standby power consumption 4 W
Max. power consumption 120 W
Tensile force - Maximum force 600 N
Operation 20 cycles per day (tested for 10000 cycles)
Number of storable channels 32
SOMFY radio frequency 433.42 MHz RTS
Integrated lighting 24 V / 21 W max. BA15s socket
Operating temperature -20°C / +60°C
Do not throw away your scrapped equipment or used batteries with household waste. It is your responsibility to dispose of your electronic
equipment in the relevant recycling points.
