Sony PCS-TL50 User manual

3-857-212-52 (1)
Video
Communication
System
© 2004 Sony Corporation
PCS-TL50
Operating Instructions for Web Control Function

Contents
2
Contents
Introduction ............................................................................................................................................................3
1. Open the Web page ..........................................................................................................................................3
2. Identify a user ...................................................................................................................................................3
3. Select a tool .......................................................................................................................................................5
4. How to use "Controller" .................................................................................................................................6
5. How to use "Dial/Disconnect" .........................................................................................................................8
6. How to use "Phone Book" ...............................................................................................................................9
7. How to use "Setup" ........................................................................................................................................12
8. How to use "Info" ..........................................................................................................................................15
9. Monitor a meeting over the Web ..................................................................................................................18
10.How to use “FTP” ..........................................................................................................................................19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
“IPELA” and are trademarks of Sony Corporation.

Introduction / 1. Open the Web page / 2. Identify a user 3
Introduction
This document introduces the Web Control Function which is used to operate the PCS-TL50 over a LAN. The Web
Control Function helps you control the PCS-TL50, or change its setup configuration, using a Web browser installed on
your PC, such as Internet Explorer or Netscape Navigator. The following is a set of Operating Instructions for the Web
Control Function.
Internet Explorer is a product of the Microsoft Corporation. Please use Version 5.0, or above (Version 6.0
recommended).
Netscape Navigator is a product of Netscape Communications Corporation. Please use Version 6.2, or above (Version
7.0 recommended).
1. Open the Web page
Enter the IP address assigned to the PCS-TL50 in the address line of your browser.
The format of an address is:
http://XXX.XXX.XXX.XXX/
For instance, if the IP address is "192.47.100.117", enter "http://192.47.100.117/" in the address line.
Note
When a proxy server in an external network segment has been set, the Gateway address in the PCS-TL50 LAN setting
must also be set. Or set your Web browser proxy setting to "No Proxy" for the PCS-TL50.
2. Identify a user
Once you reach the Web page, the following window will be displayed asking you to identify yourself as the user.
Enter one of the following user names (see below) into the "User Name" box and the corresponding password into the
"Password" box, then click the [OK] button.

2. Identify a user
4
Each character of a password is shown as "*" on the screen. When the user name and password are correct, the "Dial/
Disconnect" page will come up. If an incorrect user name or password is entered three times, an error message appears
on the screen.
Notes on the user name and the password
• When you enter "user" in the "User Name" box and then its password (Remote Access Password) in the "Password"
box, you can access and check the "Phone Book" and "Setup" pages.
• When you enter "super" in the "User Name" box and then its password (Superuser Password) in the "Password" box,
you can access the "Phone Book" page, change the setting of the page, and register a new entry onto the page. And
you can check the "Setup" page.
• When you enter "sonypcs" in the "User Name" box and then its password (Administrator Password) in the "Password"
box, you can access the "Phone Book" page, change the setting of the page, and register a new entry onto the page.
And you can check and modify the "Setup" page.
• If the corresponding password is not assigned, leave the "Password" box blank and click the [OK] button.
• Administrator Password, Superuser Password and Remote Access Password settings are in the Administrator Setup
menu.

3. Select a tool 5
3. Select a tool
By clicking a tool button on the top part of the page, you can jump to the corresponding tool page. A brief introduction
of each tool is presented below.
•[Controller]
Controls the PCS-TL50 using the on-screen controller, or controls using the on-screen Remote Commander in the same
manner as you do with the PCS-RTL50 Remote Commander.
• [Dial/Disconnect]
Calls a remote party, or ends a meeting.
•[PhoneBook]
Displays the dial list.
Connects from the dial list.
Registers, confirms or edits the dial list.
For a private address book, the "Phone Book" button changes to the "Private Address
Book" button.
•[Setup]
Confirms or modifies the setup.
Sends messages.
Resets the setup functions (only when "sonypcs" has been entered as the user name).
•[Info]
Displays the connection status, line status, or other machine information.
Displays the "Cause Code."
Displays the "Call Log"(only when "sonypcs" has been entered as the user name).
•[Monitor]
Monitors a meeting being held with the PCS-TL50 over the Web.
Note
When Web Monitor is set to Off in the Administrator Setup menu, the "Monitor" page cannot be used.
•[FTP]
Downloads the still images uploaded from the FTP server.
You can save the downloaded images in the “Memory Stick” inserted into the PCS-TL50 and use them for the Phone
Book and One Touch Dial registration.

4. How to use "Controller"
6
4. How to use "Controller"
To control the PCS-TL50 from the on-screen controller
When you click the [Controller] button, the on-screen control panel appears. By clicking the buttons on this control
panel, you can control the PCS-TL50, sending still images, operating the camera, registering preset camera settings, and
so on.
For example, in order to preset and load a camera setting:
ASet the camera at the desired position using the Camera Control buttons.
BClick one of the "Preset Save" 1 to 6 buttons on the image.
CThe preset is done.
DClick one of the "Preset Load" 1 to 6 buttons on the image to load it.

4. How to use "Controller" 7

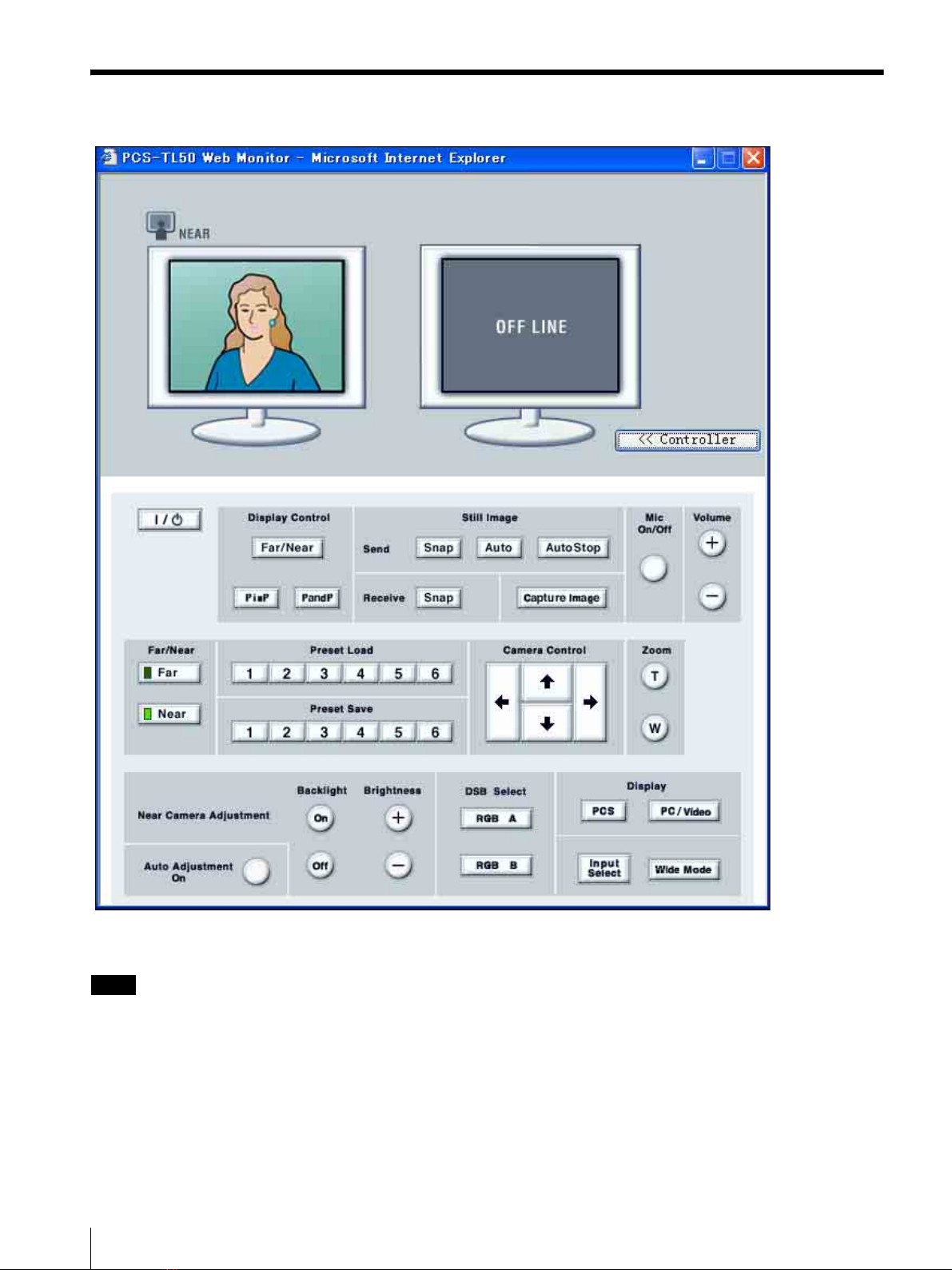

To control the PCS-TL50 from the on-screen Remote Commander
When you click BCommander on the left part of the screen, the Remote Commander screen appears.
By clicking the various buttons on the Remote Commander image, you can control the unit in the same way you can
when using a real Remote Commander (PCS-RTL50), operating the camera, and dialing phone numbers.

5. How to use "Dial/Disconnect"
8

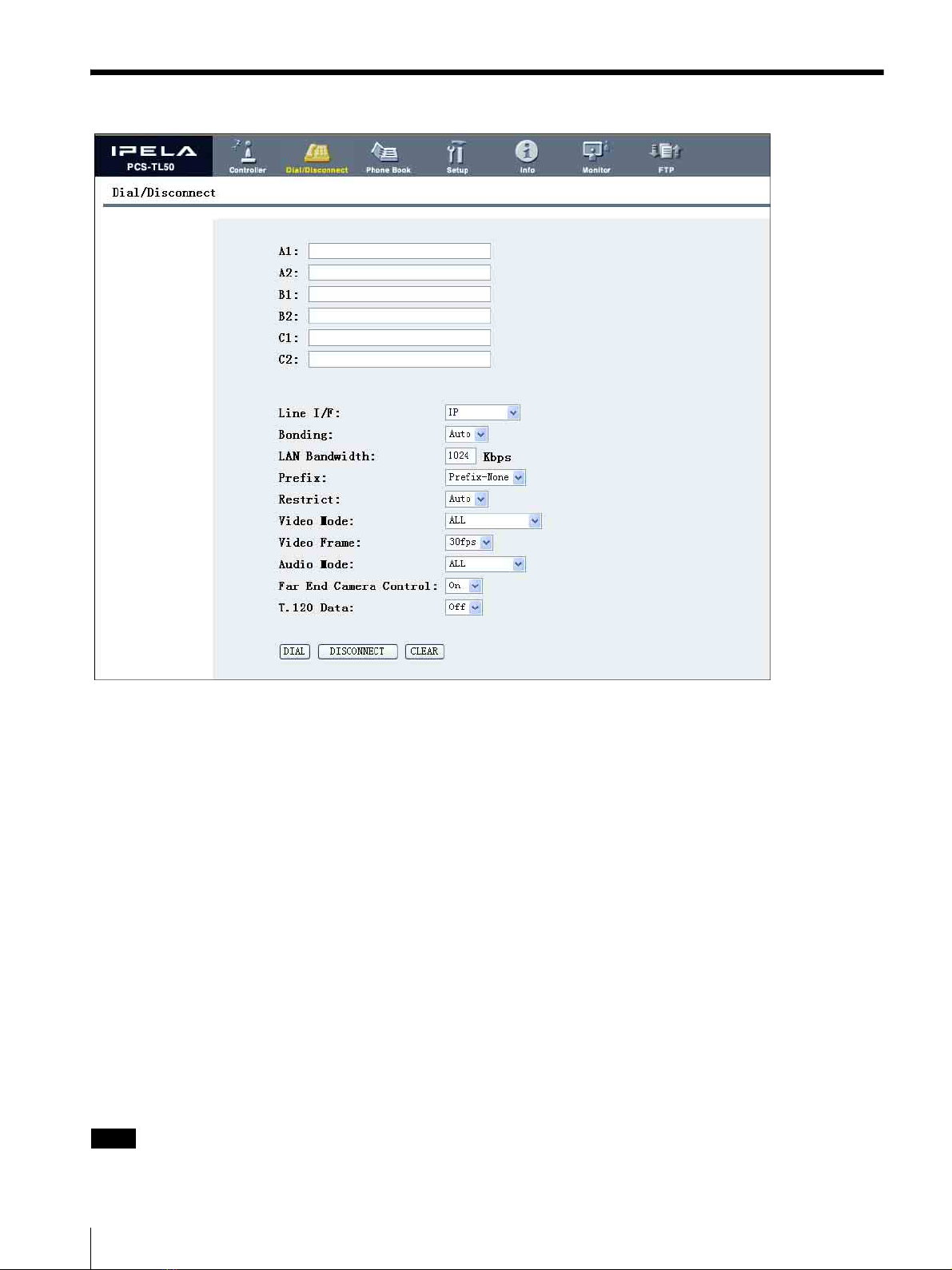

5. How to use "Dial/Disconnect"
By clicking the [Dial/Disconnect] button, you can jump to the "Dial/Disconnect" page.
• To connect:
AEnter the telephone number(s) of a remote party into the box(es): A1( to C2) (When using a LAN, enter an IP address
or a DNS name.)
BSet the communication attribute.
CClick the [DIAL] button.
DThe message, "Now dialing..." appears.
EAfter the connection is made, the message, "Connect OK." will appear, and the screen will return to the "Dial/
Disconnect" page.
• To disconnect:
AClick the [DISCONNECT] button.
BThe message, "Now disconnecting..." appears.
CAfter the disconnection is completed, the message "Disconnect OK." will appear, and the screen will return to the
"Dial/Disconnect" page.
• To clear the dial number:
AClick the [CLEAR] button.
BThe number(s) entered on this menu will be cleared and the screen will return to the "Dial/Disconnect" page.
Note
When More Options Enable is set to Off in the Dial Setup menu, only Line I/F and LAN Bandwidth are displayed.

6. How to use "Phone Book" 9

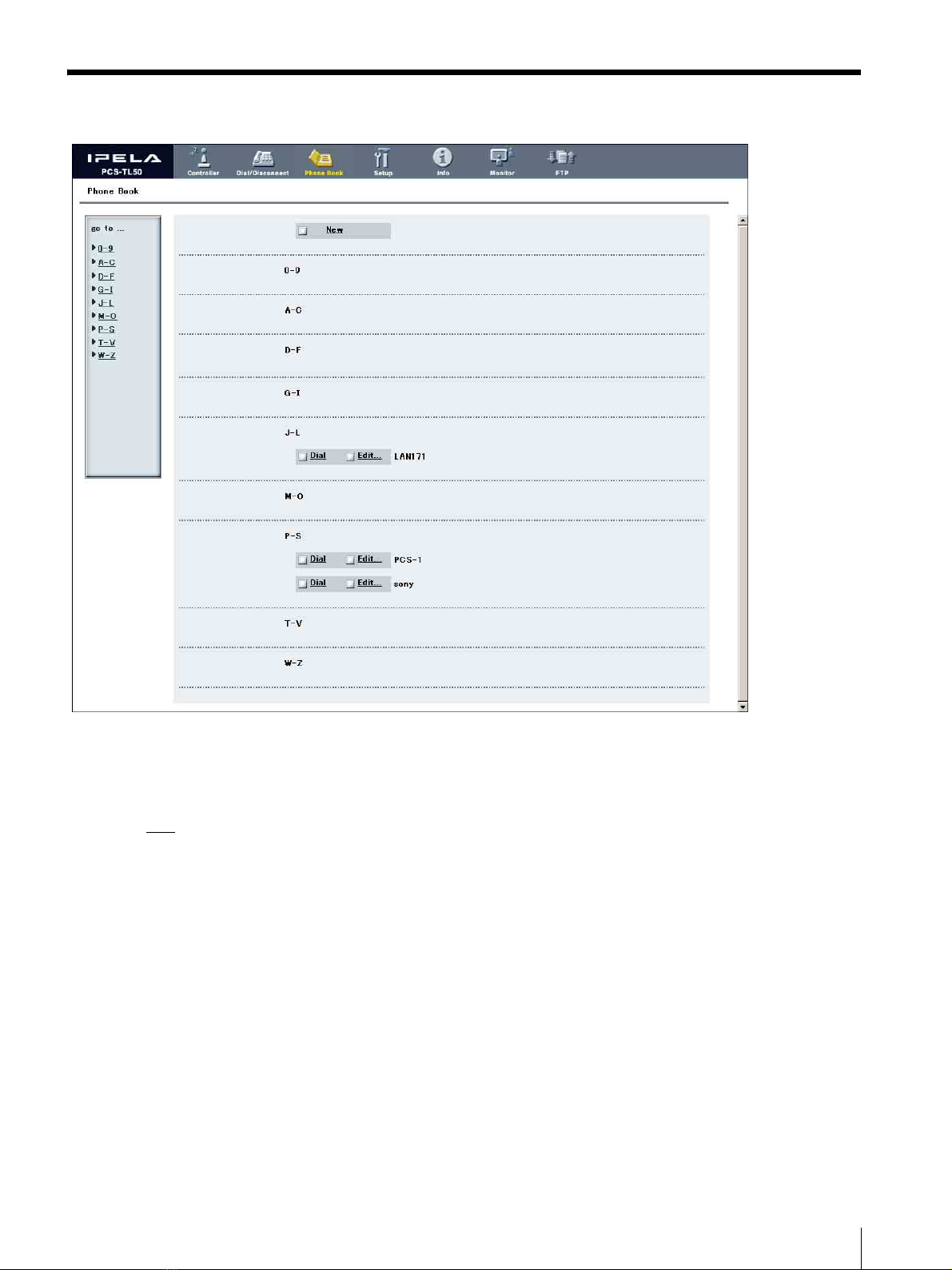

6. How to use "Phone Book"
By clicking the [Phone Book] button, you can jump to the "Phone Book list" page.
• To connect:
AClick sDial next to the index title that you are dialing. Then, the message, "Now dialing..." will appear.
BAfter the connection is made, you will see the message, "Connect OK.," and the screen will return to the list page.

6. How to use "Phone Book"
10
"Phone Book-Edit" page
• To edit the communication attribute (only when "super" or "sonypcs" has been entered as the user
name):
AClick sEdit... next to the index title whose communication attribute you want to edit or modify on the list page.
Then, the "Phone Book-Edit" page will appear.
BEdit or modify the telephone numbers and attributes.
CClick the [SAVE] button. After saving the changes, the screen will return to the list page.
• To delete data from the Phone Book (only when "super" or "sonypcs" has been entered as the user
name):
AClick sEdit... next to the index title whose data you want to delete on the list page. Then, the "Phone Book-Edit"
page will appear.
BClick the [DELETE] button. After the deletion is complete, the list page will appear.
• To return to the list page:
AClick sReturn on the left part of the page. The list page will appear.
Note
When More Options Enable is set to Off in the Dial Setup menu, only Line I/F, Number of Lines, LAN Bandwidth and
One Touch Dial are displayed.

6. How to use "Phone Book" 11

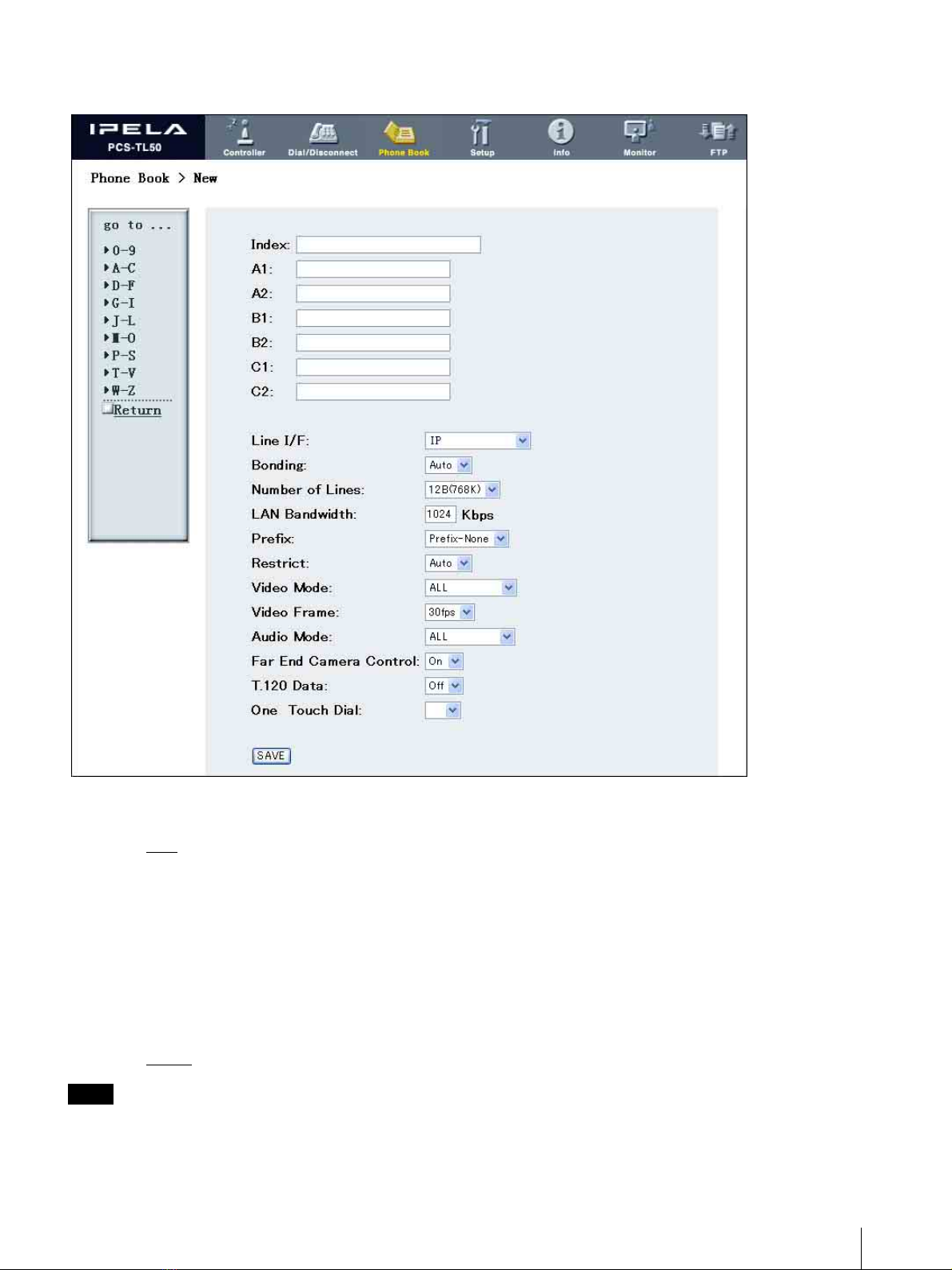

"Phone Book-New" page
• To register a new point (only when "super" or "sonypcs" has been entered as the user name):
AClick sNew on the list page.
The "Phone Book-New" page will appear.
BEnter an index title into the Index box and telephone numbers into box(es) A1 (to C2).
CSet the communication attributes.
DClick the [SAVE] button. After the registration is complete, the new index will be added, and the screen will return
to the list page.
• To return to the list page:
AClick sReturn on the left part of the page. The list page will appear.
Note
When More Options Enable is set to Off in the Dial Setup menu, only Line I/F, Number of Lines, LAN Bandwidth and
One Touch Dial are displayed.

7. How to use "Setup"
12

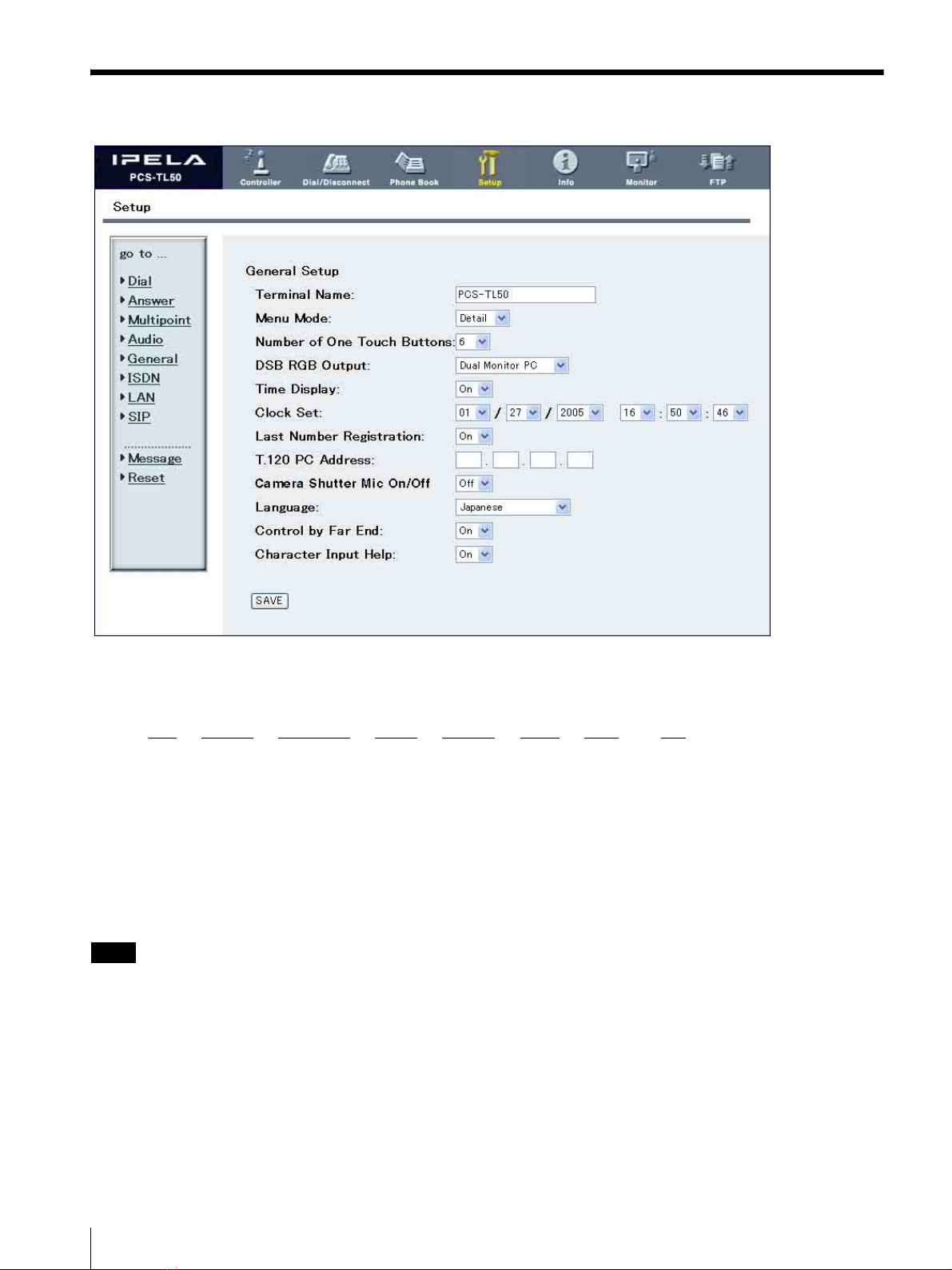

7. How to use "Setup"
Click the [Setup] button, and you will jump to the "Basic Setup" page. (The image above shows the "General Setup"
page.)
Click BDial, BAnswer, BMultipoint, BAudio, BGeneral, BISDN, BLAN or BSIP on the left part of the screen,
according to what you are setting up.
• To modify the attribute (only when "sonypcs" has been entered as the user name)
AOpen the page whose attributes you want to modify.
BModify the attributes.
CClick the [SAVE] button. After the modification is complete, the screen will return to the same page as you see in
step 1.
Note
Sometimes the screen may not go back to the previous page after modifying the "LAN" page. This is not a malfunction.

7. How to use "Setup" 13

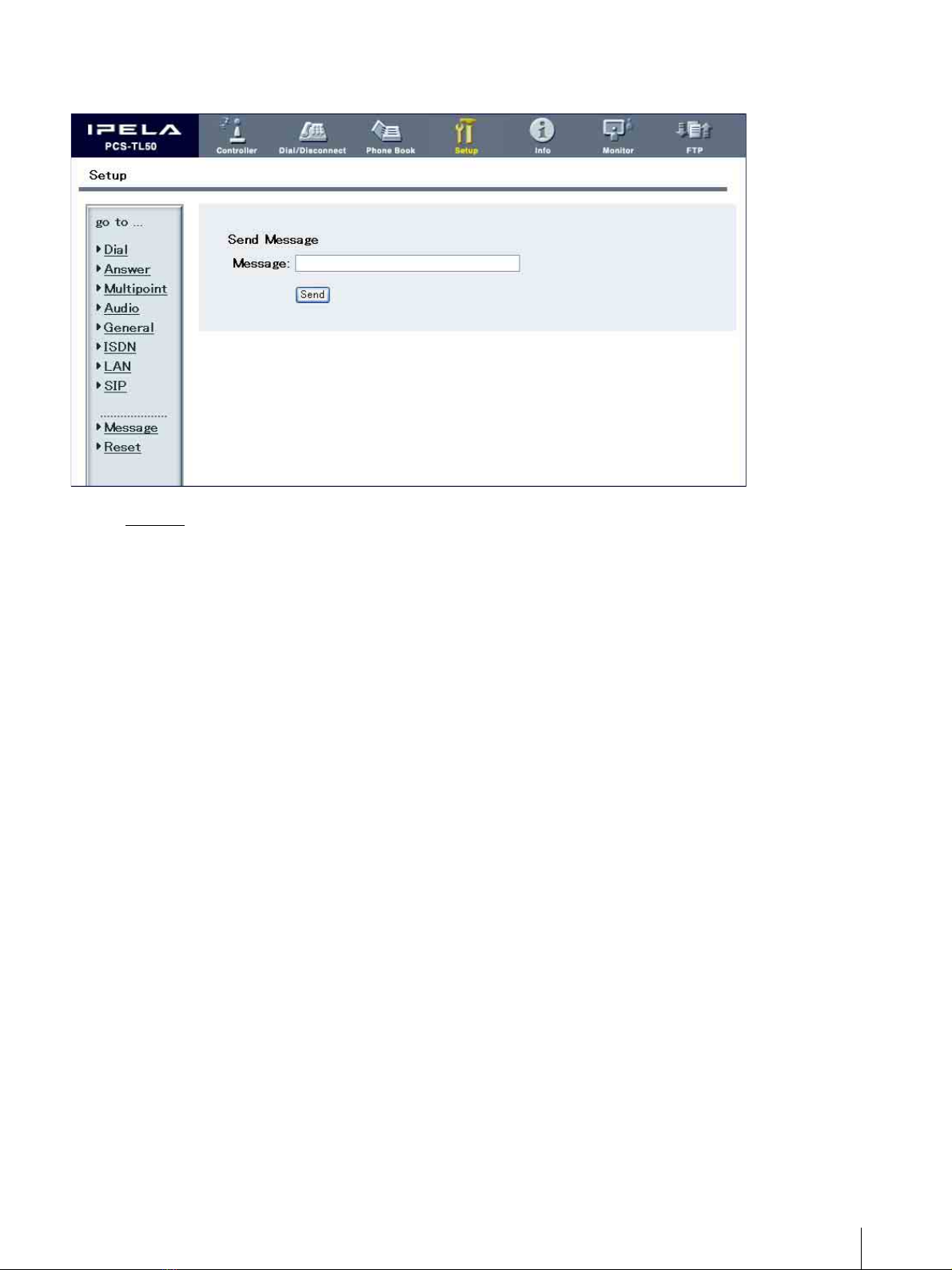

To display the "Send Message" page
Click BMessage on the left side of the page.
The "Send Message" page will appear.
Enter the message you want to send into the Message box and click the [Send] button to send the message to the PCS-
TL50.
After the message is sent, "message send OK." will be displayed and the screen will return to the "Send Message" page.

7. How to use "Setup"
14

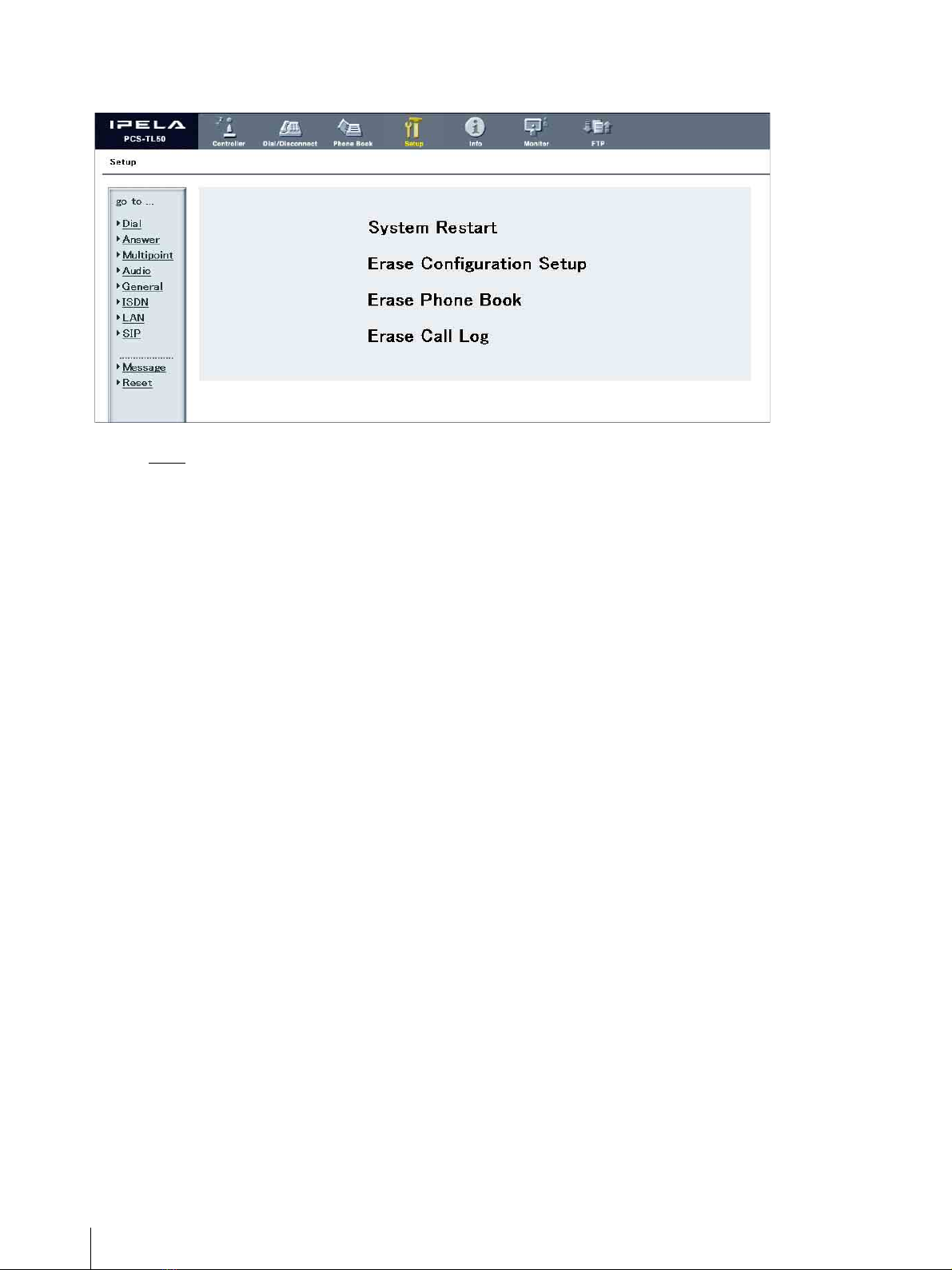

To reset the system
Click BReset on the left part of the page. The "Reset" page will appear (only when "sonypcs" has been entered as the
user name).
AClick on the desired item.
A dialog box will appear.
BClick the [OK] button.
• "System Restart"
Resets the PCS-TL50 system.
• "Erase Configuration Setup"
Returns to the factory setting values.
• "Erase Phone Book"
Erases all information saved in the "Phone Book."
• "Erase Call Log"
Erases all information saved in the "Call Log."

8. How to use "Info" 15

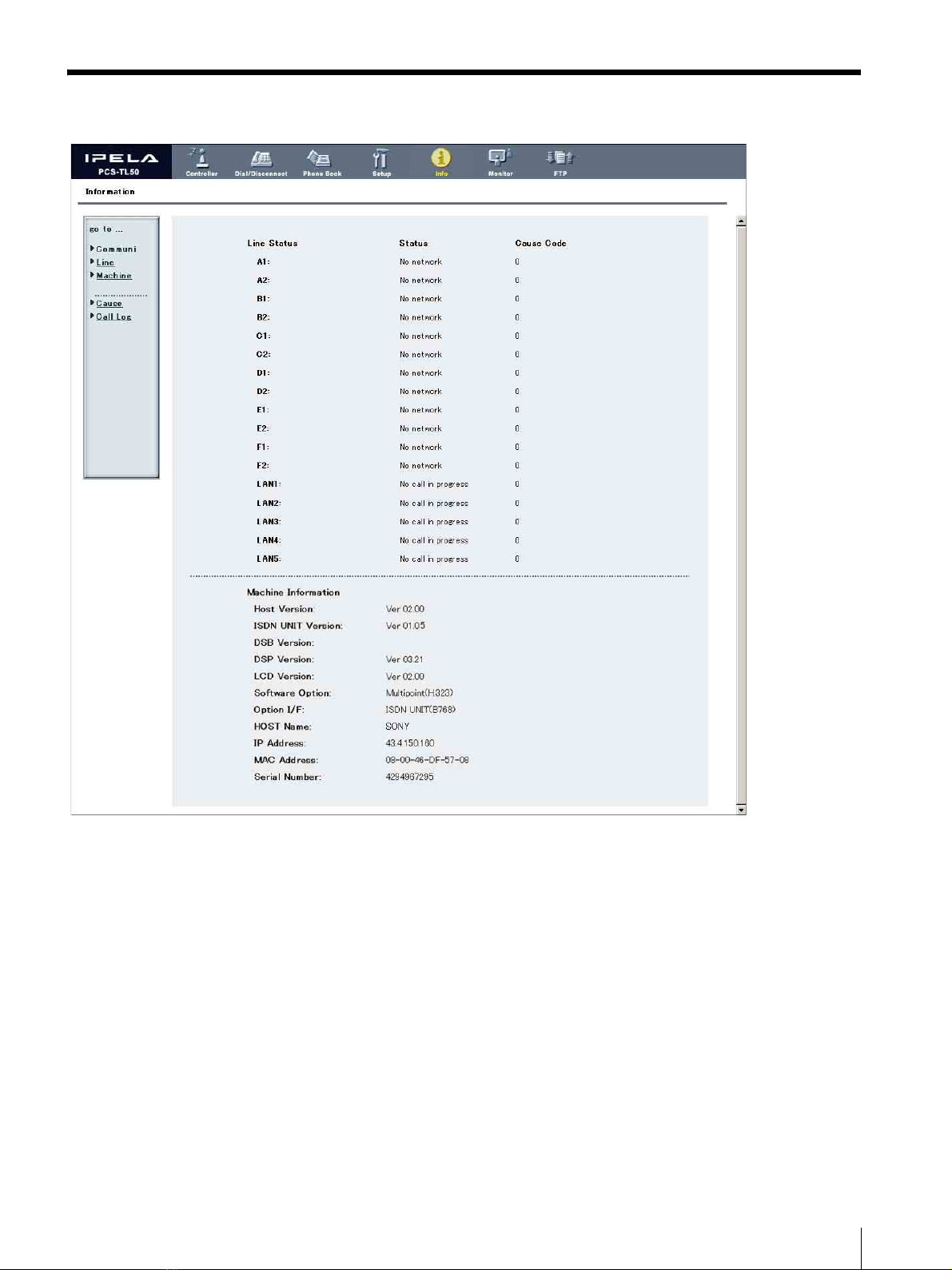

8. How to use "Info"
Click the [Info] button, and the "Information" page will appear.
When the PCS-TL50 is on-line, the "Communication Status," "Line Status," and "Machine Information" page appears,
and during otherwise, the "Line Status" and "Machine Information" page appears.

8. How to use "Info"
16
To display the Cause Code list
By clicking BCause on the left part of the page, you can jump to the "Cause Code" page, and see the Cause Code list.

8. How to use "Info" 17
To display the Call Log
By clicking BCall Log on the left part of the page, you can jump to the "Call Log" page (only when "sonypcs" has been
entered as the user name).

9. Monitor a meeting over the Web
18
9. Monitor a meeting over the Web
Click the [Monitor] button to show the monitoring window.
Note
When Web Monitor is set to Off in the Administrator Setup menu, the "Monitor" page cannot be used.

10. How to use “FTP” 19

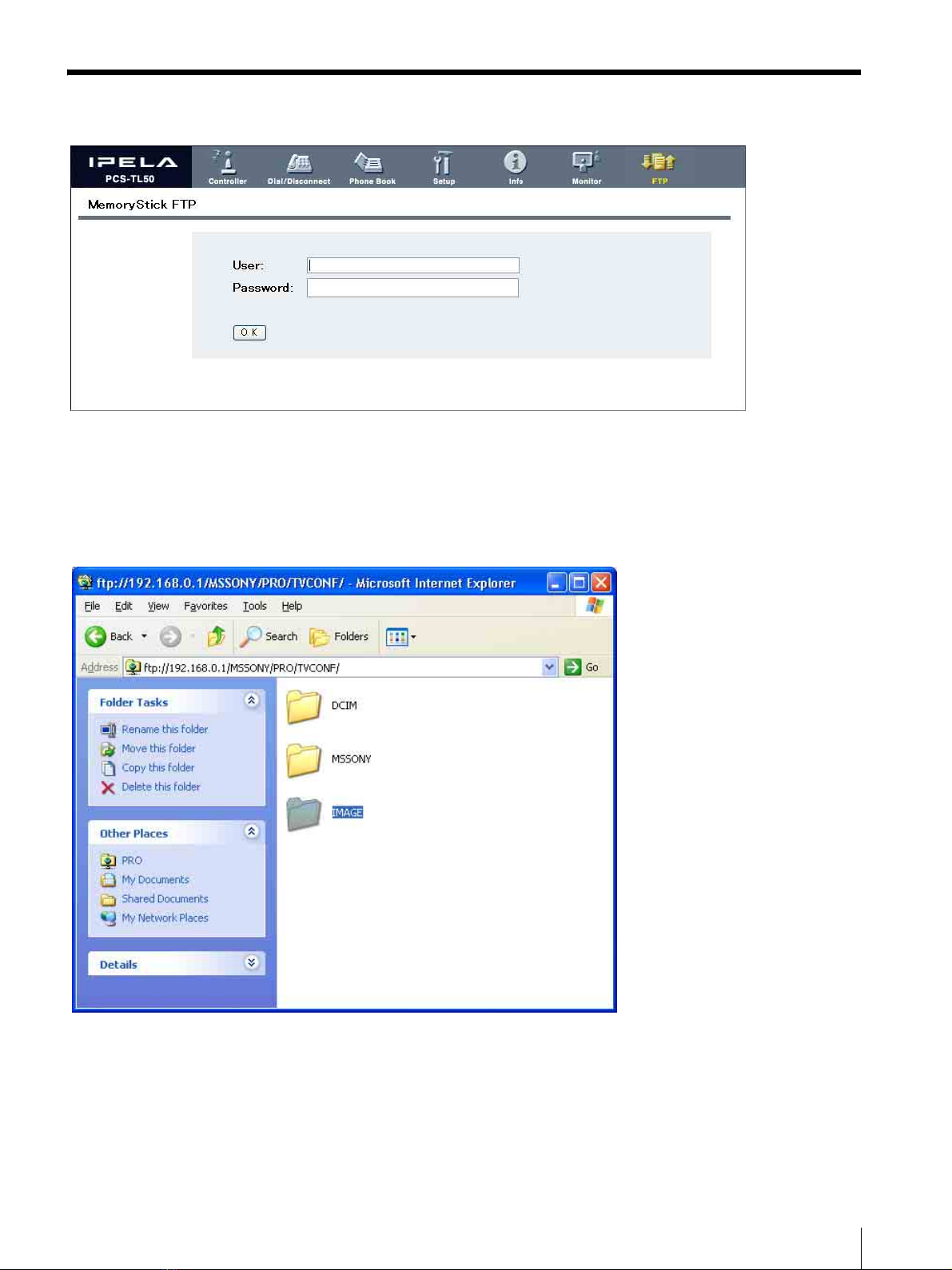

10.How to use “FTP”
Click the [FTP] button, and you will jump to the “Memory Stick FTP” page.
Enter “sonypcs” in the “User” box and the Remote Access Password registered in the Administrator Setup menu in the
“Password” box, then click the [OK] button.
Each character of a password is shown as “*” on the screen.
If the user name and password are correct, the FTP site will come up on the screen.
Download a still image from the IMAGE folder on the FTP site and save it under the directory “\DCIM\100MSDCF”
in a “Memory Stick” with a file name “DSCXXXXX.jpg.”
You can use the saved image for the Phone Book and One Touch Dial registration.
