Sony CCU-900 User manual

OPERATION MANUAL [English]
1st Edition (Revised 3)
CAMERA CONTROL UNIT
CCU-900/900P
DIGITAL INTERFACE UNIT
BKP-9330

1
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
To avoid electrical shock, do not open
the cabinet. Refer servicing to qualified
personnel only.
AVERTISSEMENT
Afin d’éviter tout risque d’incendie ou
d’électrocution, ne pas exposer cet
appareil à la pluie ou à l’humidité.
Afin d’écarter tout risque
d’électrocution, garder le coffret fermé.
Ne confier l’entretien de l’appareil qu’à
un personnel qualifié.
VORSICHT
Um Feuergefahr und die Gefahr eines
elektrischen Schlages zu vermeiden,
darf das Gerät weder Regen noch
Feuchtigkeit ausgesetzt werden.
Um einen elektrischen Schlag zu
vermeiden, darf das Gehäuse nicht
geöffnet werden. Überlassen Sie
Wartungsarbeiten stets nur
qualifiziertem Fachpersonal.
WARNING
THIS APPARATUS MUST BE EARTHED.
AVERTISSEMENT
CET APPAREIL DOIT ÊTRE RELIÉ À LA TERRE.
WARNUNG
DIESES GERÄT MUSS GEERDET WERDEN.
For customers in the USA (for CCU-900)
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own
expense.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your authority
to operate this equipment.
The shielded interface cable recommended in this manual
must be used with this equipment in order to comply with the
limits for a digital device pursuant to Subpart B of Part 15 of
FCC Rules.
This symbol is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING: THIS WARNING IS APPLICABLE FOR USA
ONLY.
If used in USA, use the UL LISTED power cord specified
below.
DO NOT USE ANY OTHER POWER CORD.
Plug Cap Parallel blade with ground pin
(NEMA 5-15P Configuration)
Cord Type SJT, three 16 or 18 AWG wires
Length Less than 2.5 m (8 ft. 3in.)
Rating Minimum 10 A, 125 V
Using this unit at a voltage other than 120 V may require the
use of a different line cord or attachment plug, or both. To
reduce the risk of fire or electric shock, refer servicing to
qualified service personnel.

2
This camera control unit is classified as a CLASS 1 LASER
PRODUCT.
The CLASS 1 LASER PRODUCT Iabel is located on the rear
panel.
Diese Kamerasteuereinheit ist klassifiziert nach LASER
KLASSE 1 PRODUKT.
Das LASER KLASSE 1 PRODUKT-Label befindet sich auf
der Rückseite.
LUOKAN 1 LASERLAITE
KLASS 1 LASER APPARAT
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
VORSICHT
Halten Sie sich bei der Bedienung, der Einstellung und beim
Verwendungszweck an die Angaben in der Anleitung, da
sonst Strahlungsgefahr besteht.
Laser Diode Properties
Material: InGaAsP
Wave length: 1310 ±40 nm
Emission duration: Continuous
Laser output power: 141 mW
Daten der Laserdiode
Material: InGaAsP
Wellenlänge: 1310 ±40 nm
Emissionsdauer: Kontinuierlich
Laser-Ausgangsleistung: 141 mW
Laserdiode data
Materiale: InGaAsP
Bølgelængde: 1310 ±40 nm
Strålingsvarighed: Kontinuerlig
Lasereffekt: 141 mW
Laserdiodens egenskaper
Material: InGaAsP
Våglängd: 1310 ±40 nm
Strålningstid: utan avbrott
Laseruteffekt: 141 mW
Laserdiodens egenskaper
Materiale: InGaAsP
Bølgelengde: 1310 ±40 nm
Emisjonslengde: Kontinuerlig
Laser utgangseffekt: 141 mW
For the customers in Europe (for CCU-900P)
This product with the CE marking complies with both the
EMC Directive (89/336/EEC) and the Low Voltage Directive
(73/23/EEC) issued by the Commission of the European
Community.
Compliance with these directives implies conformity to the
following European standards:
• EN60950: Product Safety
• EN55103-1: Electromagnetic Interference (Emission)
• EN55103-2: Electromagnetic Susceptibility (Immunity)
This product is intended for use in the following
Electromagnetic Environment: E4 (controlled EMC
environment, ex. TV studio).
Pour les clients européens (pour le CCU-900P)
Ce produit portant la marque CE est conforme à la fois à la
Directive sur la compatibilité électromagnétique (EMC) (89/
336/CEE) et à la Directive sur les basses tensions (73/23/
CEE) émises par la Commission de la Communauté
Européenne.
La conformité à ces directives implique la conformité aux
normes européennes suivantes:
• EN60950: Sécurité des produits
• EN55103-1: Interférences électromagnétiques (émission)
• EN55103-2: Sensibilité électromagnétique (immunité)
Ce produit est prévu pour être utilisé dans l'environnement
électromagnétique suivant: E4 (environnement EMC
contrôlé ex. studio de télévision).
Für Kunden in Europa (für CCU-900P)
Dieses Produkt besitzt die CE-Kennzeichnung und erfüllt
sowohl die EMV-Direktive (89/336/EEC) als auch die
Direktive Niederspannung (73/23/EEC) der EG-Kommission.
Die Erfüllung dieser Direktiven bedeutet Konformität für die
folgenden Europäischen Normen:
• EN60950: Produktsicherheit
• EN55103-1: Elektromagnetische Interferenz (Emission)
• EN55103-2: Elektromagnetische Empfindlichkeit
(Immunität)
Dieses Produkt ist für den Einsatz unter die folgende
elektromagnetische Bedingung ausgelegt: E4 (kontrollierter
EMV-Bereich, z.B. Fernsehstudio).
+37
–19
+37
–19
+37
–19
+37
–19
+37
–19

3
Table of Contents
Overview....................................................................................................4
System Configuration Example...............................................................7
Location and Function of Parts ...............................................................8
Front Panel ........................................................................................8
Rear Panel .........................................................................................9
BKP-9330 (optional) .......................................................................14
Internal Board..................................................................................15
Connections .............................................................................................18
Digital Video Signal Connections ...................................................18
Video Signal Connections ...............................................................19
Connections for the Dual Camera Operation ..................................20
Connections for a Super-Motion Camera (with the BKP-9330) .....21
Connections for Control, Intercom, Tally, and Audio Signals........22
Self-Diagnosis ..........................................................................................24
CCU-900/900P ................................................................................27
Specifications...........................................................................................27
BKP-9330 (optional) .......................................................................28

4
Overview
The CCU-900/900P Camera Control Unit is connected to a CCD video
camera. It performs signal processing and provides an interface for
external equipment.
The CCU-900/900P may be combined with a BVP-9500WS/9500WSP
Super Motion Camera to establish a super motion camera system by
attaching an optional BKP-9330 board.
The CCU-900/900P may be combined with an MSU-700A/750 Master
Setup Unit (optional) or RCP-700-series Remote Control Panel (optional)
to form a camera control system. Further, a system capable of controlling
multiple video cameras may be made up by adding a CNU-500/700
Camera Command Network Unit.
The CCU-900/900P has the following features.
Multiple video inputs and outputs
The CCU-900/900P has three SDI (Serial Digital Interface) signal outputs,
an SDI picture monitor output, and four component SDI signal inputs.
The CCU-900/900P also has two analog waveform monitor outputs, two
picture monitor outputs, and four return video inputs. It also has SDI AUX
signal input and output, and analog video input and output for tele-
prompter.
The input signal must be synchronized with the clock of the CCU-900/
900P.
Adding a BKP-9330 board (optional) enables SDI superslow output.
External reference signals
The CCU-900/900P can be locked with an external reference signal. Either
a sync signal or an SDI signal input to the SERIAL RET INPUT 1
connector may be used as the reference signal.
Optical digital transmission
The CCU-900/900P can be connected to a camera using an optical-fiber
cable (two single-mode optical-fiber lines, two power lines, and two
control lines) for transmission of digitized video, audio, and control
signals. By connecting multiple 250-meter (820-foot) optical-fiber cables,
signals may be transmitted up to 3,000 meters (1.86 miles). The maximum
cable length for supplying power to the camera varies with the camera
system configuration and with the type of optical-fiber cable.

5
Safety-oriented power supply
The CCU-900/900P is designed for safety. When the power is turned on, a
low voltage is supplied at first. Only after it has been verified that an
appropriated camera is attached, the normal 240 V power supply is
activated. The power is not supplied unless a camera is connected via an
optoelectric cable.
Also, the CCU-900/900P is equipped with an alarm indicator to warn of
open or short circuits in the cable.
Wide range of audio functions
The CCU-900/900P has connectors for two-channel microphone output, a
digital audio output, and a program audio input. Further, the CCU-900/
900P can use an intercom system with two independent channels. An SDI
embedded audio signal can be used for the microphone output connectors,
and for the program audio input connector. For information on support for
RTS and CLEARCOM systems, contact a Sony service representative.
Remote control
The levels and phases of CCU-900/900P output signals can be controlled
remotely using an MSU-700A/750 Master Setup Unit.
Microphone volume control
The camera’s microphone volume can be controlled via the MIC
REMOTE or INCOM REMOTE connector.
Red and green tally output
Red tally and green tally signals can be output from the MIC REMOTE
connector.
Character signal output
The results of the CCU-900/900P self-diagnosis can be output as text
display.
Rack mountable
The CCU-900/900P can be installed in a standard EIA 19-inch rack (three
units high).

6
Plug-in unit configuration
Internal printed circuit boards are designed for easy plug-in and removal.
The power supply is also a plug-in type unit, for easy inspection and
maintenance.
Dual camera system configurable
Mutually connecting SDI AUX inputs and outputs of two cameras enables
establishing a dual camera system with an optical-fiber cable.
Overview

7
System Configuration Example
1
Color video camera
BVP-9500WS/9500WSP/
950/950P
+ CA-950/950P
+ CA-905L
V-wedge shoe
Tripod
Picture monitor Waveform
monitor
Headset
CCU-900/900P
Camera control unit
RCP-700-series
Remote control panel
VCS-700
Video selector
IC card
External control
equipment
Switcher
CNU-700/500
Camera command
network unit
MSU-700A/750
Master setup unit
Character monitor
BKP-9330
Picture monitor Waveform
monitor

8
Location and Function of Parts
Front Panel

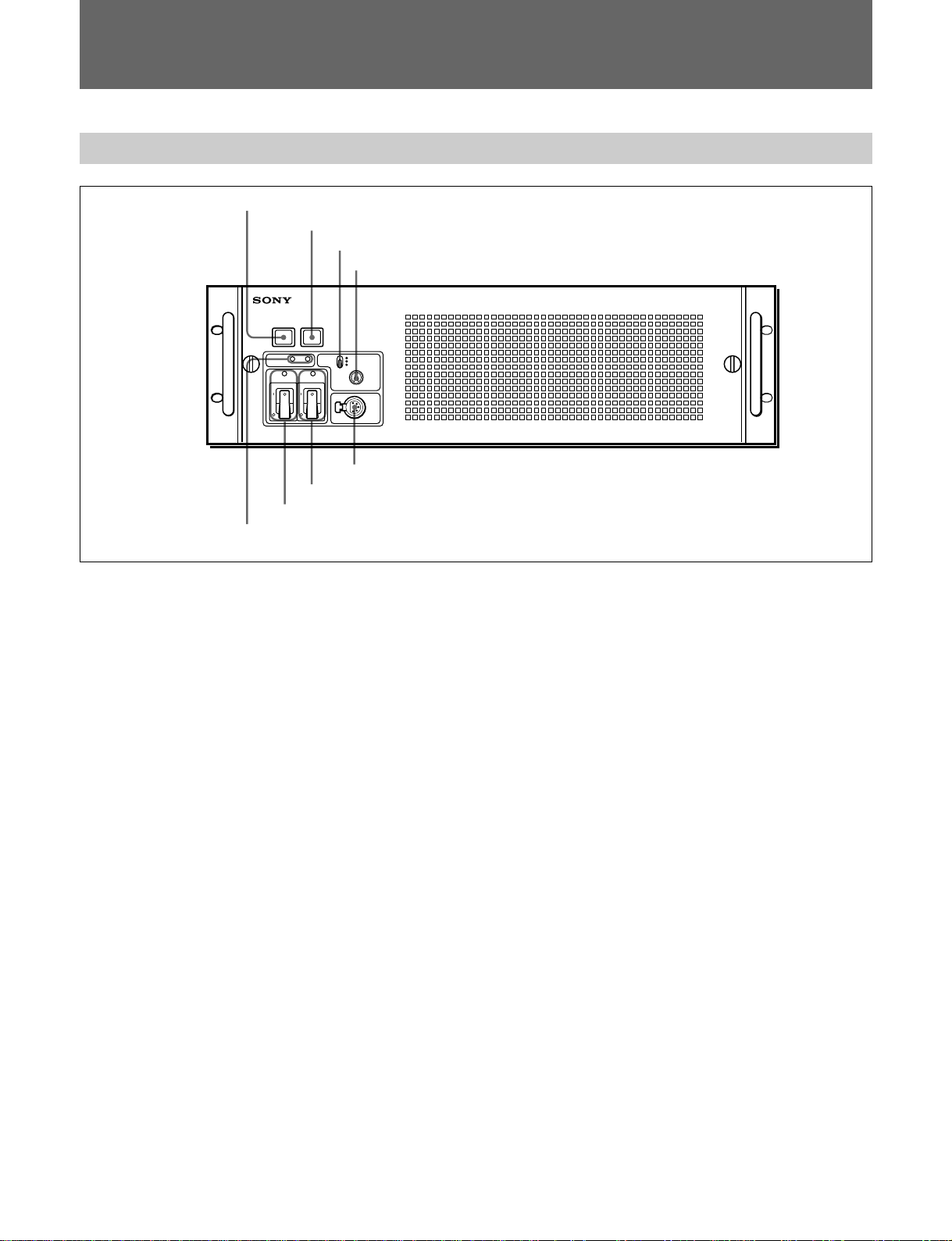

1Red tally lamp
2Green tally lamp
3MIC switch
4INTERCOM control
8INTERCOM connector
7CAMERA POWER switch and indicator
6MAIN POWER switch and indicator
5CABLE ALARM indicator
1Red tally lamp
Lights when a red tally signal is received. When the
CALL button on the video camera, Master Setup Unit
MSU-700A/750, RCP-700-series Remote Control
Panel, etc. is pressed, this lamp will go out if
previously lit, and light up if previously off. A
supplied number plate can be mounted here.
2Green tally lamp
Lights when a green tally signal is received. A
supplied number plate can be mounted here.
3MIC (microphone selection) switch
Used to select the type of headset microphone being
used, or to turn microphone input off.
DYNAMIC: for a dynamic microphone
OFF: turns microphone input off
CARBON: for a carbon microphone
4INTERCOM (intercom volume adjustment)
control
Adjusts the intercom input level.
5CABLE ALARM indicator
SHORT: This indicator lights when there is a short
circuit between a power supply line and the sheath
of the optical-fiber cable, or when the two power-
supply lines are shorted. When this indicator
lights, the power supply is shut off. (If the
optical-fiber cable is long, this indicator may light
for a few seconds after the main power is turned
on until the short-circuit detection circuitry begins
operating normally. This is not a malfunction.)
OPEN: Lights when there is no camera connected
via an optical-fiber cable to the CAMERA
connector on the rear panel.
The indicator blinks slowly when reception of
light is in WARNING status, and blinks fast when
it is in CARE status.
6MAIN POWER switch and indicator
Turns on/off the power to the entire system, consisting
of the CCU-900/900P, a video camera, an RCP-700-
series Remote Control Panel connected via the
REMOTE connector, etc. Setting the switch to the ?
position turns the power on, and setting it to aturns it
off. The indicator is lit when the power supply is on.
7CAMERA POWER switch and indicator
Turns on/off the power to the camera when the MAIN
POWER switch is on. Setting the switch to the ?
position turns the power on, and setting it to aturns it
off.
When a remote control panel is connected and the
power supply is turned off with the CAM PW button
on the remote control panel, this switch alone cannot
be used to turn on the power of the video camera.

9
1CAMERA connector (optical-fiber connector)
For connecting a video camera, using an optical-fiber
cable such as the FC2-PD50/PD250. All video camera
signals, including power supply, control, video, and
audio, are sent and received with an optical-fiber cable.
Note
Dust on the connection surface of the optical-fiber
cable may result in transmission errors. When not
connected, always cover the end with the supplied cap.
Rear Panel
4-AC IN connector
BKP-9330 (optional)
3Analog signal input/output connectors
2SDI signal input/output connectors
1CAMERA connector
0INTERCOM/TALLY/PGM connector
9INCOM REMOTE connectors
8AUDIO OUTPUT connectors
7 DIGITAL AUDIO connector
6CHARACTER OUTPUT connector
5Remote control connectors
8INTERCOM connector (XLR 5-pin)
For connecting a headset. To use a headset with a plug
other than an XLR 5-pin plug, consult a Sony service
representative.

10
2SDI signal input/output connectors
ASERIAL RET INPUT 1 to 4 (SDI return video 1,
2, 3, and 4 input) connectors (BNC-type)
Four SDI return video signals are received
independently. The selection of RET 1, 2, 3, or 4 is
made using the return video switch on the camera.
The signals assigned to RET 1, 2, 3, and 4 are selected
using the setup menu of the CCU-900/900P, or using
the MSU-700A/750 Master Setup Unit, from among
the SDI, analog, SDI AUX, and PROMPTER.
BAUX IN (auxiliary input) connector (BNC-type)
For inputting an SDI video signal.
The input signal is output via the AUX OUT
connector. It is also possible to assign the signal to
RET 1, 2, 3, and 4 using the setup menu of the CCU-
900/900P.
For dual camera operation, the primary and secondary
CCUs are connected using the AUX IN/OUT
connectors mutually.
CAUX OUT (auxiliary output) connector (BNC-
type)
Outputs the signal that is input via the AUX IN
connector.
DREFERENCE IN (reference input) connectors
(BNC-type)
Used to input a reference signal (sync or VS signal) for
an external sync operation. Terminate the unused
connector with a 75-ohm terminator.
ESERIAL OUTPUT 1 to 3 connectors (BNC-type)
The signal from the video camera is output as three
SDI signals.
If the BKP-9330 is installed, mixed signal of triple-
speed signals sent from the BVP-9500WS/9500WSP
are output through these connectors. Mixing is set to
ON or OFF with the VPR-57 board of this unit or the
MSU-700A/750 Master Setup Unit.
FSERIAL OUTPUT MONI (SDI monitor output)
connector (BNC-type)
The signal from the video camera mixed with the
character signal, skin-tone gate signal, and 4:3 marker
signal is output as an SDI signal.
Mixing is set to ON or OFF with the RCP-700 series or
MSU-700A/750 Master Setup Unit.
Location and Function of Parts
FSERIAL OUTPUT MONI
connector
1234 1IN OUT 2 3 MONI
SERIAL RET INPUT AUX REFERENCE IN SERIAL OUTPUT
ASERIAL RET INPUT 1 to 4 connectors
DREFERENCE IN connectors
ESERIAL OUTPUT 1 to 3 connectors
BAUX IN connector
CAUX OUT connector

11
3Analog signal input/output connectors
DMONITOR OUT WF 1/WF 2 (waveform
monitor output 1/2) connectors (BNC-type)
Used for outputting a video signal for the waveform
monitor selected with the MONITOR SELECT button
on the RCP-700-series Remote Control Panel or the
WF MONITOR button on the MSU-700A/750 Master
Setup Unit.
For information about these operations, refer to the
Operation Manual supplied with the Master Setup Unit or
Remote Control Panel.
EMONITOR OUT PIX 1/PIX 2 (picture monitor
output 1/2) connectors (BNC-type)
Used for outputting a video signal for a picture
monitor selected with the MONITOR SELECT button
on the RCP-700-series Remote Control Panel, or the
PICTURE MONITOR button on the MSU-700A/750
Master Setup Unit.
For information about these operations, refer to the
Operation Manual supplied with the Master Setup Unit or
Remote Control Panel.
FSYNC OUT (sync signal output) connector
(BNC-type)
Used for outputting a composite sync signal from the
internal sync signal generator.
ARET INPUT 1 to 4 (return video 1, 2, 3, and 4
input) connectors (BNC-type)
Four analog return video signals are received
independently. The selection of RET 1, 2, 3, or 4 is
made using the return video switch on the camera.
The signals assigned to RET 1, 2, 3, and 4 are selected
using the setup menu of the CCU-900/900P, or using
the MSU-700A/750 Master Setup Unit, from among
SDI, analog, SDI AUX, or PROMPTER.
BPROMPTER IN connectors (BNC-type)
Used for prompter signal input. Terminate the unused
connector with a 75-ohm terminator. An analog signal
of 1.0 Vp-p, 75-ohms is output via the PROMPTER
OUT connector of a video camera with a frequency
bandwidth of 5 MHz, regardless of signal format.
CPROMPTER OUT connector (BNC-type)
Outputs the signals that are input via the PROMPTER
IN connectors of the CCU-900/900P.
These are analog signals of 1.0 Vp-p, 75 ohms.
1 2 3 4 IN OUT PIX1WF1 WF2 PIX2
MONITOR OUT SYNC OUT
RET INPUT PROMPTER
EMONITOR OUT PIX 1/PIX 2 connectors
ARET INPUT 1 to 4 connectors
BPROMPTER IN connectors
CPROMPTER OUT connector
DMONITOR OUT WF 1/WF 2 connectors
FSYNC OUT connector

12
4-AC IN (AC power supply input) connector
Connect to an AC power supply using the supplied AC
power cord. The power cord is fixed to the CCU-900/
900P using the supplied plug holder.
5Remote control connectors
AAUX 1/AUX 2 (auxiliary 1/auxiliary 2)
connectors (D-sub 9-pin, RS-422)
Used to connect the CCU-900/900P and external
equipment via an RS-422 interface.
BMIC REMOTE (microphone remote) connector
(D-sub 15-pin)
Using this connector, the video camera’s microphone
input level may be set from external equipment such as
an audio mixer in five steps (–60, –50, –40, –30, and
–20 dB). When recording, set the volume to an
appropriate level for the audio conditions.
Outputs red and green tally signals.
The microphone input level can be set using switches on an
internal board. For more information on setting the
switches, contact a Sony service representative.
CWF MODE (waveform monitor mode)
connector (D-sub 15-pin)
Used to connect a cable from the appropriate
connector on a waveform monitor when operating the
waveform monitor display using an MSU-700A/750
Master Setup Unit or RCP-700-series Remote Control
Panel. When using a recall-type monitor, preset a
display mode on the waveform monitor, and then
recall the mode externally.
DWF MODE (waveform monitor mode output)
connector (4-pin)
Used to connect a cable from the appropriate
connector on a waveform monitor when monitoring a
signal in sequential mode. A sequence signal will be
output when the SEQ button on the RCP-700-series
Remote Control Panel is pressed, allowing
simultaneous monitoring of the R, G, and B signals in
sequential mode.
For information about these operations, refer to the
Operation Manual supplied with the Remote Control Panel.
ERCP/CNU connector (8-pin)
Used to connect to an MSU-700A/750 Master Setup
Unit, CNU-500/700 Camera Command Network Unit,
or RCP-700-series Remote Control Panel using a
CCA-5 Connection Cable. Control signals are sent
and received via this connector. When using an RCP-
700-series unit, power is also supplied.
FTRUNK LINE 1/TRUNK LINE 2 connectors
(D-sub 9-pin, RS-232C)
Used to connect the CCU-900/900P to the TRACKER
connector (20-pin) on a CA-950/950P Camera Adaptor
via an RS-232C interface. Used mainly for
communication with equipment on the camera side.
The RXD, TXD, RTS, and CTS signals can be
transferred at up to 9600 bps using this connector.
The TRUNK LINE 2 connector is provided for
extension.
FTRUNK LINE 1/TRUNK LINE 2 connectors
AUX 1 WF MODE
AUX 2 MIC REMOTE
TRUNK LINE 1
TRUNK LINE 2
RCP/CNU
CWF MODE connector
BMIC REMOTE connector
DWF MODE connector
AAUX 1/AUX 2 connectors
ERCP/CNU connector
Location and Function of Parts

13
6CHARACTER OUTPUT (character signal
output) connector (BNC-type)
Used to output the results of the CCU-900/900P
diagnostic self-test and menu display in black-and-
white analog video format.
7DIGITAL AUDIO (digital audio signal output)
connector (BNC-type)
Used to output a digital audio signal input to the
camera, or for output of the microphone signal
converted to an AES/EBU-format digital audio signal.
8AUDIO OUTPUT (audio signal output)
connectors (XLR 3-pin)
Used to output the microphone signal or audio signal
input to the video camera.
9INCOME REMOTE (intercom remote)
connector (D-sub 25-pin)
Enables remote operation such as muting the intercom,
break-in from the producer or from engineers by
sending signals through this connector from external
control equipments.
Outputs red tally signal, green tally signal, tally call
signal, and camera number signal.
For information on installation, contact a Sony service
representative.
0INTERCOM/TALLY/PGM (program)
connector (D-sub 25-pin)
Used for input and output of intercom, tally, and
program audio signals. Connect the cable from the
intercom/tally/program connector of the intercom
system.
For information on using with an RTS intercom system,
contact a Sony service representative.

14
BKP-9330 (optional)
A BKP-9330 board can be mounted in the extension
slot of the CCU-900/900P.
For information on installation, contact a Sony service
representative.
1SERIAL OUTPUT connectors
SS-BSS-A SS-C
SERIAL OUTPUT
1SERIAL OUTPUT (SS-A, SS-B, SS-C)
connectors (BNC-type)
Outputs a triple-speed signal from the BVP-9500WS/
9500WSP Super Motion Camera via the A, B, and C
connectors as an SDI signal.
For the super-slow output format, it is enabled to set
the output format for an MAV-555 with a BKMA-
520SS installed or for the SLMS of the EVS.
The output format is changed using switches on the
VPR board.
The rightmost connector is a supplementary connector.
Location and Function of Parts

15
Internal Board
DPR-69 board
1POWER indicator
Lights when the board is supplied with proper power.
2SYSTEM POWER indicator
Lights when the system is supplied with proper power.
3STAIR STEP controls
For controlling the staircase signal to display the signal
on a waveform monitor in sequential mode.
4GENLOCK LOCK indicator
Lights when the system is locked with an external sync
signal.
5GENLOCK DIGITAL indicator
Lights when the sync signal is DIGITAL.
6CHU LOCK (camera head unit lock) indicator
Lights when communication with the connected
camera is normal.
7OPTICAL CONDITION (CCU) indicators
Indicate the light level received by the CCU-900/900P.
(0 dBm = 1 mW)
Green lit: normal (optical level not less than –17
dBm)
Yellow lit: normal (optical level between –17 dBm
and –20 dBm)
Red lit: not normal (optical level less than –20 dBm)
Note
Clean the optical connector or optical cable if the red
indicator lights.
Cleaning is recommended if the yellow indicator
lights.
For method of cleaning, refer to the maintenance manual.
Reference
The signal level is reduced 0.5 dB for every 1 km of
optical cable.
It is reduced 0.5 dB for every cable connector.
8OPTICAL CONDITION (CHU) indicators
Indicate the light level received by the Camera. (0
dBm = 1 mW)
Green lit: normal (optical level not less than –17
dBm)
Yellow lit: normal (optical level between –17 dBm
and –20 dBm)
Red lit: not normal (optical level less than –20 dBm)
All indicators off: abnormal communication with the
camera (CHU LOCK indicator also off)
Note
Clean the optical connector or optical cable if the red
indicator lights.
Cleaning is recommended if the yellow indicator
lights.
9DUAL MODE indicator
Indicates the setting of the CCU when used in dual
camera mode.
SYSTEM
POWER
POWER
GENLOCK OPTICAL CONDITION DUAL MODE
CHU LOCK
LOCK
DPR
DIGITAL CCU CHU PRIME SECOND
LEVEL POSITION
STAIR
STEP
9DUAL MODE indicators
8OPTICAL CONDITION (CHU)
indicators
7OPTICAL CONDITION (CCU)
indicators
6CHU LOCK indicator
1POWER indicator
2SYSTEM POWER indicator
3STAIR STEP controls
4GENLOCK LOCK indicator
5GENLOCK DIGITAL indicator

16
VPR-57 board
1POWER indicator
Lights when the board is supplied with proper power
supply.
2ENABLE indicator
Lights when the VPR board is in operation.
3REMOTE/LOCAL switch
For setting the mode, normal (frame interporation) or
triple speed on the VPR board.
REMOTE enables setting from the MSU-700A/750.
REMOTE
POWER
VPR
ENABLE LOCAL
1POWER indicator
2ENABLE indicator 3REMOTE/LOCAL switch
Location and Function of Parts

17
AT-122 board
1POWER indicator
Lights when the board is supplied with proper power
supply.
2MIC LEVEL CH1/CH2 (CH1/CH2 microphone
level) controls
For controlling the input level of the MIC connector of
the camera in steps of 10 dBu between –60 dBu and –
20 dBu.
3MENU ON/OFF switch
For switching ON/OFF the setup and engineering
menus of the CCU.
When the switch is set to ON with the MENU
ENTER/CANCEL control held pressed, the
engineering menu is displayed.
4MENU ENTER/CANCEL control
For selecting menu items and changing the values.
When pressed, it functions as ENTER.
5ENTER/CANCEL switch
For registering or cnaceling the selected item in a
menu operation. Turning the switch to ENTER
enables the same function as pressing the MENU
ENTER/CANCEL control.
6INCOM SELECT (intercom select) switch
For selectding the intercom line.
ENG: engineer line
PRIVATE: private line
PROD: producer line
7PGM MIX (program signal mix) control
For controlling the volume of the program that is input
via the INTERCOM connector on the front panel.
8SIDE TONE control
For controlling the volume of the side tone that is input
via the INTERCOME connector on the front panel.
9RTS CANCEL (ENG) (engineer line RTS
cancel) control
For controlling the CANCEL level of the ENG line
when the RTS intercom system is used.
0RTS CANCEL (PROD) (producer line RTS
cancel) control
For controlling the CANCEL level of the PROD line
when the RTS intercom system is used.
MIC LEVEL
MENU INCOM
SELECT PGM
MIX SIDE TONE
RTS
CANCEL
POWER NORM NORM
CH-1
MIN MIN ONOFF
CH-2 PRIVATE
ENTER
ENG PROD
ENG CANCEL PROD
AT
0RTS CANCEL (PROD) control
9RTS CANCEL (ENG) control
8SIDE TONE control
7PGM MIX control
6INCOM SELECT switch
1POWER indicator
2MIC LEVEL CH1/CH2 controls
3MENU ON/OFF switch
4MENU ENTER/CANCEL control
5ENTER/CANCEL switch

18
Connections
Digital Video Signal Connections
CAMERA
SERIAL RET INPUT 1~4
REFERENCE IN
PROMPTER IN
SYNC OUT
SERIAL OUTPUT 1~3
SERIAL OUTPUT MONI
CHARACTER OUTPUT
SERIAL RET INPUT 1~4
REFERENCE IN
SYNC OUT
SERIAL OUTPUT MONI
SERIAL OUTPUT 1~3
CCU
CCU
CHARACTER 2
REFERENCE
-AC IN
-AC IN
CAMERA
CHARACTER OUTPUT
RCP/CNU
CCU
PROMPTER IN
PROMPTER
IN
INPUT
OUTPUT
REF IN
SD reference signal
75-ohm termination
Analog video
signal
Camera Command Network
Unit CNU-700
Digital Video Routing Switcher
DVS-V1201
Analog video signal
Component SDI signals
Reference signal
75-ohm
termination
Component SDI
signals
AC power cord
(supplied)
AC power
supply
Optical-fiber cable
CCU-900/900P 2
Component SDI signals
Reference signal
Reference signal
Return video signals
Analog video signal
AC power
supply
AC power cord
(supplied)
BVP-9500WS/9500WSP/950/950P
+ CA-950/950P
+ CA-905L 1
Optical-fiber cable
CCU-900/900P 1
Component SDI signals
Reference signal
Prompter signal
Reference signal
Return video signals
BVP-9500WS/9500WSP/950/950P
+ CA-950/950P
+ CA-905L 2
Other than the optical-fiber cables and AC power cords, all cables are 75-ohm coaxial cables with BNC connectors.
75-ohm termination
75-ohm termination
75-ohm
termination
