Sony KCC-PCH User manual

SONY VISCA
Polycom Terminal
Remote Control Unit
User Manual
© 2008 Sony Visca Protocol
Please read carefully before using
WARNING!
Do not use Gasoline, Thinner, etc. wipe the surface, soft cloth dipped
in clean water or alcohol is acceptable

WARNING!
1. Do not touch the water or other liquid，keep the surface clean.
2. This product is for indoor use only, Do not rain or let it be wet
3. When the tem is below -10 centigrade，LCD may can’t show properly.
4. Please use our own power adaptor, If you wannar change it, please sure the voltage is 9-15V/1000ma
5. Avoiding collided with hard objects
IMPORTANT

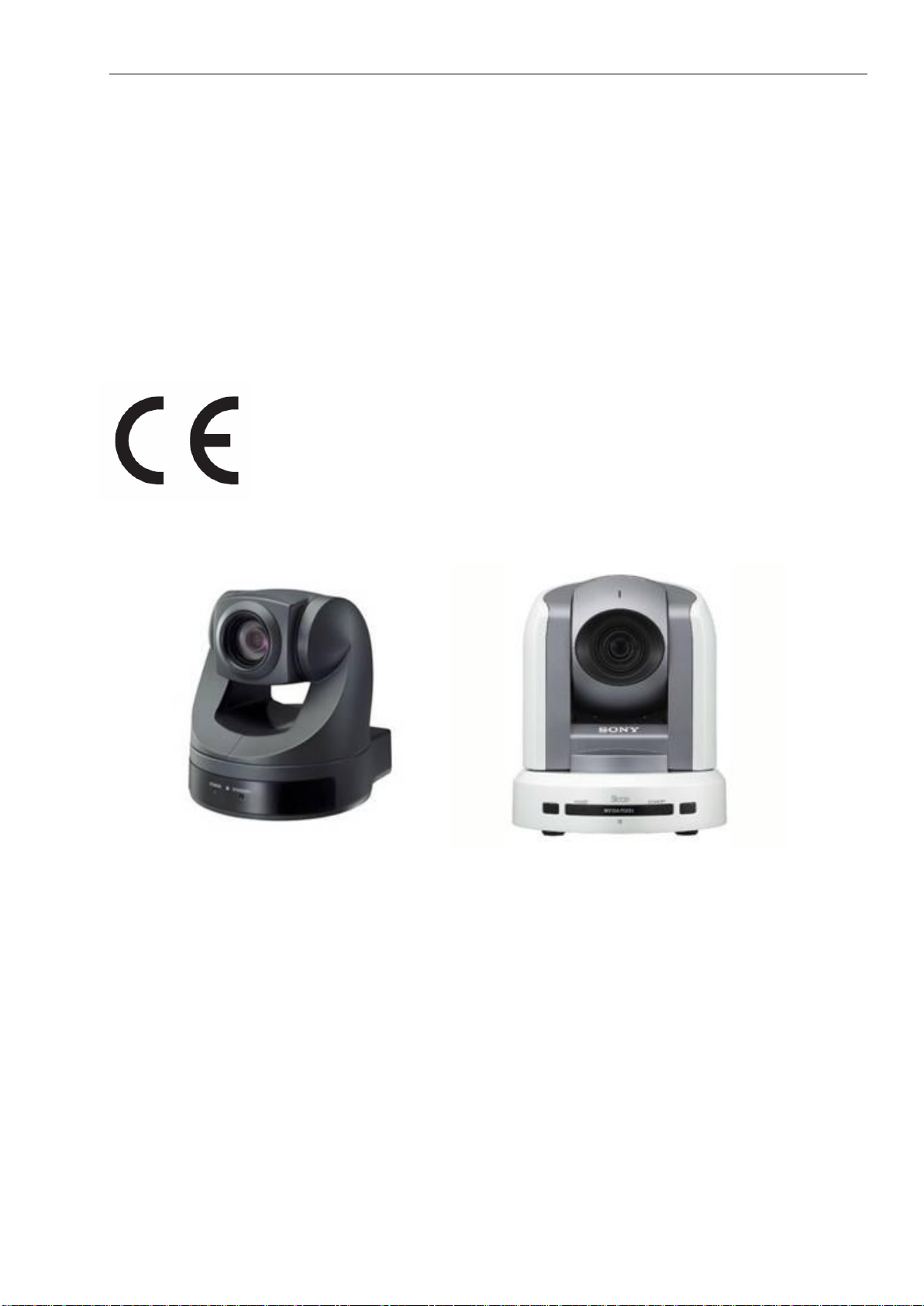

This product is manufactured to comply with requirements of following
directives:
89/336/EEC, 92/31/EEC, 93/68/EEC
Function Intro：
Sony VISCA RS-422/RS485 communication，Hi-speed、long distance control.
Two RS422/485 communicate interface，The Max. can reach 2000 meters.
6-16 cameras preset，Like PTZ Control, Lens position, white balance, Mirror, Freeze, ect.
Equipment that can be connected：

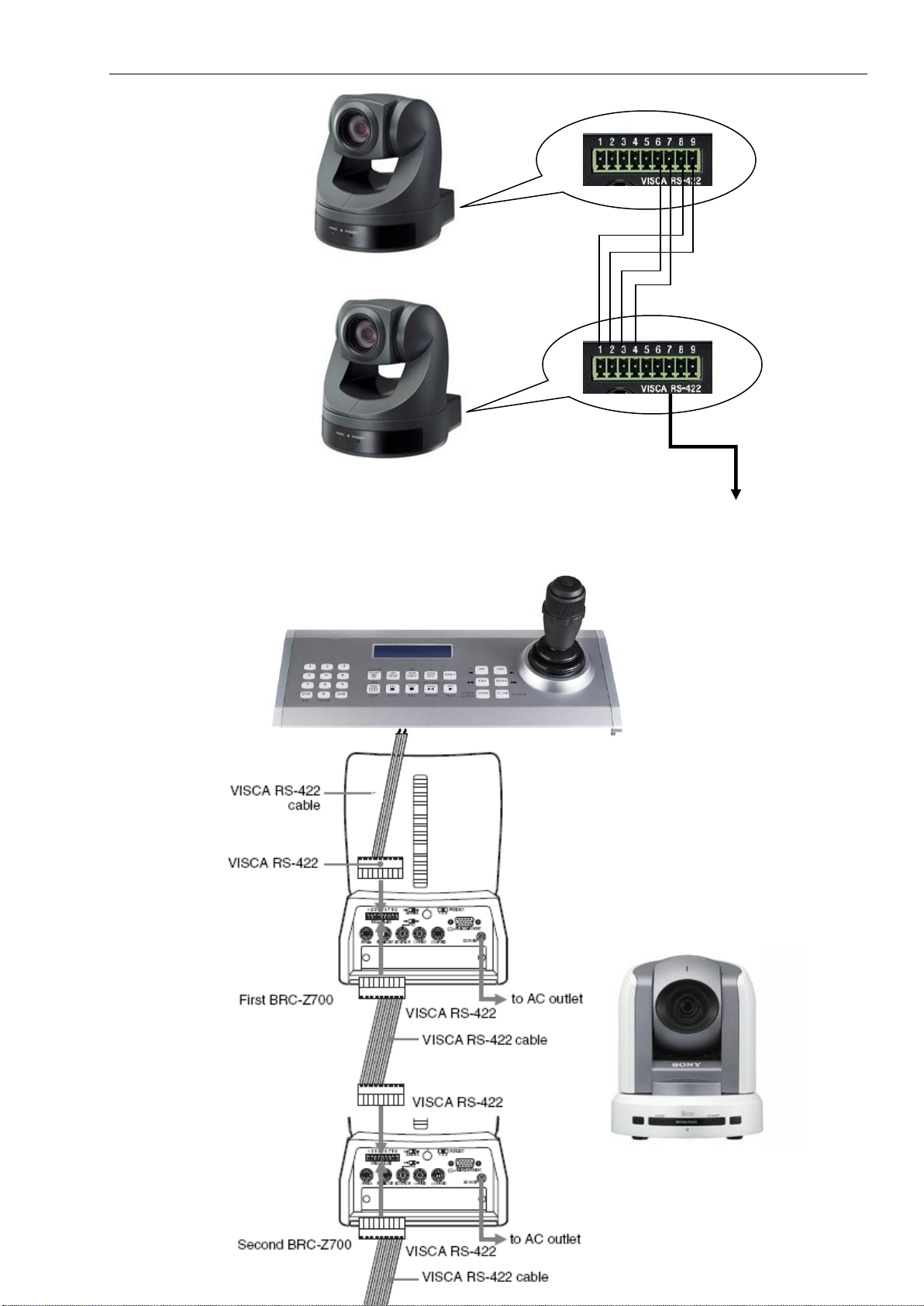

BRC-H700/Z700 3CCD Color Video Camera
BRC-300/300P 3CCD Color Video Camera
EVI-D100/D100P/S Color Video Camera
EVI-D70/D70P/W Color Video Camera

EVI-D30/D30P Color Video Camera
SNC-RZ30N/RZ30P Network Camera
SONY EVI-HD1
EVI-HD3V
SONY EVI-HD7V
BRC-Z330 CMOS
Sony DXC-390/390P——1/3 DSP 3-CCD camera
Sony DXC-990/990P——1/2 DSP 3CCD camera
Polycom series camera
Joystick：6-axis, zoom function, shuttle, jog in the knob, auto returning
Buttons: 28, multifunction, silicon + keystoke
Display: LCD, 2 lines of 20 characters, backlight
Performance Index:
Dimensions: 355(L) ×150(W) ×155(H)mm
Weight: 1.47kg (w/o Power supply)
1.89 kg (with Power supply)
2.4kg (prepared for shipping)
Operating Temperature: -10°C - 70°C
Humidity: 30% - 90% (w/o condensation)
Adapter: DC12V / 1000mA
ELECTRICAL SPECIFICATION
Power source: 12 VDC
Power consumption: 2.7 W (not loaded line)
Recommended adapter: AC100-240V-12VDC/1000mA
Connectors:
1 x RJ-45 (RS-485) (for digital video recorders)
RS485(COM1)RS485 transmit Power output 2000M(for camera)
RS485(COM2)RS485 two way, standard 485 bus，1200M(for camera)

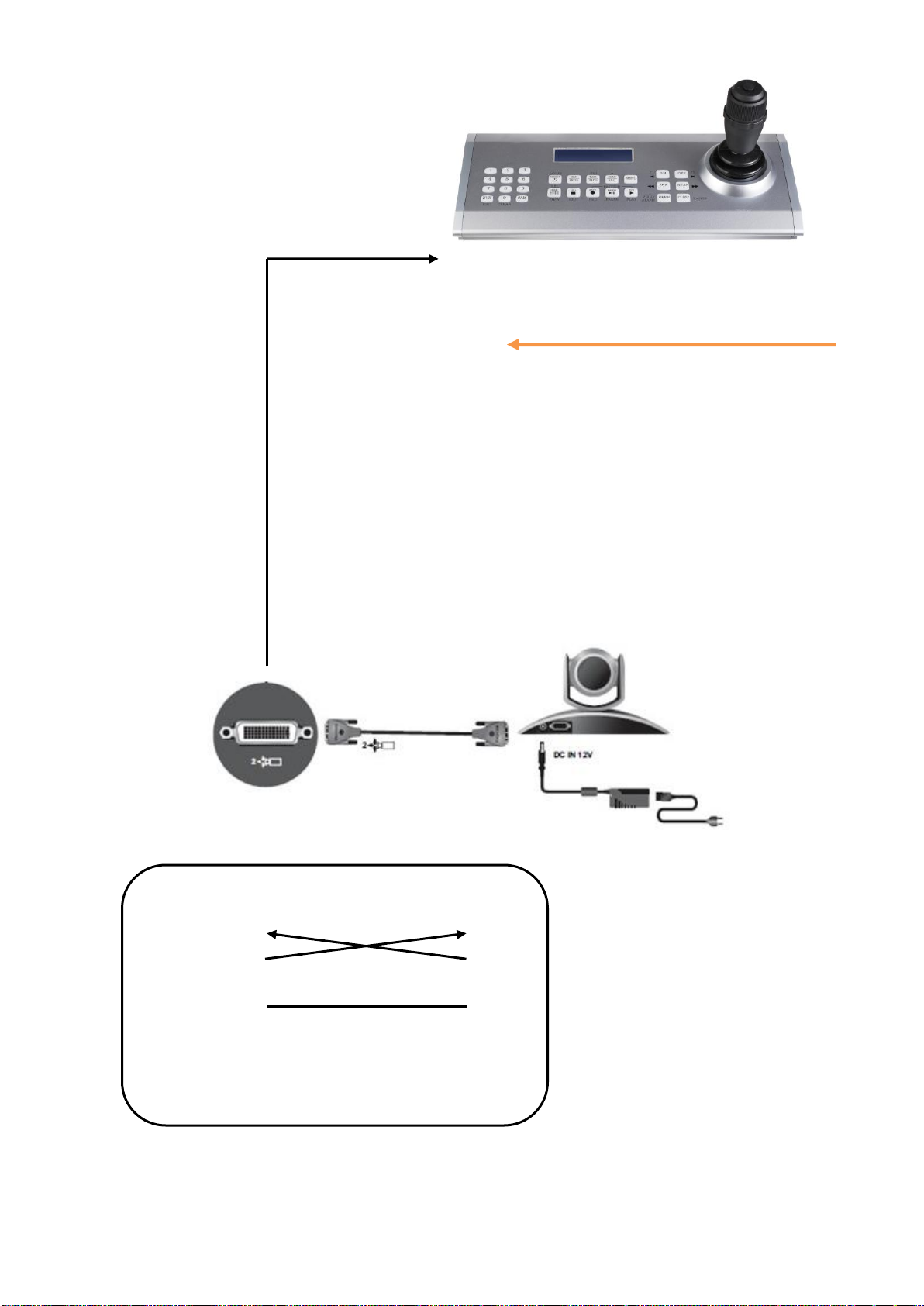

USB-D:USB2.0(for computer)
Accessories：1. Power adaptor x 1
2. RJ45 signal cable x 1
3. Junction box x1
4. 120 Ohm 1/4Wresistance x3
SONY VISCA Usage （EVI-D70TECH）
Home Press Home
Set preset position Number (1-6)+Set
Delete preset position Number (1-6)+Del
Call preset position Number (1-6)+Preset
Backlight compensation [ ]
Picture Freeze [ ]
Image Mirror [ ]
Screen information display 99+ON
Screen information off：99+OFF

WB Mode
Press [TOUR] to change mode
6 WB Modes
Press TOUR, 6WB Modes as follow
Auto
Indoor
Outdoor
One Push WB
ATW
Manual
Manual WB Mode
There are three parameters adjustable by Press“SEQ”
R Gain、B Gain、RB Stop
(1)Manual WB R Gain
(1)Under Manual WB, Press SEQ，LCD display“R Gain”
(2)Joystick“shuttle”clockwise +, anticlockwise -
(2) Manual WB B Gain
(1) Under Manual WB, Press SEQ，LCD display“B Gain”
(2) Joystick“shuttle”clockwise -, anticlockwise +
(3) Manual WB R/B Gain stop
(1) Under Manual WB, Press SEQ，LCD display“Gain Stop”
ONE PUSH
Under ONE PUSH WB mode，Press“SEQ”
Right&Left exchange
1) Right&Left exchange: 200+ON
2) Normal: 200+OFF
Attention: This function is not storage,need to be set every time
：
6 Axis non-contact, High resolution, Long life
Cursor Control（2 Axis）
KX KY Axis

KX、KY Axis：
Mainly for Cursor Control or User
defined; 16Angle each way
Z Axis：ZOOM control
ZAxis：B Axis：shuttle
ZOOM control，±36
Degree,64 at Max. different protocols with
different parameters
Main Axis X Y（2）
BAxis：
shuttle jog: General for frame
control of VCR, or User defined
Main Axis X、Y：
PTZ Control,±36 degree ，0-100
adjustable, different protocols with
different parameters
Front Panel:
Button Backlight
Two lights under each button，Blue, Red; Blue for backlight, Red for function remind. Press it the blue
backlight will blink about 1S,Red for 2S
Press DVR and CAM, The blue will blink twice, Red(always), stats indicate
Brief Description
Glossary：
CAM：CAMERA
DVR：Digital Video Recorder
PRESET：Call Preset

SET：Set Preset
DEL：Delete Preset
HOME：home
TOUR：Cruise switch to WB
SCAN：Scan
MENU：menu
SAVE：Store(video),Backlight Compensation
PAUSE：Suspend, Frame, Freeze
RUN：Run, picture mirror
ON：Auxiliary open, open,99+ON,Screen information display
OFF：Auxiliary close, close, 99+OFF, Screen information off
FAR：Focus Far
NEAR：Focus Near
OPEN：Aperture on
CLOSE：Aperture off
PATTERN：Pattern Learn
Easy Operation
Delete Dispaly：Press“0”for 2S
Switch to Cam：No.+ CAM
Switch to DVR：No.+DVR
From DVR to CAM：CAM or“No.+CAM”
From CAM to DVR：DVR or“No.+DVR”
Call preset position：No.+PRESET
Set preset position：No.+SET
Delete preset position：No.+DEL
LCD info display：99+ON
LCD info off：99+OFF
Backlight Compensation On/Off Press [ ]
Mirror Press [ ]
Picture Freeze press [ ]
WB Mode Press [ TOUR] ,6 Mode
符号解释：
POWER 、Stop 、Backlight Compensation/Recording 、
Freeze/Suspend/Frames
Mirror/Play ; Multi Picture Switch ; Former ; Later ; Fast Reverse ;
Fast Forward
LCD Display
Camera Operating Mode
CAM：001
>> 0000

Camera Operating Mode Function(Call Preset Position)
DVR Operating Mode
DVR Operating Mode
MENU
CAM：001 Means controlling“Address Number is 001 Camera”
DVR：001 Means controlling “Address Number is 001DVR”
>> 0000 Number Display Zone, 4 digits at most
[MENU→] Menu operation of DVR
[MOVE] PRESET Function display: show the pressing button’s function, it’ll auto disappear after
3S
Direction Control: SONY VISCA Command
8 above direction control, 24 level speed
ZOOM Control: SONY VISCA Command
ZOOM：8 level, Multi zoom speed control
Real-time Control:
Joystick can control direction and zoom at the same time
Keyboard Control:
Joystick in Menu:
B Axis-- shuttle：Switch to Menu N01-10
Z Axis –Lens Control：Change parameter
Enter into the submenu: Turn “shuttle”clockwise
Back to the former menu: Turn shuttle anticlockwise
Parameter+ ：turn Z axis clockwise
Parameter - ：turn Z axis anticlockwise
CAM: 001
>> 0000 DVR:001
CAM:001
[MENU→] DVR:001
CAM：001 [MOVE]
>> 0000 PRESET

Keyboard set in OSD Menu
Menu structure
LCD OSD
Main Menu (1-10)
1. Key Backlight =On （On/Off/Active）
2. LCD Backlight =On/Off
3. Camera Protocol
=PelcoP /PelcoD /AD /Samsung /Panasonic/ DaHuaDome/Sony Visca
4. Camera Baud rate =9600 /4800 /2400
5. DVR Protocol =/Dahua/Hikvision/Dali/Hanbang/Appro
6. Alarm In = RS485 /USB
7. Alarm output =All Red /Led Blink
8. Keyboard ID =001
9. Password1 =****
Password2 =****
10. Exit
Enter in Keyboard menu set
1) Press CAM, If under CAM status，can be omitted
2) Press MUNU
3) Input Password：9999
Enter in menu set, LCD display as following
No1：Backlight
Back to Keyboard menu set：
1) Press MENU
2) Under No10：Exit ,Turn Z axis
No1：Key Backlight
Enter into the submenu: Turn “shuttle”clockwise
Back to the former menu: Turn shuttle anticlockwise
Change present status: Turn Z Axis, clockwise +，anticlockwise -
With bracket is optional，Like [ O N ] upper
No2：LCD Backlight
No1：key Backlight
[on] off
No1：key Backlight
[on] off
No2：LCD Backlight
[on] off

No3：Camera Protocol
Camera protocol as follows:
Pelco-P、Pelco-D、AD、Samsung、Panasonic、DaHuA
DH-PELCO-P、Sony Visca(default)
Turn Z Axis Zoom (clockwise+，anticlockwise-) select camera protocol
Turn shuttle clockwise to the submenu
（back to former menu：Turn shuttle anticlockwise）
No4：Camera Baud rate
Camera Baud rate：2400、4800、9600（default）
Turn Z Axis Zoom (clockwise+，anticlockwise-) select camera Baud rate
Turn shuttle clockwise to the submenu
（back to former menu：Turn shuttle anticlockwise）
No5：DVR Protocol
DVR Protocol：Baud rate：9600
Dahua、Hikvision、Dali、Hanbang、Appro、HighEasy
Turn Z Axis Zoom (clockwise+，anticlockwise-) select DVR protocol
Turn shuttle clockwise to the submenu
（back to former menu：Turn shuttle anticlockwise）
No6：Alarm In
USB：USB Port
RS485：DVR RS485control；Baud rate：9600
Turn Z Axis Zoom (clockwise+，anticlockwise-) select
Turn shuttle clockwise to the submenu
（back to former menu：Turn shuttle anticlockwise）
No7：Alarm Do: select alarm signal output
No3：Camea Protocol
[Sony Visca]
No4：Camea Baudrate
[9600]
No5：DVR Protocol
[Hikvision]
No6：Alarm In
[Usb] RS485
No7：Alarm Do
[LED Blink]

Led Blink、RS485（DVR port RS485signal output）
Turn Z Axis Zoom (clockwise+，anticlockwise-) select
Turn shuttle clockwise to the submenu
（back to former menu：Turn shuttle anticlockwise）
No8：Keyboard ID
Keyboard Address ：00 -99
Turn Z Axis Zoom (clockwise+，anticlockwise-) select
Turn shuttle clockwise to the submenu
（back to former menu：Turn shuttle anticlockwise）
No9：Password 1、2
Turn shuttle clockwise to Password2
1) Input keyboard password
2) Turn Z Axis Zoom (clockwise+，anticlockwise-) confirm
Turn shuttle clockwise to the submenu
（back to former menu：Turn shuttle anticlockwise）
No10：Exit
Turn Z Axis Zoom (clockwise+，anticlockwise-) quit
Turn shuttle clockwise to the next menu
（back to former menu：Turn shuttle anticlockwise）

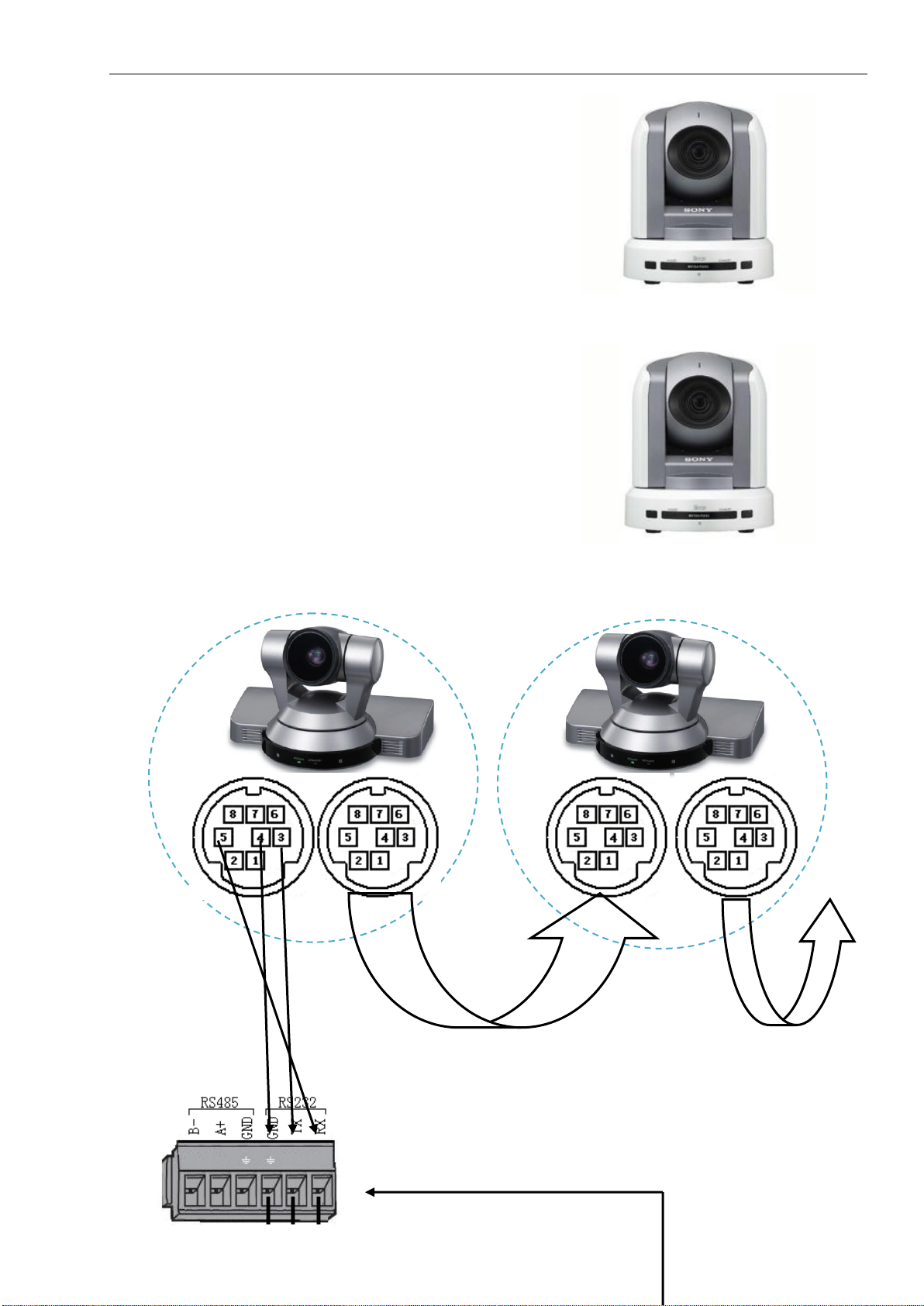

Keyboard Controller with EVI-D70/D70P
No8：Keyboard ID=[01]
No9：Passwordl [****]
Password2
No9：Password1
Password2[****]
No10：Exit
