Sony SAL-1680Z User manual

SERVICE NOTE
SPECIFICATIONS
REPAIR PARTS LIST
DISASSEMBLY ADJUSTMENTS
SERVICE MANUAL
Link
Link
Revision History
Revision History
Sony EMCS Co.
SAL1680Z (Vario-Sonnar DT 3.5-4.5/16-80 ZA) (Vario-Sonnar T*DT 16-80mm F3.5-4.5 ZA)
How to use
Acrobat Reader
How to use
Acrobat Reader
Ver. 1.5 2008.09
LENS FOR DSLR CAMERA
2008I0800-1
© 2008.09
Published by KohdaTEC9-852-120-14
US Model
Canadian Model
AEP Model
Chinese Model
SAL1680Z
(Vario-Sonnar DT 3.5-4.5/16-80 ZA) (Vario-Sonnar T
*
DT 16-80mm F3.5-4.5 ZA)
•About the Lens Test Projector and Finished Inspection JIG
•About the Front Decoration Plate
•About the MTF measurement
Revised-3
Replace the previously issued
SERVICE MANUAL 9-852-120-13
with this Manual.

—2 —
SAL1680Z (Vario-Sonnar DT 3.5-4.5/16-80 ZA) (Vario-Sonnar T*DT 16-80mm F3.5-4.5 ZA)
SPECIFICATIONS
• This lens is equipped with a distance encoder. The distance encoder allows more accurate measurement (ADI) by using a flash for ADI.
• Depending on the lens mechanism, the focal length may change with any change of the shooting distance. The focal length assumes the lens is focused
at infinity.
Equivalent 35mm-format focal length*1(mm)
24-120
*1The value for equivalent 35mm-format focal length is based on Digital Single Lens Reflex Cameras equipped with an APS-C sized image sensor.
Lens groups elements
10-14
Angle of view*2
83°-20°
*2The value of angle of view is based on Digital Single Lens Reflex Cameras equipped with an APS-C sized image sensor.
Minimum focus (m (feet))*3
0.35 (1.2)
*3Minimum focus is the shortest distance from the image sensor to the subject.
Maximum magnification (××
××
×)
0.24
Minimum f-stop
f/22-29
Filter diameter (mm)
62
Dimensions (maximum diameter ××
××
×height) (mm (in.))
Approx. 72 ×83 (2 7/8 ×3 3/8)
Mass (g (oz.))
Approx. 445 (15 3/4)
Included items
Lens (1), Front lens cap (1), Rear lens cap (1), Lens hood (1), Lens case (1), Set of printed documentation
Designs and specifications are subject to change without notice.

— 3 —
SAL1680Z (Vario-Sonnar DT 3.5-4.5/16-80 ZA) (Vario-Sonnar T*DT 16-80mm F3.5-4.5 ZA)
TABLE OF CONTENTS
Section Title Page
1. SERVICE NOTE
1-1. Chemicals ·······································································1-1
1-2. Exterior Parts··································································1-1
1-3. Unleaded Solder ·····························································1-1
1-4. Safety Check-out ····························································1-2
1-5. MTF Measurement·························································1-2
1-6. Troubleshooting ·····························································1-3
2. DISASSEMBLY
2-1. Disassembly ···································································2-2
3. REPAIR PARTS LIST
3-1. Exploded Views ······························································3-1
3-2. Supplied Accessories······················································3-7
4. ADJUSTMENTS
4-1. Preparations····································································4-1
4-2. Aperture Diameter Check/adjustment··························4-13
4-3. Projective Resolving Power Check/Adjustment ··········4-18
4-4. Flange Back (f’F) Check/Adjustment ··························4-22
4-5. Focus-Shift (by Zooming) Check/Adjustment·············4-25
4-6. Focus Scale Plate, PositionAdjustment ·······················4-27
4-7. Focus-shift Check/Adjustment (Aperture (Amount of
Spherical Aberration)) ··················································4-29
4-8. Toruqe Adjustment of MF Operation Ring ··················4-30
4-9. Lens ROM Check·························································4-32
4-10. Zoom Brush Position Check/Adjustment and
Pattern Check ·······························································4-34
4-11. Focus Brush Position Check/Adjustment and
Pattern Check ·······························································4-42
4-12. Write dSB·····································································4-50
Ver. 1.3 2008.05
The changed portions from
Ver. 1.2 are shown in blue.

1-1
SAL1680Z (Vario-Sonnar DT 3.5-4.5/16-80 ZA) (Vario-Sonnar T*DT 16-80mm F3.5-4.5 ZA)
1. SERVICE NOTE
1-1. Chemicals
Some chemicals used for servicing are highly volatile.
Their evaporation caused by improper management affects your health and environment, and wastes resources.
Manage the chemicals carefully as follows.
•Store chemicals sealed in a specific place to prevent from exposure to high temperature or direct sunlight.
•Avoid dividing chemicals into excessive numbers of small containers to reduce natural evaporation.
•Keep containers sealed to avoid natural evaporation when chemicals are not in use.
•Avoid using chemicals as much as possible. When using chemicals, divide only required amount to a small plate from the container and
use up it.
1-2. Exterior Parts
Be careful to the following points for exterior parts used in this unit.
•Use a piece of cleaning paper or cleaning cloth for cleaning exterior parts.Avoid using chemicals.
Even if you have to use chemicals to clean heavy dirt, don’t use paint thinner, ketone, nor alcohol.
•Insert the specific screws vertically to the part when installing a exterior part.
Be careful not to tighten screws too much.
1-3. Unleaded Solder
This unit uses unleaded solder.
Boards requiring use of unleaded solder are printed with the lead free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.)
: LEAD FREE MARK
Be careful to the following points to solder or unsolder.
•Set the soldering iron tip temperature to 350 °C approximately.
If cannot control temperature, solder/unsolder at high temperature for a short time.
Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful!
Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
•Be sure to control soldering iron tips used for unleaded solder and those for leaded solder so they are managed separately. Mixing
unleaded solder and leaded solder will cause detachment phenomenon.

1-2
SAL1680Z (Vario-Sonnar DT 3.5-4.5/16-80 ZA) (Vario-Sonnar T*DT 16-80mm F3.5-4.5 ZA)
1-4. SAFETY CHECK-OUT
After correcting the original service problem, perform the following safety checks before releasing the set to the customer.
1. Check the area of your repair for unsoldered or poorly-soldered connections. Check the entire board surface for solder splashes and
bridges.
2. Check the interboard wiring to ensure that no wires are “pinched” or contact high-wattage resistors.
3. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the
customer and recommend their replacement.
4. Look for parts which, through functioning, show obvious signs of deterioration. Point them out to the customer and recommend their
replacement.
5. Check the B+ voltage to see it is at the values specified.
6. Flexible Circuit Board Repairing
• Keep the temperature of the soldering iron around 270 °C during repairing.
• Do not touch the soldering iron on the same conductor of the circuit board (within 3 times).
• Be careful not to apply force on the conductor when soldering or unsoldering.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINEWITH
MARK 0ON THE SCHEMATIC DIAGRAMS AND INTHE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY
DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.
CAUTION
Dangerofexplosionifbatteryisincorrectlyreplaced.
Replace only with the same or equivalent type.
Ver. 1.3 2008.05
The changed portions from
Ver. 1.2 are shown in blue.
1-5. MTF Measurement
In case of replacement or disassembling the effective parts against performance, be sure to perform MTF measurement.
Please consult a related headquarters about service information.

1-3
SAL1680Z (Vario-Sonnar DT 3.5-4.5/16-80 ZA) (Vario-Sonnar T*DT 16-80mm F3.5-4.5 ZA)
1-6. TROUBLESHOOTING
1-6-1. ApertureTrouble
NG
Check operation of the
presetting ring block.
Replace the lens mount block.
Replace the lens mount block.
Perform the aperture
diameter adjustment.
(See page 4-16.)
Perform the aperture
diameter check.
(See page 4-13.)
NG
Check the aperture
operation of rear
barrel assy.
OK OK
OK
Function NG F No. NG
Aperture trouble
Replace the rear barrel assy
NG
NGNG
END
OK
Perform the aperture
diameter check.
(See page 4-13.)
Ver. 1.3 2008.05
The changed portions from
Ver. 1.2 are shown in blue.

1-4
SAL1680Z (Vario-Sonnar DT 3.5-4.5/16-80 ZA) (Vario-Sonnar T*DT 16-80mm F3.5-4.5 ZA)
1-6-2. ZoomTrouble
NG
OK
OK
OK
OK
Function NG Position NG
Check the position
and deformation
at the tip of
the zoom brush.
Adjust the position, or
replace the zoom brush.
Check board pattern
of the zoom flex pattern.
Clean the board pattern
of
zoom flex pattern.
Zoom trouble
Replace the main
flexible unit.
Perform the
zoom brush position
check/adjustment.
(See page 4-34.)
NG
NG
NG
NG
END
OK
Disassembly and check
the zoom relation parts.
Replace the defective part
or apply the grease.
Check the operation
again.
Ver. 1.3 2008.05
The changed portions from
Ver. 1.2 are shown in blue.

1-5
SAL1680Z (Vario-Sonnar DT 3.5-4.5/16-80 ZA) (Vario-Sonnar T*DT 16-80mm F3.5-4.5 ZA)
Check the operation
again.
Replace the defective part
or apply the grease.
OK
NG
OK
OK
OK
OK
Function NG Position NG
Focus trouble
Replace the defective part
or apply the grease.
Check the AF coupler
and gear shaft of the
gear C, D block
Check the focus
operation ring and
focus lens holder.
NGNG
NG
NG
NG
END
OK
Check the position
and deformation
at the tip of
the focus brush.
Check the position, or
replace the focus brush.
Check board pattern
of the focus flex pattern.
Clean the board pattern.
Replace the main
flexible unit.
Perform the
focus brush position
check/adjustment and
pattern check.
(See page 4-42.)
1-6-3. FocusTrouble
Ver. 1.3 2008.05
The changed portions from
Ver. 1.2 are shown in blue.

2-1
SAL1680Z (Vario-Sonnar DT 3.5-4.5/16-80 ZA) (Vario-Sonnar T*DT 16-80mm F3.5-4.5 ZA)
2. DISASSEMBLY
Cut and remove the part of gilt
which comes off at the point.
(Be careful or some
pieces of gilt may be left inside)
NOTE FOR REPAIR
• Make sure that the flat cable and flexible board are not cracked of bent at the terminal.
Do not insert the cable insufficiently nor crookedly.
• When remove a connector, dont’ pull at wire of connector.It is possible that a wire is snapped.
• When installing a connector, dont’press down at wire of connector.
It is possible that a wire is snapped.
• Do not apply excessive load to the gilded flexible board.
UNIVERSALWRENCH
In case of the following notches or holes are located in the lens block, etc during disassembling/
assembling the lens, Use the universal wrench.
How to Use
Attach the chip-A or chip-B to the universal wrench.
For the notches: chip-A
For the holes: chip-B
Match the universal wrench to the holes or notches of the lens block, etc.
Notches Holes
Universal wrench
J-6082-609-A
Chip-A for
universal wrench:
J-6082-609-1
Chip-B for
universal wrench:
J-6082-609-2
Notches
Chip-A
Chip-A
Chip-B
Chip-B
Chip
Fixed screw
Fixed screw
Chip
Match the universal wrench
to the width of holes or notches. Universal wrench
Holes
When top of tip does not reach holes or notches because the fixed
screw becomes obstructive, replace the fixed screw to below.
+B 3X5 7-682-546-09

2-2
SAL1680Z (Vario-Sonnar DT 3.5-4.5/16-80 ZA) (Vario-Sonnar T*DT 16-80mm F3.5-4.5 ZA)

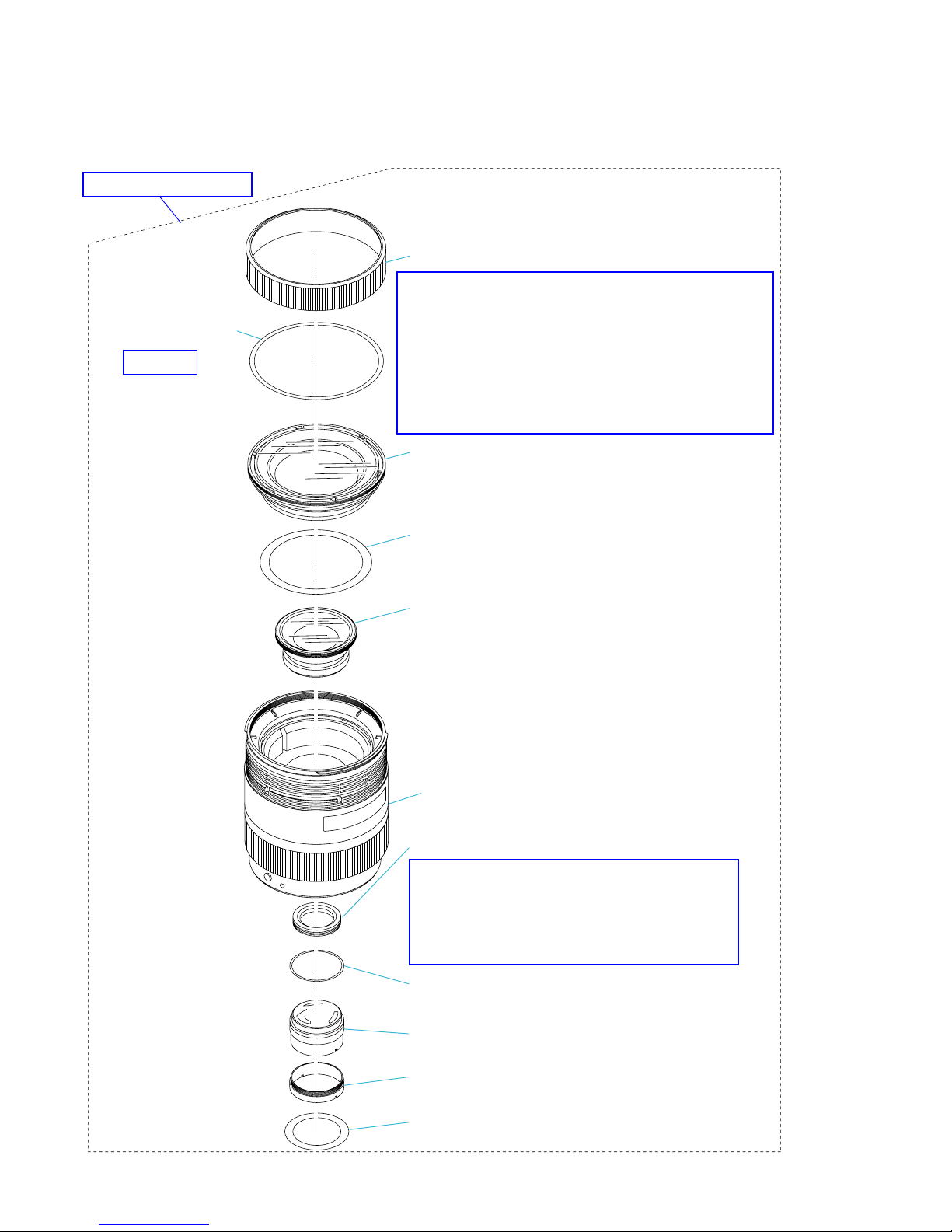

2-1. DISASSEMBLY
2-1-1. LENS BLOCK

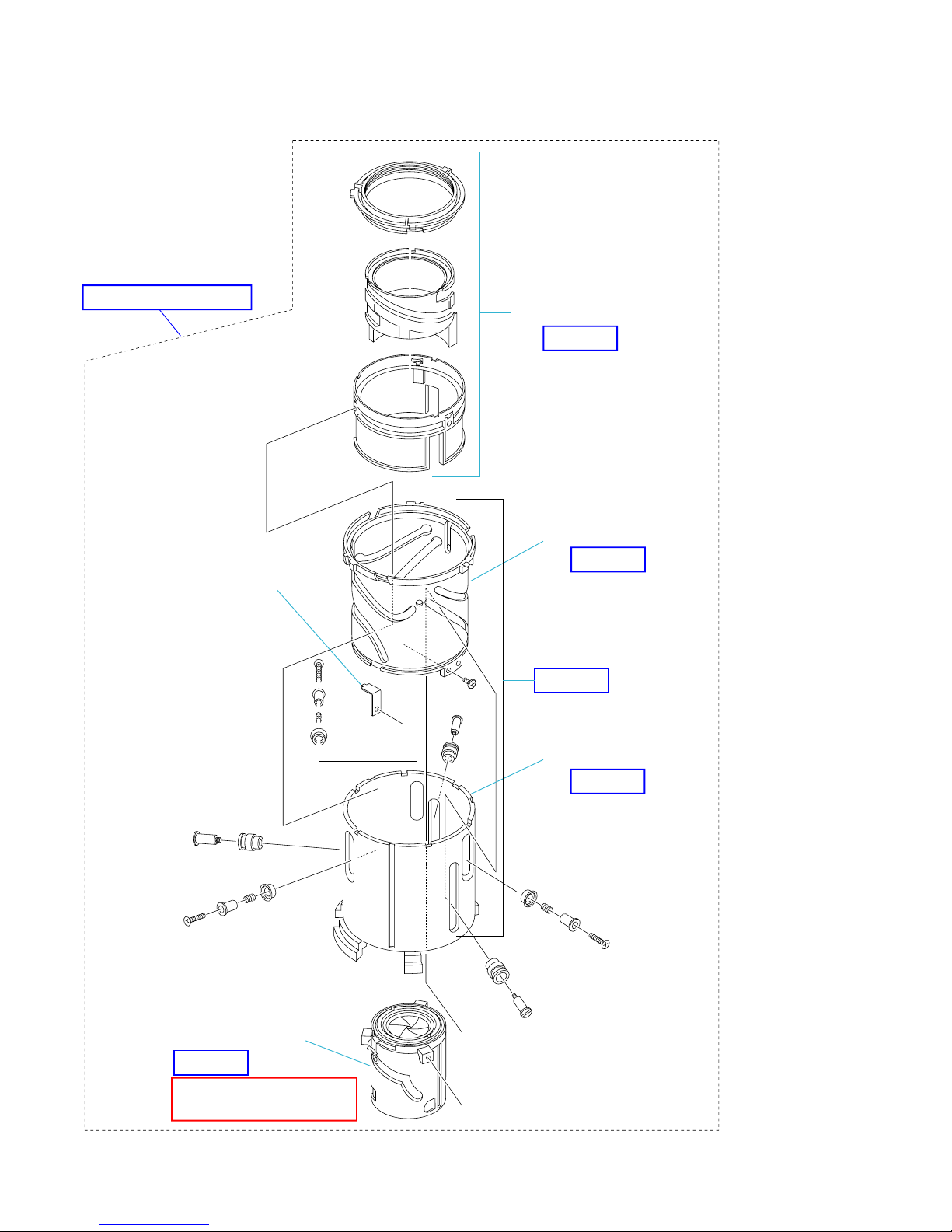

EXPLODEDVIEW
1Focus Rubber Ring
31st Lens Block
2Front Decoration
Plate
52nd Lens Block
03rd Lens Block
84th Lens Block
6Light Shield Plate B
7Aperture Hold Ring
93-4 Adjustment Washer
4Light Shield Plate A
HELP01
(See page 2-3.)
•About the front decoration plate :
Be sure avoiding replacement of front decoration
plate as far as possible. If replacement of it should
be need, you convey the message to your user
that changing of the “Carl Zeiss Serial No.” is
needed, and then you may obtain user's
agreement, and it replace.
Note:
•Remove the 3rd Lens Block :
After replacing the fixed screw of universal
wrench, remove the lens block using the
universal wrench.
Note:

2-3
SAL1680Z (Vario-Sonnar DT 3.5-4.5/16-80 ZA) (Vario-Sonnar T*DT 16-80mm F3.5-4.5 ZA)
2-1-2. ZOOM BRUSH, ZOOM BARREL AND OUTER COVER BLOCK
EXPLODEDVIEW
9Outer Cover Block
HELP09
8Rotation Cover Pin
HELP08
7Zoom Barrel
HELP07
6Zoom Hold Ring
HELP06
1Zoom Rubber Ring
3Brush Cover (B)
HELP04
2Brush Cover
HELP03
4Brush Cover (C)
HELP04
Flex Setting Tape B
HELP02
5Zoom Brush
HELP05
(See page 2-4.)
ZOOM BRUSH
POSITION
ADJUSTMENT
Polyester Tape

2-4
SAL1680Z (Vario-Sonnar DT 3.5-4.5/16-80 ZA) (Vario-Sonnar T*DT 16-80mm F3.5-4.5 ZA)

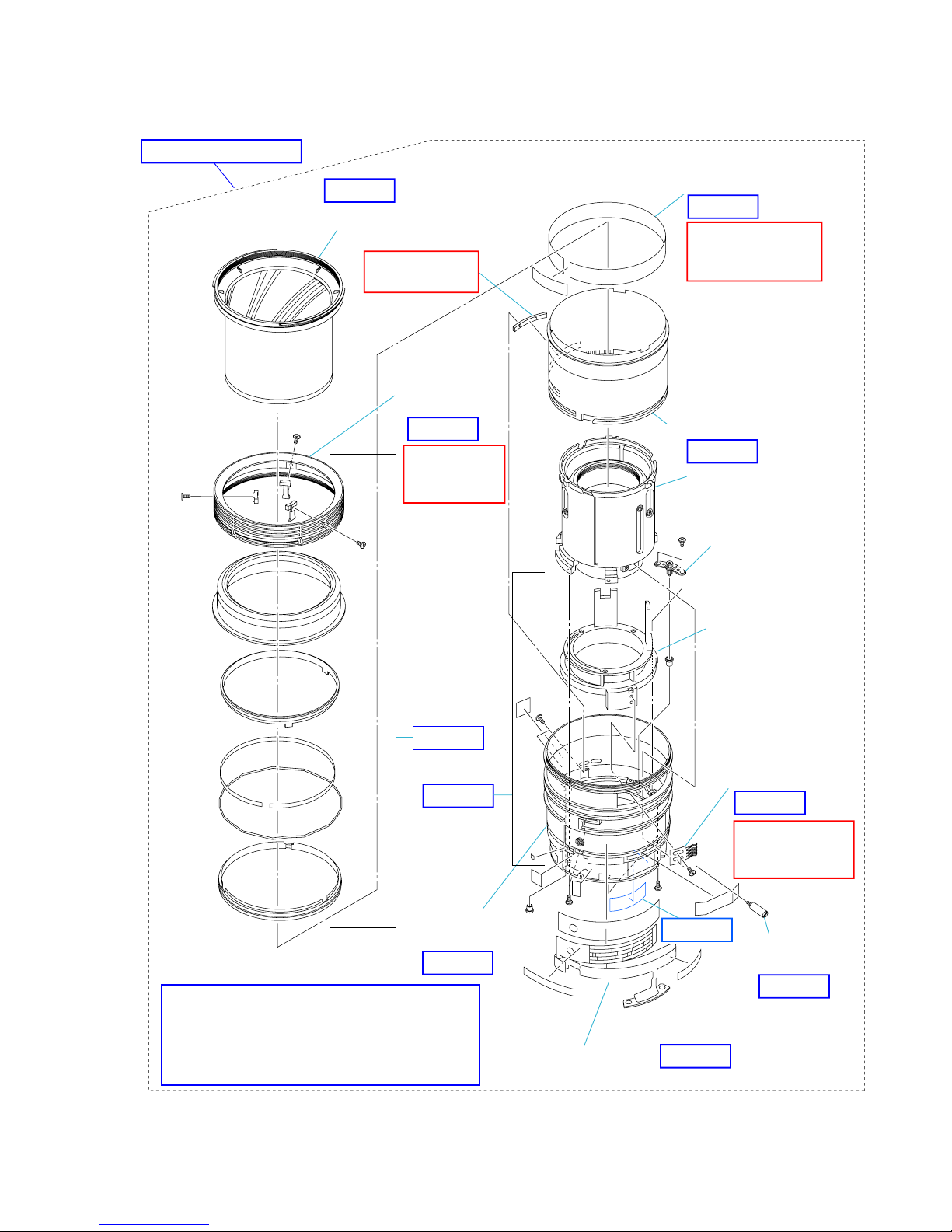

2-1-3. LENS MOUNT BLOCK
EXPLODEDVIEW
HELP13
HELP11
HELP12
(See page 2-5.)
HELP14
9Coupler Adjustment Washer
FLANGE BACK
ADJUSTMENT
7Gear C.D Block
8Coupler Bush
6AF Coupler
Stopper Screw
2Ground Spring 1Main Flexible Unit
HELP10
3Rear Light Shield Barrel
4Lens Mount Block
Main Spring
Presetting Holder
5Back Adjustment
Washer
FLANGE BACK
ADJUSTMENT
Presetting Ring Block

2-5
SAL1680Z (Vario-Sonnar DT 3.5-4.5/16-80 ZA) (Vario-Sonnar T*DT 16-80mm F3.5-4.5 ZA)
2-1-4. MAIN FLEXIBLE UNIT, FOCUS RING AND MF OPERATION RING
EXPLODEDVIEW
31st Lens Holder Block
HELP16
5Focus Ring
(See page 2-6.)
2Zoom
Coupling Pin
1Focus Brush
8Focus Operation
Ring
7Gear A.B Block
Focus Scale Plate
Focus Stopper
HELP19
6Outer Barrel
Assy
HELP21
Main Flexible Unit
HELP23
HELP20
4 MF Operation
Ring
HELP17
HELP18
HELP22 HELP15
HELP23
FOCUS SCALE
PLATE POSITION
ADJUSTMENT
FOCUS-SHIFT
ADJUSTMENT
MF OPERATION
RING TORQUE
ADJUSTMENT
FOCUS BRUSH
POSITION
ADJUSTMENT
Note:
When the MF operation ring is disassembled,
remove the adhesive bond below the MF
operation ring with tweezers.
(3 locations at every 120 degrees)
HELP16
Ver. 1.5 2008.09
The changed portions from
Ver. 1.4 are shown in blue.

2-6
SAL1680Z (Vario-Sonnar DT 3.5-4.5/16-80 ZA) (Vario-Sonnar T*DT 16-80mm F3.5-4.5 ZA)
2-1-5. REAR BARREL ASSY, ZOOM CAM RING AND FOCUS COUPLING BARREL ASSY
EXPLODEDVIEW
1Rear Barrel Assy
HELP24
4Outer Tube
HELP27
5Zoom Cam Ring
HELP28
HELP26
2Focus Coupling
Barrel Assy
HELP25
34th Operation Plate
APERTURE DIAMETER
ADJUSTMENT

HELP
SAL1680Z (Vario-Sonnar DT 3.5-4.5/16-80 ZA) (Vario-Sonnar T*DT 16-80mm F3.5-4.5 ZA)

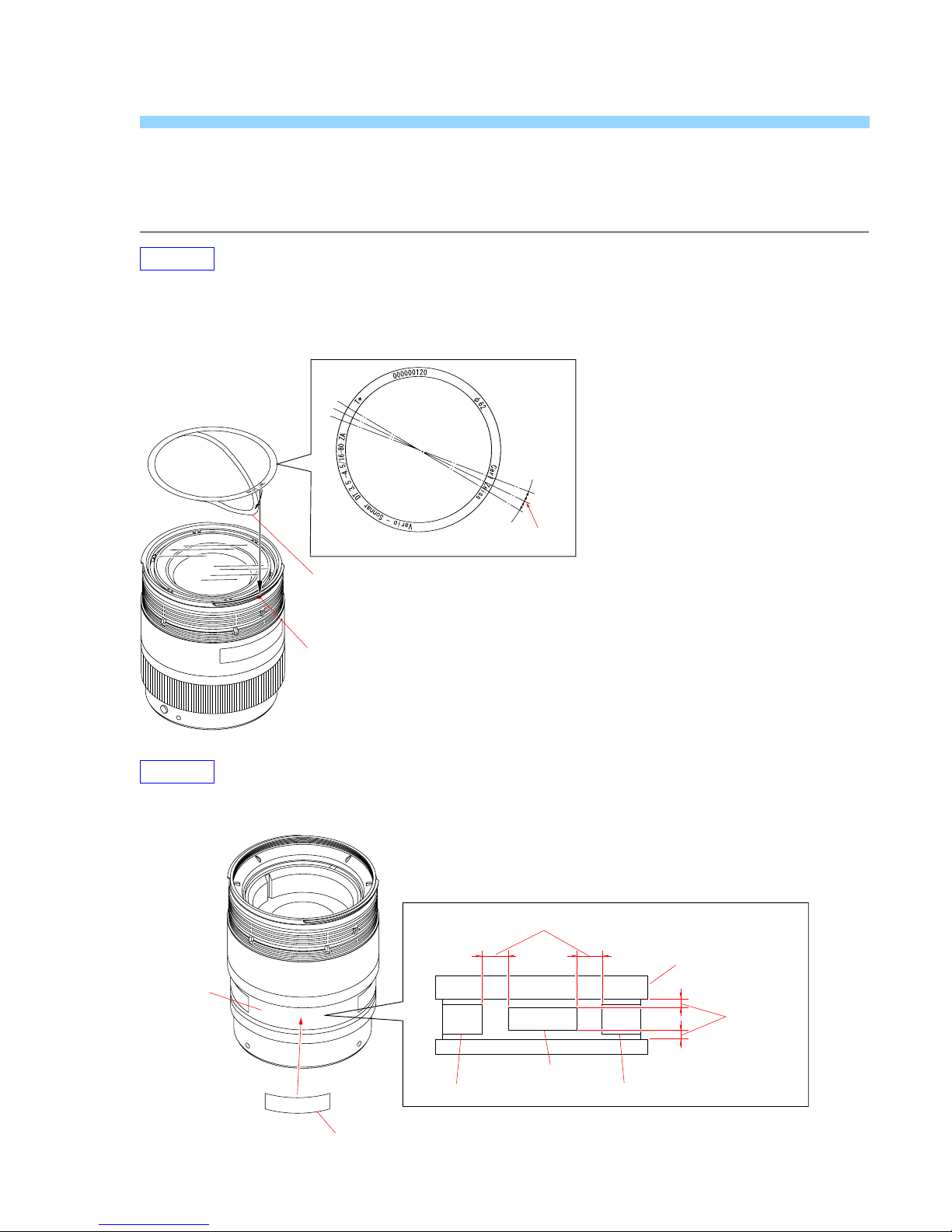

Note for assembling and grease applying positions are shown.
HELP01
Peel the released paper from the front decoration plate and affix the front decoration plate, aligning the top of “Z” of “Carl Zeiss” shown
in the figure with the hood index.
Note: When affixing, be careful not to damage the decorated side of front decoration plate.
HELP02
Affix the flex setting tape B evenly between the brush cover (B) and the brush cover (C).
5
5
Released Paper
Hood Index
Reference Position
(Hood Index)
HELP
Zoom Barrel
Zoom Barrel
Flex Setting Tape B
Flex Setting Tape B
Brush Cover (B) Brush Cover (C)
Almost same length
Almost same
length

HELP
SAL1680Z (Vario-Sonnar DT 3.5-4.5/16-80 ZA) (Vario-Sonnar T*DT 16-80mm F3.5-4.5 ZA)
HELP03
1. Do not pile up the brush cover to brush cover (B) and brush cover (C), and wind the lower end of brush cover along the edge of zoom
barrel.
2. Affix the polyester tape (black) 10mm cut as instructed to the location shown in figure.
Note: Affix the polyester tape (black) 10mm for the brush cover not to float.
Zoom Barrel
Wind brush cover along this edge
Brush Cover
Brush Cover B
Brush Cover C
Polyester Tape (Black) 10mm
(8x18mm)
Polyester Tape (Black) 10mm
(8x18mm)

HELP
SAL1680Z (Vario-Sonnar DT 3.5-4.5/16-80 ZA) (Vario-Sonnar T*DT 16-80mm F3.5-4.5 ZA)

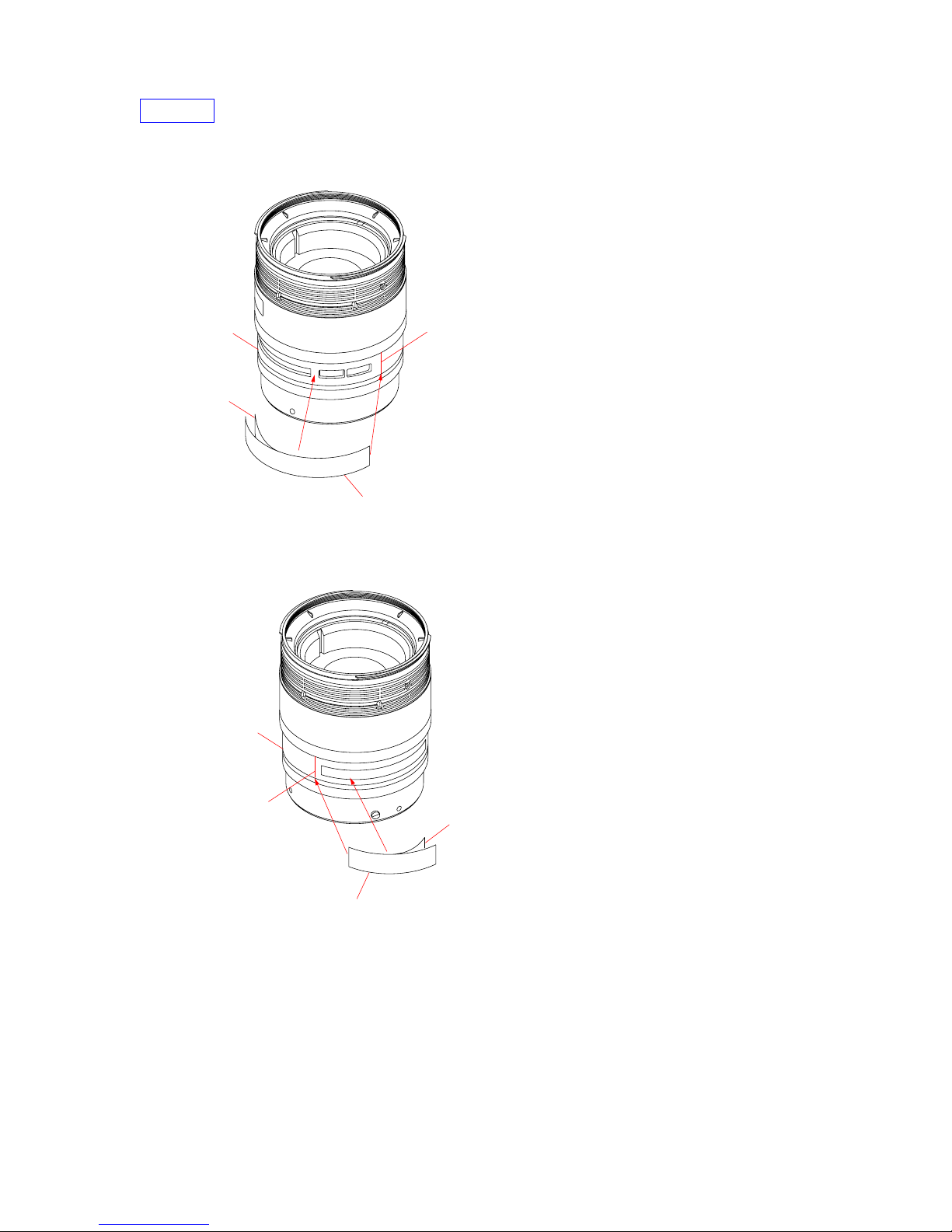

HELP04
1. Peel the released paper from the brush cover (B) and affix it to the concave side of zoom barrel as shown in the figure, referring the
boundary in concave and convex sides as a reference.
2. Likewise, peel the released paper from the brush cover (C) and affix it to the concave side of zoom barrel as shown in the figure,
referring the boundary in concave and convex sides as a reference.
Zoom Barrel
Brush Cover (B)
Reference to affixing
(Boundary in convex and concave)
Released Paper
Zoom Barrel
Brush Cover (C)
Reference to affixing
(Boundary in convex
and concave) Released Paper

HELP
SAL1680Z (Vario-Sonnar DT 3.5-4.5/16-80 ZA) (Vario-Sonnar T*DT 16-80mm F3.5-4.5 ZA)

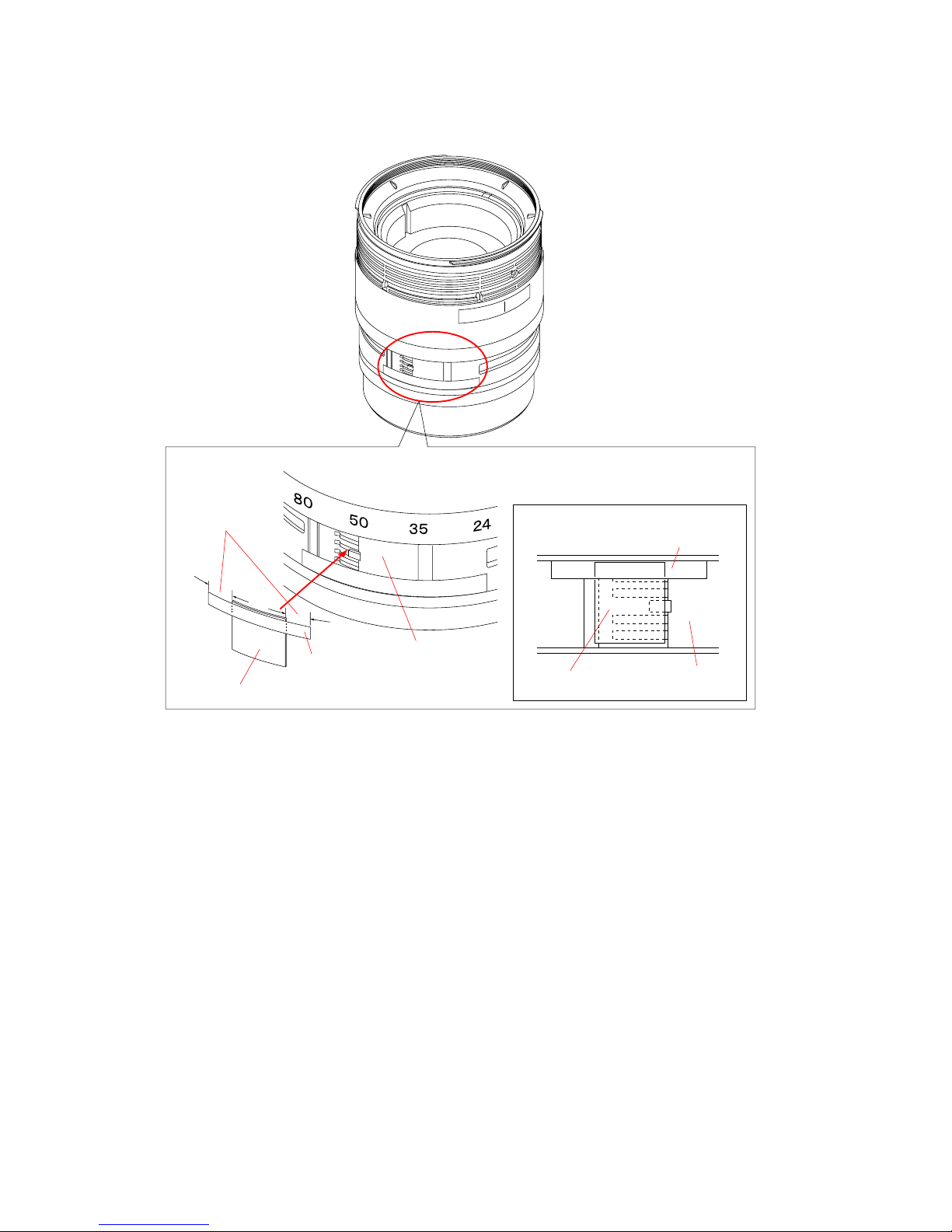

HELP05
1. Inserting the projection of zoom barrel in the square hole at the center of brush, install the zoom brush and move it in the arrow
direction.
2. Affix the polyester tape cut as instructed to the location shown in the figure.
Zoom Barrel
Projection
Square hole
Zoom Brush
Zoom Brush
Polyester Tape (4x40mm)

HELP
SAL1680Z (Vario-Sonnar DT 3.5-4.5/16-80 ZA) (Vario-Sonnar T*DT 16-80mm F3.5-4.5 ZA)
3. Affix the polyester tape cut as instructed to the brush cover (D) as shown in the figure.
4. Install the brush cover (D) at the position shown in the figure and fix it with the polyester tape.
Zoom Brush
Zoom Brush
.Details of affixing position
Almost same
length
Brush Cover (D) Brush Cover (D)
Polyester Tape
(4x20mm)
Polyester Tape
(4x20mm)

HELP
SAL1680Z (Vario-Sonnar DT 3.5-4.5/16-80 ZA) (Vario-Sonnar T*DT 16-80mm F3.5-4.5 ZA)
HELP06
Grease (G-115): J-6082-627-A
Grease (G-117): J-6082-660-A
1. Apply the grease (G-A) to the indicated portion of zoom hold ring.
Grease (G-A) = (G-115 : G-117 = 1 : 2)(Mix grease at the following rates before using the grease, and mix grease enough.)
2. Install the zoom hold ring, placing its mount index at the position shown in the figure. Then, tighten three screws to fix zoom hold
ring. When tightening one of three screws, remove the part of Lno. Decoration plate.
Lno. Decoration
Plate
Screw
Screw
Mount Index
Screw
Zoom Hold Ring
Apply the grease
(G-A)
(All circumference)
