Specialized Turbo Comp User manual

1
2004 TURBO® COMP
CYCLOCOMPUTER
Congratulations on your purchase! You are now the
owner of one of the world’s most advanced cyclocomput-
ers. Your Specialized Turbo® Comp a revolutionary new
three-line LCD screen. The large, easy to read, digits
allow you to view two functions simultaneously and the
alphanumeric dot matrix display provides a quick refer-
ence to the currently displayed function. The Turbo®
Comp has been designed to provide the best combina-
tion of performance, features, durability and ease of use.

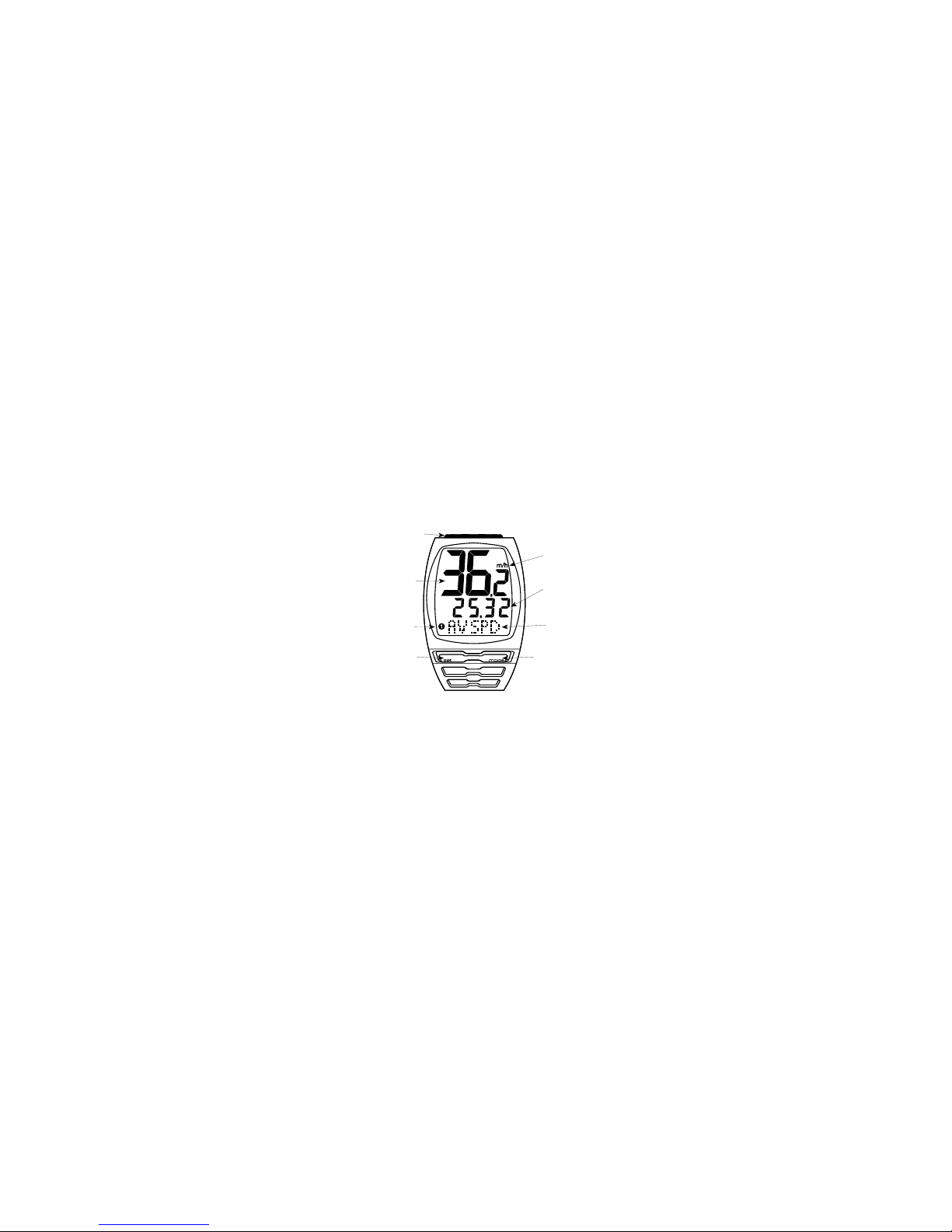

This illustration describes the screen display
and buttons
MODE/SET rocker switch
TOP Button (Start/stop)
Dot-matrix Display Area
Digital Display Area
Wheel Option Indicator
MPH or KM/H indicator
1
3
4
6
2
8
7
5
FIGURE 1

3
Figure 3) If, after battery
replacement, the LCD dis-
play is blank or shows
incomplete digits, turn the
computer over and press
the “AC” button on the bot-
tom of the case with the tip
of a pen or a paper clip.
This will clear all the data
and re-start the computer.
If you need to replace the
battery, make a note of
your odometer reading
and wheel circumference
settings before removing it.
You can then re-enter the
data when you restart the
computer.
The following 10 functions
are available on your
Turbo® Comp:
SPEED – Current Speed
AVSPD – Average speed
MXSPD – Maximum Speed
TRIP – Trip Distance
ODO – Odometer (total
distance)
ATM – Automatic
Start/Timer
TIMER – Stopwatch With
Lap-timer
INT – Interval Timer
DISTÚ– Distance
Countdown
CLOCK – Digital 12/24
Hour Clock
This computer
also features:
Wired speed sensing
Two function LCD Display
Second Wheel Option
Easy Calibration Mode
Water resistant housing
2 Year Warranty

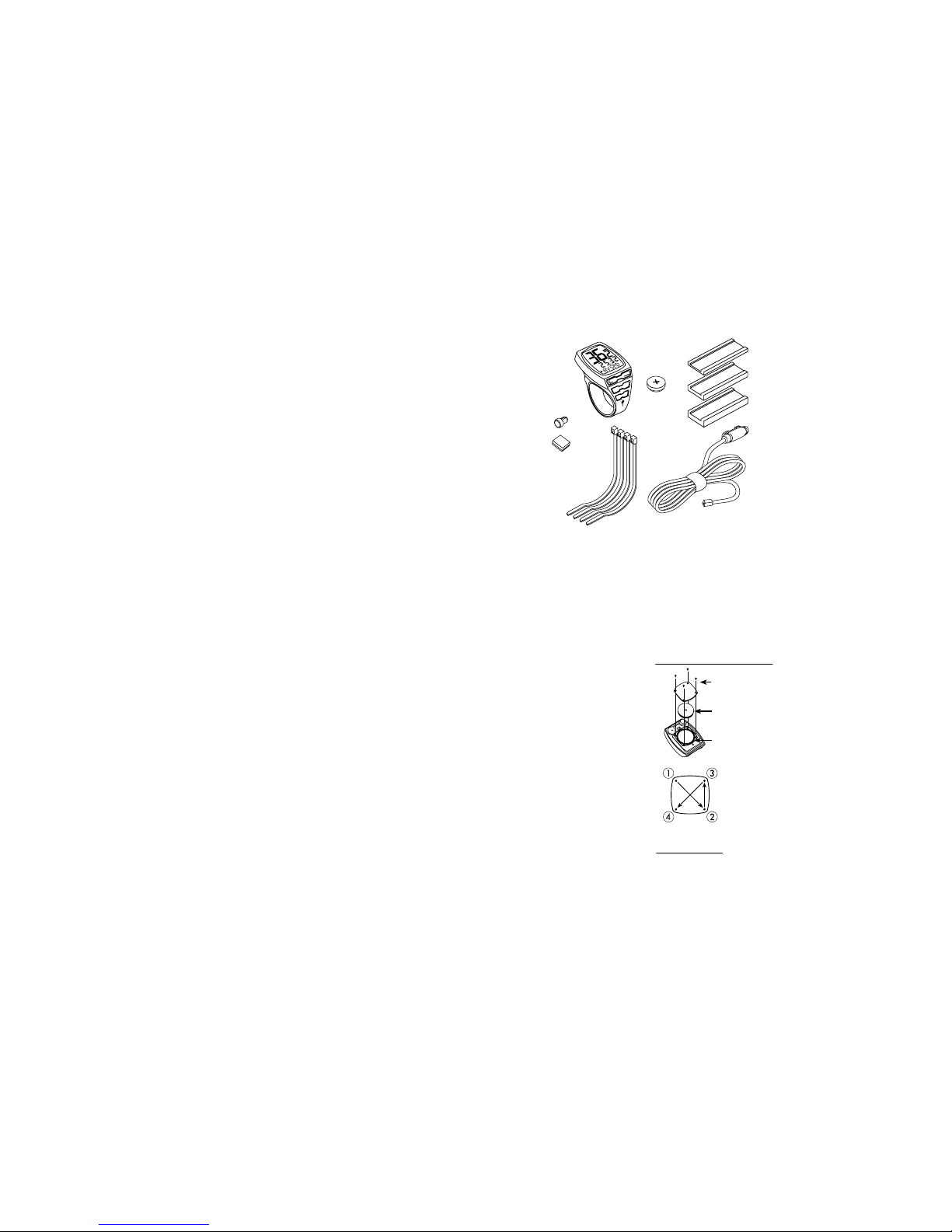

THE FOLLOWING
ITEMS ARE INCLUDED
IN YOUR TURBO®
COMP PACKAGE:
Turbo® Computer
CR-2032 Lithium Battery
(1)
Battery Door (1)
26.0mm mounting bracket
(1)
31.8mm mounting bracket
(1)
Wired Speed sensor (1)
Magnet with screw (1)
Adhesive backed magnet
(1)
Cable tie wraps (5)
Mounting bracket sizing
straps (3)
FIGURE 2
BATTERY
INSTALLATION AND
REPLACEMENT-
Before using your Turbo®
Comp Computer you will
need to install the battery.
Turn the computer over so
the display is facing down-
ward. Use a coin to
unthread the battery cap
from the computer. Install
the battery (model
CR2032, Specialized P/N
481-3004) with the posi-
tive pole (+) facing
upward. Carefully thread
the battery cap back onto
the case with a coin. (See
2
FIGURE 2
Rubber O-ring
CR2032 battery
4 screws
Tightening
sequence
FIGURE 3
FIGURE 3: BATTERY
INSTALLATION

audible click. Plug the wire
from the speed sensor into
the socket on the bottom of
your computer To remove
the computer, remove the
speed wire (if connected)
then push it backward until
it releases from the mount.
To test for proper installa-
tion of the magnet, trans-
mitter and computer, acti-
vate the computer by push-
ing the ‘MODE’(right side)
button. Pick up the front of
the bicycle and spin the
front wheel. The “wheel
option”indicator will flash.
If it does not flash, check
the sensor and magnet
alignment. Realign as nec-
essary until the “wheel
option”indicator flashes
while spinning the wheel
OPERATION AND
PROGRAMMING
When your Turbo®Comp
has not detected any
speed input for 30 min-
utes, it will enter sleep-
mode in order to conserve
battery power. During
sleep mode only the digital
clock is displayed. The
computer will wake it up
when wheel speed is
detected or when the
MODE or SET button is
pressed. In order to oper-
ate your computer it must
be placed in various
“modes”(i.e. odometer
mode, distance mode). The
computer can be cycled
through these modes by
pressing the “MODE”but-
ton located on the right-
hand side the MODE/SET
rocker switch. There are
nine cycling modes avail-
able: 1) Clock Mode, 2)
Odometer Mode, 3) Trip
Distance Mode 4) Average
Speed Mode, 5) Maximum
Speed Mode, 6) Automatic
Timer Mode, 7)
Timer/Stopwatch Mode,
8)Interval Mode and
9)Distance Countdown
mode. Once you familiar-
ize yourself with the mode
operation you will find it
5
MOUNTING THE
TURBO® COMP:
The Turbo®Comp wired
speed sensor can mount on
the right or the left side of
the fork blade. Use the
cable tie-wraps provided to
position the sensor. Do not
tighten until the final place-
ment of the sensor magnet
is correct.. (See figure 4).
Wheel magnets have been
provided for
both traditional
round spokes
and bladed
(flat) aerody-
namic spokes.
Attach the
magnet to a spoke across
from the transmitter with
the magnet screw. The
clearance between the
magnet and the
transmitter
should be
approximately
1/32”-1/16”
(1-2mm).
Tighten the
magnet and
transmitter. Do
not over-tighten
the magnet screw. (See
figure 5).
For wheels with
bladed spokes:
Use some isopropyl (rub-
bing) alcohol or a mild
detergent to thoroughly
clean the spoke that you
plan to attach the magnet
to. Remove the backing
from the adhesive tape and
firmly press the magnet
onto spoke. The tape uses
a special pressure sensitive
adhesive. To ensure a
strong bond, please wait at
least 12 hours for the
adhesive to cure before
riding your bicycle.
Attach the appropriate
mount (26.0mm and
31.8mm sizes are includ-
ed) to the handlebar using
the bracket screw provid-
ed. Tighten so that the
bracket cannot rotate on
the handlebar. There are
several sizing straps pro-
vided to fit different diame-
ter bars. (See figure 6).
Slide the computer forward
onto the mount until it
‘snaps’into place with an
4
FIGURE 4
FIGURE 5
FIGURE 6

Display Area (This is called
the odometer mode). Next,
hold down the “SET”button
for three seconds. The “Km”
or “m”indicator will begin
blinking. You may now
alternate between miles and
kilometers by pressing the
“MODE”button. When the
correct choice is flashing,
select it by pressing the
“SET”button. You will now
enter the “Programmable
Odometer”mode. If the
odometer setting is correct
push the “SET”button five
times to exit odometer
mode. (Otherwise, see
“Setting the programmable
odometer”below).
3. Setting the
Programmable Odometer:
This mode is useful if you
have replaced the battery
and would like to retain the
mileage you have already
ridden. To access the
Programmable odometer
mode, first advance to the
Odometer Mode by press-
ing “MODE”button until
ODO appears in the Dot-
matrix Display Area. Hold
down the “SET”button for
three seconds (If you have
selected English language,
the Km/h indicator will
flash. If the Km/h setting is
correct press the “SET”
button once) and a five-
digit number will appear.
You are now in the pro-
grammable odometer
mode. To enter a mileage
into the odometer, press
the “MODE”button until
the flashing digit is correct.
(Note: The “MODE”button
may be held to quickly
scroll to the correct digit.)
Press the “SET”button to
select the next digit to the
right. Repeat this process
until all five digits are
entered as your existing
mileage. (See figure 7)
7
very easy to navigate. The
following flowchart outlines
the mode sequence. Once
a particular mode has
been entered, its values
can be reset or adjusted by
pressing and holding the
“SET ”button for three sec-
onds.
1. Setting the
Display Language
Your Turbo®can display
information on the dot-
matrix display area in six
different languages:
English (ENGL), German
(GER), French (FR), Italian
(ITA), Dutch (NED), and
Spanish (ESP). To select
your language push the
mode button repeatedly
until CLOCK is displayed
in the Dot-matrix Display
Area. Then, depress hold
the “MODE”button for
three seconds. The selected
language will be dis-
played. Use the “MODE”
button to scroll through the
languages. When the
selected language is dis-
played (default language is
English), press the “SET”
button once to confirm
your selection and exit dis-
play language mode.
2. Miles or Kilometers
selection (English only):
Your Turbo®Comp will
record distance and speed
in either miles (m & m/h)
or kilometers (K & Km/h).
Please note that miles can
only be selected when the
language setting is English.
All other languages display
only kilometers. (See
“Setting the Display
Language”above). To enter
your selection of miles or
kilometers, push the
“MODE”button until ODO
appears in the Dot-matrix
6
CLOCK
I
ODO
I
TRIP
I
AVSPD
I
MXSPD
I
ATM –
I
TIMER
I
INT
I
Dist
FIGURE 7

gram the wheel #2 tire size
and tap the “SET”button to
exit Easy Calibration
Mode.

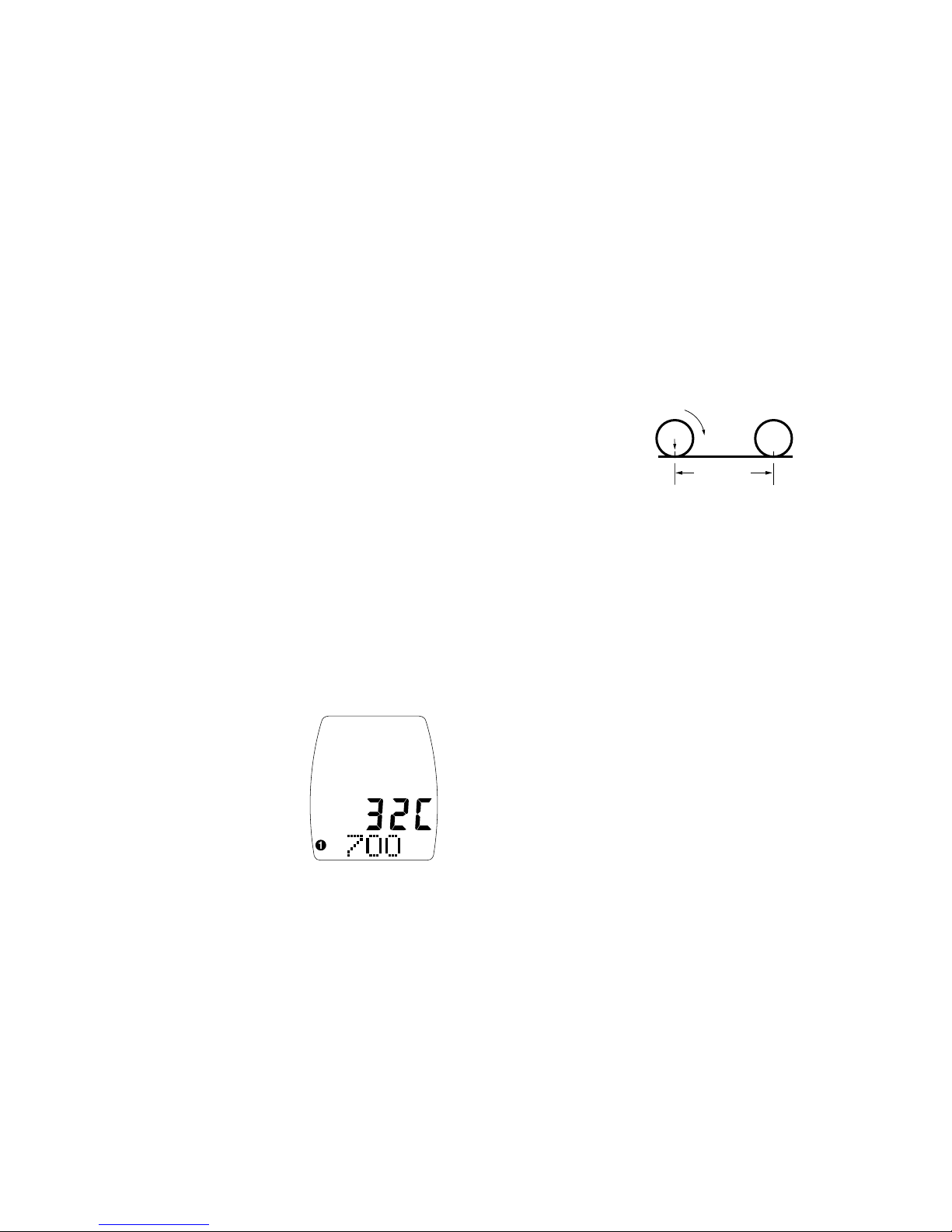

Roll Out Method
The roll out method will
provide the most accurate
computer calibration and
can take into account vari-
ables such as inflation
pressure, rim width and
rider weight.
1. Extend a tape measure
out to 3000mm (120 inch-
es) and lock it in place.
2. With your tire inflated to
its proper pressure, place
the valve at the 6:00 posi-
tion (at the bottom) directly
over the start of the meas-
uring tape.
3. Roll the wheel one com-
plete revolution until the
valve stem is again at the
6:00 position. Read the
tape directly under the
valve and note the distance
in millimeters. (To convert
inches to millimeters, multi-
ply inches by 25.4). Use
this number to replace the
default (default values are
2073 for wheel one, and
2134 for wheel two) when
programming your com-
puter. (See figure 12).
You may also use the
following quick-reference
chart:
Generic Tire Size Chart
This chart is for non-
Specialized tires
26 X 1.75
2140
26 X 2.0
2074
26 X 2.1
2090
650C X 20
1945
700C X 26
2124
700C X 38
2170
Programming
the circumference:
To enter the tire circumfer-
ence number, select the
9
4. Wheel Circumference
Selection:
To set the circumference for
the type of tires you are
using, you can use
Specialized’s “Easy
Calibration Mode”or
measure your actual tire
circumference by the roll-
out method. Two different
tire diameters may be
entered by using the com-
puter’s “Second Wheel
Option.”
Easy Calibration Mode:
Your Turbo®Comp has
been preprogrammed with
the following 14
Specialized tire sizes:
26 X 1.0
26 X 2.2
26 X 1.25
650c X 20
26 X 1.5
700c X 20
26 X 1.9
700c X 23
26 X 1.95
700c X 26
26 X 2.0
700c X 32
26 X 2.1
700c X 38
When using Easy
Calibration Mode, the
Turbo®Comp will display
the tire size on its LCD dis-
play screen. (See figure
11) The Easy Calibration
Mode is accessed by enter-
ing the Odometer (ODO)
mode and holding down
the “MODE”button for
three seconds. The display
will now show the currently
selected tire size for wheel
option #1. To scroll
through the prepro-
grammed tire sizes press
the “MODE”button.
When you reach the
desired tire size press the
“SET”button once to select
it and enter Easy
Calibration Mode for
wheel option #2. Follow
the same procedure to pro-
8
FIGURE 11
Wheel Circumfrence
Roll Forward
stem
FIGURE 12

11
right. Repeat the process
until all four digits are
entered as your tire cir-
cumference. Press the
“SET”button once to select
it and enter the circumfer-
ence for wheel option #2.
Follow the same procedure
to program the wheel #2
tire size and tap the “SET”
button to exit circumfer-
ence programming mode.
5. Setting the Clock
Your Turbo®Comp fea-
tures a digital clock. To
access the “clock mode”
press and the “MODE”
button repeatedly until
CLOCK appears in the
Dot-matrix Display Area.
To set the clock, press the
“SET”button for three sec-
onds. The display will flash
either twelve (12:) or twen-
ty four (24:). Select
between 12: or 24: mode
by pressing the “MODE”
button. Press the “SET”
button to confirm your
selection. The hour digit
will now begin flashing.
Press the “MODE”button
to adjust the hour digits.
AM/PM is selected by
scrolling the hour digit.
Press the “SET”button to
accept the hour selection.
The minutes will flash and
can be adjusted by press-
ing the “MODE”button.
(Hold the “MODE”button
to scroll through the digits
quickly) Press the “SET”
button to set the minutes
and return to clock mode.
6. Timer Selection
The Turbo®Comp has two
timers; Automatic Timer
Mode (ATM) and Timer
Mode (TIMER). The ATM
selection allows you to
keep track of your actual
riding time. The ATM timer
only operates when the
wheel is rotating and can-
10
Odometer (ODO) mode
and then hold down the
“MODE”button for three
seconds. The display will
now show the currently
selected tire size for wheel
option #1. (See figure
13). If necessary scroll
through the prepro-
grammed tire sizes by
tapping the “MODE”but-
ton until the display shows
MM and four-digit num-
ber. This number repre-
sents your tire circumfer-
ence in millimeters. Press
the “MODE”button until
the flashing digit is cor-
rect. (Note: The “MODE”
button may be held to
scroll to the correct digit.)
Press the “SET”button to
select the next digit to the
not be turned on or off
manually.
Note: The average speed
(AVSPD) calculation is
based upon the ATM time.
The TIMER function is just
like a conventional stop-
watch. The timer is activated
manually and records the
time whether the wheel is
rotating or not. Tapping the
“TOP”button starts and
stops the stopwatch and
when the timer is stopped,
holding the “SET”button for
three seconds will reset to
stopwatch. The TIMER
includes a 12-memory lap
time feature. To record a lap
time, press the “SET”button
once while the stopwatch is
running. Each time the
“SET”button is depressed
the Turbo®Comp will
record the lap time. After
the TIMER has been stopped
(by pressing the “TOP”but-
ton) the previous twelve lap
times can be reviewed by
pressing “SET”button.
Additionally, the computer
will display the total time
when LPTOT is shown.
FIGURE 13
FIGURE 14

shortest interval that can be
set is 5 seconds.
10. Distance Countdown
(DISTÚ)
Your Turbo®Comp is
equipped with Distance
Countdown feature. This
allows you to set an alarm
when the selected mileage
is reached. To enter the
Distance Countdown mode,
press the “MODE”button
repeatedly until “DISTÚ”
appears in the Dot-matrix
Display Area. Note: if your
display says “INT, press the
“SET”button to change to
“DISTÚ” To set the Distance
Countdown, hold the “SET”
button for three seconds.
The hour digit will begin
flashing. Press the
“MODE”Button until the
desired number appears.
(Hold down the “Mode”
button to scroll quickly)
Press the “SET”button once
to set this number and
advance to minutes. Repeat
this process until minutes
and seconds are set to the
desired settings. Press the
“SET”button to exit pro-
gramming mode. Once
the time interval timer is
programmed, press the
“TOP”button to stop and
start the Distance
Countdown.
Note: The shortest
distance that can be set
is .01 miles/km.
COMPUTER
FUNCTIONS
Speedometer (SPEED)- Your
current speed is always dis-
played in large digits on the
top line of the LCD screen.
The speed is displayed up
to 99.9 M/h (99.9 Km/h)
with a resolution of 0.1
M/h (0.1 Km/h)
13
7. Interval Timer (INT)
Your Turbo®Comp is
equipped with an Interval
Timer. This feature allows
you to customize your train-
ing by integrating a pro-
grammable repeating count-
down timer into your work-
out. To enter the interval
timer mode, press the
“MODE button”repeatedly
until “INT”appears Dot
Matrix Display Area of the
screen. You are now in
interval timer mode. To set
the interval timer, hold the
“SET”button for three sec-
onds. The hour digit will
begin flashing. Press the
“MODE”Button until the
desired number appears.
(Hold down the “Mode”
button to scroll quickly) Press
the “SET”button once to set
this number and advance to
minutes. Repeat this process
until minutes and seconds
are set to the desired set-
tings. Press the “SET”but-
ton to exit programming
mode. Once the time inter-
val timer is programmed,
press the “TOP”button to
start/stop the countdown.
(See figure 15). Note: The
12
Average Speed (AVSPD)-
The Average Speed is
shown on the lower line
Digital Display Area up to
99.9 M/h (99.9 Km/h)
with a resolution of 0.1
M/h (0.1 Km/h)
The average speed is
based upon the ATM time.
The resolution of the aver-
age speed data on the
Digital Display Area is
shown in 0.1M/h or Km/h
increments. (See figure 16)
Maximum Speed (MXSPD)-
The Maximum Speed is
shown on the lower line of
the Digital Display Area up
to 99.9 M/h (99.9 Km/h)
with a resolution of 0.1
M/h (0.1 Km/h) The max-
FIGURE 15
FIGURE 16

watch function will operate
when the “TOP”button is
pressed. The stopwatch will
record the total time after
the button is pressed
regardless of whether there
is speed input or not.
Interval Timer (INT)-
The interval timer is dis-
played on the lower line of
the screen when (INT)
appears on the left. The
timer indicates the end of
an interval with one short
beep per second for the last
4 seconds of the interval.
This is followed by a long
beep, indicating the begin-
ning of a new interval.
Trip Distance (DST)-
Trip distance mode will
record up to 999.99 miles
or kilometers and then roll
to zero. The trip distance
can be reset by pressing
the “SET”button for three
seconds. The resolution is
0.01 miles (0.01
Kilometers). The trip dis-
tance is shown on the
lower line if the screen.
(See figure19)
Odometer (ODO)-
The odometer will record
the total distance traveled
up to 99,999 miles or kilo-
meters and then roll to
zero. The odometer can be
reset by pressing the “SET”
button for three seconds.
The total distance is shown
on the lower line if the
screen.
Programmable Odometer-
The odometer digits are
programmable. This is con-
venient for transferring
your hard-earned mileage
that is usually lost when
changing batteries or com-
puters.
15
imum speed is retained in
memory and updated
when a higher speed is
maintained for three sec-
onds. The maximum speed
can be reset by pressing
the “SET”button for three
seconds. (See figure 17)
Auto Start/Stop Timer
(ATM)-
In ATM mode the timer
function records the actual
time spent riding. It oper-
ates only when there is
speed input and is dis-
played In the Digital
Display Area of the screen
Timer Mode (TIMER)-
In TIMER mode the stop-
14
Clock-
Your Turbo®Comp is
equipped with a digital
clock. The clock can be set
to operate in either 12 or
24-hour mode.
Second Wheel Option-
For riders who own more
than one bicycle or who
frequently change tires, the
Turbo®Comp is capable
of storing two tire sizes.
You can change between
the two sizes by entering
Distance Mode and select-
ing TRIP. Then, press the
“MODE”button for three
seconds. The second wheel
mode indicator will change
from 1 to 2. Mileage
recorded will be cumulative
between the two sizes. (An
accessory handlebar mount
is available from your
Specialized dealer. P/N
4814-5045)
TROUBLESHOOTING:
Display is blank:
Change the battery or
press the AC button on the
bottom of the case
FIGURE 17
FIGURE 19

are riding.
•Do not disassemble you
Turbo®. There are no user
serviceable parts inside.
•Make sure the magnet
and the transmitter are well
aligned. Check them regu-
larly.
•Keep the computer and
all of its components tightly
attached, and check them
regularly. If any of the
components come loose, it
could become tangled in
your spokes and cause an
accident.
•See your authorized
Specialized dealer if you
have any trouble installing
or maintaining your com-
puter.
•Clean the unit with a
mild detergent and a soft
dry cloth. Never use any
kind of solvent or alcohol.
•The Turbo®Comp com-
puter is intended for use on
bicycles only and should
not be used on any motor-
ized vehicle.
Specifications:
Current Speed:
0.0 to 99.90 MPH
0.0 to 99.90 Km/H
Average Speed (AVS)
0.0 to 199.9 MPH
0.0 to 199.9 Km/H
Maximum Speed (MXS)
0.0 to 199.9 MPH
to 199.9 Km/H
Trip Distance (DST)
0 to 999.99 miles or Km
Odometer (ODO)
0 to 99,999 miles or Km
Stopwatch (TM)
0 to 9hrs, 59min, 59sec.
recycling type
Automatic Timer (ATM)
0 to 9hrs, 59min, 59sec.
recycling type
Interval Timer (INT)
5 seconds to 9hrs, 59
min, 59 sec.
Distance
Countdown(DISTÚ)
.01 to 999.99Miles
.01 to 999.99Kilometers
17
Display shows
partial digits:
Press the AC button on the
bottom of the case.
Speed/distance
not recording:
Check sensor/magnet
alignment. Make sure that
the sensor is no more than
1/16”(2mm) from the
magnet. Replace transmit-
ter battery if necessary.
Recalibrate Computer and
transmitter.
Entire screen is dark:
Did you leave the bike
parked in the hot direct
sun when it was parked? If
so, move the bike to the
shade. The data will be
OK.
Computer moves
on handlebar:
Tighten mount or add
sizing straps to improve
fit on handlebar.
IMPORTANT!
•Pay attention to traffic
and road conditions at all
times. Your first obligation
is to be attentive and to
ride safely.
•Do not expose it to direct
sunlight except when you
16
Operating Temperature
40°F to 104°F (4°C to
40°C)
The following replacement
parts are available from
your Specialized dealer or
by visiting the Specialized
S-store online at
WWW.SPECIALIZED.COM
DESCRIPTION PART#
STANDARD WHEEL
MAGNET 480-3003
CR-2032 TURBO®
BATTERY 480-3004
ADHESIVE BACKED
WHEEL MAGNET
4800-3002
CENTER MOUNT
4814-5035
TURBO SPORT/COMP
2ND BIKE KIT 4814-5045
TURBO SPORT/COMP
SENSOR WIRE4814-5055
TURBO MOUNT ONLY
26.0MM 4814-5060
TURBO MOUNT ONLY
31.8MM 4814-5065

arising from any breach of any
expressed or implied warranty on
this product. This warranty is exclu-
sive and in lieu of all other war-
ranties, expressed or implied, and
all other remedies, guaranties or
liabilities arising by law or other-
wise.
Note: This warranty does not per-
tain to batteries.
No person or representative is
authorized to assume any liability
on behalf of Specialized Bicycle
Components, Inc. in connection
with the sale of this product. Some
states do not allow the exclusion or
limitation of incidental or conse-
quential damages or limitations on
how long an implied warranty
lasts, so the above limitation or
exclusion may not apply to you.
This warranty gives you specific
legal rights, and you may also
have other rights which vary from
state to state.
Turbo® is a registered trademark
of Specialized Bicycle Components
Inc.
© 2003 Specialized Bicycle
Components Inc.
WWW.SPECIALIZED.COM
Two Year Limited Warranty:
Specialized Bicycle
Components Inc. warrants the
Original Purchaser of this
Specialized®Turbo®Comp
cyclocomputer that the product is
free from defects of material and
workmanship under normal use
and service for a period of two (2)
years from the date of the original
purchase. If within two (2) year
from the date of that original pur-
chase, this product is found to be
defective in material or workman-
ship under normal use or service,
Specialized Bicycle Components
Inc. will, at its sole option, repair
or replace the product without
charge; provided that the Original
Purchaser returns the product,
securely packaged, postage pre-
paid to: Specialized Bicycle
Components Inc., 1137 South,
3800 West Salt Lake City, UT
84104, USA. Attn: Turbo®Comp
Warranty. Be sure to include a let-
ter indicating the specific reasons
for returning the product and
proof of date of purchase.
This warranty does not apply to,
and is void as to, defects or physi-
cal damage resulting from abuse,
neglect, improper repair, improp-
er fit, alterations, modifications or
use contrary to that intended by
the manufacturer. Except to the
extent prohibited by applicable
law, any implied warranty of mer-
chantability or fitness for a partic-
ular use or purpose is limited in
duration of this limited warranty.
Specialized Bicycle Sportonents,
Inc. shall not be liable for any acci-
dental or consequential damages
18
