Spectrum Industries 38955 User manual

Owner's Manual
Flex Insight Computer Desk
#38955 36" Single
#38957 72" Double
#38956 42" Single w/ ADA clearance
#38958 36" Single w/ lock
#38960 72" Double w/ lock
#38959 42" Single w/ ADA clearance & lock
36
"
Single Desk
72
"
Double Desk

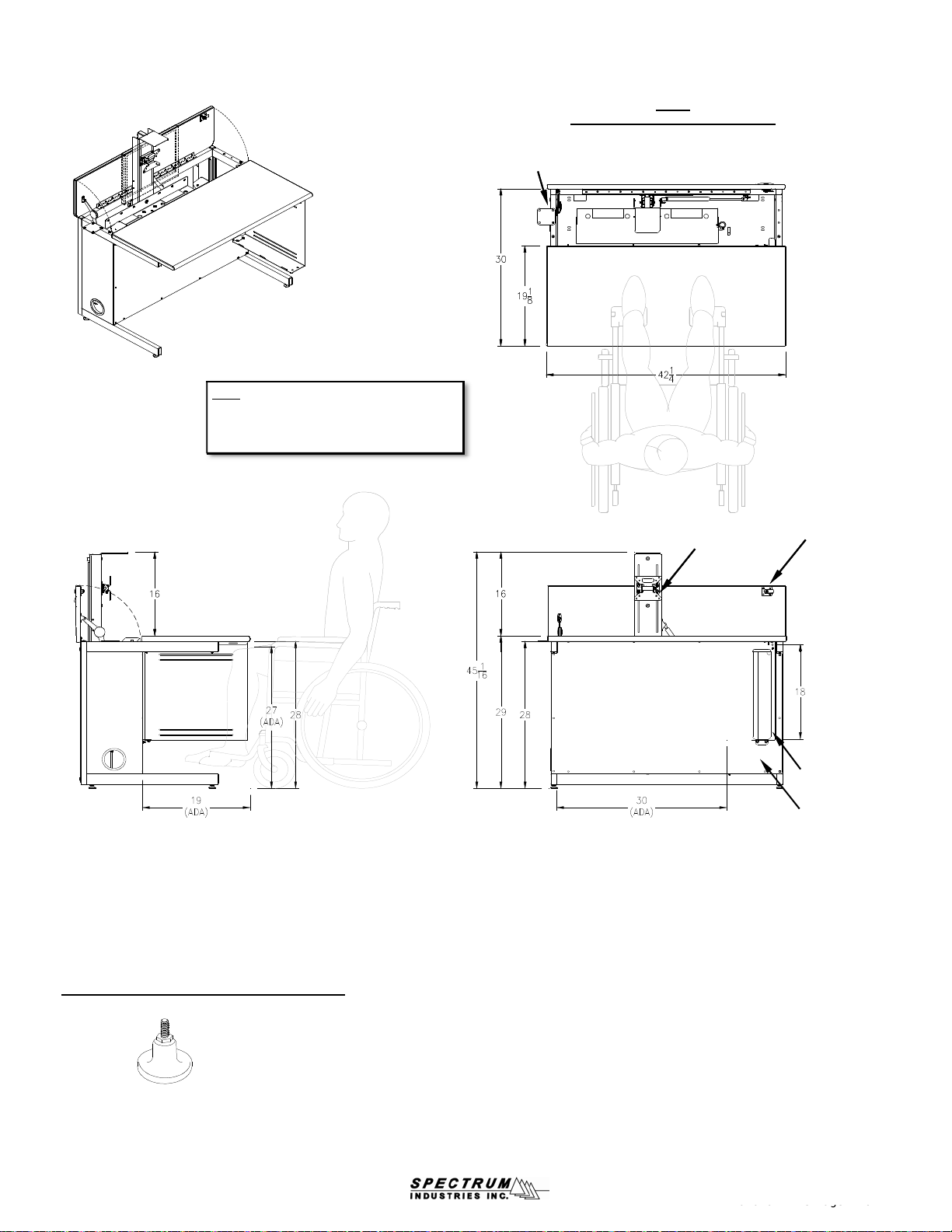

42"
Single Desk w/ ADA clearance
0107821XR3 Page 1 of 12
Owner's Manual
IMPORTANT:
Before you begin, please make sure all parts and proper quantities
are included. Any parts damaged during shipment must be reported
within 15 days of receipt. To report information regarding damages or
if you have any questions, please call 1-800-235-1262.
Flex Insight Computer Desk
#38955 36" Single
#38957 72" Double
#38956 42" Single w/ ADA clearance
#38958 36" Single w/ lock
#38960 72" Double w/ lock
#38959 42" Single w/ ADA clearance & lock
CAUTION:
Before using this product, read this manual and follow all safety and
operating instructions.
Spectrum Industries, Inc.
Chippewa Falls, WI 54729, USA
To purchase parts or accessories, please contact us at
www.spectrumfurniture.com
1-800-235-1262
Thank you for choosing Spectrum products!

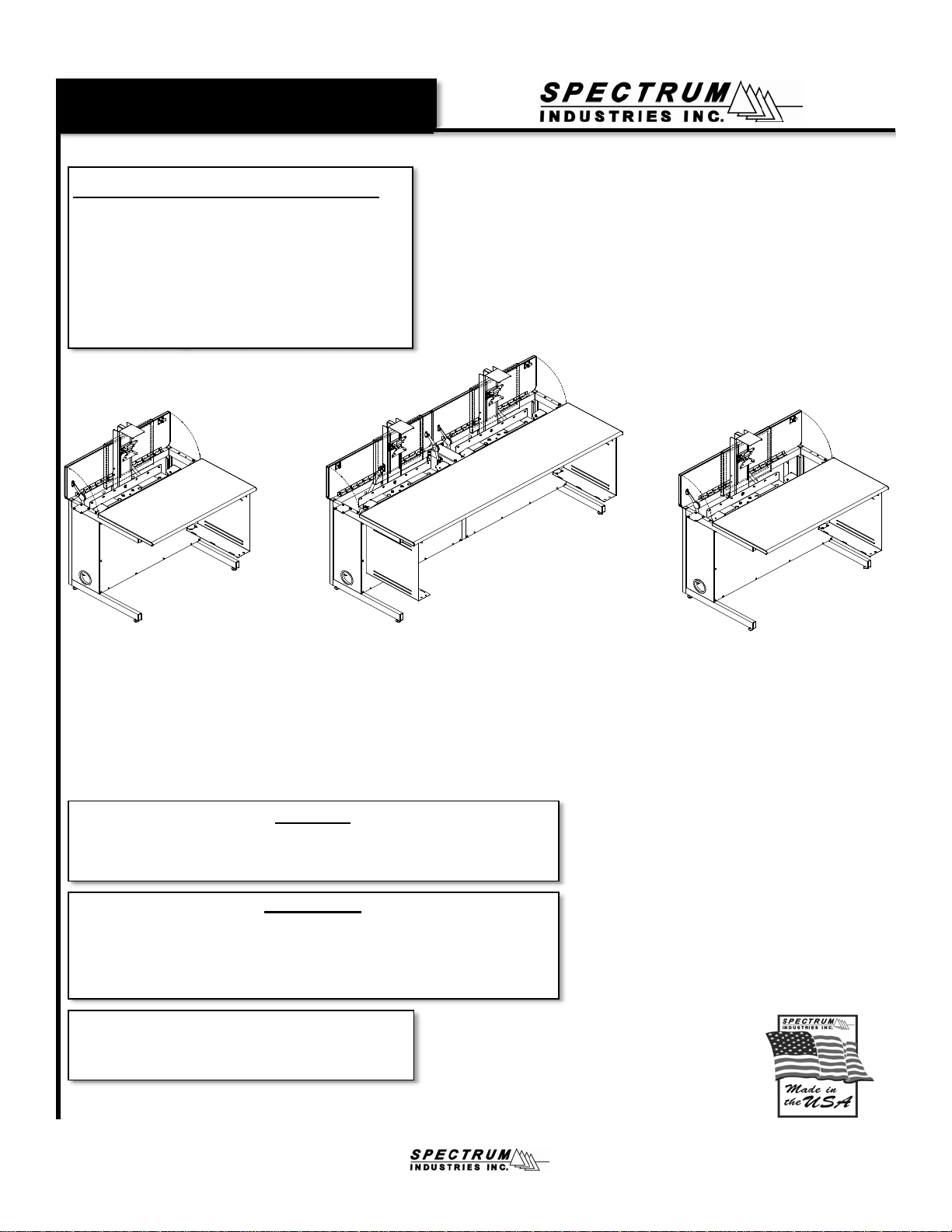

36" Single Desk 72" Double Desk 42" Single Desk w/ ADA clearance

Unit-to-unit bracket
(1) 0107574
●Read this owners manual before assembling or operating this desk.
●Keep fingers and hands away from the edges of monitor compartment lid and clear
of the lift mechanism when raising or lowering to prevent pinching.
●Do not sit or allow students to sit on top of desk or monitor compartment lid.
●Do not exceed the maximum monitor weight rating of 14lbs.
Safety
Hardware package contents
1/4-20 x15mm JC Bolts
(4) 052605

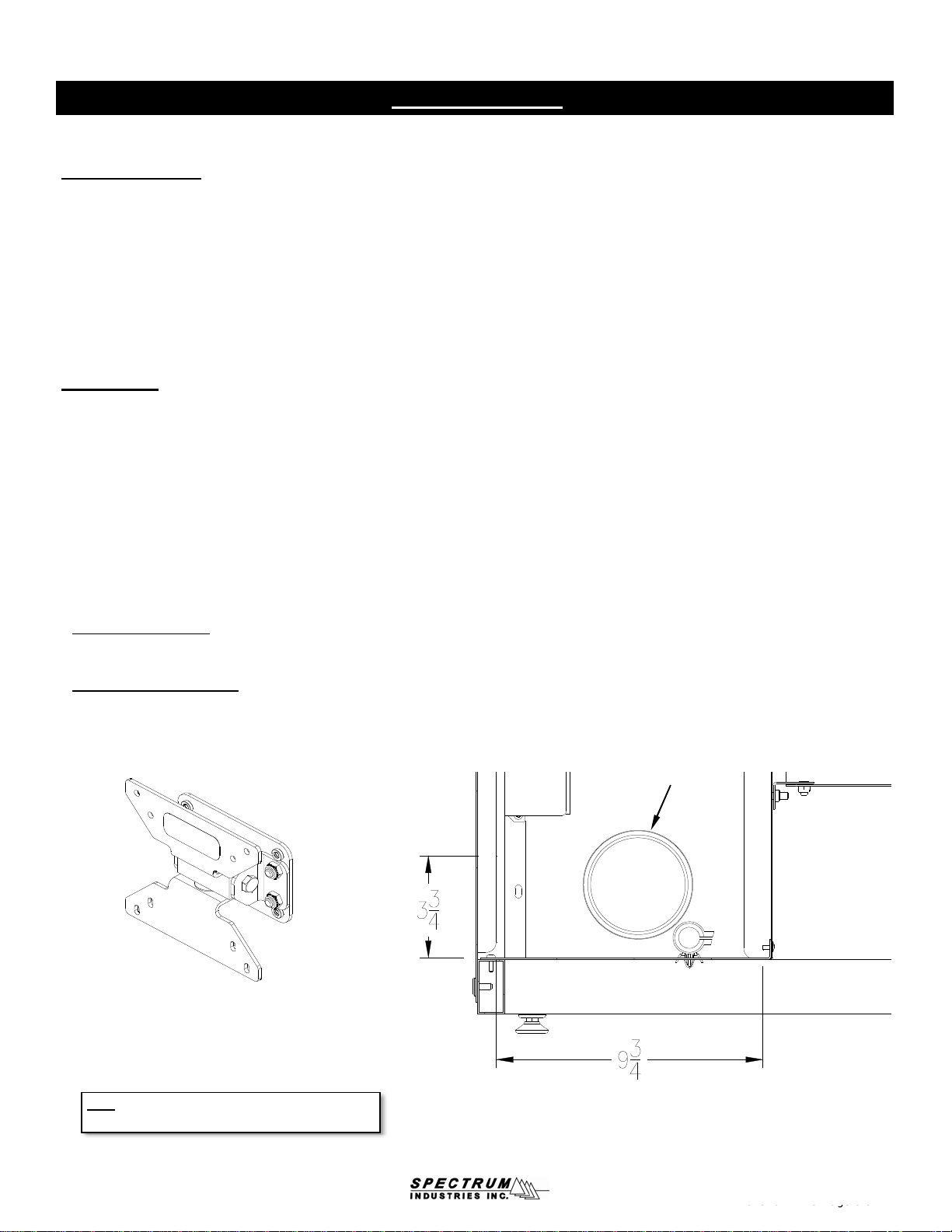

Standard Swivel VESA Monitor
Mount w/ internal travel stops
provides 4-direction tilt, and works with 75mm
and 100mm VESA monitor mounts
(includes mounting screws)
(1) 0107624 w/ single desks
(2) 0107624 w/ double desks
4mm Hex Wrench
(1) 025039
Glide Wrench
(1) 025069
11" Zip Ties
(10) 0102376 w/ single desks
(15) 0102376 w/ double desks
5/16-18 Glides
(4) 025068
0107821XR3 Page 2 of 12
Unit-to-unit bracket
(1) 0107574
Read this owners manual before assembling or operating this desk.
Keep fingers and hands away from the edges of monitor compartment lid and clear
of the lift mechanism when raising or lowering to prevent pinching.
Do not sit or allow students to sit on top of desk or monitor compartment lid.
Do not exceed the maximum monitor weight rating of 14lbs.
Safety
Hardware package contents
Assembly / Setup
1/4-20 x15mm JC Bolts
(4) 052605
Phillips and Flat Head
Screwdrivers
Standard Swivel VESA Monitor
Mount w/ internal travel stops
provides 4-direction tilt, and works with 75mm
and 100mm VESA monitor mounts
(includes mounting screws)
(1) 0107624 w/ single desks
(2) 0107624 w/ double desks
4mm Hex Wrench
(1) 025039
4mm Hex Wrench
(included)
Tools Required:
Glide Wrench
(1) 025069
11" Zip Ties
(10) 0102376 w/ single desks
(15) 0102376 w/ double desks
Glide Wrench
(included)
5/16-18 Glides
(4) 025068
Unlock monitor column first
Note: Every Flex Insight desk ships with one or two carriage bolts with wing
nuts locked in a keyhole slot under the bottom of the keyboard tray. These
fasteners prevent monitor column movement during shipping, and will need
to be removed to get the monitor column to function. A picture of the bolt
and wing nut is shown here from the back side of the desk. To remove,
unscrew the wing nut by hand, and slip the bolt out of the keyhole slot. The
fasteners should be retained for reuse if you will be transporting the desk.
If you transport the desk (in a trailer or truck) it is recommended to replace
the carriage bolt and wing nut. To replace, start the wing nut on the end of
the bolt and push the monitor column down into the lowered
position. Wiggle the head of the bolt into the slot from the large side of the
keyhole. Let the monitor column rise slightly to put tension on the wing
nut. Tighten down until monitor column does not move and is secure.
Carriage Bolt
Wing Nut
Keyhole slot
Monitor column
0107821XR3
Page
2
of
12

Figure 1
2 Connecting Desks Together
1. Installing Glides
A. Carefully lift one side of the desk and place a short wooden 4x4 or 2x4 block (or equivalent support) under the leg.
This may require two people. Figure 1.
B. Thread the two glides into the leg, tighten securely, and remove block.
C. Repeat this procedure on the other side of the desk.
D. The glides can be adjusted with the included glide wrench to level the desk if necessary.
Glide
Leg
Wooden block
0107821XR3 Page 3 of 12
Figure 1
2. Connecting Desks Together
A. Desks of equal height can be connected together with the included unit-to-unit bracket. Figure 2.
B. Align desks next to each other in their final location and raise monitor compartment lids.
C. Attach desks together with a unit-to-unit bracket and (4) 1/4-20 x 15mm JC bolts. Tighten bolts securely.
D. Disconnect brackets to move/relocate desks.
Unit-to-unit
bracket
Top View
1. Installing Glides
A. Carefully lift one side of the desk and place a short wooden 4x4 or 2x4 block (or equivalent support) under the leg.
This may require two people. Figure 1.
B. Thread the two glides into the leg, tighten securely, and remove block.
C. Repeat this procedure on the other side of the desk.
D. The glides can be adjusted with the included glide wrench to level the desk if necessary.
Glide
Figure 2
Leg
Wooden block
0107821XR3
Page
3
of
12

Flat panel
monitor
3. Installing Flat Panel Monitor
A. Loosen the back panel JC bolts slightly with a 4mm hex wrench, lift off the back panel, and open the monitor compartment lid
B. Attach the Swivel VESA mount to your flat panel monitor with (4) 4mm PHM screws. Figure 3A.
Note: On most flat panel monitors, it will be necessary to remove the standard base that comes with the monitor to use the
VESA mounting option.
C. Position your monitor with the lift column and align the VESA mounting holes with the lift column slots. Leave a small gap between the
top of the monitor and lift bracket to provide clearance for the monitor to fully tilt.
D. Attach the swivel VESA mount and monitor to the lift column with (4) 10-24 x 1/2" screws as shown in Figure 3B.
Tighten screws securely.
(4) 10-24 x 1/2"
screws
Figure 3A
(4) 4mm PHMS
Swivel VESA
mount
Figure 3B
Lift column
Lift bracket
Swivel VESA
Mount
4. Installing CPU
A. Set the CPU unit into the CPU sling.
B. M
a
k
e
su
r
e
t
h
e
C
P
U
will
be
suppo
r
ted
by
bot
h
st
r
aps
. Ti
g
h
te
n
t
h
e
st
r
aps
a
r
ou
n
d
t
h
e
0107821XR3 Page 4 of 12
Flat panel
monitor
3. Installing Flat Panel Monitor
A. Loosen the back panel JC bolts slightly with a 4mm hex wrench, lift off the back panel, and open the monitor compartment lid
B. Attach the Swivel VESA mount to your flat panel monitor with (4) 4mm PHM screws. Figure 3A.
Note: On most flat panel monitors, it will be necessary to remove the standard base that comes with the monitor to use the
VESA mounting option.
C. Position your monitor with the lift column and align the VESA mounting holes with the lift column slots. Leave a small gap between the
top of the monitor and lift bracket to provide clearance for the monitor to fully tilt.
D. Attach the swivel VESA mount and monitor to the lift column with (4) 10-24 x 1/2" screws as shown in Figure 3B.
Tighten screws securely.
(4) 10-24 x 1/2"
screws
Figure 3A
(4) 4mm PHMS
Swivel VESA
mount
Figure 3B
Lift column
Lift bracket
Swivel VESA
Mount
4. Installing CPU
A. Set the CPU unit into the CPU sling.
B. Make sure the CPU will be supported by both straps. Tighten the straps around the
CPU while keeping the buckles positioned as high as possible to avoid interference. Figure 4A.
Note:The center slot can be used for better support of smaller profile CPU's.
If the center slot is necessary, take the rear strap out of the rear slot and thread
into the center slot shown in Figure 4A. Thread the strap as shown in Figure 4B.
Figure 4B
Figure 4A
CPU
CPU sling
straps
Strap/buckle
assembly
Center slot
CPU
CPU Sling
0107821XR3
Page
4
of
12

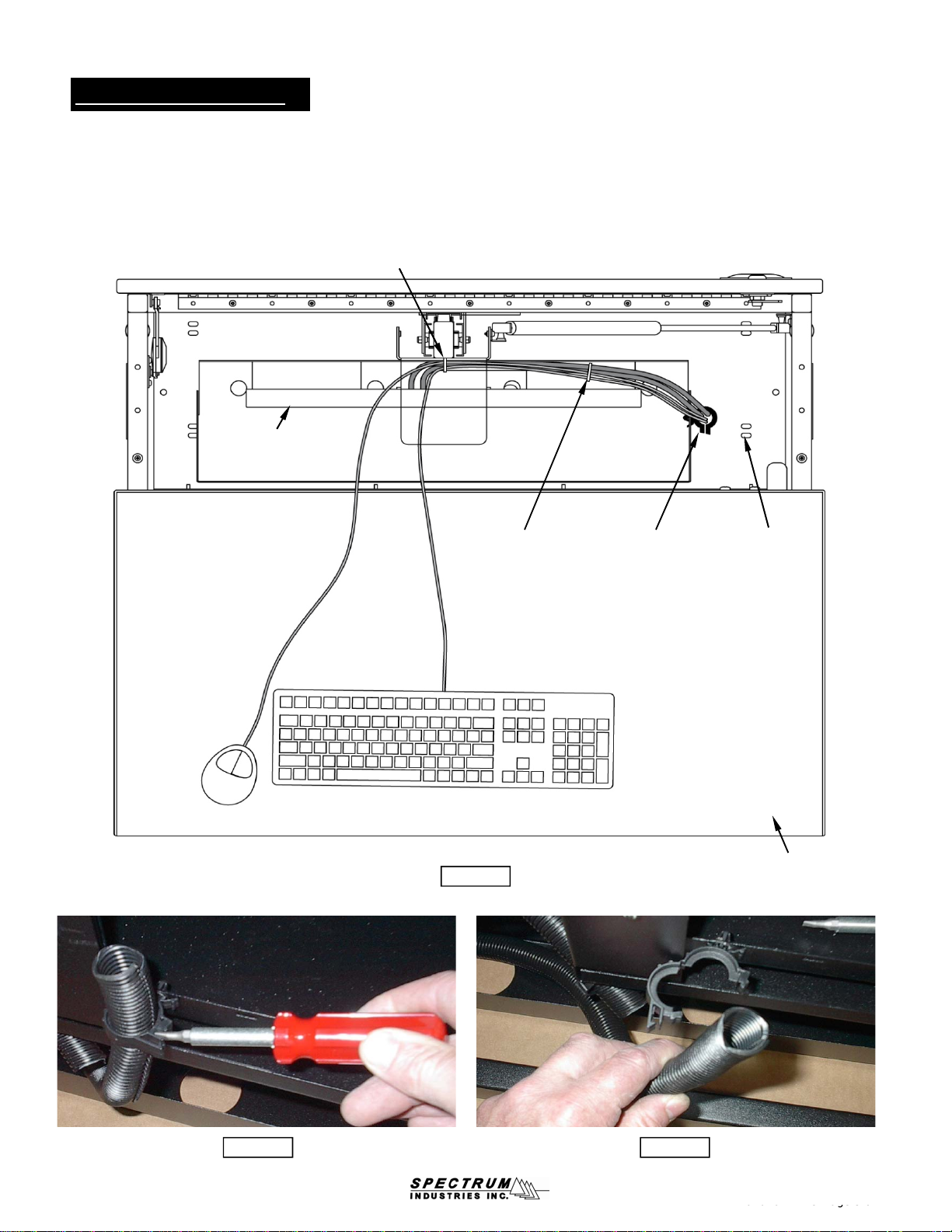

5. Cord Management
A. With the back panel removed, connect the necessary monitor, keyboard, and mouse cords above the work surface.
B. Position the keyboard as shown approximately 6" from the front edge of the work surface with the mouse on the opposite side of the
CPU as shown. Figure 5A. This will provide enough slack in the cords during normal use and provide for left and right mouse locations.
With a zip tie, secure cords to the back of the keyboard tray as shown.
C. The wire loom keeps monitor and keyboard cords together and routes them while the monitor is being raised and lowered.
Using a flat head screwdriver, pry open each loom clip to release the wire loom. Figure 5B & 5C.
Wire loom &
clip
Zip tie cords here to
secure to keyboard tray
Flat panel
monitor
Zip tie here to secure
CPU/Ethernet cords to
bottom of wiring tray
Zip tie monitor,
keyboard & mouse
cords here
0107821XR3 Page 5 of 12
5. Cord Management
A. With the back panel removed, connect the necessary monitor, keyboard, and mouse cords above the work surface.
B. Position the keyboard as shown approximately 6" from the front edge of the work surface with the mouse on the opposite side of the
CPU as shown. Figure 5A. This will provide enough slack in the cords during normal use and provide for left and right mouse locations.
With a zip tie, secure cords to the back of the keyboard tray as shown.
C. The wire loom keeps monitor and keyboard cords together and routes them while the monitor is being raised and lowered.
Using a flat head screwdriver, pry open each loom clip to release the wire loom. Figure 5B & 5C.
Figure 5B Figure 5C
Wire loom &
clip
Zip tie cords here to
secure to keyboard tray
Flat panel
monitor
Figure 5A CPU location
Zip tie here to secure
CPU/Ethernet cords to
bottom of wiring tray
Zip tie monitor,
keyboard & mouse
cords here
0107821XR3
Page
5
of
12

Flat panel
monitor
Zip tie cords to
secure to desk
E. With the loom removed, feed the monitor, keyboard, and mouse cords through the sliced opening of the loom to the
bottom of the desk as shown. Figure 5D.
F. Split the CPU wires out of loom approximately 3/4 of the way down the loom and plug into CPU.
G. Reattach the loom with the clips while providing enough slack in the loom to allow the monitor column to fully extend and retract.
H. Secure the CPU cords to the bottom of the loom by attaching a zip tie around the loom directly above where the CPU cords exit the
loom. This will prevent the cords from backing out of the loom. Figure 5D.
I. Secure the CPU/Ethernet cords to the bottom of the wiring tray with a zip tie.
J. Use additional zip ties to secure other cords as needed.
Zip tie monitor,
keyboard & mouse
cords here
0107821XR3 Page 6 of 12
Figure 5D
Wire loom
Loom clip
Loom clip
Power strip
(not included)
Flat panel
monitor
120VAC power
cords
Monitor, keyboard &
mouse cords to CPU
Zip tie cords to
secure to desk
E. With the loom removed, feed the monitor, keyboard, and mouse cords through the sliced opening of the loom to the
bottom of the desk as shown. Figure 5D.
F. Split the CPU wires out of loom approximately 3/4 of the way down the loom and plug into CPU.
G. Reattach the loom with the clips while providing enough slack in the loom to allow the monitor column to fully extend and retract.
H. Secure the CPU cords to the bottom of the loom by attaching a zip tie around the loom directly above where the CPU cords exit the
loom. This will prevent the cords from backing out of the loom. Figure 5D.
I. Secure the CPU/Ethernet cords to the bottom of the wiring tray with a zip tie.
J. Use additional zip ties to secure other cords as needed.
Zip tie here to secure
CPU/Ethernet cords to
bottom of wiring tray
CPU
Zip tie monitor,
keyboard & mouse
cords here
CPU cords exit loom here. Zip
tie around cords and loom to
prevent cords from backing out
0107821XR3
Page
6
of
12

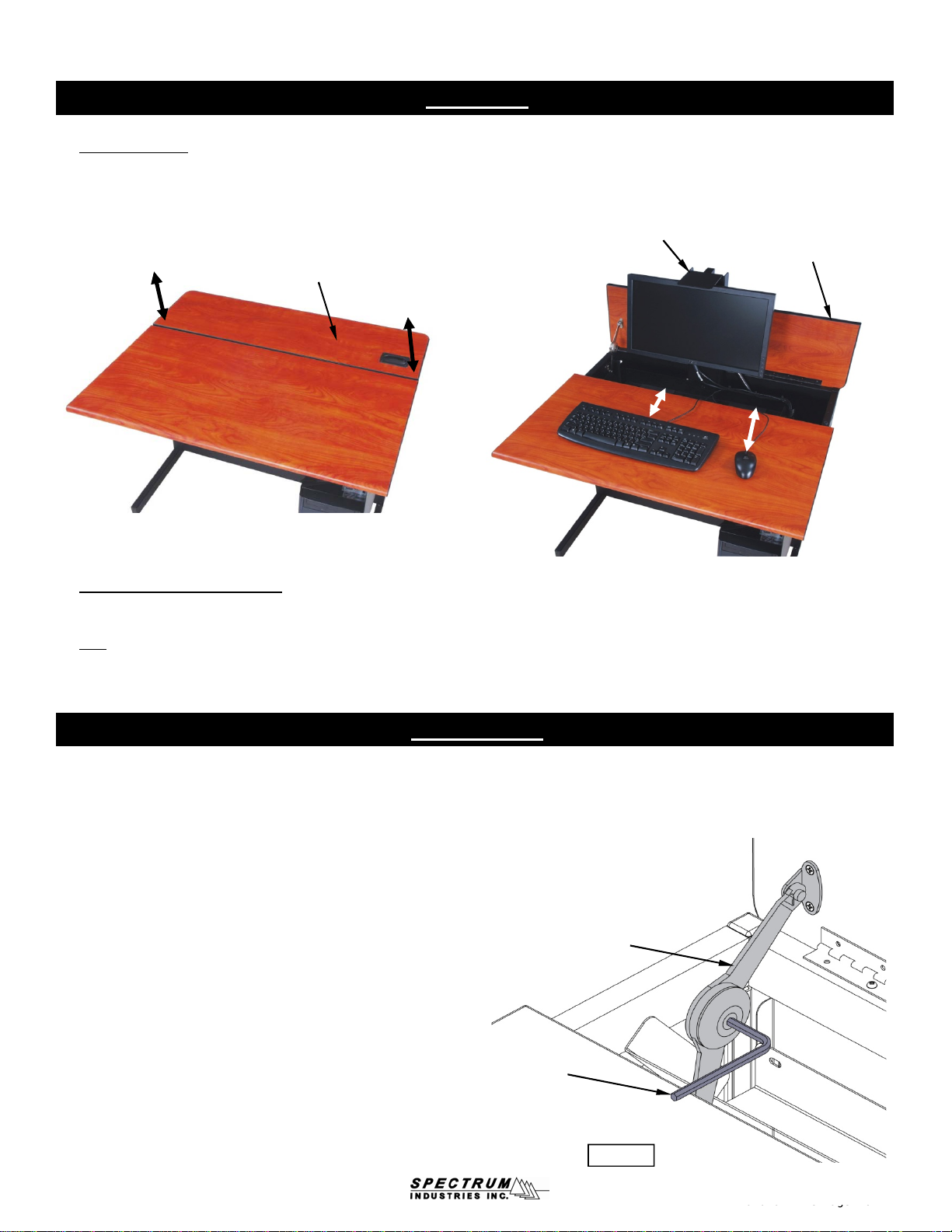

Operation
For computer use:
Open the monitor compartment lid. Raise the monitor by pulling up on the lift bracket until fully extended.
Take out the keyboard and mouse and set on the work surface.
For classroom (work surface) use:
Place the keyboard and mouse in the compartment tray under the monitor.
Lower the monitor by pushing down on the lift bracket until the column is fully retracted, then close the monitor compartment lid.
Note: Lockable desks can be locked at this point for security.
Lift bracket
Monitor
compartment lid
Monitor
compartment lid
0107821XR3 Page 7 of 12
Operation
For computer use:
Open the monitor compartment lid. Raise the monitor by pulling up on the lift bracket until fully extended.
Take out the keyboard and mouse and set on the work surface.
For classroom (work surface) use:
Place the keyboard and mouse in the compartment tray under the monitor.
Lower the monitor by pushing down on the lift bracket until the column is fully retracted, then close the monitor compartment lid.
Note: Lockable desks can be locked at this point for security.
Lift bracket
Monitor
compartment lid
Monitor
compartment lid
Maintenance
●After approximately 300 cycles of opening and closing, the friction dampener on the work surface lid
should be retightened to 13 in-lbs using a torque wrench with a 4mm hex driver. If a torque wrench
is unavailable, tighten the friction damper with a 4mm hex wrench 1/8 turn at a time and test. The
correct adjustment is when the lid slows down between 2-4" from closure. Figure 6.
Figure 6
4mm hex
wrench
Friction
dampener
0107821XR3
Page
7
of
12

Technical Specs
Construction
●The top work surface is constructed from 11/16" thick industrial-grade composite board with .030 high-pressure laminate, and a balancing
phenolic backer on the bottom side. The left, right, and rear edges are finished with 3mm vinyl edge-band.
●The monitor compartment lid work surface is constructed from 3/4" thick industrial-grade composite board with .030 high-pressure laminate
on both sides-all edges are finished with 3mm vinyl edge-band
●Heavy-duty metal components ranging from 12-20 gauge steel
●CPU sling has two deluxe 1" nylon straps with a locking buckle to secure CPU
●Welded, 16-gauge 1" x 2" rectangular steel tube legs
●Upper leg panel, 14 gauge
●Work surface edges are covered with 3mm vinyl
●All metal components are finished with a scratch-resistant powder coat epoxy paint
●Each Flex Insight Desk is factory-assembled, packaged and shipped on its own skid
Capacity
●Overall dimensions:
Single: 36"W x 30"D x 29"H
Double: 72"W x 30"D x 29"H
Single ADA: 42"W x 30"D x 29"H
●Lift mechanism is manually actuated with pneumatic and spring-assist
●Lift capacity: factory preset for monitors weighing 7-14 lbs
●Maximum monitor size: 24"W x 16"H x 5-1/2"D
●CPU sling accommodates CPU's from 4"-8"W x up to 18"D x up to 18"H
●Wiring tray dimensions for power cords and power strips:
36" single: 32"W x 9-3/4"D x 3-3/4"H
72" double: 64"W x 9-3/4"D x 3-3/4"H
42" ADA: 37-5/16"W x 9-3/4"D x 3-3/4"H
●Meets or exceeds all ANSI-BIFMA test standards
●Features and specifications subject to change without notice
●Unit weights (nominal):
36" single - 107 lbs
72" d bl
194 lb
0107821XR3 Page 8 of 12
Technical Specs
Construction
The top work surface is constructed from 11/16" thick industrial-grade composite board with .030 high-pressure laminate, and a balancing
phenolic backer on the bottom side. The left, right, and rear edges are finished with 3mm vinyl edge-band.
The monitor compartment lid work surface is constructed from 3/4" thick industrial-grade composite board with .030 high-pressure laminate
on both sides-all edges are finished with 3mm vinyl edge-band
Heavy-duty metal components ranging from 12-20 gauge steel
CPU sling has two deluxe 1" nylon straps with a locking buckle to secure CPU
Welded, 16-gauge 1" x 2" rectangular steel tube legs
Upper leg panel, 14 gauge
Work surface edges are covered with 3mm vinyl
All metal components are finished with a scratch-resistant powder coat epoxy paint
Each Flex Insight Desk is factory-assembled, packaged and shipped on its own skid
Capacity
Overall dimensions:
Single: 36"W x 30"D x 29"H
Double: 72"W x 30"D x 29"H
Single ADA: 42"W x 30"D x 29"H
Lift mechanism is manually actuated with pneumatic and spring-assist
Lift capacity: factory preset for monitors weighing 7-14 lbs
Maximum monitor size: 24"W x 16"H x 5-1/2"D
CPU sling accommodates CPU's from 4"-8"W x up to 18"D x up to 18"H
Wiring tray dimensions for power cords and power strips:
36" single: 32"W x 9-3/4"D x 3-3/4"H
72" double: 64"W x 9-3/4"D x 3-3/4"H
42" ADA: 37-5/16"W x 9-3/4"D x 3-3/4"H
Meets or exceeds all ANSI-BIFMA test standards
Features and specifications subject to change without notice
Unit weights (nominal):
36" single - 107 lbs
72" double - 194 lbs
42" ADA - 120 lbs
Shipping weights (nominal):
36" single: 144 lbs
72" double: 266 lbs
42" ADA: 157 lbs
Standard Swivel VESA Monitor
Mount w/ internal travel stops
provides 4-direction tilt (4 left, 4 right, 16 up, and 6
down.) Works with 75mm and 100mm VESA monitor
mounts (includes mounting screws)
Wiring Tray
Section View
4" Grommet
Note: Specific monitor size, shape, & mounting
location will determine exact angles of tilt.
0107821XR3
Page
8
of
12

Top View
38958

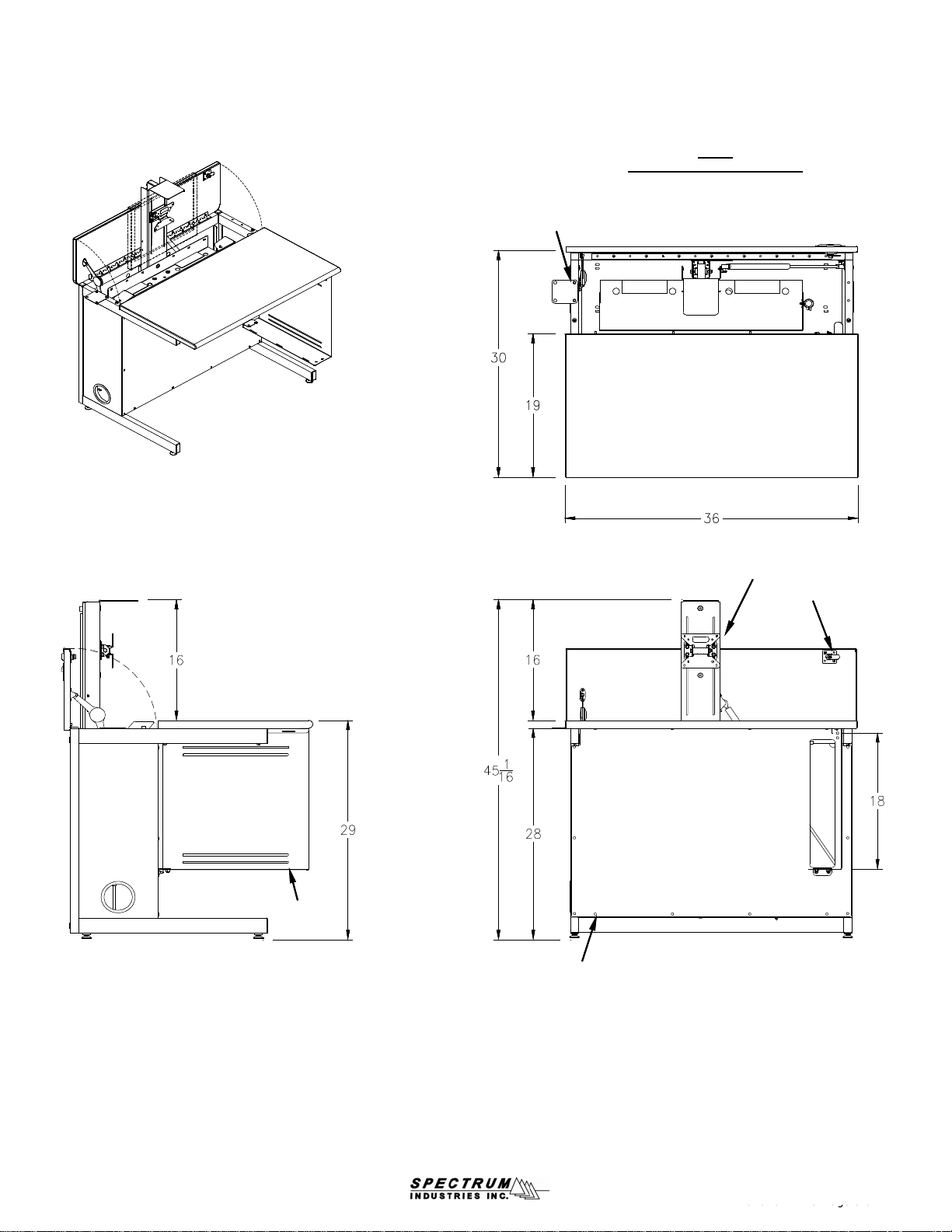

36" Single Desk w/ locking lid
Lift column
Locking lid
Unit-to-unit
bracket
0107821XR3 Page 9 of 12
Top View
Left-Side View Student-Side View
CPU sling
38958
36" Single Desk w/ locking lid
Lift column
Monitor
compartment
Locking lid
Unit-to-unit
bracket
0107821XR3
Page
9
of
12
Top View
Left-Side View Student-Side View
CPU sling
38958
36" Single Desk w/ locking lid
Lift column
Monitor
compartment
Locking lid
Unit-to-unit
bracket

38960
72" Double Desk w/ locking lid
Lift columns
Top View Locking Lid
Unit-to-unit
bracket
0107821XR3 Page 10 of 12
38960
72" Double Desk w/ locking lid
Lift columns
Monitor
compartments
Top View
Left
-
Side View
Student-Side View
CPU slings
Locking Lid
Unit-to-unit
bracket
0107821XR3
Page
10
of
12
