SPL Vitalizer stereo MK2-T User manual

SPL Analog Code
® Plug-in
Manual
Vitalizer® MK2-T
Sound Optimizing Processor

2Vitalizer ® Analog Code® Plug-in
Manual
Vitalizer® MK2-T Analog Code Plug-in
Model Number 1030
Manual Version 2.0 – 12 /2011
This user‘s guide contains a description of the product. It in no
way represents a guarantee of particular characteristics or results
of use. The information in this document has been carefully com-
piled and verified and, unless otherwise stated or agreed upon,
correctly describes the product at the time of packaging with this
document.
Sound Performance Lab (SPL) continuously strives to improve its
products and reserves the right to modify the product described in
this manual at any time without prior notice. This document is the
property of SPL and may not be copied or reproduced in any way, in
part or fully, without authorization by SPL electronics GmbH.
SPL electronics GmbH
Sohlweg 80, 41372 Niederkruechten, Germany
Phone: [phone]
Fax: [phone]
E-Mail: [e-mail]
Website: spl.info
Vitalizer® Patents
EU: 1407544
USA: 7.352.872
Japan: 2003-514695
China: ZL02814524.0
© 2011 SPL electronics GmbH. All rights reserved.
The SPL logo, The Analog Code®, Vitalizer® and Atmos® are trademarks of
SPL electronics GmbH.
All other logos and brand names are registered trade-
marks of their respective owners.

3
Vitalizer ® Analog Code® Plug-in
Content
Installation 4
Plugin Alliance Activation 4
System Requirements and Compatibility 4
MAC and Windows Installation 4
Introduction 5
Glossary 5
SPL Analog Code® Plug-ins 5
The Vitalizer®
5
Music emphasizing technique 6
Special Features 7
Applications 7
Operation 8
Mouse wheel control for all rotary knobs 8
Keyboard Shortcuts 8
Mono, stereo or multi-channel operation 9
Basics 9
Default Settings 10
First Steps 10
Control Elements 11

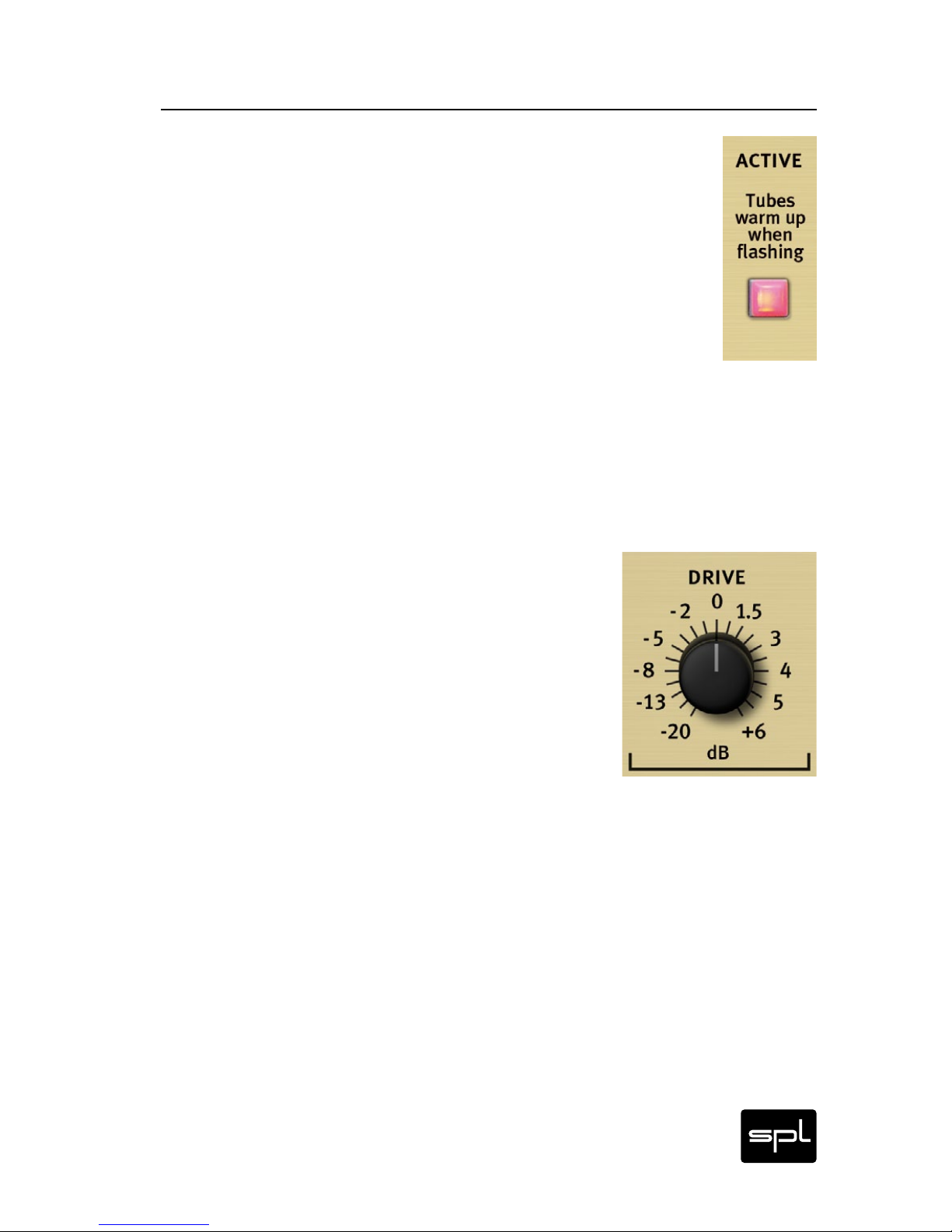

Active 11
Drive 11

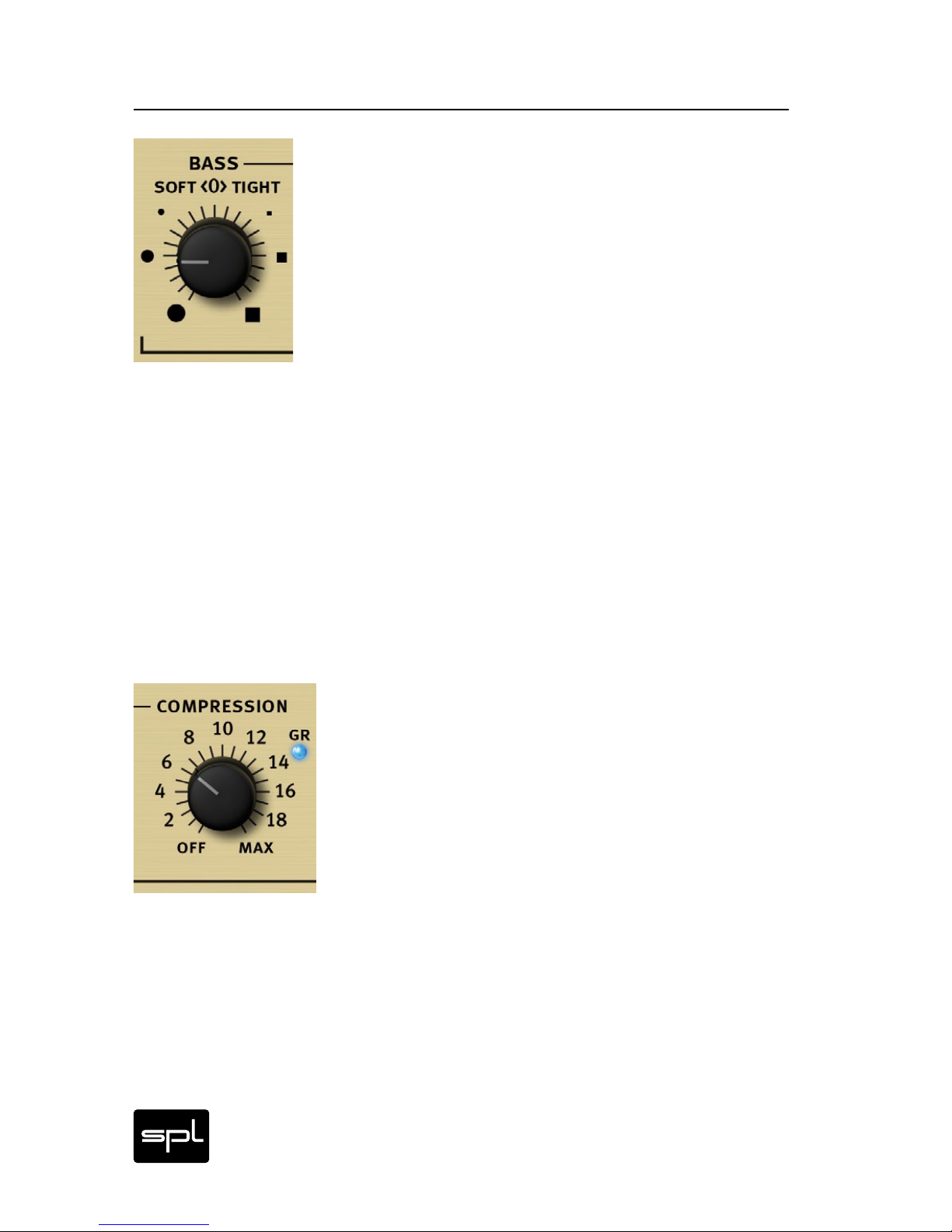

Bass 12
Compression 12
Mid-Hi Tune 13
Process 14
LC-EQ 14
Intensity 15
Stereo Expander 16
Output 16

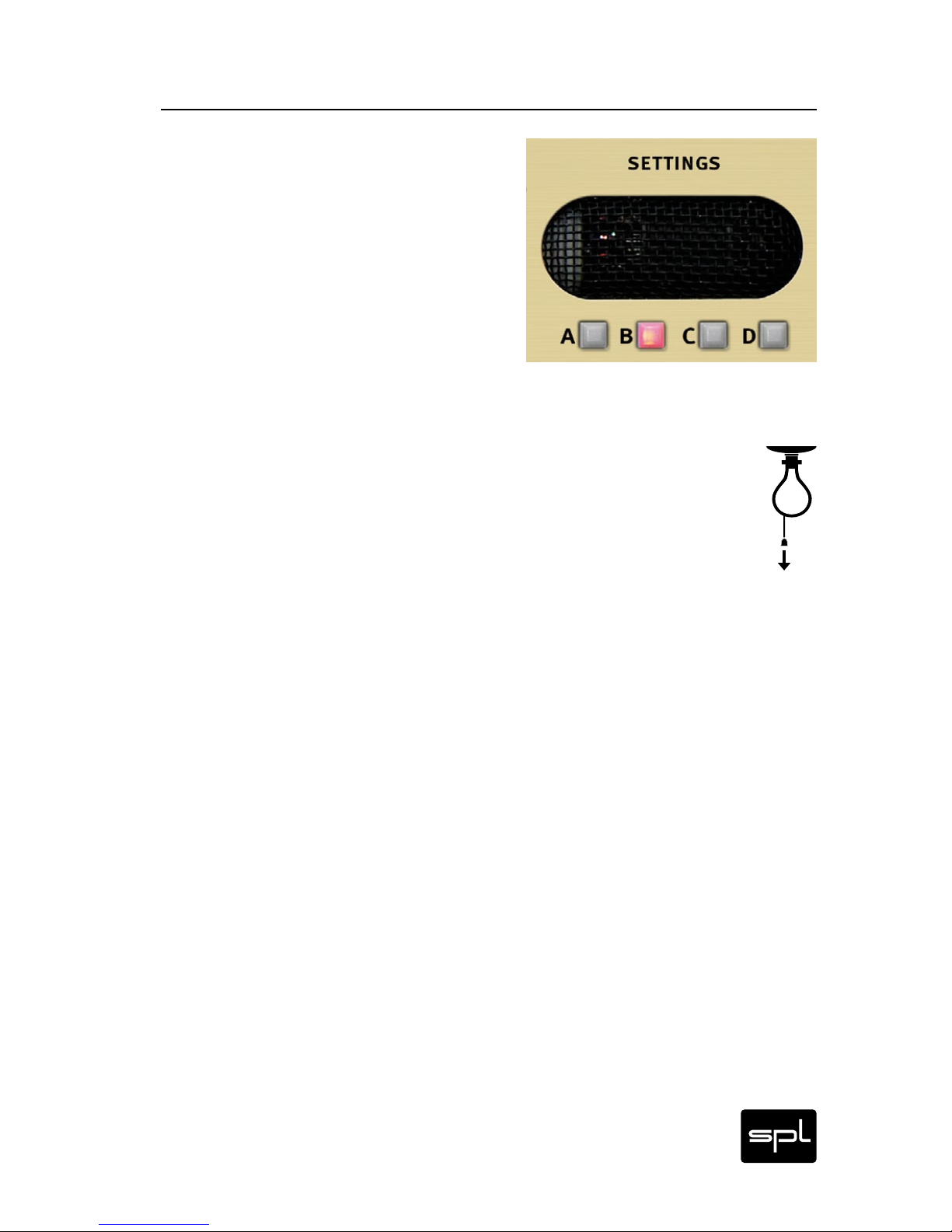

Settings 17

4Vitalizer ® Analog Code® Plug-in
Plugin Alliance Activation
Your Analog Code plug-in must be activated in your Plugin Alliance
account. You can set it up and log into your account anytime at
http://www.plugin-alliance.com
For details about the activation process, read the Plugin Alliance
Activation Manual. The PDF file is stored in the same folder of your
computer like this product manual file.
Alternatively, the following web page provides the same informa-
tion: http://www.plugin-alliance.com/activation
System Requirements and Compatibility
For details about system requirements and supported platforms
or formats visit http://www.plugin-alliance.com/compatibility
MAC and Windows Installation
1. Check for the latest plug-in software version before installation:
http://software.spl.info/download
2. Execute the installer file and follow the instructions.
Installation

Vitalizer ® Analog Code® Plug-in 5
Introduction
Glossary
Loudness = perceived volume
Unmasking = here: enhancement of overlapping sounds
Audiometry = procedure to measure hearing ability
Psychoacoustics = relation between sound and its perception
Host Program = program on which the plug-in is running
SPL Analog Code® Plug-ins
While SPL hardware products have been fascinating audio pro-
fessionals from home studio owners to mastering engineers in
the world’s most renowned facilities for years, the need for this
technology in the form of plug-ins has also been an ever-growing
demand. With the Analog Code® plug-ins we have finally accom-
plished our much desired goal: to transfer to the digital domain the
high quality we have striven to achieve with our analog processors
throughout several decades.
The first time we ever heard a software that fulfilled our expecta-
tions, one of our hardware developers said to the programmers:
“you have cracked the Analog Code” — thus was coined the name
of our digital products.
The Vitalizer®
The Vitalizer applies psychoacoustic and audiometric principles
to achieve a verifiable improvement while enhancing the sound.
The Vitalizer processes only the original signal and generates no
artifacts. Patented filtering techniques highlight the richness of
the audio signal in all its detail, while the interactive parameters
make it possible to alter the sound in a musical and effective way.
This unique combination of precise filtering and intuitive usability
enable you to instantly make any music production more stimulat-
ing and natural. Music and speech are made clearly distinguish-
able and comprehensible, loudness more intense, and the whole
soundscape becomes wider.

6Vitalizer ® Analog Code® Plug-in
Music emphasizing technique
One of the Vitalizer’s main features is the unmasking of overlap-
ping sounds. The way it works is, in principle, opposite to the way
compression formats (MP3, etc.) do: instead of deleting allegedly
unnecessary information, it enhances it. In order to do that, the
Vitalizer takes into account the perception of a frequency in rela-
tion to its volume. By shifting louder frequencies slightly in time,
softer and formerly overlapping sounds are “unmasked” and
made audible. The audible effect of unmasking could be described
in general terms as more clarity and depth in a mix. Lows sound
more powerful and better defined, mids more focused and dif-
ferentiated and highs more vivid and brilliant. It can be used on
individual channels to emphasize the sound character of instru-
ments or vocals. The clarity and definition achieved guarantee an
adequately perceptible presence in the mix.
Another characteristic of the Vitalizer’s sound optimization pro-
cess is the adaptation of the sound spectrum to the non-linear
sensitivity of human hearing. This phenomenon was audiometri-
cally proved in the 1930’s thanks to the equal loudness contours,
also known as the Fletcher-Munson curves after their discoverers.
According to these curves, the human ear is most sensitive to mid
frequencies, i.e. to the frequency range of speech. As a result, fre-
quencies below 200 Hz and above 6000 Hz need reinforcement
in order to achieve a well-balanced auditory impression – fre-
quencies between 6 kHz and approximately 11 kHz are perceived
as being 5 dB softer, for example. The Vitalizer uses the equal-
loudness contours to balance the frequency spectrum according
to human hearing, which in turn improves loudness. As a result,
individual elements of a mix can sound more present without an
actual increase in level. At the same time, the sum signal also ben-
efits from the Vitalizer processing since it can achieve the same
loudness with less sound pressure level.
Introduction

Vitalizer ® Analog Code® Plug-in 7
Introduction
Special Features
• Patented technology for automatic sound correction and optimi-
zation
• Simple control of complex processes
• Processing of mid and high frequencies plus harmonics
• Unmasking of overlapping sounds for more detail and clarity
• Reinforcement of less audible frequency ranges to achieve more
loudness
• Adjustable soft or contoured low frequency sounds
• Independent processing of high frequencies and harmonics
• Ideal sound structures for electronic sounds and music genres
• Mono, stereo or multi-channel operation
Applications
• Suitable for all sound production stages (recording, mixdown,
mastering or playback)
• Enhance individual signals, subgroups or sum signals
• Give clarity and presence to a mix
• Emphasize the sound character of instruments and vocals
• Create impressive sounding lows
• Separate several low signals effortlessly
• Restore old recordings
• Give intensity to sound effects (samples)
• Improve spatial impression

8Vitalizer ® Analog Code® Plug-in
General Information
Operation
Mouse wheel control for all rotary knobs
All SPL Analog Code plug-ins support mouse wheel control for
rotary controls and faders. Place the mouse cursor over a rotary
control and move the scroll wheel of your mouse to adjust the set-
ting. Hold the CTRL (Windows) or COMMAND (Apple) key while
moving the scroll wheel to make fine adjustments; the resolution
of the mouse wheel is increased, making fine-tuning easier.
Keyboard Shortcuts
All SPL Analog Code plug-ins support format and OS specific func-
tions for value reset, fine adjustment and mouse control. For more
detailed information please refer to the host program’s documen-
tation.

Vitalizer ® Analog Code® Plug-in 9
Basics Operation
Mono, stereo or multi-channel operation
The Vitalizer plug-in can be used either for mono or stereo opera-
tion. In stereo operation each control element governs both chan-
nels simultaneously. The Stereo Expander function is active for
stereo applications, whereas it is grayed out for mono applications
due to the fact that you cannot control stereo elements in mono
mode. This can help you identify immediately if you are using the
Vitalizer in stereo or mono mode. You can also use the Vitalizer
as a „Multi-Mono“ or multi-channel plug-in, as long as your host
program supports this function.
Basics
The frequency spectrum is usually divided into three frequency
bands: highs, mids and lows, all of which are provided in the Vital-
izer, even though, as opposed to conventional usage, low and mid
filter settings are interrelated. The high frequency control allows
processing of high frequencies and harmonics. You can adjust
each of the three frequency bands separately and control the
intensity of the process independently.
The low and mid filters share the same intensity control (PROCESS).
The fact that you can set the filters and the intensity independently
allows for many sound possibilities with only two controls: when
processing low signals you can choose between a deep, soft or dry
sound. In conjunction with the PROCESS control, strong amplifi-
cation of low frequencies with a low intensity setting results in a
totally different sound than if you were to have low amplification
with high intensity. The connection to the mid filter is always given
by the PROCESS control. This means that you can optimize low and
mid frequencies jointly for the sake of psychoacoustic and audio-
metric relevance. For example, the mid frequency band, to which
the human hearing is specially sensitive, can be automatically
damped when you choose a SOFT setting.

10 Vitalizer ® Analog Code® Plug-in
Default Settings
The following are the default settings of the plug-in and they have
no impact on the audio signal:
• DRIVE at “0” (center position)
• BASS at “0” (center position)
• COMPRESSION at OFF (hard left)
• MID-HI TUNE at 3 kHz (center position)
• PROCESS at OFF (hard left)
• LC-EQ at LOW (hard left)
• INTENSITY at OFF (hard left)
• STEREO EXPANDER at OFF (hard left)
• OUTPUT at “0” (center position)
First Steps
The instructions provided here are based on the default settings
and are meant to help you get to know the Vitalizer.
1. Slowly turn up the PROCESS control. The intensity of all fre-
quencies above 3 kHz will increase (since MID-HI TUNE is set to
3 kHz). Set PROCESS to 10.
2. Turn the BASS control to the right: the lows sound tight and dry.
Turn it to the left and the lows sound soft and round. Choose
a sound character and level for the low end. You can compen-
sate any level fluctuations in the lows with the COMPRESSION
control.
3. Start varying the MID-HI TUNE control. Turn it to the right and
the program material sounds brighter and with more mids (from
about 1.5 kHz onwards). Turn the control to the left to shift the
cut-off frequency upwards; the sound turns duller.
4. Turn the LC-EQ control hard left (to LOW) and set INTENSITY to 10
to emphasize high frequencies moderately.
5. As its name implies, STEREO EXPANDER expands the stereo
image – common settings are between 7 and 12.
6. Use the ACTIVE control to make A/B comparisons between pro-
cessed and unprocessed signals. Now you can start making your
own settings.
Operation

Vitalizer ® Analog Code® Plug-in 11
Active
Use the ACTIVE function to turn the Vitalizer on and off. The Vital-
izer is on when the ACTIVE switch is on. The POWER switch is always
on and has no effect on the plug-in. When you open the plug-in,
the ACTIVE switch blinks for a couple of seconds before remain-
ing permanently on. This is meant to indicate the tube warming
phase which takes place on the original hardware. The main pur-
pose of the ACTIVE function is to allow A/B comparisons between
processed and unprocessed signals. We recommend to make such
comparisons regularly. The risk of overprocessing is higher in com-
parison to common processors given that the Vitalizer sounds very
pleasant. A/B comparisons are therefore indispensable to avoid
exaggerations. Furthermore, we also recommend the use of refer-
ence recordings.
Drive
The DRIVE control enables you to set the level at which
the Vitalizer filters operate. You can adjust fluctuating
input levels to 0 dB or work with lower/higher levels
depending on the sound effect you want to achieve.
The level can be set between -20 dB and +6 dB. When
set to 0 dB (center position) the output level is equal
to the input level. With higher DRIVE settings you can
achieve extreme effects. If you work with a too low
DRIVE level you will not be able to achieve an adequate processing
intensity, even with the PROCESS control set to its maximum - in
which case you will need to increase the DRIVE setting.
Control Elements

12 Vitalizer ® Analog Code® Plug-in
Control Elements
Bass
With the BASS control you can emphasize two different
sound colors in the low end. When set to the center posi-
tion the signal is not processed. If you turn the BASS con-
trol to the left you will achieve a warmer and softer sound;
referred to as SOFT. This roundness is symbolized on the
left side of the control by circles that increase in size as
you turn further left. If you turn the BASS control to the
right you will achieve a drier and more percussive sound;
referred to as TIGHT. This tightness is symbolized on the right side
of the control by squares that increase in size as you turn further
right. The BASS control is directly related to the PROCESS control.
The latter determines the amount of processed BASS signal mixed
with the original signal. As a consequence, you can obtain plenty
of completely distinct sounds: a high BASS setting with a low PRO-
CESS setting results in a totally different sound than a low BASS
setting with a high PROCESS setting. You need only two controls
to enjoy a vast array of sound possibilities; all of which can be lis-
tened to and set in no time.
Compression
The Vitalizer features a compressor that affects the
low frequency path of the processed signal exclusively.
Neither the low end of the original signal nor the mids
or highs are affected. Thus, the COMPRESSION control
allows you to compensate level fluctuations caused by
the processing of low frequency signals. The compressor
is therefore a very important component in the optimiza-
tion of the processing level. The GR (Gain Reduction) LED indicates
that the compressor is active. The compressor is a so-called “soft
knee” compressor with a smooth curve to achieve almost unnotice-
able sound results. As you increase the COMPRESSION setting, the
compression ratio is increased while the attack threshold is low-
ered. In order to ease operation, additional parameters have been
preset so you only have to deal with one single knob.

Vitalizer ® Analog Code® Plug-in 13
Mid-Hi Tune
Use the MID-HI TUNE control to set the cut-off frequency.
Frequencies above this frequency are amplified whereas
frequencies below are attenuated. The intensity is set
with the PROCESS control. The frequencies affected
range from 1.1 kHz (hard right) to 22 kHz (hard left). Con-
sequently, the sound becomes brighter the more you turn
the control to the right. From 1.5 kHz upwards, mid fre-
quencies become more emphasized. The MID-HI TUNE
control allows you to tone down excessively bright sounding mate-
rial by setting it to somewhere around 10 kHz and combining it with
a very high PROCESS setting.
The MID-HI TUNE filter is not a static filter, unlike common EQ
filters, and therefore it cannot be operated like one. It is integrated
within a filter network and affects frequency and phase response
over a very broad frequency range. The setting never affects the
selected value exclusively. It focuses on a given point but spreads
throughout the whole frequency spectrum. Setting the MID-HI
TUNE requires more attention than setting a simple graphic EQ:
you have to always listen to the sound as a whole. The advantage
is that, together with the BASS and PROCESS controls, you can
process signals to a significant extent. As we mentioned before,
the Vitalizer is based on psychoacoustic and audiometric princi-
ples so all processing is aimed at optimizing your sound – faster
than with any other technique – to make it sound better.
Control Elements

14 Vitalizer ® Analog Code® Plug-in
Control Elements
Process
Both BASS and MID-HI TUNE work with two differ-
ent signal paths: the original signal and the processed
signal, both of which are mixed together at the output.
The PROCESS control determines the amount of pro-
cessed signal used, i.e. the intensity of the effect gener-
ated by the BASS and MID-HI TUNE filters. Furthermore,
the PROCESS control also determines the damping inten-
sity of dominant mid frequencies (see the previous sec-
tion). Dominant mid frequencies are reduced with higher PROCESS
settings. All frequencies below the cut-off frequency selected with
the MID-HI TUNE control are affected.
LC-EQ
The high frequency filter is a broad band filter too and
can actually affect mid frequencies to add presence and
sharpness, specially to vocals. The frequencies affected
range from 2 kHz (hard left) to 20 kHz (hard right). The
INTENSITY control determines the intensity of the LC-EQ
(see the next section). The LC-EQ gets its name from the
hardware version’s high frequency filter, which is based
on a passive coil filter. Coil filters are inductive filters
and the symbol for inductance is “L”. The abbreviation for coil filter
is “LC” (where C stands for capacitor). This type of filters are well
known for their pleasant, soft sound. Coil filters were standard com-
ponents up to the 1960’s, when they were quickly replaced with the
advent of cheaper resistor-capacitor (RC) filters. The sound of clas-
sic “vintage” gear has a lot to do with the use of these components.
When programming the Vitalizer plug-in we payed special attention
to faithfully emulating the sound character of the original LC-EQ. The
LC-EQ can improve the brilliance of individual or sum signals without
making them sound too sharp. No signal artifacts are created in the
process, as opposed to other high frequency enhancement systems,
like the so-called exciters, in order to avoid ear fatigue. The Vitalizer
simply improves the sound structure of the original signal.

Vitalizer ® Analog Code® Plug-in 15
Control Elements
Intensity
The LC-EQ works with two different signal paths: the orig-
inal signal and the processed signal, both of which are
mixed together at the output. Use the INTENSITY knob to
adjust the amount of LC-EQ effect mixed with the original
signal, i.e. the intensity of the effect. Due to their design
and broad frequency range, you can use the MID-HI TUNE
and LC-EQ filters as perfectly complementary tools. For
example, if you use the MID-HI TUNE filter to generate a
notch in the mid frequencies and amplify the high frequencies from
5-8 kHz, vocals could lose presence, in which case you could use
the LC-EQ filter for the vocal frequency range and enhance it with
the INTENSITY control.

16 Vitalizer ® Analog Code® Plug-in
Stereo Expander
The STEREO EXPANDER function is meant to create the
impression of a wider stereo image. The space image
is improved by doubling signals originally placed left
or right in the stereo image, inverting their phase and
summing them with the opposite channel. This results
in a better perception of the original signals while
the stereo image seems to reach out of the speakers’
plane. Mono signals placed in the center of the stereo
image are diminished during the process. We recommend settings
between 6 and 14. For high settings, and depending on the nature
of the source signal, you should always check the mono compat-
ibility of the signal with the help of a goniometer.
Output
The OUTPUT knob reduces or increases the output level.
The control ranges from -20 dB to +6 dB. The 0 dB mark
is set at the center position. Generally speaking, you will
need to reduce the level, considering that the Vitalizer
processing tends to increase it. If you set the input level
to 0 dB with the DRIVE control – which ought to be a good
starting point for filtering – there will undoubtedly be an
increase in level after the processing occurs.
IMPORTANT: Use the OUTPUT control to exploit the dynamic range
available, but try to avoid distortion. The OVL (Overload) LED next
to the OUTPUT control can be very useful at that. The OVL LED
indicates overloading is occurring at the plug-in’s output, which
can result in distortion. You should always avoid the OVL LED from
turning on. If it does, use the OUTPUT control to reduce the output
level until it turns off.
Control Elements

Vitalizer ® Analog Code® Plug-in 17
Settings
The four SETTINGS buttons allow you to
save all your settings with a simple mouse
click. The Vitalizer saves the current set-
tings permanently. As soon as you click on
another SETTINGS button, the current set-
tings are saved under the previously active
preset. For example: In the image shown
here, all parameters would be saved under
preset “B” if you were to click on another button.
Any previously saved preset can be recalled with a simple mouse
click on the corresponding button; you can then use or edit the set-
tings. If the host program allows it, the presets can also be auto-
mated so you can use different settings at different points. As long
as you work in a specific session of the host program and the plug-
in is installed, the settings are saved and can be recalled after-
wards. When opened, the plug-in loads the active preset settings
instead of the default settings. If you remove the plug-in from the
host program all presets are lost. To erase all presets at once you
can remove the plug-in from the host program and then reinstall it.
Control Elements

SPL – Sound Performance Lab
Sohlweg 80, 41372 Niederkruechten, Germany
Phone: [phone]
Fax: [phone]
Email: [e-mail], Website: spl.info
Vitalizer ® MK2-T
SPL Analog Code
® Plug-in
Manual
