SPORTS AFIELD SA-HD6-BIO-DP User manual

IMPORTANT:
Please read this information and follow all safety rules carefully before
operating your security vault. Failure to do so will void your warranty.
080322
QUICK ACCESS BIOMETRIC SECURITY VAULT
INSTRUCTION MANUAL FOR SA-HD6-BIO

TABLE OF CONTENTS
www.saproducts.com 1
IMPORTANT INFORMATION ............................................................................................... 2
1. REGISTRATION ................................................................................................................ 3
2. UNDERSTANDING YOUR VAULT ...................................................................................... 4
3. INITIAL ENTRY .................................................................................................................. 5
4. BATTERY INSTALLATION................................................................................................... 5
5. PROGRAMMING YOUR FINGERPRINT ............................................................................. 6
6. OPENING VAULT WITH PROGRAMMED FINGERPRINT ....................................................7
7. PROGRAMMING ADDITIONAL FINGERPRINTS ............................................................... 7
8. TROUBLE SHOOTING ..................................................................................................... 8
9. LOCKOUT MODE / TAMPER PROTECTION........................................................................ 9
10. CLEARING ALL PROGRAMMED FINGERPRINTS ............................................................ 10
11. SILENT ENTRY MODE ................................................................................................... 10
12. PROPER PLACEMENT AND MOVING OF VAULT ........................................................... 11
13. SECURING YOUR VAULT .............................................................................................. 11
14. LOADING YOUR VAULT .................................................................................................13
15. MAINTAINING HINGES AND INTERNAL MECHANISMS .............................................. 13
WARRANTY........................................................................................................................ 14

2
DISCLAIMER - READ BEFORE VAULT SETUP
WEAPON STORAGE
SAFETY
Thank you for choosing a Sports Afield vault to protect your valuables. We are
commied to securing, organizing and protecng your most important documents,
valuables and keepsakes.
If you experience problems or challenges with your vault, please contact us.
Many issues can be quickly resolved without the product being returned.
Be sure to keep backup keys stored in a safe place away from unauthorized users
Do not put anything in your vault that will put pressure against the door when
it is closed.
If you choose to ulize this vault to store a weapon always follow proper weapon and
local laws.
SA Consumer Products strongly recommends that you do not store loaded guns.
Always follow the firearm safety rules set out by the firearm’s manufacturer.
Store ammunion separately from valuables.
A Sports Afield vault or any other firearm storage device cannot take the place
of other safety procedures including advising children of the dangers of firearms.
SA Consumer Products and its distributors of the Sports Afield vaults do not
recommend, suggest, advise, promote, or otherwise condone the ownership or use of
firearms. We believe the decision to own or use a firearm is a serious decision that
should only be made by an adult who has carefully considered
the risks and benefits of such a decision.
PLEASE READ THIS INFORMATION CAREFULLY BEFORE OPERATING YOUR
SPORTS AFIELD VAULT.
DO NOT LOCK THIS MANUAL OR THE OVERRIDE ACCESS KEYS IN YOUR VAULT.
Contact Customer Service at [email protected] or [phone]

3
Register your vault at www.saproducts.com
PURCHASE DATE:
PURCHASE PRICE (BEFORE TAX):
MODEL NUMBER:
SERIAL NUMBER:
KEY NUMBER (IF APPLICABLE):
1. REGISTRATION
RETAILER NAME:
By registering your Sports Afield vault we will be able to expedite and address
any problems or challenges you may havewhich would otherwiserequirea
notary leer and proof of payment.
Theinformaon you record onto this page will be required in the event you
cannot access thecontents of your Sports Afield vault. Pleasefill out all the
required informaon below and retain for your records and safe keeping.
PLEASE HAVE THIS INFORMATION READY PRIOR TO CALLING FOR TECHNICAL
ASSISTANCE AT:
Contact Customer Service at [email protected] or [phone]
REGISTRATION INFORMATION

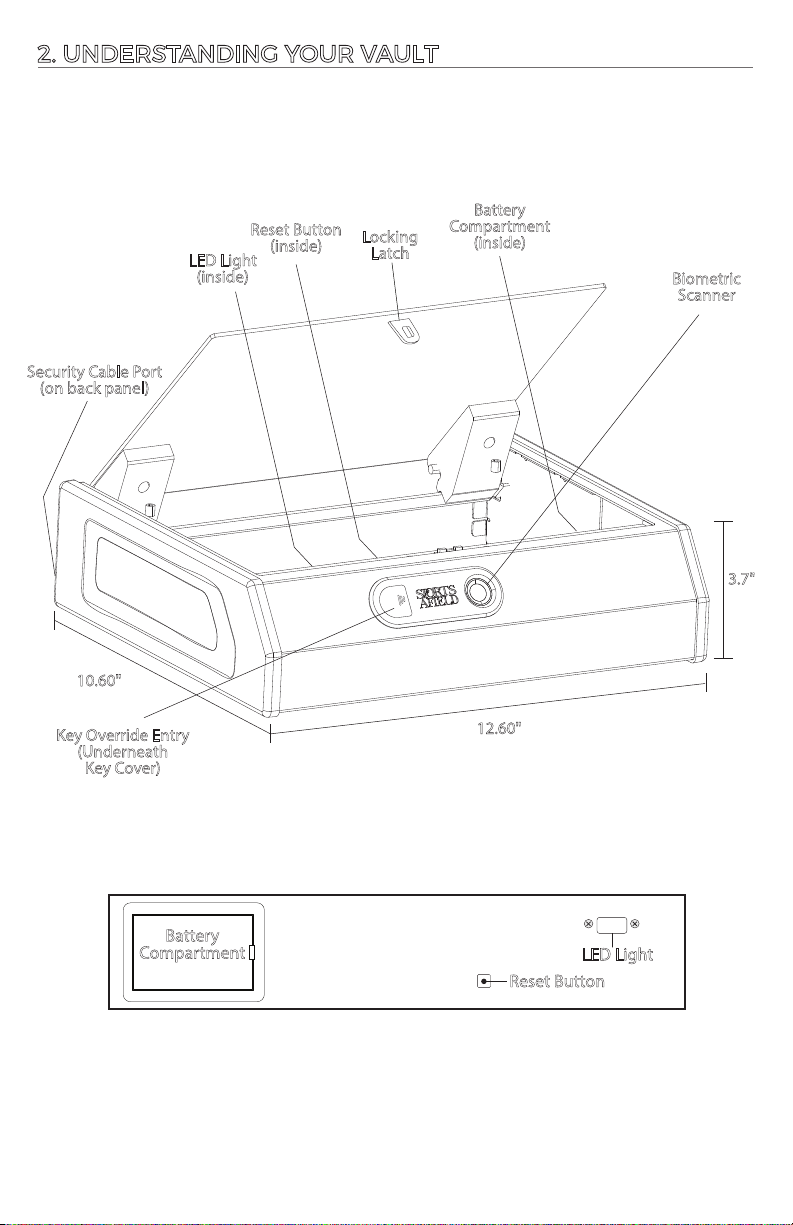

2. UNDERSTANDING YOUR VAULT
Biometric
Scanner
Key Override Entry
(Underneath
Key Cover)
4
Battery
Compartment
(inside)
Reset Button
(inside)
LED Light
(inside)
INTERIOR OF FRONT PANEL
Battery
Compartment
(4) AA Reset Button
LED Light
Security Cable Port
(on back panel)
Locking
Latch
12.60"
3.7"
10.60"

3. INITIAL ENTRY
5
2.
1.
Step 2
WARNING: Thebaeries must be inserted with the correct polarity. Exhausted baeries
must be removed from theproduct and discarded safely. Do not mix old and new
baeries. Do not mix alkalineor standard (carbon – zinc) baeries. Do not use
rechargeable (nickel – cadmium) baeries.
Locate the (4) AA baeries
and insert in the baery
compartment on the inside
front le of the vault. Keypad
will beep once when baeries
are successfully installed.
Replace baery cover.
Step 1
LOCK UNDER
KEY COVER
Insert the backup key. Turn
and hold the key clockwise,
and your vault door will
automacally open.
Remove backup keys and
put aside.
1. Locate the key cover and
remove it by pressing down
on the three raised lines. The
cover will pop up on one side
so that it can be removed.
4. BATTERY INSTALLATION

5. PROGRAMMING YOUR FINGERPRINT
6
Step 1
1. Inside of the vault, you will find a
reset buon on the right side of
the front panel.
2.
Press the reset buon to start the
programming process. You will
hear one beep and the indicator
ring will illuminate on the front of
the door
.
NOTE: Programming mode will me
out aer 10 seconds of inacvity. If
this occurs press reset buon and
begin again.
3. Place and hold the pad of your
finger on the scanner unl it flashes
green and beeps one me.
4. Repeat at least 3 more mes unl
there are 2 consecuve beeps and
2 green flashes.
IMPORTANT: Be sure to
use the same finger for each
recording sequence.
BEEP
BEEP
BEEP
HOLD FOR BEEP
LIFT FINGER
Step 2Step 3Step 4
BEEP
2 BEEPS + 2 GREEN FLASHES = SUCCESS!
Battery
Compartment
(4) AA
Reset Button
LED Light

6. OPENING VAULT WITH PROGRAMMED FINGERPRINT
7
7. PROGRAMMING ADDITIONAL FINGERPRINTS
INDIVIDUALLY MAPPING ALL
ZONES OF YOUR FINGERPRINT
WILL ENSURE A RELIABLE
READING BY THE SCANNER.
To ensure each programming
sequence is properly captured, it
needs to read the exact same place
on your finger four mes in a row,
once successful you can move onto
the next zone of your fingerprint.
This counts as one programmed
fingerprint of 100 fingerprints this
unit can keep in memory.
Once programming sequence has
been successfully completed, you
can move onto the next zone of your
fingerprint.
TIP
RIGHT
TOP
MIDDLE
LEFT
If your fingerprint is not accepted:
Indicator ring will flash 1 me and
sound 1 me. This means the
scanner did not read your
fingerprint (try again).
IMPORTANT: If you see 5 red
flashes with 5 sounds, the scanner
read your fingerprint but did not
accept it. Follow secon 6 to
reprogram your fingerprint.
x
1
x
1
FLASH
x
5
x
5
RED
LIGHT
INDICATOR RING
TRY AGAIN REPROGRAM
With keys in hand, close and lock the door.
Place and hold the programmed finger
on the scanner, indicator ring will illuminate
green and vault door will open automacally.
When accessing your vault quickly, there is a chance you may touch
the scanner with a part of your finger that you have not registered before.
For this reason, we recommend programming addional areas of your
fingerprint to ensure fast and reliable entry to your vault.

8
8. TROUBLE SHOOTING
Low Battery Indicator
7. PROGRAMMING ADDITIONAL FINGERPRINTS (CONTINUED)
Press the reset buon and follow
Secon 4 instrucons again, for
each fingerprint zone you would
like to program.
If you experience any problems
reading your fingerprint, including
inconsistent readings, note the
area of your fingerprint that
doesn’t work properly, and
specifically re-program that area.
This scanner will hold up to 100
different fingerprints.
In the event that you run into issues with programming and accessing your
vault, please read through this secon for answers to your quesons.
BEEP
BEEP
BEEP
HOLD FOR BEEP
LIFT FINGER
2 BEEPS + 2 GREEN FLASHES = SUCCESS!
If you noce your indicator ring is not
remaining on for a few seconds upon entering,
replace baeries immediately to avoid being
locked out of your vault.
Placing a poron of a fingerprint on the scanner that
has not been programmed can result in an error. We
recommend programming mulple areas of each
fingerprint.
Make sure baeries are fresh. We suggest high grade
alkaline. Do not mix old and new baeries. No not use
rechargeable baeries.
Make sure you are placing the same part of your finger
print on the scanner that was used for programming. If
not, make note of the area that is not scanning and
program that area specifically.
SOLUTIONPROBLEM
YOUR PROGRAMMED
FINGERPRINT IS NOT
READING AT ALL TIMES

9. LOCKOUT MODE / TAMPER PROTECTION
9
8. TROUBLE SHOOTING (CONTINUED)
Locked Out Of Your Vault
In the event you are locked out your vault, use your backup keys to gain access and
follow the secon 3 Inial Entry instrucons.
If you have lost your backup keys, or are sll having any difficules, contact customer
service at the number below. Proof of purchase is required to obtain keys.
Contact Customer Service at [email protected] or [phone]
Make sure to hold down your finger on the scanner
instead of tapping, as the scanner needs me to
complete the scanning process.
Fingerprints may lack definion due to excessive dryness.
We recommend applying moisturizer or slide your finger
print against your forehead before scanning process.
Pressing and releasing the reset buon will not erase
fingerprints already recorded. It simply places the
scanner in programming mode to allow for addional
fingerprints to be programmed. This unit will hold up
to 100 unique fingerprints.
SOLUTIONPROBLEM
YOUR FINGERPRINT
IS NOT READING
WILL PRESSING THE
RESET BUTTON CLEAR
THE MEMORY
SOLUTIONPROBLEM
1. Three consecuve incorrect code entries will
put the vault in “Basic Lockout” mode. Scanner
is deacvated for 30 seconds.
2. Aer “Basic Lockout” mode has ended, another
three consecuve incorrect code entries will
result in “Severe Lockout” mode. Scanner is
deacvated for 5-minutes.

Battery
Compartment
(4) AA
Reset Button
LED Light
11. SILENT ENTRY MODE
10. CLEARING ALL PROGRAMMED FINGERPRINTS
10
HOLD DOWN THE
RESET BUTTON
x
2 x
2
GREEN
LIGHT
NOTE:
If 100 max fingerprints have already been programmed indicator ring will flash 5 mes
and beep 5 mes. We recommend clearing all programmed fingerprints and starng the
programming process over.
To iniate silent entry mode, hold a programmed
finger on the scanner for 5 seconds beyond your
fingerprint being accepted. The green indicator
ring will turn off and back on, but will not beep,
indicang you are now in silent entry mode.
You will not hear any sounds for any funcons
while the vault is in silent entry mode.
To turn the sound back on, hold a programmed
finger on the scanner for 5 seconds beyond your
fingerprint being accepted. The green indicator
ring will turn off and back on and will beep once
indicang you are no longer in silent entry mode.
Hold Reset buon. Inially, you
will hear one beep. Connue
holding reset buon for 5
seconds, the indicator ring will
flash green two mes and beep
two mes.

12. PROPER PLACEMENT AND MOVING OF VAULT
11
13. SECURING YOUR VAULT
1.
2.
SECURING YOUR VAULT WITH PROVIDED CABLE AND NUT
A security cable is included with
your vault. To secure the cable
around a fixed object, first loop
the cable around the object as
shown in the figure to the right.
Insert the threaded end of the cable
into the notch on the backside of
the vault while sll open.
3. From the inside of the vault, take
the provided nut and thread onto
the cable unl fully secured.
1. To maximize burglary protecon and stability,securing the vault to thefloor or
table is recommended.
2.
3. Always ensurethevault is in an isolated and dry area. Never place the vault in
direct contact with a wet floor. When installing your vault on a concrete floor,
useof a moisture/protecvebarrier is highly recommended. Failureto do so
or exposing the vault to chemicals or other adverse environments may void
the warranty.
SA Consumer Products recommends that you storeyour vault in a closet,office,
basement,bedroom or any other locaon that is convenient for you but out of
direct line of sight from prying eyes.
Step 1Step 2
VAULT
INSIDE
INSIDE OF VAULT,
THREAD NUT
ONTO CABLE

12
TOOLS AND HARDWARE NEEDED TO SECURE
VAULT TO A WOOD OR CONCRETE SURFACE:
13. SECURING YOUR VAULT (CONTINUED)
WASHERS
PADS
LAG BOLTS
ANCHORS
• DRILL/HAMMER DRILL
• 3/8�DRILL BIT
( FOR DRILLING ANCHOR HOLE )
or 3/16� (FOR INSTALL W/ OUT ANCHOR)
• SOCKET WRENCH TO MATCH
BOLT HEAD SIZE
• 2 STEEL LAG BOLTS (NOT INCLUDED) - SIZE 1/4" X 1.50" TO 2.0" LONG
• 2 STEEL WASHERS (NOT INCLUDED) - 1/4"
• 2 PLASTIC ANCHORS (NOT INCLUDED)- SIZE #10-12 X 1.5" TO 1.75" LONG
(FOR CONCRETE INSTALLATION)
• 4 PADS (INCLUDED)
Use the recommended hardware or consult your hardware retailer for fastening
hardware for your parcular mounng surface.
Open the vault door to provide access to the factory drilled bolt down holes that
are located under the protecve foam liner.
To secure your vault to the floor, it will first be necessary to mark and drill pilot
holes in the floor surface.
Drill the appropriate diameter and depth of pilot holes based on the type of
hardware being used and the type of floor surface. When mounng on concrete we
recommend using a hammer drill and a concrete drill bit to drill the two
corresponding holes in the mounng surface.
Secure the vault by threading anchor bolts through the factory drilled bolt down
holes in the vault and screw down ght with a ratchet wrench.
BOLT
WASHER
VAULT
FLOOR
MOUNTING
SURFACE
ANCHOR
FOR CONCRETE
INSTALLATION

13
15. MAINTAINING HINGES AND INTERNAL MECHANISMS
The hinges and internal locking mechanism are permanently lubricated, thus
needing no maintenance. Opening the door panel of your vault may void your
warranty. Always consult our customer service experts prior to doing so.
14. LOADING YOUR VAULT
1.
2.
Store ammunion separately from valuables.
Do not put anything in your vault that will put pressure against the door when
it is closed.

14
SA Consumer Products will repair or replace, at their sole discreon,
any Sports Afield vault damaged by fire, forced entry, forced aack
or natural flood for the lifeme of the original owner.
SA Consumer Products will repair or replace, at their sole discreon,
any Sports Afield vault with defecve parts, paint or lock for three
years of the original owner purchase date.
If SA Consumer Products deems a replacement vault is to be sent,
they will pay the freight costs to ship the replacement vault to the
original owner.
This three year warranty is limited to the vault and expressly
excludes any loss associated with the contents of the vault.
SA Consumer Products
reserves the right to receive full evidence
of your misfortune, such as a police report and/or homeowner’s
statement of coverage. This warranty is not valid outside of the
United States and Canada.
Proof of registraon and copy of sales receipt must be on file at
the me of claim. Visit our website at www.saproducts.com to
register your vault.
Three year warranty only applies to the original owner of the vault.
SA Consumer Products shall only be responsible and liable when the
vault is used in compliance with the direcons specified in your new
SA Consumer Products owner’s manual.
SA Consumer Products
requires that specific guidelines be
followed for repair. The vault will be repaired in-home if possible
(to include parts and labor); however, if factory replacement
is necessary (at
SA Consumer Products ’ sole discreon), the
replacement will be shipped freight prepaid, curbside delivery.
This warranty is inclusive and is in lieu of any and all other
warranes, express or implied. Specifically excluded are the
warranes of merchantability and fitness for a parcular purpose.
This warranty is limited to the vault itself and/or its value and
does not include consequenal damages of any kind including,
but not limited to, the contents in and of the vault.
