ST&G 1322 AP User manual

Instructions for 1322 AP / AL
Polycentric Pneumatic 4 Bar Knee
ST&G USA Corp. Phone: [phone]
2691 Saturn St. Fax: [phone]
Brea, CA 92821 www.stngco.com

1. Description and purpose
These instructions are for use by the practitioner.
The 1322 AP / AL knee is to be used
exclusively as part of a lower limb
prosthesis.
Recommended for amputees k2 to K3.
Weight limit for a user is up to 125kg / 275lbs
.
Contra-indications
Residual muscular weakness, contractures or proprioceptive
dysfunction including poor balance.
Contra lateral joint instabilities or pathology
Complicated conditions involving multiple disabilities
Product Code
1322 AP / AL
Polycentric Pneumatic 4-Bar Knee (Aluminum)
Ensure that the user has understood
any Instructions for use, drawing
particular attention to the safety
information.
125kg
275lb

Fig. 1 (a) Posterior View (b) Anterior View c) Lateral View of Knee Unit

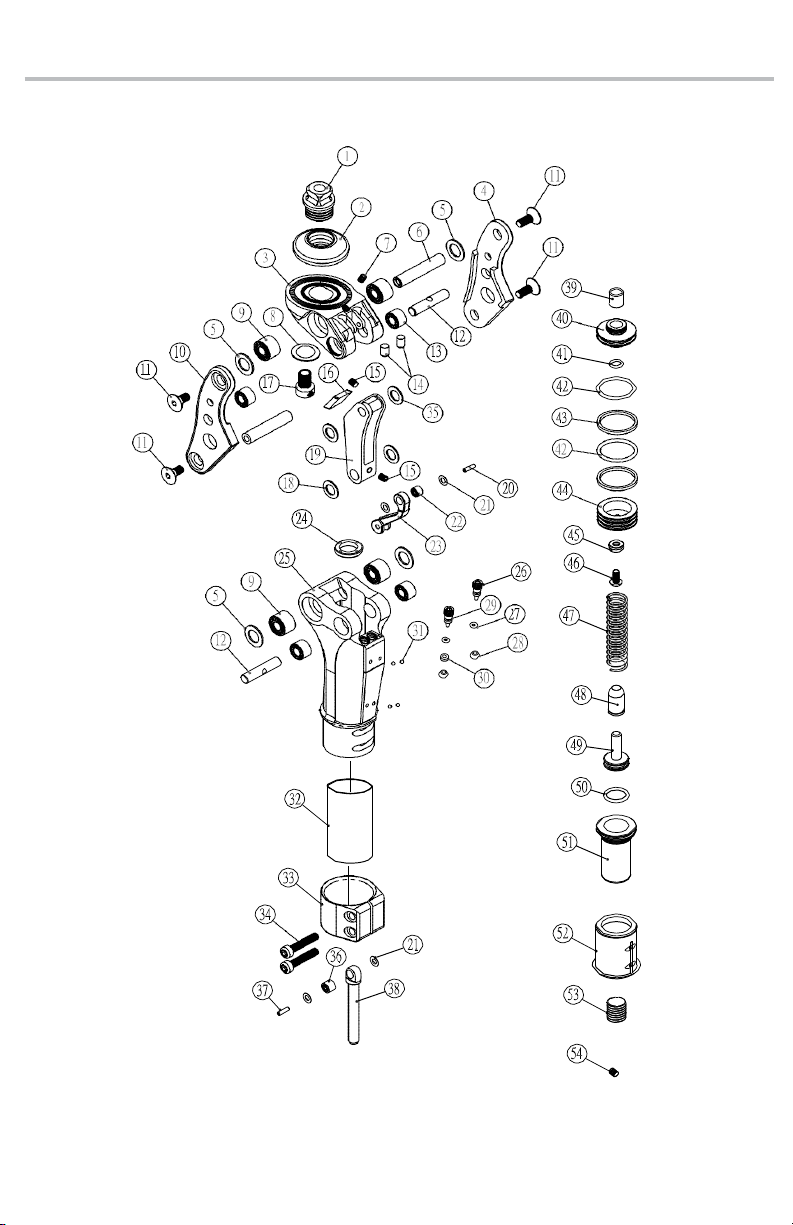

2. Construction
Principal Parts
Frame Aluminum Alloy, Brass, Stainless Steel, Steel
Knee Aluminum Alloy, Stainless Steel
Knee control Various materials principally Aluminum Alloy Stainless
Steel, Poly Urethane, Pneumatic Cylinder

The Caution symbol highlights safety information which must be
followed carefully.
Be aware of finger trap hazard at all times
Any changes in performance of the knee e.g. instability or lag in transition
from full stance flexion moment to full knee extension moment in the
knee should be immediately reported to the Clinician / Practitioner
Any excessive changes in heel height may adversely affect the stability of
the knee.
The user should be advised to contact their Clinician / Practitioner if their
condition changes.
4. Safety Information
3. Function
Adjustable spring extension assist
Independently adjustable pneumatic flexion and extension resistances.
Pyramid and Knee Disarticulation mounting options.
•Built-in bearings which allow for ultra smooth walking movement
•Frame construction made of superlight aluminum alloy
•Proximal attachment has A-P slide and rotating adjustment
•Tube clamp distal mount
Always use a hand rail when descending stairs and at any other time if
available.

5. Maintenance
Maintenance must be carried out by qualified personnel.
Bi-Annual inspection is recommended.
Check for visual defects that may affect proper function.
A loaner system is available should servicing be required.
The wearer should be advised:
Any changes in performance of this device must be reported to the Clinician /
Practitioner.
Changes in performance may include:
Increase in knee stiffness
Knee instability
Any unusual noises
Cleaning:
Use a damp cloth and mild soap to clean the outside surfaces.
DO NOT use aggressive cleaning agents.
If the limb/prosthesis comes into contact with salt or
chlorinated water, it should be rinsed with fresh water and dried.
6. Limitations on use
Intended Life:
Service life of the product is covered by the warranty period (2 years)
This product is recommended for use with other ST&G Products.
A local risk assessment should be carried out based upon activity and usage when using
as part of a hybrid limb build with other manufacturers components.
Lifting Loads:
Amputee weight and activity is governed by the stated limits.
Combined weight of amputee and carrying load, should not exceed stated weight
limit.
Environment:
Avoid abrasive environments such as those containing sand for example
as these may promote premature wear. Avoid contact with talcum powder.
Operating and Storage Temperature Range:
Exclusively for use between temperatures of -10˚C to 50˚C [14˚F to 122˚F]

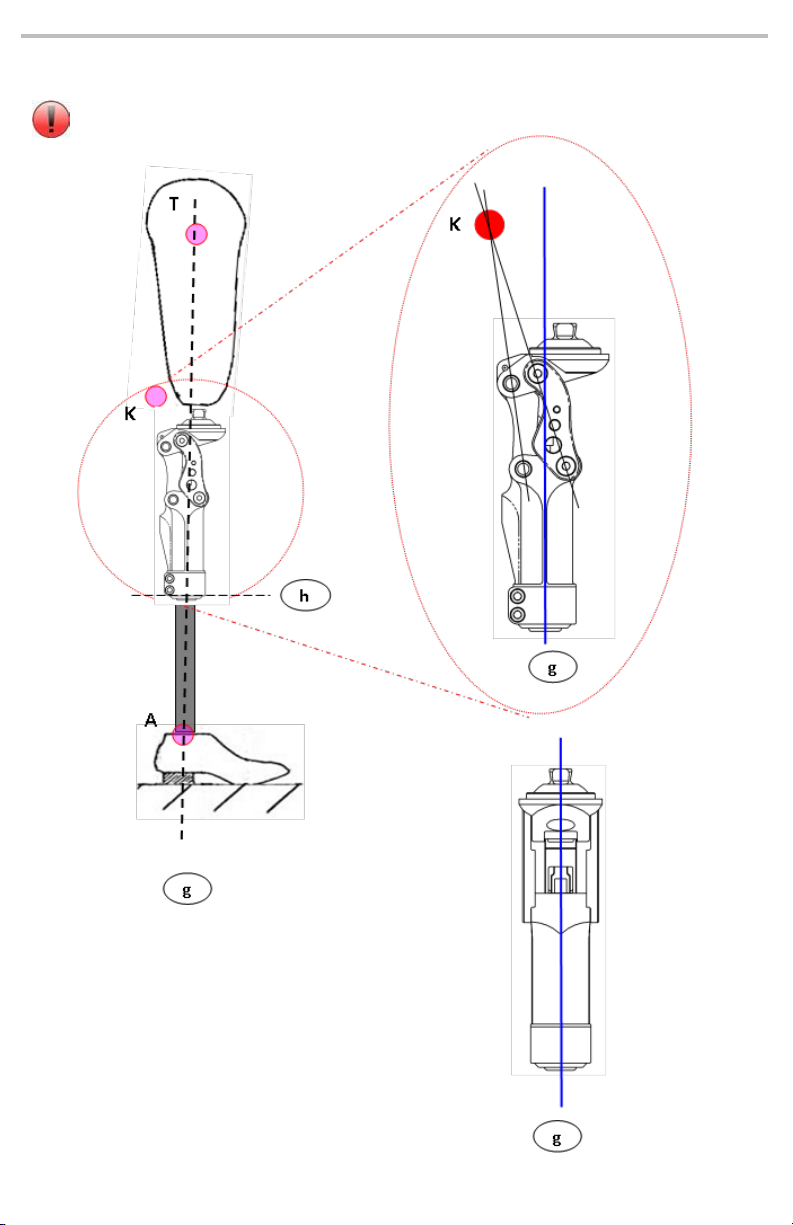

7. Alignment and Set-Up
Users be aware of potential finger trap hazard
Fig. 2a
Fig. 2b
Fig. 2c

Note: 4-bar knees inherently are very stable due to the geometry built into each
design. This is commonly referred to as the Instant Knee Center (IKC). The IKC
point when doing bench alignment, will fall behind the traditional TKA line that we
will reference. (Fig. 2a,2b) Tg line in Fig. 3 is ideal placement, but in certain
instances, it may be necessary to accommodate placement anteriorly (0 to
10mm). The Tg line is referencing a moving A/P weight bearing line, so it could
be slightly anterior or neutral.
a) With prosthesis assembled, taking into account hip flexion contractures,
abduction, Line Of Progression, and toe out (Fig.2a), the TKA plumb line should
pass through the knee center (center ot proximal/anterior pivot Fig.2a, 2b) and in
front of the K point (IKC).
NOTE: Take into account shoe heel height, and add 3mm safety factor.
b) Ideally, the pylon connecting the knee and foot should end up vertical. There
may be a variance due to the foot alignment recommendations. In this case, the
maximum anterior tilt of the pylon should not exceed 3 degrees, and it may be
necessary to utilize 1222T offset tube clamp adapter.
c) With prosthesis donned, the weight line should pass through the centerline of
the knee in the Coronal or M/L plane (Fig. 2c). Excessive outset or inset will put
undue stress on the knee joint.
d) With prosthesis donned, the weight line for Sagittal or A/P plane should have
the plumb line passing ideally through the knee center (proximal anterior pivot),
and be perpendicular to the ground. (Fig. 2a, 2b)
7.1 BENCH ALIGNMENT:
It is not recommended to have alignment posterior to the reference line, as
it could cause knee instability!

8 Knee Adjustment

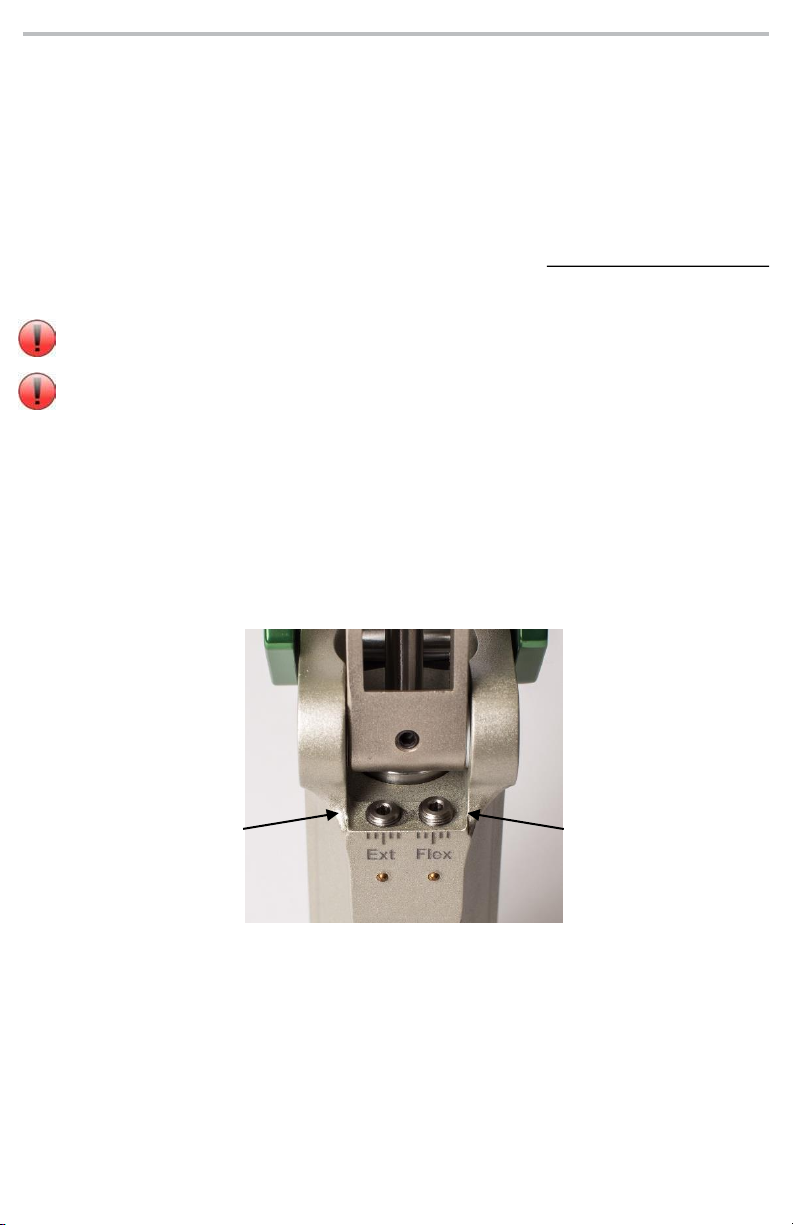

8.1 Flexion / Extension Adjustment
Extension Resistance Adjustment: (Figure above right)
Using a 2.5mm hex wrench, turn Extension adjustment screw:
Clockwise increases knee extension resistance.
Anti-clockwise reduces knee extension resistance.
Flexion Resistance Adjustment: (Figure above left)
Using a 2.5mm hex wrench, turn Flexion adjustment screw:
Clockwise increases knee flexion resistance.
Anti-clockwise reduces knee flexion resistance.
Swing Phase Pneumatic setting is pre-set from the factory. Extension or flexion
adjustment is only needed if the clinician finds the wearer shows a need for
higher or lower walking speeds.
Swing Phase Control Adjustment: It is advisable to adjust flexion before extension
for optimum walking symmetry. If needed, please follow directions below.
Ensure full knee extension occurs before performing extension adjustment.
Use following procedure only if there is a need to adjust extension or flexion:
•1) Turn extension screw anti-clockwise to lowest resistance - then
•2) Turn the flexion screw clockwise to set to highest resistance
(Do not over tighten if screw has resistance, or bottoms out –damage may
occur and void warranty!)
•Incrementally loosen (anti-clockwise) the flexion screw to adjust heel lift;
•Incrementally tighten (clockwise) the extension screw to smoothly stop
extension.
Adjust Extension
screw with
2.5mm hex
wrench
Adjust Flexion
screw with
2.5mm hex
wrench

Establish orientation and tighten bolt.
Mark new location, remove pyramid
bolt, apply LocTite, and torque 8mm
bolt 18Nm. Tighten set screw to help
prevent rotation.
8.3 Pyramid Head Position Adjustment
Loosen Pyramid bolt
Using 8mm driver
Note: Mark/indicate pyramid
orientation.
Loosen set screw using
2.5mm driver.
Use 6mm driver and turn clockwise to
increase extension assist. Turn screw anti-
clockwise to reduce the extension assist.
After inserting pylon, apply Loctite 242 to
pinch bolt and torque 12Nm using 5mm
driver.
Loosen set screw prior to any adjustment to
Extension Assist!
Tighten back up after adjustment is made!
8.2 Extension Assist Adjustment

Use a small screw driver to pick out
the rubber bumpers on the back of
knee head. Apply glue to new ones
and insert back into knee head.
Use a small screw driver to pick
out the extension stop rubber
bumper on knee level adjusting
screw. Insert new one into slot.
9 Maintenance of Knee Unit

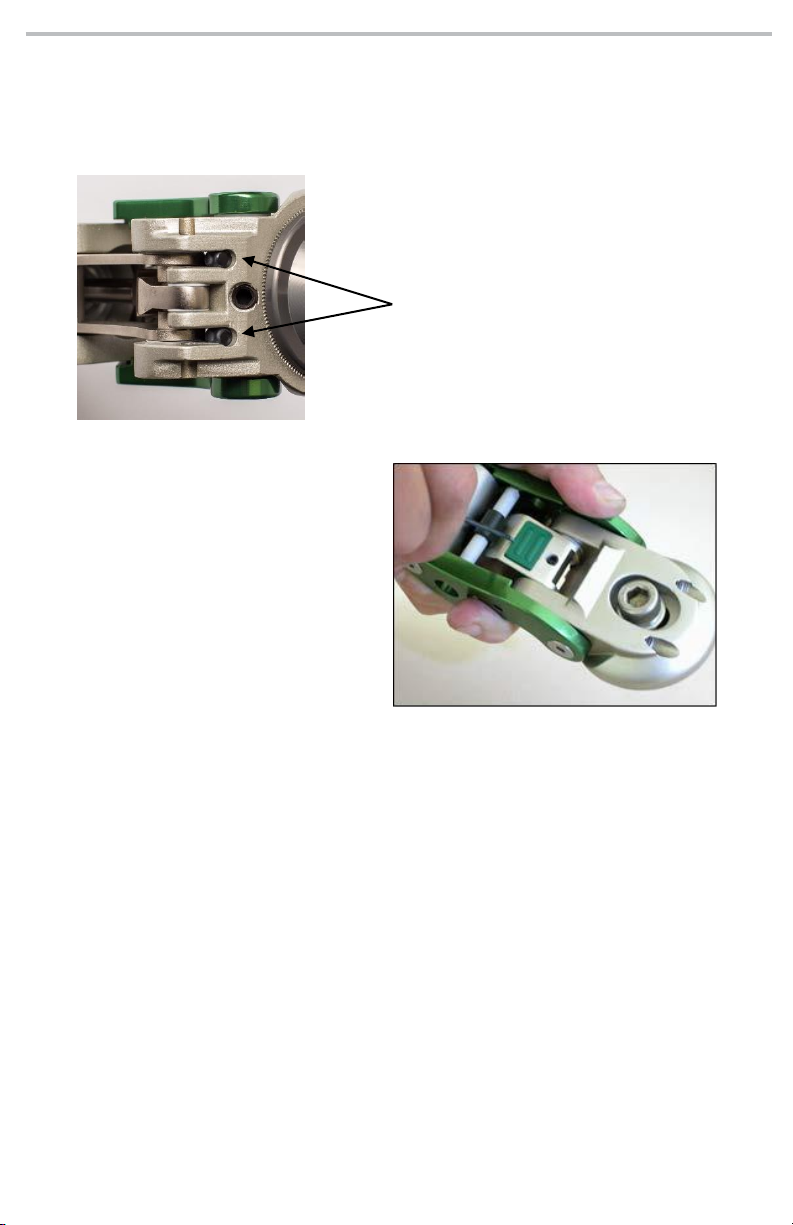

9.1 Servicing Flexion and Extension Stop Bumpers

10 Technical Specification
Operating & Storage Temperature Range: -10˚C to 50˚C ( 14˚F to 122˚F)
Weight: 766 g (1lb 11oz)
Recommended Activity: K2 to K3
Maximum User Weight: 125kg (275lbs)
Maximum flexion angle: 135 degrees
Proximal Alignment attachment: Male Pyramid or Lotus Adapter
Distal Alignment attachment: Tube Clamp
Tube clamp torque setting: 12Nm
Pyramid Center Bolt: 18Nm
Build Height: Pyramid / Lotus 172mm / 178.3
Materials: Aluminum Alloy, Stainless Steel, Steel, Rubber

CE Conformity
This product meets the requirements of 93/42/EEC guidelines for medical products.
This product has been classified as a class I product according to the classification
criteria outlined in appendix IX of the guidelines. Please keep this manual in safe place
for future use.
10 Warranty
Warranted for 2 years from the date of invoice by ST&G.
The user should be aware that changes or modifications not approved will void the
warranty.
11 Liability
The manufacturer recommends using the device only under the specified conditions
and for the intended purposes. The device must be maintained according to the
instructions for use supplied with the device. The manufacturer is not liable for
damage caused by the component combinations that were not authorized by the
manufacturer.

ST&G USA Corporation
www.stngco.com e-mail: [email protected]
2691 Saturn Street, Brea, CA 92821, USA
Tel: [phone] Fax: [phone]
1322IFU Rev. B (01-16-18)
