Subaru EyeSight User manual

Foreword
Congratulations on choosing a SUBARU vehicle equipped with EyeSightTM.
EyeSight incorporates the latest driver assistance features available from
SUBARU, including such features as Adaptive Cruise Control, a Lead Vehicle Start
Alert and a Lane Departure and Lane Sway Warning, all of which are designed to
assist the driver in making decisions and increase driver comfort and
convenience. Initially, the operation and use of the various EyeSight features may
be unfamiliar to you. That is why we urge you to read this manual carefully before
using EyeSight. We also recommend that you first take the time to test EyeSight in
order to experience its features for yourself so that you can become familiar with
their operation.
Please keep in mind that it is the responsibility of drivers to operate their vehicles
safely at all times. Drivers should always remain alert and should never become
complacent while operating their vehicles because of the presence of EyeSight.
EyeSight is never a substitute for active driver involvement and it may not operate
optimally under all driving conditions.
This booklet is a supplement to the Owner’s Manual for your SUBARU vehicle and
contains a detailed description of EyeSight. It should be read in conjunction with
your Owner’s Manual so that you will gain a thorough understanding of the proper
operation of your vehicle.
The information, specifications and illustrations found in this booklet are those in
effect at the time of printing. SUBARU CORPORATION reserves the right to
change specifications and designs at any time without prior notice and without
incurring any obligation to make the same or similar changes on vehicles
previously sold.
Please keep this booklet together with your Owner’s Manual and leave it in the
vehicle at the time of resale. The next owner will need the information it contains.
SUBARU CORPORATION, TOKYO, JAPAN
is a registered trademark of SUBARU CORPORATION.
© Copyright 2017 SUBARU CORPORATION
B1322BE-A.book 1 ページ ２０１７年２月２２日 水曜日 午前１０時１６分

3
1
2
4
5
6
7
8
EyeSight
About EyeSight .................................................................. 2
Pre-Collision Braking System........................................... 22
Adaptive Cruise Control ................................................... 34
Lane Keep Assist ............................................................. 54
Pre-Collision Throttle Management.................................. 62
Lane Departure Warning.................................................. 68
Lane Sway Warning ......................................................... 71
Lead Vehicle Start Alert ................................................... 74
Conventional Cruise Control ............................................ 75
List of buzzer sounds ....................................................... 85
EyeSight malfunction and temporary stop ....................... 87
Customizing functions ...................................................... 91
Message screen list ......................................................... 93
Troubleshooting ............................................................... 96
B1322BE-A.book 1 ページ ２０１７年２月２２日 水曜日 午前１０時１６分

2
About EyeSight
EyeSight is a driving support system that uses a range of functions to assist the driver in
making decisions in order to provide for more safe and comfortable driving and to reduce
driver fatigue. Making use of images created by the stereo camera specially designed by
SUBARU, EyeSight detects the vehicle in front, obstacles, traffic lanes and other items.
EyeSight
WARNING
Drivers are responsible for driving safely. Always comply with all
traffic rules and regulations regardless of the fact that your vehicle
is equipped with EyeSight. Always maintain a safe following dis-
tance between your vehicle and the vehicle in front of you, pay
attention to your surroundings and driving conditions, and take
necessary actions in order to maintain a safe following distance.
Never attempt to drive relying on EyeSight alone.
EyeSight is intended to assist the driver in making decisions in
order to reduce the risk of accidents or damage and lessen the bur-
den on the driver.
When an EyeSight warning is activated, pay attention to what is in
front of you and to your surroundings, and take necessary actions.
This system is not designed to support driving in poor visibility or
in extreme weather conditions, or to protect against careless driv-
ing when the driver is not paying complete attention to the road
ahead. It also cannot prevent collisions from occurring in all driving
conditions.
There are limits to the EyeSight recognition performance and con-
trol performance. Be sure to read the instructions for each function
before using the system, and always use it properly. Improper use
may lead to failure of control performance, which could cause an
accident.
Refer to the following pages for each function:
•For the Pre-Collision Braking System, refer to page 22.
•For Adaptive Cruise Control, refer to page 34.
•For Lane Keep Assist, refer to page 54.
•For Pre-Collision Throttle Management, refer to page 62.
•For Lane Departure Warning, refer to page 68.
•For Lane Sway Warning, refer to page 71.
•For Lead Vehicle Start Alert, refer to page 74.
•For Conventional Cruise Control, refer to page 75.
The EyeSight system in your vehicle is designed for use in coun-
tries in which traffic drives on the right-hand side of the road. Eye-
Sight for LHD vehicles such as yours is not designed for use in
countries in which vehicles are driven on the left-hand side of the
road.
•The system may not operate correctly under the conditions listed below.
When these conditions occur, turn off the Pre-Collision Braking System.
Also, do not use Adaptive Cruise Control and Conventional Cruise Control.
- The tire pressure is not correct.*1
- The temporary spare tire is installed.*1
B1322BE-A.book 2 ページ ２０１７年２月２２日 水曜日 午前１０時１６分

About EyeSight
3
- Tires that are unevenly worn or tires with uneven wear patterns are
installed.*1
- Tires that are the wrong size are installed.*1
- Flat tires that have been fixed temporarily with a tire repair kit.
- The suspension has been modified (including a genuine SUBARU sus-
pension that has been modified).
- Any object that obstructs the stereo camera’s view is installed on the
vehicle.
- The headlights are dirty or they have snow and ice or dirt on them.
(Objects are not correctly illuminated and are difficult to detect.)
- The optical axes are not aligned correctly. (Objects are not correctly illu-
minated and are difficult to detect.)
- The lights including headlights and fog lights have been modified.
- Vehicle operation has become unstable due to an accident or malfunc-
tion.
- The brake system warning light is illuminated in red.*2
- A heavy cargo is loaded onto or inside the vehicle.
- The maximum number of occupants is exceeded.
- The combination meter is not operating properly; such as when the lights
do not illuminate, the beeps do not sound, the display is different from
when it is normal, etc.*3
*1: The wheels and tires have functions that are critically important. Be
sure to use the correct ones. For details, refer to the Owner’s Manual
for your vehicle.
*2: If the brake system warning light does not turn off, immediately pull
the vehicle over in a safe place and contact a SUBARU dealer to
have the system inspected. For details, refer to the Owner’s Manual
for your vehicle.
*3: For details about the combination meter, refer to the Owner’s Manual
for your vehicle.
B1322BE-A.book 3 ページ ２０１７年２月２２日 水曜日 午前１０時１６分

About EyeSight
4
CAUTION
•The characteristics of the stereo camera are similar to those of human
eyes. For this reason, conditions that make it difficult for the driver to see
in the forward direction have the same effect on the stereo camera. They
also make it difficult for the system to detect vehicles, obstacles, and traf-
fic lanes.
•Detection by the EyeSight system is limited to objects that are within the
range of the stereo camera’s field of view. Also, after an object enters the
range of the camera’s field of view, it may take some time for the system
to detect it as a controllable target and to warn the driver.
•Under the conditions listed below, it will become more difficult for the sys-
tem to detect the vehicle in front, motorcycles, bicycles, pedestrians and
obstacles on the road, and lane markers. Also, EyeSight may temporarily
stop operating. However, the temporary stop will be canceled once these
conditions have improved and the vehicle is driven for a short period of
time.
- Bad weather (for example heavy rain, a blizzard or thick fog). In particu-
lar, the system is more likely to temporarily stop operating when there is
an oil film adhering to the windshield, a glass coating has been applied,
or poorly performing wipers are used.
- When affected by strong light from the front (sunlight or headlight beams
of oncoming traffic, etc.)
- When the front windshield washer is being used.
- When raindrops, water drops, or dirt on the windshield are not wiped off
sufficiently
- When the windshield has become fogged, scratched, or snow, dirt, dust
or frost has adhered to it, or it is otherwise affected, these will reduce the
stereo camera’s field of view.
- The vehicle is tilted at an extreme angle due to loaded cargo or other
factors.
- When visibility is poor due to sand, smoke or water vapor blowing in the
wind, or when the front vision is obscured due to water splashes, snow,
dirt or dust stir up generated by the vehicle in front or oncoming traffic

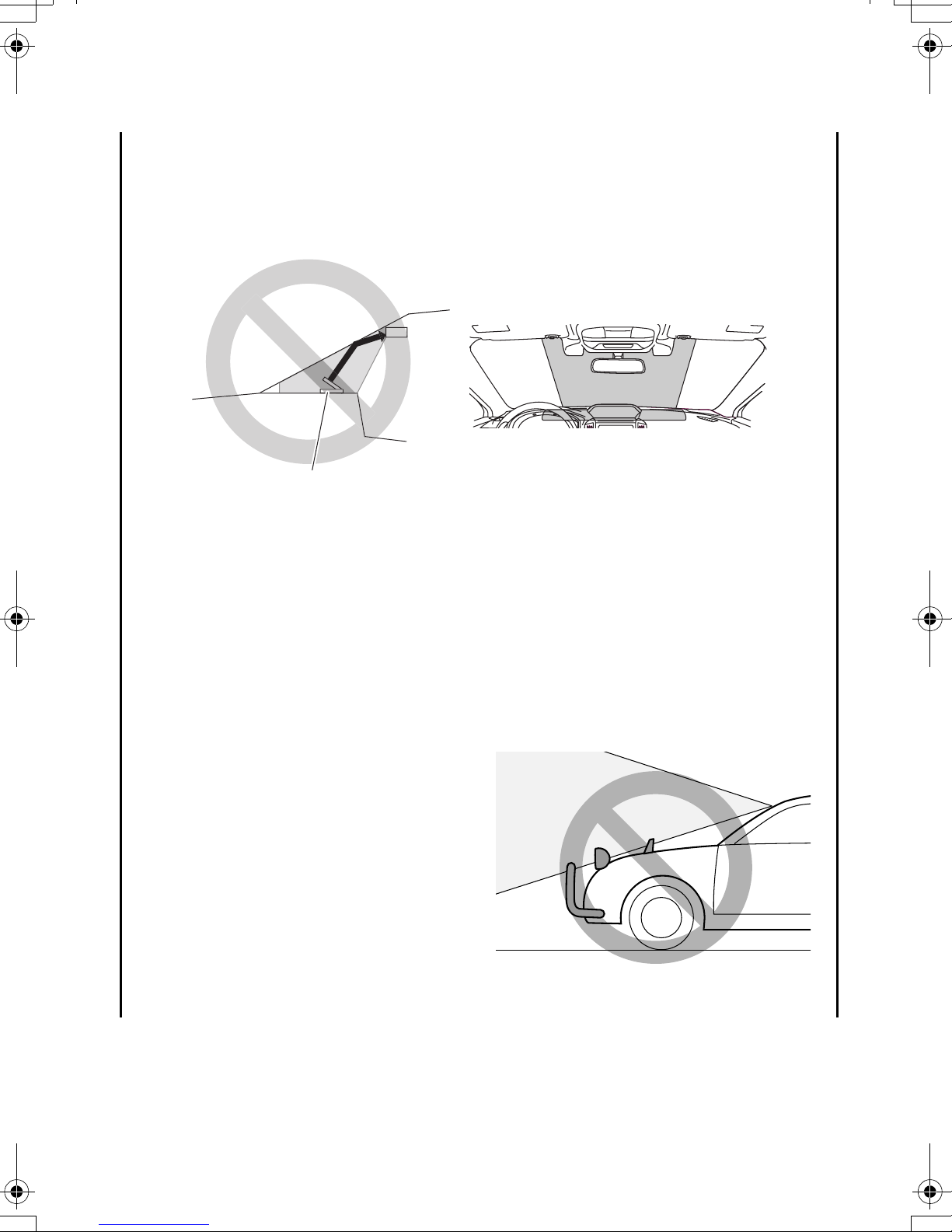

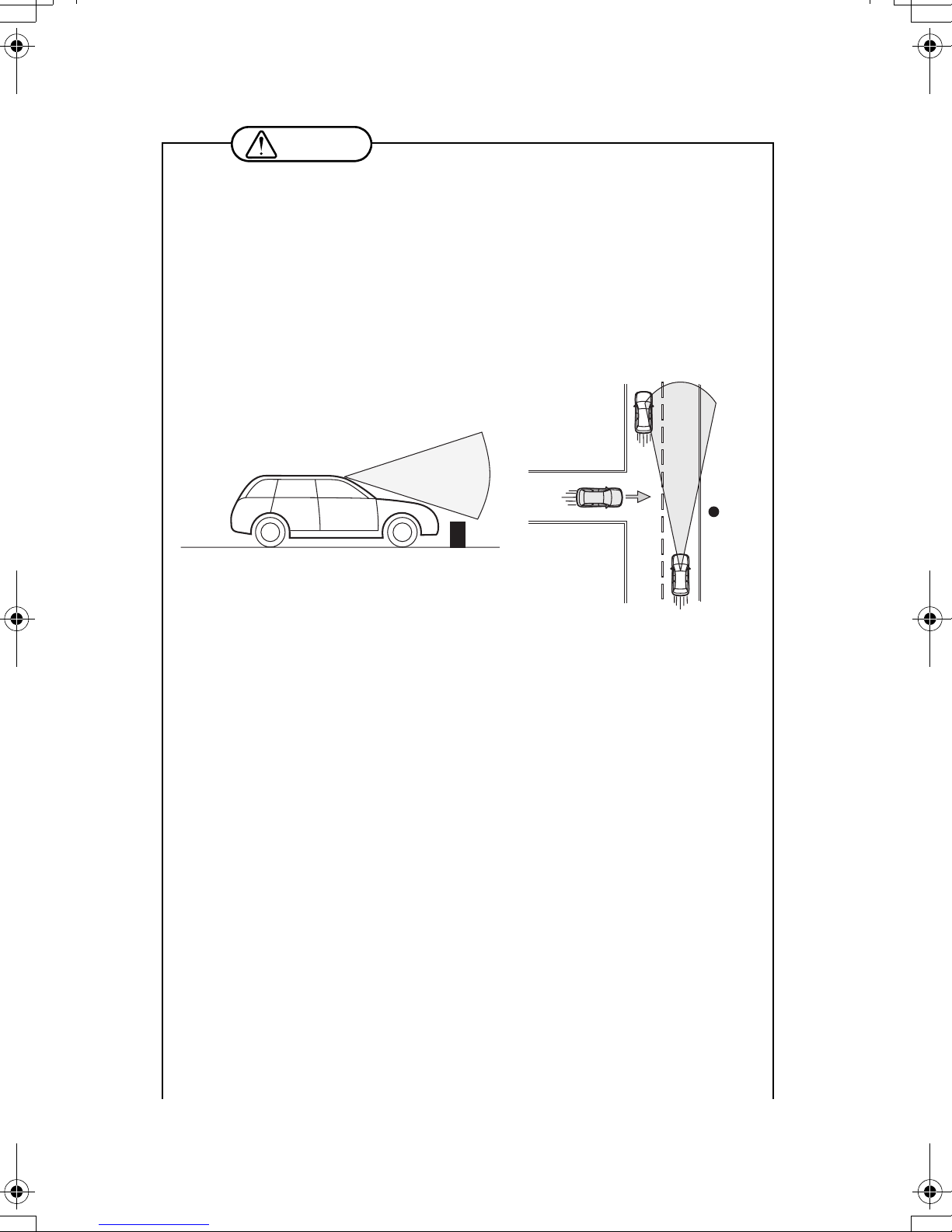

S01970
Low objects surrounding the vehicle
cannot be detected.
B1322BE-A.book 4 ページ ２０１７年２月２２日 水曜日 午前１０時１６分

About EyeSight
5
- When the stereo camera’s field of view is obstructed (for example by a
canoe on the roof of the vehicle)
- When passing through the entrance or exit of a tunnel
- When the rear aspect of the vehicle in front is low, small or irregular (for
example a low bed trailer, etc.)
- When the obstacle is a fence, a wall or a shutter, etc. with a uniform pat-
tern (a striped pattern, brick, etc.) or with no pattern in front
- When the obstacle is a wall or door made of glass or a mirror in front
- When driving at night or in a tunnel when there is a vehicle in front that
does not have its taillights on
- When driving through a banner or flag, low branches on a tree or
thick/tall vegetation
- On steep uphill or downhill grades
- When the stereo camera is obstructed by a hand, etc. (If even one of the
lens is obstructed, the system does not operate properly.)
- When it is completely dark and no objects are detected
- When the area around the vehicle has a uniform color (such as when
completely covered in snow, etc.)
- When accurate detection is not possible due to reflections in the wind-
shield
•Under the conditions listed below, EyeSight may temporarily stop
operating. If this occurs, EyeSight will resume operating when the
conditions improve.
- The temperature inside the vehicle is high, such as after the vehicle was
left in bright sunshine, or the temperature inside the vehicle is low, such
as after the vehicle was left in an extremely cold environment.
- Immediately after the engine starts
•Under the conditions listed below, it is difficult to recognize vehicles in
front, motorcycles, pedestrians, obstacles on the road, traffic lanes, etc.
Also, the EyeSight system may temporarily stop operating. If the EyeSight
system repeatedly stops operating several times, contact a SUBARU
dealer and have the system inspected.
- When the stereo camera lenses are smeared such as from fingerprints
- When the stereo camera has become misaligned due to a strong impact
•When there is a malfunction in the EyeSight system, turn off the Pre-Colli-
sion Braking System (⇒refer to page 32) and the Lane Departure Warning
(⇒refer to page 70), and stop using the Adaptive Cruise Control and Con-
ventional Cruise Control. Contact a SUBARU dealer and have the system
inspected.
•When the Vehicle Dynamics Control warning light is illuminated, the Pre-
Collision Braking System may not operate properly. If the indicator light is
illuminated, turn off the Pre-Collision Braking System. Also, do not use the
Adaptive Cruise Control or Conventional Cruise Control.
B1322BE-A.book 5 ページ ２０１７年２月２２日 水曜日 午前１０時１６分

About EyeSight
6
NOTE
•EyeSight records and stores the following data when the Pre-Collision
Braking System is operated. It does not record conversations or other
audio data.
- Stereo camera image data
- Distance from the vehicle in front
- Vehicle speed
- Steering wheel turning angle
- Lateral movement with regards to the direction of travel
- Accelerator pedal operation status
- Brake pedal operation status
- Select lever position
- Odometer reading
- Data related to ABS, Vehicle Dynamics Control and Traction Control
Function
SUBARU and third parties contracted by SUBARU may acquire and use
the recorded data for the purpose of vehicle research and development.
SUBARU and third parties contracted by SUBARU will not disclose or
provide the acquired data to any other third party except under the fol-
lowing conditions.
• The vehicle owner has given his/her consent.
• The disclosure/provision is based on a court order or other legally
enforceable request.
• Data that has been modified so that the user and vehicle cannot be
identified is provided to a research institution for statistical processing
or similar purposes.
B1322BE-A.book 6 ページ ２０１７年２月２２日 水曜日 午前１０時１６分

About EyeSight
7

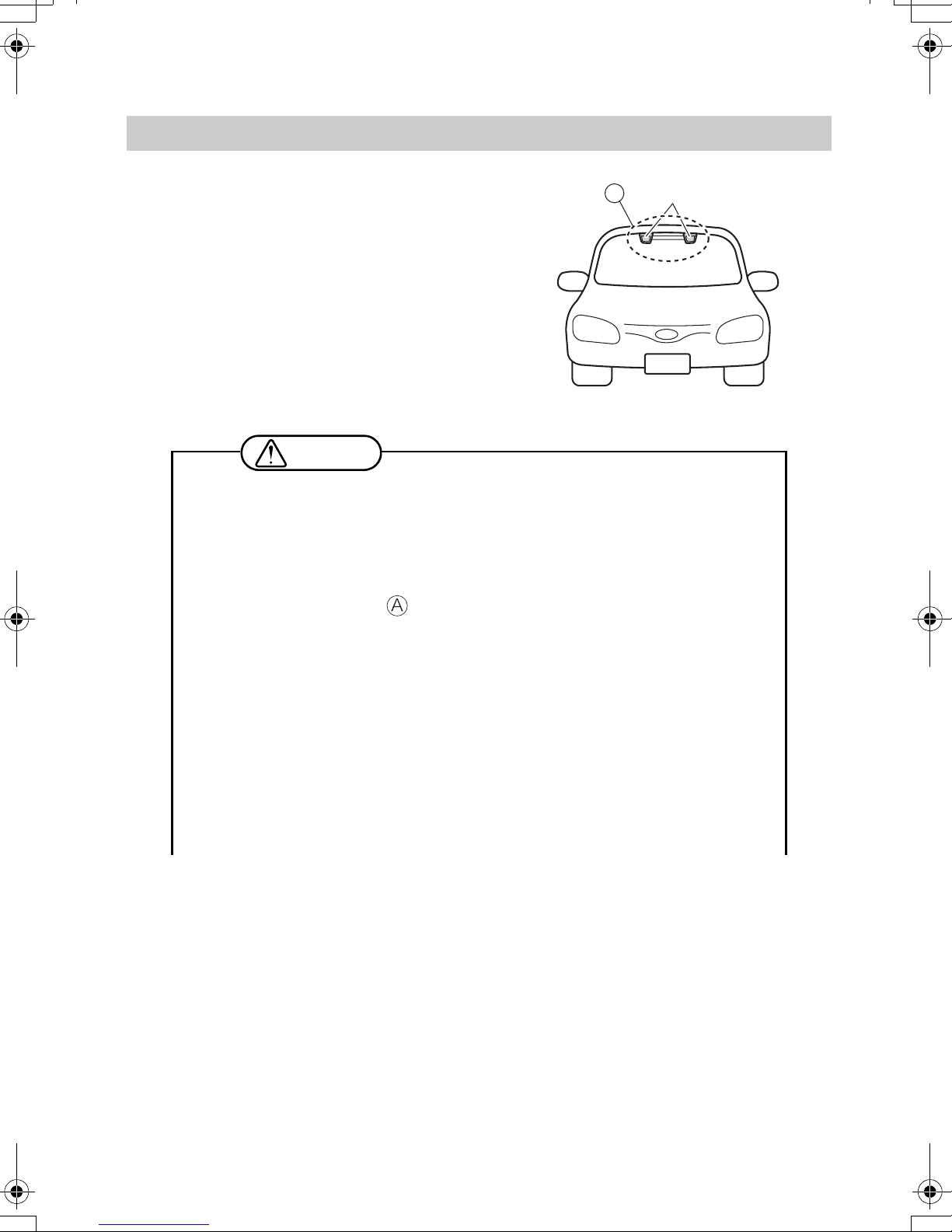

The stereo camera is located on the front map
lights unit.
Continued on next page ⇒
Handling of the Stereo Camera
CAUTION
•The stereo camera monitors and detects smears or blurs on the front of
the camera. However, detection is not 100% accurate.
Under certain conditions, the function may fail to detect smears or blurs on
the front of the stereo camera accurately. In addition, this function may not
detect that there is snow or ice on the windshield close to the stereo
camera. In such conditions, be sure to keep the windshield clean at all
times (indicated by ). Otherwise the system may not operate
correctly. When this function detects that the front of the stereo camera is
smeared or blurred, no EyeSight functions can be activated except for
Conventional Cruise Control.
•The stereo camera lenses are precision components. Always observe the
following precautions especially when handling them.
- Never touch the stereo camera lenses, and do not attempt to wipe or
clean the lenses. Doing so could damage or soil the lens, and lead to
improper system performance.
If you ever touch a lens for any reason, be sure to contact a SUBARU
dealer.
A
S01107
Stereo camera
B1322BE-A.book 7 ページ ２０１７年２月２２日 水曜日 午前１０時１６分

About EyeSight
8
⇒ Continued from previous page
- When cleaning the wind-
shield, cover the front of
the camera casing with
paper that does not collect
dust, such as copy paper.
Affix the paper to prevent
glass cleaner from getting
on the camera lenses. At
this point, make sure that
the tape’s adhesive sur-
face does not come in
contact with the windshield
or the lens. Be sure to
remove the paper after
cleaning.
- When having the inside of windshield cleaned at a service station, etc.,
be sure to request that the attendant covers the camera covers before
washing the vehicle.
- Do not subject the stereo camera to a strong impact.
- Do not remove or disassemble the stereo camera.
- Do not change the positions where the stereo camera is installed or
modify any of the surrounding structures.
•Do not install an interior rearview mirror other than a genuine SUBARU
rearview mirror (such as a wide-type mirror) and the sun visor. Also, use
the rearview mirror so that it does not obstruct the stereo camera. Failure to
do so may affect the stereo camera’s field of view and could prevent the
EyeSight system from functioning properly.
S01097
S00509
B1322BE-A.book 8 ページ ２０１７年２月２２日 水曜日 午前１０時１６分

About EyeSight
9
Continued on next page ⇒
•Do not install any accessories other than the ones designated by SUBARU on the
prohibited areas shown in the illustrations (grey zones).
Even if some accessories are installed on the outside of the prohibited areas, abnormal
operation of EyeSight may occur due to the reflection of the light or any objects. In this
situation, move the accessories. For details, contact a SUBARU dealer.
<Side view> <Front view>
•Do not place any objects on top of the instrument panel. The stereo camera may not be
able to detect objects accurately and the EyeSight system may not function properly due
to reflections in the windshield. For details, contact a SUBARU dealer.
•If the top of the instrument panel is polished with chemicals or other substances, the ste-
reo camera may not be able to detect objects accurately and the EyeSight system may
not operate properly due to reflections in the windshield.
•Do not install any wiper blades other than genuine SUBARU wiper blades. Doing so may
affect the stereo camera’s field of view and could prevent the EyeSight system from
functioning properly.
•Replace damaged wiper blades or worn wiper blade rubbers as soon as possible. Using
damaged wiper blades or worn wiper blade rubbers may cause streaking on the wind-
shield. The stereo camera may not be able to detect objects accurately and the EyeSight
system may not function properly due to streaks or droplets remaining on the windshield.
•Do not install any accessories on the front
side such as on the hood or the grille. It
may affect the camera view and the sys-
tem may not operate correctly.
•Make sure that the cargo loaded on the
roof does not interfere in the stereo cam-
era’s field of view. Obstructing the stereo
camera’s view may impair the system
operation. For details, contact a SUBARU
dealer.
S02664
Monitors or other accessories
S01098
B1322BE-A.book 9 ページ ２０１７年２月２２日 水曜日 午前１０時１６分

About EyeSight
10
⇒ Continued from previous page
•Keep the windshield (outside and inside) clean at all times. When the wind-
shield has become fogged, or it has a dirt or an oil film on it, the stereo
camera may not detect objects accurately and the EyeSight system may
not operate correctly. Never mount any device to the center air vent, as
any airflow change may impact performance of the EyeSight system.
•Do not place any stickers or accessories on the windshield (outside or
inside). If you have to do so (for example, legally required or electronic toll
tag), avoid the area directly in front of the camera. Otherwise, it may
adversely affect the field of view of the stereo camera and can cause
improper operation of the system. For details, contact a SUBARU dealer.
•Do not use any glass coating agents or similar substances on the wind-
shield. Doing so may interfere with the proper operation of the system.
•Do not install any film or an additional layer of glass on the windshield. The
system may not operate correctly.
•If there are scratches or cracks on the windshield, contact a SUBARU
dealer.
•To have the windshield replaced or repaired, contact a SUBARU dealer.
Do not install a windshield other than a genuine SUBARU windshield. The
stereo camera may not be able to detect objects accurately and the
EyeSight system may not operate properly.
B1322BE-A.book 10 ページ ２０１７年２月２２日 水曜日 午前１０時１６分

About EyeSight
11
EyeSight includes the following functions.
■Pre-Collision Braking System
This function uses a following distance warning feature to warn the driver to take evasive
action when there is the possibility of a collision with a vehicle or obstacle in front of you. If
the driver does not take evasive action, the brakes are applied automatically to help reduce
vehicle collision damage or, if possible, help prevent a collision.
⇒Refer to page 22.
■Adaptive Cruise Control
This function maintains the set vehicle speed and when there is a vehicle in front in the
same traffic lane, it follows the speed of the vehicle in front up to the maximum of the set
vehicle speed.
⇒Refer to page 34.
■Lane Keep Assist
This function helps suppress lane drifting by detecting lane markings (e.g., white lines) on
highways and roads, and by assisting steering operation.
⇒Refer to page 54.
■Pre-Collision Throttle Management
This function reduces accidental forward movement caused by the select lever being placed
in the wrong position or the accelerator pedal being accidentally depressed, or depressed
too strongly.
⇒Refer to page 62.
■Lane Departure Warning
This function warns the driver when the vehicle is about to drift off the road.
⇒Refer to page 68.
■Lane Sway Warning
This function warns the driver when it detects vehicle drifting caused by driver fatigue, fail-
ure to concentrate on the road, inattention, strong crosswinds or other factors.
⇒Refer to page 71.
EyeSight Functions
B1322BE-A.book 11 ページ ２０１７年２月２２日 水曜日 午前１０時１６分

About EyeSight
12
■Lead Vehicle Start Alert
This function notifies the driver when the vehicle stopped in front starts moving but the
driver’s vehicle remains stationary.
⇒Refer to page 74.
■Conventional Cruise Control
In this mode, the system maintains a constant vehicle speed. It does not follow the vehicle
in front. This function can be used even when the stereo camera has temporarily stopped
operating. (⇒Refer to page 89.) (This function is used by switching from Adaptive Cruise
Control to Conventional Cruise Control.)
⇒Refer to page 75.
NOTE
EyeSight does not operate when the engine is not running.
B1322BE-A.book 12 ページ ２０１７年２月２２日 水曜日 午前１０時１６分

About EyeSight
13
Instrument panel display layout
(1) EyeSight display area (11) Following distance setting indicator
(2) Adaptive Cruise Control indicator (12) Lead vehicle indicator
(3) Conventional Cruise Control indicator (13) Warning screen area
(4) READY indicator (14) EyeSight temporary stop indicator (White)
(5) Your vehicle indicator (15) EyeSight warning indicator (Yellow)
(6) Select lever/gear position indicator (16) Lane Departure Warning OFF indicator light
(7) X-mode indicator (17) Pre-Collision Braking System OFF indicator light
(8) Set vehicle speed display (18) Vehicle Dynamics Control warning light
(9) Lane Indicator (19) Brake system warning light
(10) Lane keep Assist indicator (20) Vehicle Dynamics Control OFF indicator light
S02652
(16) (17) (18) (19) (20)
(13)
(11)
(10)
(12)
(1)
(2)
(3)
(4) (9)
(8)
(5)
(7)
(6)
(14) (15)
* Display units can be changed in the Screen Settings. For details, refer to the Owner’s Manual for your vehicle.
B1322BE-A.book 13 ページ ２０１７年２月２２日 水曜日 午前１０時１６分

About EyeSight
14
■CRUISE indicator
•This indicator illuminates when the main cruise control is on.
: Adaptive Cruise Control (Adaptive Cruise Control indicator)
: Conventional Cruise Control (Conventional Cruise Control indicator)
⇒Refer to pages 40 and 75.
•When cruise control* is set, this indicator (white) turns green. When the driver accelerates
the vehicle by depressing the acceleration pedal while the Adaptive Cruise Control is
operating, the indicator turns white.
⇒Refer to page 42.
* Adaptive Cruise Control and Conventional Cruise Control
■READY indicator
illuminates when cruise control* can be set.
⇒Refer to pages 40 and 77.
* Adaptive Cruise Control and Conventional Cruise Control
■Lead vehicle indicator
When Adaptive Cruise Control is set or when the vehicle is stopped, this indicator
illuminates when a vehicle in front has been detected.
⇒Refer to page 42.
■Following distance setting indicator
Indicates the following distance setting that was set with the / (Following distance
setting) switch.
⇒Refer to page 47.
■Set vehicle speed display
Displays the set vehicle speed.
⇒Refer to pages 40 and 76.
■Select lever/gear position indicator
•This indicator illuminates and shows which position the select lever or the gear is in.
■EyeSight warning indicator (yellow)
•This indicator illuminates or flashes when a malfunction occurs in the EyeSight system.
•When it is illuminated or flashing, none of the EyeSight functions can be used (including
Adaptive Cruise Control and the Pre-Collision Braking System, etc.).
⇒Refer to page 87.
B1322BE-A.book 14 ページ ２０１７年２月２２日 水曜日 午前１０時１６分

About EyeSight
15
■EyeSight temporary stop indicator (white)
•This indicator illuminates when the EyeSight system is temporarily stopped.
•When the ignition switch is placed in the ON position, it will illuminate if the
(CRUISE) switch or (Lane Keep Assist) switch is set to ON within approximately 7
seconds of the engine starting. It turns off when approximately 7 seconds have elapsed
since the engine started.
•When it is illuminated, none of the EyeSight functions can be used except for Conven-
tional Cruise Control.
⇒Refer to page 89.
■X-mode indicator
The X-mode indicator illuminates when the X-mode is ON.
■Lane Departure Warning OFF indicator light
•This indicator illuminates when the Lane Departure Warning and Lane Sway Warning are
off.
•It also illuminates when the ignition switch is turned to the ON position. Approximately 7
seconds after the engine starts, the Lane Departure Warning OFF indicator light will turn
off or remain illuminated depending on the current status (ON or OFF).
⇒Refer to page 70.
■Pre-Collision Braking System OFF indicator light
•Illuminates when the Pre-Collision Braking System and Pre-Collision Throttle Manage-
ment are off.
•It also illuminates when the ignition switch is turned to the ON position, and then turns off
approximately 7 seconds after the engine starts.
⇒Refer to page 33.
■Lane Indicator
This indicator illuminates in gray when the Lane Keep Assist switch is pressed. When the
Lane Keep Assist is operational or operating, this indicator illuminates in white.
⇒Refer to page 58.
B1322BE-A.book 15 ページ ２０１７年２月２２日 水曜日 午前１０時１６分

About EyeSight
16
■Brake System warning light
The brake system warning light illuminates when:
•There is a malfunction in the brake system.
•The parking lever is pulled up.
•The brake fluid level is low.
The Eyesight system will not operate when the brake system warning light is on due to the
parking brake lever pulled up or there is a malfunction in the brake system.
It may operate when the brake system warning light is on due to a low brake fluid level,
however there may be insufficient braking force.
If the brake system warning light does not turn off, immediately pull the vehicle over in a
safe place and contact a SUBARU dealer to have the system inspected.
⇒Refer to the vehicle Owner’s Manual for details.
■Your vehicle indicator
When the brake pedal is depressed or the brake control function is activated, the brake
indicator light illuminates in red.
■Vehicle Dynamics Control OFF indicator light
•This indicator light illuminates when the ignition switch is turned to the “ON” position, and
it turns off after approximately 2 seconds.
•This indicator light illuminates when the Vehicle Dynamics Control OFF switch is pressed
and Vehicle Dynamics Control is off.
*Refer to the vehicle Owner’s Manual for details.
■Lane Keep Assist indicator
•This indicator illuminates when Lane Keep Assist is turned on by pressing the Lane Keep
Assist switch.
•While the Lane Keep Assist system is activated, if the vehicle travels across a lane
marker, the indicator turns from white to green.
⇒Refer to page 58.
■Vehicle Dynamics Control warning light
This warning light illuminates when the ignition switch is turned to the ON position, and turns
off approximately 2 seconds after the engine is started. It will illuminate if there is a
malfunction in the Vehicle Dynamics Control electrical control system.
⇒Refer to the Owner’s Manual for details.
B1322BE-A.book 16 ページ ２０１７年２月２２日 水曜日 午前１０時１６分

About EyeSight
17
Switch layout
(1) (CRUISE) switch (5) RES/+ switch
(2) / (Following distance setting) switch (6) switch
(3) (Lane Keep Assist) switch (7) (Info)/SET switch
(4) SET/- switch (8) switch
S02653
(1) (5) (3)(4)(2)
(6)
(7)
(8)
B1322BE-A.book 17 ページ ２０１７年２月２２日 水曜日 午前１０時１６分

About EyeSight
18
■(CRUISE) switch
•Switches cruise control*on/off.
•When the (CRUISE) switch is pressed, “ ” appears on the EyeSight display
area in the combination meter display, and then appears by pressing and holding
the / (following distance setting) switch for approximately 2 seconds. When
“ ” or “ ” is shown on the EyeSight display, this indicates that the main cruise
control is on.
⇒Refer to pages 40 and 76.
•This switch can be used to cancel the cruise control.
⇒Refer to pages 48 and 81.
* Adaptive Cruise Control and Conventional Cruise Control
■RES/SET switch
●SET/-
•This switch can be used to set cruise control*.
•This switch can be used to reduce the set vehicle speed (when cruise control*is currently
set).
⇒Refer to pages 41 and 45 (for Adaptive Cruise Control).
⇒Refer to pages 78 and 80 (for Conventional Cruise Control).
* Adaptive Cruise Control and Conventional Cruise Control
●RES/+
•This switch can be used to set cruise control*.
•After cruise control*is canceled, this switch can be used to resume the cruise control
function at the vehicle speed that was previously set.
•This switch can be used to increase set vehicle speed (when cruise control*is currently
set).
⇒Refer to pages 44 and 51 (for Adaptive Cruise Control).
⇒Refer to page 84 (for Conventional Cruise Control).
* Adaptive Cruise Control and Conventional Cruise Control
■/ (Following distance setting) switch
•This switch can be used to switch the set following distance in 4 stages: (only when Adap-
tive Cruise Control is on).
⇒Refer to page 47.
•When the (CRUISE) switch is on, switching between Adaptive Cruise Control and
Conventional Cruise Control is possible by pressing the / (Following distance
setting) switch*.
* To switch to Conventional Cruise Control, press and hold the switch for approximately 2
seconds or longer.
■(Lane Keep Assist) switch
Switches Lane Keep Assist on/off.
⇒Refer to page 58.
B1322BE-A.book 18 ページ ２０１７年２月２２日 水曜日 午前１０時１６分

About EyeSight
19
■switch/ switch
These switches are used in the following situations.
•When switching the screen displayed on the combination meter display.
•When changing the Warning Volume settings, etc.
⇒Refer to page 91.
■(Info)/SET switch
This switch is used in the following situations.
•When displaying the message that appeared in the warning screen area again.
⇒Refer to page 93.
•When changing the Warning Volume settings, etc.
⇒Refer to page 91.
■(Pre-Collision Braking System OFF) switch
Press and hold this switch for approximately 2
seconds or longer to turn off the Pre-Collision
Braking System and Pre-Collision Throttle
Management.
When these functions are off, the Pre-Colli-
sion Braking System OFF indicator light on
the instrument panel illuminates.
Press and hold the switch again to turn on the
Pre-Collision Braking System and Pre-Colli-
sion Throttle Management. This turns off the
Pre-Collision Braking System OFF indicator
light.
⇒Refer to page 32.
■(Lane Departure Warning OFF) switch
Press and hold this switch for approximately 2
seconds or longer to turn off the Lane Depar-
ture Warning and Lane Sway Warning func-
tions.
When these functions are off, the Lane
Departure Warning OFF indicator light on the
instrument panel illuminates.
Press and hold the switch again to turn on the
Lane Departure Warning and Lane Sway
Warning functions. This turns off the Lane
Departure Warning OFF indicator light.
⇒Refer to page 70.
S02387
S02388
B1322BE-A.book 19 ページ ２０１７年２月２２日 水曜日 午前１０時１６分
