Sunjoy L-GZ1048PCO-A User manual

For technical assistance or replacement parts, please contact Sunjoy Group at 1(866) 578-6569 anytime
24 hour / 7 days a week or Email [email protected] or visit www.sunjoyonline.com to place your order
or fax your parts replacement order form together with your purchase receipt to 1 [phone] for
assistance.
Note: THIS UNIT IS HEAVY!
Do NOT assemble this item alone for safety. Six people are necessary.
You will need a screwdriver, hammer and two 8ft ladders.
While this screen house is manufactured to withstand winds through only the supplied ground stakes, in
areas subject to frequent severe weather, securing the screen house to a deck, concrete patio or footings
should be considered.
Snow must be cleared off regularly during snowy days. Remove the snow at the top when it is thicker than
4 inches. In order to avoid damage, use a plastic snow rake to remove excessive snow and ice buildup from
roof and keep away from falling debris.
Country of Origin: China Production Number: 20193442
Assembly Instructions
Bar Harbor 10x12 Screen House
Article # 182996

Parts List
J1 (x2) Long left decorative
slot K1 (x2) Long side right
decorative slot
L1(X2) Short decorative slot M1(x2) Long side decorative
slot connector
F1(x4) Short side decorative
slot connector N1(X4) Corner connector
H1(x4) Long side netting
tube I1(x4) Shot side netting tube
K2(x4) Top slanting bar B2 (x1) Big top frame
L2 (x4) Middle beam M2 (x4) Long support beam of
big top long side
N2 (x4) Short support beam of
big top long side O2 (x4) Long support beam of
big top short side
P2 (x4) Short support beam of
big top short side A3(X2) Small top oblique
beam 1
B3(X4) Small top oblique
beam cover panel C3 (x2) Roof cover of small
top long side
D3 (x2) Roof cover of small
top short side E3 (x1) Small top lower connector frame
F3(X2) Small top oblique
beam 2 K3 (x1) Small top connector
H3 (x1) Top cover of small top I3(x1) Top decor
L3(x1) Hook A4(X4) Post base
B4 (x4) Base protector C4(x4) Post
H4(x4) Top block F4(X4) Left support
G4(X4) Right support A5(x2) Big top long side left
cover panel
B5(x2) Big top long side right
cover panel C5(x4) Big top left middle cover panel
D5(x4) Big top right middle
cover panel E5(x4) Big top left small cover panel

Hardware Pack 1
AA Plastic end cap 16 PCS
BB M6 Bigger flat washer 48 PCS
CC M6*20 Hex bolt 48 PCS
OO M6 spring washer 32 PCS
JJ Metal hook 52 PCS
LL M6 Wrench 2 PCS
F5 (x4) Big top right small
cover panel G5 (x2) Big top short side
big cover panel
H5 (x4) Top cover I5 (x18) Roof press sheet
J5(x1) Netting

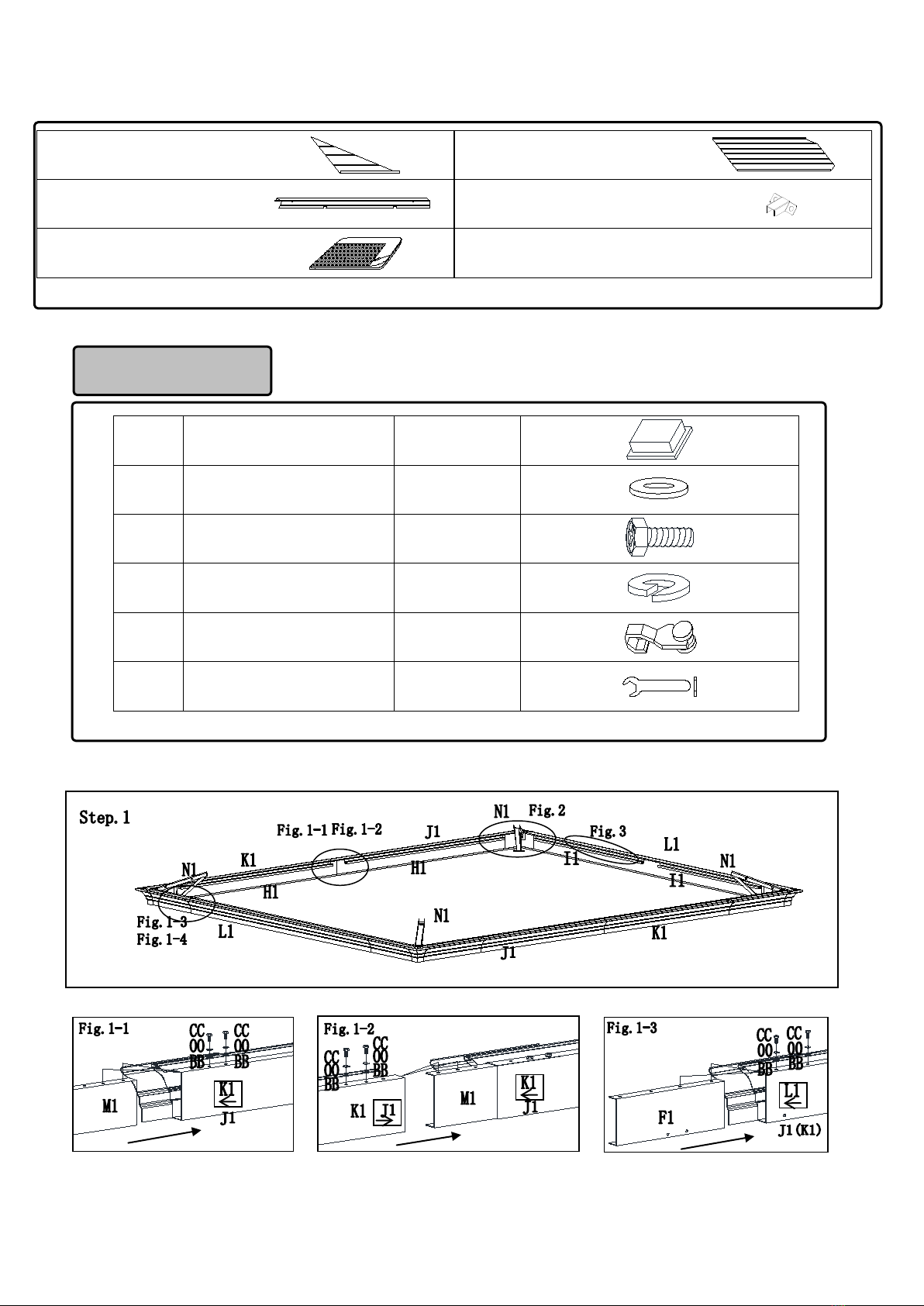

Fig.1-4: Fix slot (L1) on the L1 end of slot (J1, K1) using bolt (CC) ,spring washer (OO) and washer (BB).
Fig.2: Fix connector (N1) on the slot (J1) and slot (K1) using bolt (CC) ,spring washer (OO) and washer
(BB).
BB M6 Bigger flat washer 72 PCS
CC M6*20 bolt 72 PCS
Hardware Pack 2
Fig.3: Firstly stuff one end of the long netting tube (H1) using cap (AA), then fix hook (JJ) on the inner
side of long tube (H1).
Fix 7pc of hooks (JJ) on the long tube (H1) and 6pc of hooks (JJ) on the short tube (I1) and use cap
(AA) to stuff another side of the tube.
Fix the long tube (H1) on the left decorative slot (J1) and right decorative slot (K1) using bolt (CC)
and washer (BB).
Fix short tube (I1) on the left decorative slot (J1) and short decorative slot (L1),or on the right
decorative slot (K1) and short decorative slot (L1).
Fig.1-1:Fasten the decorative slot connector (M1) on the K1 side of decorative slot (J1) using bolt
(CC), spring washer (OO) and washer (BB).
Fig.1-2: Fasten the decorative slot (J1,K1) tightly using bolt (CC), spring washer (BB) and washer
(BB). Insert J1 end of slot (K1) into the K1 end of slot (J1).
Fig.1-3: Fasten the slot connector (F1) on L1 end of the decorative slot (J1, K1) using bolt
(CC) ,spring washer (OO) and washer (BB).

Fig.4: Fix the top slanting bar (K2) onto the corner connector (N1) with bolt (CC) & washer (BB) .
Fig.5: Fix the oblique beam (K2) on the big top frame (B2) using bolt (CC) and washer (BB).
Fig.6: Fix the middle beam of big top (L2) onto big top frame (B2) with bolt (CC) & washer (BB).
Fig.7: Fix the Middle beam (L2) onto decorative slot (J1, K1,L1) with bolt (CC) & washer (BB).
Fig.8: Fix one end of the left long support beam of big top long side (M2) onto the middle beam of big top
(L2) with bolt (CC) & washer (BB).
Fig.9: Fix the other end of the long support beam (O2) onto the Top slanting bar (K2) with bolt (CC) &
washer (BB).Use the same way to assemble N2, O2, P2, and M2 respectively.

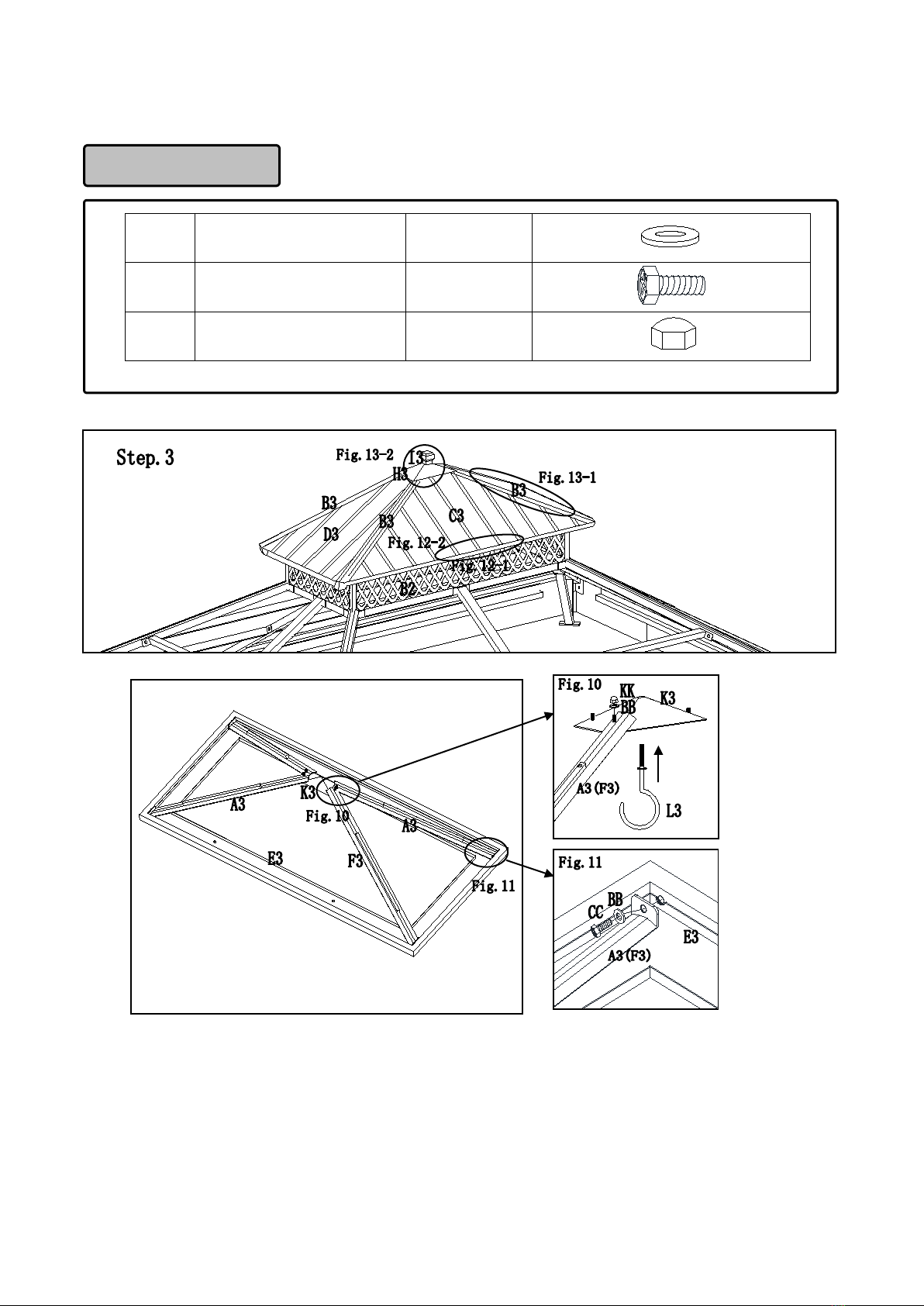

Fig.10: Fix the small top oblique beam (A3, F3) on the small top connector (K3) using bolt (KK) and
washer (BB). Fix hook (J3) from the bottom side of small top connector (K3) to upper side.
Fig.11: Fix the lower end of small top beam (A3, F3) on the small top lower connector frame (E3) using
bolt (CC) and washer (BB).
Hardware Pack 3
BB M6 Bigger flat washer 20 PCS
CC M6*20 Hex bolt 16 PCS
KK M6 Nut 4 PCS

Hardware Pack 4
BB M6 Bigger flat washer 76 PCS
CC M6*20 Bolt 76 PCS
OO M6 spring washer 56 PCS
HH Ф8*260 Peg 8 PCS
II Ф6*80 Anchor 16 PCS
Fig.12-1: Fix the assembled small top on the big top frame (B2) through small top lower connector
frame (E3),using bolt (CC) and washer (BB).
Fig.12-2: See as the pic. fold the small top long and short side cover panel (C3, D3) on the small top.
Fig.13-1: Fasten the small top cover panel (B3) on the small top oblique beam, and fix it using bolt
(CC) and washer (BB).
Fig.13-2: Firstly cover the small top cover (H3) on the bolt which is on the
small top hook, then fix the top decor (I3) on the bolt, and tighten the
small top cover (H3).

Fig.14: Lift the Base protector (B4), attach the post base (A4) to the post (C4) with bolt (CC) & washer (BB).
Fig.15: Fix the top block (H4) to the post (C4) with bolt (CC) & washer (BB).
(Note: the screw holes on the post and the screw holes which install the block plate (E4) should be in the same
direction as shown on drawing.)
Fig.16: Lift the assembled pavilion roof and fix the assembled post to the corner of the roof with bolt (CC), bolt
(OO) &washer (BB).
(Note: The screw holes on the post must be directed inward. 6 people are needed here.)
Fig.17: Fix the Corner connector (N1) to the top block (H4) with bolt (CC) ,bolt (OO) & washer (BB).
Fig.18: Fix the arc support bar (F4/G4) to the post (C4) & decorative beam with bolt (CC),bolt (OO) &
washer (BB).
Fig.19: Fix the screen house on the grass ground with the peg (HH).
Fig.20: Fix the screen house on the cement ground with the anchor (II).

Hardware Pack 5
Fig.21: See as the pic. buckle the cover panel (A5) on the right cover panel (B5). See the pic of big top cover
panel for reference, buckle cover panels from left to right.
Fig.22: See as the pic. fix the buckled cover panels(A5,B5) on the U type slot on the big top frame (B2). Same
method to the cover panel (G5).
Fig.23: Fasten the long side left cover panel (A5) and big top short side cover panel (G5) on the oblique beam
(K2) using bolt (CC) and washer (BB).
BB M6 Bigger flat washer 68 PCS
CC M6*20 Bolt 60 PCS
GG M6*40 Bolt 8 PCS

Fig.24: Fasten top cover panel (D5, C5) on the oblique beam (K2) using bolt (CC) and washer (BB).
Fig.25: Fasten top cover panel (F5, E5) on the oblique beam (K2) using bolt (CC) and washer (BB).
Fig.26: Fix the press sheet (I5) on the decorative slot (the place of 2 cover panels buckled), fix the cover
panel using bolt (DD) and washer (BB).
Fig.27: See as the pic. insert the pilot pin of oblique beam cover panel (H5) into the corner hole of big top
frame (B2).
Fig.28: Then fasten the big top oblique beam cover panel
(H5) on the oblique beam (K2) using bolt (GG) and
washer (BB).
Fig.29: Fix the netting (J5) on
the tube (H1) and tube (I1)
using the hook (JJ), make
the netting with bandlet
outward. Hook 7 pc fabric
buckles on the tube (H1) and
6 pc fabric buckles on the
tube (I1). See the pic. for
reference, assemble in a
clockwise sequence.
Now, your screen house is
ready for use.

IMPORTANT:
1. Keep all children and pets away from assembly area. Children and pets should be supervised when they are in
the area of pavilion construction.
2. The area for assembly should not be less than 6 feet from any obstruction such as fence, garage, house,
overhanging branches, laundry line or electrical wires.
3. This unit is heavy. Do not assemble this item alone. Six people are recommended for safe assembly.
4. Some parts may contain sharp edges. Wear protective gloves if necessary during assembly.
5. When assembling and using this product, basic safety precautions should always be followed to reduce the risk
of personal injury and damage to equipment. Please read all instructions before assembly and use.
6. For outdoor use only. Install on level ground. 16 stakes are provided to secure the pavilion in the ground. If you
wish to secure the pavilion to a wood deck or concrete surface, you will need to purchase fasteners appropriate for
these surfaces. These are readily available at your local hardware store or home center.
7. Check all bolts for tightness before and during usage.
8. Please check your state and local regulations prior to purchasing. Some jurisdictions may require permits for, or
otherwise regulate, installation and use.
9. While this pavilion is manufactured to withstand gale force winds utilizing only the supplied ground stakes, in
areas subject to frequent severe weather, securing the pavilion to a deck, concrete patio or footings should be
considered.
10. Your pavilion has been engineered to accommodate winter snow loads incurred in most areas. Removal of
accumulated snow on the pavilion roof with a roof rake is recommended. In areas that are regularly subject to
blizzard conditions however, removal of the roof panel is suggested. The assembled roof structure can simply be
left intact until warmer conditions return.
LIMITED WARRANTY:
This limited warranty is extended to the original purchaser and applies to defects in materials and workmanship
of your item provided the item is maintained with care and used only for personal, residential purposes.
The item is warranted to be free from defects in material or workmanship for a period of one (1) year. If any defect
is found, please call our customer service department at 1-866-578-6569 for help. The manufacturer will not cover
transportation or delivery costs, or compensate the individual or any outside party for assembling or disassembling
the product. This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.
Carefully check all packaging materials before discarding. Do not assemble if there are missing pieces.
For comments or questions please contact BJ’s Wholesale Club at 1-800-934-1204.
Please do not return this product to the store. For technical assistance on assembly or replacement parts call Sunjoy
Group at 1(866) 578-6569 anytime 24 hour /7 days a week or Email [email protected] or
visit www.sunjoyonline.com to place your order or fax your parts replacement order form together with your purchase
receipt to 1(740) 283-3549 for assistance.
Production Number 20193442 Made in China
