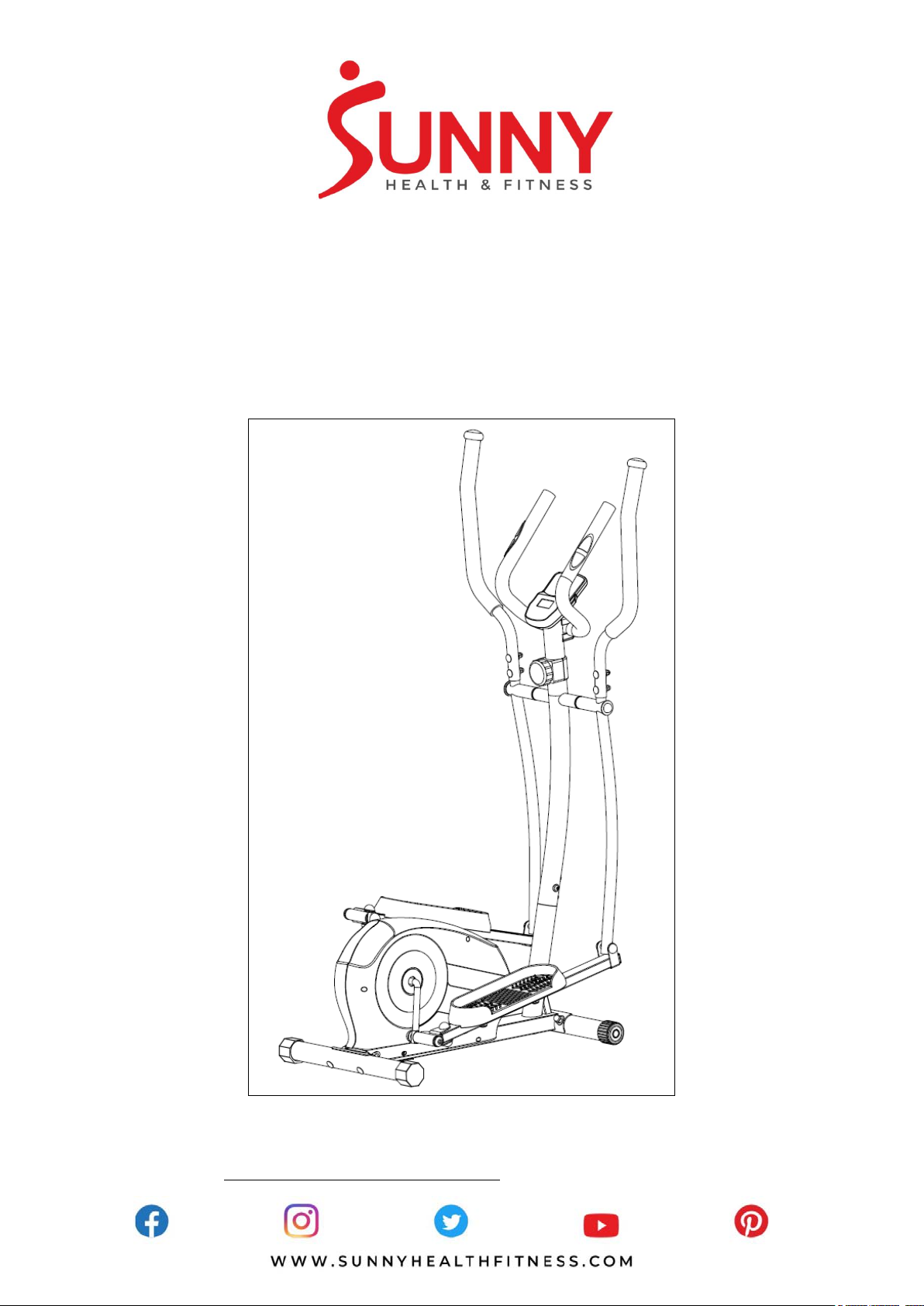

Sunny SF-E322902 User manual

0
ESSENTIAL INTERACTIVE
SERIES ELLIPTICAL
SF-E322902
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions.
Your satisfaction is very important to us,PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: [e-mail] or 1-877-90SUNNY (877-907-8669).

1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this equipment
correctly. It is important to read this entire manual before assembling and using the equipment. Safe
and effective use can only be achieved if the equipment is assembled, maintained and used properly.
It is your responsibility to ensure that all users of the equipment are informed of all warnings and
precautions.
1. Before starting any exercise program, you should consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk, or prevent you
from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, shortness of breath, lightheadedness, dizziness or feelings of nausea. If you do
experience any of these conditions, you should consult your physician before continuing with your
exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the equipment should have at least 2 feet (60 CM) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the
equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or
checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has been
rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become
entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 220 pounds (100 KG).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving is
required.
12. Your product is intended for use in cool, dry conditions. You should avoid storage in extreme cold,
hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only. It is not intended for commercial use!

2
PRE-ASSEMBLY CHECK LIST
.Before you start to assemble, please make sure all parts are included.

3
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Main Frame
1
31
Armrest
1
2
Front Stabilizer
1
32L/R
Handlebar
1pr.
3
Rear Stabilizer
1
108
Meter
1
9
Handlebar Post
1
A
Manual
1
18L/R
Pedal Support Tube
1pr.
B
Thank You Card
1
24L/R
Swing Bar
1pr.
C
Hardware Package
1
27L/R
Pedal
1pr.
D
Battery
2

4

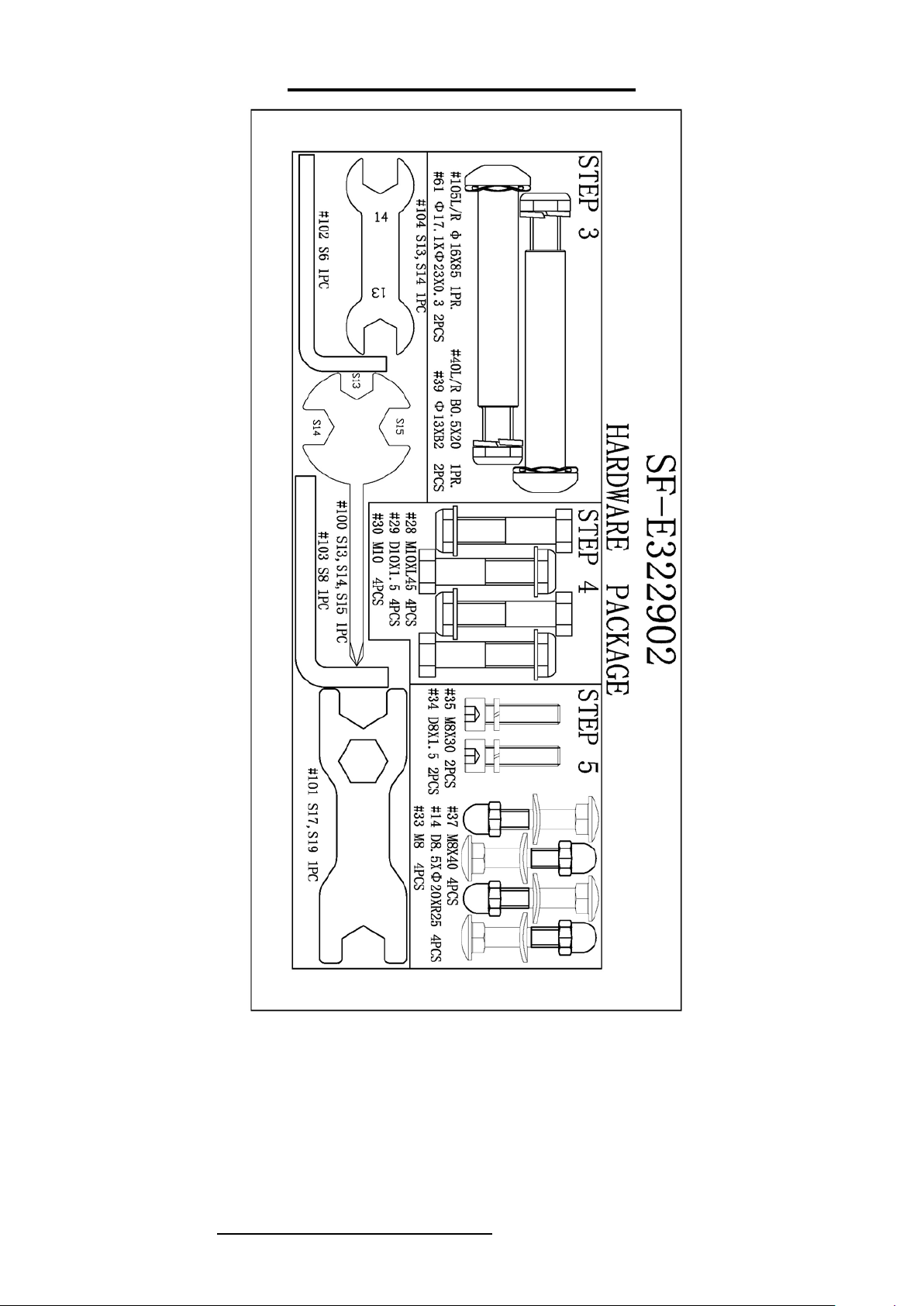

HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)

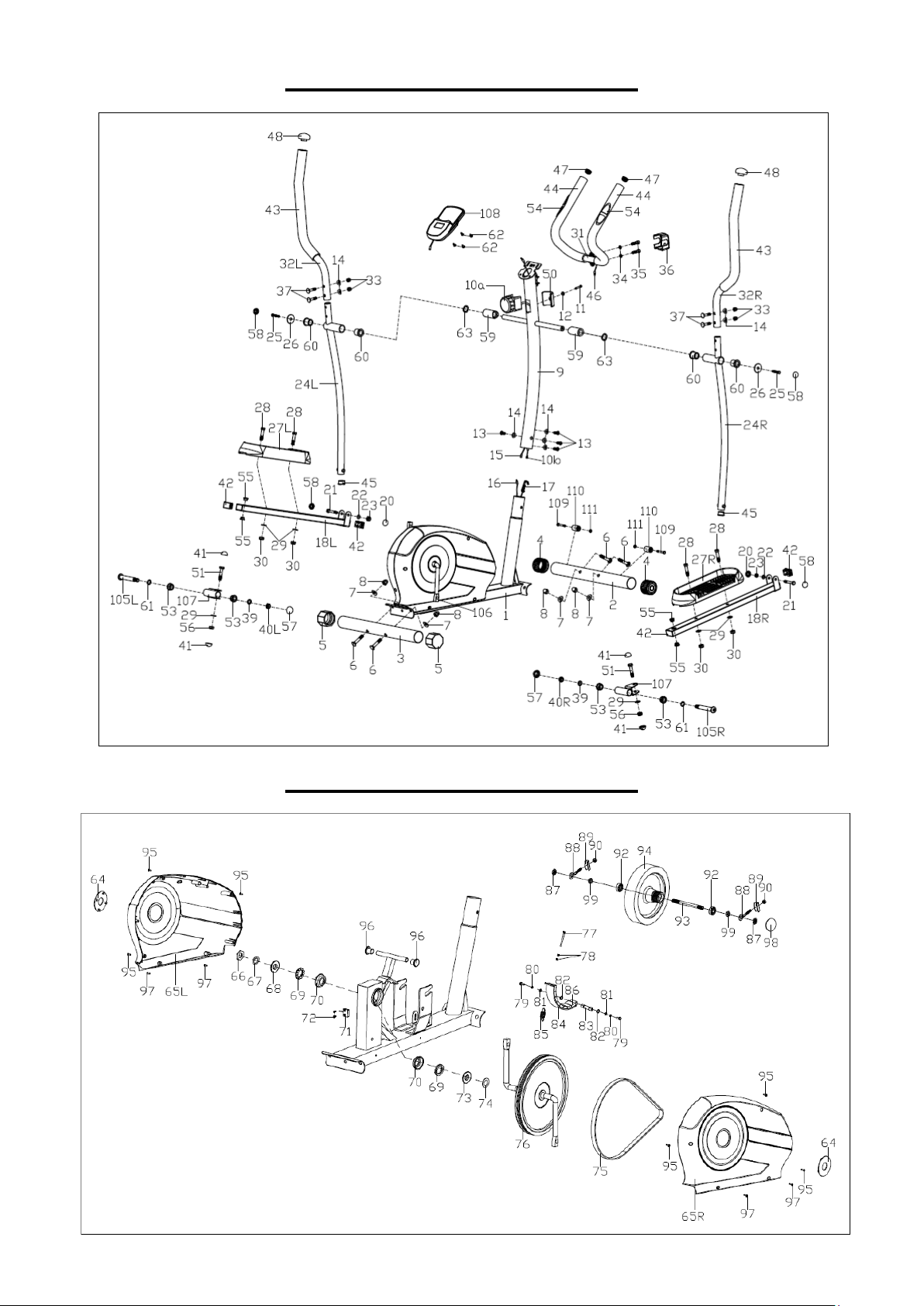

The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the
front of the manual)
Please contact us at [e-mail] or 1-877-90SUNNY (877-907-8669).

5
ASSEMBLY INSTRUCTION
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY
(877-907-8669).
STEP 1:
Remove 2 Paper Tubes (No. A) from the
Main Frame (No. 1).
Remove 4 Carriage Bolts (No. 6), 4 Arc
Washers (No. 7) and 4 Domed Nuts (No.
8) from the Front Stabilizer (No. 2) and
Rear Stabilizer (No. 3) using Spanner (No.
101).
Attach the Front Stabilizer (No. 2) and
Rear Stabilizer (No. 3) onto the Main
Frame (No. 1), secure with 4 Carriage
Bolts (No. 6), 4 Arc Washers (No. 7) and 4
Domed Nuts (No. 8) that were just remove
by Spanner (No. 101).
Note: Ensure that all bolts and washers are
in place and partially threaded in before
completely tightening any of them.
STEP 2:

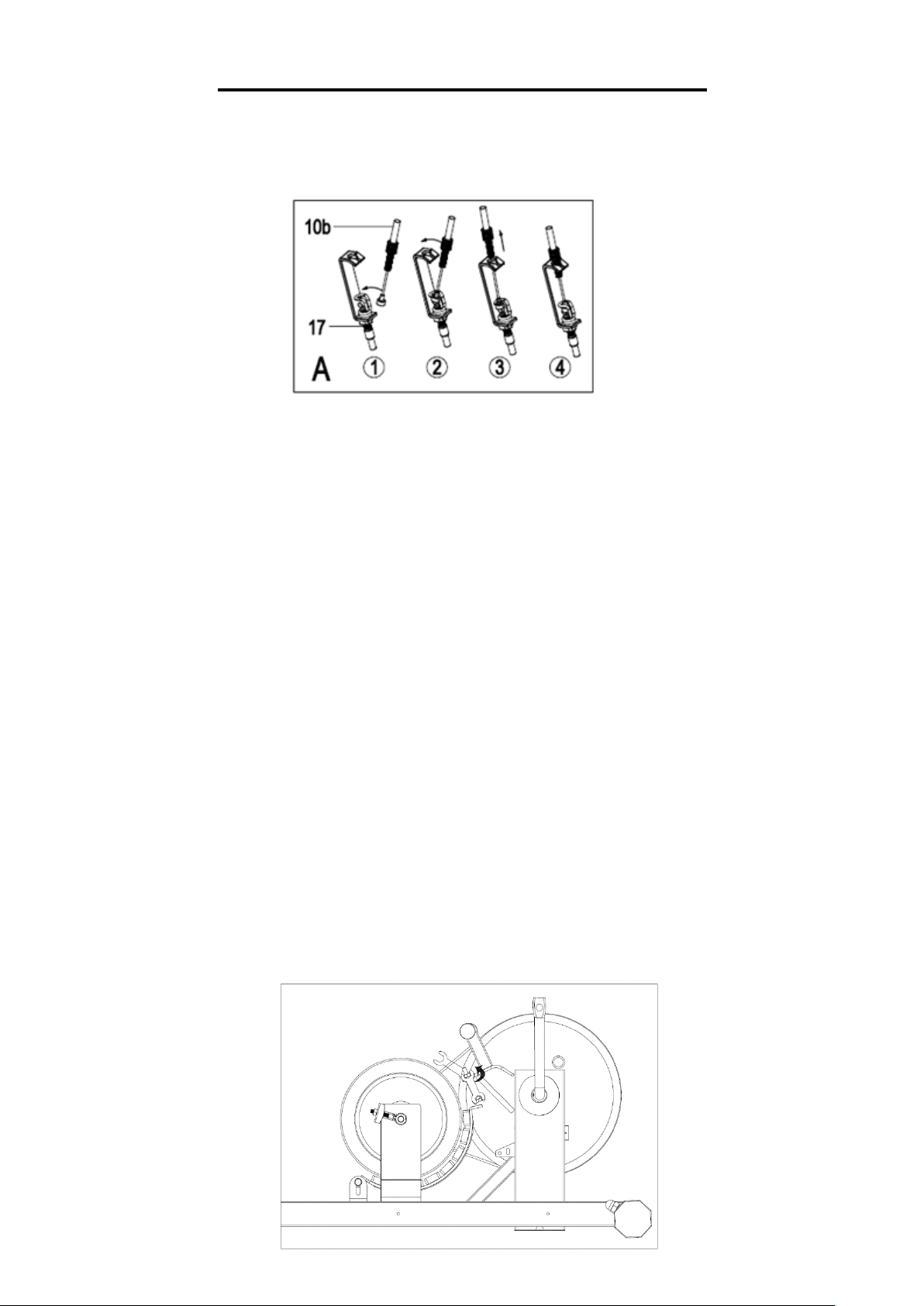

A: Connect the Lower Sensor Wire (No.
16) to the Upper Sensor Wire (No. 15), and
then connect Tension Hook (No. 17) with
Tension Cable (No. 10b)
as shown in
Diagram A.
Note: Make sure the Tension Controller
(No. 10a) is at the lowest level before you
connect the Tension Cable (No. 10b). This
ensures the wires are at their longest point.
We recommend the assistance of a second
person to help hold the Handlebar Post
(No. 9). This will make the connection easier
when you are attaching Tension Hook (No.
17) to Tension Cable (No. 10b).
B: Remove the preassembled 4 Allen Bolts
(No. 13) and 4 Arc Washers (No. 14)from
the Main Frame (No. 1)
. Insert the
Handlebar Post (No. 9) into the post of the
Main Frame (No. 1); secure with 4 Allen
Bolts (No. 13) and 4 Arc Washers (No. 14)
that were just removed with Allen Wrench
(No. 102).
Note: Ensure that all bolts and washers are
in place and partially
threaded in before
completely tightening any of them.

6
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY
(877-907-8669).
STEP 3:
A: Remove the preassembled 2 Wave
Washers (No. 63), 2 Hex Bolts (No. 25)
and 2 Flat Washers (No. 26) from the
long axle of the Handlebar Post (No. 9).
Then attach the 2
Swing Bars (No.
24L/R) to the long axle of the Handlebar
Post (No. 9) with 2 Wave Washers (No.
63), 2 Hex Bolts (No. 25) and 2 Flat
Washers (No. 26)
that were just
removed with Spanner (No. 100).
Note: Please do not fully tighten at this
time.
Attach the Connecting Joint (No. 107)
on the Left Pedal Support Tube (No.
18L) to the Left Crank Arm (No. 106)
with 1 Left Hinge Bolt (No. 105L), 1
Wave Washer (No. 61). Turn the Left
Hinge Bolt (No. 105L)
counter-clockwise as tightly as you can
with your hand. Secure by tightening 1
Spring Washer (No. 39) and 1 Black
color Nylon Nut (No. 40L) clockwise.
Then use Allen Wrench (No. 103) and
Spanner (No. 101) to tighten securely.
Attach the Connecting Joint (No. 107)
on the Right Pedal Support Tube (No.
18R) to the Right Crank Arm (No. 106)
with 1 Right Hinge Bolt (No. 105R), 1
Wave Washer (No. 61). Turn the Right
Hinge Bolt (No. 105R) clockwise as
tightly as you can with
your hand.
Secure by tightening 1 Spring Washer
(No. 39) and 1 White color Nylon Nut
(No. 40R) counter-clockwise. Then use
Allen Wrench (No. 103) and Spanner
(No. 101) to tighten securely.
Note: Please do not fully tighten at this
time.
Remove the preassembled 2 Hex Bolts
(No. 21), 2 Flat Washers (No. 22) and 2
Nylon Nuts (No. 23) from 2 Pedal
Support Tubes (No. 18L/R).Then
fasten the 2 Swing Bars (No. 24L/R)
and the 2 Pedal Support Tubes (No.
18L/R) tightly with 2 Hex Bolts (No. 21),
2 Flat Washers (No. 22) and 2 Nylon
Nuts (No. 23) that were just removed
using Spanner (No. 100) and Spanner
(No. 104).
Fasten 2 Hex Bolts (No. 25)
and 2
Nylon Nuts (No. 40L/R)
tightly now.
Then cover with the 12 Nut Caps (No.
20 & 58 & 57 & 41).

7
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY
(877-907-8669).

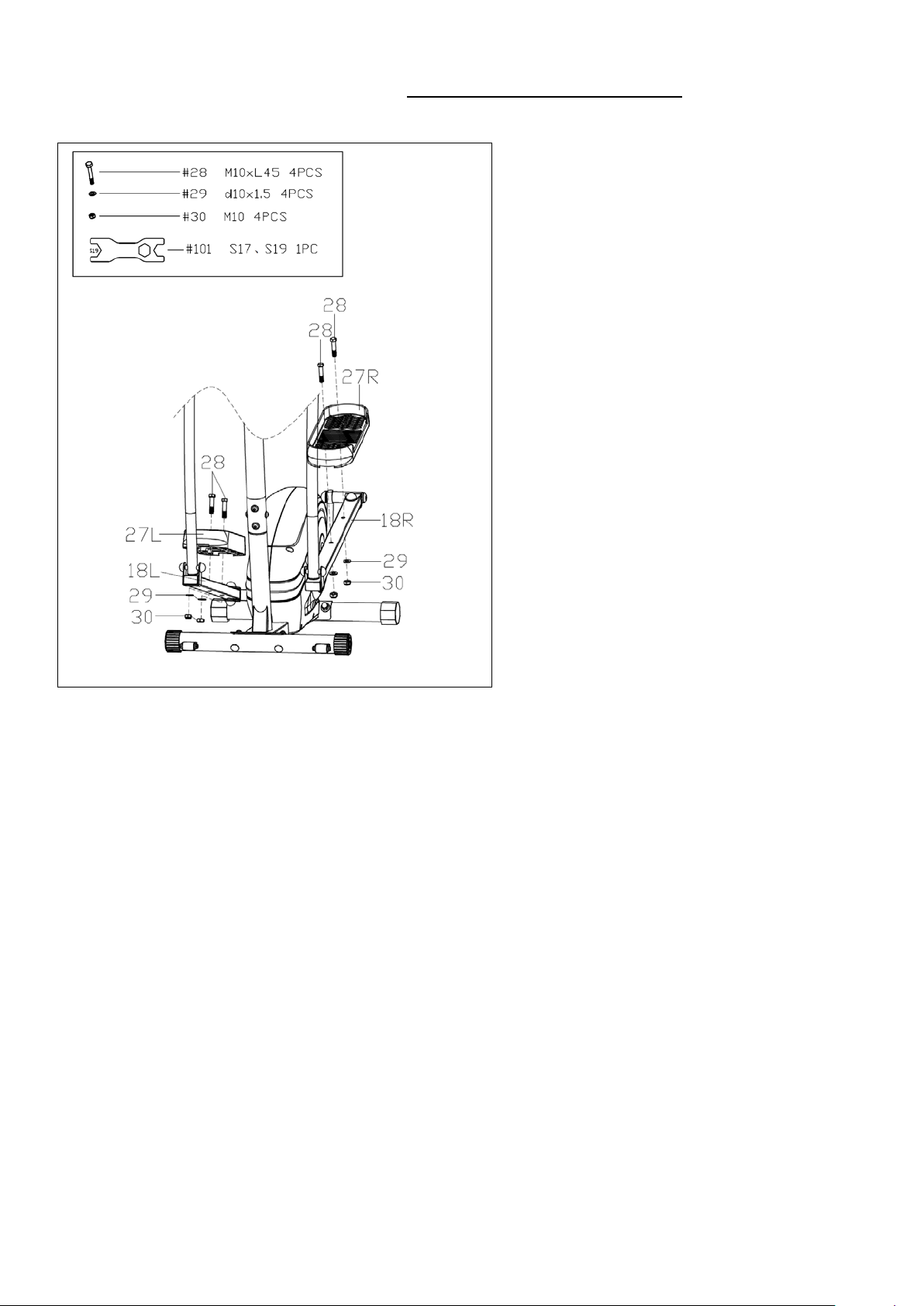

STEP 4:
Secure the 2 Pedals (No. 27L/R) to the
2Pedal Support Tubes (No. 18L/R)
respectively using 4
Hex Bolts (No.
28), 4 Flat Washers (No. 29) and 4
Nylon Nuts (No. 30) using Spanner
(No. 101).
CAUTION:
Both pedals are labeled; L for LEFT
and R for RIGHT.

8
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [e-mail] or 1-877-90SUNNY
(877-907-8669).
STEP 5:
A: Attach Armrest (No. 31)
to the
Handlebar Post (No. 9) in place.
Secure it with 2 Spring Washers (No.
34) and 2 Hex Bolts (No. 35) using
Allen Wrench (No. 102). Finally attach
the Decorative Cover (No. 36) onto the
Armrest (No. 31).
B: Attach the 2
Handlebars (No.
32L/R) on the 2
Swing Bars (No.
24L/R) with 4 Carriage Bolts (No. 37),
4 Arc Washers (No. 14) and 4 Domed
Nuts (No. 33) using
Spanner (No.
104).
Note: If the Handlebar (No. 32L/R)
rubs against the Armrest (No. 31)
during the workout,
please recheck if
the Handlebar (No. 32L/R) is
assembled correctly. You should attach
Handlebar (No. 32L/R) to Swing Bar
(No. 24L/R)
according to the label
marked with L or R.
STEP 6:
Remove the preassembled 4 Phillips
Screws (No. 62) from the Meter (No.
108) with Spanner (No. 100).
Plug the Pulse Sensor Wire (No. 46) to
the jack on the back of the Meter (No.
108).Then connect the Upper Sensor
Wire (No. 15) to the wire from the
Meter (No. 108).
Attach the Meter (No. 108)to the
bracket of the Handlebar Post (No. 9)
using 4Phillips Screws (No. 62) that
were just removed with Spanner (No.
100).
Note:
To avoid damaging the wires,
please push them into the Handlebar
Post (No. 9) before secure the Meter
(No. 108)onto the bracket.
THE ASSEMBLY IS COMPLETE!

9
ADJUSTMENTS & USAGE GUIDE
1. If you find there is no difference between tension level 1 to level 8, please check the
connection of the tension cable. Please see Diagram A under Step 2.

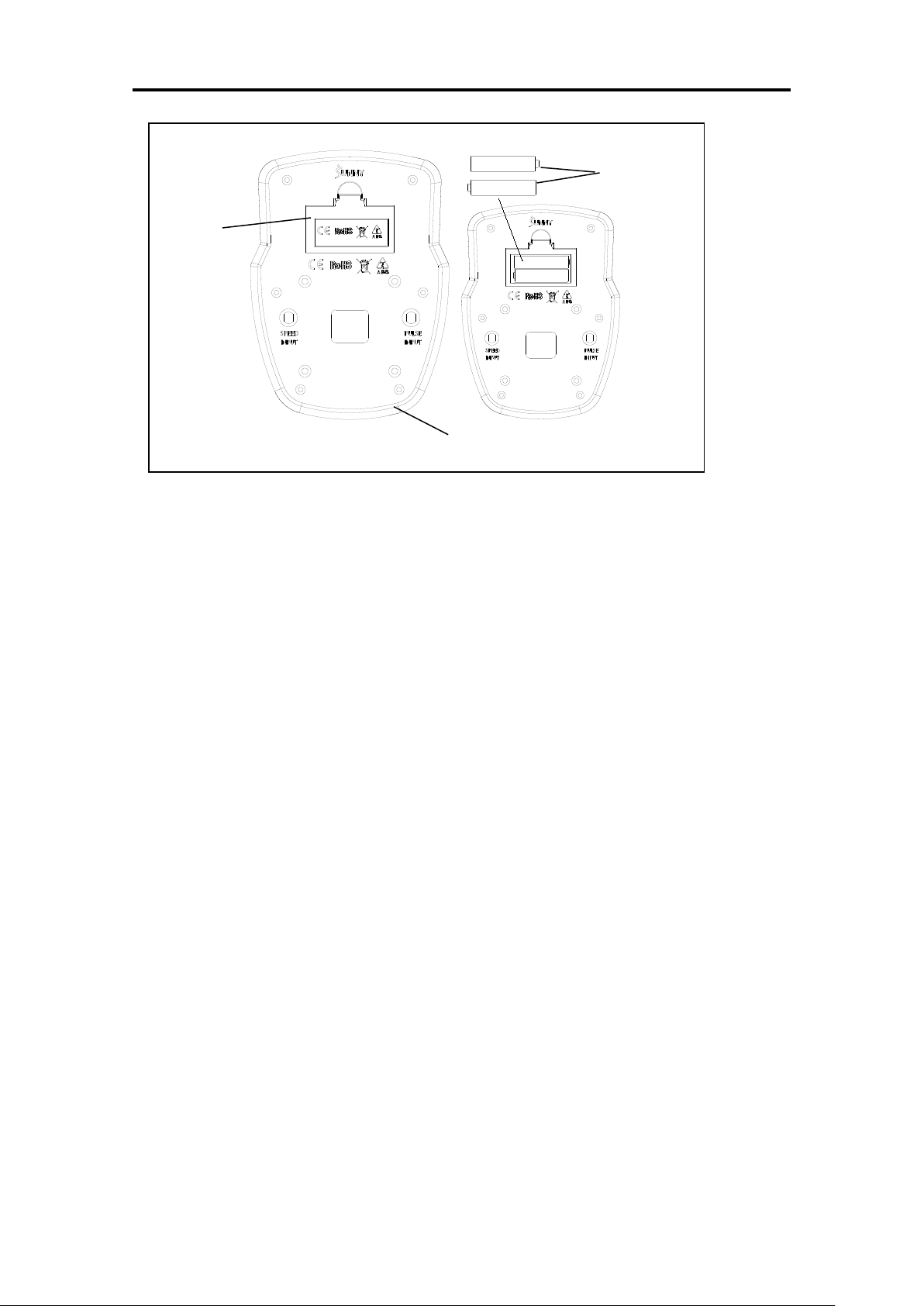

2. If the meter does not show numbers correctly, please check the batteries. If the meter
does not count the speed and time, please check the connections of Upper Sensor Wire
(No. 15) to the Meter (No. 108)and Upper Sensor Wire (No. 15) to Lower Sensor Wire
(No. 16).
3. If you have difficulty putting Hinge Bolts (No. 105L/R) into the Crank Arm (No. 106),
please try moving the Crank Arm (No. 106)to a different angle. *Keep in mind the Left
Hinge Bolt (No. 105L) has reversed threading and must be installed by turning
counter-clockwise.
4. If you hear any noise when using the machine, please check if Hinge Bolts (No. 105L/R),
Hex Bolts (No. 21), Hex Bolts (No. 25) and Connecting Joints (No. 107) are loose.
You may remove these parts and add some lubricant oil to eliminate all noise possibilities.
Remember to tighten all the parts securely.
5. If it is very hard to pedal on the higher tension levels, or you hear rubbing noises, please
remove the Belt Cover (No. 65L/R), and adjust the screw seen in the following diagram.
You will need to lower the position of the screw by turning counter-clockwise. This will
keep the Magnet Board (No. 84) from contacting the magnetic flywheel. Before
re-installing the Belt Cover (No. 65L/R), test the tension level 8 to ensure the magnets
do not touch the flywheel.

10
6. If you still hear noises after you did Step 4 and Step 5, please remove the Belt Cover
(No. 65L/R). Loosen the screws for the Flywheel (No. 94) about a half of a rotation. See
the following diagram below.
7. If you feel the machine is uneven, please adjust the Leveler Cap (No. 5) on Rear
Stabilizer (No. 3) by turning it. If the machine is wobbly when you use it, please consider
adding an exercise mat under it.

11
ADJUSTMENT GUIDE
HOW TO MOVE THE ELLIPTICAL
There are Transporting Wheels(No.
110) located on the Front Stabilizer (No.
2). Hold the Armrest (No. 31)
on the
Main Frame (No. 1) and press down the
front of the elliptical off the floor. Now you
can move the elliptical.
ADJUSTING THE LEVEL
If at any point the elliptical does not feel
level, you can adjust the Leveler Caps
(No. 5).
ADJUSTING THE TENSION
Adjust the tension by rotating the Tension
Controller (No. 10a) clockwise to
increase the level of resistance. Rotate
the Tension Controller (No. 10a)
counter-clockwise to decrease the level of
resistance.
Tension levels are set at Level 1 being the
lowest and Level 8 being the highest.

12
BATTERY INSTALLATION & REPLACEMENT
BATTERY INSTALLATION
1. Take out 2 AAA batteries from computer box.
2. Press the buckle of battery cover on the Meter (No. 108), then remove battery cover.
3. Install 2 AAA batteries into the battery case on the back of the Meter (No. 108). Pay
attention to the battery + and – poles before installing.
4. Press the buckle of battery cover, then put the battery cover back to the back of the Meter
(No. 108).
The installation is complete!
BATTERY REPLACEMENT
1. Press the buckle of battery cover on the back of the Meter (No. 108), then remove battery
cover.
2. Remove the 2 old AAA batteries in the battery case and install 2 new AAA batteries into the
battery case on the back of the Meter (No. 108). Pay attention to the battery + and – poles
before installing.
3. Press the buckle of battery cover, then put the battery cover back to the back of the Meter
(No. 108).
The replacement is complete!
BATTERY DISPOSAL
Dispose the batteries according to the laws and regulations of your local region. Some
batteries may be recycled. When disposing or recycling, do not mix battery types.
Battery
Battery
Cover
108

13
EXERCISE METER
1. KEY FUNCTION
This key lets you select and lock on to a particular
function you want.
SCAN→TIME→SPEED(SPD)→DISTANCE(DIST)
→CALORIES(CAL)→TOTAL DIST(ODO) →RPM
→PULSE
Pressing and hold for 3 seconds to reset the value to
zero(without ODO).
2. SLEEP MODE
The system turns off automatically if no activity or keys
pressed for approximately 4 minutes.
The system turns on when the MODE key is pressed or activity is signaled.
3. FUNCTION
SCAN : Meter will rotate through all functions every 6 seconds.
TIME : Counts the total time from starting to finish.
SPEED: Displays the current speed.
DISTANCE : Counts the distance of an exercise from start to finish.
CALORIE : Counts total calories burned during exercise from start to finish.
TOTAL DIST: Counts the total distance with from start to finish. If the battery is
replaced, the value returns to zero.
RPM: The average number of wheel turns per minute to measure the speed of the
pedal.
PULSE : The current pulse rate.
4. SPECIFICATIONS
FUNCTION
SCAN
Every 6 seconds
TIME
0:00-99:59 (M :S)
SPEED
0.0~999.9 KPH(MPH)
DIST
0.00~999.9 KM(MILE)
ODO
0.0~999.9 KM(MILE)
CAL
0.0~999.9 KCAL
PULSE RATE
40~240 BPM
BATTERY
SIZE-AAA, 2PCS
Operating temperature 0~40℃(32℉-104℉)
Storage temperature -10~60℃(14℉-140℉)

14
APP CONNECTION:
1. Scan the QR code below to download the SunnyFit app onto your mobile device.
2. If this is your first time using the SunnyFit app, follow the in-app instructions to register for
your free SunnyFit account and log in.
3. Ensure that the Bluetooth function is turned on from your mobile device.
4. To connect the equipment to the SunnyFit app:
a. From the “Workout” tab, press on the “Search” button to search for your equipment.
b. Once your equipment appears on the list, tap the “Select” button to confirm.
c. Note: If your equipment does not appear on the "Searching for Equipment" list, check
the EXERCISE COMPUTER on your equipment to ensure that it is not in sleep mode
and your phone's Bluetooth function is on, then tap "Retry" to search again.
d. Once your equipment shows up on the “Workout” tab as “Currently Selected”, your
equipment is now ready to display, track, and record your equipment’s workout stats
on the app!
5. If you are unable to replicate these steps,or have any other issues with the SunnyFit app,
please contact SunnyFit supportat [e-mail], or use the in-app “Contact Us’
form to request support (“Me” tab -> “Contact Us”).

15
EXPLODED DIAGRAM 1
EXPLODED DIAGRAM 2

16
PARTS LIST
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Main Frame
1
56
Nylon Nut
M10
2
2
Front Stabilizer
1
57
Nut Cap
S19
2
3
Rear Stabilizer
1
58
Nut Cap
S14
4
4
End Cap
2
59
Spacer
Φ32×59
2
5
Leveler Cap
2
60
Axle Bushing 2
4
6
Carriage Bolt
M10×L57
4
61
Wave Washer
Φ17.1×Φ23×0.3
2
7
Arc Washer
Φ10×1.5×Φ25×R28
4
62
Phillips Screw
M5x10
4
8
Domed Nut
M10
4
63
Wave Washer
Φ20×Φ28×0.6
2
9
Handlebar Post
1
64
Crank Cover
2
10a
Tension Controller
1
65L/R
Belt Cover
1pr.
10b
Tension Cable
1
66
Nut
1
11
Phillips Screw
1
67
Washer
1
12
Flat Washer
1
68
Two-slot Nut
1
13
Allen Bolt
M8×20
4
69
Ball Bearings
2
14
Arc Washer
Φ20×D8.5×R25
8
70
Bearing Housing
2
15
Upper Sensor Wire
1
71
Sensor
1
16
Lower Sensor Wire
1
72
Bolt
ST3×10
2
17
Tension Hook
1
73
Three-slot Nut
1
18L/R
Pedal Support Tube
1pr.
74
Big Washer
1
19L/R
Refer to #105L/R
-
75
Belt
1
20
Nut Cap
S13
2
76
Belt Pulley
1
21
Hex Bolt
M8×55
2
77
Hex Bolt
M6×55
1
22
Flat Washer
D8×1.5
2
78
Hex Nut
M6
2
23
Nylon Nut
M8
2
79
Hex Bolt
M6×L15
2
24L/R
Swing Bar
1pr.
80
Spring Washer
Φ6
2
25
Hex Bolt
M8×15
2
81
Flat Washer
D6
2
26
Flat Washer
Φ8.2×Φ32×2
2
82
Axle Stop Ring
2
27L/R
Pedal
1pr.
83
Magnetic Board Axle
1
28
Hex Bolt
M10×L45
4
84
Magnetic Board
1
29
Flat Washer
D10×1.5
6
85
Spring
1
30
Nylon Nut
M10
4
86
Square Magnet
8
31
Armrest
1
87
Hex Thin Nut
M10×1
2
32L/R
Handlebar
1pr.
88
Adjusting Belt Bolt
M6×50
2
33
Domed Nut
M8
4
89
Adjusting U Washer
2
34
Spring Washer
D8×1.5
2
90
Hex Nut
M6
2
35
Hex Bolt
M8×30
2
91
N/A
36
Decorative Cover
1
92
Bearing
6000
2
37
Carriage Bolt
M8×40
4
93
Flywheel Axle
1
38
Refer to #108
-
94
Flywheel
1
39
Spring Washer
Φ13×B2
2
95
Bolt
ST4.3×20
6
40L/R
Nylon Nut
B0.5×20
1pr.
96
Plug
2
41
Nut Cap
S17
4
97
Bolt
ST5×20
4
42
Square End Cap
4
98
Plastic Nut
S17
1
43
Foam Grip
2
99
Nut
M10×1.0
2
44
Foam Grip
2
100
Spanner
S13, S14, S15
1
45
Round End Cap
2
101
Spanner
S17, S19
1
46
Pulse Sensor Wire
1
102
Allen Wrench
S6
1
47
Spherical Cap
2
103
Allen Wrench
S8
1
48
Mushroom Cap
2
104
Spanner
S13, S14
1
49
Refer to #106
-
105L/R
Hinge Bolt
Φ16×85
1pr.
50
Tension Controller Cover
1
106
Crank Arm
1
51
Hex Bolt
M10×50
2
107
Connecting Joint
2
52
Refer to #107
-
108
Meter
1
53
Axle Bushing 1
4
109
Hex Bolt
M6×L45
2
54
Pulse Sensor
2
110
Transporting Wheel
2
55
Alloy Bushing
4
111
Nylon Nut
M6
2
Version 1.0
