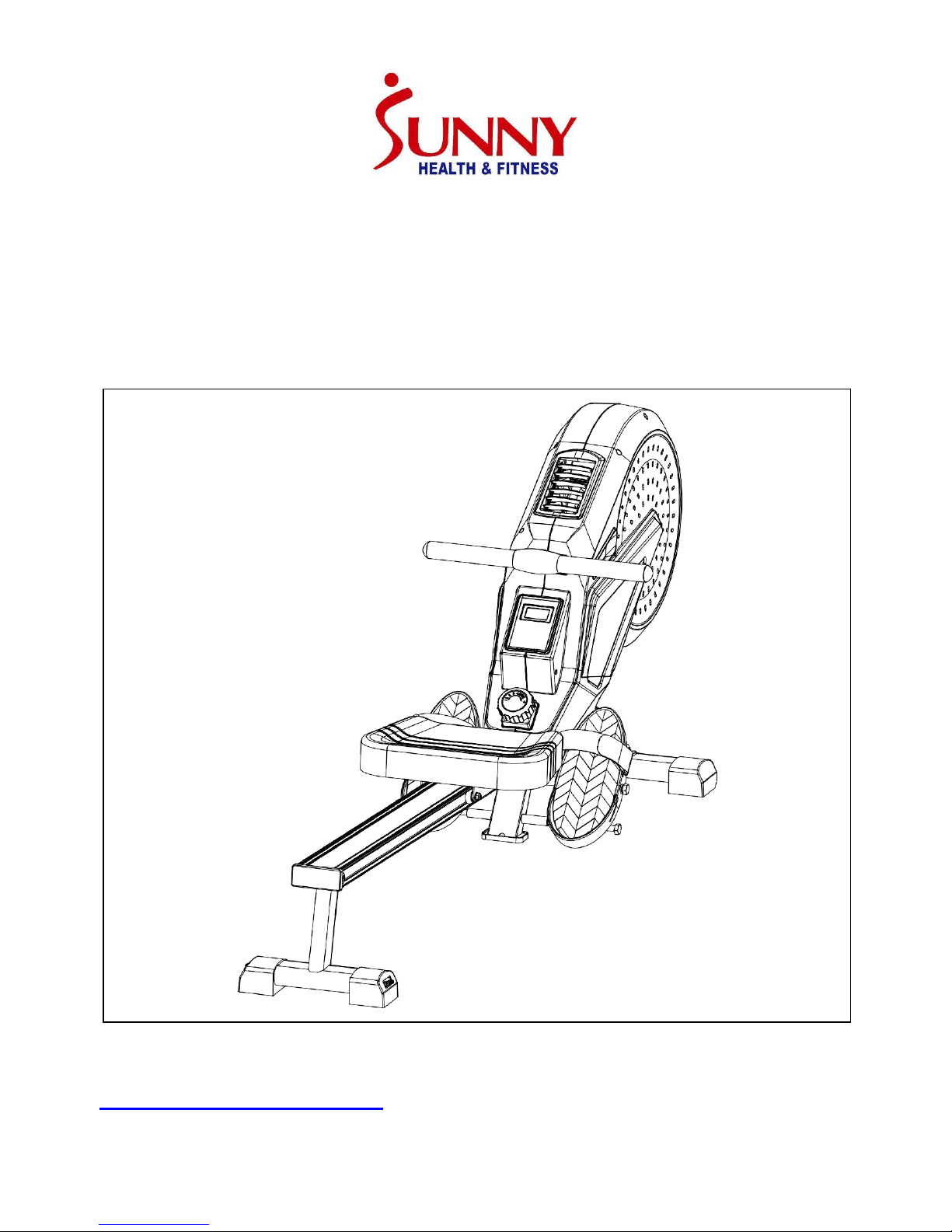

Sunny SF-RW5623 User manual

AIR MAGNETIC ROWER
SF-RW5623
USER MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain owner’s
manual for future reference. For customer service, please contact:
[email protected]

1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using
the equipment. Safe and effective use can only be assured if the equipment is assembled,
maintained, and used properly. It is your responsibility to ensure that all users of the
equipment are informed of all warnings and precautions.
1. Before starting any exercise program you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk, or
prevent you from using the equipment properly. Your physician’s advice is essential if you are
taking medication that affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before
continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use
only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 feet (60 CM) of free space all around
it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety
of the equipment can only be maintained if it is regularly examined for damage and/or wear
and tear.
6. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from the
equipment during exercise, discontinue use of the equipment immediately and do not use until
the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment
9. The maximum weight capacity of this unit is 250 pounds (113 kg).
10.The equipment is not suitable for therapeutic use.
11.To avoid bodily injury and/ or damage to the product or property, proper lifting and moving is
required.
12.Your product is intended for use in cool, dry conditions. You should avoid storage in extreme
cold, hot or damp areas as this may lead to corrosion and other related problems.
13.This equipment is designed for indoor and home use only! It is not intended for commercial
use!
WARNING: This product can expose you to one or more chemicals known to the State
of California to cause cancer and birth defects or reproductive harm. For more
information go to www.P65Warnings.ca.gov.

2

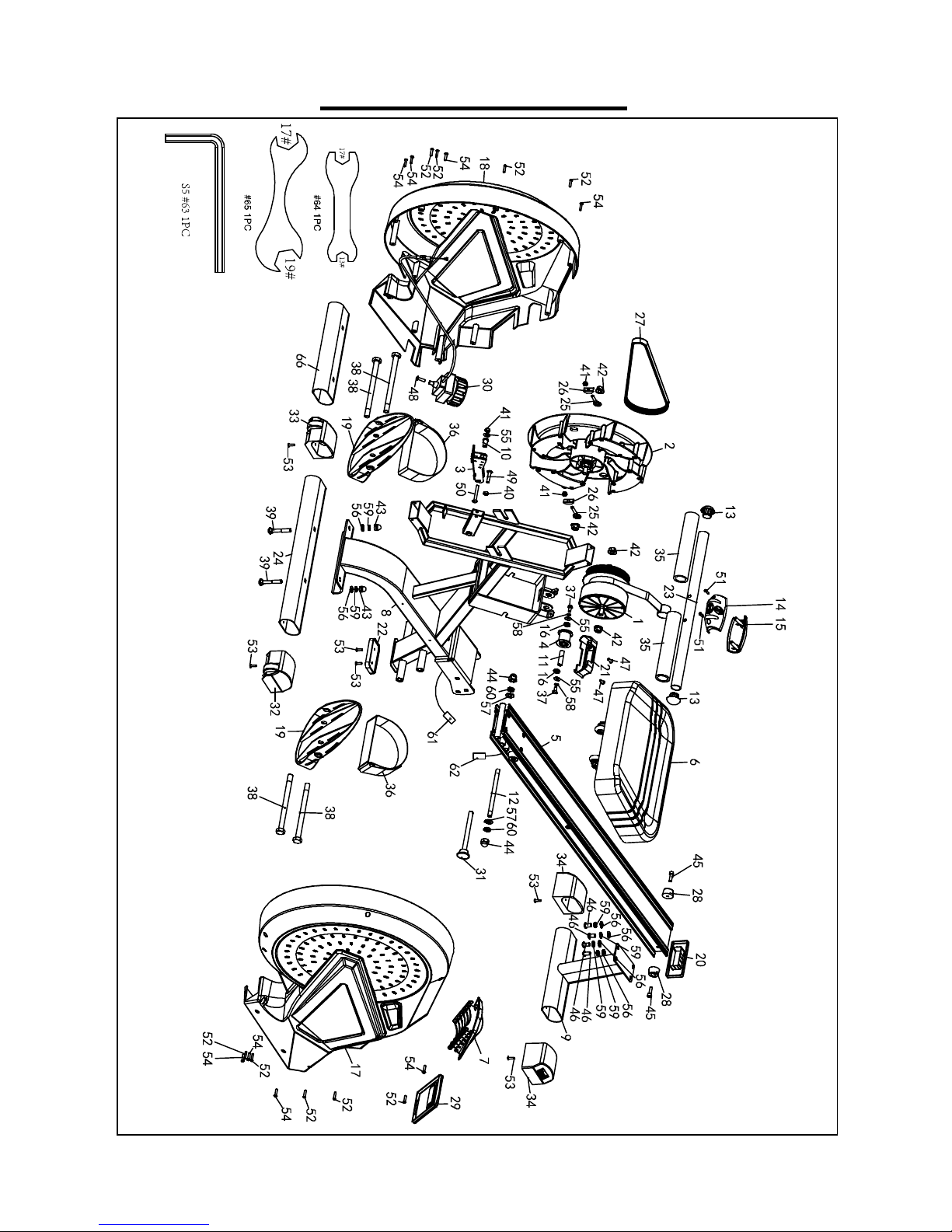

EXPLODED DIAGRAM

3
HARDWARE PACKAGE
….…………………………………………………..#59 Φ8.4*Φ13.5 4PCS
…….………………………………………………..#56 Φ8.5*Φ16.0 4PCS
……………………………………………………..#46 M8x15 4PCS
………………………………………...………….….#44 M10 2PCS
………………………………………………….#60 Φ10.2*Φ16.6 2PCS
…………………………..………………………#57 Φ10.3*Φ20.0 2PCS
…………………….…………….#38 M12x160 4PCS
………………...…………………………….......#12 1PC
………………………………………......#31 1PC
S5 #63 1PC #64 1PC #65 1PC

4
PARTS LIST
No.
Description
QTY
No.
Description
QTY
1
Coil Spring
1
34
End Cap
2
2
Fan Wheel
1
35
Foam Grip
2
3
Magnetic Control
1
36
Velcro
2
4
Mesh Belt Pulley
1
37
Bolt M6x12
2
5
Sliding Rail
1
38
Bolt M12x160
4
6
Seat
1
39
Bolt M8x55
2
7
Air Plane
1
40
Nut M6
1
8
Main Frame
1
41
Nut M6
3
9
Rear Support
1
42
Nut M10
4
10
Magnet Seat
1
43
Cap Nut M8
2
11
Axle for Mesh Belt Wheel
1
44
Cap Nut M10
2
12
Connecting Rod
1
45
Screw M6x20
2
13
End Cap
2
46
Screw M8x15
4
14
Front Decorative Cover
1
47
Screw M5x12
2
15
Rear Decorative Cover
1
48
Screw M5x20
1
16
T Shape Washer
2
49
Screw M6x30
1
17
Left Belt Cover
1
50
Screw M6x45
1
18
Right Belt Cover
1
51
Screw ST4.2x15.0
2
19
Pedal
2
52
Screw ST4.2x20.0
9
20
End Cap
1
53
Screw ST4.2x15.0
6
21
Belt Decorative Cover
1
54
Screw ST4.2x20.0
8
22
Rubber Pad
1
55
Washer Φ6.5*Φ16.0*T1.0
3
23
Handlebar
1
56
Washer Φ8.5*Φ16.0*T1.5
6
24
Front Stabilizer
1
57
Washer Φ10.3*Φ20.0*T2.0
2
25
Bolt
2
58
Spring Washer Φ6.1*Φ9.3*T1.6
2
26
U Shape Seat
2
59
Spring Washer Φ8.4*Φ13.5*T2.5
6
27
Mesh Belt 320J6
1
60
Spring Washer Φ10.2*Φ16.6*T3.0
2
28
Limit Mat
2
61
Trunk Wire
1
29
Computer
1
62
Sensor Wire
1
30
Tension Control Knob
1
63
Allen Wrench S5
1
31
Pull Pin
1
64
Spanner #13-#17
1
32
End Cap L
1
65
Spanner #17-#19
1
33
End Cap R
1
66
Shipping Tube
1

5
ASSEMBLY INSTRUCTIONS
.…………………#39 M8x55 2PCS
………………………...#43 M8 2PCS
…………………#59 Φ8.4*Φ13.5 2PCS
…………………#56 Φ8.5*Φ16.0 2PCS
#64
.…………………#39 M8x55 2PCS
………………………...#43 M8 2PCS
…………………#59 Φ8.4*Φ13.5 2PCS
………………….#56Φ8.5*Φ16.0 2PCS
#64
………#38 M12x160 4PCS
#65
STEP 1:
Remove the preassembled Cap Nuts (No. 43)
and remove the Washers (No. 56), Spring
Washers (No. 59), Bolts (No. 39) and
Shipping Tube (No. 66).
You may discard Shipping Tubes (No. 66)or
save it in case you’d like to repackage the item
in the future.
STEP 2:
Attach Front Stabilizer (No. 24) to Main
Frame (No. 8) using 2 Bolts (No. 39), 2 Cap
Nuts (No. 43),2Spring Washers (No. 59) and
2 Washers (No. 56) that were removed from
Shipping Tube (No. 66).Tighten and secure
with Spanner (No. 64). A
t
t
a
c
h
F
r
o
n
t
S
t
a
b
i
l
i
z
e
r
(
N
o
.
2
4
)
t
STEP 3:
Attach the 2 Bolts (No. 38) into the bottom
holes in position B of Main Frame (No. 8) with
Spanner (No. 65).
Insert the 2 Bolts (No. 38) through the Pedals
(No. 19) into the upper holes in position A of
Main Frame (No. 8) and tighten with Spanner
(No. 65).
NOTE: The Pedals (No. 19) should rest on the
Bolts (No. 38) that are in position B.

6
………………………………#28 2PCS
……………………#45 M6x20 2PCS
S5 #63
………………..#46 M8x15 4PCS
………………#59 Φ8.4*Φ13.5 4PCS
………………#56 Φ8.5*Φ16.0 4PCS
S5 #63
……………….#57 Φ10.3*Φ20.0 2PCS
………………#60 Φ10.2*Φ16.6 2PCS
………………………#44 M10 2PCS
…………………#31 1PC
………………….#12 1PC
#64 #65

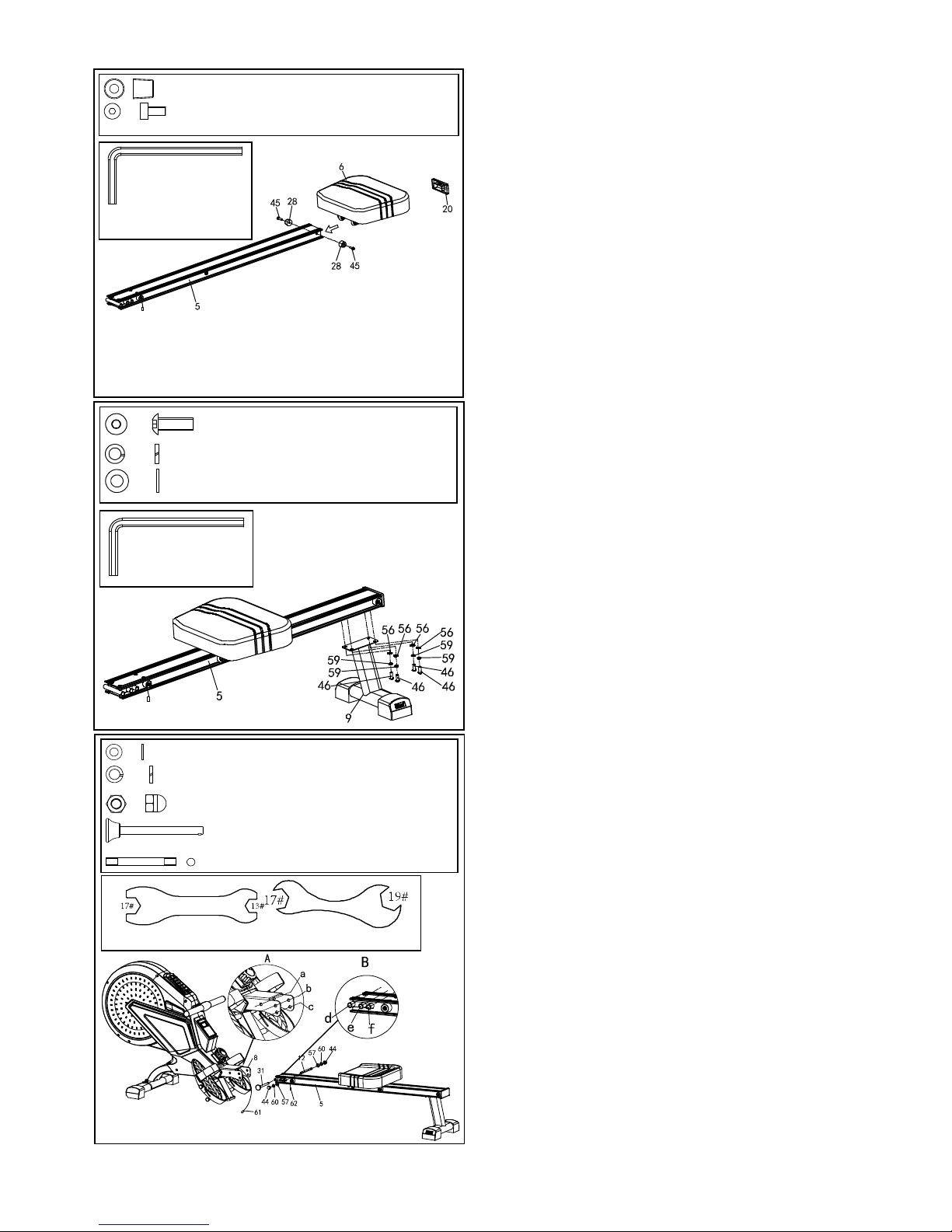

STEP 4:
Remove the 2 Screws (No. 45) and 2 Limit
Mats (No. 28) pre-assembled on Sliding Rail
(No. 5) with Spanner (No. 63). Then remove
End Cap (No. 20) pre-assembled on Sliding
Rail (No. 5).
Insert the Seat (No. 6) onto Sliding Rail (No. 5).
Attach the End Cap (No. 20) onto Sliding Rail
(No. 5).
Attach Limit Mat (No. 28) onto Sliding Rail
(No.5) using 2 Screws (No. 45). Tighten and
secure with Spanner (No. 63).
STEP 5:
Attach Sliding Rail (No. 5) onto Rear Support
(No. 9) using 4 Screws (No. 46), 4 Spring
Washers (No. 59) and 4 Washers (No. 56).
Tighten and secure with Allen Wrench (No. 63).
STEP 6:
To attach Sliding Rail (No. 5) with Main Frame
(No. 8) align hole (f) (FIG.B) of the Sliding Rail
(No. 5) with hole (b) (FIG.A) of the Main Frame
(No. 8), insert Connecting Rod (No. 12)
through the holes on (b, and f), then attach 2
Washers (No. 57), 2 Spring Washers (No. 60)
and 2 Cap Nuts (No. 44). Tighten and secure
with Spanner (No. 64), and Spanner (No. 65).
Next, align (d) (FIG.B) of Sliding Rail (No. 5)
with hole (a) (FIG.A) of Main Frame (No. 8),
then insert Pull Pin (No. 31).
Connect Trunk Wire (No. 61) with Sensor Wire
(No.62).
The assembly is complete!
The assembly is now complete!

7
ADJUSTMENT GUIDE
PEDAL STRAP ADJUSTMENT
MOVING THE MACHINE
To move the machine, lift up the rear stabilizer
until the transportation wheels on the front
stabilizer touch the ground. With the wheels on
the ground, you can transport the rower to the
desired location with ease.
ADJUSTING THE BALANCE
Adjust the End Caps (No. 34) on the rear stabilizer
of the machine if the machine is unbalanced during
use.
ADJUSTING THE RESISTANCE
Rotate the Tension Control Knob (No. 30)
clockwise to increase the level of resistance. Rotate
the tension control counter-clockwise to decrease
the level ofresistance.
Tension levels are set at Level 1 being the lowest and
Level 8 being thehighest.
CAUTION!
Keep hands and fingers clear of the sliding rail while in
use. Moving parts such as the seat can cause injury.
The pedal strap is
adjustable and can
be personalized to
fit the user’s foot
size.

8

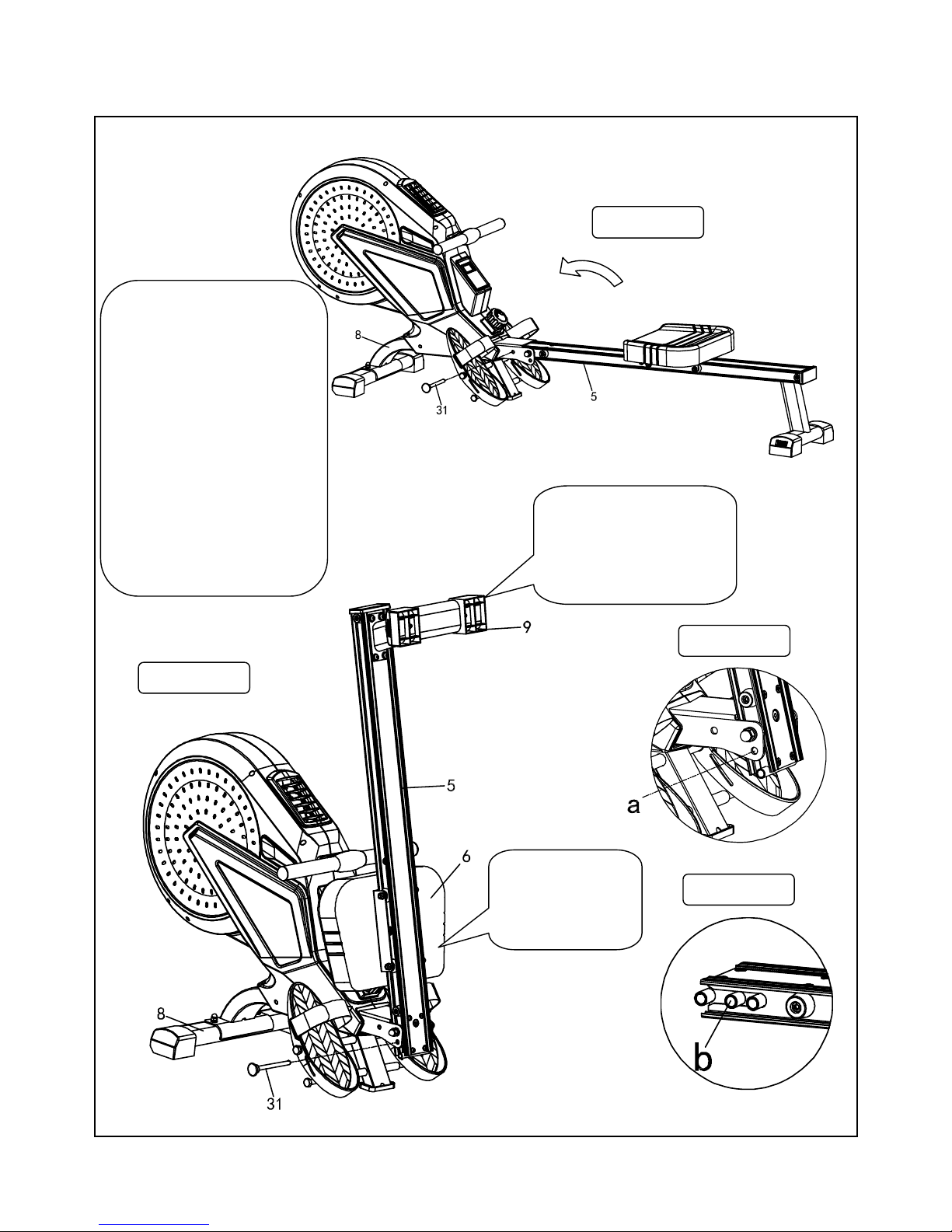

FOLDING THE MACHINE
CAUTION!
Move with caution when
you vertically fold the
Sliding Rail (No. 5) as
your head may touch the
Rear Support (No. 9).
Figure B
When not in use, you can save
space by folding the Sliding
Rail (No. 5).
1. Pull out the Pull Pin (No.
31). Fold the sliding rail to
vertical angle (Figure A).
SAFETY NOTE: the saddle will
glide down when folding the
sliding rail.
2. Align the hole (b) (Figure C)
of Sliding Rail (No. 5) with
hole (a) (Figure D) of Main
Frame (No. 8), then insert the
Pull Pin (No. 31) (Figure B).
Figure A
Figure D
Figure C
CAUTION!
The saddle will
glide down when
folding the sliding
rail!

9

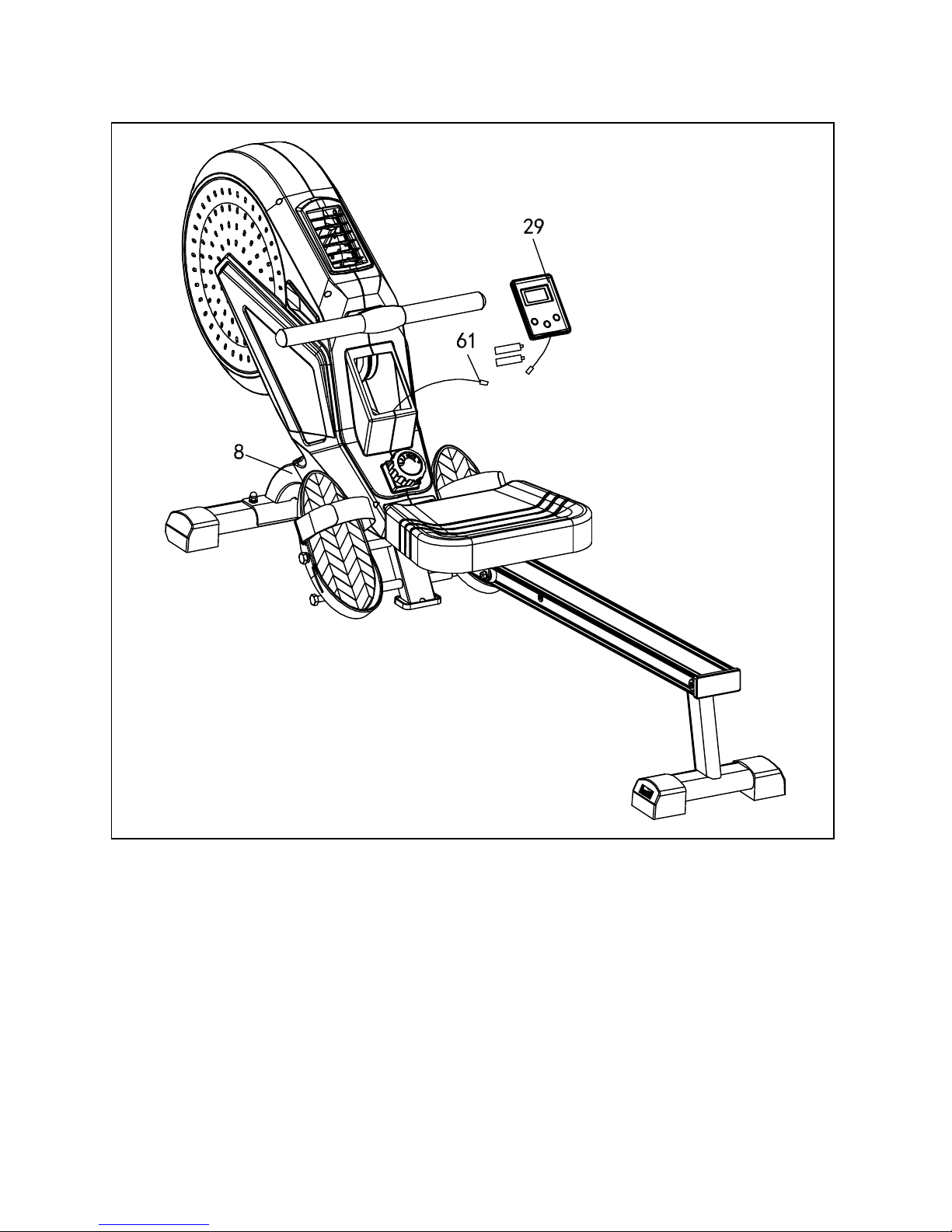

REPLACE THE BATTERY
Two AAA batteries are included in the Meter (No. 29).
To replace the batteries, remove the computer from Main Frame (No. 8), and disconnect the
Trunk Wire (No. 61) and the link wire of computer. Replace both batteries. Do not mix battery
types and do not mix old and new batteries.
After the replacement, connect Trunk Wire (No. 61) with the link wire of computer and put the
computer back into the Main Frame (No. 8).
Dispose or recycle batteries according to your state and local guidelines.

10

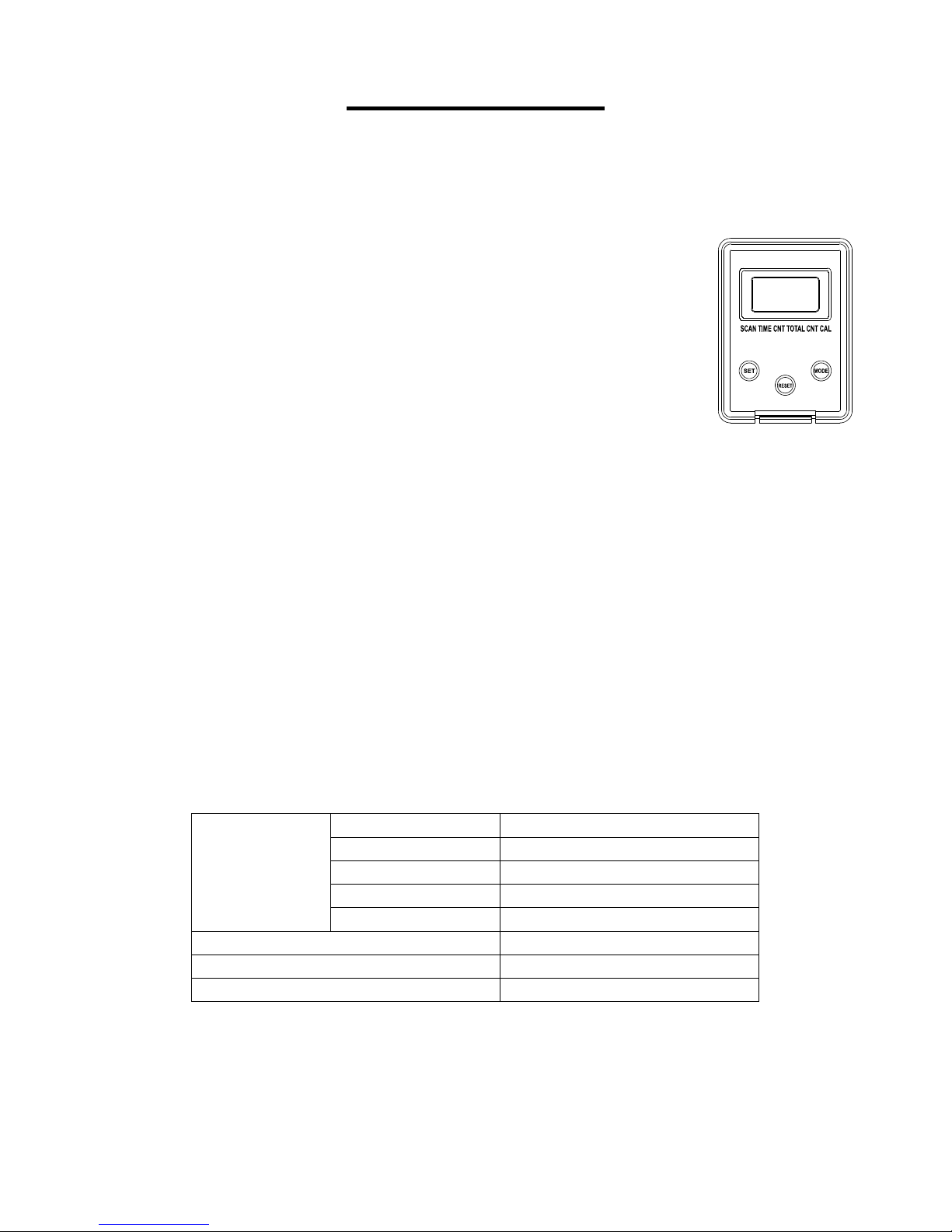

EXERCISE METER
Our computerized display console on the Sunny Air Magnetic Rower allows you to tailor a
personalized workout by monitoring your progress. During a workout, the display console will
alternately and repeatedly display your Time, Count, Calories Burned, Total Count, and Scan
(all of the above). With our easy-to-use console, you can efficiently track your fitness
improvements from one workout to the next.
FUNCTION KEY:
1. MODE: To select your specification mode and/or turn on display console.
2. SET: To set a value of Time, Count or Calories (when not in Scan mode).
3. RESET: Press to reset Time, Count or Calories. Press and hold for about
3 seconds to reset all values, expect Total Count.
FUNCTIONS AND OPERATIONS:
1. Scan: Press MODE button until SCAN appears. THE display will rotate through the five
functions in the following order: TIME, COUNT, CALORIES, and TOTAL COUNT. Each
function will display for 4 seconds.
2. TIME: Counts the total time elapsed during your current workout.
3. COUNT: Counts the number of rowing strokes from your current workout.
4. CAL: Counts the total calories burned during current workout.
5. TOTAL COUNT: Counts the total amount of strokes from the first use.
6. AUTO ON/OFF & AUTO START/STOP:
The power will turn off automatically once there’s no signal for 4 minutes. The meter will
reactive once the machine is put into or when a meter key is pressed.
COUNTDOWN:
You can set the value of Time, Count or Calories to countdown.
1. Press MODE to select a function. Make sure you are in SCAN mode.
2. Press SET to select the value you want. You can press RESET to clear the value.
3. When the display stops flashing, start rowing and the machine will start to countdown.
SPECIFICATIONS
FUNCTIONS
SCAN
Every 6 seconds
TIME
0:00~99:59 (Minute:Second)
COUNT
0~9999 Count
CALORIES
0.0~999.9~9999 Kcal
TOTAL COUNT
0~9999 hundred count
BATTERY TYPE
(2)Two AAA
OPERATING TEMPERATURE
0°C ~40°C
STORAGE TEMPERATURE
-10°C ~ 60°C
Version 3.1

11
