Sunrise Medical Quickie Smart Seat Operator's manual

Quickie®Smart Seat
Power Recline / Power Tilt and Recline
User Instruction Manual & Warranty
Quickie®Smart Seat (Asiento Inteligente Quickie®)
Reclinado Eléctrico / Inclinación y Reclinado Eléctrico
Manual de Instrucciones y Garantía para el Usuario
Quickie®Smart Seat (Fauteuil Intelligent Quickie®)
Inclinaison électrique / basculement-inclinaison électrique
Mode d’Emploi et Garantie

930473 Rev. B
2English I. Sunrise Listens / II. Table of Contents
I. SUNRISE LISTENS
Thank you for choosing a Quickie seating system. We want to hear your questions or com
ments about this manual, the safety and reliability of your seating system, and the service
you receive from your Sunrise supplier. Please feel free to write or call us at the address
and telephone number below:
SUNRISE MEDICAL
Customer Service Department
7477 East Dry Creek Parkway
Longmont, Colorado 80503
[phone] or [phone]
Be sure to return your warranty card, and let us know if you change your address. This will
allow us to keep you up to date with information about safety, new products and options
to increase your use and enjoyment of this seating system.
If you lose your warranty card, call or write, and we will gladly send you a new one.
FOR ANSWERS TO YOUR QUESTIONS
Your authorized supplier knows your seating system best and can answer most of your
questions about seating system safety, use and maintenance. For future reference, fill in
the following:
Supplier: _______________________________________________________________
Address: _______________________________________________________________
_______________________________________________________________________
Telephone: _____________________________________________________________
Serial #:________________________________ Date/Purchased: _________________
II. TABLE OF CONTENTS
I. SUNRISE LISTENS ........................................................................... 2
II. TABLE OF CONTENTS ....................................................................... 2
III. YOUR SEATING SYSTEM & ITS PARTS ................................................. 4
IV. NOTICE – READ BEFORE USE............................................................ 5
V. ELECTROMAGNETIC INTERFERENCE (EMI) .......................................... 6
A.General....................................................................................... 6
B.What Is EMI?............................................................................... 6
C.What Effect Can EMI Have?............................................................ 6
D.Sources of EMI............................................................................. 6
E.Distance from the Source .............................................................. 6
F. Immunity Level............................................................................ 7
G.Report All Suspected EMI Incidents ................................................ 7
VI. SAFETY.......................................................................................... 8
A.Instruction.................................................................................. 8
B.Safety Checklist ........................................................................... 8
C.Notice to Rider ............................................................................ 8
D.Notice to Attendants .................................................................... 8

930473 Rev. B
E.Operation.................................................................................... 8
F. Environmental Conditions.............................................................. 8
G.Weight Limit ............................................................................... 9
H.Upholstery Fabric ......................................................................... 9
I. Positioning Belts.......................................................................... 9
J. Controller Settings ....................................................................... 9
K.Tilting, Reclining, Elevating Legrests .............................................. 9
L. Changes & Adjustments................................................................. 9
VII. SET-UP PROCEDURE ........................................................................ 10
A.General....................................................................................... 10
B.Step by Step Set up Procedure ....................................................... 10
C.Programming Using the QMAC Pendant Programmer........................... 11
VIII. OPERATING INSTRUCTIONS– ELECTRONIC .......................................... 13
A.To Operate the Smart Seat Through the Remote Joystick.................... 13
B.To Operate the Smart Seat Using a 5 Switch Control Device................ 13
C.To Operate the Smart Seat Through Specialty Drive Controls ............... 13
IX. OPERATING INSTRUCTIONS– MECHANICAL......................................... 14
A.Notes ......................................................................................... 14
B.Tools You Will Need ...................................................................... 14
C.Lateral Thoracic Supports .............................................................. 15
D.Headrest ..................................................................................... 15
E.Armrest Height ............................................................................ 15
F. Armrest Angle.............................................................................. 15
G.Arm Troughs................................................................................ 15
H.Jay® Solid Backrest– Height Adjustment.......................................... 15
I. Foam Back .................................................................................. 15
J. Seat Depth.................................................................................. 16
K.Backrest Pivot Point ..................................................................... 16
L. Legrest ....................................................................................... 17
M.Seat Frame Tilt Stop Pads.............................................................. 17
N.Check Out ................................................................................... 17
X. OPERATING INSTRUCTIONS– USE...................................................... 18
A.Swing Away Footrests ................................................................... 18
B.Power Elevating & Articulating Legrest............................................ 18
C.Armrest ...................................................................................... 18
XI. MAINTENANCE ............................................................................... 19
A.Notes ......................................................................................... 19
B.Cleaning ..................................................................................... 19
C.Storage Tips ................................................................................ 19
D.Ordering Parts.............................................................................. 19
E.Re Home Seat Function................................................................. 19
F. Maintenance Chart ....................................................................... 20
XII. TROUBLESHOOTING......................................................................... 20
XIII. WIRING DIAGRAM .......................................................................... 21
XIV. WARRANTY .................................................................................... 22
II. Table of Contents 3
English

930473 Rev. B
4English III. Your Seating System & Its Parts

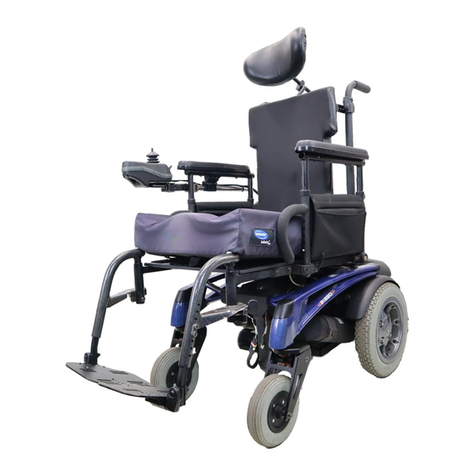

III. YOUR SEATING SYSTEM & ITS PARTS
QUICKIE SMART SEAT
Quickie Smart Seat
1. Remote Joystick
2. Height Adjustable Armrest
3. Backrest
4. Headrest
5. Back Support Shroud
6. Vent Tray (optional)
7. Backrest Pivot Plate
8. S 626 Power Base
9. Angle Adjustable Foot Plate
10. Calf Pad
11. Elevating Legrest (optional)
12. Seat Pan
1
2
34
5
6
7
8
9
10
11
12
oystick
Standard– remote (right hand or left
hand mount)
Option– Swing away retractable joystick
Seat Frame Dimensions
Seat frame width– standard: 14" 24"
Seat depth– 14" 22" adjustable
Solid seat back
Aluminum seat pan
Optional cushions: Jay®cushions
CG Tilt: 3° - 50°
Recline: 85° - 175°
Backrest
Standard– Non folding 18" 29"
Footrest
Standard– Swing away with angle
adjustable footplates and heel loops.
Option– elevating legrests, multi posi
tion, power ELR, power ALR
Armrests
Standard– Reclining, height adjustable,
with pad or trough
Swing-Away Lateral Thoracic Supports
Option– Curved or Straight
Headrest
Standard– 8" x 5" or 7" x 4"
Headrest pad

930473 Rev. B
IV. Notice– Read Before Use 5
English
IV. NOTICE– READ BEFORE USE
A. CHOOSE THE RIGHT SEATING SYSTEM & SAFETY OPTIONS
Sunrise provides a number of power seating system styles, sizes and adjustments to meet
the needs of the rider. However, final selection of a seating system rests solely with you
and your health care professional. Choosing the best seating system for you depends on
such things as:
1. Your size, disability, strength, balance and coordination.
2. Your intended use, and your level of activity.
3. The types of hazards you must overcome in daily use (in areas where you are likely to
use your seating system).
4. The need for options for your safety and comfort (such as positioning belts).
B. AD UST SEATING SYSTEM TO YOUR ABILITY
You need to work with your doctor, nurse or therapist, and your supplier, to fit this seating
system and adjust the controller settings for your level of function and ability.
C. REVIEW THIS MANUAL OFTEN
Before using this seating system you, and each person who may assist you, should read
this entire Manual and make sure to follow all instructions. Review the warnings often,
until they are second nature to you.

930473 Rev. B
6English V. Electromagnetic Interference (EMI)
V. ELECTROMAGNETIC INTERFERENCE (EMI)
A. GENERAL
1. Heed all warnings to reduce the risk of unintended seating system movement.
2. Beware of the danger from hand held transceivers. Never turn on or use a hand held
transceiver while power to your seating system is on. Use extra care if you believe
that such a device may be in use near your seating system.
3. Be aware of nearby radio or TV stations, and avoid coming close to them.
4. If unintended movement occurs, turn your seating system off as soon as it is safe to
do so.
B. WHAT IS EMI?
1. EMI means: electromagnetic (EM) interference (I). EMI comes from radio wave sources
such as radio transmitters and transceivers. (A “transceiver” is a device that both
sends and receives radio wave signals).
2. There are a number of sources of intense EMI in your daily environment. Some of
these are obvious and easy to avoid. Others are not, and you may not be able to
avoid them.
3. Powered seating systems may be susceptible to electromagnetic interference (EMI)
emitted from sources such as radio stations, TV stations, amateur radio (HAM) trans
mitters, two way radios, and cellular phones.
4. EMI can also be produced by conducted sources or electro static discharge (ESD).
C. WHAT EFFECT CAN EMI HAVE?
1. EMI can cause your seating system, without warning, to:
•Move by itself.
•Move in unintended directions.
If either of these occurs, it could result in severe injury to you or others.
2. EMI can damage the control system of your seating system. This could create a safety
hazard and lead to costly repairs.
D. SOURCES OF EMI
The sources of EMI fall into two broad types:
1. Hand-Held Transceivers:
The antenna is usually mounted directly on the unit. These include:
•Citizens band (CB) radios
•“Walkie talkies”
•Security, fire and police radios
•Cellular phones
•Lap top computers with phone or fax
•Other personal communication devices
NOTE– These devices can transmit signals while they are on, even if not in use. Transceivers: these
include two way radios used in police cars, ambulances and taxicabs. The antenna is usually
mounted on the outside of the vehicle.
2. Long-range Transceivers:
These include commercial radio and TV broadcast antenna towers and amateur (HAM) radios.
NOTE– The following are not likely to cause EMI problems: Lap top computers (without phone or fax),
cordless phones, TV sets or AM/FM radios, CD or tape players.
E. DISTANCE FROM THE SOURCE
EM energy rapidly becomes more intense as you get closer to the source. For this reason,
EMI from hand held devices is of special concern. (See C:1 above) A person using one of
these devices can bring high levels of EM energy very close to your seating system without
you knowing it.

930473 Rev. B
V. Electromagnetic Interference (EMI) 7
English
F. IMMUNITY LEVEL
The level of EM energy is measured in volts per meter (V/m). Every power seating system
can resist EMI up to a certain level. This is called its “immunity level”.
The higher the immunity level, the less the risk of EMI. It is believed that a 20 V/m immu
nity level will protect the power seating system user from the more common sources of
radio waves.
The configuration tested and found to be immune to at least 20 V/m is: Quickie S 626
power seating system with a right hand mounted QTRONIX remote joystick system, 20" seat
width, 18" seat depth, dual post height adjustable armrests, elevating legrests and GP 24
gel cell batteries.
The following specialty input devices were not tested with the above listed power chair
configuration; therefore, their immunity level is unknown. These items include:
• Breath Control • Ribbon Switch
• Heavy Duty Switched Joystick • Disc Switch
• Proportional Head Control • Buddy Button
• Wafer Board • Micro Light
• Tri Switch Head Array • Star Board
• Proportional Mini Joystick/Chin Control • Penta Switch
• Proximity Head Array • Plate Switch
• Zero Touch Switch • Soft Switch
• 4 Zero Touch Switch • Grasp Switch
• 5 Zero Touch Switch • Wobble Switch
• Treadle Switch • 5 Switch Toggle
Individuals with physical limitations requiring the use of a specialty control input device
known not to be immune to 20 V/m, or not known, should exercise extra care around
known sources of EMI.
There is no way to know the effect on EMI if you add accessories or modify this seating
system.
Any change to your seating system may increase the risk of EMI. Parts from other suppliers
have unknown EMI properties.
G. REPORT ALL SUSPECTED EMI INCIDENTS
You should promptly report any unintended movement or brake release. Be sure to indicate
whether there was a radio wave source near your seating system at the time.
Contact: Sunrise Medical Customer Service Department at [phone].

930473 Rev. B
8English VI. Safety Instructions
VI. SAFETY INSTRUCTIONS
A. INSTRUCTION
Your dealer is responsible for instructing you in the safe operation of the seating system. If you do not feel that you have received adequate
instruction, or if you have any questions relating to the system, call your dealer. If you feel that your dealer is not answering any of your ques
tions to your satisfaction, call Sunrise Medical at [phone] or [phone].
B. SAFETY CHECKLIST
Before each use of this seating system:
• Make sure the seating system operates smoothly. Check for noise, vibration, or a change in ease of use. (They may indicate loose fas
teners, or damage to your seating system).
• If you detect a problem, make sure to repair or adjust the seating system. Deferring repair or adjustment could increase the risk for
injury. Your supplier can help you find and correct the problem.
C. NOTICE TO RIDER
1. Before using this seating system, you should be trained in its safe use by your health care professional.
2. Every seating system is different. Take the time to learn the feel of this seating system before you begin riding.
3. Be aware that you must develop your own methods for the safe use of this seating system that are best suited to your level of func
tion and ability.
4. Have someone help you practice bending, reaching and transferring until you learn how to do them safely.
5. Never try a new maneuver on your own unless you are sure it is safe.
6. Get to know the areas where you plan to use your seating system. Look for hazards and learn how to avoid them.
D. NOTICE TO ATTENDANTS
Make sure you heed all warnings and follow all instructions in each section of this manual.
(Be aware that warnings that apply to the rider also apply to you).
E. OPERATION
In order to ensure safe operation of your seating system…
• Never transfer when power is on.
• Never use the controller as a handhold or point of support.
• Always check your surroundings to ensure that there are no obstructions to the motion of the seating system.
• Never use the seat frame or components as a tie down point in a vehicle.
• Never exceed the 250 lbs. (113kg) weight capacity of the seating system.
• Never place hands, feet or any foreign object into the seating system mechanisms.
• Always follow the safety instructions of your seating system.
• Always keep your seating system clean and free of foreign objects.
If you have question or concerns about the operation of your seating system please call your dealer or call Sunrise Medical
at [phone] or [phone].
F. ENVIRONMENTAL CONDITIONS
Your seating system is not designed for use in a heavy rainstorm, or in snowy or icy conditions.
1. Contact with water or excessive moisture can cause an electrical malfunction. The frame, actuators and other seating system parts are
not watertight and may rust or corrode from the inside. To avoid a seating system failure:
•Minimize exposure of your seating system to a rainstorm, or very wet conditions.
•Do not use your seating system in fresh or salt water (such as at the edge of a stream, lake, or ocean).
•Make sure all electrical connections are secure.
•Dry the seating system as soon as you can if it gets wet, or if you use water to clean it.
2. When not in use, keep your seating system in a clean, dry place. Extra caution should be used when employing the disc switch or the
proximity head array as control devices. These two devices are susceptible to malfunction when wet.

930473 Rev. B
G. WEIGHT LIMIT
1. Never exceed a total weight of 250 lbs, for the rider plus carried items. The weight capacity of your seating system is identified by a
label located on the inside cover of the battery compartment door on the power base.
2. Never use this seating system for weight training if the total weight (rider plus weights lifted) exceeds the indicated weight capacity
of the seating system.
3. Exceeding the weight limit is likely to damage the seat, frame or fasteners and may cause severe injury to you or others from seating
system failure.
4. Exceeding the weight limit will void the warranty.
H. UPHOLSTERY FABRIC
1. Replace worn or torn fabric of seat cushion and seat back as soon as you can. Worn fabrics may increase the potential for a fire haz
ard.
2. Be aware that washing may reduce flame retardation of the fabric.
I. POSITIONING BELTS (OPTIONAL)
1. Use a positioning belt only to help support your posture. Improper use of such belts may cause severe injury or death.
2. Make sure you are not at risk to slide down in the seating system seat. If this occurs, you may suffer chest compression or suffocate
due to pressure from the belt.
3. A pelvic wedge or a similar device can help keep you from sliding down in the seat. Consult your health care professional to find out
if you need such a device.
4. The belt must be snug, but must not be so tight that it interferes with breathing. You should be able to slide your open hand, flat,
between the belt and your stomach.
5. Make sure you can easily remove the belt in an emergency.
6. Never use a positioning belt:
•In place of a motor vehicle seat belt. In an accident or sudden stop you may be thrown from the seating system. A positioning belt
will not prevent this, and further injury may result from the belt.
•As a restraint. A restraint requires a doctor’s order.
•On a rider who is comatose or agitated.
. CONTROLLER SETTINGS
Be aware that you may need to adjust the controller settings of your seating system to reduce the risk of fall or tip over.
1. Check and adjust the settings every six to twelve months (or more often, if needed).
2. Consult your supplier to adjust the control settings immediately if you notice any change in your ability to hold your torso erect.
K. TILTING, RECLINING, ELEVATING LEGRESTS
To prevent damage and personal injury, avoid operating these power functions near objects such as walls, tables or chairs. To avoid
injury, ensure other people, especially children, are clear of the system. If using a swing-away abductor, be sure not to tilt with
the abductor swung away. Otherwise, the abductor may collide with the tilt actuator when returning to the untilted position.
L. CHANGES AND AD USTMENTS
Never use non-Quickie parts or make changes to your chair unless authorized by Sunrise. (Doing so will void the warranty and
may create a safety hazard.)
1. If you modify or adjust this chair it may increase the risk of fall or tip over.
2. Modifications unauthorized by Sunrise constitute remanufacturing of the wheelchair. This voids the warranty. The rider then assumes
all future liability for the wheelchair.
VI. Safety Instructions 9
English

930473 Rev. B
10 English VII. Set-up Procedure
VII. SET-UP PROCEDURE
A. GENERAL
Heed all instructions in the order in which they are listed to insure proper function and
maximum benefit of seating system is achieved.
B. STEP BY STEP SET-UP PROCEDURE
Do not seat end user in seating system until indicated in step 4.
1. Have documented results of a Range of Motion (ROM) mat evaluation performed by a
trained healthcare professional. Knowledge of ROM at hip joints, knee joints and
ankles is critical to the proper set up of this seating system. Lack of knowledge of
the ROM of the end user could result in serious injury if the seating system limits are
not set appropriately.
2. Using the QMAC Pendant Programmer operate “System Configuration Reset Chair” fea
ture (described in section VII: C: Configure Profile: System: d). Operating System
Configuration Reset Chair will return all configurable parameters to factory settings
and will forward you automatically into the “Re Home Seat” mode (described in sec
tion VII: C: Configure Profile: System: c). Follow the display's instructions to “Re
Home” actuators by pressing and holding enter. The Re Home process will move all
actuators and could take up to one minute to complete.
3. Configure seating system using the QMAC Pendant Programmer as appropriate for end
user (see section VII: C: Configure Profile). Use results of ROM evaluation to deter
mine appropriate settings for all angles.
a. Recline: Enable, Maximum and Minimum Angle – or Disable. Enable Enhanced
Recline with appropriate angle and threshold – or Disable. (If so equipped)
b. Tilt: Enable, Minimum and Maximum Angle – or Disable. (If so equipped)
c. Left Legrest: Enable, Minimum and Maximum Angle – or Disable. (If so equipped)
d. Right Legrest: Enable, Minimum and Maximum Angle – or Disable. (If so equipped)
e. System: Enable Input Latched – or Disable. Set Drive Lockout, Drive Creep and
Back Rest Limit angles appropriately.
NOTE– Double checking the maximum and minimum angles of all functions using a goniometer to
insure accuracy is recommended.
4. Make all necessary mechanical adjustments to the seating system as appropriate to
fit the end user. These may include:
a. Seat Depth– see section IX: J
b. Back Pivot Point– see section IX: K
c. Back Height– see section IX: H
d. Headrest Position– see section IX: D
e. Lateral Trunk Supports Position– see section IX: C
f. Armrest Position– see section IX: E and F
g. Legrest Position– see section IX: C
h. Other support devices
5. Transfer end user into seating system using safe transfer procedure.
6. Check and adjust, as needed, any configuration limits, as well as support surfaces
and devices.
7. Using the QMAC Pendant Programmer operate the Shear Reduction Program (see sec
tion VII: C: Shear Program).
8. Operate all actuators through input device(s) to verify appropriate limits and shear
reduction are set as intended. (See section VIII: A, B, C)
9. Instruct end user on safe operation of all actuator functions.
